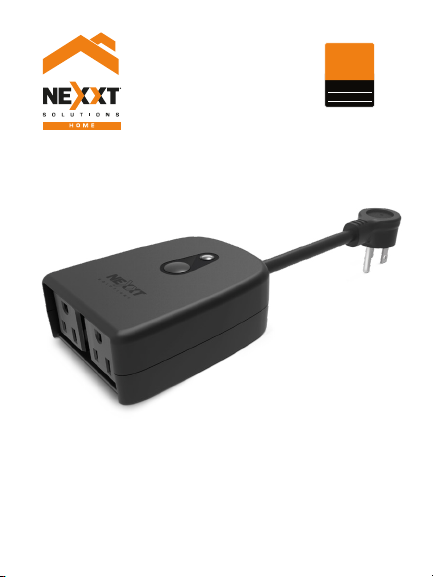

Nexxt Smart Wi-Fi dual plug User manual

WARRANTY
nexxtsolutions.com/warranty
YEAR
2
Smart Wi-Fi dual plug
Outdoor

User guide
Thank you for purchasing the Smart Wi-Fi Outdoor dual
plug from Nexxt Solutions. We are excited to be part of
making your life easier, safer and for bringing peace of
mind into your home.
Package content
• Smart outdoor dual plug
• Silicone outlet cover
• Quick start guide
Product overview
1. AC smart sockets: plug in your device and control it
through the application using your smartphone. Each
outlet can be managed independently.
2. Power button: turns the device on and o.
3. Grounded plug: to safely connect it to a wall AC outlet.
4. LED light: indicates the device operating status.
5. Silicone cover: protects the receptacles from dust,
water, and debris when nothing is plugged in
English
4
3
5
1
2

Status indicator
Green Solid
SolidBlue
Blue/green Solid/
blinking
The smart plug is
connected to the network,
but the device is o
The device is on
In pairing mode, the blue
LED remains ON while the
green LED blinks.
LED
indicator Status Description
* Important safety guidelines
- Suitable for indoor/outdoor and damp locations. Do not
immerse or expose the unit directly to water.
- Plug into a 3-prong outlet, with the unit and cord at least
4.6 ft (1.4m) above ground level, and the receptacles
facing downwards.
- Risk of electrical shock. Do not open, this device does not
contain any user-serviceable parts inside.
Installing the Nexxt Solutions
Home App
Download Nexxt Home app from Google Play or Apple App
Store.
60 %
9:41 AM
Nexxt Home
Nexxt Solutions Home App
Cancel
GET
Accvent LLC
Login with existing account
Create New Account
SOLUTIONS
Iniciarsesión con cuenta existente
Crear Cuenta Nueva
SOLUTIONS
60 %
9:41 AM
Nexxt Home
Nexxt Solutions Home App
Cancel
INSTALL
Accvent LLC

Step 1
Register by email. Fill in the required elds.
Step 2
Enter the verication code you received.
60 %
9:41 AM
Enter verication code
Verication code has been sent to your
60 %
9:41 AM
Register by email
United States of America
Email
Get authentication code

Step 3
Create a new password and then select Completed.
60 %
9:41 AM
Set Password
Completed
6-20 characters, including letters and numbers
Step 4
The Nexxt Solutions Home App account account has been
successfully set up.

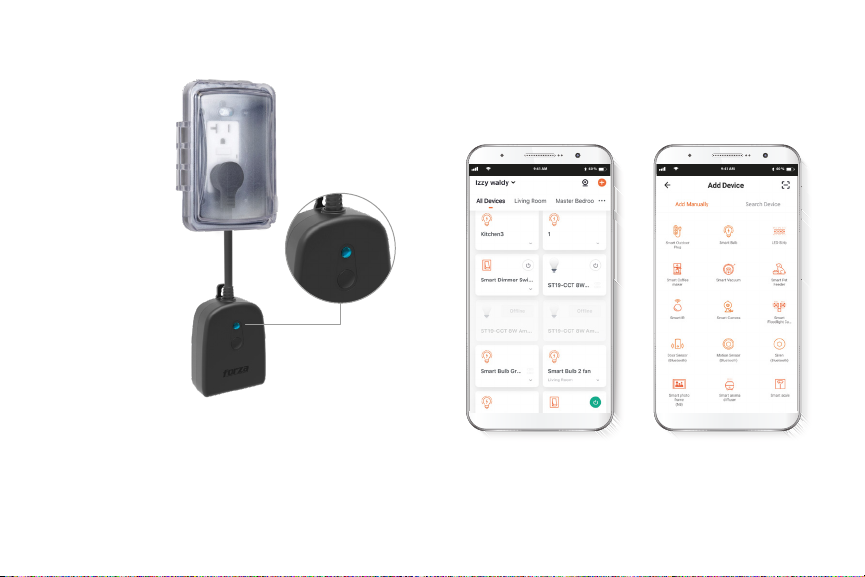

Add device
Step 1
Select Add device, followed by the smart outdoor dual
plug.
Plug in
Plug in the Nexxt Smart dual smart plug and press the
power button to turn it on. Make sure the blue-green LED
on the device is blinking, indicating that it has entered into
the pairing process. This is the default mode. Otherwise,
press and hold the power/reset button until the blue-green
LED light starts ashing to manually restart the device.
60 %
9:41 AM
60 %
9:41 AM

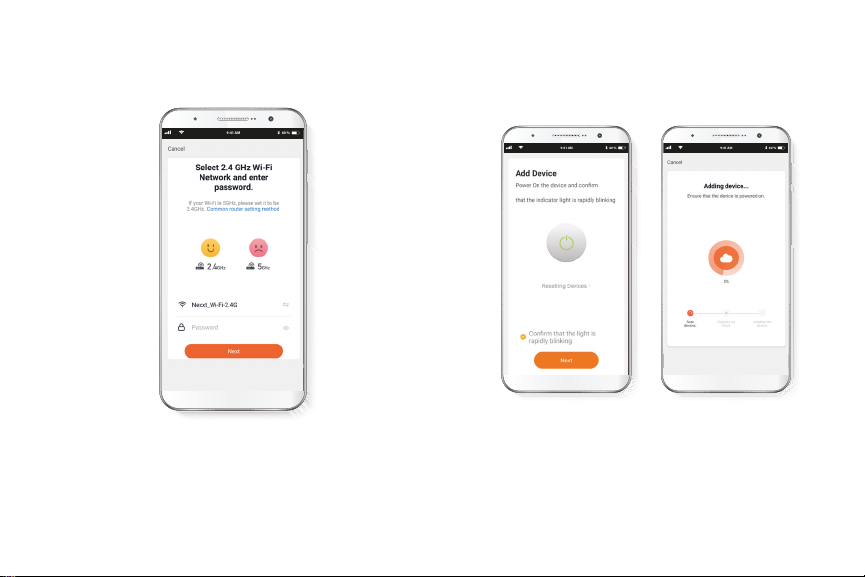

Step 3
Make sure the indicator light on the app is blinking. Tap on
Conrm the indicator light blinks rapidly to continue.
Step 2
You must connect to a 2.4GHz WiFi network. Enter your
network password. Make sure you enter the correct
password, otherwise the device will not connect.
60 %
9:41 AM
60 %
9:41 AM
60 %
9:41 AM

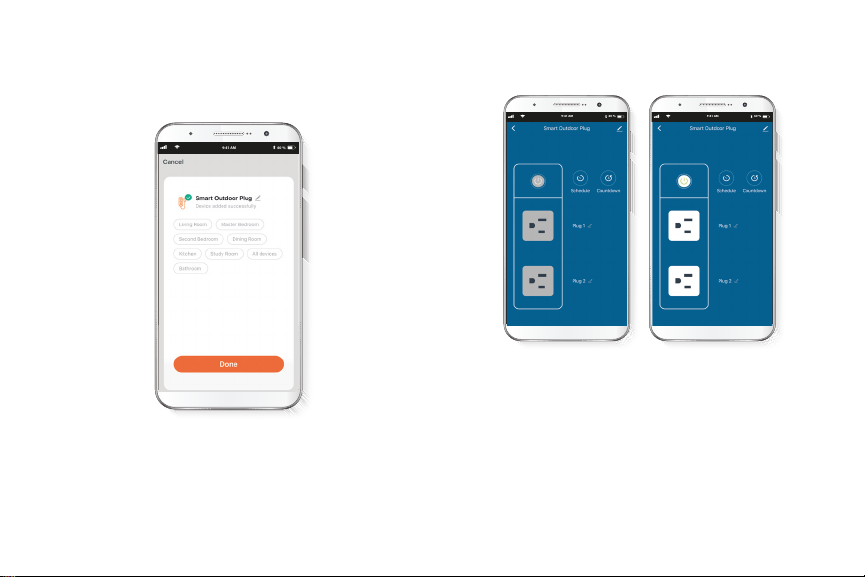

Main device
Main switch
Click on the power button image on the app to turn the
plug on and o.
Plug 1 and plug 2
Check the status of each receptacle and individually turn
each of them on or o.
Step 4
When Device added successfully is displayed, assign a
location and click on Done.
60 %
9:41 AM
60 %
9:41 AM
60 %
9:41 AM

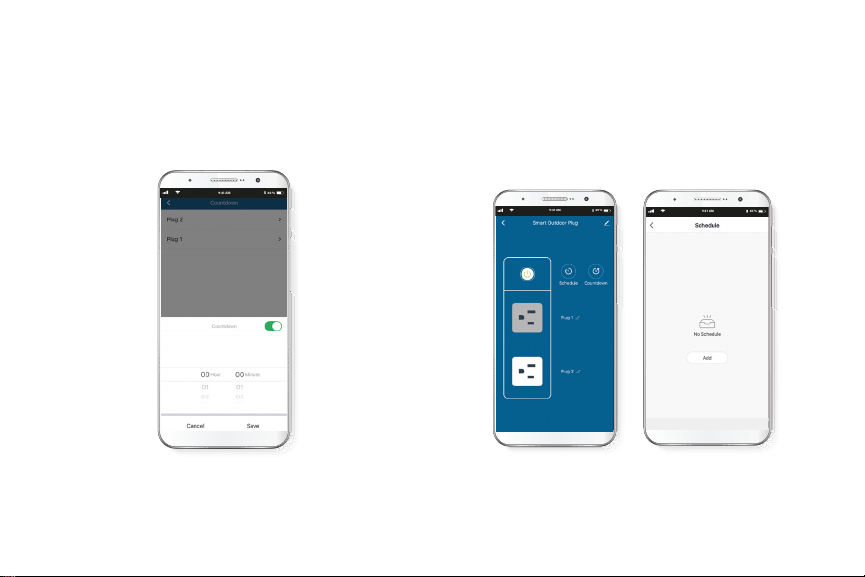

Configuration tools
Countdown
Enables the countdown timer to turn the device on and o.
Countdown setup
Click on the plug icon to turn the device on or o. To
schedule the timer, click on the countdown icon to set the
time as needed to turn the device on or o.

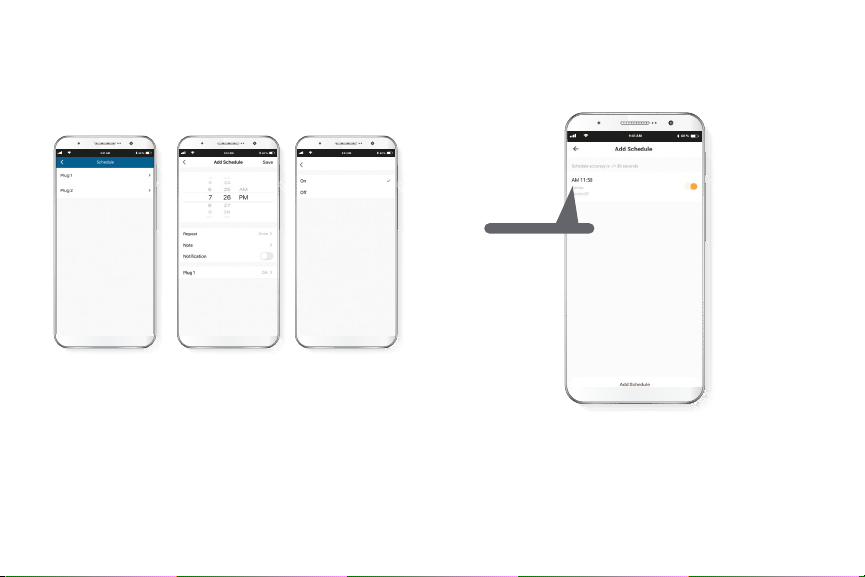

Schedule
Allows you to add time and day schedule for the device to
turn on or o.
Schedule setup
Step 1
Click on the schedule icon to access the Add schedule
screen.
60 %
9:41 AM
60 %
9:41 AM
60 %
9:41 AM

Step 2
Set the time you wish to schedule. Select Repeat to set
daily settings. Select Switch to schedule on/o status. Click
on Conrm, followed by Save on the upper right-hand
corner to store a schedule.
60 %
9:41 AM
60 %
9:41 AM
60 %
9:41 AM
Delete setup
To remove a schedule on iOS, slide item to the left , and for
Android, press and hold Schedule, followed by Delete.
60 %
9:41 AM
Press and hold the Schedule

Settings
Click on pencil icon on the upper right-hand corner.
Device name: changes the icon and the name of the
device, and it also allows the user to assign a dierent
location.
Note: click on the pencil icon to access the device name
menu.
Device information: displays detailed information related
to the Wi-Fi outdoor dual plug.
Tap-To-Run and Automation: links the outdoor dual plug
with other smart products to automatically control them
through a customized command.
Third-party control: enables the voice recognition feature
through Alexa and Google Assistant.
Oine notication: provides a selection button to
enable/disable this feature.
Share device: allows sharing the Wi-Fi outdoor dual plug
with family and friends.
Create group: makes management of devices easier by
selecting and arranging multiple components under a
single group.
60 %
9:41 AM
Add Home Screen

Device name
To rename device, click on the pencil icon on the upper
right hand side, enter a dierent name, and click Save.
Feedback: let us know if you have any issues setting up the
product.
Add home screen: adds a shortcut of the device to the
main screen on your phone.
Check for firmware update: we will sometimes add new
features or provide updates with a new firmware upgrade.
Remove device: allows you to unbind the device from the
Nexxt Home Account.
60 %
9:41 AM
60 %
9:41 AM

Share device
Click on Share devices then tap on Add sharing. Enter the
e-mail address of family and friends you wish to share the
device with. Tap Completed/Save. The newly congured
users will now have access to your smart plug.
Note: family or friends will need their own Nexxt Solutions
Home Account to access the device.
Delete user
To remove a user, slide to the left or press and hold the
name you want to eliminate. Click on Delete. A notication
conrming that you no longer want to share the device
with this user will be displayed. Click on Conrm.
FCC ID: X4YHAODP610
Nexxt Solutions® is a registered trademark. All rights reserved. Amazon, Alexa and
all related logos are trademarks of Amazon.com, Inc. or its aliates. Google,
Android and Google Play are trademarks of Google LLC. All other brand names and
trademarks are the property of their respective owners. Made in China.
60 %
9:41 AM
60 %
9:41 AM
60 %
9:41 AM
60 %
9:41 AM
60 %
9:41 AM

Guía del usuario
Gracias por adquirir el Enchufe inteligente dual con
conexión Wi-Fi para exterior de Nexxt Solutions. Nos
complace ser parte de la solución destinada a no sólo
simplicar su vida, sino además poder brindar mayor
seguridad y tranquilidad al interior de su hogar.
Contenido del empaque
• Enchufe para exterior
• Cubierta para tomacorriente dual
• Guía de conguración rápida
Descripción del producto
1. Tomacorrientes inteligentes: conecte su dispositivo y
ejerza control sobre él con su dispositivo inteligente a
través de la aplicación. La gestión de cada salida se puede
realizar en forma independiente.
2. Botón de encendido: se utiliza para encender y apagar
el dispositivo.
3. Enchufe con conexión a tierra: permite conectarlo en
forma segura a un tomacorriente de pared estándar.
4. Luz LED: exhibe el estado funcional de la unidad
5. Tapa de silicona: protege los receptáculos del polvo, el
agua y la suciedad.
Español
4
3
5
1
2

Indicador de estado
Verde Iluminado
IluminadoAzul
Azul/ verde Iluminado/
intermitente
El enchufe inteligente está
conectado a la red, pero el
dispositivo está apagado
El dispositivo está
encendido
En el modo de empareja-
miento, el LED azul
permanece encendido,
mientras que el verde
aparece intermitente
Luz
LED Estado Descripción
* Medidas de seguridad importantes
- Apto para aplicaciones en ambientes interiores, exteriores
y húmedos. No sumerja ni exponga la unidad
directamente al agua.
- Conecte la unidad a un tomacorriente de 3 clavijas. Debe
mantener la unidad y el cordón a 1,4m (4,6ft) por lo
menos sobre el nivel del suelo, con los receptáculos
orientados hacia abajo.
- Riesgo de electrochoques. No abra el dispositivo, éste no
contiene ninguna pieza que pueda ser reparada por el
usuario.
Instalación de la aplicación
Nexxt Solutions Home
Descargue la aplicación Nexxt Solutions Home de Google
Play o Apple App Store.
60 %
9:41 AM
Nexxt Home
Nexxt Solutions Home App
Cancel
GET
Accvent LLC
Login with existing account
Create New Account
SOLUTIONS
Iniciarsesión con cuenta existente
Crear Cuenta Nueva
SOLUTIONS
60 %
9:41 AM
Nexxt Home
Nexxt Solutions Home App
Cancel
INSTALL
Accvent LLC

Paso 1
Registro por email. Complete los campos requeridos.
60 %
9:41 AM
Register by email
United States of America
Email
Get authentication code
Paso 2
Ingrese el código de vericación que recibió.
60 %
9:41 AM
Enter verication code
Verication code has been sent to your

Paso 3
Cree una contraseña nueva y seleccione Completo a
continuación.
60 %
9:41 AM
Set Password
Completed
6-20 characters, including letters and numbers
Paso 4
La cuenta de Nexxt Solutions Home ha sido congurada
satisfactoriamente.

Agregar dispositivo
Paso 1
Seleccione Agregar dispositivo, y a continuación el
enchufe inteligente para exterior.
Conexión
Conecte el Enchufe inteligente dual de Nexxt en un
tomacorriente y presione el botón para encender el
dispositivo. Aségurese de que el LED de color azul-verde
del dispositivo parpadea, lo cual indica que ha iniciado el
proceso de emparejamiento. Éste es el modo de
conguración original. De lo contrario, mantenga
presionado el botón de encendido/reposición hasta que el
LED azul-verde aparezca intermitente para poder iniciar en
forma manual el dispositivo.
60 %
9:41 AM
60 %
9:41 AM

Paso 3
Asegúrese de que el indicador luminoso en la aplicación
aparezca intermitente. Pulse Conrmar que la luz
indicadora parpadea rápidamente para continuar.
60 %
9:41 AM
Paso 2
Debe conectarse a la red Wi-Fi de 2.4GHz. Ingrese la
contraseña de la red. Asegúrese de utilizar la contraseña
correcta, de lo contrario, no se conectará el dispositivo.
60 %
9:41 AM
60 %
9:41 AM

Paso 4
Cuando la noticación Dispositivo incorporado
exitosamente aparezca en la pantalla, asigne la ubicación
y seleccione Terminar al nal.
Dispositivo principal
Interruptor principal
Haga clic en el botón de encendido en la aplicación para
activar y desactivar el dispositivo.
Enchufe 1 y enchufe 2
Permite vericar el estado de cada receptáculo, además de
poder encender o apagar cada uno en forma individual.
60 %
9:41 AM
60 %
9:41 AM
60 %
9:41 AM
