NIBBLE GC-36 User manual

Quickstart Guide
V1.2
GSM Communicators
GC-36

GC-36
Congratulations on your purchase of the NIBBLE GC-36 GSM Communicator module
The NIBBLE GC-36 module was developed taking into account security and remote maintenance
needs. Therefore, the module can operate completely by itself providing remote maintenance functions,
automatic output actuation (actuation on incoming call and on input changes) and automatic input alerts
(SMS and audio).
The module allows for custom SMS and audio messages for each input, tamper and power supply
status changes.
It is also possible to associate with each input state actuations on the outputs to provide basic
functions like turning on a water pump when flooding is detected or activating a siren when an intrusion
is detected.
It is also available the functionality to actuate on the outputs through phone calls allowing for an
easy and costless way to activate outputs.
This guides briefly introduces you to the installation and configuration of the system, and the
reading of the user manual is recommended. The manual can be found online at
http://www.nibble.pt/product/viewp/gc as well as the application GC Configurator.
Contents:
◦1x GC-36;
◦1x Quickstart Guide (this document).

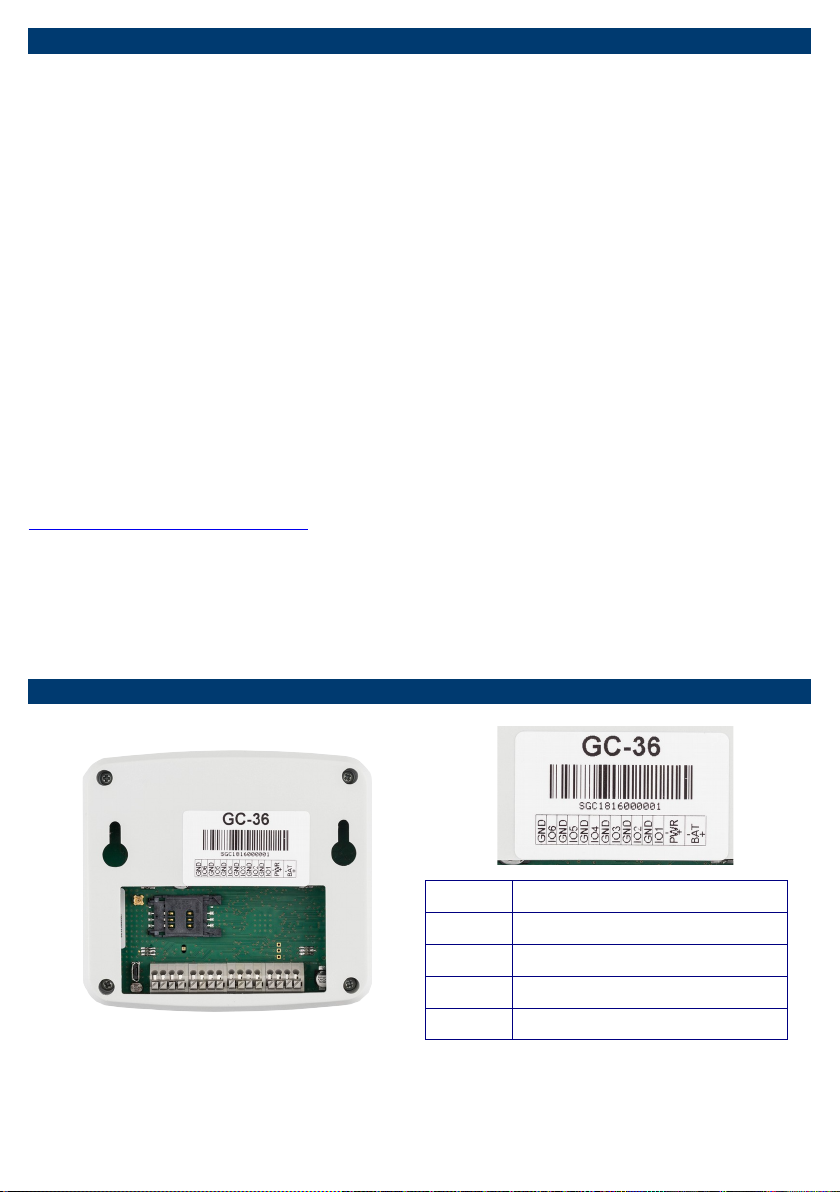

Connections scheme
Terminal Description
PWR +12/32V
BAT 9V NI-MH
GND Common ground
IONBidirectional input/output, 1 to 6
2/8

Technical Characteristics
•2×16 LCD and capacitive keypad;
•6 bidirectional input/outputs;
•Micro-USB;
•150 users;
•SMS and voice message alerts for each input;
•Periodic test calls;
•Disarm code;
•Access levels 2 and 3;
•Output actuation with input changes:
•Output actuation with costless phone call;
•Tamper detection;
•Power supply failure detection;
•Internal antenna (optional external not included);
•Backup 9V battery Ni-MH (not included).
S M Card Placement
1) On the back of the module, the SIM card slot
is accessible;
2) Verify that the equipment is turned off during
this process;
3) Slide the cover of the SIM connector and
insert the SIM.
nstallation
3/8
Make sure the S M card does not have a P N lock.

Bidirectional nputs/Outputs
The module provides 6 bidirectional input/output terminals, accessible at terminals IO1 to IO6.
Each IO terminal is accompanied by a ground terminal to facilitate the connections and allows the
application of voltage levels from 0V to 40V.
nputs
The inputs are activated with a negative signal, that is, they are
activated when a ground signal is applied in terminal IO. To operate the
inputs, a dry contact must be used with one of the contacts connected to
the adjacent ground terminal. No voltage should be applied to the inputs.
Outputs
The outputs function as an open collector. When activated they
close the circuit to the ground and when deactivated they open the
circuit. Each output allows up to 500mA of maximum current and 40V of
voltage.
Local User nterface
4/8
Off On
40V
Max
0.5A
Max
Off On
IONION
GND GND

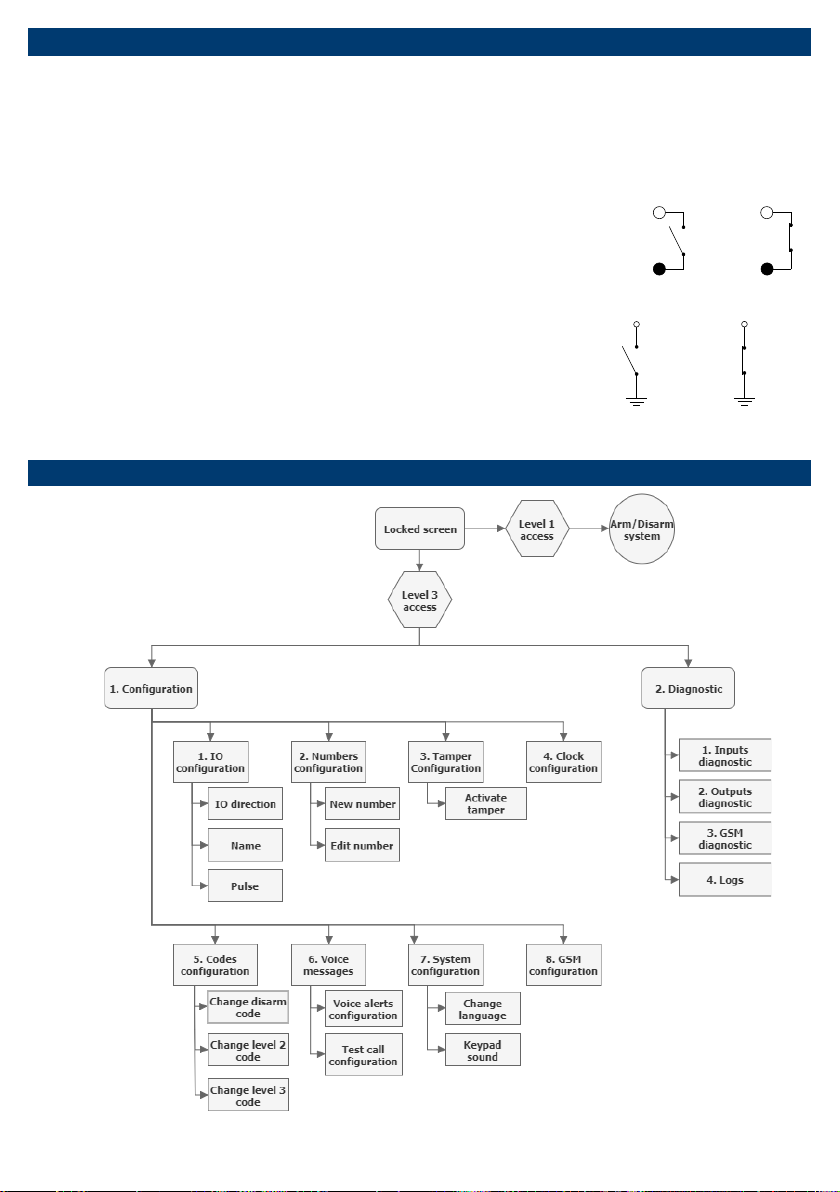

The figure shows a navigation diagram of the menu.
From the lock screen, the user can:
•Arm the system by pressing the button with the lock symbol;
•Disarm the system by entering the disarm code (factory default 1234);
•Enter the configuration and diagnostic menus by pressing the OK button and entering the
access code level 3 (factory default 123456);
•Check the current state of the system (power and battery status, system armed or disarmed
and if you are making a call).
With level 3 access, the user has may enter the configuration and diagnostics menus.
In these menus the user can use the up and down arrows on the keypad and press the OK key to
enter or directly press the number corresponding to the menu (e.g. pressing digit 2 and then digit 3 goes
directly to the submenu GSM Diagnostic).
Diagnostic
After installation, the correct functioning of the module and the state of the connections must
be checked.
Local user interface
Through the local interface, you can view the status of the module (see Installation Manual):
•GSM network status;
•Card balance on SIM card (country restriction);
•Status of inputs and outputs;
•Outputs actuations.
The installer should check the correct functioning of the module, verifying if it was able to
register in the network. The network registration is confirmed by checking for GSM signal.
SMS
With an SMS command, you can also view details about the status of the module:
SMS command
123456,ST
Response SMS Recommended/Typical
SIM card balance Value in Euros (country restriction; if pre-paid
card, value is 0€).
GSM signal quality Good or Very Good.
IMEI 15 digits.
Power supply status On.
Battery status Varies with battery charge.
The first 6 digits in the SMS command are the level 3 access code.
5/8

SMS commands
Arm/Disarm System and inputs
SMS command Field
[PIN],SS,[ARM],[IO] PIN – Level 3 access code.
ARM – Field to arm/disarm the system:
•A – Arm
•D – Disarm
IO – Index of input to arm/disarm, 1 to 6
Example: 123456,SS,A Arms the complete system
Example: 123456,SS,A,1 Arms input 1
Example: 123456,SS Checks system arm/disarm status
Outputs actuation
SMS command Field
[PIN],IOO,[O],[A] PIN – Level 2 or 3 access code.
O – Index of output, 1 to 6.
A – Output action:
L – On;
D – Off;
T – Switch;
P – Positive pulse;
N – Negative pulse;
0 – No action;
Example: 123456,IOO,1, L Activate output 1
Example: 123456,IOO Check output status
Phonebook management – Add/remove number
SMS command Field
[PIN],PA,[NUM]
[PIN],PDN,[NUM]
PIN – Level 3 access code.
NUM – Phone number to add (up to 16 characters)
Example: 123456,PA,919999999 Adds the phone number 919999999 to the empty
slot
Example: 123456,PDN,919999999 Deletes phone number 919999999
6/8

Legal Conditions
Limited warranty
NIBBLE Engenharia, Lda. guarantees this product free of defects resulting from failures in the manufacturing process in any of
its components according to the following terms:
Duration of warranty
The product has warranty for a period of two (2) years after the date of purchase. The replacement or repaired products under
warranty will be covered by the remaining time of the original product warranty or for thirty (30) days, with the longest period
being taken for this purpose.
Proof of purchase
The warranty liability on this product is subject to:
- Correct identification of the seller and the buyer, in the fields identified for this purpose, present in this document;
- Presentation of Receipt certifying the purchase of the product.
Who is protected?
This warranty may only be executed by the purchaser duly identified herein.
N BBLE charges
NIBBLE will undertake the repair operation of components that are defective in manufacture under the warranty. However, it
shall not undertake the following charges:
- Expenses with removal or installation of the product;
- Transport costs of the product;
- Any other non-product related expenses.
NIBBLE reserves the right to charge a handling fee in case the returned product does not meet the warranty conditions.
Deadlines
NIBBLE warrants replacement or repair within 30 days of receipt of the equipment. Defective material must be returned to
NIBBLE (transportation fees paid by the sender).
Damages and losses
NIBBLE is not liable for damages or losses that may arise from the use of its products. NIBBLE's liability for any claim based
on breach of contract, negligence, breach of any right or responsibility in the product shall not exceed the amount paid to
NIBBLE for that product.
Warranty coverage
Except for the following items, this warranty covers all defects resulting from failures in the manufacturing process of this
product. The following items are not covered by the warranty:
- Any product whose serial number is erased, modified, removed or disfigured;
- Any product whose warranty seal has been tampered with, damaged or removed;
- Damage caused by equipment connected to the product;
- Damage, deterioration or malfunction resulting from: Accident, abuse, misuse, neglect, fire, water, lightning or other
phenomena of nature, commercial or industrial use, unauthorized modification of the product, or failure to follow the
instructions for use of the product;
- Repair of the product by personnel not authorized by the manufacturer.
- Any damages incurred during transportation (complaints must be forwarded to the carrier).
- Any other cause that is not related to a defect in the product;
- Boxes, cartons, packaging and accessories used with the product;
NIBBLE does not warrant that this product meets your requirements; it is the user's responsibility to determine the suitability of
the product for its intended purpose.
Exclusion of damages
The manufacturer's obligations and responsibilities under this warranty are limited to repairing or replacing a product that
NIBBLE considers to be defective. The manufacturer shall not in any event be liable for any external incident or consequential
damages (including, but not limited to, damages resulting from service interruption, loss of data, or loss of business) or liability
in connection with this product or resulting from its use or possession.
Limitations on implied warranties
No warranties, expressed or implied, other than those set forth in this document, exist on the product.
