Nidec TF037 Series User manual

Micro Blower
。
Product Overview
2
Reliability Test
7
Operating Condition
2
Packaging Information
8
～
10
Mechanical Specification
3
Product Label Information
11
Electrical Specification
3
Warranty
12
Expected Durability and Noise level
3
Handling Precautions
12
Interface
4
Environmental/Safety Regulation
13
Timing Chart
5
Disclaimer
13
Operating Range in P-Q & Q-I rating
6
Revision History
14
TF037E-2000-F
TF037C-2100-F
TF037C-2000-F
TF037F-2000-F
BEFORE USE OF THIS PRODUCT, CAREFULLY READ THE SECTION OF HANDLING
PRECAUTION, AND INSTALL AND USE PRODUCT ACCORDING TO THE SPECIFIC
MECHANICAL ELECTRONICAL PROPERTIES REQUIRED BY PRODUCT.
THIS PRODUCT IS DESIGNED ONLY FOR VENTILATION PURPOSE, FOR REQUEST TO
USE PORDUCT FOR OTHER PURPOSE, PLEASE CONTACT SALES REPRESENTATIVE
TABLE OF CONTENTS
AERO DYNAMIC BEARING TECHNOLOGY , our proprietary technology, is used to
TF037 series Micro Blower
.
The results are super low vibration, super long bearing’s
lifetime and no high temperature degradation characteristics, which enable to maximize
efficiency and performance and gain high power even on small size FAN.
8SEFB-0031①(2)
Nidec COPAL Electronics Corporation
SPECIFICATION
Part No
PN: TF037C-2000-F

Copy right 2019, Nidec Copal Electronics Corporation
2
8SEFB-0031
①
(2)
■PRODUCT OVERVIEW
Product TF037E-2000-F TF037C-2100-F TF037C-2000-F TF037F-2000-F
Suited for Fuel Cell or Industrial use Medical e.g. CPAP *1)
Resin Material UL94 V0 Standard (Flame Resistant) FDA Standard
Airtightness Yes*2) No
Air Vent Joint Yes No
Fixing Leg Yes No
Mass 165g 94g 90g 72g
Drawing 6404-00655-01 6404-00697-01 6404-00705-01 6404-00635-01
Material List 6404-00600-00 6404-00673-01 6404-00673-01 6404-00718-01
*1) Do not use for applications that may cause harm to human life and personal injury.
*2) Designed to a sealed structure which is no air leakage other than the Air vent
■OPERATING CONDITION
Usable Gas Normal Air*1)
Recommended Mounting Position Axis Vertical (Plate Downward)*2)
Rotation Speed Range 6,000 ～45,000 rpm*3)
Minimum Flowrate 5L/min
Operating Temperature And Humidity (-)10 ～60℃,10 ～95 %RH*4)
Storage Temperature Humidity range (-)20 ～60℃, 10 ～95 %RH*4)
Operating Ambient Pressure 770 ～1,060 hPa
Use in the range beyond limit listed above may cause damage or characteristics change to device.
Please contact our sale representative if you need to use the product in condition beyond the range above.
*1) Do not use to any corrosive gas.
*2) Avoid vibration and shock while the product is operating. It may damage product
*3) Rotation Speed = Hole Sensor Frequency×15
*4) Condensation may cause damage to product
TF037 Series SPECIFICATION

Copy right 2019, Nidec Copal Electronics Corporation
3
8SEFB-0031
①
(2)
■MECHANICAL SPECIFICATION
Motor Type 3 phase 8 pole Brushless (Y Connection)
Bearing Type Aero Dynamic Bearing
Rotation Direction Counterclockwise viewing from the air vent side
Rotor Inertia TF037E-2000-F, TF037F-2000-F : 1.9×10-6 kg・m2
TF037C-2000-F, TF037C-2100-F : 2.1×10-6 kg・m2
Torque Constant 0.0025 N・m/A
■ELECTRICAL SPECIFICATION
Operating Voltage Range 10 ～30 V
Power Supply Current Max 0.9 A*1)
Power Consumption Max 21.6 W*1)
Input Coil Current Max 3.0A*2)
Coil Resistance 0.5 Ω ＠20℃,Between 2 phase
Coil Inductance 20 μH ＠20℃,10 kHz,Between 2 phase
Insulation Grade E grade (JIS C 4003 Cable for Coil)
Insulation Resistance
Min 20MΩ between Coil terminal and Plate at 500V DC
(JIS C 4003)
Insulation Pressure Resistance
Leak Current: Max
１
mA
At min 600V AC between coil terminal and plate more than
one second (JIS C 4003)
*1) ＠3.0 kPa 100L/min Temperature：23±5℃, Humidity: 45～85%RH, Air pressure: 101.3kPa
*2) In case, the rotor is lock up, the coil may be destroyed by surge current. The protection circuit to prevent surge
current must be installed for safety.
■EXPECTED DURABLITY AND NOISE LEVEL
Continuous Operation Life Time Min 100,000 hour*1)
ON/OFF Operation Life Time Min 400,000 times*1)
Noise Level Max 65 dB(A)*2) *3)
*1) Ambient Temperature 60℃with the recommended Mounting Direction
*2)＠3.0 kPa 100L/min Temperature：23±５℃, Humidity：45～85%RH, Air Pressure：101.3kPa
*3)Measured 1 m away from the intake vent ( Including dark noise as 15 dB )
TF037 Series SPECIFICATION

Copy right 2019, Nidec Copal Electronics Corporation
4
8SEFB-0031
①
(2)
■INTERFACE
CONNECTOR HARNESS SIDE
J.S.T.MFG.CO.,JTD SM12B-PASS
J.S.T.MFG.CO.,JTD SM12B-PASS
Pressure
Welding 12PAF-6S (Retainer：PAFS-12V-S)
Crimping PAP-12V-S (Contact：SPHD-001T-P0.5)
・Both pressure welding and crimping are available.
・Recommended size：AWG#22
TERMINAL ARRAY
HALL SENSOR CHARACTERISTIC
Input Current Max 10 mA At maximum operating load at temperature60℃
Input Resistance
250
～
450Ω
Per one Hall sensor
Differential Output Min 300mV p-p VH = (VH+)-(VH-) at 10mA in Input current
・Equivalent of ASAHI KASEI Electronics HW-105A
THERMISTOR CHARACTERISTIC
Reference Resistance 25℃ 10kΩ
Operating Current 25
℃
0.31 mA
B Constant[25/85℃] 4,100 K
Maximum Temperature
86
℃
(Thermistor Resistance
：
0.97kΩ)
・Equivalent of TDK NTCG164BH103JT
① Vcc Power for Hall Sensor
② H2- Output of Hall 2
③ H2+
④ H3- Output of Hall 3
⑤ H3+
⑥ H1- Output of Hall 1
⑦ H1+
⑧ GND GND
⑨ TH Thermistor
⑩ V Coil (V）
⑪ W Coil (W）
⑫ U Coil (U）
The current into the hall sensor must be restricted within
the rating listed below by using a resistor.
TF037 Series SPECIFICATION
INTERNAL CIRCUIT / LIMITING RESISTOR
Limiting Resistor
Thermistor

Copy right 2019, Nidec Copal Electronics Corporation
5
8SEFB-0031
①
(2)
■TIMING CHART
+
-
+
-
+
-
[deg] 電気角
[deg] 機械角
H1+
H
L
H1-
H
L
H3+
H
L
H3-
H
L
H2+
H
L
H2-
H
L
0
15
30
45
60
75
U
V
W
0
60
120
90
180
240
300
360
TF037 Series SPECIFICATION
Electrical Angle
Mechanical Angle

Copy right 2019, Nidec Copal Electronics Corporation
6
8SEFB-0031
①
(2)
■OPERATING RANGE IN P-Q & Q-I RATING
・P-Q and Q-I conditions must not exceed the ratings listed below.
・The general purpose driver TF037E-1000-D is setup to the configuration for general use. In using the
general purpose driver, the output may not reach the maximum ratings listed below
・P-Q and Q-I characteristics are for reference purpose only. The driver must be configured properly by
measuring the actual condition before use.
The characteristics below are measured with our company’s driver at axis vertical position.
24V P-Q/Q-I Characteristic
Ambient Temperature
：
25
℃,
Barometric Pressure: 101.3kPa
12V P-Q/Q-I Characteristic
Ambient Temperature：25℃,Barometric Pressure: 101.3kPa
TF037 Series SPECIFICATION
24V P-Q/Q-I Characteristic
Ambient Temperature
：
60
℃,
Barometric Pressure: 101.3kPa
12V P-Q/Q-I Characteristic
Ambient Temperature：60℃,Barometric Pressure: 101.3kPa

Copy right 2019, Nidec Copal Electronics Corporation
7
8SEFB-0031
①
(2)
■RELIABILITY TEST
High Temperature Storage 60℃2,000 hour
Low Temperature Storage (-)20℃ 1,000 hour
High Temperature
High Humidity Storage 60℃ 95%RH for 1,000 hour
Thermal Shock (-)40～80℃1,000 cycle for 30 min
Vibration Durability
Vibration Type Frequency change 10 to 50Hz
Acceleration 19.6 m/s2(2G)
Sweep Round trip about for 5 min
Period X・Y・Z direction for 60 min
Condition In non-operation
Shock Durability
Acceleration 588 m/s2(60G)
Pulse width 6 ms
Shock waveform Half sine wave
Shock Times One times to each X・Y・Z direction
Condition In non-operation
Packing Drop
Drop Direction 1 corner, 3 ridge, 6 face
Drop Height 0.6 m
Packing Transport
Frequency Range 10～40 Hz acceleration 0.75G
Sweep Round trip for 1 min
Cycle Times Each X・Y・Z direction for 60 min
High Temperature
High Humidity in Operation 60℃ 95%RH × 24 hour
Low Temperature in Operation (-)10℃× 24 hour
Dust Test in Operation*1)
Dust Type JIS Z8901 11 type
Density 60,000 mg/m3Continuous Stirring
For 30 sec every ON/OFF, 10,000 Cycle
The test result shall meet the ratings of Power supply current, Power consumption and Noise level listed in this
specification.
*1) The condition in the dust test is made for just measuring the limit. Do not put the product into such a severe condition
TF037 Series SPECIFICATION

Copy right 2019, Nidec Copal Electronics Corporation
8
8SEFB-0031
①
(2)
■PACKIG SPECIFICATION
TF037E-2000-F
No Contents QTY Material Remark
1
TF037E-2000-F
64
-
One tray ：4×4 = 16 set
2 Lid of Tray 4 PET(Polyethylene terephthalate)
3
Tray
4
PET(Polyethylene terephthalate)
4 Inner bag 1 PE(Polyethylene)
5
Desiccant
1
-
6 Outer box 1 Cardboard Size 485(L)×460(W)×245(H)
7
Adhesive tape
Unspecified
-
8 Contents List 1 Paper
TF037 Series SPECIFICATION

Copy right 2019, Nidec Copal Electronics Corporation
9
8SEFB-0031
①
(2)

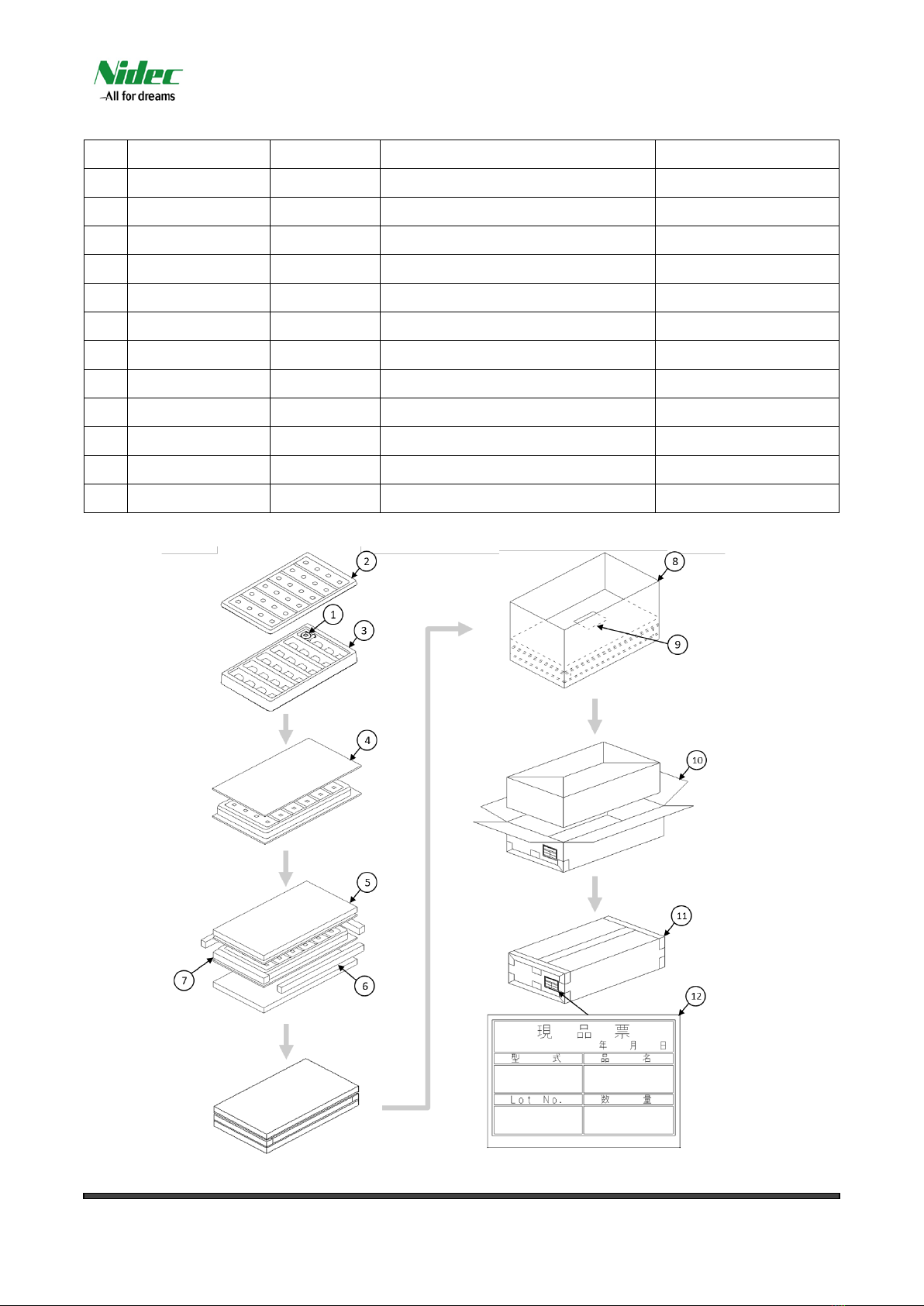

Two tray 48 pcs packing for TF037C-2000-F, TF037C-2100-F, TF037F-2000-F
No Contents QTY Material Remark
1
TF037F, C
48
-
One tray：4×6 = 24 pcs
2 Lid of Tray 2 PET(Polyethylene terephthalate)
3
Tray
2
PET(Polyethylene terephthalate)
4 Partition 1 Cardboard
5
Sponge
2
-
6 Sponge 4 -
7
Sponge
4
-
8 Inner Bag 1 PE(Polyethylene)
9
Desiccant
1
-
10 Outer Box 1 Cardboard Size 540(L)×310(W)×161(H)
11
Adhesive tape
Unspecified
-
12 Contents List 1 Paper

Copy right 2019, Nidec Copal Electronics Corporation
10
8SEFB-0031
①
(2)
One tray 24 pcs packing for TF037C-2000-F, TF037C-2100-F, TF037F-2000-F
No Contents QTY Material Remark
1
TF037F, C
24
-
One tray：4×6 = 24 pcs
2 Lid of Tray 1 PET(Polyethylene terephthalate)
3
Tray
1
PET(Polyethylene terephthalate)
4 Partition 2 Cardboard
5
Sponge
2
-
6 Sponge 2 -
7
Sponge
2
-
8 Inner Bag 1 PE(Polyethylene)
9
Desiccant
1
-
10 Outer Box 1 Cardboard Size 540(L)×310(W)×110(H)
11
Adhesive tape
Unspecified
-
12 Contents List 1 Paper

Copy right 2019, Nidec Copal Electronics Corporation
11
8SEFB-0031
①
(2)
■LABEL DISCRIPTION
TF037 Series SPECIFICATION
Part Number, Lot No, Serial No
QR code
Part Number
Year (Last two digit of year)
Month (Table 1)
Day (Table2)
Control Number (A to Z)
Index by LOT
[ Table 1 ]
TF037C-2000-F, TF037C-2100-F
TF037E-2000-F, TF037F-2000-F
Lot No.
Serial No.
[ Table 2 ]

Copy right 2019, Nidec Copal Electronics Corporation
12
8SEFB-0031
①
(2)
■WARRANTY
Warranty period of the Product is one year from delivery. In case, defect has been found in the Product
during the warranty period and it was found that Nidec Copal Electronics (here in after referred as NCE)
is responsible and liable for the defect, NCE shall either repair or replace the defected Product free of
charge, provided, however, that foregoing warranty shall be voided and shall not be applied in any
instances where
1. Buyer fails to carry out proper handling, operating, installation, testing, service and checkout of the
Product and/or to follow NCE’s instruction or advice with respect to any of these matters,
2. Buyer utilizes any attachments or interface devices or makes any modification to the product which
are not approved in writing by NCE.
3. Buyer incorporates any parts not supplied by NCE into the Product and/or combines any equipment
not supplied by NCE with Product.
4. The alleged defect arises out of NCE’s compliance with any written request, instruction, design
change, drawing or specification (including but not limited to instruction manual, installation manual,
and service manual prepared by Buyer) specifically furnished or imposed by Buyer upon Seller.
5. Defect arisen due to reason that it has been unable to be aware of the problem by ordinary scientific
and technical knowledge and capability in those days.
In addition, NCE shall not indemnify Buyer against any damages and losses which are alleged to have
arisen as a result of and/or caused by defect or malfunction of Product. Buyer must implement a proper
protection measure on Buyer’s system in preparation for sudden malfunction and out of control of Product.
■PRECAUTION ON HANDLING
1. Do not give strong strass such as shock, vibration and oscillation to Product. While product is working,
such stress may cause Lock-up of rotor which can lead the product to permanent damage .
2. This product doesn’t include a driver. Buyer has to install and configure a driver properly according to
characteristic, rating and recommendation in this specification.
3. This specification doesn’t mean that NCE guarantees Product will not be breakdown or out of order in
any case. Buyer has to implement a proper protection measure on Buyer’s system in preparation for
sudden malfunction and out of control of Product.
4. Product characteristic was measured with NEC’s standard measuring equipment*1), therefore the
characteristics in actual condition or use at Buyer may different from the characteristic in this
specification. Checkout the characteristic results at the actual condition before use.
5. Do not plug and unplug cables while product is powered.
6. Turn power off and stop to use Product immediately in any of following cases
1) any foreign object has got into product 2) the Product have been dropped or got broken 3) the Product
becomes inordinately hot, has a strange odor, emits smoke, or makes unfamiliar noises.
7. Do not use or store Product where shock, vibration, static electricity might occurs and with high
temperature, humidity, dust, corrosive gas, no ventilation and near splashing water, chemical material
or oil
8. Do not seal off or block the air vent and use by connecting products in series.
9. Product has parts rotating at high speed which might cause serious personal injury. Pay attention to
handle Product while it works.
10. If you have any questions, please contact our sales representative.
*1) Flowmeter NCE is using is a mass flowmeter of thermal method displaying volume flow rate at 20℃・1 air pressure.
TF037 Series SPECIFICATION

Copy right 2019, Nidec Copal Electronics Corporation
13
8SEFB-0031
①
(2)
■ENVIRONMET/SAFTY REGULATION RELATED
The Product is compliant with RoHS directives(2011/65/EU and(EU）2015/863）and European Directive
for restriction on the use of PFOS in accordance with 2006/122/EC（30th revision of European directive
76/769/ECC）.
■DISCLAIMERS
１.The product is not designed for use in equipment or devices that could have an impact on life or body,
or those that could damage property (These include, but are not limited to, medical equipment, disaster
prevention equipment, security equipment, combustion control equipment, infrastructure control
equipment, vehicle equipment, transportation equipment, on-board equipment, aviation equipment,
space equipment, and nuclear-related equipment). If you want to use this product for any of the above-
mentioned equipment or devices, be sure to contact our point of contact beforehand. The details of
warranty shall be as per the descriptions in this document and we shall not be liable for any damage on
you resulting from the use of any equipment or device (including control systems) which is not in
accordance with this document (hereinafter referred to as "use in violation"). In the case where you resell
our products, we shall not be liable for any damage on a third party resulting from use in violation by
the third party, and even if we make payment to the third party in connection with such use in violation
regardless of the name by which such payment may be called, we may demand the whole amount thereof
from you.
2. This product is strictly prohibited from using, providing or exporting for the purposes of the development
of weapons of mass destruction or military use. NCE is not liable for any losses, damages, claims or
demands caused by any provision or export to the person or entity who intends to develop, manufacture,
use or store nuclear, biological or chemical weapons or missiles, or use any other military purposes.
3. All the information described herein(product data, specifications, figures, tables, programs and
application circuit examples, etc) is current as of publishing date of this document and is subject to
change without notice.
4. This specification doesn’t mean that NCE guarantees Product will not be breakdown, out of order and
fail in any case. Buyer has to therefore take responsibility to give thorough consideration to safety design
to prevent accidents causing injury or damage that may ensue from the Product’s failure or malfunction.
The entire system in which the Product is used must be sufficiently evaluated and judged whether the
Product operates without problems. NCE is not liable for losses, damages, claims or demands which are
claimed to have arisen as a result of and caused directly or indirectly by Product’s defect, out of order,
failure and malfunction.
TF037 Series SPECIFICATION

Copy right 2019, Nidec Copal Electronics Corporation
14
8SEFB-0031
①
(2)
■Revision History
No Date Items Changed Contents
－15-Oct-19 First edition
①6-Dec-21
Reference No. 8SEFB-0031→ 8SEFB-0031①
Noise Level 65 dB(A) → Max 65 dB(A)
DISCLAIMERS 1 Modify sentence
■Translation Revision Record
No Date Items Changed Contents
(0) 15-Oct-19 English edition
(1) 23-Apr-21 Chinese edition
(2) 6-Dec-21 English edition 8SEFB-0031①→ 8SEFB-0031①(2)
Headquarter Address: NIDEC COPAL ELECTRONICS CORPORATION Nishi-Shinjuku Prime Square Bldg.,
7-5-25 Nishi-Shinjuku, Shinjuku-Ku, Tokyo JAPAN. TEL: [phone] FAX: [phone]
URL. https://www.nidec-copal-electronics.com
TF037 Series SPECIFICATION

8SEFB-0031①(2)

8SEFB-0031①(2)

8SEFB-0031①(2)

8SEFB-0031①(2)

8SEFB-0031①(2)

8SEFB-0031①(2)
