HEDGE TRIMMER

2
Dear Customer
Congratulations with your new Nilsk Outdoor product.
The City Ranger 2250 is a Danish designed and manufactured product, which oers a very exible
way of maintaining outdoor areas.
Optimal use of your City Ranger 2250 Hedge Trimmer:
To ensure optimal performance of your City Ranger 2250 Hedge trimmer, please read this manual
carefully before using the machine. Failure to do so can result in personal injury and damage to
the machine.
Safety:
The Hedge Trimmer is equipped with various devices to ensure optimal operational safety both
for the user and the surroundings. We ask you to pay particular attention to section 1.1 Safety. The
machine must only be serviced by professionals.
The Hedge Trimmer is designed only for use by professionals. On delivery, the user will receive
thorough training to become a competent operator. Do not lend to anyone who has not been
thoroughly trained and who has not read this manual carefully. The operator’s manual should be
considered as a permanent part of the machine and must remain with it if the machine is sold.
Warnings:
Some items in this operator’s manual are marked with this warning symbol.
The warning indicates areas where extra care has to be taken to avoid personal
injury or damage to the machine and its accessories. The warning also shows what
you should pay special attention to.
Reservations:
As it is the Nilsk Outdoor Division policy to make continuous improvements, we reserve the right
to alter the machine’s specications and equipment at any time without notice. Nilsk Outdoor
Division accepts no liability for errors or omissions in the operator’s manual.
Contact us:
Do not hesitate to contact Nilsk Outdoor Division should you have questions of any kind
regarding your new Nilsk Outdoor product.
Best regards
Nilsk Outdoor Division, Nilsk-Egholm A/S · Transportvej 27 · DK-7620 Lemvig
T. [phone] · F. [phone]
E-mail: info@nilsk-egholm.com · www.nilsk-egholm.com
Operator’s Manual City Ranger 2250 Hedge Trimmer
Introduction
!

3
Operator’s Manual City Ranger 2250 Hedge Trimmer
Contents
The Hedge Trimmer operates quickly and eectively on
hedges and bushes up to 3 metres in height and on branch
thicknesses up to 20 mm. The Hedge Trimmer is xed at
the front of the machine and controlled from the cab.
The Hedge Trimmer can easily be adjusted to trim
horizontally, vertically or at any angle required.
During transport, the Hedge Trimmer is folded to save as
much space as possible.
Attach and detach the Hedge Trimmer in under a minute
with no tools required.
When detached, the Hedge Trimmer rests on four wheels
and is extremely easy to store.
Content
General information..............................................................................4
1.1 Safety.....................................................................................4
1.2 EC Declaration of Conformity.................................................................5
1.3 Technical data .............................................................................6
Operator’s manual ...............................................................................8
2.1 Assembly/Disassembly ......................................................................7
2.2 Before start-up ............................................................................9
2.3 Start-up..................................................................................10
2.4 Setting trimmer position ...................................................................12
Service and maintenance ........................................................................15
3.1 Cleaning .................................................................................15
3.2 Maintenance .............................................................................15
Conditions .....................................................................................16
4.1 Warranty.................................................................................16
4.2 Complaints ...............................................................................17
4.3 Disposal..................................................................................17

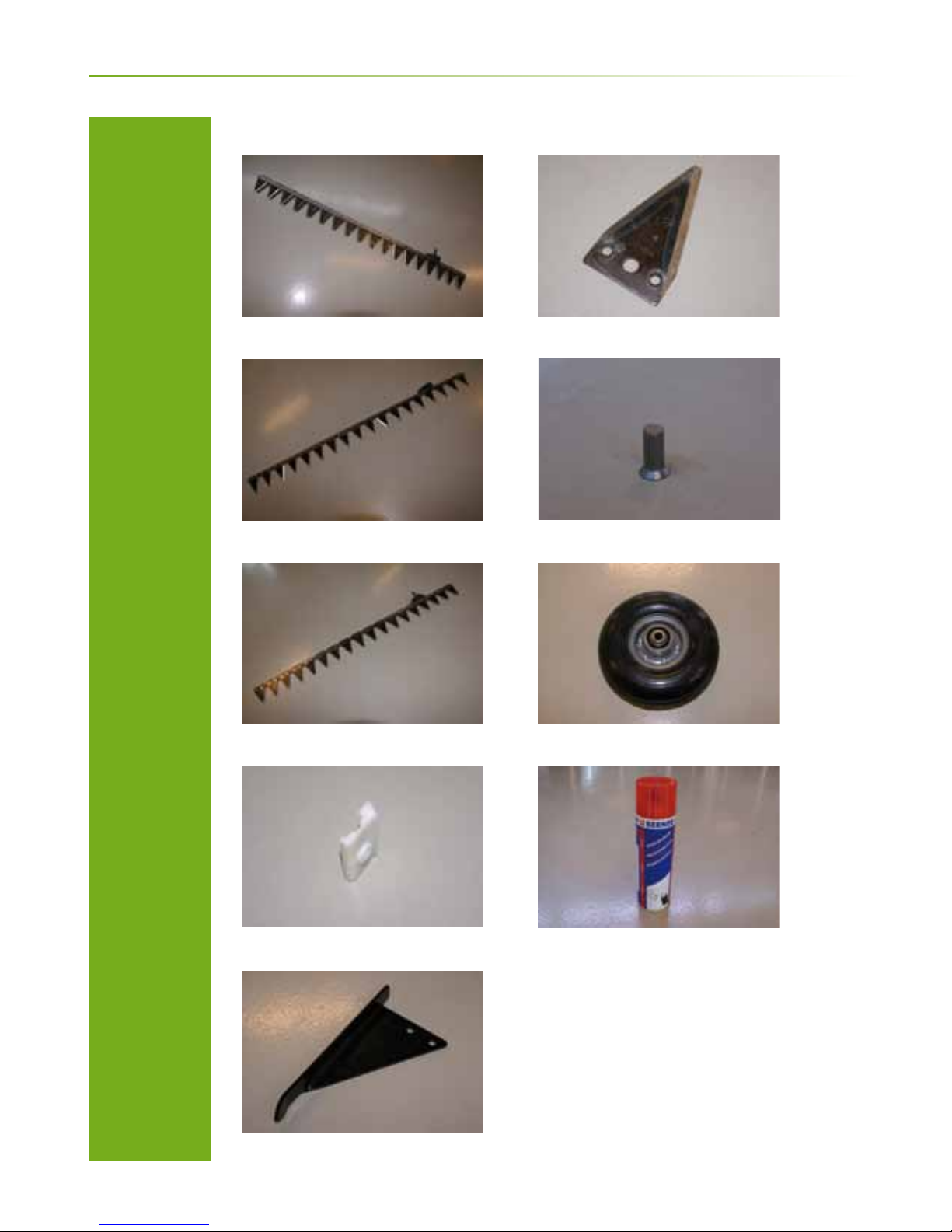

Spare parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
5.1 Spare parts - City Ranger 2250 Hedge Trimmer ................................................18
Notes .........................................................................................19

4
2
Max. 10°
3
1
1.1 Safety
N.B:
As it is articulated, the rear end of the
machine swings out when turning. Make
sure that no one is standing near the
machine while it is in use. (Picture 1)
Make sure no one is standing close to
the machine while it is in use:
To avoid personal injury people must stay
clear of the cutting bar when it is being
lowered and tilted.
Cover the cutting bar when the Hedge
Trimmer is not in use and during
transport.
Remove the cover immediately prior to use.
(Picture 2)
In the case of maintenance or repair,
always switch o the motor.
The attachment motor must be stopped
before any adjustment, maintenance or
repair can be carried out on the Hedge
Trimmer.

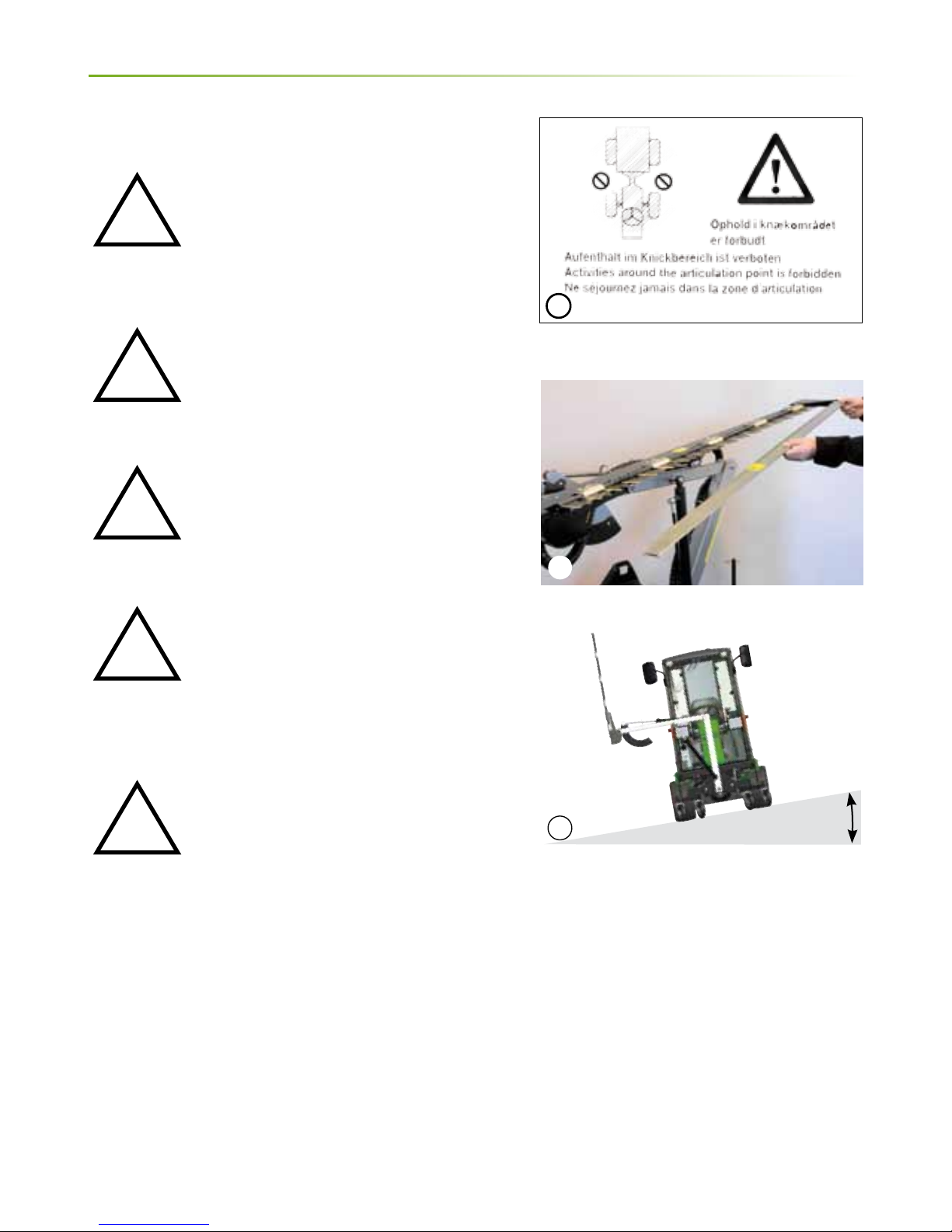

Avoid roll-overs!
Do not drive the machine in a place where it
can slide, tip or roll. Do not drive on slopes
with an incline of more than 10°. The tyre
pressure must be checked and adjusted to
1.5 bar (22 psi) when the Hedge Trimmer is
attached. Lower tyre pressure increases the
risk of roll-overs. (Picture 3)
General information
!
!
!
!
!
Operator’s Manual City Ranger 2250 Hedge Trimmer
Protective covering
Do not drive on slopes with an incline of more than 10°
Prevent people from standing in the working area

5
General information
Operator’s Manual City Ranger 2250 Hedge Trimmer
1.2 EC Declaration of Conformity
Manufacturer: Nilsk-Egholm A/S
Address: Transportvej 27 · DK-7620 Lemvig
Telephone: [phone]
hereby declares that
The machine: Hedge Trimmer
Model: Elkær Maskiner
Type: HK 1300 MINI / 2250
· has been manufactured in conformity with the provisions of the Machinery
Directive 2006/42/EU
Place: Lemvig
Date:
Signature:
Knud Olsen, Senior Engineer

6
General information
Operator’s Manual City Ranger 2250 Hedge Trimmer
1.3 Technical data
Dimensions: Attached:
Length (L) 3,500 mm
Width (W) 1,600 mm
Height (H) with cab 1,960 mm
Height (H) with roll bar 2,000 mm
Storage dimensions:
1,000 mm
1,600 mm
1,450 mm
Technical data:
Type HK 1300 MINI / 2250
Max. horizontal reach 2,500 mm
Cutting width 1,300 mm
Horizontal cutting height 300 mm - 2,100 mm
Vertical cutting height 0 mm - 3,200 mm
Angle for cutting bar 270º
Max. branch thickness 20 mm
Operating speed 1-3 km/h
Weight 130 kg
Hydraulic oil Texaco Rando HDZ 46 or equivalent
N.B:
Specications may be changed without prior notice.
Information plate:
(Picture 1)
Information plate
1

7
1
2
4
3
Operator’s manual
Operator’s Manual City Ranger 2250 Hedge Trimmer
2.1 Assembly/Disassembly
1. The locking handle on the A-frame of the basic machine
must be in the unlocked position. (Picture 1)
Tips!
Raise the Hedge Trimmer front wheels free of the ground
and lower the support struts, so that the Hedge trimmer
A-frame is angled back. This makes it much easier to
‘catch’ the A-frame when attaching. (Picture 2)
2. Drive the machine right up to the A-frame of the Hedge
Trimmer so the A-frames t into each other. (Picture 3)
3. Raise the A-frame by pulling the joystick back until
the Hedge trimmer is suspended, i.e. free of the ground.
(Picture 4)
4. Stop the machine.
Locking
Pull joystick back
Unlocked A-frame
Support strut lowered
U
n
l
o
c
k
e
d

1
8
2
L
å
s
t
Operator’s Manual City Ranger 2250 Hedge Trimmer
Operator’s manual
5. Lock the Hedge trimmer in place with the locking
handle on the A-frame. The locking handle can only be
engaged when the machine has been stopped. (Picture 1)

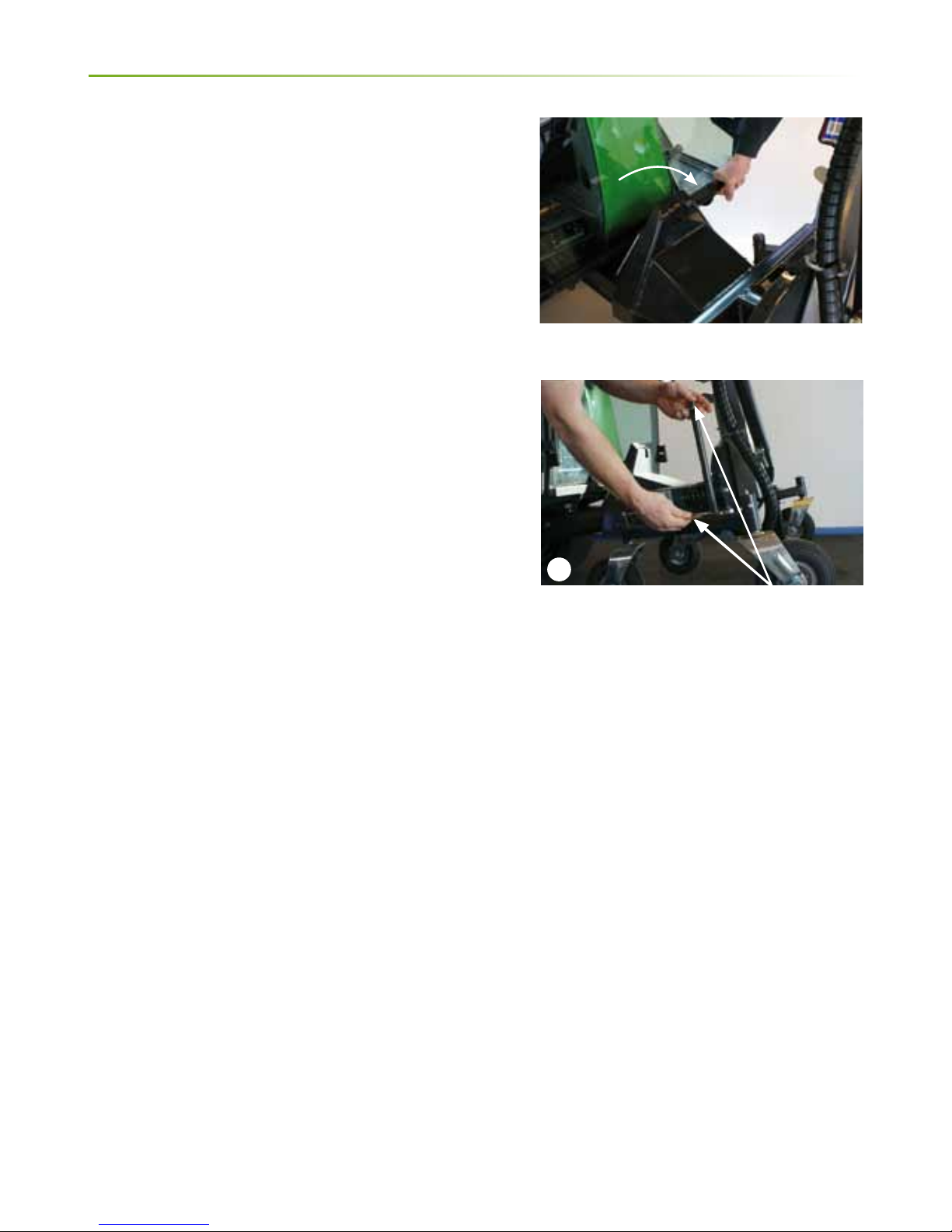

6. Pull out pin on each wheel support strut. Raise support
struts all the way and replace the pins. (Picture 2)
7. Removal:
Follow the procedure for tting in reverse order. To avoid
accidents when detaching the Hedge Trimmer, always
make sure the machine is on a level and stable surface.
Lock A-frame
Support strut up Pin
L
å
s
t
L
o
c
k
e
d

1
2
9
2.2 Before start-up
During transport:
Lock the Hedge Trimmer in the raised position using the
transport lock.
This prevents the attachment from lowering during
transport.
How to use the transport lock:

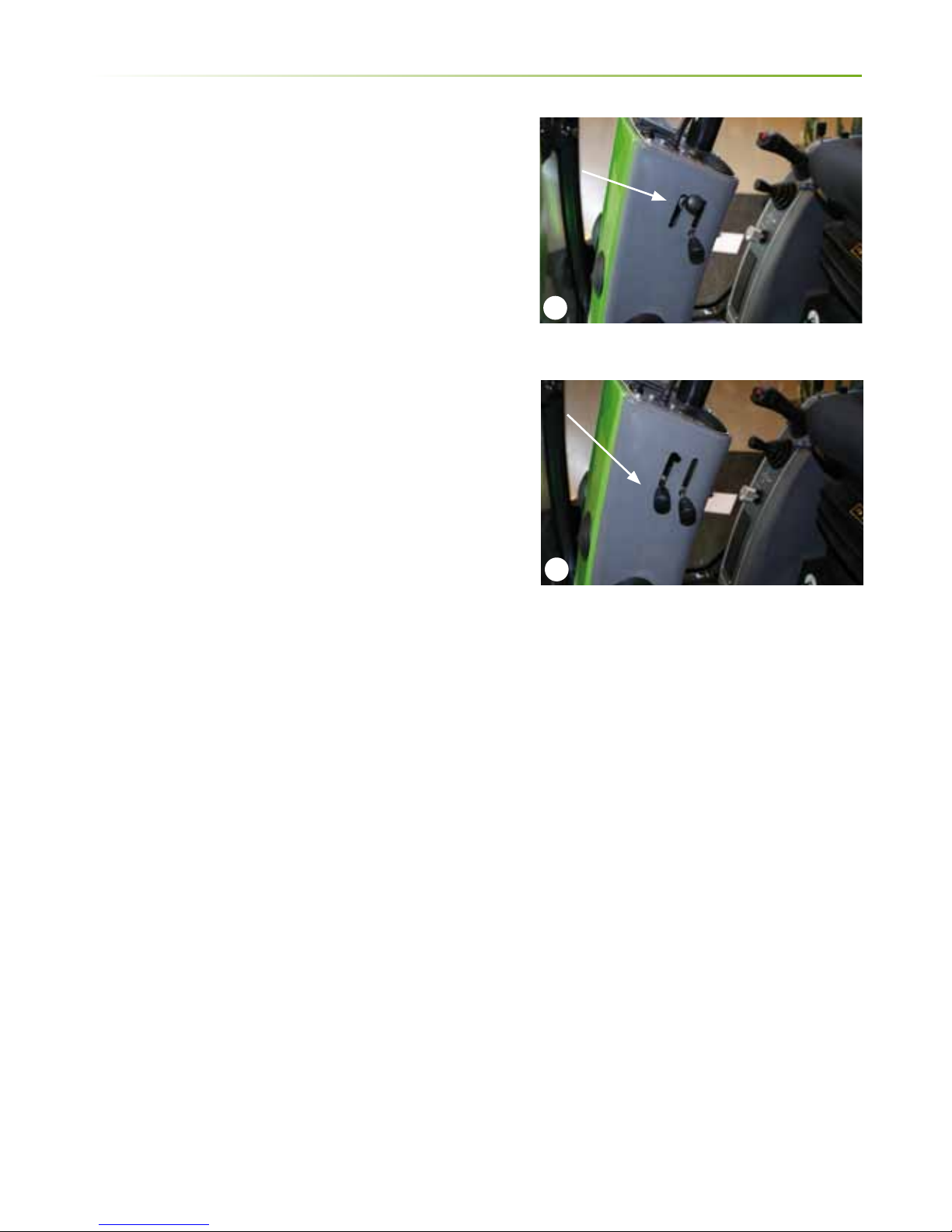

Move the handle to the uppermost position. Raise the
A-frame by pulling the joystick back. As the A-frame lifts,
the transport lock is automatically activated. (Picture 1)
How to unlock the transport lock:
Unhitch the handle and lift the A-frame to the highest
position. The attachment can now be lowered again.
(Picture 2)
Operator’s manual
Operator’s Manual City Ranger 2250 Hedge Trimmer
Transport lock in locked position
Transport lock in unlocked position

10
1
2
3
4
Operator’s Manual City Ranger 2250 Hedge Trimmer
Operator’s manual

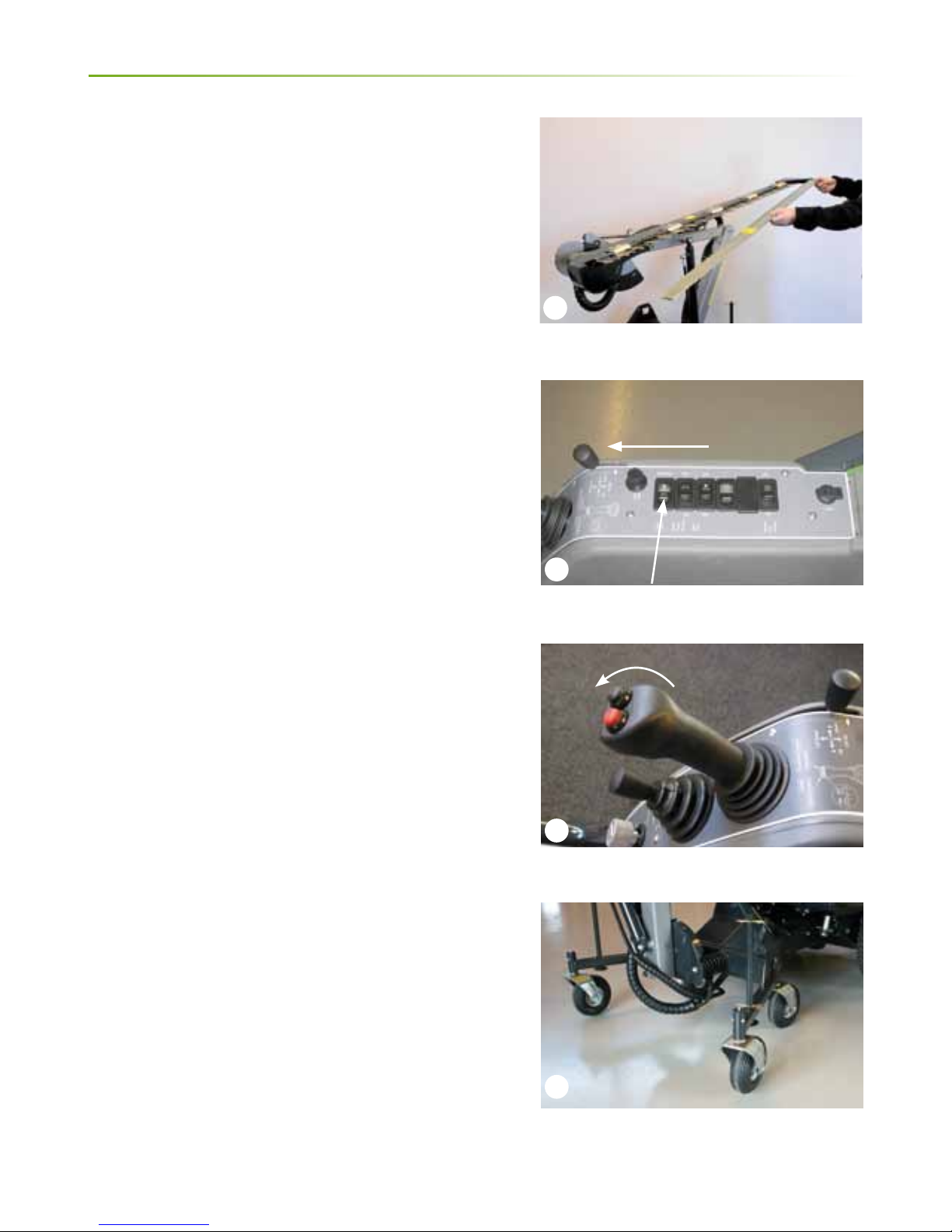

2.3 Start-up
1. Remove the protective cover from the cutting bar.
(Picture 1)
2. Start the machine.
3. Start the Hedge Trimmer: Switch on with the front
PTO switch. It is recommended that the machine rpm is
adjusted to 2,000. (Picture 2)
4. Move the joystick forward to lower the Hedge Trimmer
and align the wheels with the surface.
(Pictures 3 and +4)
Protective covering
PTO front and throttle
Joystick forward
Wheels on surface

11
1
Operator’s manual
Operator’s Manual City Ranger 2250 Hedge Trimmer
Tips!

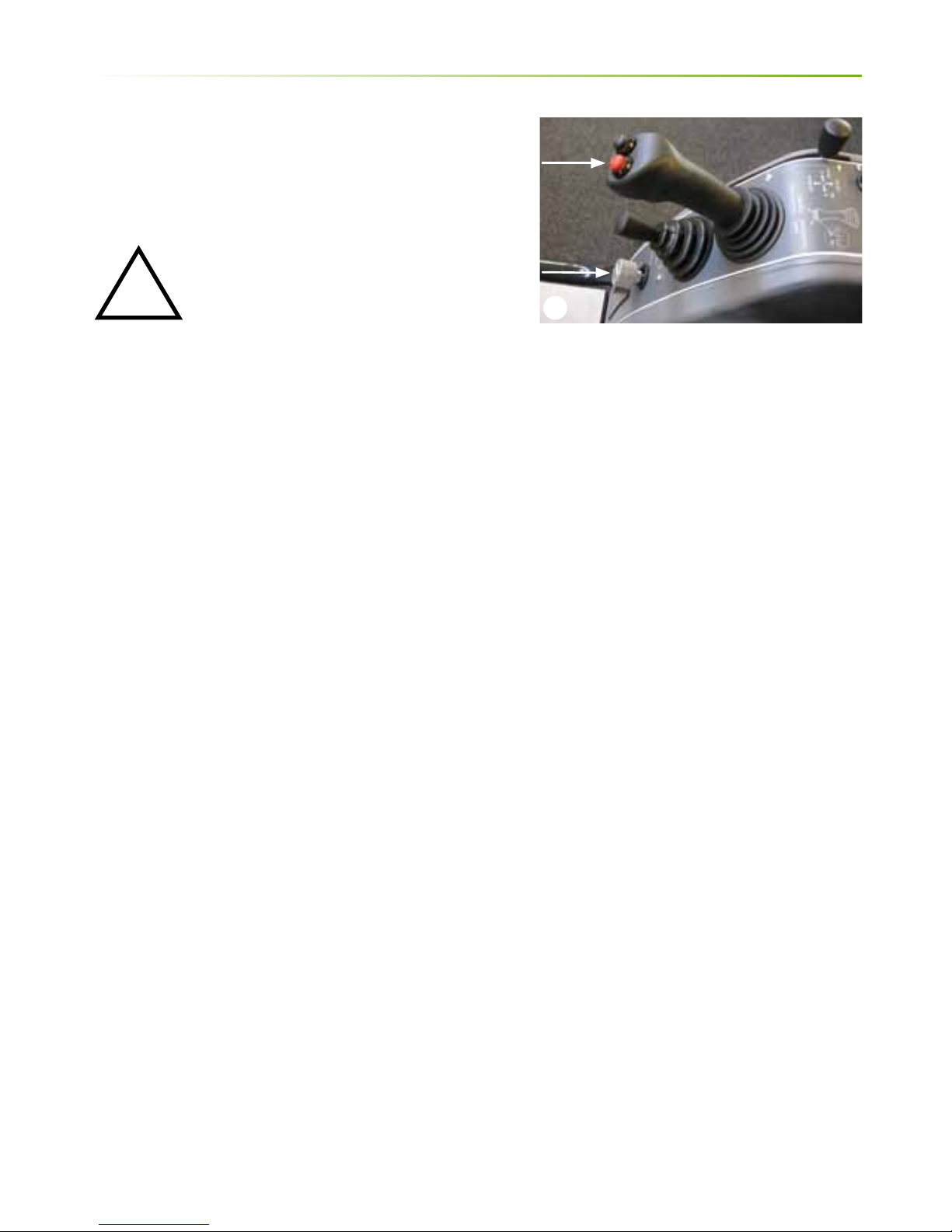

Activate the weight distribution (red button) if the surface
is soft. Weight distribution is adjusted using the control
knob. (Picture 1)
N.B:
Make sure no one is standing close to the
machine when it is in use.
Weight distribution
!

1
1
12
2
3
4
Operator’s Manual City Ranger 2250 Hedge Trimmer
Operator’s manual

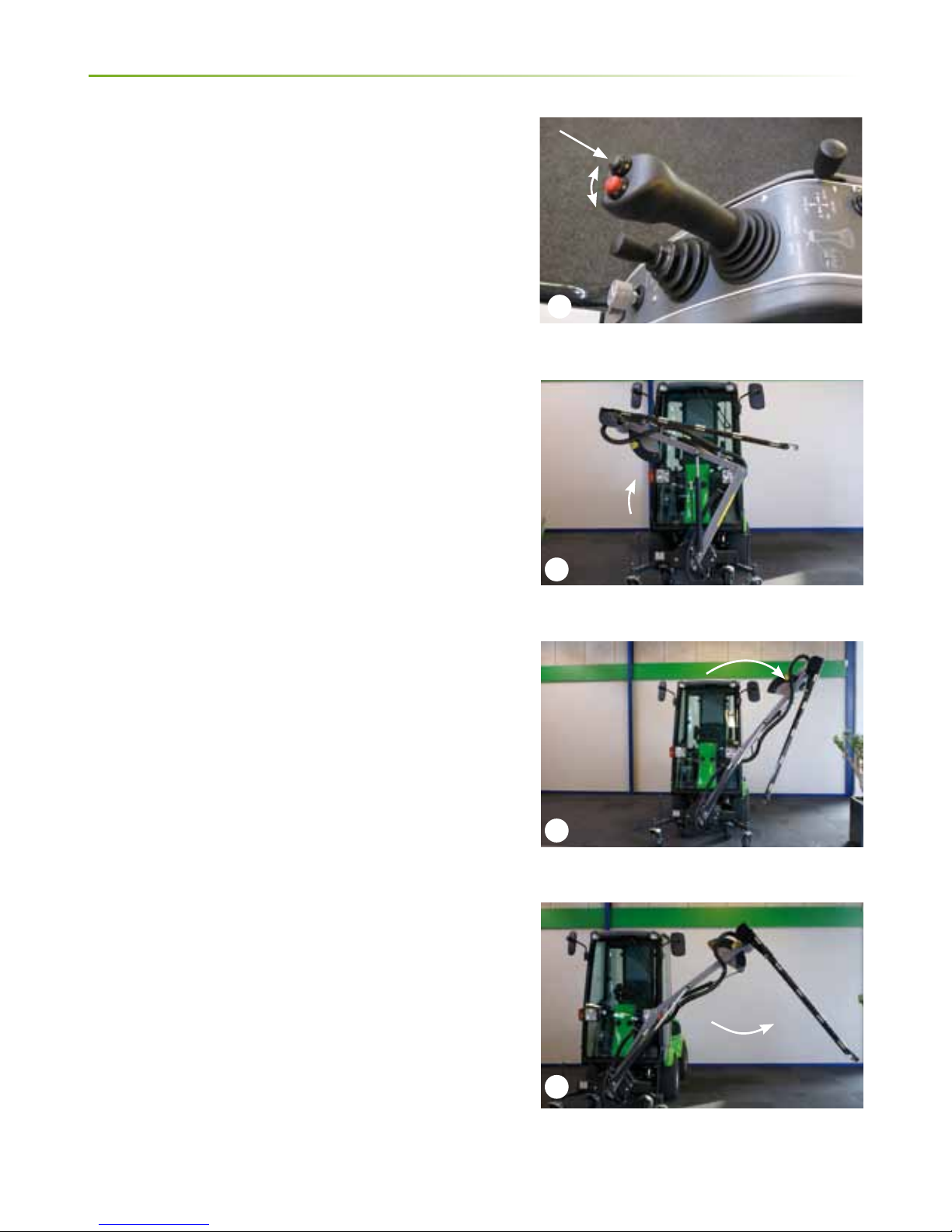

2.4 Setting trimmer position
Set the trimmer position by moving the joystick to the left
or right, pressing the black button on the joystick at the
same time. (Picture 1)
Hedge trimming on the left of the machine
1. Press and hold the black button and move the joystick to
the right. The arm now moves vertically. (Picture 2)
2. Press and hold the black button and move the joystick
to the left. The arm now moves out to the left. (Picture 3)
3. Move the joystick to the left. The end of the cutting bar
now moves up. (Picture 4)
Horizontal/vertical hedge trimming to the left
1. Move the joystick to the left until the cutting bar is
raised in the horizontal/vertical position
or
2. Move the joystick to the right until the cutting bar is
lowered in the horizontal/vertical position
3. To trim at higher horizontal/vertical positions: Press and
hold the black button and move the joystick to the right.
The arm moves up. Repeat positions as described in points
1 + 2.
4. To trim at lower horizontal/vertical positions: Press and
hold the black button and move the joystick to the left.
The arm moves down. Repeat positions as described in
points 1 + 2.
Joystick right - left and black button
Arm up
Arm down
Cutting bar up

13
1
2
3
4
Operator’s manual
Operator’s Manual City Ranger 2250 Hedge Trimmer
Change from left to right side of machine
1. Move the joystick to the left.
The end of the cutting bar now moves down. Do not stop
the machine until the cutting arm end is on the right.
(Picture 1)
2. Move the boom from left to right position.
Free the locking pin by turning the handle out to 90°.
The boom can now be tilted to the right side and locked.
(Pictures 2 and 3)
Tips!
Small paths
If a small path has to be trimmed, tilt the boom all the way
over to the opposite side. The cutting bar remains close to
the machine.
Tips!
Reach
If a long side-reach is required, tilt the boom to the side
where trimming is to be done.
3. Press and hold the black button and move the joystick to
the left. The arm now moves to the right. (Picture 4)
Cutting bar on right side
Boom adjustment
Arm to right
Locking pin

14
1
Operator’s Manual City Ranger 2250 Hedge Trimmer
Operator’s manual
Horizontal/vertical hedge trimming on the left side
1. Move the joystick to the right until the cutting bar is
raised in the horizontal/vertical position
or
2. Move the joystick to the left until the cutting bar is
lowered in the horizontal/vertical position
3. To trim at higher horizontal/vertical positions: Press and
hold the black button and move the joystick to the right.
The arm moves up. Repeat positions as described in points
1 + 2
4. To trim at lower horizontal/vertical positions: Press and
hold the black button and move the joystick to the left.
The arm moves down. Repeat positions as described in
points 1 + 2
Tips!
Trim hedges and bushes from below, i.e. with the cutting
bar turned with the outer part down, so that the skid just
touches the ground. Start trimming. The cutting bar is
then raised higher up the hedge, so that the same section
is trimmed all the way to the top. (Picture 1)
Operating speed
Depending on the conditions, an operating speed of 1–3
km/h is recommended.
1
Skid

15
1
2
3
3.1 Cleaning
Daily cleaning and maintenance will extend the lifetime of
both the machine and the attachment.
Clean the Hedge Trimmer with water when required.
Avoid high pressure cleaning of the snap couplings.
Wipe snap couplings clean with a cloth. (Picture 1)
3.2 Maintenance
Check all the bolts and tighten if required after a few
hours of operation, and one every season thereafter.
Lubricate blades and blade holders every two hours.
(Picture 2)
Lubricating nipples on all moveable parts must be re-lled
at least once every season. (Picture 3)
Defective blades must be replaced immediately. This
ensures eective trimming and reduces wear and tear on
the Hedge Trimmer.
Blade replacement must only be carried out by an
authorised Nilsk Outdoor Division dealer
Service and maintenance
Operator’s Manual City Ranger 2250 Hedge Trimmer
Cleaning the couplings
Lubricating blade
Lubricating nipples

16
4.1 Warranty
The warranty period for the materials and manufacture of this Hedge Trimmer is 12 months from
the date of purchase. In case of errors or defects on the machine within the warranty period,
Nilsk Outdoor Division will carry out the necessary repairs without charge for materials and
working hours in accordance with the terms and conditions listed below.
The scope of warranty:
1. The Nilsk Outdoor warranty is only valid on presentation of the original receipt, supplied with
model description, serial number and date of purchase.
2. Regular checks, adjustments, services and technical alterations are not covered by the
warranty.
3. All inquiries concerning the warranty are to be addressed to the distributor from whom the
machine was purchased.
4. This warranty does not cover faults and defects which cannot be traced back to defects in
material or production errors.
5. This warranty is valid for persons who have legally acquired the machine within the warranty
period.
6. In the event of failure to perform and substantiate service in accordance with the applicable
instructions, Nilsk Outdoor Division reserves the right to reject any claim made within the
warranty period.
7. Nilsk Outdoor Division reserves the right to make improvements and design-related
alterations to the machine without being obliged to modify previously delivered models in
relation hereto.
The warranty does not cover:
· Wear and tear, accidents, damage to the equipment caused by operating errors, changes to the
construction of the machine or use of non-Nilsk Outdoor spare parts or attachments.
· Machines with illegible serial numbers.
· Damage caused by force majeure such as lightning, ood, re, war, civil disturbance, etc. or
other causes over which Nilsk Outdoor Division has no control.
Operator’s Manual City Ranger 2250 Hedge Trimmer
Conditions

17
4.2 Complaints
All inquiries regarding the machine should be made at the distributor from whom the machine
was purchased. This applies to inquiries concerning normal use, service, maintenance and spare
parts, as well as to any complaints.
We wish you many years of safe and satised use of your machine.
Best regards
Nilsk Outdoor Division, Nilsk-Egholm A/S
4.3 Disposal
Many years from now, when your Hedge Trimmer has reached the end of its working life, it
should be disposed of in a responsible manner that conforms with relevant disposal regulations.
1. Waste hydraulic oil must be disposed of at an approved waste disposal facility or site.
2. Remove all plastic and rubber parts and dispose of.
3. After the parts mentioned have been removed, the machine is ready to be handed over to one
of your local approved scrap merchants.
Operator’s Manual City Ranger 2250 Hedge Trimmer
Conditions

18 Operator’s Manual City Ranger 2250 Hedge Trimmer
Spare parts
90601370 Complete blade set
90601410 Complete upper blade
90601420 Complete lower blade
90601030 Knife Guide
5.1 Spare parts - City Ranger 2250 Hedge Trimmer
90601060 Rivet
90601050 Blade tooth
90601100 Skid
01100330 Wheel
02901080 Lubricant spray

19
Notes
Operator’s Manual City Ranger 2250 Hedge Trimmer

701101181-01 UK
Nilsk Outdoor Division
Nilsk-Egholm A/S
Transportvej 27
DK-7620 Lemvig
T. [phone]
F. [phone]
www.nilsk-egholm.com
info@nilsk-egholm.com
