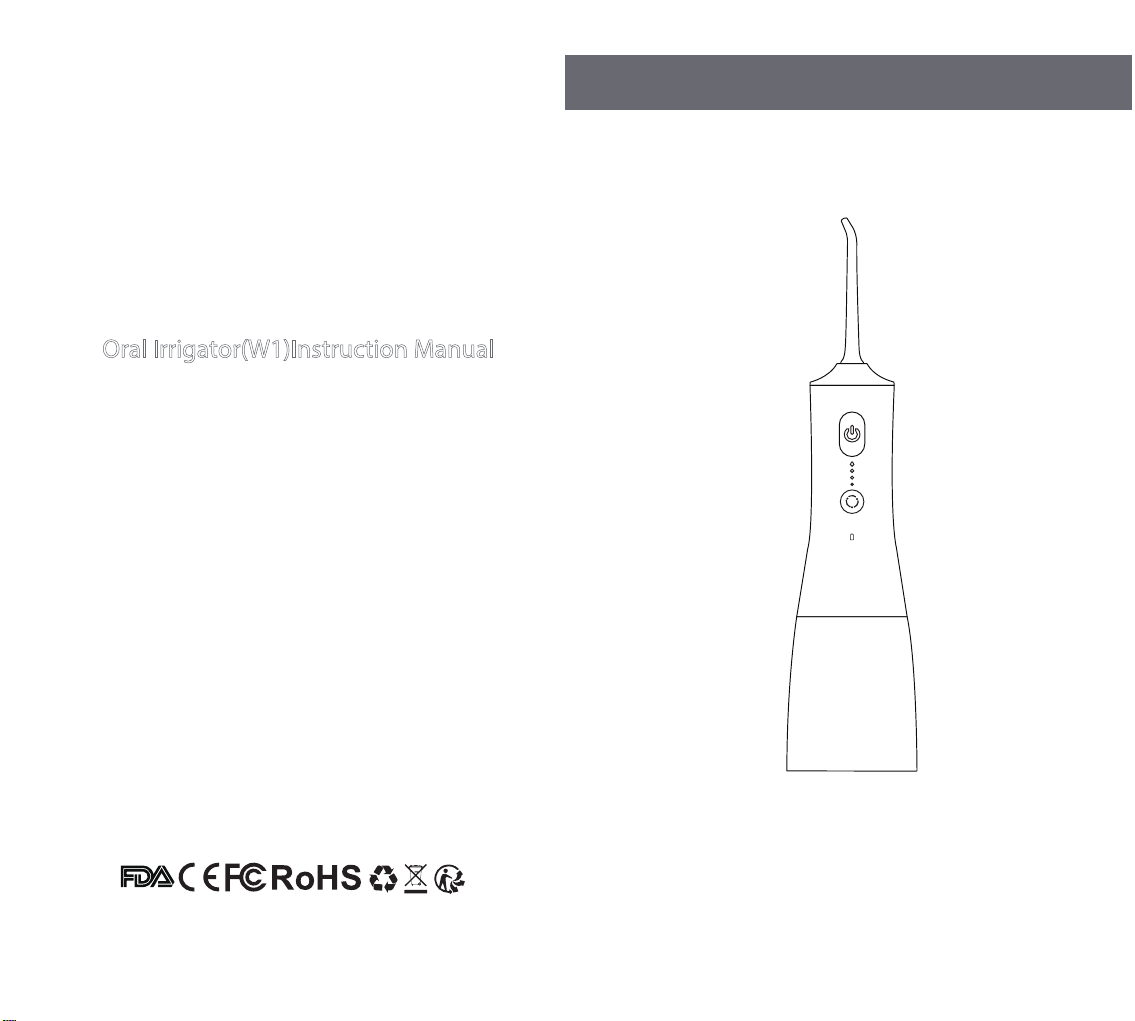

Oral Irrigator(W1)Instruction Manual
Thanks for choosing the W1 oral irrigator.
Before using the product,
please read the manual carefully
and keep it for future reference.
Tooth washing device
W1
Tooth washing device
W1
Tooth washing device
W1
Oral Irrigator(W1)Instruction Manual
Thanks for choosing the W1 oral irrigator.
Before using the product,
please read the manual carefully
and keep it for future reference.
Email us to get free parts
Tooth washing device
W1
Tooth washing device
W1
Tooth washing device
W1
ZAHNWASCHVORRICHT
W1
Tooth washing device
W1
Tooth washing device
W1
Tooth washing device
W1
Tooth washing device
W1
ZAHNWASCHVORRICHT
W1
Tooth washing device
W1
Tooth washing device
W1
Tooth washing device
W1
Tooth washing device
W1
ZAHNWASCHVORRICHT
W1
Tooth washing device
W1
Tooth washing device
W1
Tooth washing device
W1
Tooth washing device
W1
ZAHNWASCHVORRICHT
W1
Tooth washing device
W1
Tooth washing device
W
1
Get upgraded after-sales services for 1 year

01
1. Important Safeguards:
All information in this section is provided to instruct you on the correct and safe
operation of this device so that you can avoid injury to yourself and others as well
as damage to property.
• Toddlers, infants, people who are unable to operate the device should not use it
by themselves. Please also keep it away and out of reach from children.
• Never try to alter, disassemble or repair the device.
• Do not place or store the product where it will fall or end up in a tub or sink.
• Do not reach for the product if it has fallen into water. Unplug immediately.
• Do not use the product while bathing.
2. Notes:
• This appliance can be used by children from age 8 and above; and people with
reduced physical, sensory or mental capabilities or lack of experience and knowl
edge if they have been given supervision or instruction concerning use of the
device in a safe way and understand the hazards involved.
• Children shall not play with the device. Cleaning and user maintenance shall not
be made by children without supervision.
• The device can be only be used with the power supply unit provided with the
device.
• water warmer than 40 °C.
• If the external exible cable or cord of this transformer is damaged, it shall be
replaced by the manufacturer, a service agent or a similarly ed person in
order to avoid any Hazard.
• Keep the cord away from heated surfaces.
• Please do not use it if you lose the nozzle.
• Do not submerge the device in water.
• Do not use for any purpose other than oral cleaning.
• Keep nozzle away from young children. The nozzle is small enough to swallow
and can be lodged in the throat.
• Certain types of mouthwash may damage the equipment by cracking the hous
ing or water reservoir. Therefore, do not use mouthwash in the water reservoir.
• People who experience tooth or gum pain may not be able to use this device
and should consult with their dentist before use.
• Do not press the nozzle too against your teeth or gums, it will hurt your
gums if you do so.
• For applying the periodontal nozzle, turn on the irrigator by setting it at the low
est pressure (Soft Mode).
02
3. Designs:
Cover Nozzle release key
Anti slip point
Main body Type-C rubber plug and charging port
Water tank opening and closing Water tank door
Water tank Switch
Mode switching button Power indicator
Tongue Cleaner Standard jet tip
Orthodontic tip Periodontal pocket tip
Pulse Strengthen
Standard Soft
Note:
There may be some liquid remaining inside the main device before use (tank, wa
ter suction tube, etc), this is the remaining distilled water that was used for the
performance (wat ow) test, so there are no health concerns.
17 18
19 20
1
2
3
4
5
6
7
8
9
13 14 15 16
10
11
12
17
19
18
20
13 14 15 16
01
Oral Irrigator Instruction Manual
W
1
1. Important Safeguards:
All information in this section is provided to instruct you on the correct and safe
operation of this device so that you can avoid injury to yourself and others as well
as damage to property.
• Toddlers, infants, people who are unable to operate the device should not use it
by themselves. Please also keep it away and out of reach from children.
• Never try to alter, disassemble or repair the device.
• Do not place or store the product where it will fall or end up in a tub or sink.
• Do not reach for the product if it has fallen into water. Unplug immediately.
• Do not use the product while bathing.
2. Notes:
• This appliance can be used by children from age 8 and above; and people with
reduced physical, sensory or mental capabilities or lack of experience and knowl
edge if they have been given supervision or instruction concerning use of the
device in a safe way and understand the hazards involved.
• Children shall not play with the device. Cleaning and user maintenance shall not
be made by children without supervision.
• The device can be only be used with the power supply unit provided with the
device.
• water warmer than 40 °C.
• If the external exible cable or cord of this transformer is damaged, it shall be
replaced by the manufacturer, a service agent or a similarly ed person in
order to avoid any Hazard.
• Keep the cord away from heated surfaces.
• Please do not use it if you lose the nozzle.
• Do not submerge the device in water.
• Do not use for any purpose other than oral cleaning.
• Keep nozzle away from young children. The nozzle is small enough to swallow
and can be lodged in the throat.
• Certain types of mouthwash may damage the equipment by cracking the hous
ing or water reservoir. Therefore, do not use mouthwash in the water reservoir.
• People who experience tooth or gum pain may not be able to use this device
and should consult with their dentist before use.
• Do not press the nozzle too against your teeth or gums, it will hurt your
gums if you do so.
• For applying the periodontal nozzle, turn on the irrigator by setting it at the low
est pressure (Soft Mode).
02
3. Designs:
Cover Nozzle release key
Anti slip point
Main body Type-C rubber plug and charging port
Water tank opening and closing Water tank door
Water tank Switch
Mode switching button Power indicator
Tongue Cleaner Standard jet tip
Orthodontic tip Periodontal pocket tip
Pulse Strengthen
Standard Soft
Note:
There may be some liquid remaining inside the main device before use (tank, wa
ter suction tube, etc), this is the remaining distilled water that was used for the
performance (wat ow) test, so there are no health concerns.
17 18
19 20
1
2
3
4
5
6
7
8
9
13 14 15 16
10
11
12
17
19
18
20

03 04
4. How To Use:
4.1 Charging the device ( As Fig. 1)
• Please cover the lid of the tank tightly
before using the water sser to avoid
water leakage.
• Take the charger base cover down and
insert the device socket (make sure no
liquid is remaining inside the device
plug).
• Insert the charging adaptor securely
into the power outlet.
• The “Power ” indicator blinks when
the device is charging. When it is fully
charged, the white “Power” indicator
will stay on for 2 minutes, and it will
tomatically after that.
• Put the cover on the charger base
again after char
Note:
If the power indicator is blinking during or
after an irrigation, that means the battery
need to be recharged. A full charge will
take about 4 hours.
4.2 Use the Water Flosser
• Attach the nozzle onto the unit. (Fig. 2)
• Open the cap of the water tank to the tank with water
which should not exceed 40°C, then close the cap.(Fig. 3)
Fig. 3
• Or, slide the water tank down the unit, the tank with water which should
not exceed 40°C, then attach the tank on the unit. (Fig. 4)
• Press the “ ” button to change the working mode after the sser turns on, the
default mode keeps the same as last shut at situation. (Fig. 5)
Fig. 4 Fig. 5
Mode Introductions:
Soft: for gentle cleaning of sensitive gums
Standard: for normal cleaning
Strengthen: for deep cleaning, with high water pressure
2.
Pulse: for cleaning and massaging the gums
Hold the unit in an upright position with the nozzle tip pointing toward your
teeth.
•
Press “ ” key to start irrigating.(Fig. 6)
•
•
1) D irect the wate r jet ow at a
90-degree angle to the teeth and
gums.
2) Direct the water jet slowly along
the teeth.
3) Direct the water jet along the gum
line with the nozzle tip at a 90 de
-
gree angle to the gum tissue.
4) Cleaning between the teeth and
arou nd any braces, crowns or
bridgework thoroughly.
Fig. 1
Fig. 2
90°
Fig. 6
switch
Pulse
Standard
Mode switching button
Strengthen
Soft
Power indicator

05 06
• Press the “ ”key and then press the nozzle release button to replace
other nozzles when needed.(Fig.7)
• Once irrigating is complete, press the “
Fig. 7 Fig. 8
4.3 After using the appliance (Fig.8)
• Open the cap of the water tank and dispose of the water in the tank.
• Press the “
and close the water tank cap.
• Wipe the device with a dry cloth.
•
• During the warranty period, for any defect that may arise from materials or product
process, we will replace the parts or the whole product according to certain
circumstances.
• When you apply for free repair, you must submit the product and proof that can
prove the date of purchase to us.
• The following conditions are not included in the warranty:
•
- Damages caused by improper use, for example, wrong use of power supply,
- Ageing and normal wear and tear from use.
- Problems occur due to its use for other purposes, or improper use or use
components not supplied by us.
Note:
To prevent bacteria from propagating, make sure there is no remaining water in
side the unit. If you’re not going to use this appliance for a long time, be sure to
wipe and dry the appliance as soon as possible before storing it.
ations:
Model:W1
Battery:2000mAh
Pulse frequency:1400rpm
Noise:65db
Working temperature: 0-50°C
Input voltage: DC5.0V 1.0A
Waterproof rating: IPX7
7. Warranty
6. Troubleshooting
Problem
It does not work
You have just purchased
the product or it has been
left unused for more than
3 months
Charge the unit for at
least 4 hours
Contact service center
for support
Charge the unit for at
least 4 hours
Replace the nozzle
Fill up tank
Use with the appliance
in a vertical state
The battery has reached
the end of its life cycle
Charging time was
There is dirt stuck in the
nozzle
The nozzle is deformed
There is dirt stuck in the
The tank is empty
The appliance is titled too
much while in use
Water pressure isverylow
Water does not come out
It only works fora few
minutes evenafter charging
Possible Cause Solution

Vielen Dank, dass Sie sich für die Munddusche W1
entschieden haben.
Bitte lesen Sie das Handbuch vor der Verwendung des
Produkts sorgfältig durch und bewahren Sie es zum
späteren Nachschlagen auf.
Address: No. 1728, Xiaolin Avenue, North Industrial Zone
Xiaolin Town, Cixi City, Zhejiang Province
Phone: [phone]
Email: [e-mail]
Tongxing Technology (Ningbo) Co., Ltd.
Contacts
Contact us if you experience issues relating to maintenance and
WEEE Disposal and Recycling Information Correct Disposal of this product.
This marking indicates that this product should not be disposal with other
household wastes throughout the EU.
To prevent possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsible to promote the sustainable
reuse of materials resources. To return your used device, please use the
return and collection systems or contact the retailer where the product was
purchased. They can take this product for environmen-tal safe recycling
This product complies with Verpackungsgesetz regulations and actively
uses recycling-friendly packaging
European Union Compliance Statement
Important WEEE information
European Union Compliance Statement
Important Verpackungsgesetz information
07
Vielen Dank, dass Sie sich für die Munddusche W1
entschieden haben.
Bitte lesen Sie das Handbuch vor der Verwendung des
Produkts sorgfältig durch und bewahren Sie es zum
späteren Nachschlagen auf.
Address: No. 1728, Xiaolin Avenue, North Industrial Zone
Xiaolin Town, Cixi City, Zhejiang Province
Phone: [phone]
Email: [e-mail]
Tongxing Technology (Ningbo) Co., Ltd.
Contacts
Contact us if you experience issues relating to maintenance
anderrors/faults with your oral lrrigator
WEEE Disposal and Recycling Information Correct Disposal of this product.
This marking indicates that this product should not be disposal with other
household wastes throughout the EU.
To prevent possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsible to promote the sustainable
reuse of materials resources. To return your used device, please use the
return and collection systems or contact the retailer where the product was
purchased. They can take this product for environmen-tal safe recycling
This product complies with Verpackungsgesetz regulations and actively
uses recycling-friendly packaging
European Union Compliance Statement
Important WEEE information
European Union Compliance Statement
Important Verpackungsgesetz information
Vielen Dank, dass Sie sich für die Munddusche W1
entschieden haben.
Bitte lesen Sie das Handbuch vor der Verwendung des
Produkts sorgfältig durch und bewahren Sie es zum
späteren Nachschlagen auf.
Address: No. 699, Jinhai Road, Binhai Economic Development Zone, Cixi, Zhejiang
Xiaolin Town, Cixi City, Zhejiang Province
Phone: [phone]
Email: [e-mail]
Ningbo Mingte Trading Co., Ltd.
Contacts
Contact us if you experience issues relating to maintenance and
WEEE Disposal and Recycling Information Correct Disposal of this product.
This marking indicates that this product should not be disposal with other
household wastes throughout the EU.
To prevent possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsible to promote the sustainable
reuse of materials resources. To return your used device, please use the
return and collection systems or contact the retailer where the product was
purchased. They can take this product for environmen-tal safe recycling
This product complies with Verpackungsgesetz regulations and actively
uses recycling-friendly packaging
European Union Compliance Statement
Important WEEE information
European Union Compliance Statement
Important Verpackungsgesetz information
8. Upgrade service（Fig.9）
FREE
Email us within 30 days after purchase to get upgraded after-sales
services for 1 year: no repair, replacement only.
It's recommended to replace tips every 3-6 months, contact us within
1 year of purchase to get 4 tips for free.
Email: [email protected]
Tooth washing device
W1
Tooth washing device
W1
Tooth washing device
W1
ZAHNWASCHVORRICHT
W1
Tooth washing device
W1
Tooth washing device
W1
Tooth washing device
W1
Tooth washing device
W1
ZAHNWASCHVORRICHT
W1
Tooth washing device
W1
Tooth washing device
W1
Tooth washing device
W1
Tooth washing device
W1
ZAHNWASCHVORRICHT
W1
Tooth washing device
W1
Tooth washing device
W1
Tooth washing device
W1
Tooth washing device
W1
ZAHNWASCHVORRICHT
W1
Tooth washing device
W1
Fig.9
