Ninka Qanto User manual

Instructions for use
Instrucciones de uso
Mode d’emploi
Qanto_Id_A5_ 0000.50.65062 - US
Reproduction, even in excerpts, is permitted only with the written permission of Ninkaplast GmbH.
Ninguna parte de este manual puede ser reproducida sin el consentimiento escrito de Ninkaplast GmbH.
Toute reproduction, même par extrait, n’est autorisée qu’avec le consentement écrit de Ninkaplast GmbH.
English 2
Espanõl 34
Français 66
US
CA
READ THIS MANUAL BEFORE USING THIS PRODUCT.
Failure to follow the instructions and safety precautions in
this manual can result in serious injury or death.
Keep this manual in a safe location for future reference

2Qanto_Id_A5_ 0000.50.65062-US
Contents:
1. Explanation of symbols......................................................4
2. Safety instructions .............................................................5
3. General information ...........................................................8
3.1 Designation of the device..........................................8
3.2 Intended use..............................................................8
3.3 Versions (installation on left/right) .............................8
4. Technical data....................................................................9
5. Assembly of Qanto.............................................................10
5.1 General assembly instructions ..................................10
5.2 Delivery......................................................................11
6. Operation of Qanto ............................................................12
6.1 Electrical system........................................................12
6.2 Control element .........................................................12
6.3 Safety cut-off .............................................................14
6.4 Lighting ......................................................................15
6.5 Height adjustment of the middle tray.........................16
6.6 Height adjustment of trays.........................................19
6.7 Gap adjustment of trays ............................................21
6.8 Initialisation................................................................23
EN

3
Qanto_Id_A5_ 0000.50.65062-US
7. Maintenance and care .......................................................24
8. Warranty and guarantee ....................................................24
8.1 Guarantee..................................................................24
8.2 Spare parts................................................................25
8.3 Repair ........................................................................26
9. Disassembly/assembly ......................................................26
9.1 Exchange of the LED lighting....................................27
10. Recycling/disposal..............................................................29
11. Troubleshooting..................................................................33
EN

4Qanto_Id_A5_ 0000.50.65062-US
1. Explanation of symbols
DANGER indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE is used to address practices not related to physical injury.
DANGER
!
WARNING
!
CAUTION
!
NOTICE
EN

5
Qanto_Id_A5_ 0000.50.65062-US
2. Safety instructions
•
•
•
•
•
•
•
WARNING
!
EN
Anyone who performs connection or assembly work on Qanto
or uses Qanto must have access to these instructions for use.
Follow these instructions. Ignoring the instructions above may
lead to injury or electric shock.
If the product is visibly damaged then it should not be installed
as this may lead to injury or electric shock.
During the installation of Qanto, make sure there is sufficient
clearance for the movement of the lifting system. Failure to obser-
ve this may result in serious injury during the up and down move-
ment of the unit's trays. When Qanto is extended upward and to
both sides, a clearance of about 7,88” (200 mm) to other cabinets
or shelving must be observed.
Make sure the cables are undamaged, otherwise this may lead
to electric shock.
During installation and normal operation there should be suffici-
ent space for the lifting mechanism to operate, otherwise injury
may occur
The lifting mechanism must not be used for people or animals as
this may lead to injury.
Qanto should not be operated by children under 12 years of age
as incorrect operation may lead to injury or electric shock.
Before cleaning, always disconnect Qanto by pulling the mains
•

6Qanto_Id_A5_ 0000.50.65062-US
CAUTION
!
•
•
EN plug or by disconnecting the socket from the mains. To reduce the
risk of burns, fire, electric shock or injury to persons.
Repairs on Qanto may be performed by authorised workshops
or service personnel only as special tools must be used. Please
contact your specialist dealer. If parts on Qanto are opened, there
is a subsequent risk malfunctions. There is also a risk of injury or
electric shock.Such actions void all warranty claims.
During adjustment of the shelves, the system must not be ope-
rated or moved as this may lead to injury.
If the maximum weight capacity is exceeded and any part of the
body impedes the movement between the trays and frame, this
may result in serious injury.
During the installation and use of Qanto, sufficient clearance for
the movement of the lifting system must be observed so that no
risks arise for users and other people in the vicinity, people in the
vicinity otherwise this may result in injury.
The on-period must not exceed 6 minutes an hour or a maxi-
mum of 2 minutes in continuous operation. This can lead to an
overheating of the motor, brake and spindle nut. When the
on-period is exceeded, the service life of the lifting column can be
considerably and the functionality impaired.
•
•
•

7
Qanto_Id_A5_ 0000.50.65062-US
•
•
•
•
•
•
EN
The power supply must be suitable for the unit otherwise electri-
cal components may be damaged.
A clearance of 11,82” (300 mm) must be observed between
Qanto and a gas stove, otherwise heat may damage the unit com-
ponents.
The electrical system of Qanto must be accessible (e.g., a
double socket under the cabinet near the base).
If the control unit causes unusual noises or odours during opera-
tion, interrupt the power supply in order to avoid major damage (to
the unit).
Before connecting the electrical drives to the in-house power
mains, compare the voltage of the power mains with the input
voltage specified on the type plate. The mains voltage and
permissible input voltage must be identical. If not, Qanto must not
be connected, as the function of the unit may be impaired. Please
contact your specialist dealer.
At regular intervals, remove dust and dirt from Qanto trays and
make sure it is not damaged or cracked.
Please clean with a mild household cleaner and a soft cloth.
After that, wash off the cleaner with clear water and thoroughly
wipe Qanto trays dry. For particularly stubborn stains, use undilut-
ed household cleaner or even glass cleaner. Do not use strongly
alkaline or acidic cleaning agents, as this may damage he
surfaces of the unit.
NOTICE

8Qanto_Id_A5_ 0000.50.65062-US
3.1 Designation of the device
The kitchen cabinet is called Qanto.
3.2 Intended use
3.3 Versions
Qanto is suitable for “left” and/or “right” installation.
Qanto is equipped with 2 or, alternatively, 3 trays.
3. General information
Qanto is a complete storage cabinet that, at the touch of a
button, uses an electric lifting mechanism to raise and
lower storage trays. The trays can store items such as
pots, pans, dry goods, electric appliances and other
kitchen equipment.
EN

9
Qanto_Id_A5_ 0000.50.65062-US

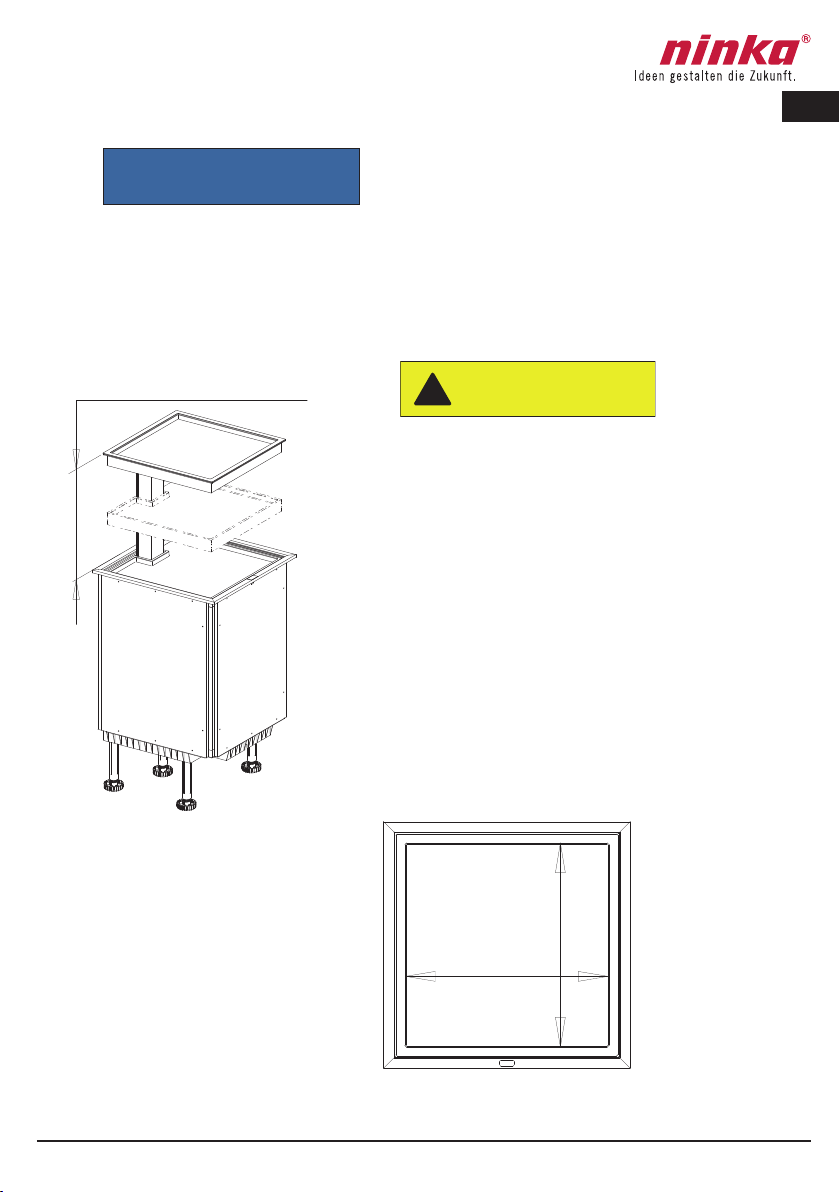

4.Technical data
Lifting 19,69“ (500 mm)
18,66“
(474 mm)
Top tray: max. load of 22 lbs. (10 kg)
Middle tray: max. load of 22 lbs. (10 kg)
Bottom tray: max. load of 33 lbs. (15 kg)
Inner dimensions of tray
Mains connection 120 V / 60 Hz / 16 A
CAUTION
!
EN
The power supply must comply with the following require-
ments otherwise electrical components may be damaged.
If the maximum weight capacity is excee-
ded and a body part impedes the move-
ment between a tray and the frame then
serious injury may occur.
NOTICE

10 Qanto_Id_A5_ 0000.50.65062-US
5. Assembly of Qanto
WARNING
!
EN
Anyone who performs connection or assembly work on Qanto or
uses Qanto must have access to these instructions for use. Follow
these instructions. Non-observance of the above mentioned instruc-
tions can lead to accidents resulting in resulting in serious injury or
electric shock.
If the product is visibly damaged, it must not be installed, as an error
may lead to injury or electric shock.
During the installation of Qanto, make sure there is sufficient clea-
rance for the movement of the lifting system, otherwise during
raising or lowering of the trays, serious injury may occur. When
Qanto is extended upward and to both sides, a clearance of about
7,88” (200 mm) to other cabinets or shelving must be observed.
Make sure the cables are undamaged, otherwise there is a risk of
electric shock.
A clearance of 11,82” (300 mm) must be observed between Qanto
and a gas stove, as heat may damage the unit and its components.
The electrical system of Qanto must be accessible (e.g., a double
socket under the cabinet near the base).
If the control unit causes unusual noises or odours during operation,
interrupt the power supply, to avoid serious damage.
NOTICE

11
Qanto_Id_A5_ 0000.50.65062-US
1x
1x
5x
4x
1x (2x)
5.2 Scope of supply
Cabinet with lifting system
Adjustable feet
Top tray
Bottom tray (middle tray:
optional)
Spacer bars: optional
EN

12 Qanto_Id_A5_ 0000.50.65062-US
6.1 Electrical system
Before connecting the electrical drives to the in-house power
mains, compare the voltage of the power mains with the input -
missible input voltage must be identical. If not, Qanto must not
be connected, otherwise electrical components may be damaged.
Please contact your specialist dealer.
6.2 Control element
6. Operation of Qanto
NOTICE
EN
WARNING
!
During installation and normal operation of the Qanto unit suffi-
cient space must be provided for the movement mechanism to
fuction otherwise injury may occur.
The lifting mechanism must not be used to lift people or animals
as this may result in injury.
Qanto should not be operated by children under 12 years of age
as incorrect operation may lead to injury or electric shock.
During the installation and use of Qanto, sufficient clearance for
the movement of the lifting system must be observed so that no
risk arise for users and other people in the vicinity, otherwise
there is a risk of injury.

13
+
-
Qanto_Id_A5_ 0000.50.65062-US

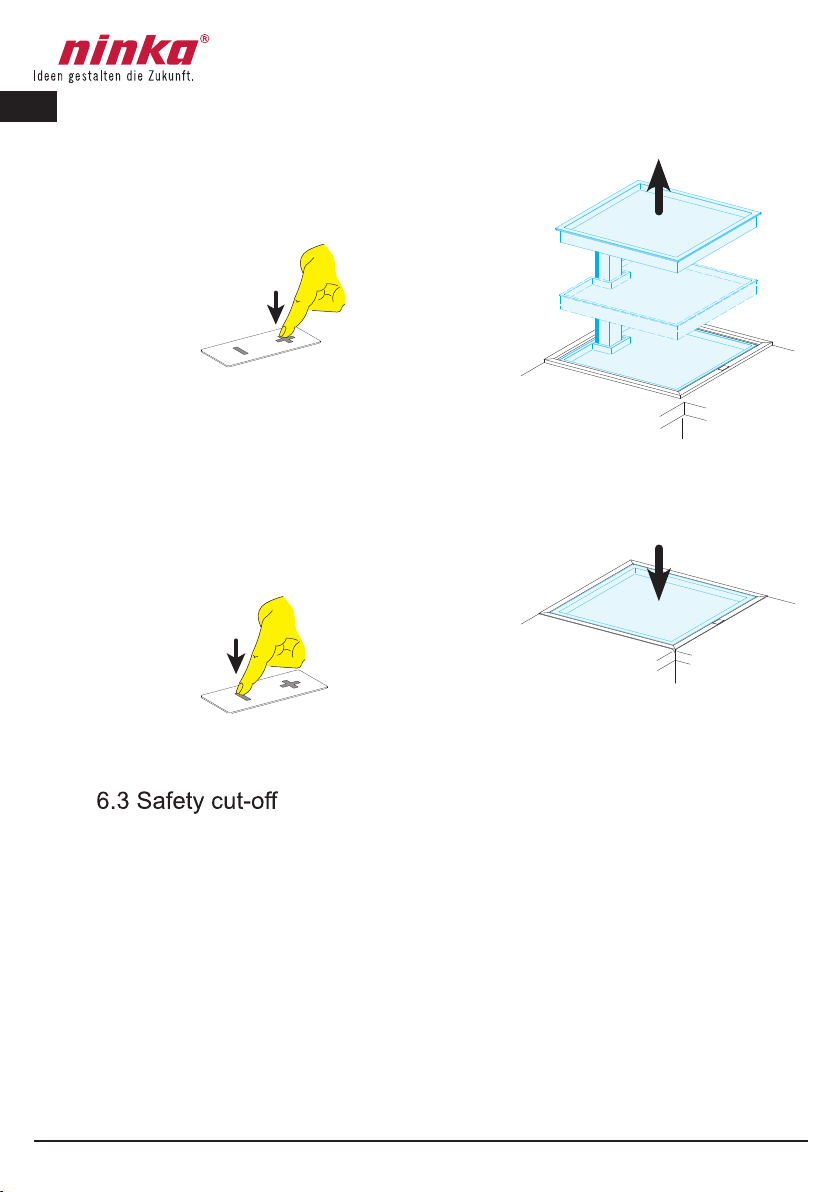

PRESSING and HOLDING the button
moves the drive up.
RELEASING the button switches the
drive to STOP. STOP
PRESSING and HOLDING the button
moves the drive down.
EN
The on-period must not exceed 6 minutes an hour or a maxi-
mum of 2 minutes in continuous operation. This can lead to
an overheating of the motor, brake and spindle nut. When the
on-period is exceeded, the service life of the lifting column can
be considerably reduced, and functionality may be impaired.
NOTICE

14
+
-
Qanto_Id_A5_ 0000.50.65062-US
PRESSING and HOLDING the button
moves the drive up and switches to
STOP in the end position.
STOP
Downward movement is possible only if the upper trays are in
place.
The trays can be moved only when the button is pressed.
If the upper trays shift/cant or raise during the downward move-
ment, the system stops the downward movement immediately.
In this situation, the system permits upward movement only.
PRESSING and HOLDING the button
moves the drive down and switches
to STOP in the end position.
STOP
EN

15
Qanto_Id_A5_ 0000.50.65062-US
6.4 LED lighting optional
The cabinet can be delivered with maintenance-free LED lighting.
When the trays are raised, the LED lighting switches “ON” auto-
matically.
When the trays are lowered, the LED lighting switches “OFF”
automatically
If a fault occurs, please contact your specialist dealer or
customer service. service number: +800-94994949
e-mail: [email protected]
EN

1.
2.
16 Qanto_Id_A5_ 0000.50.65062-US
6.5 Height adjustment of the middle tray
Step 1:
Move the trays completely to the top by
pressing the “+” button on the control
element.
Step 2:
Leverage under the middle tray and
remove it from the tray carrier.
Tray
EN
During adjustment, the unit must not be
operated as this may cause injury.
To reduce the risk of burns, fire, electric
shock or injury to persons, always
disconnect Qanto by pulling the mains
plug or by disconnecting the socket
from the mains before cleaning.
WARNING
!

3. 1x 360°
5.
4.
17
Qanto_Id_A5_ 0000.50.65062-US
Step 4:
You can now move in the middle tray by
about ± 1.96” (± 50 mm).
Step 5:
Retighten the 4 screws with a socket
head screwdriver 7/64” (3 mm).
Step 3:
Loosen the 4 screws with a socket head
screwdriver 7/64” (3 mm) by a 360°
turn.
Tray carrier
EN

6.
7.
18 Qanto_Id_A5_ 0000.50.65062-US
Step 6:
Place the tray on the middle tray
carrier.
Step 7:
Move the trays completely to the
bottom by pressing the “–” button on
the control element.
Tray
Tray carrier
EN

H = H 1.
2.
3.
19
Qanto_Id_A5_ 0000.50.65062-US
6.6 Height adjustment of trays
Step 1:
Check the height of the tray in relation
to the height of the masking frame.
Step 2:
Leverage the tray from the tray carrier.
Step 3:
Raise or lower the tray supports by
turning them.
Tray
Tray
Masking frame
Tray support
EN

H = H 4.
6.
5.
6.
TX20
6.
20 Qanto_Id_A5_ 0000.50.65062-US
Step 4:
Lay the tray on the tray carrier
and check the height of the tray in
relation to the height of the mask-
ing frame once again. If the height
still is not correct, repeat Steps 2
and 3.
Step 5:
Lay a water level or straightedge on the tray supports.
Step 6:
Loosen the screws of the safety switch and move the safety switch
screws.
Water level / straightedge
Safety switch
EN
Other manuals for Qanto
2
Table of contents
Languages:
Other Ninka Indoor Furnishing manuals
Popular Indoor Furnishing manuals by other brands

Kvik
Kvik MU820 manual

Home Decorators Collection
Home Decorators Collection COLTON 760-100 Use and care guide

Coaster
Coaster 931215 Assembly instructions

Jar Furniture
Jar Furniture NEW JERSEY Assembly instructions

BLACK RED WHITE
BLACK RED WHITE Natalia III Komoda 150/3s Assembly manual

Livarno Living
Livarno Living 114815 Assembly instruction
