Nitto Kohki Baby Belton BB-10A User manual

Due to continuous product development/improvement the specifications and configurations in
this document are subject to change without prior notice.
Manufactured by :
NITTO KOHKI Co., Ltd.
2-9-4, Nakaikegami, Ohta-ku,
Tokyo, 146-8555, Japan
Tel
: (81)-3-3755-1111
Fax : [phone]
E-mail : [email protected]
URL : www.nitto-kohki.co.jp
Keep the manual handy – so you can use it whenever necessary.
PNEUMATIC BELT SANDER
Please read this manual carefully before you attempt to use
your tool so that you may use it properly and safely.
BABY BELTON Model BB-10A
PROFESSIONAL TOOL
Specifications
Model BB-10A
Maximum Operating Pressure 0.6 MPa
Air Consumption (No Load) 0.26 m3/min
Rated Speed (No Load) 16000 r/min (min−1)
Standard Belt Size 10×330 mm (25/64×13)
Mass (Weight) 0.6 kg
Sound Pressure Level 80 dB (A)
Sound Power Level 91 dB (A)
Vibration Level 0.6 m/s2
Thread Size of Air Inlet Rc 1/4
Original Instructions

1
The following Safety notations are used throughout the manual to highlight safety precautions for the user and for
the tool.
Warning: Indicates a potentially hazardous situation which, if not avoided by following the
instructions given, could result in death or serious injury.
Caution: Indicates a potentially hazardous situation which, if not avoided by following the
instructions given, could result in injury or material damage.
Please note, however, that failure to observe safety precautions under the “ Caution” category could result in a
serious occurrence depending on the situation: please observe all safety precautions in the manual.
Caution: Important precautions for tool setup, operation and maintenance.
Thank you very much for your purchase of this
Nitto Kohki products.
Before using your tool, please read this manual
carefully so that you may use it properly to get
the most out of it.
Please keep the manual handy - so you can
use it whenever necessary.
・English : Please ask your dealer or
distributor for instruction manual
in local language(s).
・German : Bitte fragen Sie lhren Händler
nach eine Betriebsanleitung in
Landessprache.
・French : S'il vous plait, veuillez demandez
á votre foumisseur de manuel
instruction en langue locale.
・Spanish : Por favor, cantacte con su
distribuidor para el manual de
instrucciones en español.
・Portuguese : Por favor pessa ao seo agente
ou distribuidor o manual de
instrucces ih linguagen local.
・Italian : Per Manuale Istruzioni in lingua
locale Vi preghiamo di rivolgervi
al rivenditore o distributore.
・Dutch : Vraag uw handelaar
om een nederladstalige
gebruiksaanwijzing.
・Swedish : Be er lokala Åtreförsäljare eller
distributör om manualer pá
svenska.
・Danish : Venligst henvend Dem til den
danske distributør for instructions
manualer.
・Polish : Prosze pytac swojego dealera
lub dystrybutora o instrukcje
obslugi w jezyku localnym.
・中文 :請向當地供應商或経銷商詢問中
文使用説明書
CONTENTS page
IMPORTANT SAFETY INSTRUCTIONS ……………………2
GENERAL: TOOLS …………………………………………… 2
GENERAL: PNEUMATIC TOOLS …………………………3
INSTRUCTIONS FOR THIS TOOL …………………………4
1. USAGE ……………………………………………………4
2. CHECK THE CONTENTS OF THE PACKAGE ………4
3. AIR SUPPLY ……………………………………………… 4
4. HOW TO OPERATE THE TOOL ………………………4
5. THREAD SIZE OF HOSE FITTING ……………………6
6. STORAGE …………………………………………………6
7. OPTIONAL PARTS ………………………………………6
8. ORDERING SERVICE PARTS …………………………6
9. EXPLODED DIAGRAM: BB-10A ………………………7
PICTOGRAM
Warning: It might be dangerous to operate the tool if
the instructions supplied are not followed.
Using this tool improperly could result in serious injury.
Read the instruction manual before use.
Always wear suitable eye protection.
Always wear suitable hearing protection.
Always wear respiratory protective equipment (PPE).

2
IMPORTANT SAFETY
INSTRUCTIONS
When using the tool, please observe the safety
precautions below to prevent possible accident or injury.
GENERAL: TOOLS
Warning
TO OPERATORS
●Wear proper clothing for the type of work being
done.
Take care so that clothing, ties, hair, etc. will not
become entanted with the moving parts. If items
become entangled it will cause the operator to be
pulled towards the tool and lead to possible cause of
accident or injury.
●Always wear suitable eye protection.
Remember, regular glasses are not safety glasses.
The lenses are only shock resistant, which will not
give you sufficient eye protection you may need in
your working environment.
●Always wear suitable hearing protection.
●Wear respiratory protective equipment (PPE).
Wear respiratory protective equipment (PPE) when
working in an environment where dust particles are
generated in operation.
●Avoid working posture that is too stressful.
Always ensure a firm footing and well balanced
posture.
●Do not operate the tool if you are too tired.
●Never touch any moving parts of the tool when
running.
ABOUT WORK AREA
●Keep the work area clean.
Cluttered work areas (e.g. workbench) invite
accidents.
●Carefully select the work area.
Do not expose tool to rain.
Do not use tool in a wet or soaked area.
See that the work area is adequately illuminated.
●Never work near inflammable liquid or in a
potentially explosive atmosphere.
●Keep children away from the work area.
Keep children and unauthorized people away from
the work area to avoid accident or injury.
BEFORE OPERATION
●Inspect tool before use.
Before using, check that screws are securely
tightened, that any protective cover or guard is
securely in place, other parts are free from damage
and that the tool runs as it should.
Check that moving parts are properly adjusted for
positioning and tightened, that parts are free from
damage and properly mounted, and that all other
parts are in good condition for normal operation.
Should you find any damage to the protective
cover or other part, replace it in accordance with
the Operation Manual. If there are no instructions
in the Manual, please contact the sales agent
through which you have purchased your tool or an
authorized dealer near you for repair.
Likewise, if a switch failure occurs, contact sales
agent through which you have purchased your tool
or an authorized dealer near you for repair.
Do not use the tool if it does not start or stop with
the start/stop switch.
●Securely mount cutter
An improperly mounted cutter may fly out, causing
possible damage to the tool or injury to the operator.
●Always remove spanner, wrench, etc., once
adjustment has been made with them.
●Use a tool appropriate for the application.
Avoid heavy-duty application that is beyond the
capacity of tool.
●Do not use the tool for purposes other than what
it is designed for.
●Do not abuse tool.
Use tool in accordance with the specifications: youʼll
get the most out of it while ensuring safety.
●Securely fasten workpiece in place.
Use a vice or clamp to securely fasten the workpiece
in place. It is much safer this way than holding it in
your hand, allowing you to operate the tool with both
hands.
ABOUT HANDLING
●How to store tool.
When the tool is not used, store it in a dry area and
out of reach of children.
●How to carry tool.
Do not touch the start switch while the tool is being
carried.
●Do not leave the tool unattended while it is
running.
Turn off the start switch and disconnect the tool from
power source. Do not leave the work area until the
tool comes to a complete stop.

3
MAINTENANCE/SERVICE
●Do not take apart or modify tool.
Disassembly or modification carried out without
the supervision of a qualified or authorized service
engineer could result in an accident or injury.
●Inspect cutting tool and accessories, etc.
Always check to see that cutting tool and
accessories, etc. are in good operating condition
without damage or deterioration before you mount
them on the tool. Should you find any damage to
an accessory or part, please contact sales agent
through which you have purchased your tool or an
authorized dealer near you for repair.
●Check parts for damage.
When you have found damage to accessory or other
part, carefully check the damaged part to determine
the extent of influence it has upon the functions
of the tool – that is, determine whether it can still
perform its normal functions.
Check to see that the linkage of the moving parts
is OK, that all parts are OK without damage,
that they are properly mounted, and that the tool
functions normally. Should you find any damage
to an accessory or part that may hamper proper
functioning of the tool, please contact sales agent
through which you have purchased your tool or an
authorized dealer near you for repair.
●Have your tool repaired at an authorized Nitto
Service Center.
For repair or parts replacement, please contact the
sales agent through which you have purchased your
tool or an authorized dealer near you.
●Use only Nitto genuine parts.
Use of improper parts may result in serious accident.
To obtain a Nitto genuine part, consult this Manual
or contact the sales agent from which you have
purchased your tool directly.
●Do not detach label or nameplate from tool.
When a label/nameplate gets damaged, worn or
becomes missing, contact the sales agent through
which you have purchased your tool or Nitto Kohki
Co. Ltd, directly for a replacement.
DISPOSAL
When a tool is taken permanently out of service, it is
advised that the tool is disassembled, degreased and
parts separated by material and recycled locally in the
appropriate manner.
GENERAL: PNEUMATIC
TOOLS
Warning
●Use appropriate air pressure.
Excessively high air pressure will increase the
number of revolutions or strokes causing not only
potential premature failure/breakage but could also
lead to an unexpected accident or injury.
●Connect tool to air supply line.
There are various types of pipes running in a factory
in addition to the pneumatic line (such as oxygen,
nitrogen, gas and water). For this reason, always
ensure that you are connecting to the pneumatic
line.
●Start tool properly.
Turn the start switch OFF before connecting to the
air supply line.
●Always disconnect the tool from the air supply
line before putting on/taking off any accessory
and prior to carrying out any maintenance work.
●Avoid exposure to exhaust air.
Pneumatic tool exhaust air contains oil and
contaminated moisture. Make sure the exhaust air is
not directed towards your face or anyone else within
the work area.
●Keep tool off electricity.
This pneumatic tool is not electrically insulated. To
avoid a potential electric shock do not use where
there is a possibility of coming into contact with live
electricity.
Caution
●Handle tool carefully.
Abusive use of tool could invite failure or accident.
Do not throw, drop or shock the tool.
●Handle air hose carefully.
Do not carry the tool by the air hose.
Do not pull the air hose to disconnect.

4
INSTRUCTIONS FOR
THIS TOOL
About Your Tool
Warning
●Wear protective glasses and a dustproof mask.
Operation generates dust and abrasive particles,
etc. which may cause eye and/or respiratory injury:
Always use PPE (Personal Protective Equipment)
for eye and respiratory protection.
●When you change or adjust the tool or parts, be
sure to detach the tool from the air hose.
●Never touch the moving parts while in operation.
●Do not remove the Protective Cover from the
tool while sanding. The Abrasive Belt runs very
fast. Without the Protective Cover, your fingers
and hand may be injured when they touch the
running belt.
Caution
●Protect yourself from dust and abrasive particles.
When sanding hot dust and abrasive particles fly off
the workpiece: Always wear eye protection glasses,
long sleeve protective clothing, gloves (except
knitted gloves), foot and leg protection, etc. to
protect yourself. Always keep your face away from
the sanding surface.
●Always use the genuine Abrasive Belt for the
belt sander BB-10A (Nitto Kohki Co., Ltd.).
1. USAGE
This is a handheld pneumatic belt sander designed
and built to perform sanding operation utilizing a
abrasive belt.
2. CHECK THE CONTENTS OF THE PACKAGE
Upon unpacking, check to see that the shipment is
complete without damage or oil leakage in transport.
Should you find any damage or short-shipment,
please contact sales agent through which you have
purchased your tool or authorized dealer near you for
corrective actions.
Package Contents Qty Check
BB-10A 1set
Abrasive Belt Z76 #100×10; (on tool) 1
Abrasive Belt Z76 #120×10 1
Abrasive Belt Z76 #180×10 1
Abrasive Belt Z76 #240×10 1
Hex. Socket Screw Key 1.5 1
Bushing R1/4×NPT1/4 1
Instruction Manual 1
Declaration of Conformity 1
Caution for Use 1
3. AIR SUPPLY
3-1. Air Pressure
Adjust air pressure with the Air Regulator to the level
appropriate for the pneumatic tool used.
Air pressure that is too low fails the Tool to operate at
full capacity.
Air pressure that is too high may cause damage to the
Tool.

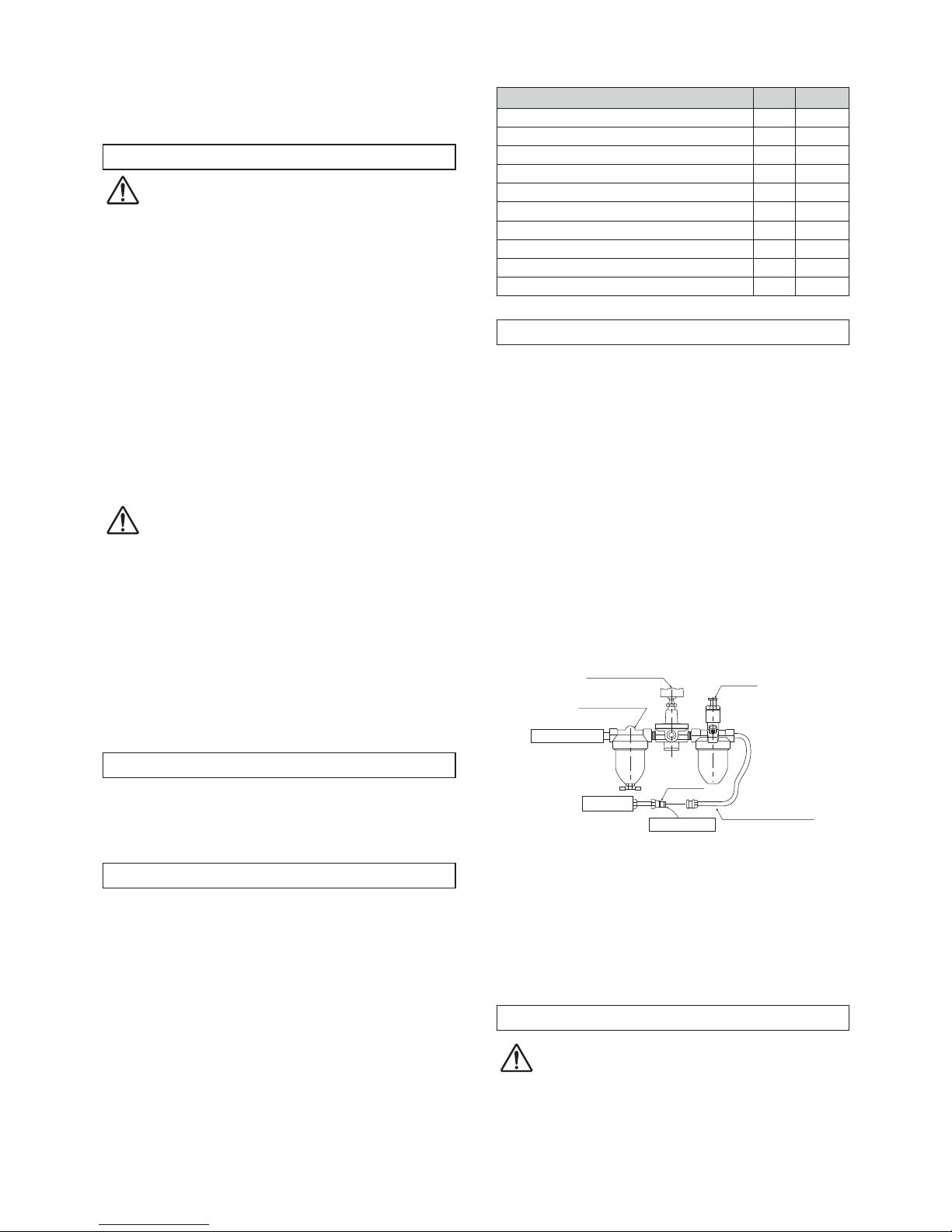

3-2. Air Line (Fig. 1)
Use a 9.5 mm (3/8”) I.D. Connecting Hose between
the Compressor and the Tool.
Drained water, etc., if flown into the Tool, could
cause Tool failure. Install an Air Filter. between the
Compressor and the Tool.
Air Regulator Oiler
Air Filter
Compressor
Lubrication
Tool 9.5mm (3/8”) I.D.
Hose
Cupla
Fig. 1
3-3. Lubrication
Install an Oiler between the Compressor and the Tool.
Use the machine oil ISO VG-10. Failure to lubricate
as required may result in damage to the Tool. Use of
oil that is too thick will reduce the performance of Tool.
4. HOW TO OPERATE THE TOOL
Warning
●When sanding, always wear protective glasses
and respiratory protection: Microscopic dust and
abrasive particles that fly off the workpiece may
cause eye or respiratory injury or both.

5
●Before you change or adjust the tool or parts,
always disconnect the air supply hose.
●Never touch the moving parts in operation.
4-1. Start and Stop (Fig. 2)
(1) Make sure the Throttle Lever is in the OFF position
and connect air supply hose to the Cupla plug on
the tool.
(2) Only when the Throttle Lever is in the OFF position,
you should select the belt rotating direction by
turning the Valve Ring. The arrow on the housing
and that on the Valve Ring have color coordination
for your easy perception. Turn the Valve Ring to
the end until stop.
※
Do not turn on the Throttle Lever when the Valve
Ring is in the end stop position. Never turn the
Valve Ring while the Throttle Lever is in ON
position. Such may cause fault.
(3) To start, release the Lock Lever and press the
Throttle Lever down.
(4) To stop, remove your finger off the Throttle Lever, it
will automatically turn to original OFF position.


 












Fig. 2

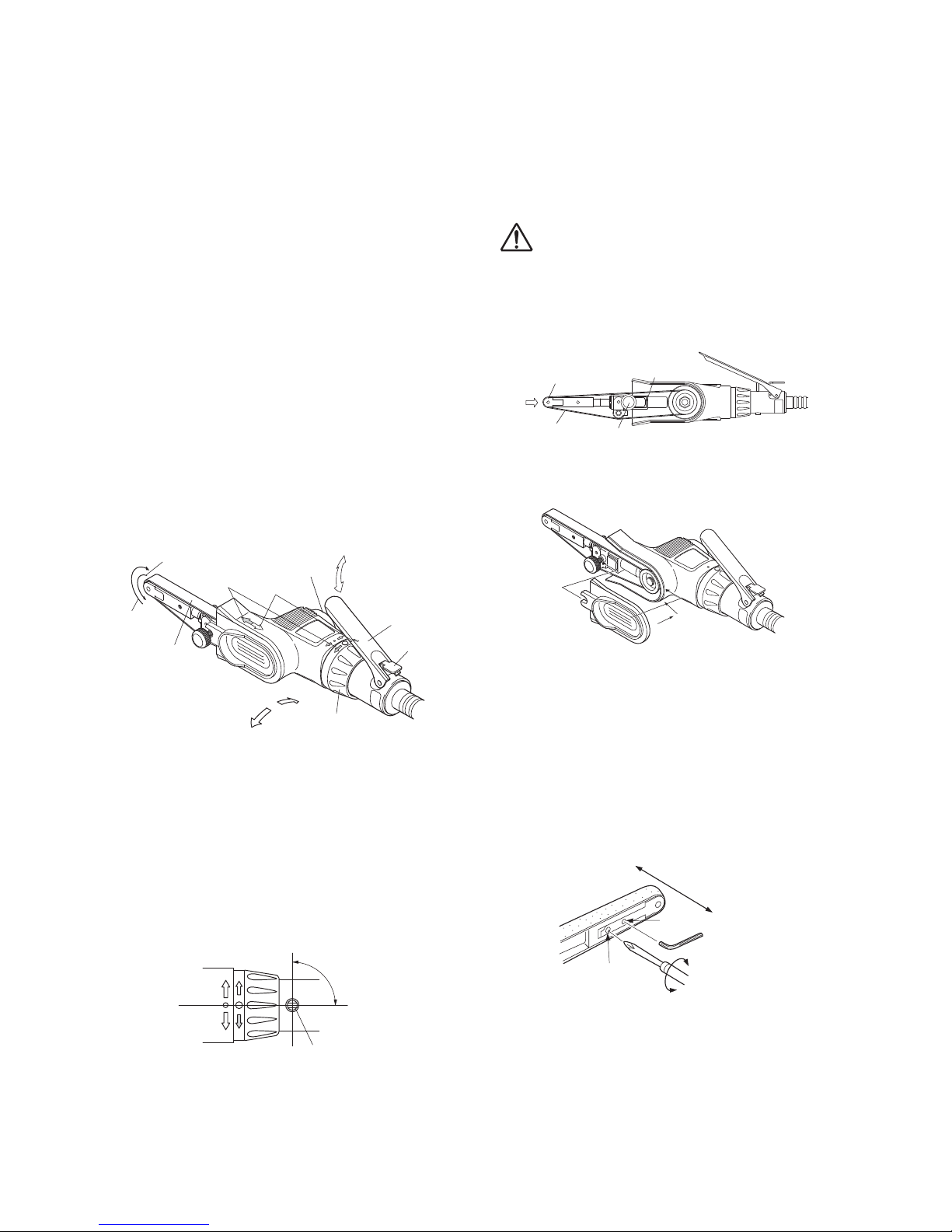

4-2. Adjusting the Rotation Speed (Fig. 3)
The appropriate air volume or, as the result, the
desired speed is obtained by turning the Adjust Valve
clockwise or counterclockwise with screwdriver in the
slot. You will get the maximum rotation speed when
the Adjust Valve slot align to the tool body length.
Adjust the speed suitable to your applications.



Fig. 3
4-3. Changing the Abrasive Belt (Fig. 4 and 5)
Loosen the Cover Screw fixing the Cover and remove
the Cover.
Push the Idle Pulley against the Housing to lock the
Tension Bar.
Change the Abrasive Belt with a new one and press
the Push Button. The Tension Bar is unlocked. (Fig. 4)
Remount the Cover correctly and tighten the Cover
Screw firmly. (Fig. 5)
Caution
Do not press the Push Button many times without
the Abrasive Belt on the tool. If done, the locking
mechanism may be damaged.
②
①

 
 
Fig. 4
①
②
③
①
②
③
Fig. 5
4-4. Adjusting the Tracking (Fig. 6)
Loosen the Hex. Socket Set Screw by the Hex.
Socket Screw Key 1.5 as shown in Fig. 7 and turn the
adjusting screw with a Pan Head screwdriver so that
the Abrasive Belt may run almost in the center of the
Idle Pulley, then turn the Hex. Socket Set Screw by the
Hex. Socket Screw Key to lock the adjusting screw.









Fig. 6

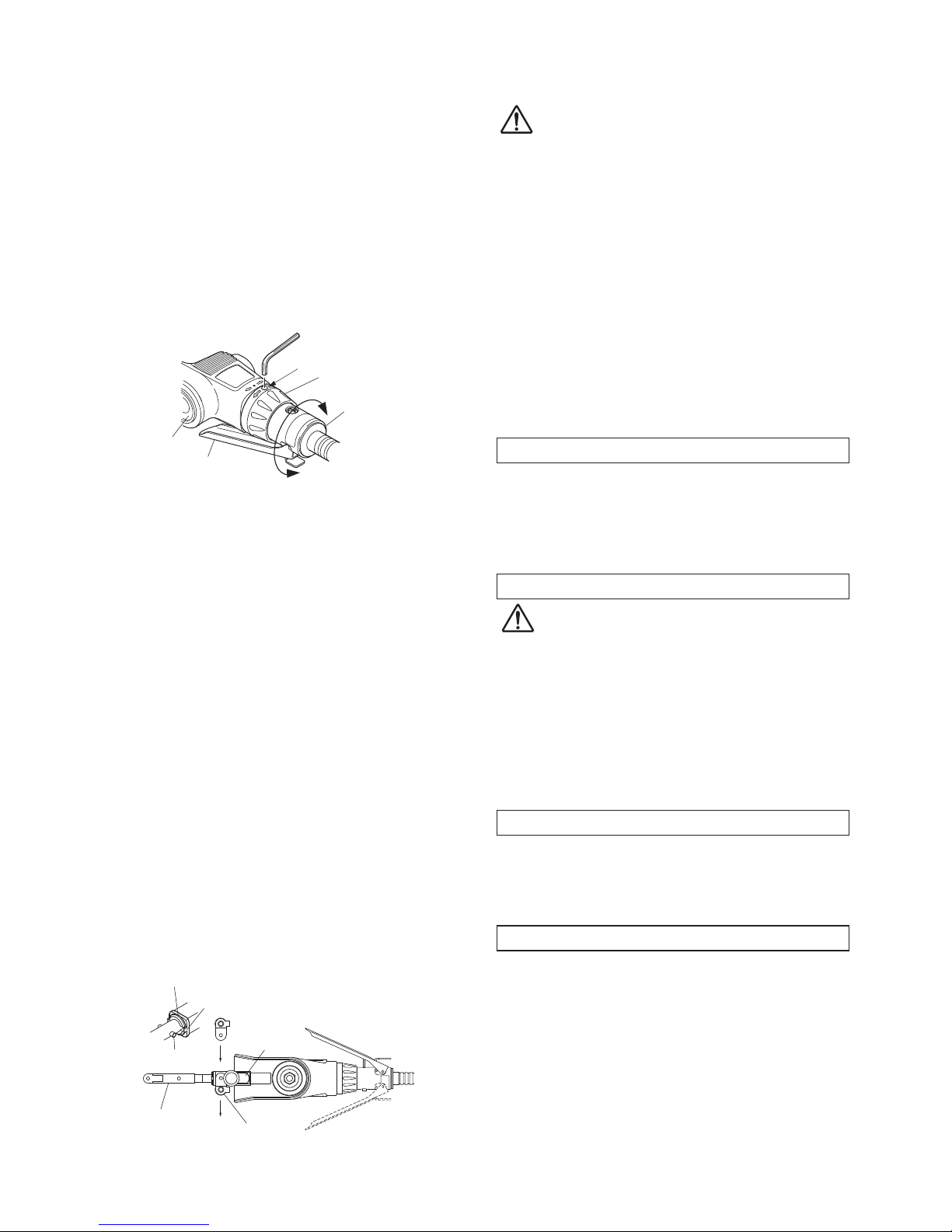

4-5. Relocation of Throttle Lever (Fig. 7)
The Throttle Lever can be positioned on either side of
the tool body comfortable both to right-handed or left-
handed (southpaw) operator, as follows;
1) Turn the Valve Ring to align［◯］mark on the Ring

6
to［●］mark on the Hosing.
2) Loosen the Hex. Socket Set Screw found at "A" on
Fig. 7 with Hex. Socket Screw Key 1.5 included in
the package.
3) Twist the Rear Valve Ass'y by 180 degrees around
the Housing and tighten back the screw securely.
※
Never fix the screw back when the
［◯］and［●］
marks are not aligned. Such misaligned assembly
will not give you the full power.
※
Loose Rear Valve Ass'y is dangerous as it will allow
Throttle Lever moving around during the operation.





Fig. 7
4-6. Offset Bracket (Fig. 8)
The Offset Bracket is removable.
The original position as shown below is for the right-
handed user. If you are left-handed (southpaw) user,
first put Offset Bracket on the opposite side of the
tool, and put the Idle Pulley Shaft and Throttle Lever
facing to the other side. You can operate the tool as
comfortable as the right-handed does.
1) Follow the belt replacement steps to remove the
Cover and Abrasive Belt.
2) Pull out the Offset Bracket and put it back on to the
slot from the other side of the tool.
3) Press the Push Button and the Idle Pulley Shaft will
pop out. Twist the Idle Pulley shaft by 180 degrees.
Put it back all the way until it is locked while aligning
the pin on the Idle Pulley Shaft into the guide
groove.
4) Mount Abrasive Belt and the Cover back.
5) Follow procedure in 4-5. for the Throttle Lever
relocation.





  
Fig. 8
4-7. Sanding Operation
Caution
●Do not press the Abrasive Belt too hard upon the
workpiece. If you do so, the Abrasive Belt may
break.
●When using a non-woven Belt, do not use the
Offset Bracket. If you do so, the Belt may come
Off, causing personal injury.
Hold the tool and press the Throttle Lever. Lightly
press the Abrasive Belt (between the Idle Pulley and
the Offset Bracket) against a material to be sanded
and keep on sanding.
You can select any sanding direction (forward or
backward) by the Valve Ring.
5. THREAD SIZE OF HOSE FITTING
The product comes with a metal fitting with Rc (metric)
thread. Connect the Bushing R thread × NPT thread
included as standard accessories, if you would like to
have American NPT thread instead.
6. STORAGE
Caution
●When tool is not used, store it out of children.
Avoid storing the tool in a location subject to high
humidity. If the tool is left as it is used, residual
moisture on the inside can cause rusting. Before
storing, and after operation, oil the tool at the air inlet
with machine oil ISO VG-10 and run it for a short time.
7. OPTIONAL PARTS
Abrasive Belt with various abrasives and grain sizes
are separately prepared in the market. Select them at
your needs.
8. ORDERING SERVICE PARTS
For further operational and handling information or
for replacement of parts and components, contact the
company from whom you purchased the tool or an
authorized dealer.
In ordering parts and components give each part
number, part name and quantity required.
Use only NITTO genuine parts.

7
38
37
36
39
40
41 42
43 4445 47
46
70
69
71
76
72
73
48
68
67
66
6559
60
61
58
57
49
64
50
51
52
53
54
55
56
34
63
4
8
910
11
1213
28
29
35
7
1
2
3
5
6
27
14 15 16
17
18
19
20
21
22
23
24
25
26 30
32
33 31
62
74 75
The parts numbers with ( ) are included in the Assʼy parts written above them.
No. Parts No. Description Qty Price
1 TQ07219 Cover 1
2 Abrasive Belt Z76 #100x10 1
3 TP01924 Hex. Nut M6 1
4 TQ07215 Drive Pulley 1
5 TQ07216 Lock Screw 1
6 TQ07226 Ball Bearing 698ZZ 1
7 TQ07199 End Plate B 1
8 TQ07196 Rotor 1
9 TB05219 Blade Assʼy (5pcs/set) 1 set
10 TQ07197 Cylinder 1
11 TP04225 Spring Pin 2x4 1
12 TQ07198 End Plate A 1
13 TQ07225 Ball Bearing 695ZZ 1
14 TA99155 Idle Pulley 10 Sub Assʼy 1 set
15 TP12431 Idle Pulley Shaft 10 1
16 TP14761 Bracket 10 1
17 TP02154 Hex. Socket Set Screw with Flat Point 3x6 1
18 TP05121 Countersunk Head Screw 3x10 1
19 TP14763 Spring 0.9x7.5x6.5 1
20 TP14455 Countersunk Head Screw 2x5 1
21 TQ07203 Tension Bar 1
22 TP14798 Spring Pin 3x10 1
23 TQ07228 Spring Pin 3x12 1
24 TQ07201 Guard Insert 1
25 TQ07248 Stopper 1
26 TQ07204 Spring 1x8.2x27.5 1
27 TQ07220 Cover Screw 1
28 TQ07217 Push Button 1
29 TQ07218 Spring 0.35x7.5x7 1
30 TQ07618 Hex. Socket Set Screw with Flat Point 3x3 1
31 TB08790 Housing Assʼy 1 set
32 (TQ07221) Rotating Direction Label 2
33 (TQ11499) Label Model Number 1
34 (TQ12878) Warning Label 1
35 TB05539 Offset Bracket Assʼy 1 set
36 TQ10274 O-ring SS-050 2
37 TP06141 Hex. Socket Set Screw with Flat Point 6x6 1
38 CP27013 O-ring JASO-1025 1
39 TB05962 Front Valve Sub Assʼy 1 set
40 TP15767 Ball O.D.3 1
41 TQ10276 Spring 0.5x2.5x4.7 1
42 TQ07208 Spacer 23x30x1.5 1
43 TQ07209 Lock Ring 1
No. Parts No. Description Qty Price
44 TP14604 O-ring S-10 1
45 TQ07356 O-ring S-6 1
46 TQ12705 O-ring S-12.5 3
47 TB08663 Valve Ring Assʼy 1 set
48 (TQ10263) Label Switch 1
49 TP03988 O-ring S-20 1
50 TB07912 Valve Stem Assʼy 1 set
51 TQ10271 Ball 1/4 1
52 TQ10259 Valve Spring 1
53 TQ10258 Adjust Valve 1
54 TP12003 O-ring KS-5 1
55 TP02152 Spacer M5 1
56 TP17147 Internal Retaining Ring IRTW-10 1
57 TQ10257 Throttle Lever 1
58 TP15780 Spring Pin 3x24 1
59 TQ10256 Lock Lever 1
60 TQ10255 Lock Lever Spring 1
61 TQ10269 Parallel Pin 2.5x16 1
62 TB08792 Rear Valve Sub Assʼy 1 set
63 (TQ12676) Warning Label CE Mark 1
64 TQ11146 Hex. Socket Set Screw with Cup Point 3x4 1
65 TP06129 Spacer M3 1
66 TQ10273 Hex. Socket Low Head Cap Screw 3x5 1
67 TQ11497 Charge Nipple 1
68 TQ10280 O-ring S-22 1
69 TQ10262 Hose Holder 1
70 TQ07212 Muffler 1
71 TQ11498 Muffler Cover 1
72 TQ11496 Adjust Nut 1
73 CP26930 O-ring S-7 1
74 TB08730 Charge Hose J Assʼy 1 set
75 (TQ11519) Label Lubrication 1
76 TQ04367 Exhaust Hose 1
Standard Accessories
No. Parts No. Description Qty Price
TP14797 Hex. Socket Screw Key 1.5 1
Abrasive Belt Z76 #120x10 1
Abrasive Belt Z76 #180x10 1
Abrasive Belt Z76 #240x10 1
TP02236 Bushing R1/4 x NPT1/4 1
TQ12879 Instruction Manual 1
TQ12881 Declaration of Conformity 1
9. EXPLODED DIAGRAM: BB-10A
Warning
This diagram is for your reference only. Do not attempt to service or repair the Tool.
Do not take the Tool apart. Contact an authorized Nitto dealer for all service and repair of the Tool.
Improper service and repair can cause accidents and severe injuries.
Never attempt to modify the Tool.
Never attempt service or repair the Tool yourself.

عOverseas Affiliates / Offices
NITTO KOHKI U.S.A ., Inc.
4525 Turnberry Drive, Hanover Park, IL 60133, U.S.A
Tel: [phone] Fax:[phone]
http://www.nittokohki.com/index.html
NITTO KOHKI EUROPE Co., Ltd.
Unit 21, Empire Centre, Imperial Way,
Watford Hertfordshire, WD24 4TS, United Kingdom
Tel: [phone] Fax:[phone]
http://www.nitto.co.uk/
NITTO KOHKI DEUTSCHLAND GmbH
Lerchenstr. 47, D-71144 Steinenbronn, Germany
Tel: [phone] Fax:[phone]
http://www.nitto-kohki.de/
NITTO KOHKI AUSTRALIA Pty. Ltd.
77 Brandl Street, Eight Mile Plains QLD 4113,
Australia
Tel: [phone] Fax:[phone]
http://www.nitto-australia.com.au/
NITTO KOHKI Co., Ltd. Singapore Branch
10 Ubi Crescent #01-62, Ubi Techpark Lobby D,
Singapore 408564
Tel: [phone] Fax:[phone]
http://www.nitto-kohki.co.jp/e/nksb/
NITTO KOHKI Co., Ltd. Shanghai Representative Office
#1117 Ruijing Building, Maoming South Road,
Shanghai 200020 China
Tel: [phone] Fax:[phone]
http://www.nitto-kohki.cn/
NITTO KOHKI Co., Ltd. Shenzhen Representative Office
#0726 International Culture Building, 3039, Shennan
Zhong Rd., FutianDistrict, Shenzhen, 518003 China
Tel: [phone] Fax:[phone]
http://www.nitto-kohki.cn/
NITTO KOHKI Co., Ltd. Bangkok Representative Office
38Q, House Convent Bldg, 7th Floor, Unit 7A,
Convent Rd, Silom, Bangkok,10500 Thailand
Tel: (66)- 2 -632-0307 Fax:[phone]
http://www.nittobkk.com/eng_index.htm
EC DECLARATION OF CONFORMITY
We hereby declare that the following our product conforms with the essential health and safety requirements of
EC Directives.
Product䋺PNEUMATIC BELT SANDER
Model䋺BABY BELTON:BB-10A
Serial No䋺X
X X X X X
Consecutive numbers (00001䌾99999)
Christian era’s last digit (0䌾9)
Manufacturer䋺NITTO KOHKI Co., Ltd.
2-9-4, Nakaikegami, Ohta-ku, Tokyo, 146-8555, Japan
Authorised Compiler in the Community䋺
Masatoshi Ogue
President
NITTO KOHKI EUROPE Co., Ltd.
Unit21, Empire Centre, Imperial Way, Watford Hertfordshire, WD24 4TS, UK
Tel:[phone] Fax:[phone]
Directive䋺98/37/EC and 2006/42/EC Machinery Directive
The above product has been evaluated for conformity with above directives using the following European standards.
The technical construction file (TCF) for this product is retained at the above manufacturer’s location.
Machinery Directive䋺EN ISO12100-1:2003, EN ISO12100-2:2003,
EN ISO14121-1:2007, EN792-8:2001+A1:2008, others
Sound Pressure/Power Level䋺EN ISO15744:2008, EN ISO4871:1996
Vibration Level䋺EN28662-1:1992, EN ISO8662-8:1997
Name䋺K.Kishi
Title: GENERAL MANAGER MACHINE TOOLS DIV.
Being the responsible person appointed and employed the manufacturer.
Printed in KOREA TQ12879-0
