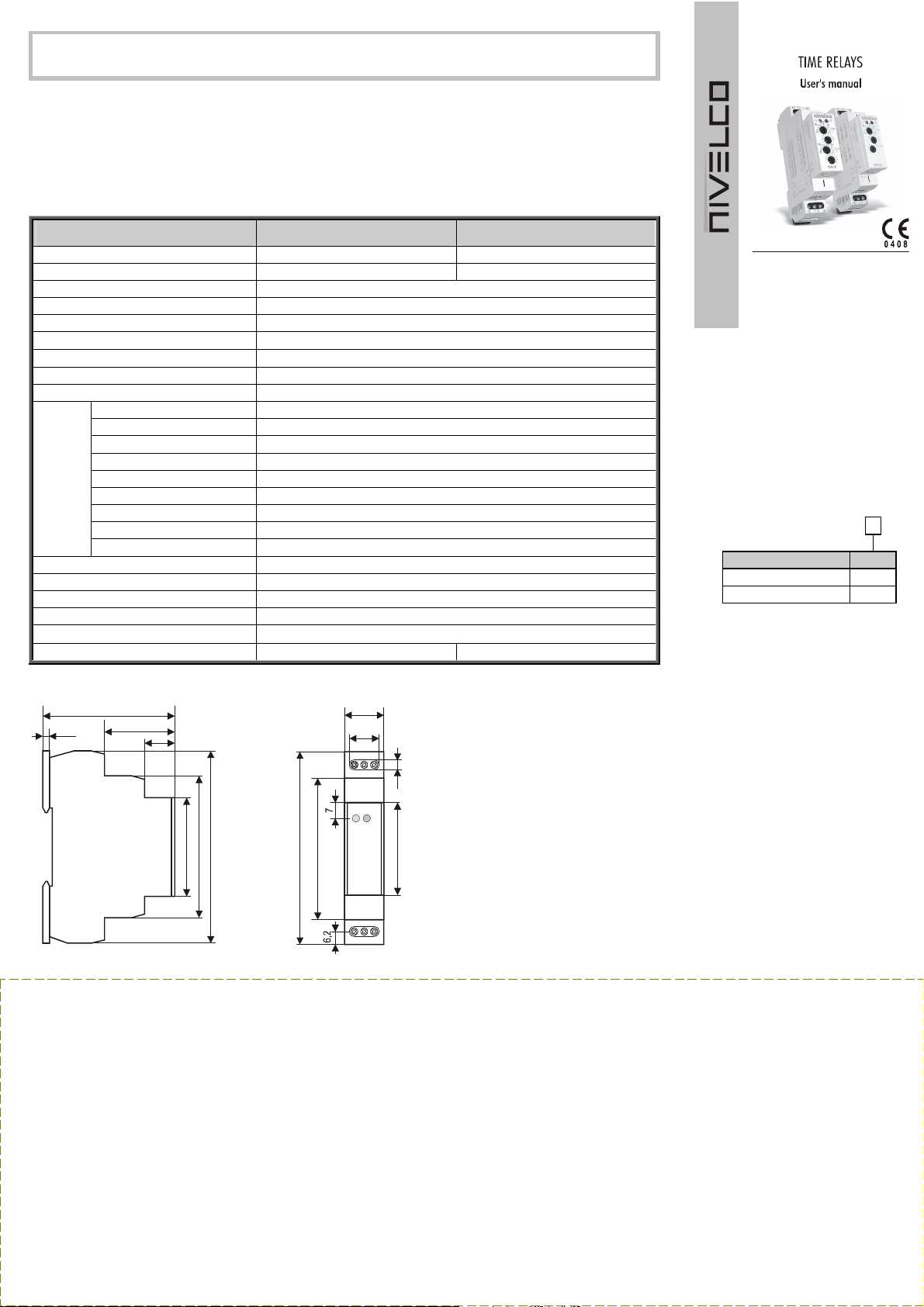

NIVELCO NITIME JEL-111 User manual

Thank you for choosing a NIVELCO instrument.
We are sure that you will be satisfied throughout its use.
1. APPLICATION
NITIME time relays are microprocessor controlled units suitable for highly diverse timing tasks. The multiple
functions, the universal power supply and (1-module width) the rail mountable construction ensure universal
usage (automation, lighting, heating, motor and ventilation control).
2. TECHNNICAL DATA
2.1 GENERAL DATA
TYPE JEL-111 JEL-121
Number of functions 10 2
Adjustable time ranges 0.1 sec … 10 days 0.1 sec … 100 days
Time setting controls rotary switch, potentiometer
Reset time max. 150 msec
Time deviation 5% - mechanical setting
Repeat accuracy 0.2% - set value stability
Temperature coefficient 0.01% /°C at 20 °C
Power supply 12-240V AC/DC
Power consumption 0.7-3 VA AC, 0.5-1.7 W DC
Relay 1xSPDT
Rated current 16 A AC1
Inrush current 30 A (<3 sec)
Output indication multifunctional LED
Switching voltage 250 V AC1 / 24 V DC
Switching power 4000 VA AC1, 384 W DC
Min. switching power 500 mW DC
Electrical lifespan (AC1) 0.7x105switchings
Output
Mechanical lifespan 3x107 switchings
Electrical connection terminal for 2.5 mm2 wire cross-section
Electrical protection Class II. reinforced insulation
Mechanical connection DIN EN60715 rail
Ingress protection IP 20
Ambient temperature -20°C … +55°C
Mass 90 g 70 g
2.2 ACCESSORIES
–User’s manual
–Warranty Card
–Declaration of Conformity
2.3 ORDER CODE
NITIME J E L – 1 1
Type Code
Multifunction 1
Pulse cycler 2
2.4 DIMENSIONS
45
67,5
90
64
3,4 16
35
90
45
67,5
17,6
14,8
5
3. INSTALLATION
NITIME time relays can be mounted on DIN EN 60715 rails.
The device should not be installed in highly electromagnetic
environment. Operating temperature should not exceed the limit of the
specified operation temperature even in conditions such as increased
ambient temperature or continuous operation. The device is
completely electronic. Consider this during the installation.
NITIME
Manufacturer:
H-1043 Budapest, Dugonics u. 11.
Tel.: [phone], Fax: [phone]
NIVELCO Process Control Co.
E-mail: [e-mail]
www.nivelco.com

4. WIRING
U
n
( ) ( )
15 16 18
A1 A2S
( ) ( )
A1 A2
15 16 18
U
n
S
5.2 FUNCTIONS
5. PUTTING INTO OPERATION
5.1 ADJUSTMENT
The green LED (Un) shows when the unit is
turned-ON, while the state of the output is
indicated by the multifunctional red LED.
(LED 2)
Time and function settings can be set using
the potentiometer and the rotary switch on
the front panel.
Power supply terminal
s
Control input „S"
Output terminals
Power supply indicator
Output indicator (LED2)
Coarse time setting (pulse) Coarse
tim e sett ing
Fine
tim e sett ing
Function
selection
Coarse time setting (pause)
Fine time setting (pulse)
Fine time setting (pause)
JEL-121 JEL-111
JEL-111 JEL-121
Operating mode Time graph Operating mode Time graph Operating mode Time graph
a Energisation delay
U
n
LED 2
tt
f Release delay with
control contact
S
LED 2
tt
b Release delay
U
n
LED 2
tt
g
Release delay after
cessation of control
signal
S
LED 2
tt
Cycler starts
with pulse
S
U
n
LED 2
t1 t1 t1t2 t2
c Cycler energised
with delay
U
n
LED 2
tttttt tt
h
Energisation and
release delay with
control contact
S
LED 2
tttt
d Cycler energised
without delay
U
n
LED 2
tttttt ttt
i Pulse relay
S
LED 2
tt
Cycler starts
with pause
S
U
n
LED 2
t1 t1t2 t2 t2
e Power-OFF delay
with control contact
S
LED 2
tt
j Pulse generator
(P = 0.5 s)
U
n
LED 2
tt PP
5.3 APPLICATION EXAMPLES
JEL-111
Un
A1
A2S
(+)
(–)
15
16 18
Un
A1
A2
resistor
S
(+)
(–)
15
16 18
Connecting a resistor between terminals S and A2 ensures the correct operation
of the time relay whereby the wire connecting the control contact is long.
JEL-121
Un
A1
A2S
(+)
(–)
15
16 18
Un
A1
A2S
(+)
(–)
15
16 18
Cycler starts with pulse Cycler starts with pause
6. MAINTENANCE, REPAIR
Device does not require regular maintenance.
Repair within and beyond the warranty period is carried out on the
Manufacturer’s premises.
7. STORAGE
Storage temperature: –30 … 70 °C
8. WARRANTY
NIVELCO provides warranty of 3 (three) years in compliance with
details described in the Warranty Card.
jel1111a0600h_02
2011 July
NIVELCO reserves the right to change technical data without notice!
