Nobel aelios User manual

Solar water heaters
Technical Manual
Installation, maintenance & use instructions

Solar water heaters
32 Solar water heaters - AELIOSSolar water heaters - AELIOS

CONTENTS
GENERAL INFORMATION.................................................................................................................................... 4
 DOMESTIC HOT WATER CONSUMPTION ......................................................................................................... 4
SOLAR WATER HEATER OPERATION - WATER HEATING .............................................................................. 4
 SOLAR WATER HEATERS AELIOS ..................................................................................................................... 5
 PACKAGING.......................................................................................................................................................... 5
 LABELING ............................................................................................................................................................. 7
 WATER STORAGE TANK SPECIFICATIONS ...................................................................................................... 8

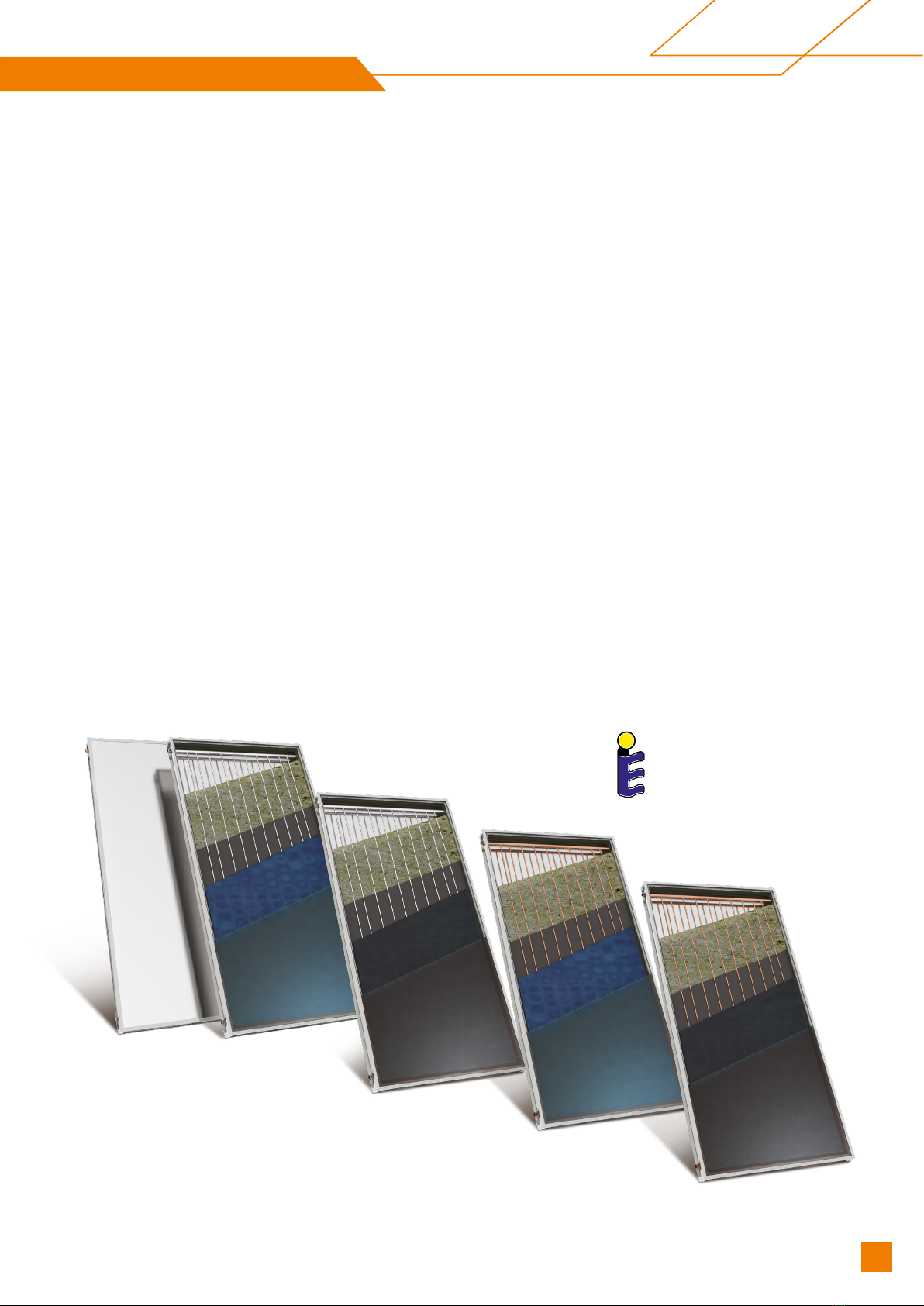

 COLLECTOR AELIOS SPECIFICATIONS ............................................................................................................ 9

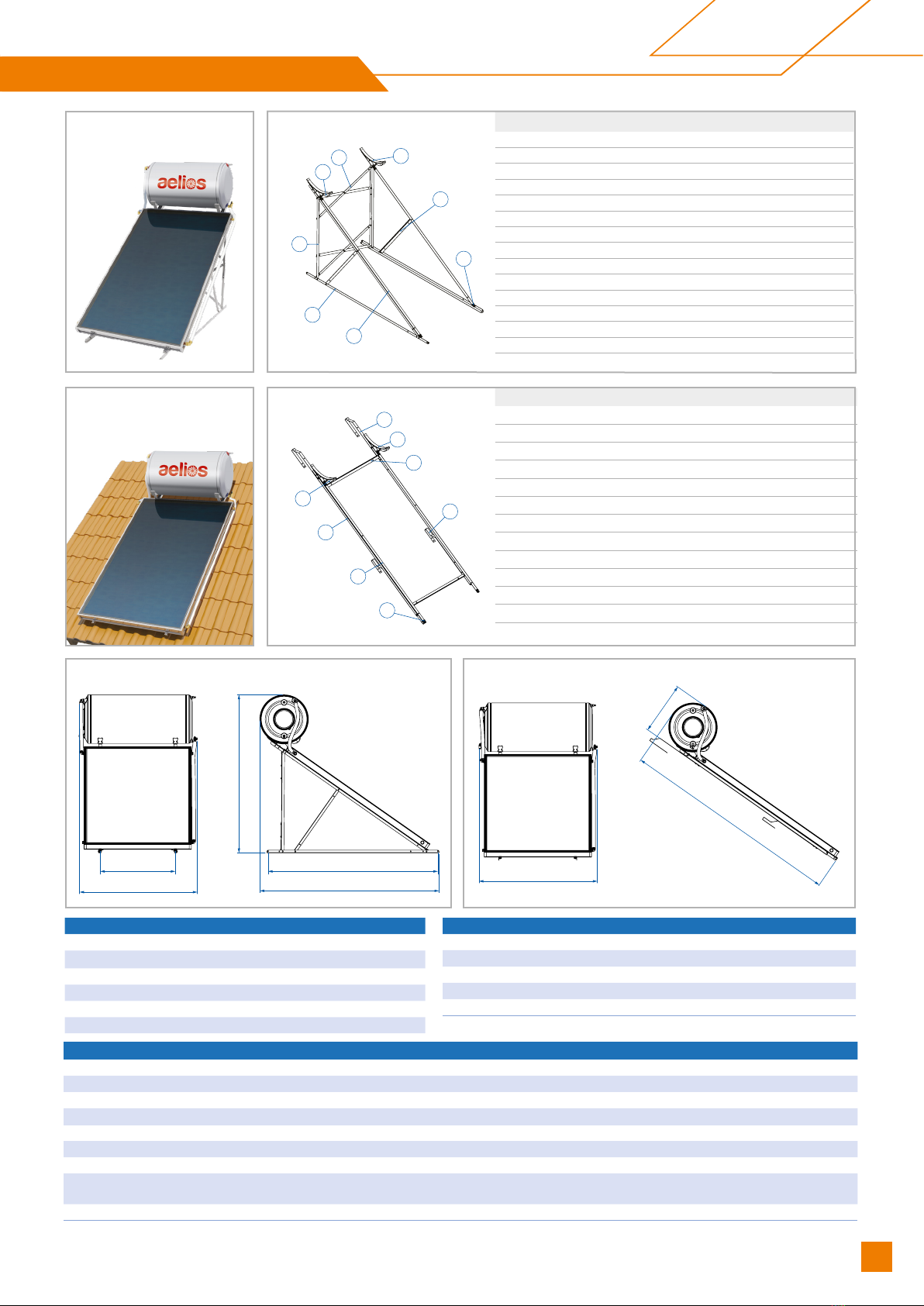

 AELIOS 120lt/2m2L AYO UT ................................................................................................................................. 11

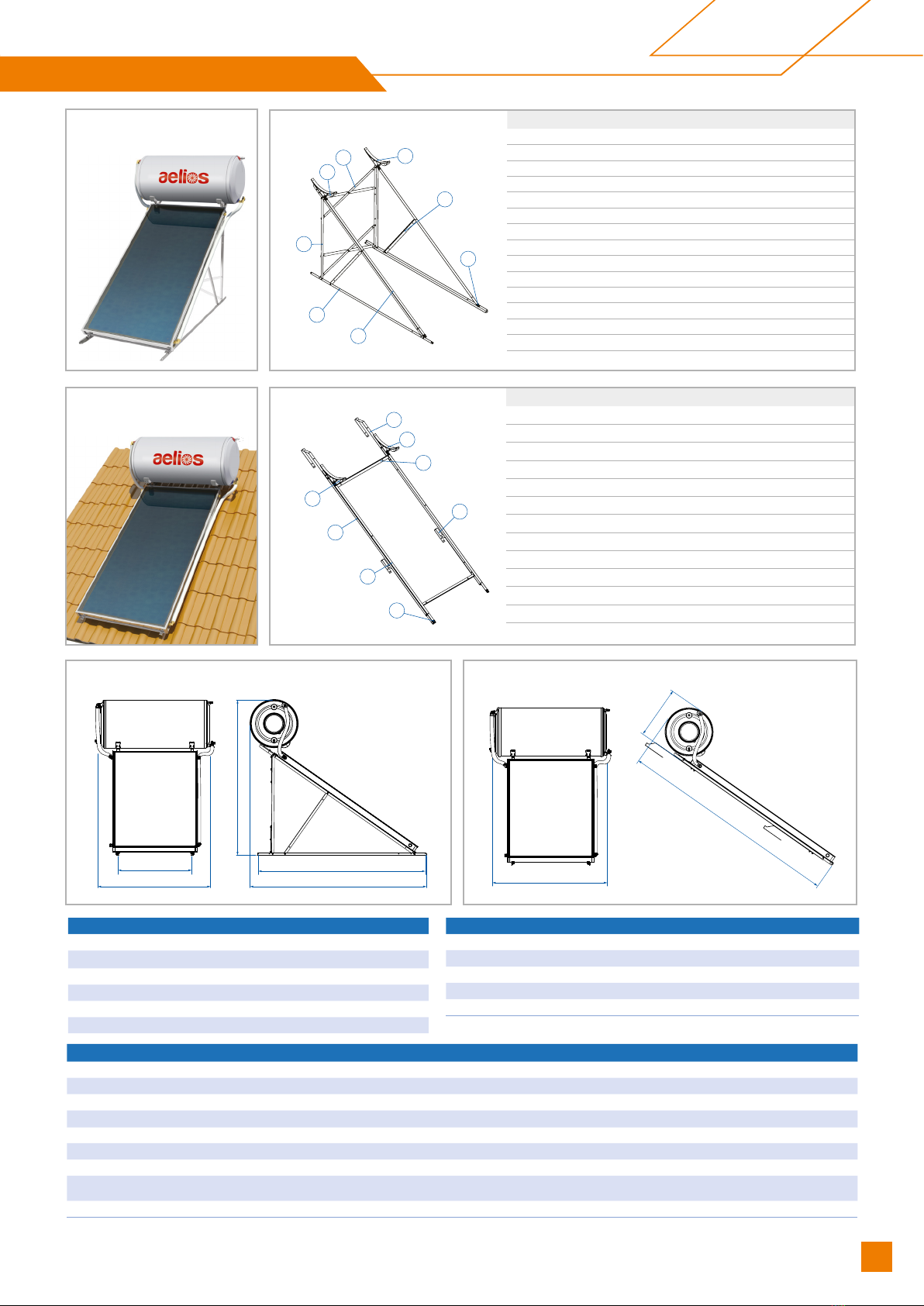

 AELIOS 160lt/2m2L AYOUT................................................................................................................................. 12
 AELIOS 160lt/2.6m2L AYOUT.............................................................................................................................. 13
 AELIOS 160lt/3m2LAYOUT................................................................................................................................. 14
 AELIOS 200lt/2m2LAYOUT ................................................................................................................................ 15
 AELIOS 200lt/2.6m2LAYOUT ............................................................................................................................. 16
 AELIOS 200lt/3m2L AYOUT ................................................................................................................................ 17

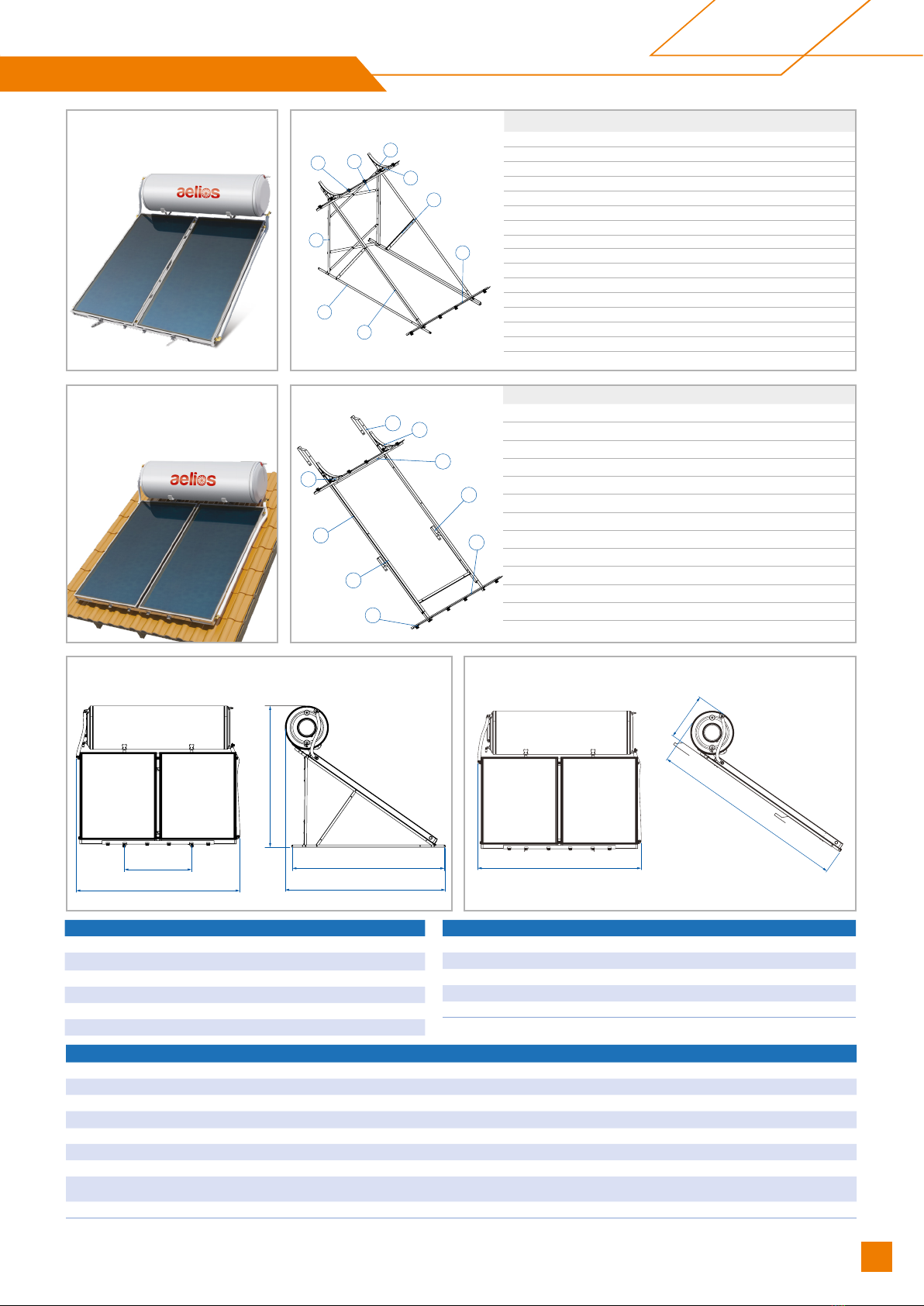

 AELIOS 200lt/4m2LAYOUT................................................................................................................................. 18

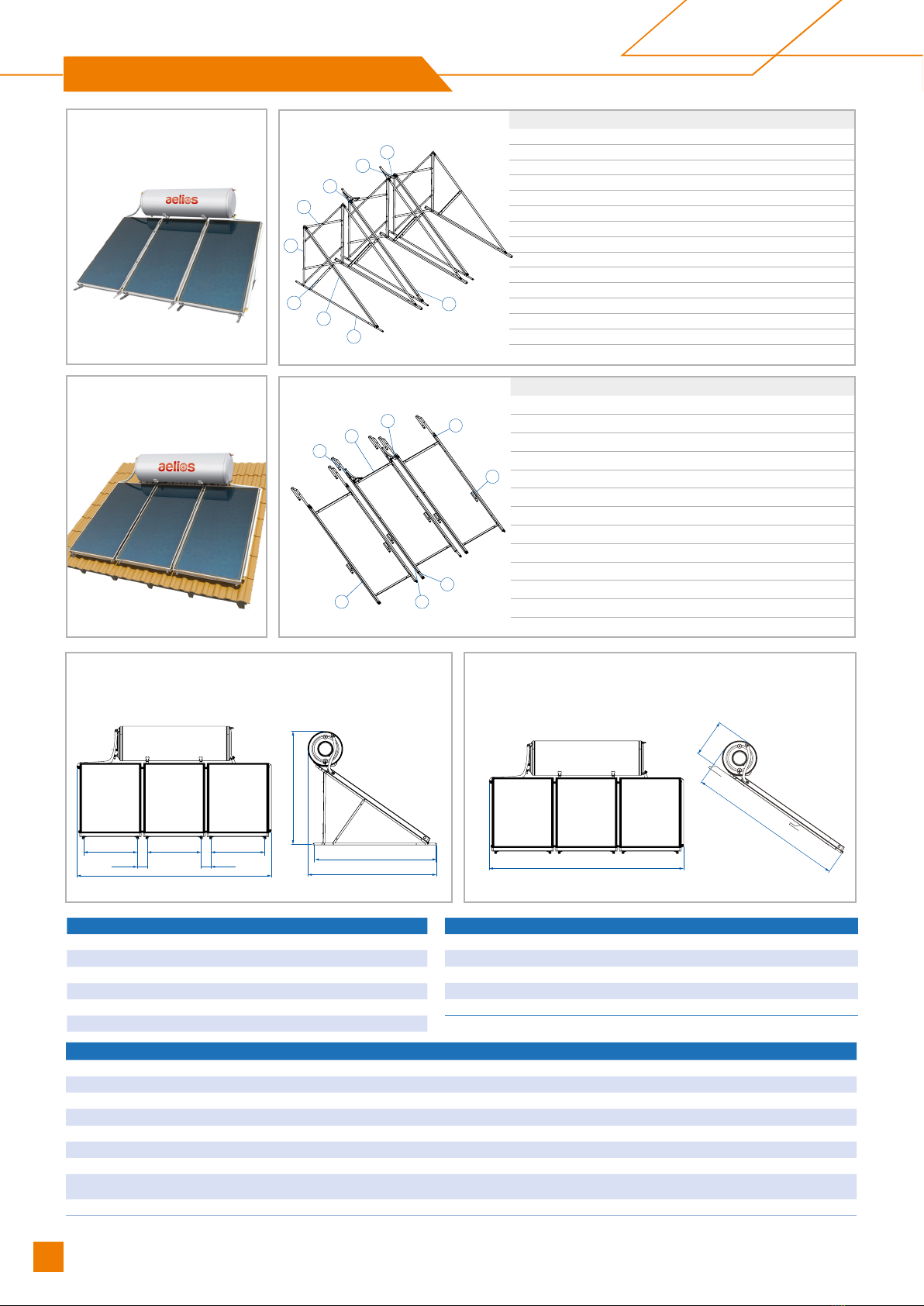

 AELIOS 300lt/4m2L AYOUT................................................................................................................................. 19
 AELIOS 300lt/6m2LAYOUT ................................................................................................................................ 20
 GENERAL INSTALLATION RULES .................................................................................................................... 21
 INSTALLATION POSITION ................................................................................................................................. 22
 GENERAL PREVENTION MEASURES.............................................................................................................. 23
 SUPPORT BASE PARTS .................................................................................................................................... 24
 SUPPORT BASE ASSEMBLY ON A FLAT SURFACE ....................................................................................... 25
 SUPPORT BASE ASSEMBLY ON AN INCLINED SURFACE ............................................................................ 28
 HYDRAULIC CONNECTION............................................................................................................................... 31
 CLOSED LOOP FILLING..................................................................................................................................... 31
 ELECTRICAL CONNECTION ............................................................................................................................. 32
 SYSTEM INSTALLATION ON A TILED ROOF WITH THE WATER STORAGE
 TANK UNDER THE ROOF (NATURAL CIRCULATION OPERATION) .............................................................. 33
 CONNECTING THE COIL HEAT EXCHANGER ................................................................................................ 33
 POSSIBLE PROBLEMS - SOLUTIONS..............................................................................................................34
 SERVICE - MAINTENANCE ............................................................................................................................... 35
 POST INSTALLATION INSTRUCTIONS............................................................................................................. 36
 CHECK LIST........................................................................................................................................................ 37
Solar water heaters
32 Solar water heaters - AELIOSSolar water heaters - AELIOS

GENERAL INFORMATION
In the present manual you will nd all necessary instructions with regard to the installation, operation and
maintenance of the product.
The company is active in the Solar Energy Field with high-tech equipment, ultra-modern facilities and certied prod-
ucts of high quality. Our experience and know-how support our co operations, before and after sales, both in Europe
and internationally.
Nowadays, the necessity for production and saving of energy without at the same time polluting the environment has
become common knowledge. The planetʼs conventional energy resources are diminishing to a threatening level as
our societyʼs energy requirements are increasing, generating pollutants that affect the climateʼs balance. Renewable
energy sources promise a solution to the energy problem as well as to pollution. Gradually, the international legisla-
tion is changing and encouraging - or even imposing - the use of alternative energy products, with the aim to satisfy
energy requirements without endangering the environment.
DOMESTIC HOT WATER CONSUMPTION
Statistically, it is estimated that the mean family consumption is 35 to 50 litres daily per person. If we add the con-
sumption of a washing machine and a dishwasher, when these are connected to the solar water storage tank, then
each requires 20 litres per day (per wash). Thus, a family of four, for example, with a mean hot water consumption
of 40 litres per person, needs an 160 litres solar water heater. If household appliances connected to the solar water
heater are added, then the demand increases by at least 40 litres daily. In order to take full advantage of the solar
water heater, maximum use of hot water should be made during daytime, so that the system can continuously pro-
duce hot water during the daylight hours, maintaining thus its maximum efciency.
SOLAR WATER HEATER OPERATION - WATER HEATING
The collecting surface absorbs solar energy and heats the liquid (water or antifreeze mixture) that circulates in the
water element. This liquid when heated becomes lighter and is directed to the water storage tank where it heats the
water. The ow of the collector’s liquid is accomplished naturally and not forced (thermosiphonic ow).
The factors that affect the temperature of the water supplied by a solar system are many and their values vary accord-
ing to the season, the time of day and the location. Keeping in mind that the solar system is a system that is exposed
to the weather conditions, basic parameters affecting its performance are the mains water temperature, the available
solar energy and the ambient temperature. The mains water does not have a constant temperature throughout the
year, being much colder in winter compared to summer. Considering 45°C as a satisfactory temperature for the do-
mestic hot water (in order to full the needs of a home) and based on statistic values, in winter the temperature of the
mains water has to be increased by approximately 35°C, whereas during the summer the increase is 20°C.
Similarly, the available solar energy does not remain the same throughout the year, being much less in the winter
months than in the summer months. During periods of reduced sunlight and low ambient temperatures, the solar
water storage tank assures the preheating of the water and is assisted by an electrical heating element or the cen-
tral heating water storage tank (triple action solar water storage tanks). As far as night-time temperature losses are
concerned, these are limited as much as possible by the solar system’s powerful thermal insulation. They are never-
theless affected by ambient temperatures, which vary depending on the location and the weather.
Solar water heaters
54 Solar water heaters - AELIOSSolar water heaters - AELIOS

1
3
4
2
PRODUCT RANGE
SOLAR WATER HEATERS AELIOS
RELIABILITY - HARMONY - AESTHETICS
PACKAGING
AELIOS series thermosiphonic systems are available in aluminium and cop-
per water frame and in black painted and selective absorber.
Each of them is also available in the following models:
AELIOS Solar Systems constitute an ecological proposal and an effective energy solution, combining high out-
put, autonomy, aesthetics, facility in the installation and money saving. They are made of excellent materials accord-
ing to international specications and have all the certications and tests that conrm their quality.
They are highly aesthetic systems, which can be simply and quickly installed to blend with the traditional or modern
architecture of a building and to provide free hot water almost the whole year round. Even in regions with low sunlight
they achieve the preheating of the water, which contributes to a drastically reduced consumption of conventional
energy.
With the use of solar systems, thermosiphonic or forced circulation, is achieved energy saving of 70-100%. At the
same time the operation time of the boiler or electric resistance is decreased, depending on the sunlight of each re-
gion and the system’s size, with simultaneous reduction of emission of carbon dioxide.
1. Boiler
2. Collector(s)
3. Support base, ttings
& Accessories
4. Palette
MODEL
AELIOS 120/2
AELIOS 160/2
AELIOS 160/2.6
AELIOS 160/3
AELIOS 200/2
AELIOS 200/2.6
AELIOS 200/3
AELIOS 200/4
AELIOS 300/4
AELIOS 300/6
DESCRIPTION
120lt tank, 2m2collector
160lt tank, 2m2collector
160lt tank, 2.6m2collector
160lt tank, 2 x 1.5m2collector
200lt tank, 2m2collector
200lt tank, 2.6m2collector
200lt tank, 2 x 1.5m2collector
200lt tank, 2 x 2m2collector
300lt tank, 2 x 2m2collector
300lt tank, 3 x 2m2collector
Solar Keymark
Ceritfied
Solar water heaters
54 Solar water heaters - AELIOSSolar water heaters - AELIOS

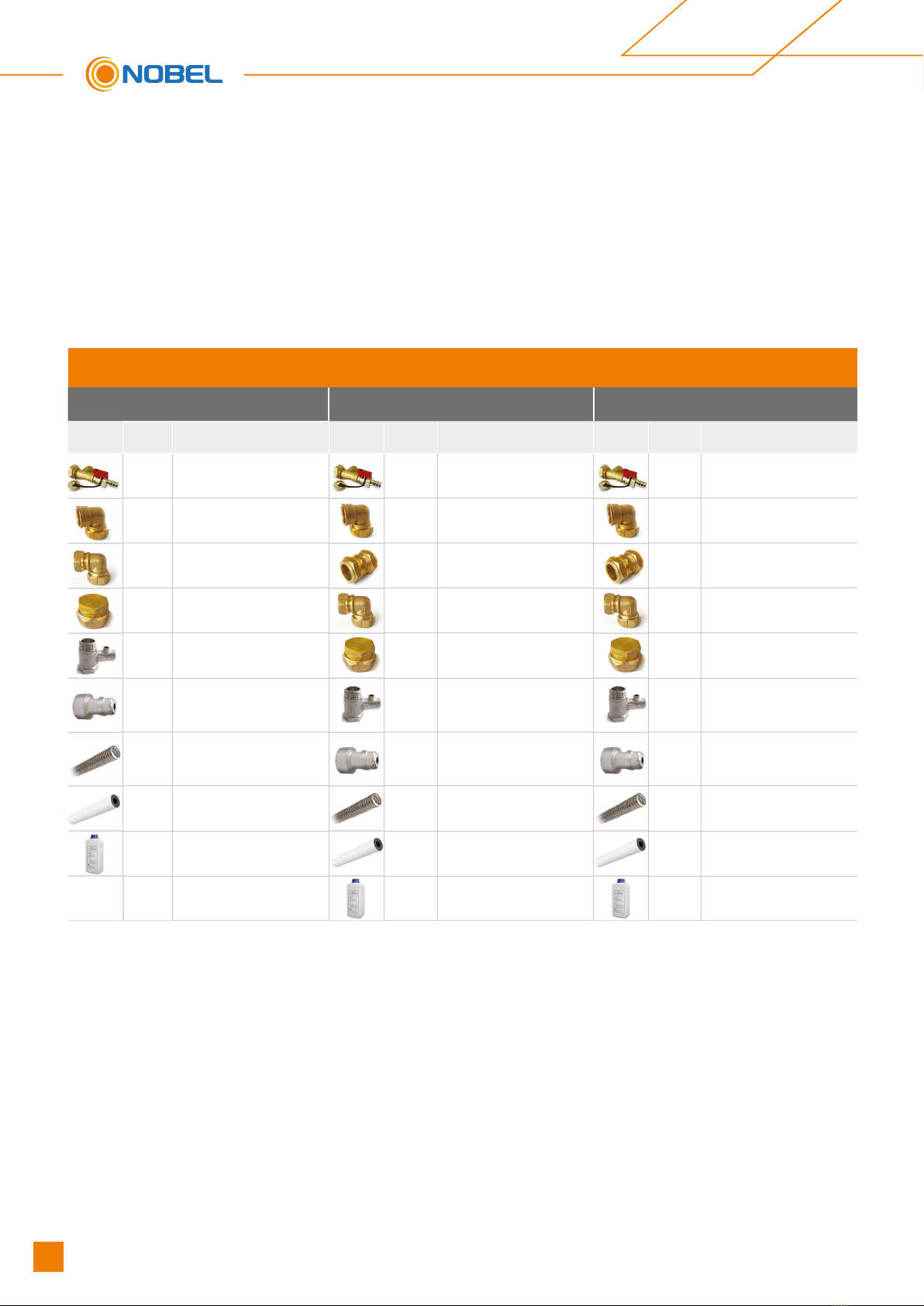

SOLAR WATER HEATERS AELIOS ALS & AELIOS CuS FITTINGS & ACCESSORIES
1 COLLECTOR 2 COLLECTORS 3 COLLECTORS
Quantity Description Quantity Description Quantity Description
1 PC T-PIECE WITH THE
FILLING VALVE 1 PC T-PIECE WITH THE FILLING VALVE 1 PC T-PIECE WITH THE FILLING VALVE
1 PC ELBOW 3/4’’ FEMALE
DN16 INOX 1 PC ELBOW 3/4’’ FEMALE DN16 INOX 1 PC ELBOW 3/4’’ FEMALE DN16 INOX
2 PCS ELBOW Ø22 COPPER
X DN16 INOX 2 PCS CONNECTOR Ø22 COPPER X Ø22 COPPER 4 PCS CONNECTOR Ø22 COPPER X Ø22 COPPER
2 PCS END CAP Ø22
COPPER 2 PCS ELBOW Ø22 COPPER X DN16 INOX 2 PCS ELBOW Ø22 COPPER X DN16 INOX
1 PC ONE WAY SAFETY
VALVE 10 bar ** 2 PCS END CAP Ø22 COPPER 2 PCS END CAP Ø22 COPPER
1 PC
SAFETY VALVE
(1,5 bar for 250lt and above
or 2,5 bar up to 200lt)
1 PC ONE WAY SAFETY
VALVE 10 bar ** 1 PC ONE WAY SAFETY VALVE 10 bar **
2 PCS INOX TUBE DN16 1 PC
SAFETY VALVE
(1,5 bar for 250lt and above
or 2,5 bar up to 200lt)
1 PC
SAFETY VALVE
(1,5 bar for 250lt and above
or 2,5 bar up to 200lt)
1 PC INSULATION Ø22 X 9 2 PCS INOX TUBE DN16 2 PCS INOX TUBE DN16
* ANTIFREEZE LIQUID 1lt 1 PC INSULATION Ø22 X 9 1 PC INSULATION Ø22 X 9
* ANTIFREEZE LIQUID 1lt * ANTIFREEZE LIQUID 1lt
Each model packaging contains all the necessary equipment:
1. The water storage tank
2. The collector (s).
3. The support base system & ttings and accessories.
The water storage tank is placed between two round styrofoam covers, which are tightened on the storage tank with
stretch lm. The collector is packed in a carton box. All the parts of the support base system, with the connection
ttings, the antifreeze liquid and the other accessories are packed in a carton box.
The ttings and the accessories of each appliance appears in the following table:
* The volume of liquid depends on the conguration boiler/collector
* * ½’’ BSP up to 200lit or ¾” for 250lit and above
Solar water heaters
76 Solar water heaters - AELIOSSolar water heaters - AELIOS

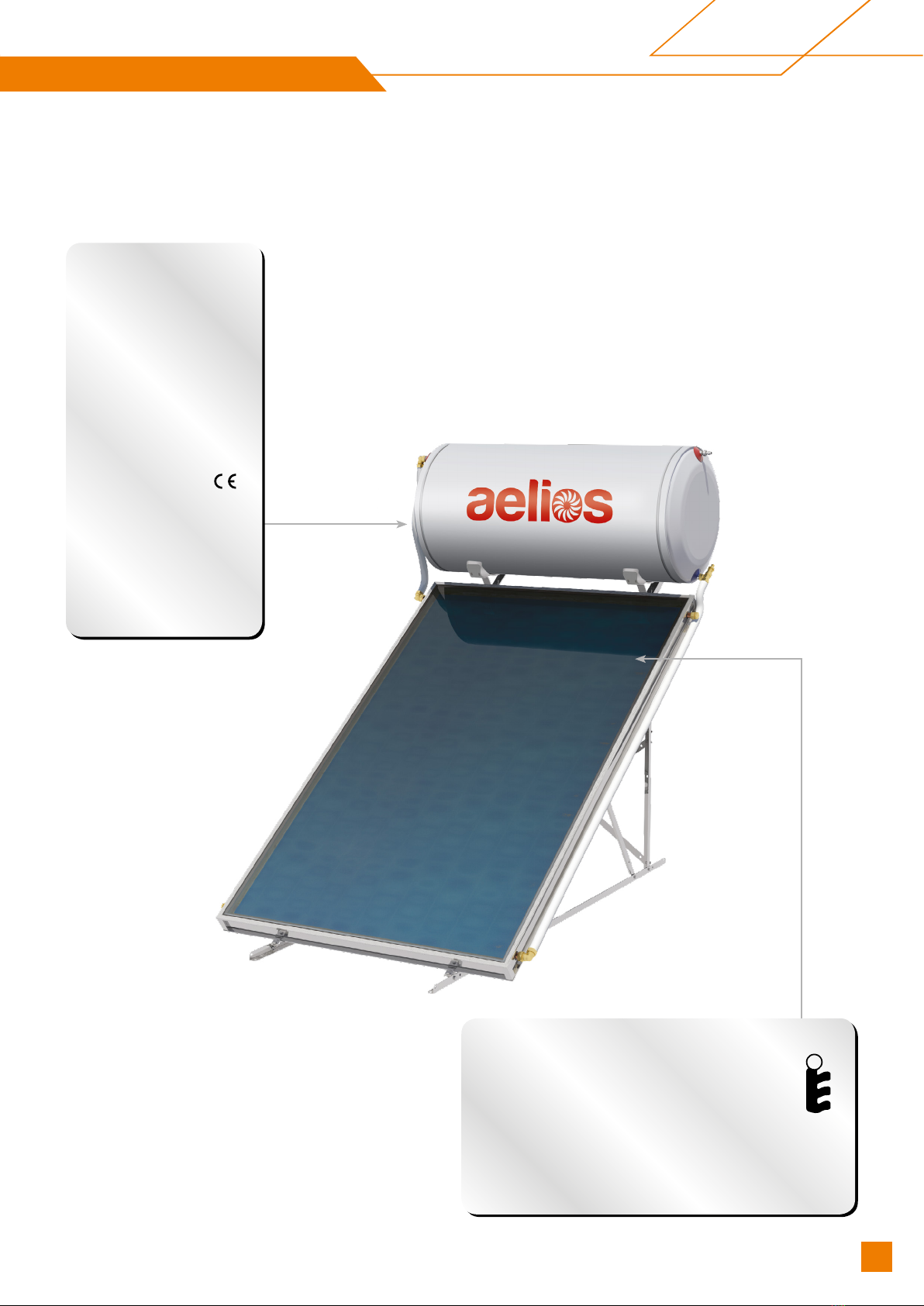

LABELING
AELIOS solar water heaters are identied by two stickers, one of them on the tank and the other on the collector.
On these stickers all the details of the system are written. The information provided on the stickers are important for
the future identication of the system.
MADE IN EU
· Absorber area: XXX m2
· Aperture area: XXX m2
· Nominal capacity: XXX lt
· Design pressure: XXX KPa
· Heat transfer medium:
Propylene glycol / water mixture
· Permissible operating pressure of the
collector heat transfer medium: XXX KPa
· Electrical Power: XXX W
· Storage Tank S/N: ????????
· Date of manufacture: ????????
Solar water heater
AELIOS
xxxlt/xm2
Type: Flatplate collector
Dimensions: (L x W x H) (mm): XXXX x XXXX x XX
Overall area (m2): XXX
Absorber area (m2): XXX
Total weight of collector (kg): XXX
Volume of heat transfer uid (lt): XXX
Absorber coating: XXX
Standstill temperature: XXX°C
Max. operating pressure: 1MPa (10bar)
Transparent cover: Tempered solar glass
Heat transfer medium: Propylene glycol solution/water mixture MADE IN EU
Licence No: ΧΧΧ
S/N: ΧΧΧ
Date: ΧΧ/ΧΧΧ
AELIOS XXXX
Solar water heaters
76 Solar water heaters - AELIOSSolar water heaters - AELIOS

101314 16
1
7
6 2 3 4
12 15
8 59
11
17
1. Cylinder: 3 mm thickness cold rolled steel with a dou-
ble internal layer of enamel, baked at 860°C accord-
ing to DIN 4753. The enameling is done in our own
high tech industrial facilities. The water storage tanks
are checked individually upon exit from the enameling
unit, assuring the top quality of the enamel.
2. Surrounding heat exchanger (Jacket): cold rolled
steel, 1.8 mm thickness for the operation of the closed
loop, which is compulsory at low temperatures and
also in areas with water with high mineral content. It
is specially designed so as to absorb the heat transfer
medium pressure.
3. Thermal insulation: ecological, high-density, ex-
panded polyurethane ensures minimum heat loss,
maintaining the hot water temperature.
4. External housing: prepainted galvanized steel.
5. Cathode protection by magnesium anodes for effec-
tive protection against corrosion and mineral deposits
caused by electrolytic reactions.
6. Large round ange rubber protected: innovative,
smart design for the quick cleaning of minerals,
fast replacement of anode and immediate access to
the electrical components.
7. Complete sealing of EPDM, non toxic material,
which does not permit water to contact the ange,
thus protecting it against electrolysis and corrosion,
specially made to withstand the generally accepted
specications with regard to the heat resistance.
8. Heating element rated according to the country of
destination local regulations. (Optional, for the use of
electricity as an auxiliary power source). All electri-
cal components carry a CE marking according to EN
60335-1 and EN60335-2-21 standards.
9. Automatically regulated thermostat with bipolar
protection and auxiliary fuse. All electrical components
carry a CE marking according to EN 60335-1 and
EN60335-2-21 standards.
10. Protective cover: designed to ensure the proper ven-
tilation of the electrical section and its protection from
the environmental conditions.
11. Cable gland: for sealing the passage of the heating
element’s connection cable.
12. Cold water inlet: ½” BSP male threaded pipe end
for water stratication and 10 bar safety valve for
releasing pressure (¾” for 250lt and above).
13. Hot water outlet: ½” BSP male threaded pipe end
(¾” for 250lt and above).
14. Jacket inlet: ¾” BSP male threaded pipe end.
15. Jacket outlet: Closed loop circuit lling point:
¾” BSP male threaded pipe end.
16. Safety valve connection location (1,5 bar for
250lt and above or 2,5 bar up to 200lt):
½” BSP male threaded pipe end
17. Heat exchanger (optional) with ¾” BSP male
threaded ends for use of the heating produced by
central heating systems during the winter.
WATER STORAGE TANK SPECIFICATIONS
Solar water heaters
98 Solar water heaters - AELIOSSolar water heaters - AELIOS

COLLECTOR SPECIFICATIONS
1. Collector frame of aluminium prole (Al Mg Si 05).
2. Rear cover of aluminium 0,4mm, tightly tted with elastic EPDM seal.
3. Water frame of suitable gauge and thickness: Headers are punched with upper expansion, for perfect manifolds
tting, thus avoiding pressure drop in the collectors.
Tube pitch = 107mm (EN 1652).
Copper water frame (Aelios CuS & Aelios CuB):
Ø22 headers: solar collector feed and feed-back. Ø8 manifolds: solar collector thermal absorption
Aluminium water frame (Aelios ALS & Aelios ALB):
Ø22 headers: solar collector feed and feed-back. Ø10 manifolds: solar collector thermal absorption.
4. Complete area absorber made of black painted aluminium 0.3mm thick, or selective aluminium 0.4mm thick,
covers the complete window area as well as the headers, thus increasing the collector’s absorbency, Laser Weld-
ed to the water frame.
5. High density, eco-friendly thermal insulation achieved with a 50mm and 20mm (back and lateral) thick layer
of prepressed glasswool for the minimization of thermal losses.
Glasswool insulation thermal conductivity: λ=0.032 W/m grd (DIN 56612, measured at 0°C).
6. Tempered solar glass, with a stable coefcient of expansion and high light transmittance, can withstand
adverse weather conditions (e.g. hail storm, extreme temperature changes, etc.). ANSI Z 97-1 (U.S.A.)
BS 6206 (G.BRITAIN) DIN 52337 (GERMANY).
Solar Keymark
Ceritfied
Solar water heaters
98 Solar water heaters - AELIOSSolar water heaters - AELIOS

Normal absorber design with louvers.
Air turbulence increases heat loss
Complete area technology
The uniform area prevents heat loss
FLAT SURFACE INCLINED SURFACE
Supporting base system, made
of galvanised steel, for installation
on at or inclined surfaces
SUPPORT BASE
10 Solar water heaters - AELIOS

WATER STORAGE TANK 120lt
DIMENSIONS (mm) 580X916
WEIGHT EMPTY (kg) (without packaging) 54.9
JACKET CAPACITY (lt) 6
JACKET SURFACE (m2) 0.62
MAX TEST PRESSURE (bar) 15
MAX OPERATING PRESSURE (bar) 10
TOTAL SYSTEM / AELIOS 120lt/2m2
NUMBER OF COLLECTORS 1
SYSTEM WEIGHT EMPTY (packed) / FULL (kg) 119/235
MAX WATER TANK OPERATING PRESSURE (bar) 10
CLOSED CIRCUIT MAX OPERATING PRESSURE (bar) 2.5
MAX OPERATING TEMPERATURE 95°C
COLLECTOR / AELIOS ALS 2000 ALB 2000 CUS 2000 CuB 2000
TOTAL AREA (m2) 2.09 2.09 2.09 2.09
NUMBER OF MANIFOLDS 8 (Ø10) 8 (Ø10) 8 (Ø8) 8 (Ø8)
HEAT TRANSFER MEDIUM PROPYLENE GLYCOL SOLUTION
CAPACITY (lt) 1.34 1.34 1.28 1.28
ABSORBER SURFACE (m2) 1.80 1.80 1.80 1.80
TOTAL DIMENSIONS LxWxH (mm) 2030x1030x80 2030x1030x80 2030x1030x80 2030x1030x80
COLLECTOR TOTAL WEIGHT (without liquid (kg) 35.5 35 36.5 36
ABSORBER SELECTIVE
ALUMINIUM
BLACK PAINTED
ALUMINIUM
SELECTIVE
ALUMINIUM
BLACK PAINTED
ALUMINIUM
ABSORBENCY / RADIATION COEFFICIENT 95% ±2% / 5% ±2% 90% ±2% / 84% ±2% 95% ±2% / 5% ±2% 90% ±2% / 84% ±2%
NOPart Name DIM (mm) QTY.
1 Beam L (Laminate section 60 x 2.5mm) 2060 x 60 2
2 Beam L (Laminate section 60 x 2.5mm) 1224 x 60 2
3 Beam L (Laminate section 60 x 2.5mm) 2289 x 60 2
4 Beam L (Laminate section 60 x 2.5mm) 925 x 60 2
5 Beam (Laminate section 33 x 2mm) 830 4
6 Boiler Support Ø580 2
7 Aluminium Fastener 4
8Plastic Cover for Supporting Strips (Slab) 2
9 Hexagon Head Bolt M8 M8x16 28
10 Hex Nut M8 28
11 Washer Ø8 4
12 Screw 8 x 60 4
13 Upat D10 4
14 Hexagon Head Screw with Washer 4
NOPart Name DIM (mm) QTY.
1 Beam L (Laminate section 60 x 2.5mm) 2060 x 60 2
2 Beam L (Laminate section 60 x 2.5mm) 2289 x 60 2
3 Beam L (Laminate section 60 x 2.5mm) 925 x 60 2
4 Beam (Laminate section 33 x 2mm) 830 4
5 Boiler Support Ø580 2
6 Aluminium Fastener 4
7Plastic Cover for Supporting Strips (Slab) 2
8 Hexagon Head Bolt M8 M8x16 20
9 Hex Nut M8 20
10 Washer Ø8 4
11 Hexagon Head Screw with Washer 4
12 Screw 8 x 60 4
2610
628
1123
1123
700
2150
2034
1889
7
4
6
3
1
2
8
5
1
2
4
5
4
3
6
7
Note: All dimensions measured in mm
FLAT SURFACE
INCLINED SURFACE
FLAT SURFACE INCLINED SURFACE
11
Solar water heaters - AELIOS
AELIOS 120lt/2m2LAYOUT

WATER STORAGE TANK 160lt
DIMENSIONS (mm) 580x1116
WEIGHT EMPTY (kg) (without packaging) 66.8
JACKET CAPACITY (lt) 9
JACKET SURFACE (m2) 0.91
MAX TEST PRESSURE (bar) 15
MAX OPERATING PRESSURE (bar) 10
TOTAL SYSTEM / AELIOS 160lt/2m2
NUMBER OF COLLECTORS 1
SYSTEM WEIGHT EMPTY (packed) / FULL (kg) 131/284
MAX WATER TANK OPERATING PRESSURE (bar) 10
CLOSED CIRCUIT MAX OPERATING PRESSURE (bar) 2.5
MAX OPERATING TEMPERATURE 95°C
COLLECTOR / AELIOS ALS 2000 ALB 2000 CUS 2000 CuB 2000
TOTAL AREA (m2) 2.09 2.09 2.09 2.09
NUMBER OF MANIFOLDS 8 (Ø10) 8 (Ø10) 8 (Ø8) 8 (Ø8)
HEAT TRANSFER MEDIUM PROPYLENE GLYCOL SOLUTION
CAPACITY (lt) 1.34 1.34 1.28 1.28
ABSORBER SURFACE (m2) 1.80 1.80 1.80 1.80
TOTAL DIMENSIONS LxWxH (mm) 2030x1030x80 2030x1030x80 2030x1030x80 2030x1030x80
COLLECTOR TOTAL WEIGHT (without liquid) (kg) 35.5 35 36.5 36
ABSORBER SELECTIVE
ALUMINIUM
BLACK PAINTED
ALUMINIUM`
SELECTIVE
ALUMINIUM
BLACK PAINTED
ALUMINIUM
ABSORBENCY / RADIATION COEFFICIENT 95% ±2% / 5% ±2% 90% ±2% / 84% ±2% 95% ±2% / 5% ±2% 90% ±2% / 84% ±2%
NOPart Name DIM (mm) QTY.
1 Beam L (Laminate section 60 x 2.5mm) 2060 x 60 2
2 Beam L (Laminate section 60 x 2.5mm) 2289 x 60 2
3 Beam L (Laminate section 60 x 2.5mm) 925 x 60 2
4 Beam L (Laminate section 33 x 2mm) 980 2
5 Beam (Laminate section 33 x 2mm) 980 2
6 Boiler Support Ø580 2
7 Aluminium Fastener 4
8 Protective Cover 420 2
9Plastic Cover for Supporting Strips (Slab) 2
10 Hexagon Head Bolt M8 M8x16 20
11 Hex Nut M8 20
12 Washer Ø8 4
13 Hexagon Head Screw with Washer 4
NOPart Name DIM (mm) QTY.
1 Beam L (Laminate section 60 x 2.5mm) 2060 x 60 2
2 Beam L (Laminate section 60 x 2.5mm) 1224 x 60 2
3 Beam L (Laminate section 60 x 2.5mm) 2289 x 60 2
4 Beam L (Laminate section 60 x 2.5mm) 925 x 60 2
5 Beam (Laminate section 33 x 2mm) 980 4
6 Boiler Support Ø580 2
7 Aluminium Fastener 4
8 Protective Cover 420 2
9Plastic Cover for Supporting Strips (Slab) 2
10 Hexagon Head Bolt M8 M8x16 28
11 Hex Nut M8 28
12 Washer Ø8 4
13 Screw 8 x 60 4
14 Upat D10 4
15 Hexagon Head Screw with Washer 4
4
3
6
5
9
2
7
1
7
4
6
5
9
2
1
3
1177
2609
627
900
1180
2034
1889
2150
Note: All dimensions measured in mm
FLAT SURFACE INCLINED SURFACE
FLAT SURFACE
INCLINED SURFACE
Solar water heaters
1312 Solar water heaters - AELIOSSolar water heaters - AELIOS
AELIOS 160lt/2m2LAYOUT

WATER STORAGE TANK 160lt
DIMENSIONS (mm) 580x1116
WEIGHT EMPTY (kg) (without packaging) 66.8
JACKET CAPACITY (lt) 9
JACKET SURFACE (m2) 0.91
MAX TEST PRESSURE (bar) 15
MAX OPERATING PRESSURE (bar) 10
TOTAL SYSTEM / AELIOS 160lt/2.6m2
NUMBER OF COLLECTORS 1
SYSTEM WEIGHT EMPTY (packed) / FULL (kg) 141/293
MAX WATER TANK OPERATING PRESSURE (bar) 10
CLOSED CIRCUIT MAX OPERATING PRESSURE (bar) 2.5
MAX OPERATING TEMPERATURE 95°C
COLLECTOR / AELIOS ALS 2600 ALB 2600 CuS 2600 CuB 2600
TOTAL AREA (m2) 2.6 2.6 2.6 2.6
NUMBER OF MANIFOLDS 11 (Ø10) 11 (Ø10) 11 (Ø8) 11 (Ø8)
HEAT TRANSFER MEDIUM PROPYLENE GLYCOL SOLUTION
CAPACITY (lt) 1.73 1.73 1.64 1.64
ABSORBER SURFACE (m2) 2.30 2.30 2.30 2.30
TOTAL DIMENSIONS LxWxH (mm) 2030x1280x80 2030x1280x80 2030x1280x80 2030x1280x80
COLLECTOR TOTAL WEIGHT (without liquid) (kg) 44 43.5 45 44.5
ABSORBER SELECTIVE
ALUMINIUM
BLACK PAINTED
ALUMINIUM
SELECTIVE
ALUMINIUM
BLACK PAINTED
ALUMINIUM
ABSORBENCY / RADIATION COEFFICIENT 95% ±2% / 5% ±2% 90% ±2% / 84% ±2% 95% ±2% / 5% ±2% 90% ±2% / 84% ±2%
NOPart Name DIM (mm) QTY.
1 Beam L (Laminate section 60 x 2.5mm) 2060 x 60 2
2 Beam L (Laminate section 60 x 2.5mm) 2289 x 60 2
3 Beam L (Laminate section 60 x 2.5mm) 925 x 60 2
4 Beam L (Laminate section 33 x 2mm) 980 2
5 Beam (Laminate section 33 x 2mm) 980 2
6 Boiler Support Ø580 2
7 Aluminium Fastener 4
8 Protective Cover 420 2
9Plastic Cover for Supporting Strips (Slab) 2
10 Hexagon Head Bolt M8 M8x16 20
11 Hex Nut M8 20
12 Washer Ø8 4
13 Hexagon Head Screw with Washer 4
NOPart Name DIM (mm) QTY.
1 Beam L (Laminate section 60 x 2.5mm) 2060 x 60 2
2 Beam L (Laminate section 60 x 2.5mm) 1224 x 60 2
3 Beam L (Laminate section 60 x 2.5mm) 2289 x 60 2
4 Beam L (Laminate section 60 x 2.5mm) 925 x 60 2
5 Beam (Laminate section 33 x 2mm) 980 4
6 Boiler Support Ø580 2
7 Aluminium Fastener 4
8 Protective Cover 420 2
9Plastic Cover for Supporting Strips (Slab) 2
10 Hexagon Head Bolt M8 M8x16 28
11 Hex Nut M8 28
12 Washer Ø8 4
13 Screw 8 x 60 4
14 Upat D10 4
15 Hexagon Head Screw with Washer 4
4
3
6
5
9
2
7
1
7
4
6
5
9
2
1
3
1419
2609
627
1410
900
2146
2034
1893
FLAT SURFACE
INCLINED SURFACE
FLAT SURFACE INCLINED SURFACE
Solar water heaters
1312 Solar water heaters - AELIOSSolar water heaters - AELIOS
AELIOS 160lt/2.6m2LAYOUT
Note: All dimensions measured in mm

NOPart Name DIM (mm) QTY.
1 Beam L (Laminate section 60 x 2.5mm) 1560 x 60 2
2 Beam L (Laminate section 60 x 2.5mm) 1809 x 60 2
3 Beam L (Laminate section 60 x 2.5mm) 933 x 60 2
4 Beam L (Laminate section 60 x 2.5mm) 725 x 60 2
5 Beam (Laminate section 33 x 2mm) 980 4
6 Collector Support 1500 2
7 Boiler Support Ø580 2
8 Protective cover 420 2
9Plastic Cover for Supporting Strips (Slab) 2
10 Αluminium Fastener 8
11 Hexagon Head Screw with Washer 4
12 Hexagon Head Bolt M8 M8 x 16 36
13 Hex Nut M8 36
14 Washer Ø8 12
15 Screw 8 x 60 4
16 Upat D10 4
NOPart Name DIM (mm) QTY.
1 Beam L (Laminate section 60 x 2.5mm) 1560 x 60 2
2 Beam L (Laminate section 60 x 2.5mm) 1809 x 60 2
3 Beam L (Laminate section 60 x 2.5mm) 933 x 60 2
4 Beam (Laminate section 33 x 2mm) 980 2
5 Collector Support 1500 2
6 Protective Cover 420 2
7 Boiler Support Ø580 2
8Plastic Cover for Supporting Strips (Slab) 2
9 Aluminium Fastener 8
10 Hexagon Head Screw with Washer 4
11 Hexagon Head Bolt M8 M8x16 28
12 Hex Nut M8 28
13 Washer Ø8 12
WATER STORAGE TANK 160lt
DIMENSIONS (mm) 580x1116
WEIGHT EMPTY (kg) (without packaging) 66.8
JACKET CAPACITY (lt) 9
JACKET SURFACE (m2) 0.91
MAX TEST PRESSURE (bar) 15
MAX OPERATING PRESSURE (bar) 10
TOTAL SYSTEM / AELIOS 160lt/3m2
NUMBER OF COLLECTORS 2
SYSTEM WEIGHT EMPTY (packed) / FULL (kg) 153/304
MAX WATER TANK OPERATING PRESSURE (bar) 10
CLOSED CIRCUIT MAX OPERATING PRESSURE (bar) 2.5
MAX OPERATING TEMPERATURE 95°C
COLLECTOR / AELIOS ALS 1500 ALB 1500 CuS 1500 CuB 1500
TOTAL AREA (m2) 1.58 1.58 1.58 1.58
NUMBER OF MANIFOLDS 8 (Ø10) 8 (Ø10) 8 (Ø8) 8 (Ø8)
HEAT TRANSFER MEDIUM PROPYLENE GLYCOL SOLUTION
CAPACITY (lt) 1.14 1.14 1.12 1.12
ABSORBER SURFACE (m2) 1.33 1.33 1.33 1.33
TOTAL DIMENSIONS LxWxH (mm) 1530x1030x80 1530x1030x80 1530x1030x80 1530x1030x80
COLLECTOR TOTAL WEIGHT (without liquid) (kg) 27 26.5 28 27.5
ABSORBER SELECTIVE
ALUMINIUM
BLACK PAINTED
ALUMINIUM
SELECTIVE
ALUMINIUM
BLACK PAINTED
ALUMINIUM
ABSORBENCY / RADIATION COEFFICIENT 95% ±2% / 5% ±2% 90% ±2% / 84% ±2% 95% ±2% / 5% ±2% 90% ±2% / 84% ±2%
6
4
9
7
5
10
3
1
2
5
7
4
8
1
2
3
9
4
628
2110
2189
900
1602
1534
1699
2189
FLAT SURFACE
INCLINED SURFACE
FLAT SURFACE INCLINED SURFACE
Note: All dimensions measured in mm
Solar water heaters
1514 Solar water heaters - AELIOSSolar water heaters - AELIOS
AELIOS 160lt/3m2LAYOUT

NOPart Name DIM (mm) QTY.
1 Beam L (Laminate section 60 x 2.5mm) 2060 x 60 2
2 Beam L (Laminate section 60 x 2.5mm) 2289 x 60 2
3 Beam L (Laminate section 60 x 2.5mm) 925 x 60 2
4 Beam L (Laminate section 33 x 2mm) 980 2
5 Beam (Laminate section 33 x 2mm) 980 2
6 Boiler Support Ø580 2
7 Aluminium Fastener 4
8 Protective Cover 420 2
9Plastic Cover for Supporting Strips (Slab) 2
10 Hexagon Head Bolt M8 M8x16 20
11 Hex Nut M8 20
12 Washer Ø8 4
13 Hexagon Head Screw with Washer 4
NOPart Name DIM (mm) QTY.
1 Beam L (Laminate section 60 x 2.5mm) 2060 x 60 2
2 Beam L (Laminate section 60 x 2.5mm) 1224 x 60 2
3 Beam L (Laminate section 60 x 2.5mm) 2289 x 60 2
4 Beam L (Laminate section 60 x 2.5mm) 925 x 60 2
5 Beam (Laminate section 33 x 2mm) 980 4
6 Boiler Support Ø580 2
7 Aluminium Fastener 4
8 Protective Cover 420 2
9Plastic Cover for Supporting Strips (Slab) 2
10 Hexagon Head Bolt M8 M8x16 28
11 Hex Nut M8 28
12 Washer Ø8 4
13 Screw 8 x 60 4
14 Upat D10 4
15 Hexagon Head Screw with Washer 4
WATER STORAGE TANK 200lt
DIMENSIONS (mm) 580x1356
WEIGHT EMPTY (kg) (without packaging) 81.8
JACKET CAPACITY (lt) 13
JACKET SURFACE (m2) 1.28
MAX TEST PRESSURE (bar) 15
MAX OPERATING PRESSURE (bar) 10
TOTAL SYSTEM / AELIOS 200lt/2m2
NUMBER OF COLLECTORS 1
SYSTEM WEIGHT EMPTY (packed) / FULL (kg) 146/345
MAX WATER TANK OPERATING PRESSURE (bar) 10
CLOSED CIRCUIT MAX OPERATING PRESSURE (bar) 2.5
MAX OPERATING TEMPERATURE 95°C
COLLECTOR / AELIOS ALS 2000 ALB 2000 CuS 2000 CuB 2000
TOTAL AREA (m2) 2.09 2.09 2.09 2.09
NUMBER OF MANIFOLDS 8 (Ø10) 8 (Ø10) 8 (Ø8) 8 (Ø8)
HEAT TRANSFER MEDIUM PROPYLENE GLYCOL SOLUTION
CAPACITY (lt) 1.34 1.34 1.28 1.28
ABSORBER SURFACE (m2) 1.80 1.80 1.80 1.80
TOTAL DIMENSIONS LxWxH (mm) 2030x1030x80 2030x1030x80 2030x1030x80 2030x1030x80
COLLECTOR TOTAL WEIGHT (without liquid) (kg) 35.5 35 36.5 36
ABSORBER SELECTIVE
ALUMINIUM
BLACK PAINTED
ALUMINIUM
SELECTIVE
ALUMINIUM
BLACK PAINTED
ALUMINIUM
ABSORBENCY / RADIATION COEFFICIENT 95% ±2% / 5% ±2% 90% ±2% / 84% ±2% 95% ±2% / 5% ±2% 90% ±2% / 84% ±2%
4
3
6
5
9
2
7
1
7
4
6
5
9
2
1
3
2610
628
1410
900 2034
1885
2150
1410
Note: All dimensions measured in mm
FLAT SURFACE
INCLINED SURFACE
INCLINED SURFACE
FLAT SURFACE
Solar water heaters
1514 Solar water heaters - AELIOSSolar water heaters - AELIOS
AELIOS 200lt/2m2LAYOUT

WATER STORAGE TANK 200lt
DIMENSIONS (mm) 580x1356
WEIGHT EMPTY (kg) (without packaging) 81.8
JACKET CAPACITY (lt) 13
JACKET SURFACE (m2) 1.28
MAX TEST PRESSURE (bar) 15
MAX OPERATING PRESSURE (bar) 10
TOTAL SYSTEM / AELIOS 200lt/2.6m2
NUMBER OF COLLECTORS 1
SYSTEM WEIGHT EMPTY (packed) / FULL (kg) 156/354
MAX WATER TANK OPERATING PRESSURE (bar) 10
CLOSED CIRCUIT MAX OPERATING PRESSURE (bar) 2.5
MAX OPERATING TEMPERATURE 95°C
COLLECTOR / AELIOS ALS 2600 ALB 2600 CuS 2600 CuB 2600
TOTAL AREA (m2) 2.6 2.6 2.6 2.6
NUMBER OF MANIFOLDS 11 (Ø10) 11 (Ø10) 11 (Ø8) 11 (Ø8)
HEAT TRANSFER MEDIUM PROPYLENE GLYCOL SOLUTION
CAPACITY (lt) 1.73 1.73 1.64 1.64
ABSORBER SURFACE (m2) 2.30 2.30 2.30 2.30
TOTAL DIMENSIONS LxWxH (mm) 2030x1280x80 2030x1280x80 2030x1280x80 2030x1280x80
COLLECTOR TOTAL WEIGHT (without liquid) (kg) 44 43.5 45 44.5
ABSORBER SELECTIVE
ALUMINIUM
BLACK PAINTED
ALUMINIUM
SELECTIVE
ALUMINIUM
BLACK PAINTED
ALUMINIUM
ABSORBENCY / RADIATION COEFFICIENT 95% ±2% / 5% ±2% 90% ±2% / 84% ±2% 95% ±2% / 5% ±2% 90% ±2% / 84% ±2%
NOPart Name DIM (mm) QTY.
1 Beam L (Laminate section 60 x 2.5mm) 2060 x 60 2
2 Beam L (Laminate section 60 x 2.5mm) 1224 x 60 2
3 Beam L (Laminate section 60 x 2.5mm) 2289 x 60 2
4 Beam L (Laminate section 60 x 2.5mm) 925 x 60 2
5 Beam (Laminate section 33 x 2mm) 980 4
6 Boiler Support Ø580 2
7 Aluminium Fastener 4
8 Protective Cover 420 2
9Plastic Cover for Supporting Strips (Slab) 2
10 Hexagon Head Bolt M8 M8x16 28
11 Hex Nut M8 28
12 Washer Ø8 4
13 Screw 8 x 60 4
14 Upat D10 4
15 Hexagon Head Screw with Washer 4
NOPart Name DIM (mm) QTY.
1 Beam L (Laminate section 60 x 2.5mm) 2060 x 60 2
2 Beam L (Laminate section 60 x 2.5mm) 2289 x 60 2
3 Beam L (Laminate section 60 x 2.5mm) 925 x 60 2
4 Beam L (Laminate section 33 x 2mm) 980 2
5 Beam (Laminate section 33 x 2mm) 980 2
6 Boiler Support Ø580 2
7 Aluminium Fastener 4
8 Protective Cover 420 2
9Plastic Cover for Supporting Strips (Slab) 2
10 Hexagon Head Bolt M8 M8x16 20
11 Hex Nut M8 20
12 Washer Ø8 4
13 Hexagon Head Screw with Washer 4
7
4
6
5
9
2
1
3
4
3
6
5
9
2
7
1
1419
2609
627
1410
900
2146
2034
1893
FLAT SURFACE
INCLINED SURFACE
FLAT SURFACE INCLINED SURFACE
Note: All dimensions measured in mm
Solar water heaters
1716 Solar water heaters - AELIOSSolar water heaters - AELIOS
AELIOS 200lt/2.6m2LAYOUT

NOPart Name DIM (mm) QTY.
1 Beam L (Laminate section 60 x 2.5mm) 1560 x 60 2
2 Beam L (Laminate section 60 x 2.5mm) 1809 x 60 2
3 Beam L (Laminate section 60 x 2.5mm) 933 x 60 2
4 Beam L (Laminate section 60 x 2.5mm) 725 x 60 2
5 Beam (Laminate section 33 x 2mm) 980 4
6 Collector Support 1500 2
7 Boiler Support Ø580 2
8 Protective cover 420 2
9Plastic Cover for Supporting Strips (Slab) 2
10 Αluminium Fastener (CO holder) 8
11 Hexagon Head Screw with Washer 4
12 Hexagon Head Bolt M8 M8 x 16 36
13 Hex Nut M8 36
14 Washer Ø8 12
15 Screw 8 x 60 4
16 Upat D10 4
NOPart Name DIM (mm) QTY.
1 Beam L (Laminate section 60 x 2.5mm) 1560 x 60 2
2 Beam L (Laminate section 60 x 2.5mm) 1809 x 60 2
3 Beam L (Laminate section 60 x 2.5mm) 933 x 60 2
4 Beam (Laminate section 33 x 2mm) 980 2
5 Collector Support 1500 2
6 Protective Cover 420 2
7 Boiler Support Ø580 2
8Plastic Cover for Supporting Strips (Slab) 2
9 Aluminium Fastener 8
10 Hexagon Head Screw with Washer 4
11 Hexagon Head Bolt M8 M8x16 28
12 Hex Nut M8 28
13 Washer Ø8 12
WATER STORAGE TANK 200lt
DIMENSIONS (mm) 580x1356
WEIGHT EMPTY (kg) (without packaging) 81.8
JACKET CAPACITY (lt) 13
JACKET SURFACE (m2) 1.28
MAX TEST PRESSURE (bar) 15
MAX OPERATING PRESSURE (bar) 10
TOTAL SYSTEM / AELIOS 200lt/3m2
NUMBER OF COLLECTORS 2
SYSTEM WEIGHT EMPTY (packed) / FULL (kg) 168/364
MAX WATER TANK OPERATING PRESSURE (bar) 10
CLOSED CIRCUIT MAX OPERATING PRESSURE (bar) 2.5
MAX OPERATING TEMPERATURE 95°C
COLLECTOR / AELIOS ALS 1500 ALB 1500 CuS 1500 CuB 1500
TOTAL AREA (m2) 1.58 1.58 1.58 1.58
NUMBER OF MANIFOLDS 8 (Ø10) 8 (Ø10) 8 (Ø8) 8 (Ø8)
HEAT TRANSFER MEDIUM PROPYLENE GLYCOL SOLUTION
CAPACITY (lt) 1.14 1.14 1.12 1.12
ABSORBER SURFACE (m2) 1.33 1.33 1.33 1.33
TOTAL DIMENSIONS LxWxH (mm) 1530x1030x80 1530x1030x80 1530x1030x80 1530x1030x80
COLLECTOR TOTAL WEIGHT (without liquid) (kg) 27 26.5 28 27.5
ABSORBER SELECTIVE
ALUMINIUM
BLACK PAINTED
ALUMINIUM
SELECTIVE
ALUMINIUM
BLACK PAINTED
ALUMINIUM
ABSORBENCY / RADIATION COEFFICIENT 95% ±2% / 5% ±2% 90% ±2% / 84% ±2% 95% ±2% / 5% ±2% 90% ±2% / 84% ±2%
5
7
4
8
1
2
3
9
4
6
4
9
7
5
10
3
1
2
628
2110
2189
900
2189
1534
1602
1699
FLAT SURFACE
INCLINED SURFACE
FLAT SURFACE INCLINED SURFACE
Note: All dimensions measured in mm
Solar water heaters
1716 Solar water heaters - AELIOSSolar water heaters - AELIOS
AELIOS 200lt/3m2LAYOUT

NOPart Name DIM (mm) QTY.
1 Beam L (Laminate section 60 x 2.5mm) 2060 x 60 2
2 Beam L (Laminate section 60 x 2.5mm) 2289 x 60 2
3 Beam L (Laminate section 60 x 2.5mm) 1224 x 60 2
4 Beam L (Laminate section 60 x 2.5mm) 925 x 60 2
5 Beam (Laminate section 33 x 2mm) 980 4
6 Collector Support 1500 2
7 Boiler Support Ø580 2
8 Protective cover 420 2
9Plastic Cover for Supporting Strips (Slab) 2
10 Αluminium Fastener (CO holder) 8
11 Hexagon Head Screw with Washer 4
12 Hexagon Head Bolt M8 M8 x 16 36
13 Hex Nut M8 36
14 Washer Ø8 12
15 Screw 8 x 60 4
16 Upat D10 4
NOPart Name DIM (mm) QTY.
1 Beam L (Laminate section 60 x 2.5mm) 2060 x 60 2
2 Beam L (Laminate section 60 x 2.5mm) 2289 x 60 2
3 Beam L (Laminate section 60 x 2.5mm) 925 x 60 2
4 Beam (Laminate section 33 x 2mm) 980 2
5 Collector Support 1500 2
6 Boiler Support Ø580 2
7 Protective Cover 420 2
8Plastic Cover for Supporting Strips (Slab) 2
9 Aluminium Fastener (CO holder) 8
10 Hexagon Head Screw with Washer 4
12 Hexagon Head Bolt M8 M8x16 28
13 Hex Nut M8 28
14 Washer Ø8 12
WATER STORAGE TANK 200lt
DIMENSIONS (mm) 580x1356
WEIGHT EMPTY (kg) (without packaging) 81.8
JACKET CAPACITY (lt) 13
JACKET SURFACE (m2) 1.28
MAX TEST PRESSURE (bar) 15
MAX OPERATING PRESSURE (bar) 10
TOTAL SYSTEM / AELIOS 200lt/4m2
NUMBER OF COLLECTORS 2
SYSTEM WEIGHT EMPTY (packed) / FULL (kg) 190/385
MAX WATER TANK OPERATING PRESSURE (bar) 10
CLOSED CIRCUIT MAX OPERATING PRESSURE (bar) 2.5
MAX OPERATING TEMPERATURE 95°C
COLLECTOR / AELIOS ALS 2000 ALB 2000 CuS 2000 CuB 2000
TOTAL AREA (m2) 2.09 2.09 2.09 2.09
NUMBER OF MANIFOLDS 8 (Ø10) 8 (Ø10) 8 (Ø8) 8 (Ø8)
HEAT TRANSFER MEDIUM PROPYLENE GLYCOL SOLUTION
CAPACITY (lt) 1.34 1.34 1.28 1.28
ABSORBER SURFACE (m2) 1.80 1.80 1.80 1.80
TOTAL DIMENSIONS LxWxH (mm) 2030x1030x80 2030x1030x80 2030x1030x80 2030x1030x80
COLLECTOR TOTAL WEIGHT (without liquid) (kg) 35.5 35 36.5 36
ABSORBER SELECTIVE
ALUMINIUM
BLACK PAINTED
ALUMINIUM
SELECTIVE
ALUMINIUM
BLACK PAINTED
ALUMINIUM
ABSORBENCY / RADIATION COEFFICIENT 95% ±2% / 5% ±2% 90% ±2% / 84% ±2% 95% ±2% / 5% ±2% 90% ±2% / 84% ±2%
5
4
9
2
1
8
3
6
4
6
4
1
2
9
7
5
10
3
2189
2610
628
1889
900
2189
2034
2150
FLAT SURFACE
INCLINED SURFACE
FLAT SURFACE INCLINED SURFACE
Note: All dimensions measured in mm
Solar water heaters
1918 Solar water heaters - AELIOSSolar water heaters - AELIOS
AELIOS 200lt/2.6m2LAYOUT
AELIOS 200lt/4m2LAYOUT

NOPart Name DIM (mm) QTY.
1 Beam L (Laminate section 60 x 2.5mm) 2060 x 60 2
2 Beam L (Laminate section 60 x 2.5mm) 2289 x 60 2
3 Beam L (Laminate section 60 x 2.5mm) 1224 x 60 2
4 Beam L (Laminate section 60 x 2.5mm) 925 x 60 2
5 Beam (Laminate section 33 x 2mm) 980 4
6 Collector Support 1500 2
7 Boiler Support Ø580 2
8 Protective cover 420 2
9Plastic Cover for Supporting Strips (Slab) 2
10 Αluminium Fastener (CO holder) 8
11 Hexagon Head Screw with Washer 4
12 Hexagon Head Bolt M8 M8 x 16 36
13 Hex Nut M8 36
14 Washer Ø8 12
15 Screw 8 x 60 4
16 Upat D10 4
NOPart Name DIM (mm) QTY.
1 Beam L (Laminate section 60 x 2.5mm) 2060 x 60 2
2 Beam L (Laminate section 60 x 2.5mm) 2289 x 60 2
3 Beam L (Laminate section 60 x 2.5mm) 925 x 60 2
4 Beam (Laminate section 33 x 2mm) 980 2
5 Collector Support 1500 2
6 Boiler Support Ø580 2
7 Protective Cover 420 2
8Plastic Cover for Supporting Strips (Slab) 2
9 Aluminium Fastener (CO holder) 8
10 Hexagon Head Screw with Washer 4
12 Hexagon Head Bolt M8 M8x16 28
13 Hex Nut M8 28
14 Washer Ø8 12
WATER STORAGE TANK 300lt
DIMENSIONS (mm) 580x1970
WEIGHT EMPTY (kg) (without packaging) 114.5
JACKET CAPACITY (lt) 19
JACKET SURFACE (m2) 1.79
MAX TEST PRESSURE (bar) 15
MAX OPERATING PRESSURE (bar) 10
TOTAL SYSTEM / AELIOS 300lt/4m2
NUMBER OF COLLECTORS 2
SYSTEM WEIGHT EMPTY (packed) / FULL (kg) 223/527
MAX WATER TANK OPERATING PRESSURE (bar) 10
CLOSED CIRCUIT MAX OPERATING PRESSURE (bar) 1.5
MAX OPERATING TEMPERATURE 95°C
COLLECTOR / AELIOS ALS 2000 ALB 2000 CuS 2000 CuB 2000
TOTAL AREA (m2) 2.09 2.09 2.09 2.09
NUMBER OF MANIFOLDS 8 (Ø10) 8 (Ø10) 8 (Ø8) 8 (Ø8)
HEAT TRANSFER MEDIUM PROPYLENE GLYCOL SOLUTION
CAPACITY (lt) 1.34 1.34 1.28 1.28
ABSORBER SURFACE (m2) 1.80 1.80 1.80 1.80
TOTAL DIMENSIONS LxWxH (mm) 2030x1030x80 2030x1030x80 2030x1030x80 2030x1030x80
COLLECTOR TOTAL WEIGHT (without liquid) (kg) 35.5 35 36.5 36
ABSORBER SELECTIVE
ALUMINIUM
BLACK PAINTED
ALUMINIUM
SELECTIVE
ALUMINIUM
BLACK PAINTED
ALUMINIUM
ABSORBENCY / RADIATION COEFFICIENT 95% ±2% / 5% ±2% 90% ±2% / 84% ±2% 95% ±2% / 5% ±2% 90% ±2% / 84% ±2%
6
4
1
2
9
7
5
10
3
5
4
9
2
1
8
3
6
4
2188
2609
627
2188 2146
1982
2034
900
FLAT SURFACE
INCLINED SURFACE
FLAT SURFACE INCLINED SURFACE
Note: All dimensions measured in mm
Solar water heaters
1918 Solar water heaters - AELIOSSolar water heaters - AELIOS
AELIOS 300lt/4m2LAYOUT

NOPart Name DIM (mm) QTY.
1 Beam L (Laminate section 60 x 2.5mm) 2060 x 60 4
2 Beam L (Laminate section 60 x 2.5mm) 2289 x 60 2
3 Beam L (Laminate section 60 x 2.5mm) 2129 x 60 4
4 Beam L (Laminate section 60 x 2.5mm) 925 x 60 4
5 Beam (Laminate section 33 x 2mm) 980 12
6 Boiler Support Ø580 2
7 Aluminium Fastener 12
8Plastic Cover for Supporting Strips (Slab) 2
9 Hexagon Head Bolt M8 M8x16 52
10 Hex Nut M8 52
11 Washer Ø8 12
12 Hexagon Head Screw with Washer 4
13 Screw 8 x 60 4
NOPart Name DIM (mm) QTY.
1 Beam L (Laminate section 60 x 2.5 mm) 2060 x 60 6
2 Beam L (Laminate section 60 x 2.5 mm) 2289 x 60 2
3 Beam L (Laminate section 60 x 2.5 mm) 2129 x 60 4
4 Beam L (Laminate section 60 x 2.5 mm) 1224 x 60 6
5 Beam L (Laminate section 60 x 2.5 mm) 925 x 60 6
6 Beam (Laminate section 33 x 2 mm) 980 12
7 Boiler Support Ø580 2
8Plastic Cover for Supporting Strips (Slab) 2
9 Aluminium Fastener 12
10 Hexagon Head Screw with Washer 4
11 Hexagon Head Bolt M8 M8x16 76
12 Hex Nut M8 76
13 Washer Ø8 12
14 Screw 8 x 60 12
15 Upat D10 12
WATER STORAGE TANK 300lt
DIMENSIONS (mm) 580x1970
WEIGHT EMPTY (kg) (without packaging) 114.5
JACKET CAPACITY (lt) 19
JACKET SURFACE (m2) 1.79
MAX TEST PRESSURE (bar) 15
MAX OPERATING PRESSURE (bar) 10
TOTAL SYSTEM / AELIOS 300lt/6m2
NUMBER OF COLLECTORS 3
SYSTEM WEIGHT EMPTY (packed) / FULL (kg) 281/580
MAX WATER TANK OPERATING PRESSURE (bar) 10
CLOSED CIRCUIT MAX OPERATING PRESSURE (bar) 1.5
MAX OPERATING TEMPERATURE 95°C
COLLECTOR / AELIOS ALS 2000 ALB 2000 CuS 2000 CuB 2000
TOTAL AREA (m2) 2.09 2.09 2.09 2.09
NUMBER OF MANIFOLDS 8 (Ø10) 8 (Ø10) 8 (Ø8) 8 (Ø8)
HEAT TRANSFER MEDIUM PROPYLENE GLYCOL SOLUTION
CAPACITY (lt) 1.34 1.34 1.28 1.28
ABSORBER SURFACE (m2) 1.80 1.80 1.80 1.80
TOTAL DIMENSIONS LxWxH (mm) 2030x1030x80 2030x1030x80 2030x1030x80 2030x1030x80
COLLECTOR TOTAL WEIGHT (without liquid) (kg) 35.5 35 36.5 36
ABSORBER SELECTIVE
ALUMINIUM
BLACK PAINTED
ALUMINIUM
SELECTIVE
ALUMINIUM
BLACK PAINTED
ALUMINIUM
ABSORBENCY / RADIATION COEFFICIENT 95% ±2% / 5% ±2% 90% ±2% / 84% ±2% 95% ±2% / 5% ±2% 90% ±2% / 84% ±2%
6
4
87
5
2
31
6
4
5
3
1
2
9
7
8
3255
2610
628
900
3255
900 900
166 166
1889
2034
2149
FLAT SURFACE
INCLINED SURFACE
FLAT SURFACE INCLINED SURFACE
Note: All dimensions measured in mm
Solar water heaters
2120 Solar water heaters - AELIOSSolar water heaters - AELIOS
AELIOS 200lt/2.6m2LAYOUT
AELIOS 200lt/4m2LAYOUT
AELIOS 300lt/6m2LAYOUT
