Noble House Home Furnishings 100G User manual

ASSEMBLY INSTRUCTIONS
100G DECK BOX
Patent Pending
www.noblehousefurniture.com

Patent Pending www.noblehousefurniture.com
X 1
X 1
X 1
X 1
X 1 X 1
69577-001
Top Panel
69577-002
Bottom Panel
69577-003
Bottom Bar
69577-004
Front Panel
69577-005
Back Panel 69577-006
Left Side Panel
Ⅰ：It is NOT a TOY.
Keep your child / children at bay in the process of assembly.
Two persons needed to assemble this product.
· To abtain the longest liftspan of your outdoor products,minimizing exposure to direct
sunlight is recommended.
· Do not place furniture near heating or cooling vents.
· Do not clean furniture with harsh cleansers or polish
· Furniture may scratch floors.We recommend using furniture pads to protect your floors.
· Keep away from sources of ignition.
· Not for commercial use.For residential use only.

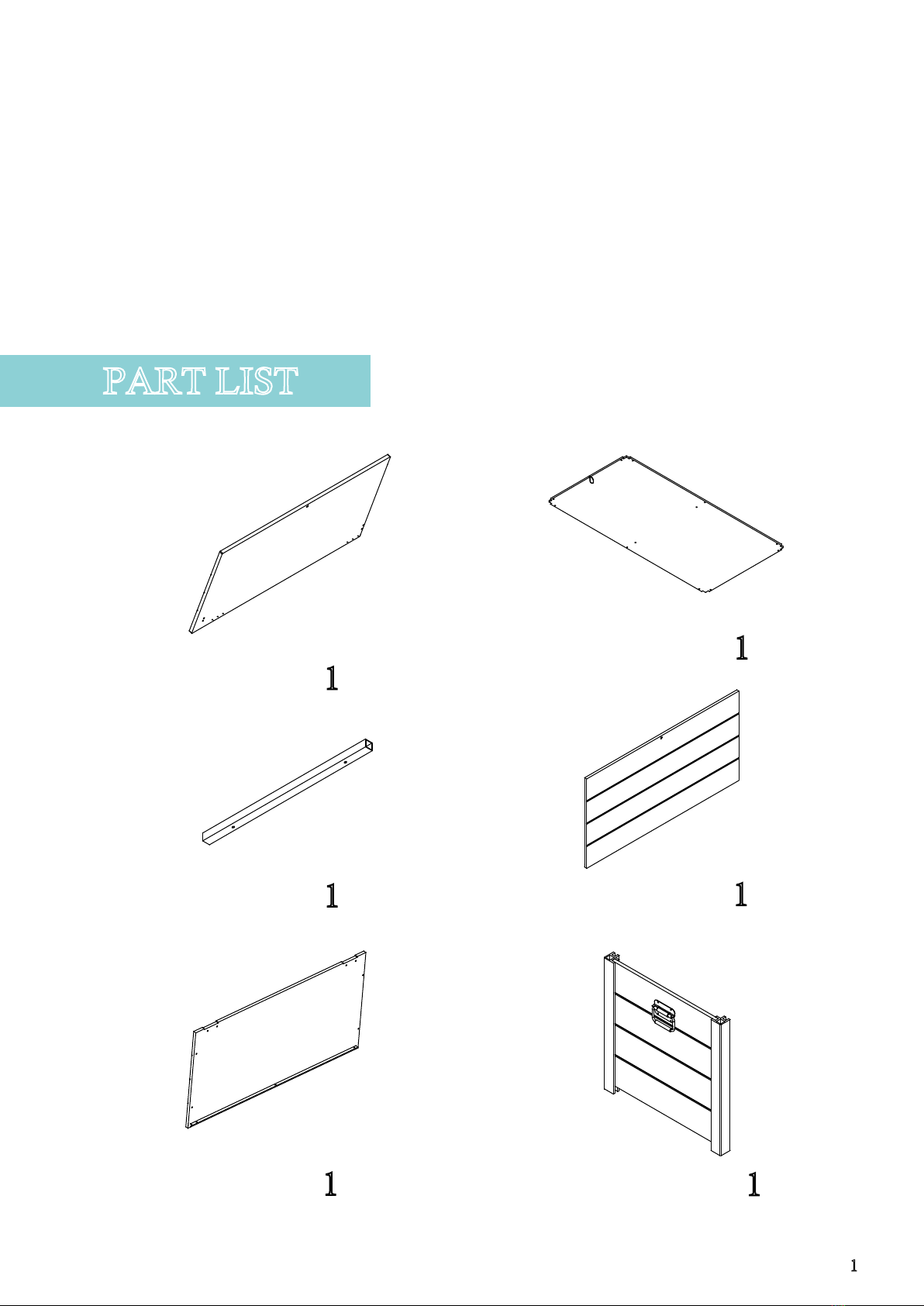

ⅡPART LIST：Before getting started,ensure the package contains the following components.
Please read this before you proceed
PART LIST
AB
CD
EF

Patent Pending www.noblehousefurniture.com
HARDWARE
X 2
X 2
X 2 X 11
X 21 X 11
69577-009
Locking Hinge 69577-010
Gas Spring Hinge
69577-011
Hinge
69577-013
M4*16 Screw
69577-014
M5*30 Screw
69577-012
M5*21 Plastic nail
①②
③④
⑤⑥
X 1 X 4
69577-007
Right Side Panel
69577-008
Plastic cap
GH

Patent Pending www.noblehousefurniture.com
1
ASSEMBLY
Attach① Locking Hinge(69577-009)with
⑤M4*16 Screws (69577-013) and② Gas
Spring Hinge(69577-010) with ⑤M4*16
Screws(69577-013) to Top Panel (A.69577-001)
Attach ③Hinge(69577-011) to Back Panel (E.69577-005)
with ⑤M4*16 Screws(69577-013)
Attach Bottom Bar(C.69577-003) to Bottom Panel
(B.69577-002) with ⑥M5*30 Screws(69577-014)
Attach ①Locking Hinge(69577-009) to Front Panel
(D.69577-004) with ⑤M4*16 Screws(69577-013)
⑤
①
①
⑤
③
⑤
②
⑥
⑤
A
B
D
E
C
x3
x3
x4
x4
x2
x2
x2

Patent Pending www.noblehousefurniture.com
2
ASSEMBLY
Insert Back Panel (E.69577-005)into Left Side
Panel(F.69577-006)
Insert Back Panel (E.69577-005)into Right Side
Panel(G.69577-007)
Insert Front Panel (D.69577-004)into Right Side
Panel(G.69577-007) and Left Side Panel(F.69577-006)
E
F
F
Top
Top
Bottom
Bottom
Top
G
G
D
E

Patent Pending www.noblehousefurniture.com
3
Tilt Bottom Panel (B.69577-002) into deck box at first ,then push it down
Push④M5*20 Plastic Nails (69577-012) into the Bottom holes
ASSEMBLY
B
C
④x10

Patent Pending www.noblehousefurniture.com
Push⑥ M5*30 Screws (69577-014) into the both sides holes
4
ASSEMBLY
G
E
⑥
x8

Patent Pending www.noblehousefurniture.com
5
Assemble Plastic Cap(H.69577-008) and Push hard.
ASSEMBLY
X4
SNAP
H

Patent Pending www.noblehousefurniture.com
6
Attach③ Hinges(69577-011) to Top Panel(A.67577-001) with⑤ M4*16 Screws(69577-013)
ASSEMBLY
③
⑤x6
A
WARNING
Handle the lid (A) carefully
while assembling

Patent Pending www.noblehousefurniture.com
7
Assemble ②Gas Spring (69577-010)on the both sides
ASSEMBLY
This is your complete deck box
