Plasmon LD 8100 User manual

THE PLASMON 8000 SERIES
LD 8100
OPTICAL DISK DRIVE
P/N 9662915 B
USER MANUAL

Reproduction of this manual, or any portion of this manual, is prohibited without the express permission of
Plasmon Laser Magnetic Storage (LMS). Plasmon LMS reserves the right to make changes in this
document and the product referred to herein without prior notice.
©2000 Plasmon Laser Magnetic Storage

WARNING
Always observe the following when installing, operating or maintaining
this product:
•This unit must be connected to a power distribution system that has a
direct connection to earth ground (Terminated Terra [TT] network/
ground connected). This unit is not suitable for use on a floating
ground (Interrupted Terra [IT]) network.
•The AC input power cord must be shielded and must have a minimum
current rating of 10 A with a nominal cross-section area of 0.75 sq mm
(reference: AWG #18) per conductor, 2 wires plus ground and product
safety approvals as required for use in the country in which the unit is
installed.
•When the unit is mounted in an equipment rack or cabinet, be certain
that the internal temperature within the rack or cabinet does not
exceed the limits defined in the Product Specification or this
document.
•To ensure the integrity of safety features of this unit, maintenance must
be performed only by qualified service personnel using designated
Plasmon LMS parts.
•In case of fire or other emergency, isolate the units from the main
power by disconnecting the power plugs from their site power
receptacles. In situations where disconnecting the plugs is not
possible or practical, use the system main power disconnect to isolate
the units from the main power.
•To prevent fire or shock hazard, do not expose this unit to rain or
moisture. Refer servicing to qualified technicians.

(German Translation) WARNUNG
Bei der Installation, Bedienung und Wartung dieses Produkts, bitte
immer die folgenden Vorsichtsmaßnahmen treffen:
•Dieses Gerät mußan ein Stromversorgungssystem angeschlossen
werden, das direkt mit einem Erdungsanschlußverbunden ist
(Terminated- Terra-Netz [TT]/mit Erdanschluß). Dieses Gerät kann
nicht an ein ungeerdetes Netz (Interrupted Terra [IT]) angeschlossen
werden.
•Die Verbindungsschnur des Wechselstromeingangs mußentstört sein
und ihr Minimalstrom unter folgenden Bedingungen bei 10 A liegen:
Der Nennquerschnitt beträgt 0,75 mm je Leiter (Referenz: American
Wire Gauge Nr. 18), es bestehen 2 Drähte plus ein Erdanschlußund
das Produkt entspricht den im Land, in dem es aufgestellt wird,
geltenden Sicherheitsvorschriften.
•Wird das Gerät in ein Gerätegestell oder einen Geräteschrank
eingebaut, ist darauf zu achten, daßdie interne Temperatur im Gestell
oder Schrank nicht über die in den Produktspezifikationen oder
diesem Dokument angegebenen Grenzwerte hinausgeht.
•Um ein ordnungsgemäßes Funktionieren der Sicherheitsmerkmale
dieses Gerätes zu gewährleisten, dürfen Wartungsarbeiten nur von
qualifiziertem Fachpersonal ausgeführt werden. Es sind darüber
hinaus nur Ersatzteile zu verwenden, die von der Firma Plasmon LMS
angegeben werden.
•Im Falle eines Feuers oder in einem anderen Notfall sind die Geräte
vom Hauptnetz zu trennen, indem die Netzstecker aus den
Steckdosen am Einbauort gezogen werden. Ist ein Herausziehen der
Stecker nicht möglich oder zu umständlich, trennen Sie die Geräte mit
Hilfe des System- Hauptnetzabschalters vom Hauptnetz.
•Um Feuer- oder Stromschlaggefahr zu vermeiden, ist dieses Gerät
niemals Regen oder Feuchtigkeit auszusetzen. Wartungsarbeiten
sind qualifiziertem technischen Personal zu überlassen.

RADIO/TV INTERFERENCE (USA)
The information in this section applies only to units in use within the United States:
This equipment generates and uses radio frequency energy and, if not installed and used properly, that is,
in strict accordance with the manufacturer's instruction, may cause interference to radio and television
reception. It has been type tested and found to comply with the limits for a Class A computing device in
accordance with the specifications of Part 15 of FCC Rules, which are designed to provide reasonable
protection against such interference in a residential installation. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
•reorient the receiving antenna
•relocate the equipment away from the receiver
•plug the equipment into a different outlet so that equipment and receiver are on different branch
circuits.
If necessary, the user should consult the dealer or an experienced radio/television technician for additional
suggestions. A pamphlet by the FCC ‘How to Identify and Resolve Radio-TV Interference Problems' is
available from the US Government Printing Office, Washington, D.C., 20402, Stock No. 044-000-00345-4.
CDRH COMPLIANCE
LD 8100 contains a Class 1 Laser Product. This product complies with 21CFR Chapter 1, Subchapter J,
applicable at date of manufacture.
CANADIAN EMI COMPLIANCE
Canadian Department of Communications standards require that the following statement appear in
operating manuals for any digital apparatus imported into Canada:
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out in the
Radio Interference Regulations of the Canadian Department of Communications.
FRENCH TRANSLATION
Cet équipement digital ne dépasse pas les limites de la Classe A pour les interférences radioélectriques
des systémes digitaux fixées par les Réglements concernant les Interférences Radioélectriques établis par
le Ministére des Communications du Canada.
All Plasmon LMS products comply with the requirements of this standard.
Agency Compliance and Approval
For details on Agency Compliance and Approval refer to the LD 8100/LF 8120/LF 8600LF 8602 Product
Specification Manual (P/N 97663035).

TABLE OF CONTENTS
SCOPE 9
RELATED PUBLICATIONS 9
NOTICES 9
GENERAL DESCRIPTION 11
DRIVE CHARACTERISTICS 13
RACK MOUNT AND DESKTOP CONFIGURATIONS 13
TOWER CONFIGURATION 15
FILENET LIBRARY CONFIGURATION 17
PLASMON 1800 LIBRARY CONFIGURATION 19
DIMENSIONS AND WEIGHTS 21
TEMPERATURE, HUMIDITY AND ALTITUDE 22
MEDIA ENVIRONMENTAL CHARACTERISTICS 23
SHOCK AND VIBRATION 23
AC POWER REQUIREMENTS 24
AC GROUND 24
AC POWER CORD 24
POWER SUPPLY OUT-OF-RANGE PROTECTION FEATURES 24
HEAT DISSIPATION 24
TILT RANGE 24
PARTICULATE LIMITS 25
WARNING LABELS 25
UNPACKING AND REPACKING INSTRUCTIONS 27
UNPACKING THE LD 8100 27
DESKTOP, RACK MOUNT AND LIBRARY CONFIGURATIONS 27
TOWER CONFIGURATION 29
INSPECTING THE LD 8100 31
REPACKING THE LD 8100 31
DESKTOP, RACK MOUNT AND LIBRARY CONFIGURATIONS 32
TOWER CONFIGURATION 34
INSTALLATION AND DE-INSTALLATION 35
INSTALLATION REQUIREMENTS 35
QUICK RELEASE RACK MOUNT KIT INSTALLATION 36
QUICK RELEASE RACK MOUNT DE-INSTALLATION 47
SCSI BUS CONSIDERATIONS 48
CONNECTING POWER AND SCSI CABLES 50
CONNECTING THE POWER CORD 50
CONNECTING MULTIPLE DEVICES 50
CONNECTING A SINGLE DEVICE 51
CONNECTOR VERIFICATION 52

OPERATING INSTRUCTIONS 53
CONTROLS AND INDICATORS 53
POWER-ON PROCEDURE 54
MODES OF OPERATION 55
OPERATING MODE 55
CONFIGURATION MODE 58
VIEWING THE CONFIGURATION ("VIEW CONFIG") 61
SETTING THE CONFIGURATION ("SET CONFIG") 63
SET DEFAULTS 66
SETTING THE SCSI ID 66
SETTING THE BUS PARITY CHECKING 67
SETTING THE LANGUAGE 67
SETTING THE WRITE PROTECT OPTION 68
SETTING THE MEDIA AUTOSPIN OPTION 68
SETTING THE LOAD SWITCH OPTION 69
SETTING THE READ AHEAD OPTION 69
SETTING THE CDE CURS OPTION 70
SETTING THE BUSY OPTION 70
SETTING THE MODSEL RA OPTION 71
SETTING THE MM SPINUP OPTION 71
SELECT TARGET NEGOTIATION 72
VIEWING DIAGNOSTIC RESULTS OR PERFORMING
DIAGNOSTICOPERATIONS ("DIAGNOSTICS") 73
SET THE INTERNAL DRIVE SERIAL NUMBER ("SET SERIAL #") 78
TEST MODE 80
MEDIA CARTRIDGE HANDLING 81
SETTING THE WRITE PROTECTION SWITCH 83
AFFIXING LABELS TO THE MEDIA CARTRIDGE 84
MANUAL RELEASE MECHANISM 85
OPERATOR MAINTENANCE 87
INSPECTING AND CLEANING FAN AND BLOWER FILTERS 87
REPLACING FUSES 88
MEDIA CLEANING 90
MEDIA CLEANING USING CLEANING KIT P/N 97662550 90
APPENDIX A 91
GERMAN TRANSLATIONS/ÜBERSETZUNGEN INS DEUTSCHE 91

97662915 B
Page 9
SCOPE
This User Manual describes unpacking, installing, operating, and maintaining the LaserDrive LD 8100
High-Performance Optical Disk Drive.
RELATED PUBLICATIONS
NOTICES
Three levels of notices are used throughout this document.
WARNING
A WARNING is used to alert the reader of situations or conditions that
could potentially result in personal injury, fire hazard or equipment
damage.
CAUTION
A CAUTION is used to warn of undesirable procedures or of
situations in which equipment damage could potentially result.
NOTE
A NOTE is used to emphasize an area of text or to provide additional
information.
PUBLICATION PART NUMBER
LD 8100/LF 8120/LF 8600/LF 8602 Product Specification 97663035
LD 8100/LF 8120/LF 8600/LF 8602 SCSI Interface Specification 97662164
LD 8100 Hardware Maintenance Manual 97663081

PLASMON LMS - LD 8100 USER MANUAL
Page 10
WARRANTY STATEMENT
The LD 8100 is warranted as stated in the purchase agreement between Plasmon and it’s customer,
or the Plasmon sales order acknowledgment, whichever is applicable.
The Plasmon LMS quality system is in compliance and registered to ISO 9001. The LD 8100 is
manufactured from new parts, or remanufactured parts.
LD 8100 warranty does not cover defects or damage caused by the use of unauthorized parts or
repairs or improper use or maintenance. Repairs or replacements not covered by the warranty will
be invoiced at Plasmon’ then current prices.
The warranty is void when installation, service or repairs are performed by un-certified personnel;
when the product is affected by unauthorized alterations, modifications or other tampering or
misuse; when the product is incorporated into a system which causes or involves any changes in
the physical, mechanical or electrical arrangement of the product; or when the product is not used
in accordance with its applicable specifications.
The term, authorized personnel, is defined as those persons who have been trained by Plasmon
LMS Technical Services.

97662915 B
Page 11
GENERAL DESCRIPTION
The Plasmon Infinity LaserDrive LD 8100 is a write once read many (WORM), high-capacity optical disk
drive which uses a removable 300-mm (12-in.), LM 8000 optical media cartridge with storage capacity of
30 GBytes. The LD 8100 can also read LM 6000 and LM 4000 media. Contact Plasmon LMS for
availability and ordering information for the LM 4000 media option.
The LD 8100 is available in a Rack Mount, Desktop, Tower, FileNet®Library and Plasmon Library
configurations, offering support for varied operating orientations and installation environments (see figure
below).
Figure 1. LD 8100 Configurations
FILENET LIBRARY
CONFIGURATION
TOWER
CONFIGURATION
DESKTOP
CONFIGURATION
PLASMON LIBRARY
CONFIGURATION
RACK MOUNT
CONFIGURATION

PLASMON LMS - LD 8100 USER MANUAL
Page 12
The LD 8100 supports a maximum sustained read and write transfer rate of 6.0 MBytes/sec without data
verification. The drive will also support a 2.9 MBytes/sec write transfer rate with error correction and defect
management to maintain data integrity and manage media flaws.
A Drive Operator Console (DOC) located on the front panel of the drive provides user control of drive
operation, configuration and test as explained in the Operating Instruction section of this manual.
Operating messages are presented on the alphanumeric display in English, French or German. The
language used is selectable.
The Auxiliary Diagnostic Port (ADP) can be used to download updates to the drive firmware in the field.
Refer to the LD 8100/ LF 8120/ LF 8600/ LF 8602 Product Specification (P/N 97663035) for more
information. The ADP is located on the front panel of the Rack Mount, the Desk Top and the Tower
configurations. The ADP may be located on the rear panel of the Plasmon Library and the Filenet
configurations. The ADP may also be used as a standard serial port for setting the SCSI ID.
The LD 8100 drive implements the Small Computer System Interface (SCSI) via standard SCSI-2 micro
connectors (68 pin) located on the rear panel. Single-ended and differential, High Voltage interface options
are available, and the interface can be changed in the field. Both the single-ended and differential
controllers support asynchronous or synchronous data transfer operations.
Preventive maintenance for the LD 8100 is minimal. Corrective maintenance is simplified by internal
diagnostic firmware which detects, isolates and reports malfunctions to the operator and identifies the Field
Replaceable Unit (FRU).
LM 8000 media is interchangeable between the LD 8100, LF 8120, LF 8600, and the LF 8602. The
LD 8100 can also read LM 6000 and LM 4000 media. Contact Plasmon LMS for availability and ordering
information for the LM 4000 media option.The

97662915 B
Page 13
DRIVE CHARACTERISTICS
This section describes the LD 8100 Rack Mount, Desktop, Tower, FileNet Library and Plasmon Library
configurations. All LD 8100 configurations have the same major internal subassemblies.
RACK MOUNT AND DESKTOP CONFIGURATIONS
The LD 8100 Rack Mount
configuration is designed for
horizontal operation and slide
mounting in an EIA standard
19-in. rack. The Rack Mount
configuration is installed in a
rack using the Quick Release
Rack Mount Kit (refer to the
Installation section of this
manual).
Figure 2. LD 8100 Rack Mount
Drive
The LD 8100 Desktop
configuration is designed for
horizontal operation as a stand-
alone device on a table top. The
Desktop configuration includes an
enclosure and rubber feet.
Figure 3. LD 8100 Desktop Drive

PLASMON LMS - LD 8100 USER MANUAL
Page 14

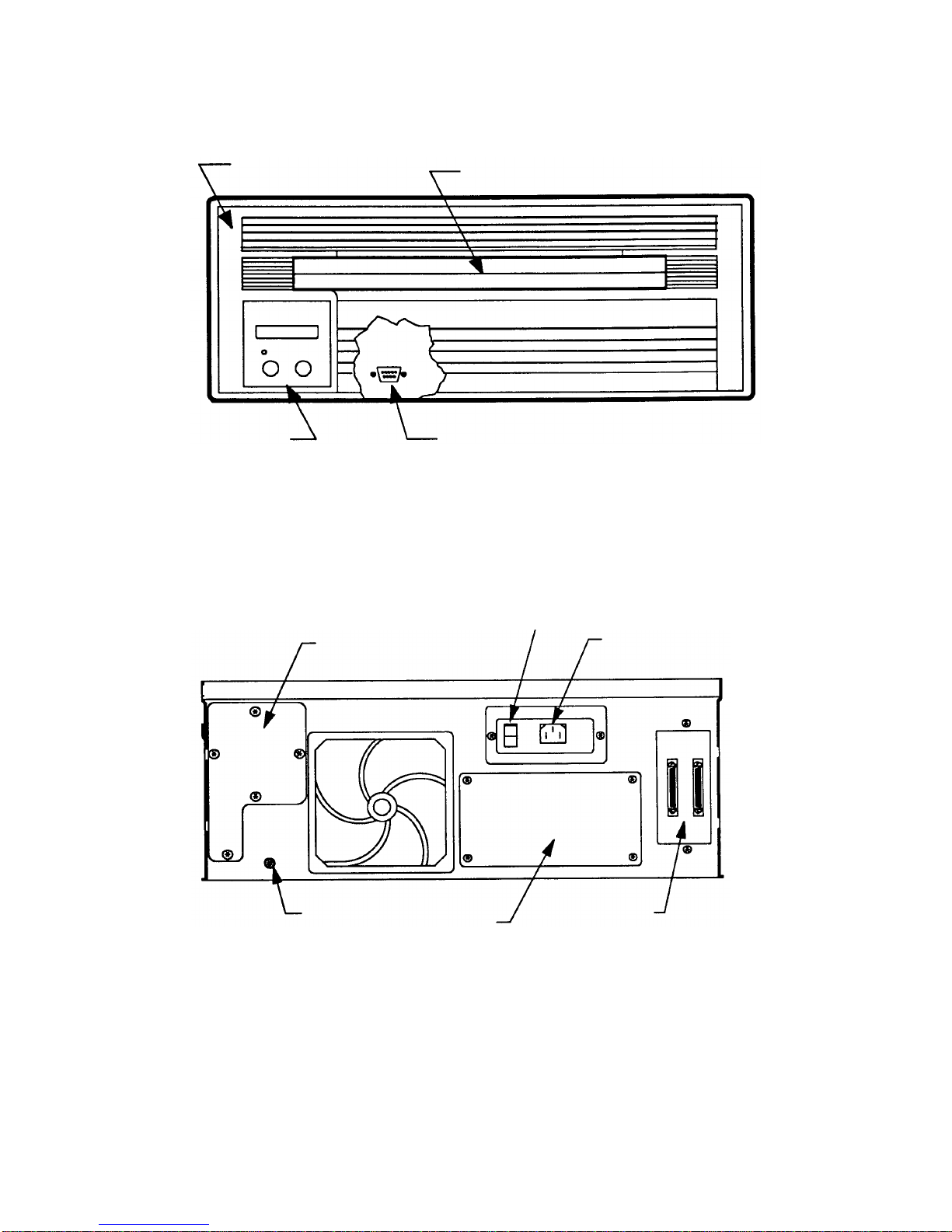

The figure below illustrates the front panel layout. The ADP connector is located beside the DOC but is
concealed by the Bezel.
Figure 4. LD 8100 Rack Mount and Desktop Front Panel Layout (Rack Mount Version Shown)
The LD 8100 Rack Mount and Desktop rear panel layout includes a DOC/ADP Blank Panel, MCLI Blank
Panel, AC Power Switch, Receptacle, SCSI-2 I/O Panel Assembly and a ground connector. The figure
below illustrates the rear panel layout. A Fan Grill and filter element are installed over the fan vent to filter
out contaminants from cooling air entering through the rear panel.
Figure 5. LD 8100 Rack Mount Rear Panel
BEZEL MEDIA CARTRIDGE LOADING DOORS
DOC ADP
DOC/ADP
BLANK PANEL AC POWER
RECEPTACLE
AC POWER
SWITCH
GROUND
CONNECTOR MCLI
BLANK PANEL SCSI-2 I/O
CONNECTORS

97662915 B
Page 15
TOWER CONFIGURATION
The Tower configuration (see figure below) is designed for vertical operation as a stand-alone device on
an open floor or beside a desk. The Tower configuration includes an enclosure for both the LD 8100 and
the pedestal. The pedestal is supported by four casters which can be locked to prevent unintentional
movement.
Figure 6. LD 8100 Tower Configuration
67.3 cm
(26.5 in)
18.9 cm
(7.4 in)
30.5 cm
(12.0 in)
48.6cm
(19.1 in)
66.7cm
(26.2 in)

PLASMON LMS - LD 8100 USER MANUAL
Page 16
The illustration to the left shows the front
panel of the LD 8100 Tower configuration
and identifies the location of the DOC and
ADP connector. The ADP connector is
located below the DOC but is concealed by
the bezel.
Figure 7. LD 8100 Tower Front Panel Layout
The figure to the right illustrates the rear
panel of the LD 8100 Tower configuration
and identifies the location of the AC
power switch, Receptacle, ground
connector, SCSI-2 I/O Panel Assembly,
DOC/ADP Blank Panel and MCLI Blank
Panel. A Fan Grill and filter element are
installed over the fan vent to filter
contaminants from cooling air entering
through the rear panel.
Figure 8. Rear View of LD 8100 Tower
DOC
ADP
MEDIA CARTRIDGE
LOADING DOOR
AC POWER
RECEPTACLE
AC POWER
SWITCH
DOC BLANK
PANEL
SCSI-2 I/O
PANEL
ASSEMBLY
MCLI BLANK
PANEL
FAN/GRILL AND
FILTER ASSEMBY
GROUND
CONNECTOR

97662915 B
Page 17
FILENET LIBRARY CONFIGURATION
The FileNet Library configuration (see figure below), does not have a Bezel and is designed for vertical or
horizontal mounting and for operation in a FileNet Library. The FileNet Library configuration has the same
major assemblies as the other LD 8100 configurations but is configured for use in a FileNet Library by
adding the MCLI connector and Registration Panel.
Figure 9. FileNet Library Configuration

PLASMON LMS - LD 8100 USER MANUAL
Page 18
The figure on the left illustrates the
front panel of the FileNet Library
configuration and identifies the
location of the DOC/ADP Blank
Panel. The DOC and ADP connector
are located on the rear panel, so the
DOC/ADP Blank Panel is used to
cover the DOC and ADP mounting
holes. A special Registration Panel is
installed on the FileNet Library
configuration in place of the Bezel.
Figure 10. LD 8100 FileNet Library
Front Panel
The figure on the right illustrates
the rear panel of the LD 8100
FileNet Library configuration and
identifies the location of the AC
Power Switch, Receptacle, ground
connector, SCSI-2 I/O Panel
Assembly, DOC, ADP connector
and the MCLI connector. A Fan
Grill and filter element are installed
over the fan vent to filter
contaminants from cooling air
entering through the rear panel.
Figure 11. LD 8100 FileNet Library
Rear Panel
REGISTRATION
MEDIA CARTRIDGE
LOADING SLOT
PANEL
BLANK
PANEL
CONNECTORS
SCSI-2 1/O
AC POWER
RECEPTACLE
SWITCH
AC POWER
DOC
MCLI I/O
CONNECTOR
GROUND
FILTER ELEMENT
CONNECTOR
FAN GRILL AND
CONNECTOR
ADP

97662915 B
Page 19
PLASMON 1800 LIBRARY CONFIGURATION
The Plasmon Library configuration (see figure below), which does not have a Bezel or Registration Panel,
is designed for horizontal mounting and operation in a Plasmon 1800 Series Library. The Plasmon Library
configuration has the same major assemblies as the other LD 8100 configurations but is adapted for use in
a Plasmon 1800 Library by adding an MCLI connector.
Figure 12. Plasmon 1800 Series Library Drive

PLASMON LMS - LD 8100 USER MANUAL
Page 20
The figure below illustrates the front panel of the Plasmon Library configuration and identifies the location
of the DOC/ADP Blank Panel. The DOC and ADP connector are located on the rear panel. The DOC/ADP
Blank Panel is used to cover the DOC and ADP mounting holes.
Figure 13. LD 8100 Plasmon Library Front Panel
The figure below illustrates the rear panel of the LD 8100 Plasmon Library configuration and identifies the
location of the AC Power Switch, AC Receptacle, ground connector, SCSI-2 I/O Panel Assembly, DOC,
ADP connector and the MCLI connector. A Fan Grill and filter element are installed over the fan vent to
filter contaminants from cooling air entering through the rear panel.
Figure 14. LD 8100 Plasmon Library Rear Panel
DOC/ADP
BLANK PANEL
MEDIA CARTRIDGE
LOADING PORT
AC POWER
SWITCH
RECEPTACLE
DOC FAN GRILL AND
FILTER ELEMENT CONNECTORS
SCSI-2 1/O
GROUND
CONNECTOR MCLI
CONNECTOR
AC POWER
CONNECTOR
ADP
