LaCie d2 Serial ATA User manual

How To Use This Manual
LaCie d2 Hard Drive Serial ATA
User’s Manual
How To Use This Manual
In the toolbar:
On the page:
Click on the text within the Contents page to jump to information on that topic.
Click on any red text to automatically jump to more information about that topic.
Printing:
While optimized for onscreen viewing, the pages of this manual are formatted for printing on 8 1/2” x 11” and A4 sized
paper, giving you the option to print the entire manual or just a specific page or section.
To Exit:
From the Menu bar at the top of your screen, select: File > Quit.
Icons Used In This Manual
Italicized paragraphs feature an icon describing the type of information being given.
Important Info: This icon refers to an important step that must be followed.
Tech Note: This icon refers to tips to help maximize performance.
Caution! This icon indicates a potential hazard, and gives tips on how to avoid them.
Previous Page / Next Page Go to Previous View / Go to Next View Go to Contents Page / Go to Precautions Page

Table of Contents
page 2
LaCie d2 Hard Drive Serial ATA
User’s Manual
Table of Contents
Foreword 4
Precautions 6
1. Introduction 7
1.1. What Your LaCie Drive Can Do 7
2. Your LaCie Drive 8
2.1. Minimum System Requirements 8
2.2. Package Contents 9
2.3. Views Of The Drive 9
2.4. Cables And Connectors 11
3. Installing Your LaCie Drive 12
3.1. Connecting The Power Supply 13
3.2. Connecting The Drive To Your Computer 14
3.2.1. Mac Users 14
3.2.2. Windows Users 15
3.3 Disconnecting Your LaCie Drive 16
3.3.1. Mac Users 16
3.3.2. Windows Users 16
4. Using Your LaCie Drive 17
4.1. Formatting Your LaCie Hard Drive – Mac Users 18
4.2. Formatting Your LaCie Hard Drive – Windows Users 20
4.2.1. Windows 2000/Windows XP 20
4.2.2. Windows NT 4.0 23
4.3. Configuring Your LaCie Drive As A Bootable Disk 24
5. Tech Tips 25
5.1. File System Formats 25
5.1.1. Mac Users 25
5.1.2. Windows Users 26
5.2. Available Storage Capacity 27
5.3. Optimizing Data Transfers 27

Table of Contents
page 3
LaCie d2 Hard Drive Serial ATA
User’s Manual
6. Serial ATA Questions & Answers 28
7. Troubleshooting 30
7.1. Mac Users 31
7.2. Windows Users 33
8. Contacting Customer Support 35
9. Warranty 37
Glossary 38

Foreword
page 4
LaCie d2 Hard Drive Serial ATA
User’s Manual
Copyrights
Copyright © 2004 LaCie. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior
written consent of LaCie.
Trademarks
Apple, Mac, Macintosh and FireWire are registered trademarks of Apple Computer, Inc. Microsoft, Windows 98, Windows
98 SE, Windows 2000, Windows Millennium Edition and Windows XP are registered trademarks of Microsoft Corporation.
Sony and iLink are registered trademarks of Sony Electronics. Other trademarks mentioned in this manual are the property of
their respective owners.
Changes
The material in this document is for information only and subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its accuracy, LaCie assumes no liability resulting from errors or
omissions in this document, or from the use of the information contained herein. LaCie reserves the right to make changes or
revisions in the product design or the product manual without reservation and without obligation to notify any person of such
revisions and changes.
FCC Statement:
Caution! Modifications not authorized by the manufacturer may void the user’s authority to operate this device.
NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his own expense.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct
the interference by one or more of the following measures:
Tested To Comply
With FCC standards
FOR HOME OR OFFICE USE
LaCie d2 Hard Drive Serial ATA

Foreword
page 5
LaCie d2 Hard Drive Serial ATA
User’s Manual
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Canada Compliance Statement
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Manufacturer’s Declaration for CE Certification
We, LaCie, solemnly declare that this product conforms to the following European standards:
Class B EN60950, EN55022, EN50082-1, EN61000-3-2
With reference to the following conditions:
73/23/EEC Low Voltage Directive
89/336/EEC EMC Directive

Precautions
page 6
LaCie d2 Hard Drive Serial ATA
User’s Manual
Health And Safety Precautions
Only qualified persons are authorized to carry out maintenance on this device.
• Read this User's Guide carefully, and follow the correct procedure when setting up the device.
• Do not open your hard drive or attempt to disassemble or modify it. Never insert any metallic object into the drive to avoid
any risk of electrical shock, fire, short-circuiting or dangerous emissions. Your hard drive contains no user-serviceable parts. If
it appears to be malfunctioning, have it inspected by a qualified LaCie Technical Support representative.
• Never expose your device to rain, or use it near water, or in damp or wet conditions. Never place objects containing
liquids on the drive, as they may spill into its openings. Doing so increases the risk of electrical shock, short-circuiting, fire or
personal injury.
General Use Precautions:
• Do not expose the hard drive to temperatures outside the range of 5° C to 45° C (41° F to 104° F). Doing so may damage
the drive or disfigure its casing. Avoid placing your drive near a source of heat or exposing it to sunlight (even through a
window). Inversely, placing your drive in an environment that is too cold or humid may damage the unit.
• Always unplug the hard drive from the electrical outlet if there is a risk of lightning or if it will be unused for an extended
period of time. Otherwise, there is an increased risk of electrical shock, short-circuiting or fire.
• Use only the power supply shipped with the device.
• Do not use the hard drive near other electrical appliances such as televisions, radios or speakers. Doing so may cause
interference which will adversely affect the operation of the other products.
• Do not place the drive near sources of magnetic interference, such as computer displays, televisions or speakers. Magnetic
interference can affect the operation and stability of your hard drive.
• Do not place heavy objects on top of the drive or use excessive force on it.
• Never use excessive force on your drive. If you detect a problem, consult the Troubleshooting section in this manual.
• Protect your hard drive from excessive exposure to dust during use or storage. Dust can build up inside the device,
increasing the risk of damage or malfunction.
• Never use benzene, paint thinners, detergent or other chemical products to clean the outside of the drive. Such products will
disfigure and discolor the casing. Instead, use a soft, dry cloth to wipe the device.
Caution! The drive's warranty may be void as a result of the failure to respect the precautions listed above.

1. Introduction
page 7
LaCie d2 Hard Drive Serial ATA
User’s Manual
1. Introduction
Thank you for your purchase of your new LaCie d2 Hard Drive Serial ATA! Based on the
revolutionary new Serial ATA technology, these hard drives feature the latest technological
advancements in interface connectivity and have the bandwidth to handle both the most
demanding applications and environments.
The LaCie d2 Hard Drive Serial ATA was built for performance, and integrates easily into
systems that require high data transfer speeds to serve up files quickly and efficiently,
maximizing your storage system utilization and enhancing your productivity. These drives
are hot-pluggable and, due to their support of the Serial ATA specification, offer serious
advantages in terms of reliability, scalability, interoperability and data integrity.
Being constructed from aluminum alloys, the LaCie d2 Hard Drive actively works to
conduct heat away from the drive. Engineered to fit seamlessly in to any work

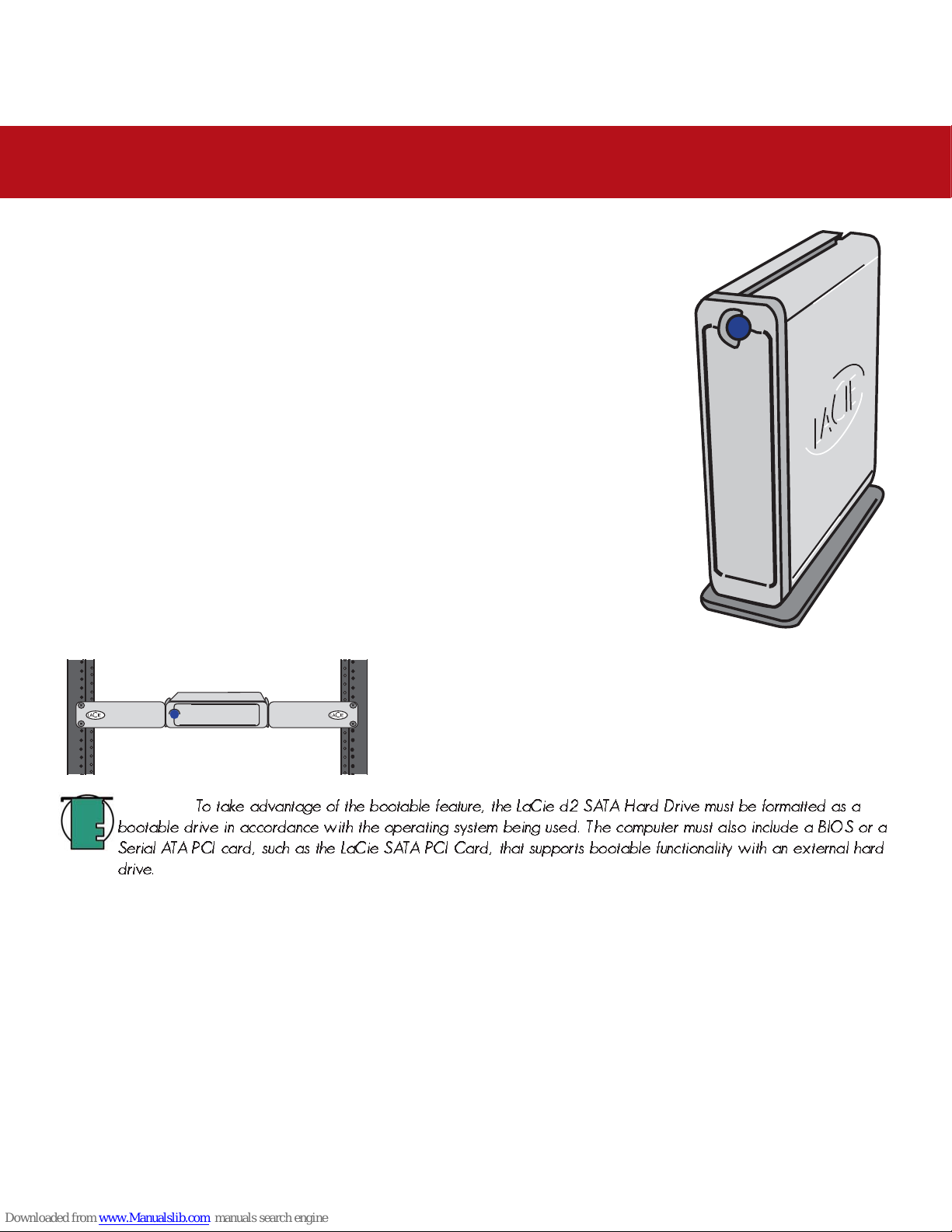

environment, the LaCie d2 Hard Drive can be stood vertically on the LaCie Drive Stand
(included), placed in the LaCie Desk Rack (sold separately) or incorporated into
standard 19” computer equipment racks with the LaCie Rackmount Kit (sold
separately).
1.1. What Your LaCie Drive Can Do
• Store and archive your important files and data
• Act as a boot-up disk* under both Windows and Mac OS
• Integrate into RAID 0/1 arrays
• Backup one or more workstations
Tech Note: To take advantage of the bootable feature, the LaCie d2 SATA Hard Drive must be formatted as a
bootable drive in accordance with the operating system being used. The computer must also include a BIOS or a
Serial ATA PCI card, such as the LaCie SATA PCI Card, that supports bootable functionality with an external hard
drive.

2. Your LaCie Drive
page 8
LaCie d2 Hard Drive Serial ATA
User’s Manual
2. Your LaCie Drive
2.1. Minimum System Requirements
Tech Note: To take advantage of the bootable feature, the LaCie d2 SATA Hard Drive must be formatted as a
bootable drive in accordance with the operating system being used. The computer must also include a BIOS or a
Serial ATA PCI card, such as the LaCie SATA PCI Card, that supports bootable functionality with an external hard
drive. Please see section 4.3. Configuring Your LaCie Drive As ABootable Disk for more information.
Tech Note: Serial ATA is a new technology and some legacy hardware and operating systems may not support
all of its features. For optimal performance, LaCie recommends the following:
Windows Users –
Hardware: Intel® Pentium® 4 with a LaCie Serial ATA PCI Card
System: Windows XP (SP1)
Mac Users –
Hardware: G5 with a LaCie Serial ATA PCI Card
System: Mac OS X 10.3.4
Important Info: Any loss, corruption or destruction of data while using a LaCie drive is the sole responsibility of
the user, and under no circumstances will LaCie be held liable for the recovery or restoration of this data. To help
prevent the loss of your data, LaCie highly recommends that you keep two copies of your data; one copy on
your external hard drive, for instance, and a second copy either on your internal hard drive, another external
hard drive or some other form of removable storage media, such as CD, DVD or Tape. LaCie offers a complete
line of CD, DVD and Tape drives, and if you would like more information on backup, please refer to the LaCie
white paper on backup methods and technology.
Mac Users
Hardware Requirements for Serial ATA:
• G3 or greater with a Serial ATA Host Bus Adapter card
• 128MB RAM or higher
System Requirements for Serial ATA:
• Mac OS 10.x and later
Windows Users
Hardware Requirements for Serial ATA:
• Pentium III or higher compatible processor, with a Serial
ATA Host Bus Adapter card
• 128MB RAM or higher
System Requirements for Serial ATA:
• Windows 2000, Windows XP and Windows NT 4.0

2. Your LaCie Drive
page 9
LaCie d2 Hard Drive Serial ATA
User’s Manual
2.2. Package Contents
LaCie d2 Hard Drive Serial ATA with Drive Stand kit
LaCie Storage Utilities CD-ROM
Serial ATA interface cable
Power supply and adapter cable
Important Info: Please keep your box. In the event that the drive should need to be repaired or serviced, it must
be returned in its original packaging.

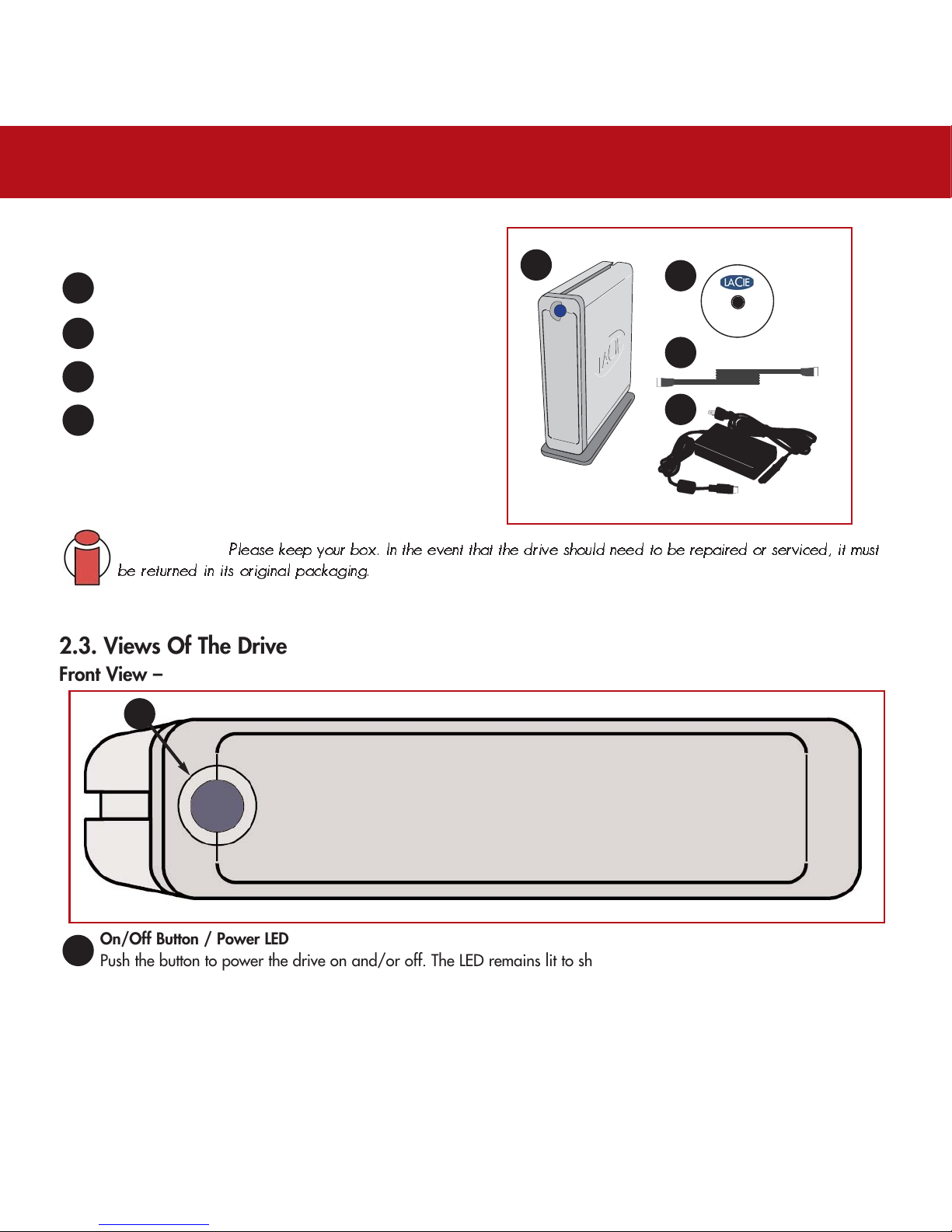

2.3. Views Of The Drive
Front View –
On/Off Button / Power LED
Push the button to power the drive on and/or off. The LED remains lit to show that the drive is on.
1
1
2
3
4
1
LaCie Storage Utilities
SATA
SATA
12
3
4

2. Your LaCie Drive
page 10
LaCie d2 Hard Drive Serial ATA
User’s Manual

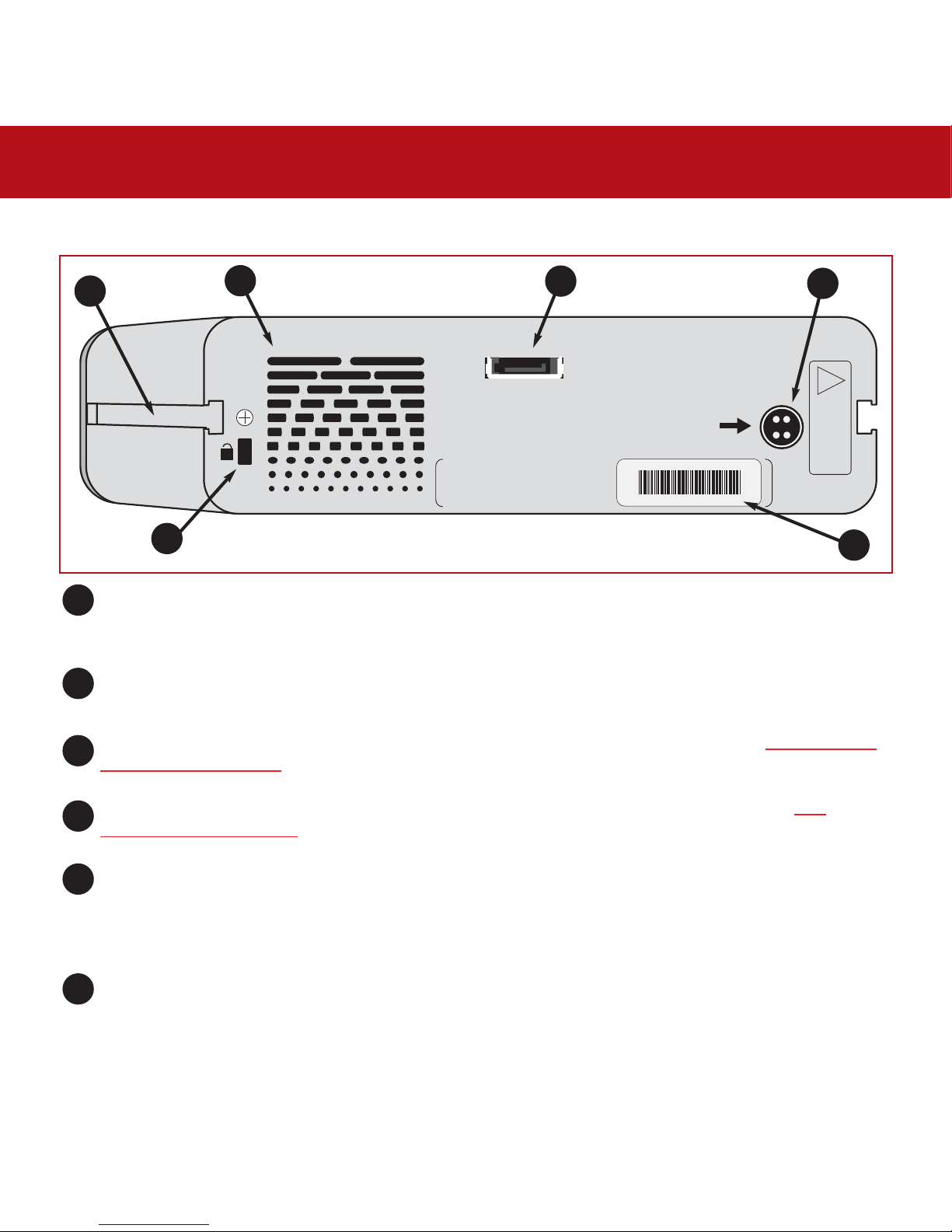

Rear View –
Rackmount Grooves - These grooves are used for attaching your drive to the Drive Stand, mounting in the Desk Rack
kit (sold separately) or placing your drive in standard 19” computer equipment racks using the LaCie Rackmount Kit
(sold separately).
Ventilation Outlet - These holes help to keep your drive cool during operation. Be sure not to block these openings
when using your drive.
Serial ATA Port - This is where you plug in the Serial ATA cable furnished with the drive. See section 3.2. Connecting
the Drive To Your Computer for more information.
Power Supply Connector - This is where you plug in the AC adapter supplied with the drive. See section 3.1.
Connecting The Power Supply for more information.
Serial Number Sticker - This is where you will find your LaCie drive's serial number. Write down the serial number and
keep it in a safe place, because you will need to provide the number in the event you have to call LaCie Technical
Support for any reason in regards to the drive’s performance. The serial number would also come in handy if your
drive is lost or stolen.
Lock Slot - This slot is used to connect an anti-theft system, such as the LaCie Security Lock, for maximum protection.
Refer to your anti-theft system documentation for details on how to connect the lock.
WARRANTY VOID IF
SEAL BROKEN.
• • • •• • • ••••••••••
• • • • • • •••••••
!
LaCie Ltd. XXXXXX
Serial Number XXXXXXXXX
SATA
12
6
3
5
4
1
2
3
4
5
6

2. Your LaCie Drive
page 11
LaCie d2 Hard Drive Serial ATA
User’s Manual
2.4. Cables And Connectors
Serial ATA
The Serial ATA interface was created to simplify and improve connectivity by utilizing point-to-point signaling, hot-plug
capability, smaller and standardized connectors. Built upon an efficient and practical design, the Serial ATA cables and
connectors offers several key features and benefits:
• Plug orientation – With the “L” shaped design, Serial ATA connectors have a defined placement within the port, to help
prevent incorrect mating. There is also an extrusion on the outside of the connector to help guide and align the connector
during insertion.
• Hot-plug support – Serial ATA enables adding and removing a drive without having to power down the system or reboot.
Utilizing staggered pins to aid insertion, the specification ensures device detection and passive and active limits to in-rush
current.
Tech Note: Serial ATA is a new technology, and some legacy computers and operating systems may not support
all of its features.

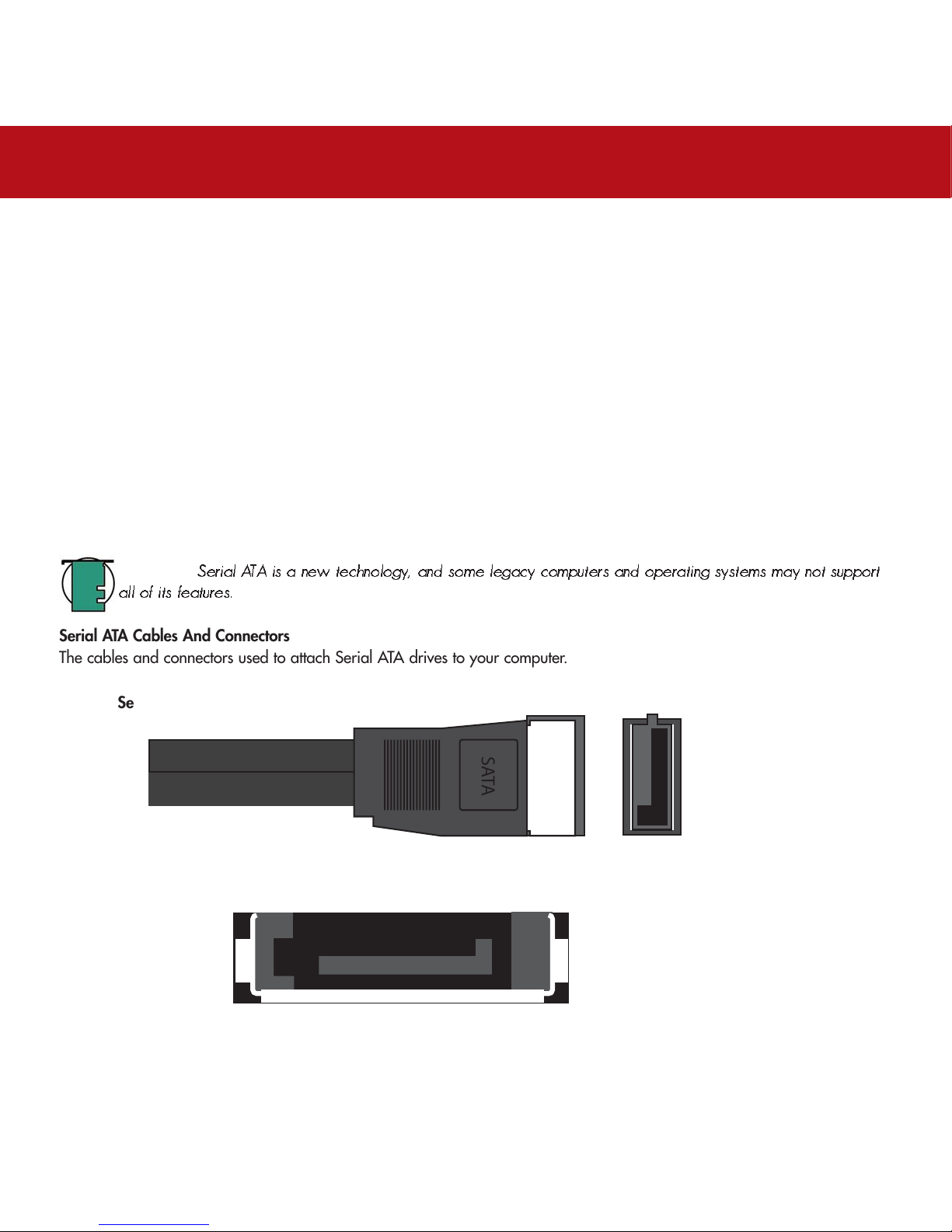

Serial ATA Cables And Connectors
The cables and connectors used to attach Serial ATA drives to your computer.
SATA
Serial ATA Cable
Serial ATA Port

3. Installing Your LaCie Drive
page 12
LaCie d2 Hard Drive Serial ATA
User’s Manual
3. Installing Your LaCie Drive
Getting your LaCie drive installed and connected is very simple; essentially there are two steps: 1) connect the power supply
to the drive and to an outlet, and 2) connecting the interface cable to the drive and to your computer.
To get started, please go to section 3.1. Connecting The Power Supply.
Caution! The LaCie d2 Hard Drive utilizes the aluminum alloy casing to help dissipate heat. There are important
location consideration precautions to keep in mind when setting up your drive. Make sure to place your drive in
a well ventilated space, do not block the ventilation outlet on the back of the drive and keep the area in front of
the drive unobstructed to allow for proper airflow. If you will be stacking or racking your drive, please follow
these considerations:
• When stacking drives, place no more than 3 drives on top of each other.
• When stacking drives, make sure and adhere the rubber feet to the bottom of the drives.
• When racking drives in the LaCie Desk Rack (sold separately), place no more than 3 drives in the rack.
• When racking in 19” equipment racks, only rack the equipment in a regulated, air-conditioned room, keep
cables and other obstructions away from the rear of the drive and do not place more than 3 drives on top of
each other.

3. Installing Your LaCie Drive
page 13
LaCie d2 Hard Drive Serial ATA
User’s Manual

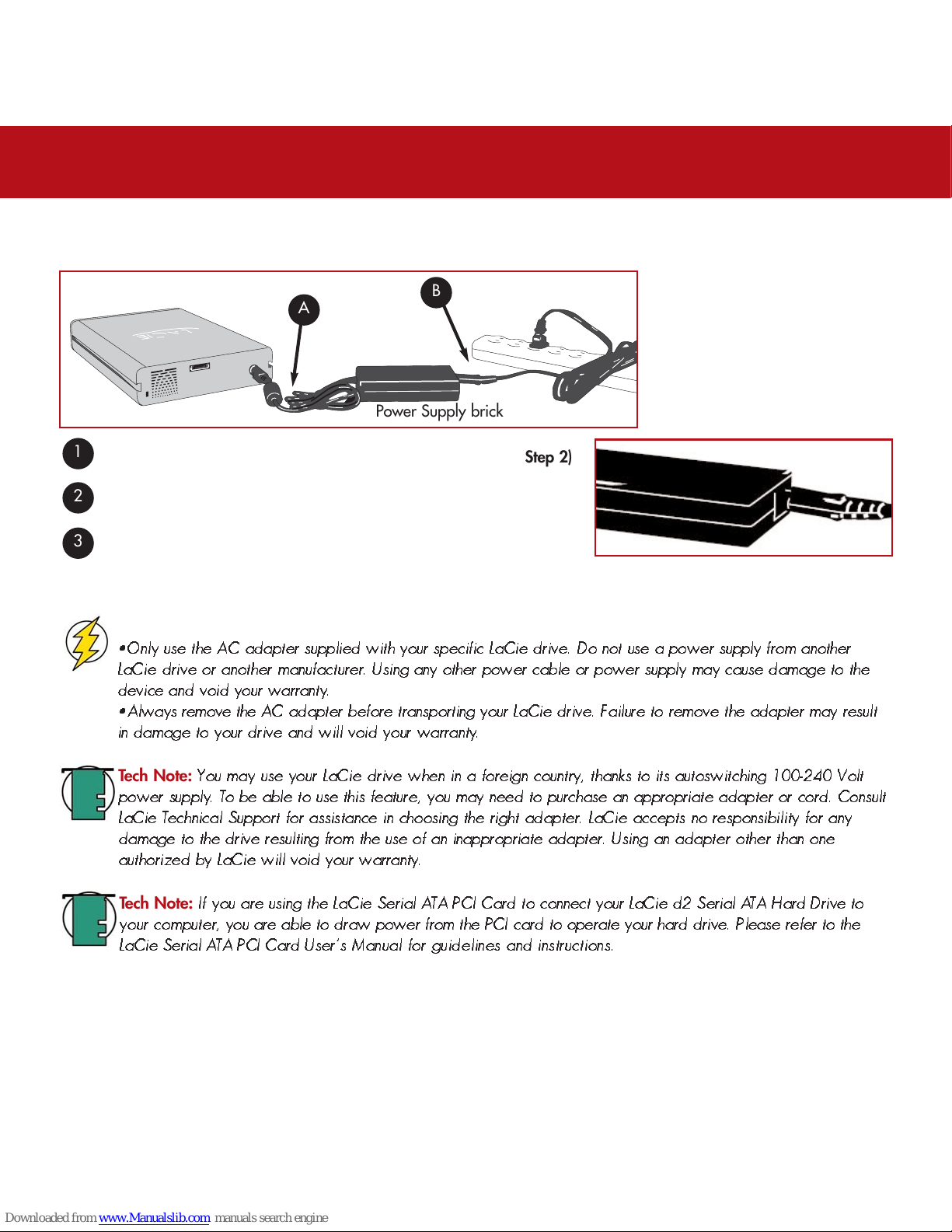

3.1. Connecting the Power Supply
There are two cables that are
supplied with the power supply: one
cable (A) connects to the LaCie
drive; and the other cable (B)
connects to a power outlet, such as a
wall outlet or a surge protector.
Connect Cable A to your LaCie Drive.
Connect Cable B to the Power Supply brick.
Connect Cable B to a surge protector or wall outlet.
You are now ready to connect the interface cable to your drive and to your computer.
Caution!
•Only use the AC adapter supplied with your specific LaCie drive. Do not use a power supply from another
LaCie drive or another manufacturer. Using any other power cable or power supply may cause damage to the
device and void your warranty.
•Always remove the AC adapter before transporting your LaCie drive. Failure to remove the adapter may result
in damage to your drive and will void your warranty.
Tech Note: You may use your LaCie drive when in a foreign country, thanks to its autoswitching 100-240 Volt
power supply. To be able to use this feature, you may need to purchase an appropriate adapter or cord. Consult
LaCie Technical Support for assistance in choosing the right adapter. LaCie accepts no responsibility for any
damage to the drive resulting from the use of an inappropriate adapter. Using an adapter other than one
authorized by LaCie will void your warranty.
Tech Note: If you are using the LaCie Serial ATA PCI Card to connect your LaCie d2 Serial ATA Hard Drive to
your computer, you are able to draw power from the PCI card to operate your hard drive. Please refer to the
LaCie Serial ATA PCI Card User’s Manual for guidelines and instructions.
AB
Power Supply brick
Step 2)
1
2
3

3. Installing Your LaCie Drive
page 14
LaCie d2 Hard Drive Serial ATA
User’s Manual
3.2. Connecting The Drive To Your Computer
3.2.1. Mac Users
SATA
1
3
2
4
Serial ATA Cable

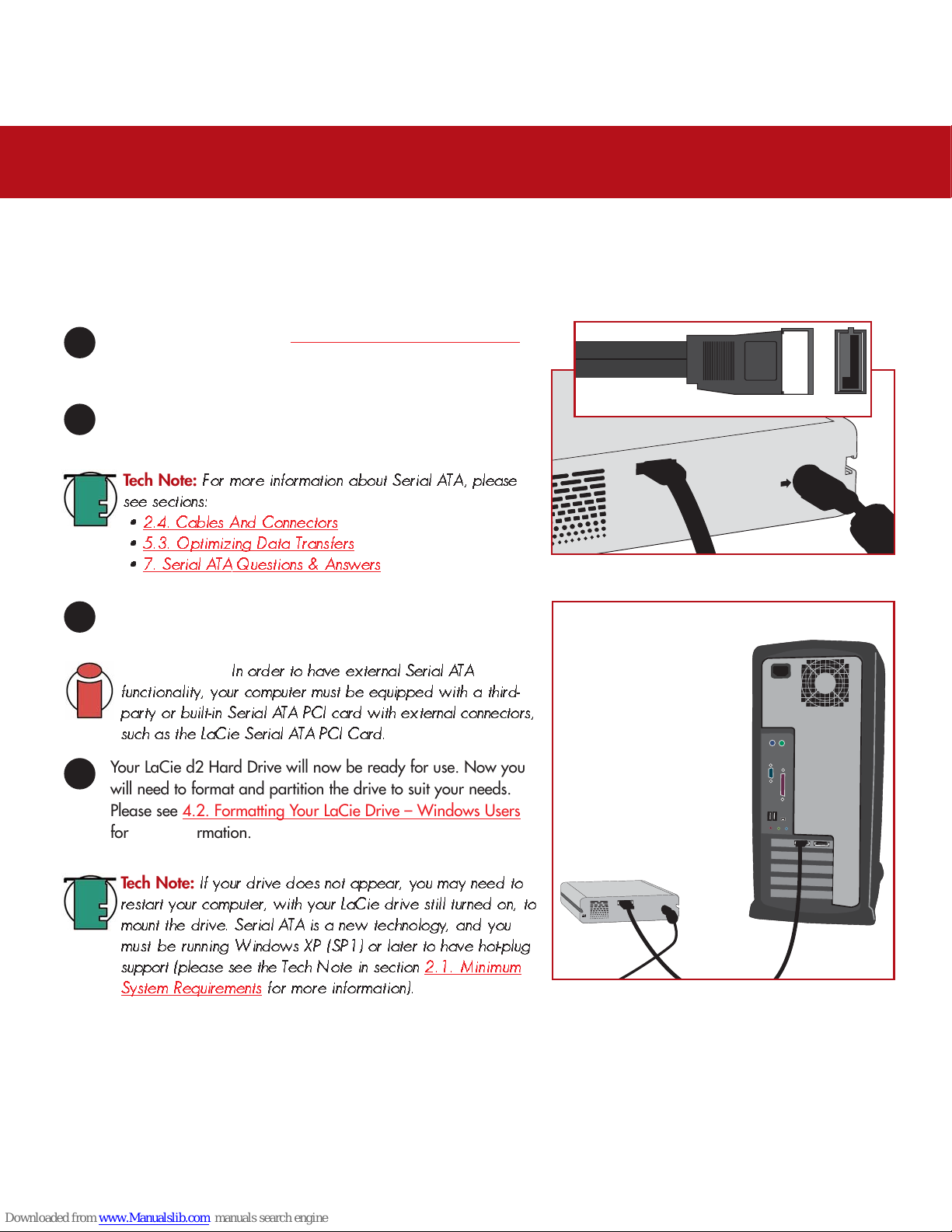

After following the steps in 3.1. Connecting The Power Supply,
power on the drive by pressing the On/Off button on the front
of the drive.
Connect the Serial ATA cable into the Serial ATA port on the
back of the LaCie d2 Hard Drive.
Connect the other end of the Serial ATA cable into an available
Serial ATA port* on your computer.
Important Info: In order to have external Serial ATA
functionality, your computer must be equipped with a third-
party or built-in Serial ATA PCI card with external connectors,
such as the LaCie Serial ATA PCI Card.
Tech Note: For more information about Serial ATA, please see sections:
• 2.4. Cables And Connectors
• 5.3. Optimizing Data Transfers
• 7. Serial ATA Questions & Answers
Your drive should appear on your desktop. It may take a few
seconds for your computer to recognize the drive and for it to
appear on the desktop.
Your LaCie d2 Hard Drive will now be ready for use. You can
then use the formatting and partitioning capabilities in the
Apple Disk Utility to configure your hard drive system. Please
refer to 4.1. Formatting Your LaCie Drive –Mac Users for more
information.
Tech Note: If your drive does not appear on the desktop, you may need to restart your computer, with your
LaCie drive still turned on, to mount the drive. Serial ATA is a new technology, and you must be running 10.3.x
or later to have hot-plug support (please see the Tech Note in section 2.1. Minimum System Requirements for
more information).

3. Installing Your LaCie Drive
page 15
LaCie d2 Hard Drive Serial ATA
User’s Manual
3.2.2. Windows Users
After the first connection of a Serial ATA-based peripheral, Windows detects the drive, and will install it automatically as a
new peripheral, even if you have previously installed it on another port on the same Serial ATA bus. Let Windows install the
Serial ATA drivers of your LaCie drive.
SATA
1
3
2
4
Serial ATA Cable
After following the steps in 3.1. Connecting The Power Supply,
power on the drive by pressing the On/Off button on the front
of the drive.
Connect the Serial ATA cable into the Serial ATA port on the
back of the LaCie d2 Hard Drive.
Connect the other end of the Serial ATA cable into an available
Serial ATA port* on your computer.
Important Info: In order to have external Serial ATA
functionality, your computer must be equipped with a third-
party or built-in Serial ATA PCI card with external connectors,
such as the LaCie Serial ATA PCI Card.
Tech Note: For more information about Serial ATA, please
see sections:
• 2.4. Cables And Connectors
• 5.3. Optimizing Data Transfers
• 7. Serial ATA Questions & Answers
Your LaCie d2 Hard Drive will now be ready for use. Now you
will need to format and partition the drive to suit your needs.
Please see 4.2. Formatting Your LaCie Drive – Windows Users
for more information.
Tech Note: If your drive does not appear, you may need to
restart your computer, with your LaCie drive still turned on, to
mount the drive. Serial ATA is a new technology, and you
must be running Windows XP (SP1) or later to have hot-plug
support (please see the Tech Note in section 2.1. Minimum
System Requirements for more information).

3. Installing Your LaCie Drive
page 16
LaCie d2 Hard Drive Serial ATA
User’s Manual
3.3. Disconnecting Your LaCie Drive
Serial ATA external devices feature hot-plug connectivity, which means that your drive can be connected and disconnected
while the computer is running. To prevent failures, it is important you follow these steps when disconnecting your Serial ATA
peripheral device.
Caution! Do not disconnect the Serial ATA cable when the drive is reading or writing. Disconnecting while the
drive is operating could cause the loss of data. Make sure that your drive is not reading or writing and that the
activity LED is off before disconnecting the Serial ATA cable.
Tech Note: Serial ATA is a new technology, and some legacy computers and operating systems may not support
all of its features (please see the Tech Note in section 2.1. Minimum System Requirements for more information).
If your system does not support hot-plug functionality, follow the steps below to unmount and disconnect the drive.
When you reconnect the drive, you will need to restart your computer for the drive to mount.
3.3.1. Mac Users
You must unmount the hard drive system before disconnecting it or powering it down:
• Drag the hard drive icon to the trash.
The drive can now be disconnected.
3.3.2. Windows Users
Simply unplug the device while it is not in use to disconnect the drive.

4. Using Your LaCie Drive
page 17
LaCie d2 Hard Drive Serial ATA
User’s Manual
4. Using Your LaCie Drive
Formatting a disk consists of the following: the operating system erases all of the bookkeeping information on the disk, tests
the disk to make sure that all of the sectors are reliable, marks bad sectors (i.e., those that are scratched) and creates internal
address tables that it later uses to locate information.
As you format the drive, you will have the opportunity to divide the hard drive into sections, called partitions. A partition is a
section of the hard drive’s storage capacity that is created to contain files and data.
Once formatted, the actual available storage capacity varies, depending on operating environment, and is generally about 5
to 10% less than the non-formatted capacity.
Tech Note: Windows Users! You will need to re-format the drive in order for it to appear and operate under the
Windows operating system. See section 4.2. Formatting Your LaCie Drive - Windows Users for detailed
instructions.

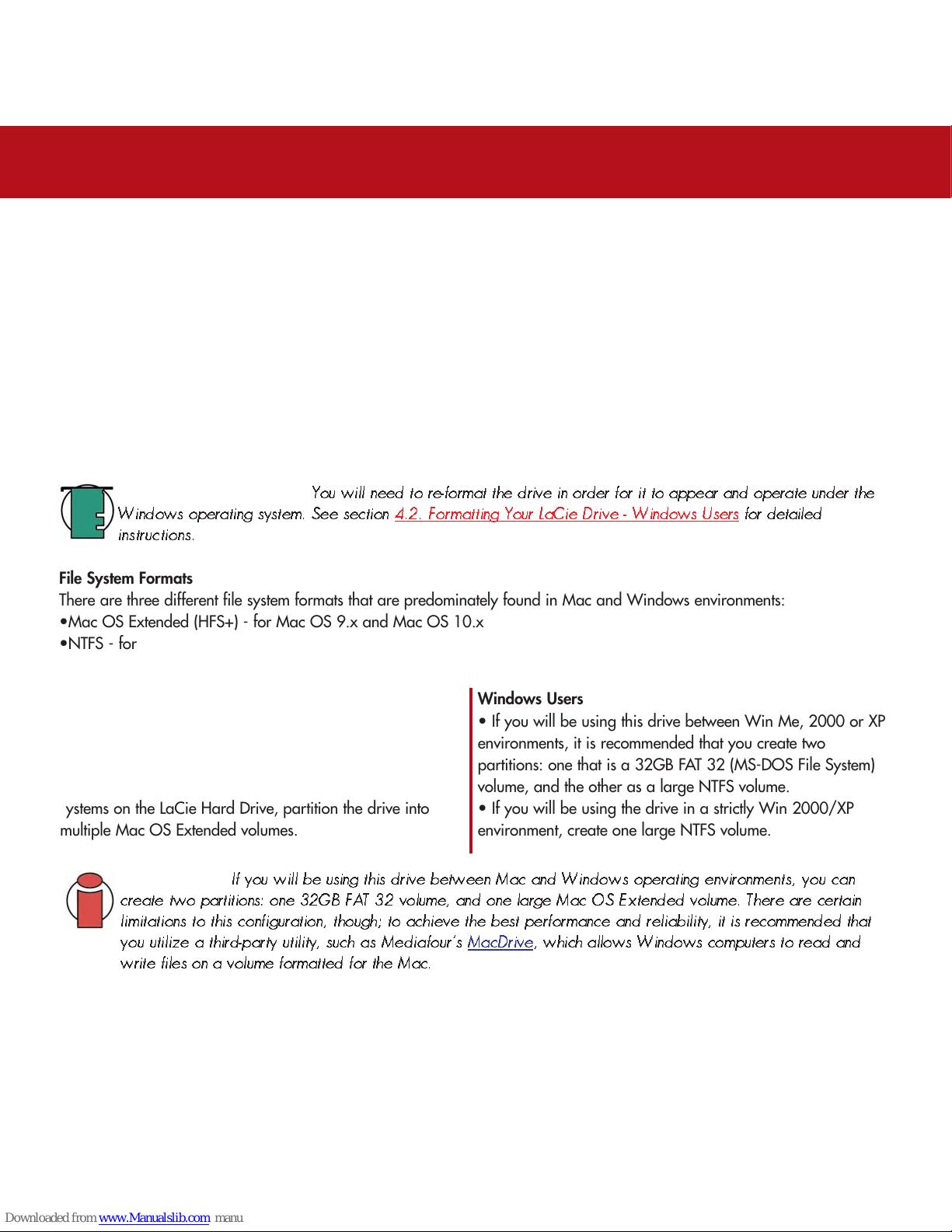

File System Formats
There are three different file system formats that are predominately found in Mac and Windows environments:
•Mac OS Extended (HFS+) - for Mac OS 9.x and Mac OS 10.x
•NTFS - for Windows 2000 and XP
•FAT 32 - for Windows Me and legacy operating systems
Important Info: If you will be using this drive between Mac and Windows operating environments, you can
create two partitions: one 32GB FAT 32 volume, and one large Mac OS Extended volume. There are certain
limitations to this configuration, though; to achieve the best performance and reliability, it is recommended that
you utilize a third-party utility, such as Mediafour’s MacDrive, which allows Windows computers to read and
write files on a volume formatted for the Mac.
Mac Users
• If you will be using the drive in a strictly Mac OS
environment, leave the drive formatted as one large Mac OS
Extended volume.
• If you want to be able to install multiple Mac operating
systems on the LaCie Hard Drive, partition the drive into
multiple Mac OS Extended volumes.
Windows Users
• If you will be using this drive between Win Me, 2000 or XP
environments, it is recommended that you create two
partitions: one that is a 32GB FAT 32 (MS-DOS File System)
volume, and the other as a large NTFS volume.
• If you will be using the drive in a strictly Win 2000/XP
environment, create one large NTFS volume.

4. Using Your LaCie Drive
page 18
LaCie d2 Hard Drive Serial ATA
User’s Manual
4.1. Formatting Your LaCie Hard Drive – Mac Users
Caution! Following these steps will erase anything that is on the hard drive. Therefore, if you have information
that you want to protect or continue to use, backup this information before performing these steps.
Once you have set-up your LaCie Hard Drive, you can reformat or partition it to suit your needs.

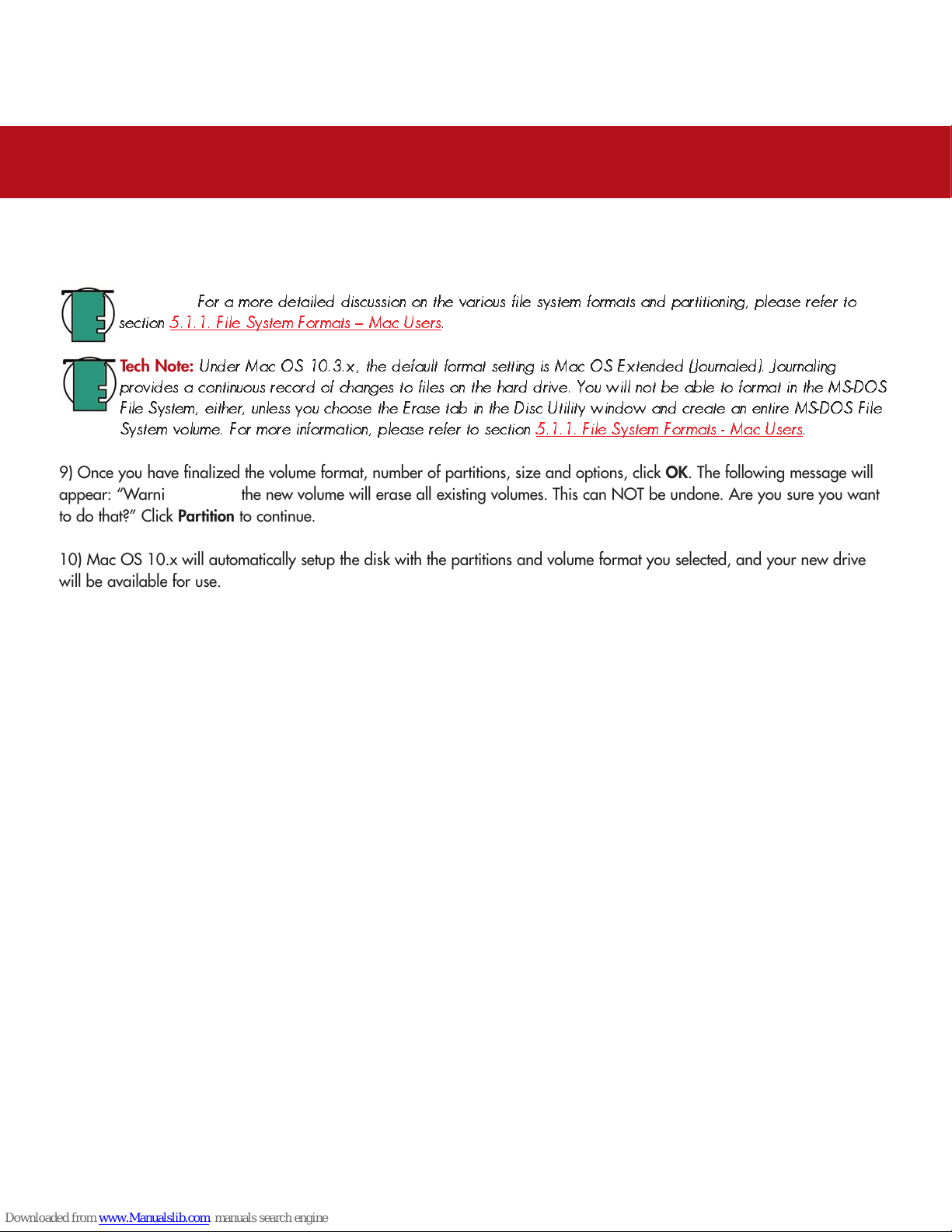

Formatting And Partitioning Using Mac OS 10.x Disc Utility
1) Connect the drive to the computer via one of the interface ports.
2) Once the drive mounts onto the desktop, go to the Menu Bar, and open Go.
3) From the Go menu, click on Applications.
4) In the Applications menu, open the Utilities folder, and then double-click Disc Utility from the Utilities folder.
5) The Disc Utility window will open. In the
left side of the window will be a list of the
available hard disk drives. You should see a
volume that represents your internal hard
drive, and one that reads LaCie.
6) Select the LaCie drive, and then click on
the Partition tab.
7) From the Volume Scheme: button, choose
the number of partitions you want to divide
the drive into by clicking on the pull down
menu starting with Current (Mac OS 10.x
gives you the option of dividing the drive into
at most 8 partitions). You can customize the
size of the partitions by using the slide bar
between the partitions in the Volume Scheme:
area.

4. Using Your LaCie Drive
page 19
LaCie d2 Hard Drive Serial ATA
User’s Manual
8) In the Volume Information section, create a name for each partition, choose the volume format (Mac OS Extended, Mac
OS Standard, MS-DOS File System or UNIX File System) and the volume size.
Tech Note: For a more detailed discussion on the various file system formats and partitioning, please refer to
section 5.1.1. File System Formats – Mac Users.
Tech Note: Under Mac OS 10.3.x, the default format setting is Mac OS Extended (Journaled). Journaling
provides a continuous record of changes to files on the hard drive. You will not be able to format in the MS-DOS
File System, either, unless you choose the Erase tab in the Disc Utility window and create an entire MS-DOS File
System volume. For more information, please refer to section 5.1.1. File System Formats - Mac Users.
9) Once you have finalized the volume format, number of partitions, size and options, click OK. The following message will
appear: “Warning! Saving the new volume will erase all existing volumes. This can NOT be undone. Are you sure you want
to do that?” Click Partition to continue.
10) Mac OS 10.x will automatically setup the disk with the partitions and volume format you selected, and your new drive
will be available for use.

4. Using Your LaCie Drive
page 20
LaCie d2 Hard Drive Serial ATA
User’s Manual
4.2. Formatting Your LaCie Drive – Windows Users
Caution! Following these steps will erase anything that is on the hard drive. Therefore, if you have information
that you want to protect or continue to use, backup this information before performing these steps.
4.2.1. Windows 2000 And Windows XP
The process of formatting and partitioning a drive on a computer running Windows 2000 or Windows XP consists of two
steps: (1) installing a signature on the drive, and (2) partitioning/formatting the drive. These steps will erase anything that is
on the disk.

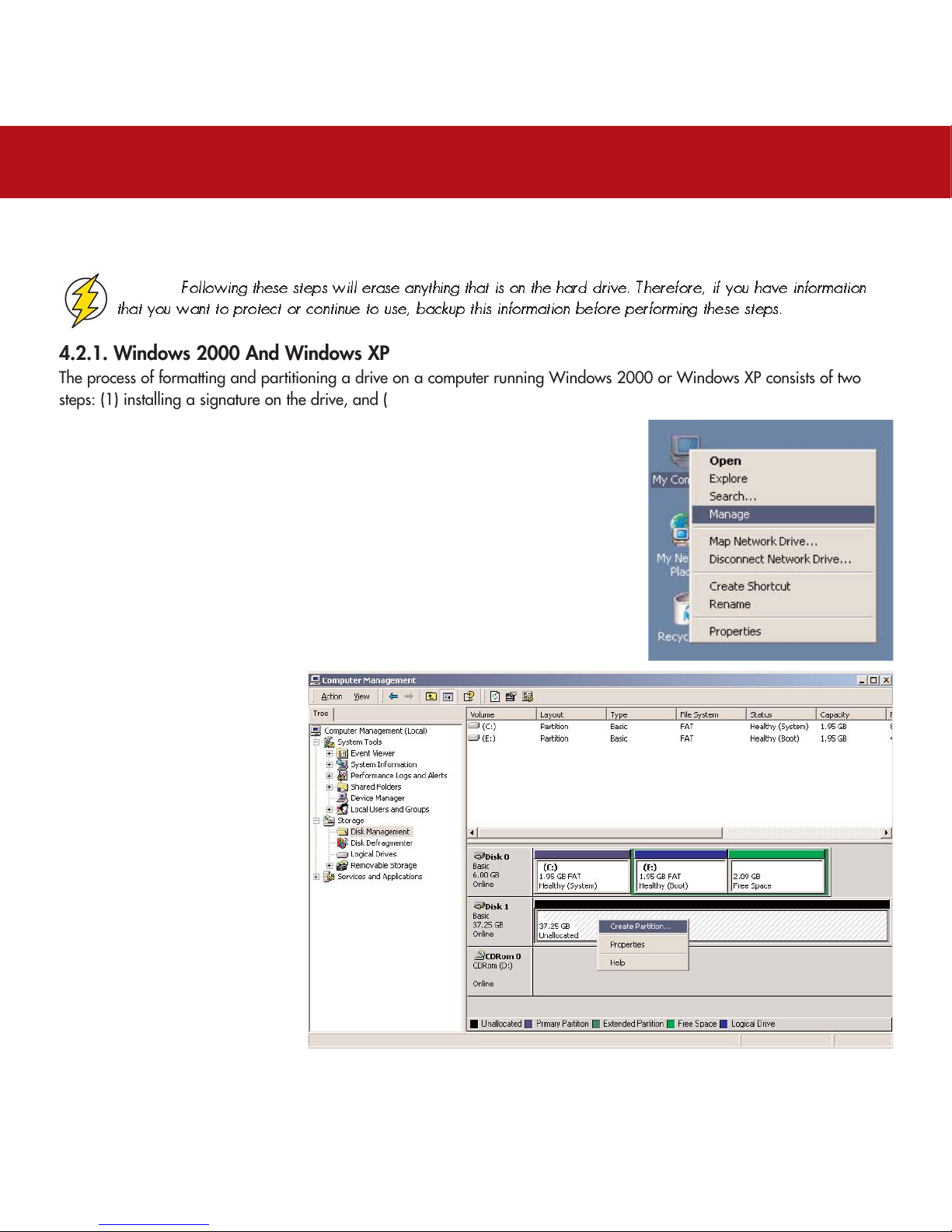

1) Connect the drive to the computer via one of the interface ports.
2) Right-click My Computer and click Manage.
3) From the Computer Management window, select Disk Management (located below
the Storage group).
4) If this is the first time the drive is being formatted, Windows 2000 will launch the
Write Signature Wizard (Write Initialize Wizard in Windows XP). Click Next.
5) Windows will list the new drive(s)
attached. If you are formatting a
single drive, only one drive should
be visible. Select the checkbox next
to the drive and click Next.
6) Click Finish to exit the Wizard.
7) Now, with the disk management
window open, a new drive will be
visible. Right-click on the available
space and select Create Partition...
