Noblelift AWPS23.56 Use and care manual

AWPS-SMS-001
WARNING
Must read before using this manual
And the various warning label attached!
Attention preservation for future use!
Operation and Safety Manual
AWPS23.56/AWPS46.79/AWPS46.96
Electric scissor lifts
Zhejiang Noblelift Equipment Joint Stock Co. Ltd.

FOREWORD ......................................................................................................................3
SAFETYALERT SYMBOLS AND SAFETY SIGNAL WORDS...................................4
1. SAFETY PRECAUTIONS.........................................................................................5
1.1 GENERAL ..........................................................................................................5
1.2 PRE-OPERATION..............................................................................................6
1.3 OPERATION ......................................................................................................7
1.4 TOWING, LIFTING, AND HAULING ...........................................................12
1.5 MAINTENANCE..............................................................................................12
2. USER RESPONSIBILITIES, MACHINE PREPARATION & INSPECTION........14
2.1 PERSONNEL TRAINING................................................................................14
2.2 PREPARATION, INSPECTION, AND MAINTENANCE.............................15
3. USER RESPONSIBILITIES AND MACHINE CONTROLS...................................20
3.1 GENERAL ........................................................................................................20
3.2 PERSONNEL TRAINING................................................................................20
3.3 OPERATING CHARACTERISTICS AND LIMITATIONS..............................22
3.4 CONTROLS AND INDICATORS...................................................................22
3.5 SIGNS................................................................................................................27
4. MACHINE OPERATION..........................................................................................31
4.1 DESCRIPTION.................................................................................................31
4.2 OPERATION ....................................................................................................31
4.3 RAISING AND LOWERING...........................................................................31
4.4 STEERING........................................................................................................34
4.5 DRIVING ..........................................................................................................34
4.6 PARKING AND STOWING ............................................................................35
4.7 BATTERY CHARGING...................................................................................36
4.8 PLATFORM LOADING...................................................................................37
4.9 SAFETY PROP.................................................................................................38
4.10 TIE DOWN/LIFT LUGS ................................................................................38
4.11 LIFTING..........................................................................................................38
4.12 TOWING.........................................................................................................39
5. EMERGENCY PROCEDURES..............................................................................40
5.1 GENERAL ........................................................................................................40
5.2 EMERGENCY OPERATION...........................................................................40
6. GENERAL SPECIFICATIONS AND OPERATOR MAINTENANCE...............42
6.1 INTRODUCTION.............................................................................................42
6.2 OPERATING SPECIFICATIONS....................................................................42
6.3 CRITICAL STABILITY WEIGHTS................................................................45
6.5 TIRES AND WHEELS.....................................................................................48
Appendix 1 list of wearing parts .............................................................................49
Appendix 2 Inspection and maintenance records....................................................50

3
FOREWORD
This manual is a very important tool! Keep it with the machine at all times.
The purpose of this manual is to provide owners, users, operators, lessors, and
lessees with the precautions and operating procedures essential for the safe and
proper machine operation for its intended purpose.
All of the information reported herein is based on data available at the moment of
printing. Our products are constantly being developed and renewed, we reserves
the right to modify our own products at any moment without notice and incurring in
any sanction. So, it is suggested to always verify possible updates.

4
SAFETY ALERT SYMBOLS AND SAFETY SIGNAL WORDS
——This is the Safety Alert Symbol. It is used to alert you to the
potential personal injury hazards. Obey all safety messages that f fo ol ll lo ow w this
symbol to avoid possible injury or death
——INDICATES AN IMMINENTLY HAZARDOUS
SITUATION. IF NOT AVOIDED, WILL RESULT IN SERIOUS INJURY OR
DEATH. THIS DECAL WILL HAVE A RED BACKGROUND.
——INDICATES A POTENTIALITY HAZARDOUS
SITUATION. IF NOT AVOIDED, COULD RESULT IN SERIOUS INJURY OR
DEATH. THIS DECAL WILL HAVE AN ORANGE BACKGROUND.
——INDICATES A POTENTIALITY HAZARDOUS
SITUATION. IF NOT AVOIDED, MAY RESULT IN MINOR OR MODERATE
INJURY. IT MAY ALSO ALERT AGAINST UNSAFE PRACTICES. THIS DECAL
WILL HAVE A YELLOW BACKGROUND.
——AND PERSONNEL SAFETY OR PROTECTION OF
PROPERTY DIRECTLY OR INDIRECTLY RELATED INFORMATION OR
COMPANY POLICY.
THE ELECTRIC PALLET TRUCK CANNOT BE USED IN
POTENTIALLY EXPLOSIVE ATMOSPHERES!
THIS PRODUCT MUST COMPLY WITH ALL SAFETY
RELATED BULLETINS. CONTACT NOBLELIFT EQUIPMENT JOINT STOCK
CO.,LTD. OR THE LOCAL AUTHORIZED NOBLELIFT REPRESENTATIVE
FOR INFORMATION REGARDING SAFETYRELATED BULLETINS WHICH
MAY HAVE BEEN ISSUED FOR THIS PRODUCT.
NOBLELIFT EQUIPMENT JOINT STOCK CO.,LTD.
SENDS SAFETY RELATED BULLETINS TO THE OWNER OF RECORD OF
THIS MACHINE. CONTACT NOBLELIFT EQUIPMENT JOINT STOCK CO.,LTD.
TO ENSURE THAT THE CURRENT OWNER RECORDS ARE UPDATED AND
ACCURATE.
NOBLELIFT EQUIPMENT JOINT STOCK CO.,LTD.
MUST BE NOTIFIED IMMEDIATELY IN ALL INSTANCES WHERE NOBLELIFT
PRODUCTS HAVE BEEN INVOLVED IN AN ACCIDENT INVOLVING BODILY
INJURY OR DEATH OF PERSONNEL OR WHEN SUBSTANTIAL DAMAGE
HAS OCCURRED TO PERSONAL PROPERTY OR THE NOBLELIFT
PRODUCT.

5
For:
• Accident Reporting
• Product Safety Publications
• Current Owner Updates
• Questions Regarding
Product Safety
• Standards and Regulations
Compliance Information
• Questions Regarding Special
Product Applications
• Questions Regarding Product
Modifications
Contact:
NOBLELIFT EQUIPMENT JOINT STOCK CO. LTD.
No.528, Jingyi Road Economic Development
Zone,Changxing,Zhejiang,China
Tel:[phone] Fax:[phone]
or Your Local NOBLELIFT Office
1. SAFETY PRECAUTIONS
1.1 GENERAL
This section outlines the necessary precautions for proper and safe machine
usage and maintenance. In order to promote proper machine usage, it is
mandatory that a daily routine is established based on the content of this manual.
A maintenance program, using the information provided in this manual and the
Service and Maintenance Manual, must also be established by a qualified person
and must be followed to ensure that the machine is safe to operate.
The owner/user/operator/lessor/lessee of the machine should not accept
operating responsibility until this manual has been read, training is accomplished,
and operation of the machine has been completed under the supervision of an
experienced and qualified operator.
These sections contain the responsibilities of the owner,user, operator, lessor, and
lessee concerning safety, training,inspection, maintenance, application, and
operation.If there are any questions with regard to safety, training, inspection,
maintenance, application, and operation, please contact NOBLIFT
Industries, Inc.
FAILURE TO COMPLY WITH THE SAFETY PRECAUTIONS LISTED IN
THIS MANUAL COULD RESULT IN MACHINE DAMAGE, PROPERTY
DAMAGE, PERSONAL INJURY OR DEATH.

6
1.2 PRE-OPERATION
Operator Training and Knowledge
• The Operators and Safety Manual must be read in its entirety before operating
the machine.
• An operator must not accept operating responsibilities until adequate training has
been given by competent and authorized persons.
• Allow only those authorized and qualified personnel to operate the machine who
have demonstrated that they understand the safe and proper operation and
maintenance of the unit.
• Read, understand, and obey all DANGERS, WARNINGS, CAUTIONS, and
operating instructions on the machine and in this manual.
• Ensure that the machine is to be used in a manner which is within the scope of its
intended application as determined by NOBLIFT
• All operating personnel must be familiar with the emergency controls and
emergency operation of the machine as specified in this manual.
• Read, understand, and obey all applicable employer, local, and governmental
regulations as they pertain to your utilization and application of the machine.
Workplace Inspection
• Precautions to avoid all hazards in the work area must be taken by the user
before operation of the machine.
• Do not operate or raise the platform from a position on trucks, trailers, railway
cars, floating vessels, scaffolds or other equipment unless the application is
approved in writing by NOBLIFT.
• Before operation, check work area for overhead hazards such as electric lines,
bridge cranes, and other potential overhead obstructions.
• Check floor surfaces for holes, bumps, drop-offs, obstructions, debris, concealed
holes, and other potential hazards.

7
• Check the work area for hazardous locations. Do not operate the machine in
hazardous environments unless approved for that purpose by NOBLIFT.
• Ensure that the ground conditions are adequate to support the maximum tire
load indicated on the tire load decals located on the chassis adjacent to each
wheel.
• Do not operate the machine when wind conditions exceed 28 mph (12.5 m/s).
• This machine can be operated in nominal ambient temperatures of 0°F to
104°F (-20℃to 40℃). Consult NOBLIFT to optimize operation outside of this
temperature range.
Machine Inspection
• Do not operate this machine until the inspections and functional checks have
been performed as specified in Section 2 of this manual.
• Do not operate this machine until it has been serviced and maintained according
to the maintenance and inspection requirements as specified in the machine’s
Service and Maintenance Manual.
• Ensure all safety devices are operating properly. Modification of these devices is
a safety violation.
MODIFICATION OR ALTERATION OF AN AERIAL WORK PLATFORM SHALL
BE MADE ONLY WITH PRIOR WRITTEN PERMISSION FROM THE
MANUFACTURER.
• Do not operate any machine on which the safety or instruction placards or decals
are missing or illegible.
• Check the machine for modifications to original components. Ensure that any
modifications have been approved by NOBLIFT.
• Avoid accumulation of debris on platform deck. Keep mud, oil, grease, and other
slippery substances from footwear and platform deck.
1.3 OPERATION
General
• Do not use the machine for any purpose other than positioning personnel, their
tools, and equipment.
• Before operation, the user must be familiar with the machine capabilities and
operating characteristics of all functions.
• Never operate a malfunctioning machine. If a malfunction occurs, shut down the

8
machine. Remove the unit from service and notify the proper authorities.
• Do not remove, modify, or disable any safety devices.
• Never slam a control switch or lever through neutral to an opposite direction.
Always return switch to neutral and stop before moving the switch to the next
function. Operate controls with slow and even pressure.
• Do not allow personnel to tamper with or operate the machine from the ground
with personnel in the platform, except in an emergency.
• Do not carry materials directly on platform railing unless approved by NOBLIFT.
• When two or more persons are in the platform, the operator shall be responsible
for all machine operations.
• Always ensure that power tools are properly stowed and never left hanging by
their cord from the platform work area.
• Do not assist a stuck or disabled machine by pushing or pulling except by pulling
at the chassis tie-down lugs.
• The extension of the platform only in the lowest position to extend the operation.
• Stow scissor arm assembly and shut off all power before leaving machine.
• The machine has according to EN280:2001 + A2:2009 the braking, overload and
function testing.
Trip and Fall Hazards
• NOBLIFT Industries, Inc. recommends that all persons in the platform wear a full
body harness with a lanyard attached to an authorized lanyard anchorage point
while operating this machine. For further information regarding fall protection
requirements on NOBLIFT products, contact NOBLIFT Industries,Inc.
• Prior to operation, ensure all gates and rails are fastened and secured in their
proper position. Identify the designated lanyard anchorage point(s) at the
platform and securely attach the lanyard. Attach only one (1) lanyard per lanyard
anchorage point.

9
• Keep both feet firmly positioned on the platform floor at all times. Never position
ladders, boxes, steps, planks, or similar items on unit to provide additional reach
for any purpose.
• Never use the scissor arm assembly to gain access to or leave the platform.
• Use extreme caution when entering or leaving platform. Ensure that the scissor
arm assembly is fully lowered. Face the machine when entering or leaving the
platform. Always maintain “three point contact” with the machine, using two
hands and one foot or two feet and one hand at all times during entry and exit.
• Keep oil, mud, and slippery substances cleaned from footwear and the platform
floor.
Electrocution Hazards
• This machine is not insulated and does not provide protection from contact or
proximity to electrical current.

10
• Maintain safe clearance from electrical lines, apparatus, or any energized
(exposed or insulated) parts in accordance with the Minimum Approach Distance
(M.A.D.) as specified in Table 1-1.
• Allow for machine movement and electrical line swaying.
Table 1-1.Minimum Approach Distances (M.A.D.)
• Maintain a clearance of at least 10 ft (3 m) between any part of the machine and
its occupants, their tools, and their equipment from any electrical line or
apparatus carrying up to 50,000 volts. One foot additional clearance is required
for every additional 30,000 volts or less.
• The minimum approach distance may be reduced if insulating barriers are
installed to prevent contact, and the barriers are rated for the voltage of the line
being guarded. These barriers shall not be part of (or attached to) the
machine. The minimum approach distance shall be reduced to a distance within
the designed working dimensions of the insulating barrier. This determination shall
be made by a qualified person in accordance with the employer, local, or
governmental requirements for work practices near energized equipment.
DO NOT MANEUVER MACHINE OR PERSONNEL INSIDE PROHIBITED
ZONE (M.A.D.). ASSUME ALL ELECTRICAL PARTS AND WIRING ARE
ENERGIZED UNLESS KNOWN OTHERWISE
Tipping Hazards
• Ensure that the ground conditions are adequate to support
the maximum tire load indicated on the tire load decals
located on the chassis adjacent to each wheel. Do not
travel on unsupported surfaces.
• The user should be familiar with the driving surface before
driving. Do not exceed the allowable sideslope and grade

11
while driving.
• Do not elevate platform or drive with platform elevated
while on or near a sloping, uneven, or soft surface.
Ensure machine is positioned on a firm, level and
smooth surface before elevating platform or drivingwith
the platform in the elevated position.
• Before driving on floors, bridges, trucks, and other surfaces, check allowable
capacity of the surfaces.
• Never exceed the maximum work load as specified on the platform. Keep all
loads within the confines of the platform, unless authorized by NOBLIFT.
• Keep the chassis of the machine a minimum of 0.6 m (2 ft) from holes, bumps,
drop-offs, obstructions, debris, concealed holes, and other potential hazards at
the ground level.
• Never attempt to use the machine as a crane. Do not tieoff machine to any
adjacent structure. Never attach wire, cable, or any similar items to platform.
• Do not cover the platform sides or carry large surface-area items in the platform
when operating outdoors. The addition of such items increases the exposed wind
area of the machine.
• Do not increase the platform size with unauthorized deck extensions or
attachments.
• If scissor arm assembly or platform is caught so that one or more wheels are off
the ground, all persons must be removed before attempting to free the machine.
Use cranes, forklift trucks, or other appropriate equipment to stabilize machine
and remove personnel.
Crushing and Collision Hazards
• Approved head gear must be worn by all operating and ground personnel.
• Keep hands and limbs out of the scissor arm assembly during operation.
• Watch for obstructions around machine and overhead when driving. Check
clearances above, on sides, and bottom of platform when lifting or lowering
platform.

12
• During operation, keep all body parts inside platform railing.
• Always post a lookout when driving in areas where vision is obstructed.
• Keep non-operating personnel at least 1.8 m (6 ft) away from machine during all
driving operations.
• Under all travel conditions, the operator must limit travel speed according to
conditions of ground surface, congestion, visibility, slope, location of personnel,
and other factors causing hazards of collision or injury to personnel.
• Be aware of stopping distances in all drive speeds. When driving in high speed,
switch to low speed before stopping. Travel grades in low speed only.
• Do not use high speed drive in restricted or close quarters or when driving in
reverse.
• Exercise extreme caution at all times to prevent obstacles from striking or
interfering with operating controls and persons in the platform.
• Ensure that operators of other overhead and floor level machines are aware of
the aerial work platform’s presence. Disconnect power to overhead cranes.
Barricade floor area if necessary.
• Avoid operating over ground personnel. Warn personnel not to work, stand, or
walk under a raised platform. Position barricades on floor as necessary.
1.4 TOWING, LIFTING, AND HAULING
• Never allow personnel in platform while towing, lifting, or hauling.
• This machine should not be towed, except in the event of emergency,
malfunction, power failure, or loading/unloading. Refer to emergency towing
procedures.
• Ensure platform is fully retracted and completely empty of tools prior to towing,
lifting or hauling.
• When lifting machine with a forklift, position forks only at designated areas of the
machine. Lift with a forklift of adequate capacity.
• Refer to Section 4 for lifting information.
1.5 MAINTENANCE
General

13
This section contains general safety precautions which must be observed during
maintenance of this machine. Additional precautions to be observed during
machine maintenance are inserted at the appropriate points in this maunual and in
the Service and Maintenance Manual. It is of utmost importance that
maintenance personnel pay strict attention to these precautions to avoid possible
injury to personnel or damage to the machine or property. A maintenance program
must be established by a qualified person and must be followed to ensure that the
machine is safe.
Maintenance Hazards
• Shut off power to all controls and ensure that all operating systems are secured
from inadvertent motion prior to performing any adjustments or repairs.
• Never work under an elevated platform until it has been fully lowered to the full
down position, if possible, or otherwise supported and restrained from movement
with appropriate safety props, blocking, or overhead supports.
• Always relieve hydraulic pressure from all hydraulic circuits before loosening or
removing hydraulic components.
• Always disconnect batteries when servicing electrical components or when
performing welding on the machine.
• Shut down the engine (if equipped) while fuel tanks are being filled.
• Ensure replacement parts or components are identical or equivalent to original
parts or components.
• Never attempt to move heavy parts without the aid of a mechanical device. Do
not allow heavy objects to rest in an unstable position. Ensure adequate support
is provided when raising components of the machine.
• Remove all rings, watches, and jewelry when performing any maintenance. Do
not wear loose fitting clothing or long hair unrestrained which may become
caught or entangled in equipment.
• Use only clean approved non-flammable cleaing solvents.
• Never alter, remove, or substitute any items such as counterweights, tires,
batteries, platforms or other items that may reduce or affect the overall weight or
stability of the machine.
• Reference the Service and Maintenance Manual for the weights of critical
stability items.
MODIFICATION OR ALTERATION OF AN AERIAL WORK PLATFORM SHALL
BE MADE ONLY WITH PRIOR WRITTEN PERMISSION FROM THE
MANUFACTURER.

14
Battery Hazards
• Always disconnect batteries when servicing electrical components or when
performing welding on the machine.
• Do not allow smoking, open flame, or sparks near battery during charging or
servicing.
• Do not contact tools or other metal objects across the battery terminals.
• Always wear hand, eye, and face protection when servicing batteries. Ensure
that battery acid does not come in contact with skin or clothing.
BATTERY FLUID IS HIGHLY CORROSIVE. AVOID CONTACT WITH SKIN AND
CLOTHING AT ALL TIMES. IMMEDIATELY RINSE ANY CONTACTED
AREA WITH CLEAN WATER AND SEEK MEDICAL ATTENTION.
• Charge batteries only in a well ventilated area.
• Avoid overfilling the battery fluid level. Add distilled water to batteries only after
the batteries are fully charged.
2. USER RESPONSIBILITIES, MACHINE PREPARATION &
INSPECTION
2.1 PERSONNEL TRAINING
The aerial platform is a personnel handling device; so it is necessary that it be
operated and maintained only by trained personnel.
Persons under the influence of drugs or alcohol or who are subject
to seizures, dizziness or loss of physical control must not operate this machine.
Operator Training
Operator training must cover:
1. Use and limitations of the controls in the platform and at the ground, emergency
controls and safety systems.
2. Control labels, instructions, and warnings on the machine.

15
3. Rules of the employer and government regulations.
4. Use of approved fall protection device.
5. Enough knowledge of the mechanical operation of the machine to recognize a
malfunction or potential malfunction.
6. The safest means to operate the machine where overhead obstructions, other
moving equipment, and obstacles, depressions, holes, drop-offs.
7. Means to avoid the hazards of unprotected electrical conductors.
8. Specific job requirements or machine application.
Training Supervision
Training must be done under the supervision of a qualified person in an open area
free of obstructions until the trainee has developed the ability to safely control and
operate the machine.
Operator Responsibility
The operator must be instructed that he/she has the responsibility and authority to
shut down the machine in case of a malfunction or other unsafe condition of either
the machine or the job site.
2.2 PREPARATION, INSPECTION, AND MAINTENANCE
The following table covers the periodic machine inspections and maintenance
recommended by NOBLIFT Industries, Inc.. Consult local regulations for further
requirements for aerial work platforms. The frequency of inspections and
maintenance must be increased as necessary when the machine is used in a
harsh or hostile environment, if the machine is used with increased frequency,
or if the machine is used in a severe manner.
NOBLIFT INDUSTRIES, INC. RECOGNIZES A FACTORY-CERTIFIED
SERVICE TECHNICIAN AS A PERSON WHO HAS SUCCESSFULLY
COMPLETED THE NOBLIFT SERVICE TRAINING SCHOOL FOR THE
SPECIFIC NOBLIFT PRODUCT MODEL.

16

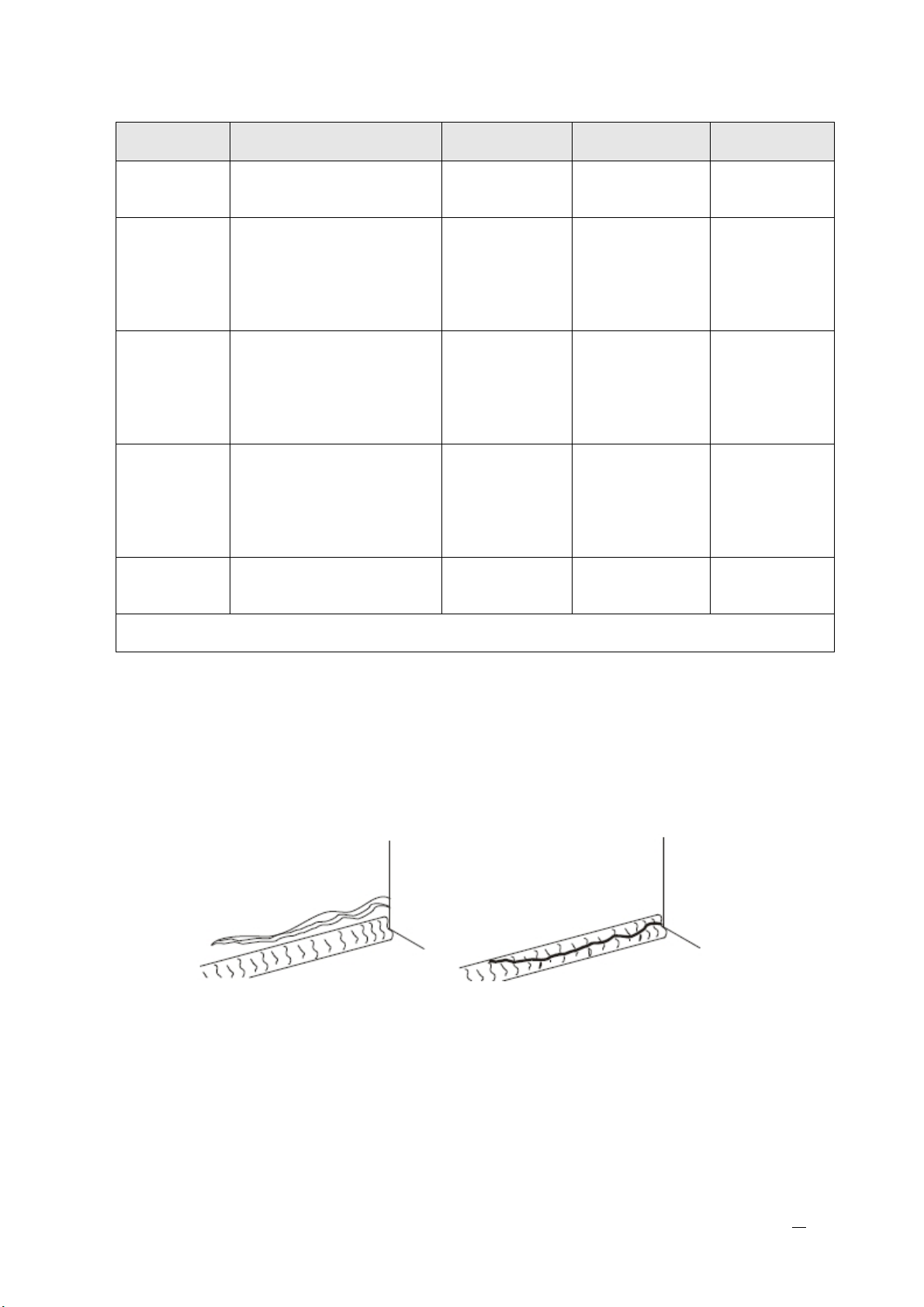

Table 2-1.Inspection and Maintenance Table
Type Frequency Primary
Responsibility Service Qualification Reference
Pre-Start
Inspection
Before using each day; or
whenever there’s an
Operator change
User or
Operator User or Operator Operator and
Safety Manual
Pre-Delivery
Inspection
(See Note)
Before each sale, lease, or
rental delivery. Owner, Dealer, or User Qualified Mechanic
Service and
Maintenance
Manual and
applicable
inspection
form
Frequent
Inspection
In service for 3 months or
150 hours, whichever
comes first; or Out of
service for a period of
more than 3 months; or
Purchased used.
Owner, Dealer,
or User Qualified Mechanic
Service and
Maintenance
Manual and
applicable
inspection
form
Annual
Machine
Inspection
Annually, no later than 13
months from the date
of prior inspection. Owner, Dealer,
or User
Factory Certified
Service
Technician
(Recommended)
Service and
Maintenance
Manual and
applicable
inspection
form
Preventative
Maintenance
At intervals as specified in
the Service and
Maintenance Manual.
Owner, Dealer,
or User Qualified
Mechanic Service and
Maintenance
Manual
NOTE: Inspection forms are available from NOBLIFT. Use the Service and Maintenance Manual
to perform inspections.
Pre-Start Inspection
The Pre-Start Inspection should include each of the following:
1. Cleanliness – Check all surfaces for leakage (oil, fuel, or battery fluid) or
foreign objects. Report any leakage to the proper maintenance personnel.
2. Structure - Inspect the machine structure for dents, damage, weld or parent
metal cracks or other discrepancies.
ParentMetalCrack WeldCrack
3. Decals and Placards – Check all for cleanliness and legibility. Make sure
none of the decals and placards are missing. Make sure all illegible decals
and placards are cleaned or replaced.
4. Operation and Safety Manuals – Make sure a copy of the Operator and
Safety Manual.
5. “Walk-Around” Inspection – Refer to Figure 2-1

17
6. Battery – Charge as required.
7. Fuel (Combustion Engine Powered Machines) – Add the proper fuel as
necessary.
8. Engine Oil Supply (If equipped) - Ensure the engine oil level is at the Full
mark on the dipstick and the filler cap is secure.
9. Fluid Levels – Check the hydraulic oil level. Ensure hydraulic oil is added as
required.
10. Accessories/Attachments - Reference the Operator and Safety Manual of
each attachment or accessory installed upon the machine for specific
inspection, operation, and maintenance instructions.
11. Function Check – Once the “Walk-Around” Inspection is complete, perform
a functional check of all systems in an area free of overhead and ground level
obstructions. Refer to Section 4 for more specific operating instructions.
Function Check
Perform the Function Check as follows:
1. From the ground control console with no load in the platform:
a. Check that all guards protecting the function control switches and controllers
are in place.
b. Operate all functions and check all limiting and cutout switches.
c. Check manual descent.
d. Ensure that all machine functions are disabled when the Emergency Stop
Button is depressed.
2. From the platform control console:
a. Ensure that the control console is firmly secured in the proper location.
b. Check that all guards protecting the function control switches and controllers
are in place.
c. Operate all functions and check all limiting and cutout switches.
d. Ensure that all machine functions are disabled when the Emergency Stop
Button is depressed.
3. With the platform in the transport (stowed) position:
a. Drive the machine on a grade, not to exceed the rated gradeability, and stop
to ensure the brakes hold.
b. Check the tilt indicator light to ensure proper operation. The light should be

18
illuminated when tilted.
Table 2-2. Tilt vs. Height
Table 2-3. High Drive Speed Cutout Height
Figure 2-1. Daily Walk-Around Inspection - Sheet 1 of 3
General
Begin the “Walk-Around Inspection” at Item 1, as noted on the diagram. Continue
Left (counterclockwise viewed from top) checking each item in sequence for the
conditions listed in the following checklist.
TO AVOID POSSIBLE INJURY, BE SURE MACHINE POWER IS “OFF”
DURING “WALK-AROUND INSPECTION”.
Model Tilt Setting
(front to back) Tilt Setting (side to side) Maximum Deck Elevation
Degrees Feet Meters
AWPS23.56 2 2 18.4(Full) 5.6
AWPS46.79 2 2 26 (Full) 7.9
AWPS46.96 2 2 31.5 (Full) 9.6
Model High Drive Speed Cutout Height
AWPS23.56 54 in 1.4m
AWPS46.79 76 in 1.9m
AWPS46.96 76 in 1.9m

19
DO NOT OVERLOOK VISUAL INSPECTION OF CHASSIS UNDERSIDE.
CHECKING THIS AREA OFTEN RESULTS IN DISCOVERY OF CONDITIONS
WHICH COULD CAUSE EXTENSIVE MACHINE DAMAGE.
NOTE: On each item, make sure there are no loose or missing parts, that they are
securely fastened, and that no visible damage exists in addition to any
other criteria mentioned.
1. Platform Control Console - Placard secure and legible, control lever and
switches return to neutral, control lever lock and emergency stop switch
function properly, manual in storage box.
2. Steer Cylinder - See Note
3. Spindle, Tie Rod, Drive Motor and Steer Linkage (left front) - See Note
4. Wheels and Tires - Properly secured, no missing lug nuts. Refer to Section 6,
Tires and Wheels. Inspect wheels for damage and corrosion.
5. Pothole Protection System - See Note
6. Battery Compartment - Proper electrolyte level.
7. Proximity Switch - See Note
8. Manual Descent - See Note
9. Beacon - See Note
10. Ground Controls - Placard secure and legible, control switches return to
neutral position, emergency stop switch functions properly. Control markings
legible.
11. Rotary Angle Switch - See Note
12. Hydraulic Pump/Motor, Control Valve Installation – No unsupported wires or
hoses; no damaged or broken wires - See Note
13. Lift Cylinder - See Note
14. Spindle, Tie Rod, Drive Motor and Steer Linkage (left front) - See Note
15. Sizzor Arms, Pivot Pins and Sliding Wear Pads (Not Shown) - See Note
16. Platform/Handrail Installation (Not Shown) - See Note

20
1、Pothole Switch (Typical onopposite side of machine)
Figure 2-2. Switch Location - 2 of 2
3. USER RESPONSIBILITIES AND MACHINE CONTROLS
3.1 GENERAL
SINCE THE MANUFACTURER HAS NO DIRECT CONTROL OVER MACHINE
APPLICATION AND OPERATION, CONFORMANCE WITH GOOD SAFETY
PRACTICES IN THESE AREAS IS THE RESPONSIBILITY OF THE USER AND
HIS OPERATING PERSONNEL.
This section provides the necessary information needed to understand control
functions. Included in this section are the operating characteristics and limitations,
and functions and purposes of controls and indicators. It is important that the
user read and understand the proper procedures before operating the machine.
These procedures will aid in obtaining optimum service life and safe operation.
3.2 PERSONNEL TRAINING
The scissor lift is a personnel handling device; therefore, it is essential that it be
operated and maintained only by authorized personnel who have demonstrated
that they understand the proper use and maintenance of the machine. It is
important that all personnel who are assigned to and responsible for the operation
