NODOR NMW25Ix User manual

INSTRUCTION MANUAL
MODEL:NODOR NMW25Ix
Microwave Oven
SAVE THESE INSTRUCTIONS CAREFULLY
Read these instructions carefully before using your
microwave oven, And keep it carefully for future reference.
If you follow the instructions, your oven will provide you with
many years of good service.
1

SPECIFICATIONS
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since this can result
in harmful exposure to microwave energy.It is important not to defeat or
tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or
allow soil or cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important
that the oven door closes properly and that there is no damage to the:
(1) DOOR(dent)
(2) HINGES AND LATCHES(broken or loosened)
(3) DOOR SEALS AND SEALING SURFACE
(d) The oven should not be adjusted or repaired by anyone except properly
qualified service personnel.
2
Model:
Power Source:
Power Consumption:
Maximum Output:
Grill Output:
Oven Capacity:
Turntable Diameter:
External Dimensions (LxWxH):
Net Weight:
NMW25Ix
230V~ 50Hz
1450 W
850 W
1000 W
25 Litres
315 mm
516mmX393mmX307mm
Approx. 17.0 Kg

SAFETY
1. The oven must be level.
2. The turntable and turntable roller rest must be in the oven during cooking. Place the
cookware gently on the turntable and handle it carefully to avoid possible breakage.
3. Incorrect use of browning dish may cause the turntable to break.
4. Use only the specified bag size when using Direct Access Popcorn.
5. The oven has several built-in safety switches to ensure that the power remains off when
the door is open. Do not tamper with these switches.
6. Do not operate the microwave oven empty. Operating the oven with no food or food that
is extremely low in moisture can cause fire, charring or sparking.
7. Do not cook bacon directly on the turntable. Excessive local heating of the turntable may
cause the turntable to break.
8. Do not heat baby bottles or baby food in the microwave oven. Uneven heating
may occur and could cause physical injury.
9. Do not heat narrow-necked containers, such as syrup bottles.
10. Do not attempt to deep-fry in your microwave oven.
11. Do not attempt home canning in this microwave oven as it is impossible to be sure all
contents of the jar have reached boiling temperature.
12. Do not use this microwave oven for commercial purpose. This microwave oven
is made for household use only.
13. To prevent delayed eruptive boiling of hot liquids and beverages or scalding
yourself, stir liquid before placing the container in the oven and again halfway
through cooking time. Let stand in the oven for a short time and stir again before
removing the container.
14 .Please do notice the food in the microwave oven to avoid burning due to excessive
cooking when cooking food in it.
3

1. Read all instructions before using the
appliance.
2. Read and follow the specific:"PRECAU-
TIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY".
3. As with most cooking appliances,close
supervision is necessary to reduce the
risk of a fire in the oven cavity.
If a fire should start:
1.Keep the oven door closed
2.Turn the oven off, and unplug the appliance.
3.Disconnect the power at the fuse or circuit
breaker panel.
Keep in mind the following rules at all
times:
1.Do not overcook food. Carefully attend the
appliance if paper,plastic,or other combus-
tible materials are placed inside the oven to
facilitate cooking.
2.Do not use the oven cavity for storage pur-
poses. Do not store combustible items su-
ch as bread, cookies, paper products, etc.
inside the oven. If lightning strikes the power
line, the oven may turn on by itself.
3.Remove wire twist-ties and metal handles
from paper or plastic containers/bags before
placing them in the oven.
4.This oven must be grounded. Connect only
to properly grounded outlet. See"GROUN-
DING INSTRUCTIONS".
5. Install or locate this oven only in accordance
with the installation instructions provided.
6. Some products such as whole
eggs, water with oil or fat, sealed
containers and closed glass jars may
explode and therefore should not be
heated in this oven.
7. Use this appliance only for its intended
uses as described in the manual. Do
not use corrosive chemicals or vapors
in this appliance. This oven is specifically
designed to heat or cook food. It is not
designed for industrial or laboratory use.
8. As with any appliance, close supervision
is necessary when used by children.
9. Do not operate this oven if it has a
damaged cord or plug, if it is not working
properly or if it has been damaged or
dropped.
10. This appliance should be serviced
only by qualified service technicians.
Contact the nearest authorized
service facility for examination,repair
or adjustment.
11. Do not cover or block any vents on the
oven.
12. Do not store or use this appliance
outdoors.
13. Do not use this oven near water,near
a kitchen sink, in a wet basement or
near a swimming pool.
14. Do not immerse cord or plug in water.
15. Keep cord away from heated surfaces.
16. Do not let cord hang over edge of table
or counter.
17. When cleaning door and oven surfaces
use only mild, nonabrasive soaps or
detergents applied with a sponge or
soft cloth.
Important Safety Instructions
SAFETY
WARNING— To reduce the risk of fire, electric shock, injury to
persons, or exposure to excessive microwave oven
energy when using your appliance, follow
these basic precautions :
4
SAVE THESE INSTRUCTIONS

DANGER
Electric Shock Hazard Touching
some of the internal components
can cause serious personal injury
or death.Do not disassemble this
appliance
.
WARNING
Electric Shock Hazard
Improper use of the grounding
can result in electric shock. Do
not plug into an outlet until
appliance is properly installed
and grounded.
Three-pronged
(grounding) plug
Grounding Installation
Properly polarized and
grounded outlet
This appliance must be grounded. In the event of an elec-
trical short circuit, grounding reduces the risk of electric
shock by providing an escape wire for the electric current.
This appliance is equipped with a cord having a grounding
wire with a grounding plug. The plug must be plugged into
an outlet that is properly installed and grounded.
Consult a qualified electrician or serviceman if the ground-
ing instructions are not completely understood or if doubt
exists as to whether the appliance is properly grounded.
If it is necessary to use an extension cord, use only a 3-
wire extension cord that has a 3-pronged grounding plug,
and a 3-slot receptacle that will accept the plug on the
appliance.
1. A short power-supply cord is provided to reduce the
risks resulting from becoming entangled in or tripping
over a longer cord.
2. Longer cord sets or extension cord is provided to
reduce the risks resulting from becoming entangled
in or tripping over a longer cord.
3. If a long cord set or extension cord is used: 1)The
marked electrical rating of the cord set or extension
cord should be at least as great as the electrical rating
of the appliance. 2)The extension cord must be a
grounding-type 3-wire cord, and 3)The longer cord
should be arranged so that it will not drape over the
counter top or tabletop where it can be pulled on by
children or tripped over unintentionally.
CAUTION
Personal Injury Hazard
Tightly-closed utensils
could explode. Closed
containers should be
opened and plastic
pouches pierced
before cooking.
Utensils See next page for further instructions “Materials you
can use in microwave oven or to be avoided in micro-
wave oven.”There may be certain nonmetallic utensils
that are not safe to use for microwaving. If in doubt,
you can test the utensil in question following the
procedure below.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm,
do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
5

Materials to be avoided in microwave oven
Utensils
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
6
Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat
or poultry to prevent overcooking. Arcing can occur if foil is too close to
oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish Follow manufacturer’s instructions. The bottom of browning dish must be at
least 3/16 inch (5mm) above the turntable.Incorrect usage may cause
the turntable to break.
Dinnerware Microwave-safe only. Follow manufacturer’s instructions. Do not use cracked
or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do
not use cracked or chipped dishes.
Oven cooking Follow manufacturer’s instructions. Do not close with metal tie. Make slits to
bags allow steam to escape.
Paper plates Use for short –term cooking/warming only. Do not leave oven unattended while
and cups cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for
short-term cooking only.
Parchment Use as a cover to prevent splattering or a wrap for steaming.
paper
Plastic Microwave-safe only. Follow the manufacturer’s instructions.Should be labelled
“Microwave Safe”. Some plastic containers soften as the food inside gets hot.
“Boiling bags” and tightly closed plastic bags should be slit, pierced or vented
as directed by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do
not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Remarks
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
Metal shields the food from microwave energy. Metal trim may cause
arcing.
May cause arcing and could cause a fire in the oven.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split or
crack.

F
G
A
CB
ED
A)Control panel
B)Turntable shaft
C)Turntable ring assembly
D)Glass tray
E)Observation window
F) Door assembly
G)Safety interlock system
Grill(OnlyforGrillseries)
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Shuts off oven power if door is opened during operation.
a. Neverplacethe glasstray upsidedown.The
glasstray shouldneverberestricted.
b. Both glass tray and turntable ring assembly must always
beusedduringcooking.
c. All food and containers of food should always placed
onthe glasstray forcooking.
d.The glasstray rotatesclockwise;thisisnormal.
e. If glasstray or turntableringassembly cracksor breaks, contact
yournearestauthorizedservicecentre.
7
TURNTABLE INSTALLATION
Hub(underside)
Glass tray
Turntable ring assembly
Turntable shaft

Installation
Remove all packing material and accessories.
Examine the oven for any damage such as
dents or broken door. Do not install if oven is
damaged.
Countertop
Cabinet: Remove any protective film found
on the cabinet surface.
Do not remove the light brown Mica cover
that is screwed to the oven cavity to
protect the magnetron.
Installation
1. Select a level surface that provide
enough open space for the intake
and/or outlet vents.
A minimum clearance of 3.0 inch
(7.5cm) is required between the oven and
any adjacent wall.One side must be open.
(1) Leave a minimum clearance of 12
inch(30cm) above the oven.
(2) Do not remove the legs from the
bottom of the oven.
(3) Blocking the intake and/or outlet openings
can damage the oven.
(4)Place the oven as far away from
radios and TV as possible.Operation
of microwave oven may cause interference
to your radio or TV reception.
2. Plug your oven into a standard household
outlet. Be sure the voltage and the
frequency is the same as the voltage and
the frequency on the rating label.
WARNING: Do not install oven over a
range cooktop or other heat-producing
appliance. If installed could be damaged
and the warranty would be void.
3.0 inch(7.5cm)
12 inch(30cm)
OPEN
3.0 inch(7.5cm)
8

2). Microwave cooking
Select different microwave power and set cooking time as you wish.
• Five microwave power levels are available. Refer to Chart 1 to choose.
• Maximum microwave cooking time is 99 minutes 90 seconds.
• Keep on pressing "Power level", choose different power as per above attachment.
Chart 1
Microwave Power Chart
A.Microwave.
This microwave oven uses modern electronic control to adjust cooking
parameters to better meet your needs for cooking.
OPERATION
9

3). Speedy cooking
When the oven is in the waiting states, press directly the "10Min", "1Min" and "10Sec"
keys to input cooking time. And then press the "Start" key, and the oven goes into
100% microwave heat power cooking state.
4). Automatic defrosting

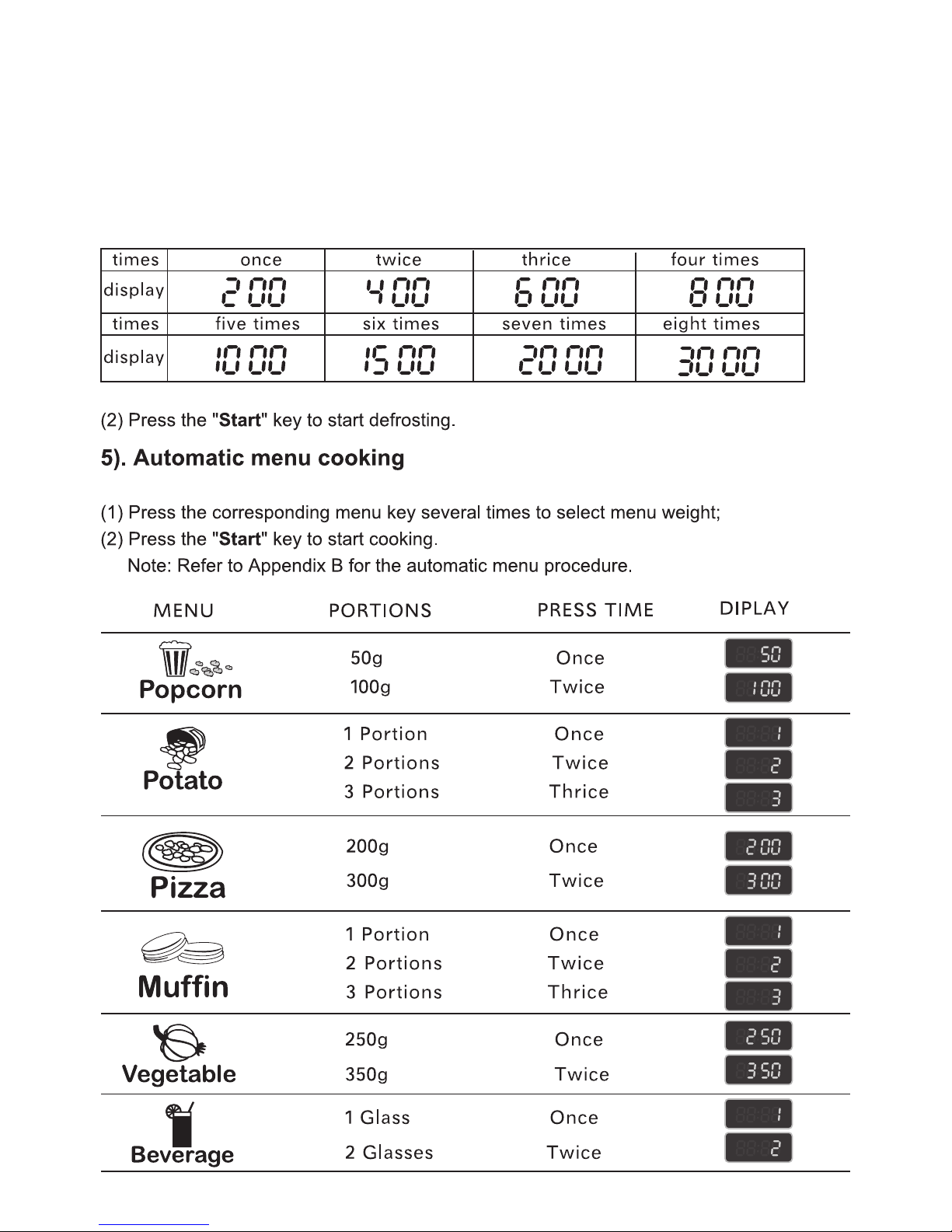

(1) Press the "Defrost" key several times to select defrosting weight (g);
10

6). PRE-SET
Set the cooking time .Example: set cooking time 12 hour 12minutes
(4) Press "10Min"once and "1Min" twice to adjust the
minute figures;
(1) Press "Timer" , the hour figures flash;
(2) Press "10Min" once and "1Min" twice
to adjust the hour figures;
(3) Press "Timer", the minute figures flash;
(5) Set cooking procedure;
(6) Press "Start" to start appointment cooking.
). Grilling
(1) Press the "Grill/Combination" key once, the LED
indication is "G-1" and the grilling function is selected;
(2) Set the cooking time ;
Example: Set 12 minutes 50 seconds ,press "10Min"
once, "1Min" twice and "10Sec" five times.
(3) Press "Start" to start cooking.
(3) Press the "Start" key to start cooking.
(2) Set the cooking time ;
Example: Set 12 minutes 50 seconds ,press "10Min"
once, "1Min" twice and "10Sec" five times.
). Combination cooking (microwave + grilling)
(1) Press the "Grill/Combination" key twice or thrice,
the LED indication is "C-1" or "C-2", which
indicates the selection of "Combination 1" or
"Combination 2" respectively;
11

Remark:
1) When the oven is out of use, or the food is taken out ahead of time, please set
time/weight knob back to "0" .
2) When the cooking is to be stopped after cooking steps are set, just open the door
and door safety system will stop generating microwave. If don't use the left time,
please reset time/weight knob to "0" before closing the door.
3) This oven works with microwave radiation, which heats up water particles in food
in a very short time. There is no heat radiation and therefore no browning. For this
reason this appliance is not suitable for drying objects.
4) Only food should be heated in this oven.
7.Cleaning
Be sure to disconnect the oven from the power supply.
1. Clean the inside of the oven after use with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a
damp cloth when they are dirty.
Note: Indication explanation
• When the oven is in the waiting states, the
charactron indicates the clock and the
indication for second figures does not flash.
7). Stop/Clear
(1) If the oven is working, press "Stop/Clear" to pause.
(Press "Start" to continue operating). Press "Stop/Clear" twice to stop operating.
(2) When setting program, press "Stop/Clear" to cancel previous cooking programs.
8). Door Open Protection
In normal operating, you can open door at any time to check cooking.
When door is opened, oven will stop running automatically and the rest cooking time
displayed remains the same.
Close the door and press "Start" again. Oven will continue cooking as it was set in
the program till end.

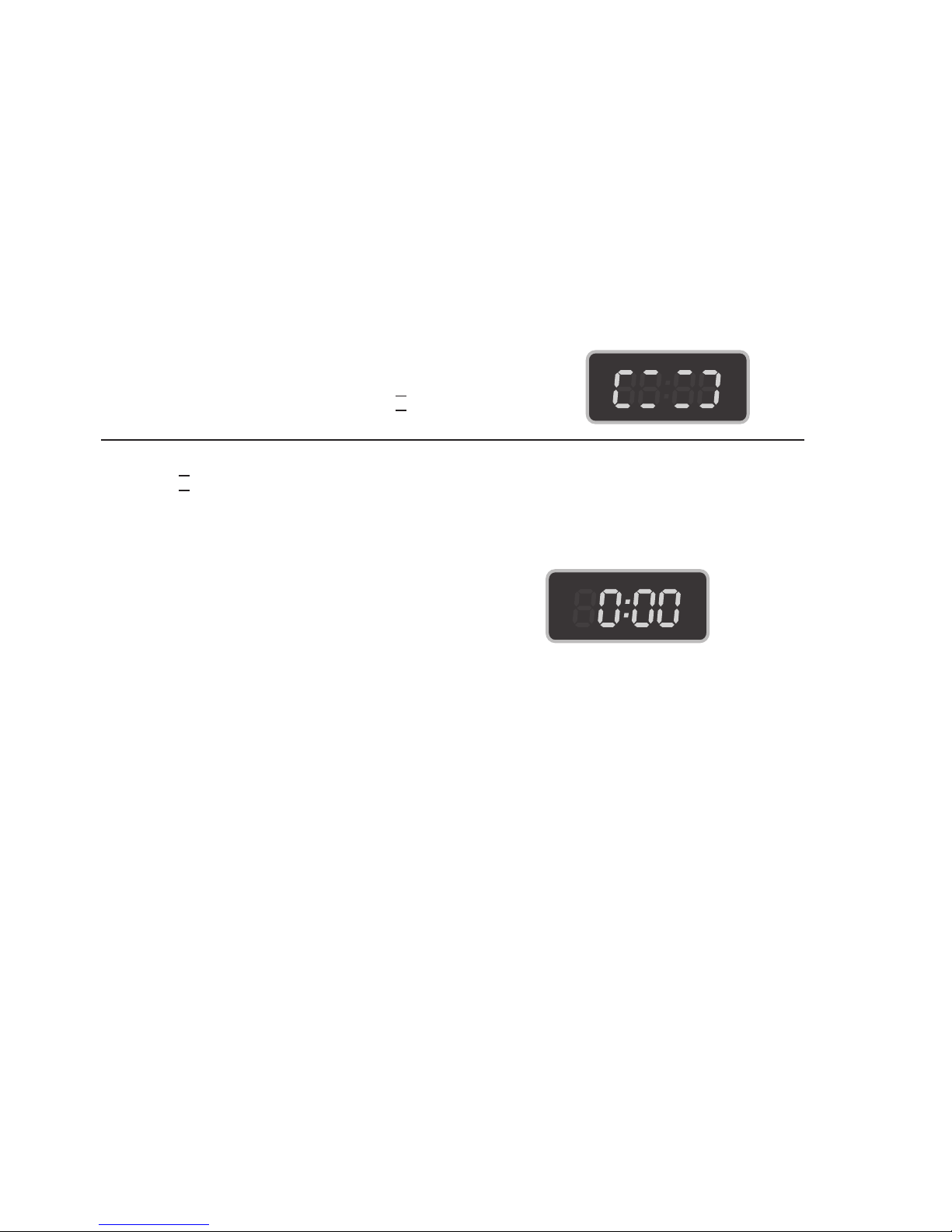

9). Child - Lock Function
Lock: Press "Start" and "Stop/Clear" key simultaneously,
after a long "deep". it shows [ ] and enters the
Locked status.
Unlock: Press "Start" and "Stop/Clear" key simultaneously,
[ ] disappears and machine returns to normal
status.
12

Trouble shooting
Radio and TV reception may be interfered when
microwave oven is operation. It is similar to the
interference of small electrical appliances , like
mixer , vacuum cleaner,and electric fan.
It is normal.
Microwave oven interfering
TV reception
Dim oven light In low power microwave cooking , oven light may
become dim . It is normal.
In cooking , seam may come out of food . Most will
come out from vents . But some may accumulate
on cool place like oven door . It is normal.
It does no damage to oven if it operates empty for
quite short time . But it should be avoided.
Steam accumulating on
door, hot air out of vents
Oven started accidentally
with no food in .
13

14
