Nordic ND6 User manual

Installation and Operating Instructions
Models: ND6 and ND8 (UL#’s 1712-60-0204
and 1712-80-0204) with separate control.
Nordic Deluxe Sauna Heaters
Read all instructions carefully before installation.
Please leave all instructions and warranty with
the owner.
WARNING
Prolonged exposure to elevated temperatures is
capable of inducing hyperthermia. Hyperthermia
occurs when the internal temperature of the body
reaches several degrees above the normal body
temperature of 98.6°F. The symptoms of hyper-
thermia include an increase in the normal tem-
perature of the body, dizziness, lethargy, drowsi-
ness, and fainting. The effects of the hyper-
thermia include failure to perceive heat, failure to
recognize the need to exit the room, unaware-
ness of impending hazard, fetal damage in preg-
nant women, physical inability to exit the room,
and unconsciousness.
WARNING
The use of alcohol, drugs, or medication is
capable of greatly increasing the risk of fatal
hyperthermia.
Section 1: General Information
These heaters are UL approved for permanent
installations and electrical connections. Built with
splash proof construction, the conducting parts
are protected against water. All wiring must be
performed in accordance with local codes. See
Diagram 2 for wire and room size requirements.
These heaters are wall mounted, 16W x 11D x
23H
!
Do not take a sauna if using alcohol, drugs
or medications.
Pregnant women or persons with poor
health should consult their physician before
using a sauna.
Caution fire hazard: Do not use the sauna
room for drying clothes, bathing suits, etc.
Do not hang towels above the heater or
place any object other than rocks supplied
on the heater. If any darkening of the wall
around the heater is noticed discontinue
sauna use immediately.
Inspect sauna regularly for required mainte-
nance to heater, control and benches.
Replace wood surfaces which show any
signs of deterioration.
The heater gets extremely hot during
operation and should not be touched or
burns may result.
Minors should be adequately supervised
whenever near a hot or warming sauna.
WARNING
Page 1

Installation and Operating Instructions
NORDIC DELUXE 6
1712-60-0204
NORDIC DELUXE 8
1712-80-0204
6 28 sq. ft. 74" 175 96" 310 1 120/240 25 2 #10AWG+N+GR 4 #14AWG+GR
8 40 sq. ft. 74" 250 96" 425 1 120/240 33.3 2 #8AWG+N+GR 4 #14AWG+GR
SEE
NOTE
1
BELOW
!
DIAGRAM 2
Page 2
OBSERVING MINIMUM DISTANCES IS REQUIRED TO REDUCE FIRE HAZARD
Recheck your distances from the
heater to combustible materials to be
sure you have the proper minimum
distances.
MOUNTING BRACKET LOCATION AND TO MINIMUM DISTANCE TO COMBUSTIBLE MATERIAL
DIAGRAM 1
NORDIC DELUXE 6
NORDIC DELUXE 8
4.0" 4 5/8" 5.0" 10 3/4" 23"
5.0" 5 5/8" 6.0" 11 1/2" 23"
"A"
DISTANCE
HEATER
"B"
DISTANCE
"C"
DISTANCE
"D"
DISTANCE
"K"
DISTANCE
MINIMUM

!
Fire sprinkler systems used inside any
sauna room should be properly rated for
sauna room temperatures.
Do not pour chlorinated pool or spa water
on heater. Excessive water use on heater
may cause damage and void warranty.
Electric Shock Hazard - high voltage exists
within this equipment. There are no user
serviceable parts in this equipment. All
installation and service to this equipment
should be performed by qualified licensed
personnel in accordance with local and
national codes.
Do not construct sauna room so as to
restrict air flow through the bottom of the
heater.
Packaging the rocks too tightly may cause
the heater high limit switch to trip.
WARNING
Installation and Operating Instructions
Section 2: Mounting of Sauna Heater
HANGING THE HEATER Using the template provided, drill
four 9/64" holes to fasten the heater to the wall. Install two
1/4" x 1 1/2" hex head lag screws (supplied with the heater)
into the upper two holes. Tighten these screws until their
heads are about 1/8" from the wall surface. The screws must
be threaded through the wall into a framing member or back-
ing board to support the heater weight. Hang the heater on
the two upper screws. Locate the two 1/4" x 1" hex head lag
screws (supplied with the heater) then install them into the
two lower mounting holes. Tighten to lock the heater in
place. See diagram 1 for the heater location details and the
necessary clearances to combustible materials.
Section 3: Placing of Rocks (See Diagram #10)
The rocks supplied with the heater have been chosen to
provide the best heater performance. Use of any other type
of rock may void the heaters warranty. Never operate the
heater without rocks in place! Rinse the rocks with water
before placing in the heater. Carefully place the rocks loosely
so that the air can circulate through the heater. Packing the
rocks too tightly may cause the heater high limit switch to
trip. The rocks must be fully cover the heating elements.
Attach the guard with the screws provided.
Section 4: Electrical Hook-Up
Electrical installation must be made by a licensed electrician
in accordance with the National Electrical Code and local
regulations.
Remove the screws from the left and right sides of the
electrical box. Remove the painted trim piece from the front
of the box. Route the feed wires through the holes provided
in the bottom of the heater and connect the wires to the
terminal block. To determine the correct wire size, refer to
Diagram 2. Use copper supply wire only, suitable for
minimum 90 degrees C. The heater must be grounded! See
Diagram 6 for proper connections.
Section 5: Temperature Sensor
Feed the “low voltage” sensor wire from the control to the
sensor location. Sensor wire must be routed completely
separate (as per low voltage electrical wiring codes) from
any wiring carrying over 50 volts. It may be necessary to drill
holes to string the wire through the studs or ceiling joists.
Route wires into control box and connect to terminals #2 and
#3 at the thermostat terminal block. Using a flat tip screw-
driver, unsnap sensor cover from sensor. Mount sensor to
finished wall directly above heater five (5) inches down from
ceiling using two (2) screws (provided) as shown in
Diagrams 1.3 & 5.

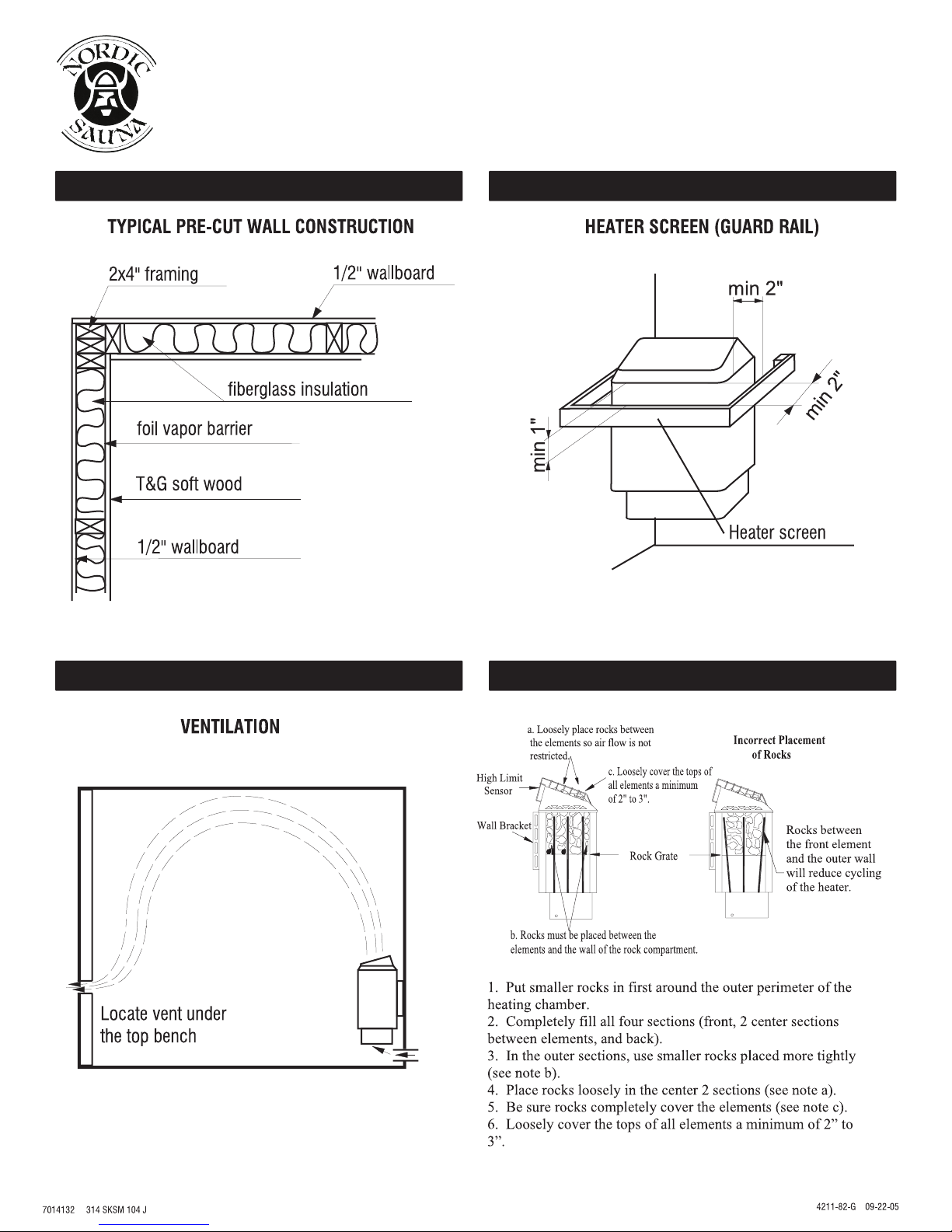

Section 6: Heater Screen (Guard rail
Install a wooden heater guard to prevent the sauna bather
from accidentally touching the sauna heater. Install the
heater guard rail with the dimensions shown in Diagram 8.
Page 3

Installation and Operating Instructions
Page 4
DIAGRAM 3
DIAGRAM 5
DIAGRAM 4
DIAGRAM 5, continued

!
Do not locate benches over heater. Mini-
mum clearance of ceiling above heater 44".
Minimum clearance from heater to wooden
surfaces (benches, side walls, heater
fence, etc.) 2 inches. Mounting brackets
supplied. Provides proper clearance from
wall behind heater.
Use only copper wire of the size and type
indicated in the Heater Specification Chart
and the temperature rating on the heater
junction box.
All heaters and controls must be grounded
per NEC to prevent electrical shock in case
of unit failure.
Electrical outlets or receptacle must not be
installed in a sauna room.
A guardrail or fence is required around the
heater to prevent burns from accidental
contact.
WARNING
Installation and Operating Instructions
Section 7: Operation
The heater is intended for use with a SC-9, SC-60, or
SC-CLUB Control Panel only. Use with any other control
voids the warranty and UL listing. For health and fire safety,
never attempt to alter or bypass the timer or thermostat. If
the sauna is to be used without an automatic timer provided,
(Model SC-CLUB Control Panel) an attendant must be pres-
ent at all times.
MODEL SC-9 CONTROL PANEL, UL number 19-8-
1517 (9 Hour Delay 1 Hour Operation Option) This control is
equipped with a 60 minute timer with a 9 hour delay, an
electronic thermostat, a light switch, and a pilot lamp that
indicates when the heater is on.
SETTING THE TEMPERATURE: The temperature can be
adjusted by turning the thermostat knob. To raise the
temperature, turn the knob clockwise; to lower the tempera-
ture, turn the knob counter-clockwise.
SETTING THE TIME: If you want the heater to begin heating
immediately, turn the dial clockwise past the first marked
section labeled “off to 1” (See Diagram 4), then turn the dial
back (counter-clockwise) until you feel it “click”, near the on
position, into the one hour operation zone.
The heater has a “9 plus 1” timer, which means you can set
the heater to begin heating after a delay of up to 9 hours. If
you set the timer dial in the “1 to 9” zone, the heater will auto-
matically turn on after the selected delay time has elapsed.
LIGHT SWITCH: Use the light switch to turn on the sauna
room light on and off.
MODEL SC-60 CONTROL PANEL, UL Number
19-8-1817 (60 minute timer) This control panel has a 60
minute timer, an electronic thermostat, a light switch, and a
pilot lamp that indicates when the heater is operable.
SETTING THE TEMPERATURE: The temperature can be
adjusted by turning the thermostat knob. To raise the
temperature, turn the knob clockwise; to lower the tempera-
ture, turn the knob counter-clockwise.
SETTING THE TIME: Use the timer to turn the heater on. To
start the heater, turn the timer knob clockwise to the desired
time setting. Maximum operating time is one hour.
LIGHT SWITCH: Use the light switch to turn on the sauna
room light on and off.
Page 5

Installation and Operating Instructions
Page 6
DIAGRAM 6
WIRING DIAGRAM:
Heater Models: ND6 and ND8
(UL#’s 1712-60-0204 and
1712-80-0204)

Installation and Operating Instructions
Section 7: Operation, Continued
MODEL SC-CLUB CONTROL PANEL, UL number
19-8-17 (Attendant Present Control, thermostat Only) This
control panel has a main on/off switch, an electronic thermo-
stat, and a sauna light switch. A pilot lamp in the main on/off
switch indicates when the sauna heater is on; and a pilot
lamp in the sauna light switch indicates when the sauna light
is on.
SETTING THE TEMPERATURE: The temperature can be
adjusted by turning the thermostat knob. To raise the
temperature, turn the knob clockwise; to lower the tempera-
ture, turn the knob counter-clockwise.
TO START: To start the heater, turn on the main switch. To
stop the heater, turn the main switch off. This control panel is
made for commercial use with an attendant present to moni-
tor the sauna bather’s safety.
LIGHT SWITCH: Use the light switch to turn the sauna room
light on and off.
Section 8: High Limit Control (Reset Button)
The sauna heater has a built -in high limit control, which
automatically turns off the heater if the temperature inside
the sauna room rises to an abnormally high level.
To restart the heater, let the heater cool and turn the timer
down to zero (off), then push the reset button on the bottom
of the heater, see Diagram 1. If the high limit continually
shuts off the heater, contact a service representative.
Section 9: How to take a Sauna
● When taking a sauna, allow time to relax completely.
●Remove clothing and jewelry...if required, wear a towel
loosely.
●After 10 minutes or when perspiration begins, leave sauna
and relax in dressing area...follow with a cool shower.
●Cooling time should equal time spent in sauna. Enter
sauna room again and stay 5 or 10 minutes.
●Repeat the cycle 2 or 3 times; end with a brisk
shower...rinse in cool water.
● Dress when completely dry and perspiration has stopped.
●Some sauna bathers enjoy the soothing effect of steam by
splashing water on the heated sauna rocks. Use only one
dipper full (approx. 1/2 cup) at a time and take care to keep
clear of the steam as it rises off the rocks.
●Do not smoke, exercise or drink alcoholic beverages in the
sauna room.
●Do not pour chlorinated pool or spa water on the heater or
corrosion damage may result.
Page 7

Installation and Operating Instructions
Page 8
DIAGRAM 7 DIAGRAM 8
DIAGRAM 9 DIAGRAM 10

!
The “CAUTION” and “WARNING” placards
must be mounted in accordance with
Section 10.
For safety purpose sauna door must open
out and not lock.
Never use a wood stain, seal or preserva-
tive on the inside of your sauna room.
Light fixtures get very hot during operation.
Locate light fixture where it will not be a
burn hazard.
WARNING
Installation and Operating Instructions
Section 10: Warning Placards
Two metal placards are included in the Installation Instruc-
tion Envelope packaged with every Nordic Sauna Heater.
The CAUTION placard must be attached to the interior wall
of the sauna room directly above the heater where it is
visible to the bather. The WARNING placard must be
attached to the door of the sauna room.
Section 11: Room Construction
For safety and reliability, the following rules must be
addressed.
●No permanent locking or latch system is to be used on the
sauna door.
●Acceptable door fittings are: magnetic catches, friction
catches, spring or gravity loaded closures. The door must
always open outwards.
● No shower may be installed in a sauna room.
●No electrical receptacle shall be installed inside the sauna
room.
●The enclosed WARNING: Reduce the risk of overheat-
ing... warning plate must be mounted on or alongside the
door outside the sauna room at or about eye level.
●The enclosed CAUTION: Reduce the risk of fire... caution
plate must be mounted on the interior wall above heater.
●The heater should not be operated without its container
properly filled with rocks and the rock guard in place.
●If an intercom speaker is installed, it should be away from
the heater and as close to the floor as possible.
●If a room light is installed, it should be a surface mounted
bracket type. Wall mounted lights should be about 70" above
the floor. Ceiling mounted lights should be of an approved
type with a junction box that is remote to the fixture itself.
Use only a fixture that uses A.F. or fixture type internal wiring.
A 60 watt bulb should provide sufficient lighting.
●Fire sprinkler systems installed inside any sauna room
should be properly rated for the sauna room temperatures.
●Always mount the heater according to these installation
instructions.
Page 9

Installation and Operating Instructions
Section 12: Ventilation
VENTILATION In a sauna, the air should be changed about
6 times an hour. This can be achieved by making a vent
opening (fresh air inlet) in the sauna wall directly below the
heater. The air outlet must be lower than the sauna wall
directly below the heater. The air outlet must be lower than
the upper benches, as far as possible from the heater and
about two feet higher than the fresh air inlet vent, see
Diagram 9.
It is recommended that ventilation openings meet the
requirements of UL Specification 875. The minimum opening
should be determined using one of the following formulas:
For R<31, V≥9.3
For R≥31, V≥0.3R
Where R = the floor area of the room in square feet and
V = the minimum vent size in square inches
Section 13: Maintenance
The sauna, like a bathroom, should be kept clean and odor
free.
Towels or mats should always be used on benches and floor
as perspiration otherwise penetrates the soft wood.
Air out the sauna often by keeping the door and vents open
when the sauna is not un use. Saunas that are in daily use
should be washed down at least once a week to keep them
clean and the air fresh. Duckboard should be removed from
the sauna, the sauna floor mopped and dried in a conven-
tional manner, and the duckboard thoroughly scrubbed and
dried before returning to the sauna room. The sauna heater
should be wiped down occasionally with a damp cloth to
remove lint and dust. The rocks should be removed once a
year for cleaning and small or crumbled rocks replaced.
To clean and remove perspiration stains, use soap or deter-
gent in warm water, best applied with a scrub brush. Badly
soiled surfaces may require sanding. Sand paper wrapped
around a wooden block works well.
Benches and supporting structure must be inspected annu-
ally for potential deterioration due to age, dry rot or abuse.
Any boards with signs of deteriorations should be replaced
immediately to avoid possible injury.
Section 14: Troubleshooting
For troubleshooting or service questions call 1-800-300-
7286 and ask to speak with service. Prior to calling, please
have the Model and Type number available. You may also
email us at [email protected].
Page 10
