Nordic CT-B0136 User manual

OPERATING MANUAL

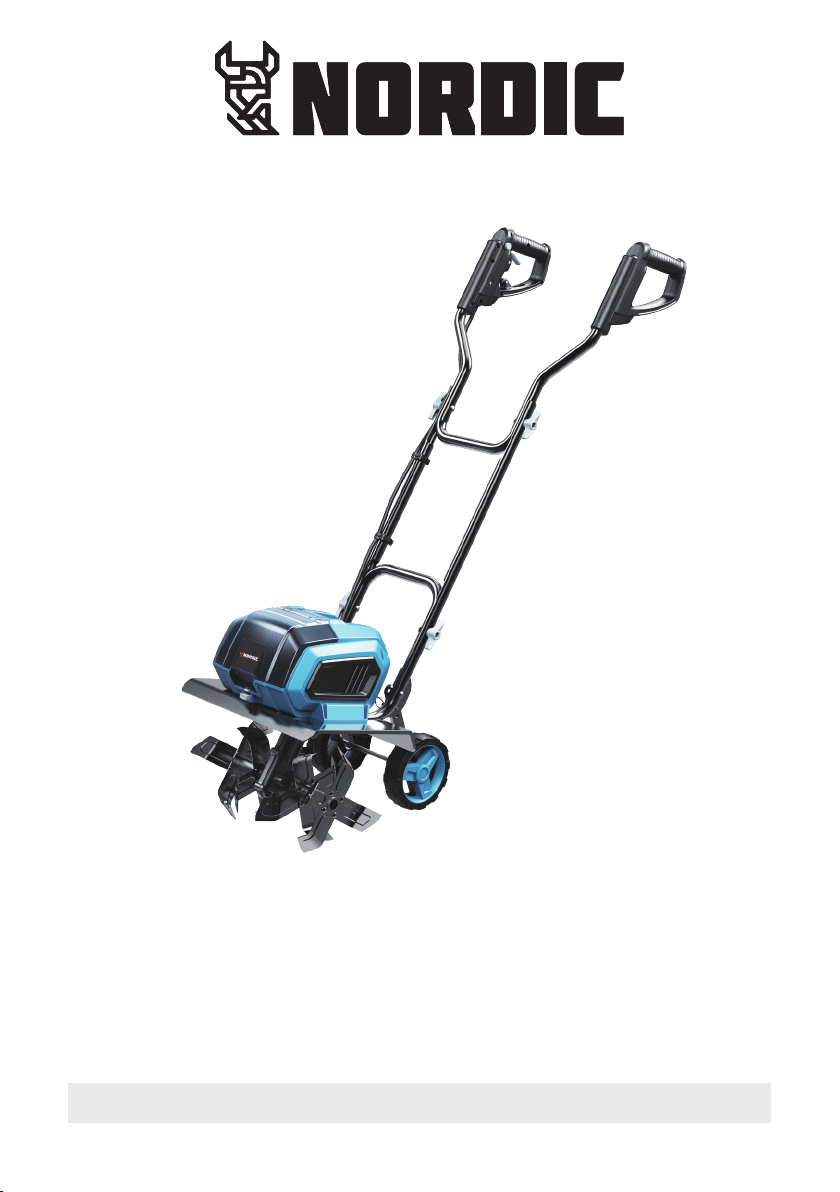

36V CORDLESS TILLER
CT-B0136

2
NORDIC
WARNING: To reduce the risk of injury, the user must read and understand the operator’s before
manual using this product.
PRODUCT SPECIFICATION
Charger Voltage: 100-240V/50-60Hz
Rated Voltage: 36V (18x2 Li-ion battery)
No-load Speed: 180rpm
Working Width: 320mm
Working Depth: 220mm
Blade: 4*4pcs
GENERAL POWER TOOL SAFETY WARNINGS
Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in
electric shock, fire and/or serious injury.
Keep safety warnings and instructions for future reference.
The term “power tool” in the safety warnings refers to your mains operated (corded) power tool or battery-
operated (cordless) power tool.
BEFORE USE
Remove any packing material and loose parts from unit.
Check the accessories before use. It should be fit with the machine and your purpose.
If the machine is new, the battery must first be charged.
Attention! After long time storage, the battery capacity will be reduce.
A new battery or one which has not been used for an extended period achieves full performance only
after charging and discharging cycles. A substantial drop in operating period per charge indicates that the
battery is worn out and must be replaced.
ELECTRICAL SAFETY
• Always check that the power supply corresponds to the voltage on the rating plate.
• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use adapter plugs with earthed
power tools. Unmodified plugs and matching outlets will reduce the risk of an electric shock.
• Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and refrigerators. There is an
increased risk of an electric shock if your body is earthed.


3
NORDIC
• Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will increase the risk of an
electric shock.
• Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away
from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of an electric shock.
• When operating a power tool outdoors, use an extension cable suitable for outdoor use. Using a cord suitable for
outdoor use reduces the risk of an electric shock.
• If operating a power tool in a damp location is unavoidable, use a power supply protected by a residual current
device (RCD). Using an RCD reduces the risk of an electric shock.
SERVICE
Your power tool should be serviced by a qualified specialist using only standard spare parts. This will
ensure that it meets the required safety standards.
a) Use only the manufacturer’s recommended replacement parts and accessories.
b) Inspect and maintain the machine regularly. Have the machine repaired only by an authorized repairer.
c) When not in use, store the machine out of the reach of children.
SPECIFIC SAFETY INSTRUCTIONS FOR CORDLESS TILLER
• Do not operate the machine in confined areas where there may be a risk of crushing the operator between the
machine and another object.
• Never attempt to make any adjustments, while the machine is running.
• You must switch off the machine:
- Before checking or working on the machine.
- When transporting the machine.
- Whenever you leave the machine unattended.
- If the machine starts to vibrate abnormally.
• WARNING! If something breaks or an accident happens whilst working, you must turn off the machine immediately
and move the machine away to prevent further damage. If an accident happens with injuries or third parties are injured,
carry out the first aid measures most suitable for the situation immediately and contact the medical authorities for any
necessary health care. Carefully remove any debris that might cause damage or harm persons or animals should it not
be seen.
• After striking a foreign object, stop the machine immediately and inspect the machine thoroughly for damage. Repair
the damage before continuing.
• Keep extension cord away from cutting elements.

4
NORDIC
• Never operate the machine with damaged guards or without the guard in place.
• Keep hands and feet away from the cutting means at all times especially when switching on the motor.
• Take care against injury from the blade fitted for trimming the filament line length. After extending new cutter line,
always return the trimmer to its normal operating position before switching on.
• Never operate the machine without the defective guards or shields, or without safety devices, or if the cord is
damaged or worn.
• Be cautious when pulling the machine towards you.
• Do not use the tiller on slopes more than 15°. Always work along the slope and not up and down it. Always maintain a
solid footing.
• Only remove dirt and plants from the machine once the machine has been unplugged and stopped rotating.
• Always guide the tiller at walking pace with both hands on the handle.
• Always keep your hands and feet away from the rotating parts. There is danger of serious injury.
• If the tiller vibrates or emits unusual noises when switched on, disconnect the plug from the socket and do not use.
• Do not tilt the machine when starting.
• Make sure you always remain a safe distance away from the tine blades.
• Move the tiller to the work area before starting the motor.
• Switch the motor off before moving the tiller from one area to another. Wait for the moving parts to come to a
complete stop. Do not let the tines touch the ground whilst you are moving the tiller, this could damage the machine.
• Never pass the Tiller over the extension cord. Make sure the cord is always in a safe position behind you.
PREPARATION
A: When operating the machine, always wear sturdy shoes and long pants. Do not operate the machine in bare feet or in
sandals. Avoid wearing clothes that are loose or have loose cords, or a tie.
B: Fully inspect the area where the machine is to be used and remove all objects that may be thrown by it.
C: Before use, always visually inspect the machine to see if that cutting unit, the bolts and the latter assembly are not
worn or damaged, Replace worn or damaged components in order to maintain good balance. Replace damaged or
illegible labels.

5
NORDIC
OPERATION
1: Never allow a child or other person who has not read the operating instructions to use the garden tool. Local
regulations may set a minimum age limit for the user.
2: Mow only in daylight or in good artifical light.
3: Do not work with the lawn mower in adverse weather conditions.
4: Only take the device at pace, never run.
5: Never use the lawn mower without the safety equipment.
ADDITIONAL SAFETY INSTRUCTIONS
FOR BATTERIES AND CHARGERS
Use only batteries and chargers applicable for this machine.
BATTERIES
• Never attempt to open for any reason.
• Do not store in locations where the temperature may exceed 40 °C.
• Charge only at ambient temperatures between 4 °C and 40 °C.
• When disposing of batteries, follow the instructions given in the section “Protecting the environment”.
• Do not cause short circuits. If connection is made between the positive (+) and negative (-) terminal directly or via
accidental contact with metallic objects, the battery is short circuited and an intense current will flow causing heat
generation which may lead to casing rupture or fire.
• Do not heat. If batteries are heated to above 100 °C, sealing and insulating separators and other polymer
components may be damaged resulting in electrolyte leakage and/or internal short circuiting leading to heat
generation causing rupture or file. Moreover do not dispose of the batteries in fire, explosion and/or intense burning
may result.
• Under extreme conditions, battery leakage may occur. When you notice liquid on the battery, proceed as follows:
• Carefully wipe the liquid off using a cloth. Avoid skin contact.
• In case of skin or eye contact, follow the instructions below:
1. Immediately rinse with water. Neutralize with a mild acid such as lemon juice or vinegar.
2. In case of eye contact, rinse abundantly with clean water for at least 10 minutes.
3. Consult a physician.
FIRE HAZARD! Avoid short-circuiting the contacts of a detached battery. Do not incinerate the battery.


6
NORDIC
CHARGERS
• Never attempt to charge non-rechargeable batteries.
• Have defective cords replaced immediately.
• Do not expose to water.
• Do not open the charger.
• Do not probe the charger.
• The charger is intended for indoor use only.
SYMBOLS
In this manual and/or on the machine the following symbols are used:
Denotes risk of personal injury or damage to the tool.
Read manual before use
Wear eye protection
Wear ear protection
Wear safety gloves
In accordance with essential requirements of the European directive(s)
Class II - The machine is double insulated; Earthing wire is therefore not necessary
(only for charger)
Ambient temperature 40°C max. (only for battery)
Do not expose charger and battery pack to water
Use battery and charger only in closed rooms

7
NORDIC

8
NORDIC

9
NORDIC

10
NORDIC

11
NORDIC

12
NORDIC

13
NORDIC

14
NORDIC
