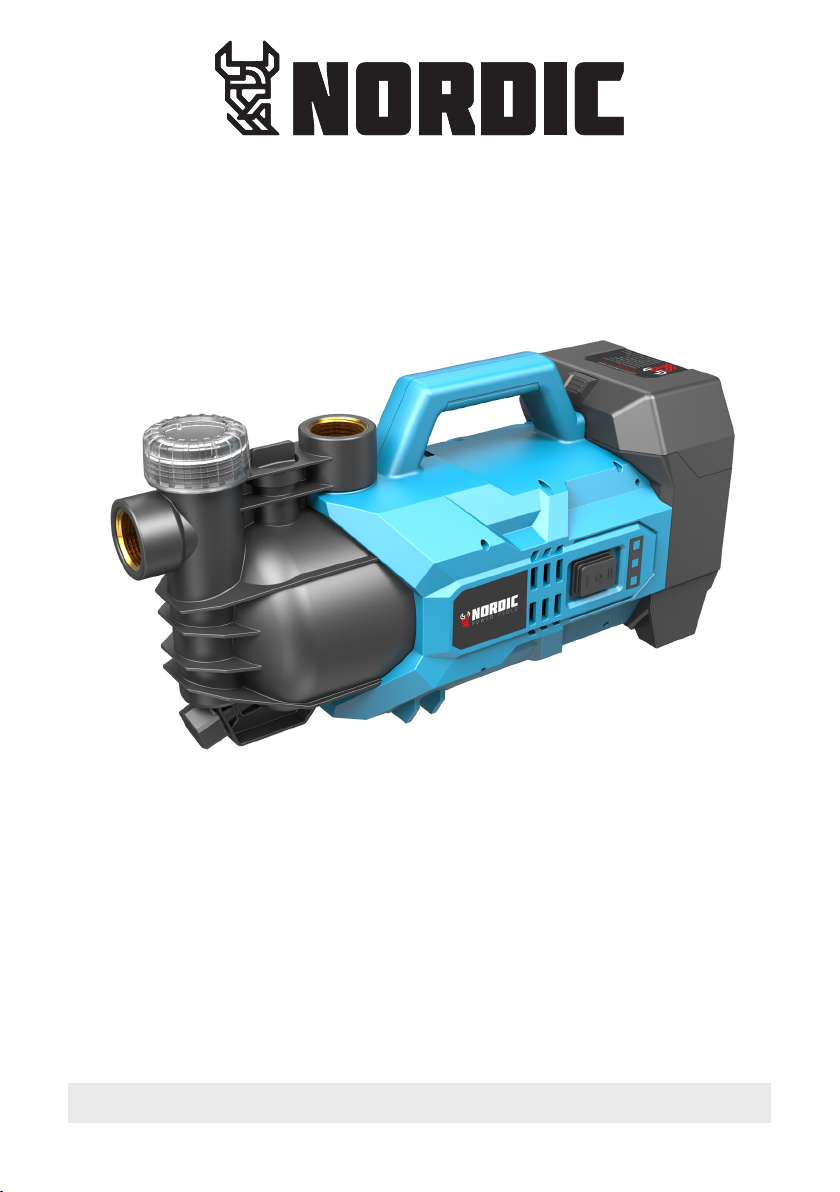

Nordic WP-L0118 User manual

OPERATING MANUAL
18V CORDLESS
WATER PUMP
WP-L0118

2
NORDIC
PRODUCT SPECIFICATION
Voltage: 18V (Li-ion Battery)
Water Proof Degree: IPX4
Max Temperature: 35°
Max Height: I: 22m, II: 15m
Running Time: I: 26mins, II: 35mins
GENERAL POWER TOOL SAFETY WARNINGS
Read all safety warnings and instructions. Failure to heed warnings and follow
instructions may result in electric shock, fire and/or serious injury.
Keep safety warnings and instructions for future reference.
The term “power tool” in the safety warnings refers to your mains operated
(corded) power tool or battery- operated (cordless) power tool.
2.1 WORKING AREA
• Keep working area clean and well lit. Untidy and dark areas can lead to accidents.
• Do not operate power tools in potentially explosive surroundings, for example, in the presence of inflammable liquids,
gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders at a distance when operating a power tool. Distractions can cause you to lose control of it.
2.2 ELECTRICAL SAFETY
• Always check that the power supply corresponds to the voltage on the rating plate.
• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use adapter plugs with earthed
power tools. Unmodified plugs and matching outlets will reduce the risk of an electric shock.
• Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and refrigerators. There is an
increased risk of an electric shock if your body is earthed.
• Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will increase the risk of an
electric shock.
• Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away
from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of an electric shock.
• When operating a power tool outdoors, use an extension cable suitable for outdoor use. Using a cord suitable for
outdoor use reduces the risk of an electric shock.
• If operating a power tool in a damp location is unavoidable, use a power supply protected by a residual current
device (RCD). Using an RCD reduces the risk of an electric shock.

3
NORDIC
2.3 PERSONAL SAFETY
• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool
when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating
a power tool may result in serious personal injury.
• Use safety equipment. Always wear eye protection. Using safety equipment such as a dust mask, non-skid safety
shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury.
• Avoid accidental starts. Ensure the switch is in the off position before inserting the plug. Carrying power tools with
your finger on the switch or plugging in power tools when the switch is in the on position makes accidents
more likely.
• Remove any adjusting keys or spanners before turning on the power tool. A spanner or key left attached to a
rotating part of the power tool may result in personal injury.
• Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable you retain control over the
power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewelery. Keep your hair, clothing and gloves away from the power
tool. Loose clothes, jewelery or long hair can become entangled in the moving parts..
• If there are devices for connecting dust extraction and collection facilities, please ensure that they are attached and
used correctly. Using such devices can reduce dust-related hazards.
2.4 POWER TOOL USE AND CARE
• Do not expect the power tool to do more than it can. Use the correct power tool for what you want to do. A power
tool will achieve better results and be safer if used in the context for which it was designed.
• Do not use the power tool if the switch cannot turn it on and off. A power tool with a broken switch is dangerous and
must be repaired.
• Disconnect the plug from the power source before making adjustments, changing accessories, or storing power
tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store power tools, when not in use, out of the reach of children and do not allow people who are not familiar with
the power tool or these instructions to operate it. Power tools are potentially dangerous in the hands of untrained
users.
• Maintain power tools. Check for misalignment or jammed moving parts, breakages or any other feature that might
affect the operation of the power tool. If it is damaged, the power tool must be repaired. Many accidents are caused
by using poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam
and are easier to control.
• Use the power tool, accessories and cutting tools, etc., in accordance with these instructions and in the manner
intended for the particular type of power tool, taking into account the working conditions and the work which needs
to be done. Using a power tool in ways for which it was not intended can lead to potentially hazardous situations.

4
NORDIC
2.5 SERVICE
Your power tool should be serviced by a qualified specialist using only standard spare parts. This will
ensure that it meets the required safety standards.
⦁2.6 WATER PUMP SAFETY WARNINGS
• This product is used for watering gardens, for operating lawn sprinklers and drawing water from ponds, rain barrels
etc.
• The product is intended for private use. (e.g. in the hobby garden). The product is not intended for the operation of
irrigation systems the trade industry or public areas.
• Use this product only with clean water. Never pump other liquids (e.g. salt water, gasoline, heating oil or food)
• The temperature of the water to be pumped may not exceed 35°
• For safety reasons you are not allowed to change or modify the product. If you use the product for purposes other
than those described above, the product can be damaged. In addition, improper use can cause hazards such as short
circuit, fire, electric shock, etc.
• Read the operating instructions carefully and keep them. Only pass the product onto third parties together with the
operating instructions.
• Children are not allowed to play with the device.
• The pump must not be used when people are in the water..
• The pump should not be operated by anyone with reduced physical, sensory or mental skills.
• Protect the product from extreme temperatures, strong vibrations, flammable gases, vapors and solvents.
• Before using the product make sure nothing is broken, not connected.
• Always remove the battery when finished using the product.
• The product is not suitable for pumping drinking water.
ADDITIONAL SAFETY INSTRUCTIONS
FOR BATTERIES AND CHARGERS
Use only batteries and chargers applicable for this machine.
4.1 BATTERIES
• Never attempt to open for any reason.
• Do not store in locations where the temperature may exceed 40 °C.
• Charge only at ambient temperatures between 4 °C and 40 °C.
• When disposing of batteries, follow the instructions given in the section “Protecting the environment”.
• Do not cause short circuits. If connection is made between the positive (+) and negative (-) terminal directly or via
accidental contact with metallic objects, the battery is short circuited and an intense current will flow causing heat
generation which may lead to casing rupture or fire.
• Do not heat. If batteries are heated to above 100 °C, sealing and insulating separators and other polymer components
may be damaged resulting in electrolyte leakage and/or internal short circuiting leading to heat generation causing
rupture or file. Moreover do not dispose of the batteries in fire, explosion and/or intense burning may result.

5
NORDIC
• Under extreme conditions, battery leakage may occur. When you notice liquid on the battery, proceed as follows:
• Carefully wipe the liquid off using a cloth. Avoid skin contact.
• In case of skin or eye contact, follow the instructions below:
1. Immediately rinse with water. Neutralize with a mild acid such as lemon juice or vinegar.
2. In case of eye contact, rinse abundantly with clean water for at least 10 minutes.
3. Consult a physician.
Fire hazard! Avoid short-circuiting the contacts of a detached battery. Do not incinerate the battery.
4.2 CHARGERS
• Never attempt to charge non-rechargeable batteries.
• Have defective cords replaced immediately.
• Do not expose to water.
• Do not open the charger.
• Do not probe the charger.
• The charger is intended for indoor use only.
INDICATOR LIGHTS
• 3 LEDs light up = 100% battery
• 2 LEDs light up = 60% battery
• 1 LED lights up = <30% battery
SWITCH MEANINGS
• I = Energy-saving operation (reduced power)
• O = Product switched off
• II = Normal operation

6
NORDIC
SYMBOLS
In this manual and/or on the machine the following symbols are used:
Denotes risk of personal injury or damage to the tool.
Read manual before use
Wear eye protection
Wear ear protection
Wear safety gloves
Wear respiratory protection
In accordance with essential requirements of the European directive(s)
Class II - The machine is double insulated; Earthing wire is therefore not necessary (only for
charger)
Ambient temperature 40°C max. (only for battery)
Do not expose charger and battery pack to water
Use battery and charger only in closed rooms
Do not incinerate battery pack or charger

7
NORDIC
9. CLEANING AND MAINTENANCE
Always disconnect the plug from the socket before carrying out any cleaning work.
9.1 CLEANING
• Keep all air gaps and engine housing clean as far as possible.
• Wipe the device with a clean cloth or blow it with compressed air.
• We recommend cleaning the device every time it’s done.
• Clean the device regularly with a damp cloth and a small amount of soap. Do not use detergents or solvents that can
damage the plastic parts of the device. Be careful that water does not get inside the device.
• After completing the work, empty the collecting container of air at level 0. Clean the air filter
9.2 MAINTENANCE
Our machines have been designed to operate over a long period of time with a minimum of maintenance.
Continuous satisfactory operation depends upon proper machine care and regular cleaning. Please charge
the battery regularly, for example, once every 6 months.
10. REPAIR
Only use accessories and spare parts recommended by the manufacturer.
If the device is damaged after a few days, despite our quality control and your maintenance, only an
authorized electrician can repair it.
11. ENVIRONMENT
Should your appliance need replacement after extended use, do not dispose of it with the household
refuse, but in an environmentally safe way.
Waste produced by electrical machine items should not be handled like normal household rubbish. Please
recycle where recycle facilities exist. Check you’re your Local Authority or retailer for recycling advice.

8
NORDIC

9
NORDIC
PREPARATION FOR OPERATION
We recommend the use of a pre-filter and suction equipment consisting of a suction hose, a suction
strainer and a non-return valve. This will prevent damage to the pump from stones and other solid foreign
objects.
A) GENERAL INFORMATION
The water to be pumped must be clean and clear. Only fine suspended matter is admissible, which may
occur in every normal garden pond. Coarser impurities (leaves, dirt, pebbles etc) clog the suction port of
block the pump.
B) SUCTION PORT
Screw a suction hose onto the suction port. if necessary, seal the screw connection with sealing tape.
The suction hose should feature a suction valve. If the suction valve cannot be used, a non-return valve
should be installed.
Lay the suction hose so that it inclines upwards from the water intake point towards the product. The
suction hose should not lie higher than the product, otherwise air bubbles will form, which will make it
difficult to pump the water.
Make sure that the suction valve of the suction hose is deep enough in the water intake point (at least
10cm below the water surface) so that the product does not run dry when the water level drops.
Make sure that the suction port is completely sealed. Otherwise air is drawn in instead of water.
C) PRESSURE PORT
The pressure hose should be able to withstand the maximum discharge rate of the pump.
If you want to use a pressure hose featuring a quick-release connector, screw the hose adapter into the
pressure port.
Connect a pressure hose to the pressure port.
Open existing locking mechanisms (e.g. spray nozzles, valves) This allows the air present in the suction
line to escape.

10
NORDIC
REMOVAL FROM SERVICE
Should the product be taken out of service (e.g. for cleaning, maintenance or storage for winter), then
proceed as follows:
• Remove the battery from the product.
• Disconnect the hoses from the product and dry them.
• Let the remaining water drain out of the product through the water outlet opening.
• Dry up the product. If required, clean the housing.
• During winter, keep the product in a dry space protected against frost.
CARE AND CLEANING
• The product is maintenance-free. There are no servicable parts inside the product.
• If the product has not been operated for a long period of time, make sure that the drive impeller is
running properly. To do this, switch the product on briefly and then off again immediately.
• If the pump is blocked, connect a water hose to the pressure port and remove the cap at the suction
port. Turn on the faucet and switch on the product several times for about 2 seconds. This will clear
blockages in most cases.
• Remove the battery from the product before each cleaning.
• Do no use any aggressive cleaning agents, rubbing alcohol or other chemical solutions as they can
cause damage to the housing and malfunctioning.
• Use a soft clean cloth to clean the outer surface of the product. If necessary, you can use a damp cloth
and a mild cleaning agent.
OPERATION (SWITCHING THE PRODUCT ON/OFF)
• Place the product on a flat, firm surface.
• Fill the product with water through the water filler openings. This accelerates the suction process.
• Switch the product on with the on/off switch. The product immediately starts up and starts pumping
water
• Switch off the product after operation.

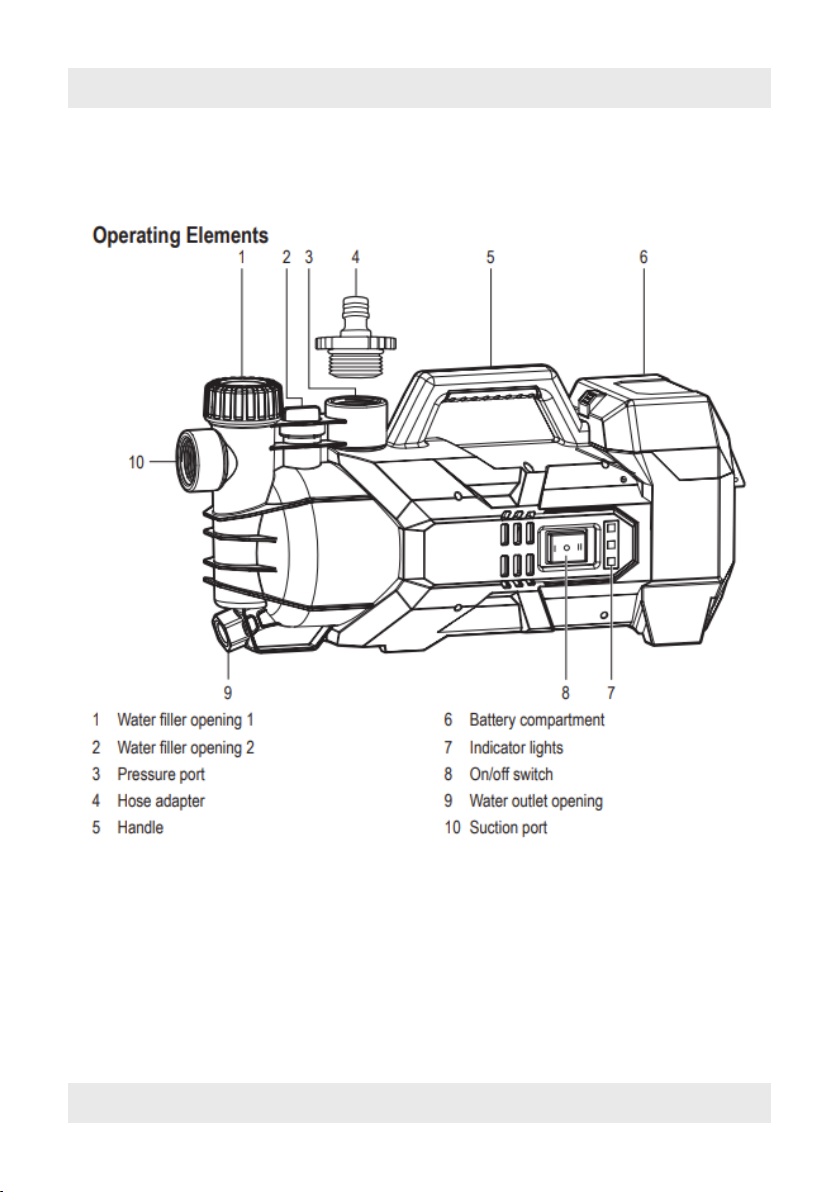

• If you want to use the product again at another time, fill the product again with water through the
water filler openings.
