Brinsea AD24 User manual

AD24 US Issue 01
Advance Humidity Pump
with Octagon 20 Advance EX Upgrade
User Instructions
Contents
Section Subject Page
1 Introduction 2
2 Unpacking 3
3 Humidity Pump Installation 3
4 Egg Basket and Divider Cushions 6
5 Operation 6
6 Routine Maintenance 8
7 Troubleshooting 8
8 Service and Calibration 9
9 Specifications 9
1

AD24 US Issue 01
1 Introduction
These instructions detail the installation and operation of your new Brinsea Advance Humidity Pump. Please read them
carefully before setting up your machine to achieve best results and keep these instructions safe for future reference. Used
in conjunction with the Octagon 20 Advance, the Advance Humidity Pump offers convenient and refined control of
incubation humidity.
The Octagon 20 Advance EX Upgrade kit provides extra egg basket dividers and egg cushioning foam.
FEATURES:-
•Continuous, permanent metering of relative humidity (%RH)
•Proportional control easily set on incubator
•Sensor unit with high accuracy capacitive sensor
•Pumped water flow - not level dependent
PRINCIPLE OF OPERATION
The sophisticated capacitive sensor (fitted as standard to all Brinsea Advance Incubators) provides a highly accurate
measurement of the relative humidity level within the incubator. The Advance Digital Control System displays this %
Relative Humidity (RH) level on the LCD display.
The incubator control system provides a signal to the Advance Humidity Pump to operate a tiny water pump which
transfers exactly the amount of water required into the incubator to maintain the required relative humidity which is set by
the user. The control system compensates for changes in ambient relative humidity level and, within working limits, will
maintain a constant relative humidity level.
Water pump
roto
r
Water tube
Signal lead
Water
filling hole
with bung
Clear water
tan
k
2

AD24 US Issue 01
2 Unpacking
The Brinsea Advance Humidity Pump with Octagon 20 EX Upgrade Kit comprises:
1 Advance Humidity Pump unit - free standing unit with water pump and signal lead to connect to Brinsea
Advance incubator.
1 Clear Water Tank - 1 Quart (litre) capacity, larger containers may also be used where required.
1 Rubber Bung – to cover water filler hole.
1 Water tube (8 feet) - silicone rubber tube for interconnecting and for peristaltic pump replacement.
2 Sheets of Evaporating Pad (letter size approx) - to be cut to suit.
2 Evaporating Pad Clips – to fit pad to incubator.
1 Rigid Plastic Tube – to pipe water into the incubator to the evaporating pad.
2 Extra Wire Dividers for Octagon 20 Advance Incubator.
8 Foam Cushions – for wire dividers.
1 Foam Cushion Pad – for lining the egg basket.
2.1 Remove all tape and packing from the module and parts. Retain the carton and packing materials to enable the unit
to be repacked. Please take care not to discard the pack of heavy white evaporating pad paper.
2.2 Identify each part and check that they are all present and undamaged. If there are any parts damaged or missing
please contact your dealer or Brinsea Products (at the address at the end of the document).
2.3 Complete and return your guarantee card to register for the free two year guarantee covering your incubator.
2.4 Go to www.Brinsea.com and register as a free member of the Brinsea User Group (BUG) to receive the latest news
and information such as advance notice about new products, special offers, exclusive competitions and much more.
3 Humidity Pump Installation
3.1 Disconnect the Octagon 20 Advance incubator from the mains supply if already in use.
3.2 Unscrew the Cable Cover.

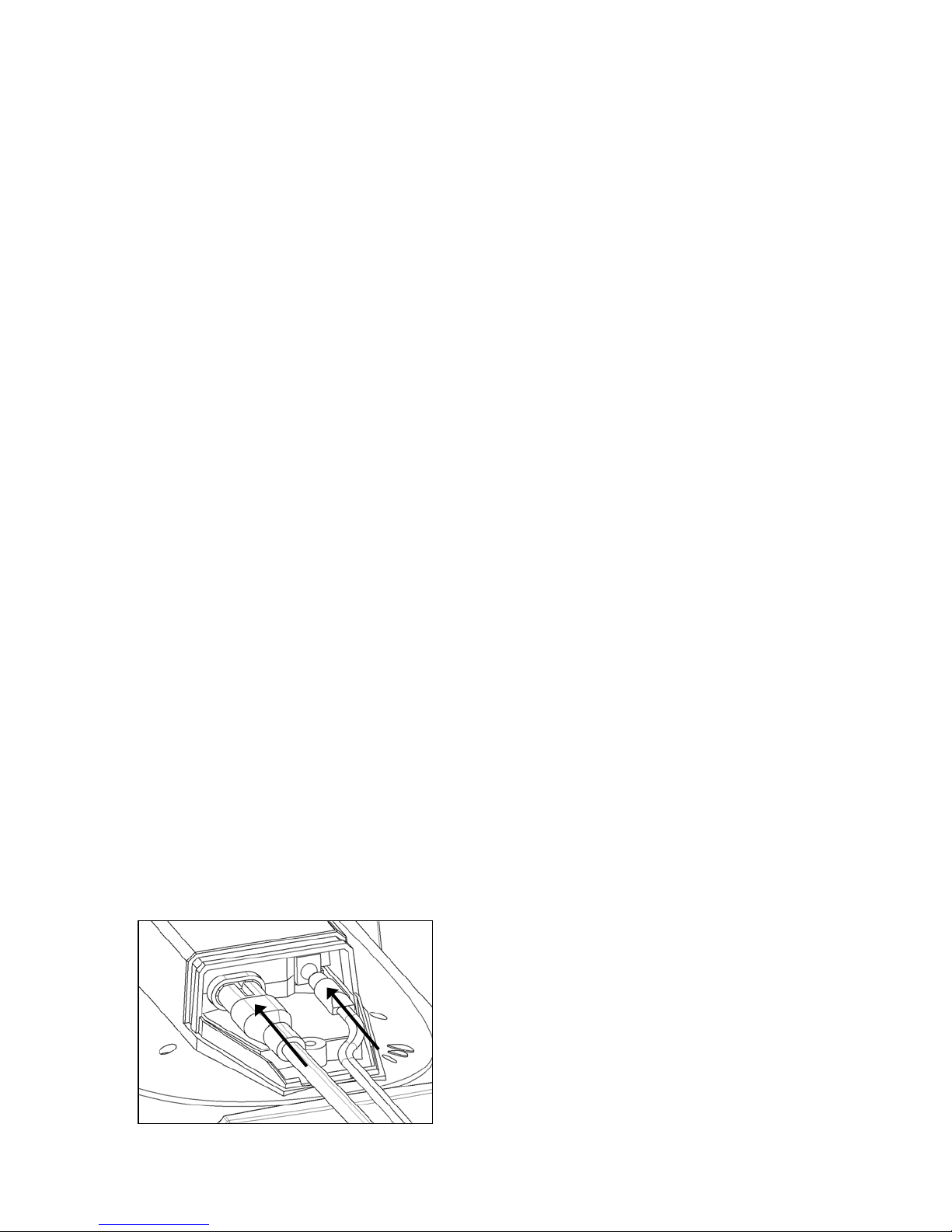

3.3 Fully insert the signal cable plug into the jack outlet in the top of the incubator. Insert incubator power lead if this is
the incubator’s first use.
3

AD24 US Issue 01
3.4 Fit the Cable Cover and tighten the screw. Do not operate the incubator without the Cable Cover in place. Ensure
the cable is not crushed or pinched when the cover is fitted. The cover is designed to prevent splashes of water
reaching the electrical sockets and it clamps the cables to prevent the connectors coming loose.
3.5 Cut a suitable length of silicone tube to go between the incubator and the Humidity Pump (approximately 500mm /
20”).
3.6 Fit the rigid plastic tube into one end of the silicone tube by 12mm / ½”.
3.7 Pass the other end of the rigid plastic tube through the hole in the incubator top and down through the hole in the fan
guard.
4

AD24 US Issue 01
3.8 The Advance Humidity Pump is supplied with a length of silicone tube fitted around the pump rotor. This length will
wear and need periodic replacement. It can also become flattened if left unused for some time because the inside
walls of the tube will stick to each other around the rotor and prevent water passing through. This can happen from
new if the unit has been stored for a time. Either replace this length of tube with a new 140mm (5 ½”) length or
remove it and roll it between finger and thumb to ‘un-stick’ it.
3.9 Cut a 190mm (7 ½”) length of silicone tube and fit to the pump inlet hose nipple (at the right end of the pump). Pass
this tube through the hole in the yellow moulding down into the water tank. Allow a loop as shown to prevent kinks.
3.10 Fit the silicone tube from the incubator to the outlet hose nipple.
Outlet Hose Nipple
To incubator
140mm long
Inlet Hose Nipple
190mm long
3.11 Cut a 70mm (2 ½”) x 200mm (8”) strip of evaporating card and fold lengthways into a V shape.
3.12 Place over the card guides and then secure with the two yellow pad clips. These should be gently squeezed and fitted
into the retaining slots in the fan guard as shown:-
4 Cli
p
Slots
Card Guides
5

AD24 US Issue 01
4 Egg Basket and Divider Cushions
4.1 Place the flat sheet of foam cushion in the bottom of the egg basket.
4.2 Fit the divider cushion strips inside each wire divider as shown:-
4.3 The dividers may be spaced so that eggs roll slightly between the cushions as the cradle turns the incubator. This
may be useful to increase egg turning angle.
5 Operation
The scope of these instructions is limited solely to the humidity control system of Brinsea Octagon Advance Incubators.
Please read the user instructions supplied with the incubator itself for full details of all aspects of operating the incubator.
5.1 Fill the water tank to no higher than the bottom of the yellow moulding with clean water and fit the rubber bung in
the filler hole.
5.2 Read the operating instructions supplied with the Octagon 20 Advance Incubator for full details of how to set up and
operate the incubator. Set the vent to its mid position. Refer to the “Main Menu Quick Reference” on page 3.
5.3 Open the main menu by pressing the – and + buttons simultaneously.
Press the + button once to move to the RH% option.
TEMP
OK ÅÆ
RH%
OK ÅÆ
Press OK to select.
RH 20%
EX ONLY
The – and + buttons may now be used to select the desired Set Humidity Level.
RH 45%
EX ONLY
Once correct press OK. Scroll to the Save option using the + button and press OK to save the new humidity setting.
SAVE
OK ÅÆ6

AD24 US Issue 01
5.4 If the humidity level in the incubator is lower than the Set Humidity Level the pump will start to turn and gradually
draw water from the tank and pump it to the evaporating card in the incubator. This may take approximately one
hour to stabilise after which the pump will run intermittently as the humidity level is controlled.
5.5 The humidity level may fluctuate slightly about the Set Humidity Level by 1 or 2 %. This is quite normal. Note that
the humidity control system can only increase the humidity level, not reduce it.
5.6 Guidelines for incubation humidity levels: RH
During incubation: Poultry 40-50%
Waterfowl 45-55%
Ratites 20-35%
Parrots 35-45%
MostBirdsofPrey 40-45%
(Thin shelled - Merlins, Kestrels, Owls) 50%
Hatching All species 65% RH or more
For more specific information on particular species’ requirements check the relevant literature.
5.7 To determine the correct humidity level for any given species either consult available literature (a range of bird
keeping and breeding books is available from Brinsea Products at the address below) or experiment with different
humidity levels and record which proved most successful or weigh eggs during incubation. Eggs loose moisture
through their shells and the rate of evaporation depends on the humidity levels around the eggs. During incubation
eggs need to loose a fixed amount of water which corresponds to a loss in weight of around 13-16% depending on
species. By weighing eggs periodically during incubation it is possible to monitor and, if necessary, correct humidity
levels to achieve the correct weight loss.
Weigh the eggs on the day they are set in the incubator, take the average weight and plot this on a graph (see
example below). The ideal weight loss line can be plotted by joining the point representing initial average weight
with the ideal hatch weight (13-16% less depending on species) with the x-axis representing the incubation period
(in days).
By measuring actual average weights every few days the actual weight loss can be plotted and compared to the ideal
weight loss line and corrections can be made. For example if the actual weight loss was greater than ideal (see graph
below) then the air has been too dry and humidity levels need to be increased to compensate.
Typical ideal weight losses for species groups: Poultry 13%
Waterfowl 14%
Birdsofprey18%
Ratites 15%
Parrots 16%
Egg weight loss chart
50
55
60
65
70
2581114 1720
Incubation period (days)
Average egg weight
(grams)
Ideal weight (grams)
Measured weight
(grams)
7

AD24 US Issue 01
6 Routine Maintenance
6.1 Changing the pump tube:-
The peristaltic pump will need to have its tube replaced about every 3 months. Cut a length of tube to about 140mm.
Remove the connectors and pull off the old tube. Replace with the new tube, avoiding twists. Use the diagram on the
product label to thread the tube exactly as shown over the pump head. The tension must be sufficient to ensure
complete occlusion of the tube without unnecessary flattening between the pump rollers. Adjust tube length as
necessary. Ensure that the tube does not stick together if left for long periods by unhooking it during storage.
6.2 Changing the evaporating pad:-
Change the pad as necessary to maintain good evaporating efficiency. If chicks are to be hatched in the incubator,
change the pad after each hatch to avoid bacterial contamination.
6.3 No lubrication or further servicing is required beyond the instructions above.
7 Troubleshooting
The control system may be set to control between 20 and 80% RH. In practice the minimum and maximum levels of
humidity achievable in an incubator depend upon several factors, particularly the fresh air ventilation rate. You may need to
allow 24 hours for humidity to stabilise after making changes.
If you cannot get the level of RH you want, consider these notes:
7.1 Humidity will not go low enough:-
First increase the fresh air ventilation level. This will help to dilute the moisture given up by the eggs. There will still
remain a lower limit determined by the moisture content of the ambient air, particularly in warm humid conditions.
This can only be countered by dehumidification of the room air outside the incubator with proprietary dehumidifier
but is rarely a problem in practice except with ratites.
7.2 Humidity will not go high enough:-
Restrict fresh air ventilation to the minimum safe level. Remember embryos need to breathe! Increase evaporating
pad area. If the pad is too small, you may have a flood in your incubator.
Check that water is reaching the incubator when the pump runs – if not check the whole length of the tubing for
kinks and check that the tubing around the pump has not become permanently flattened. If it has, replace the pump
tube. Silicone tubing is very flexible but can be damaged by sharp finger nails. A tiny perforation on the suction side
of the pump will let in air and prevent the pump drawing water.
8

AD24 US Issue 01
9
8 Servicing and Calibration
8.1 In case of failure first check the signal cable is securely connected to the incubator.
8.2 The pump motor will only operate when an asterisk “*” is shown next to the RH% display on the incubator. If this is
not shown check the Set Humidity Level referring to section 5. The asterisk and pump output are only on when the
measured humidity is lower than the Set Humidity Level. The pump output is switched on intermittently once the
measured humidity is within 6% of the Set Humidity Level.
8.3 The pump motor is easily replaced if necessary using basic tools. Instructions are supplied.
8.4 The digital humidity sensor is individually calibrated during manufacture but may be re-calibrated if required. To
ensure optimal performance return the incubator to Brinsea Products Service dept. for re-calibration every two years.
It is not recommended that this procedure is carried out by the user.
BE CAUTIOUS OF LOW COST ANALOGUE OR DIGITAL HYGROMETERS. BRINSEA PRODUCTS USES
SOPHISTICATED EQUIPMENT TRACEABLE TO INTERNATIONAL REFERENCE STANDARDS.
Refer to the incubator instructions for details on calibration technique.
8.5 Spare evaporating cards and silicone tube are available from Brinsea Products at the address below.
9 Specification
Sensor: Sensor accuracy +/- 3%. Hysteresis 0% R.H
Response time less than 4 seconds
Water Transfer: In-built peristaltic pump
Maximum water flow rate 30g/hour
Tank Capacity: 1L
Control setting and metering: Indicated in % RH (linear)
Dimensions: 15cm x 12.5cm x 14cm (W x D x H)
Weight (dry): 0.6 Kg
