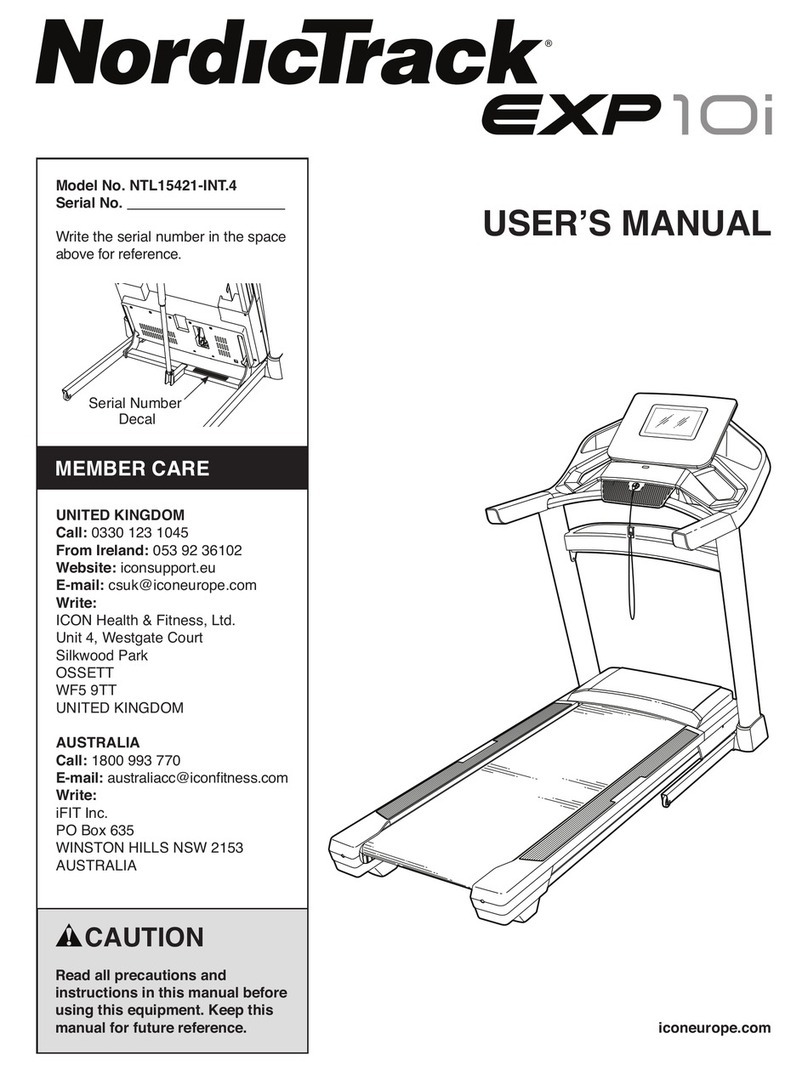

NordicTrack NTL15421-INT.2 User manual

Serial Number
Decal
Model No. NTL15421-INT.2
Serial No.
Write the serial number in the space
above for reference.
USER’S MANUAL
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
CUSTOMER SERVICE
UNITED KINGDOM
Call: 0330 123 1045
From Ireland: 053 92 36102
Website: iconsupport.eu
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: [email protected]
Write:
ICON Health & Fitness, Inc.
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA
iconeurope.com

2
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO USE THE TREADMILL ..............................................................17
HOW TO FOLD AND MOVE THE TREADMILL ...................................................29
MAINTENANCE AND TROUBLESHOOTING.....................................................30
EXERCISE GUIDELINES ....................................................................33
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
RECYCLING INFORMATION ......................................................... Back Cover
This drawing shows the locations of the warning
decals. If a decal is missing or illegible, call
the telephone number on the front cover of
this manual and request a free replacement
decal. Apply the decal in the location shown.
Note: The decals may not be shown at actual size.
WARNING DECAL PLACEMENT
305284
TABLE OF CONTENTS
NORDICTRACK and IFIT are registered trademarks of ICON Health & Fitness, Inc. Wi-Fi is a registered trade-
mark of Wi-Fi Alliance. WPA and WPA2 are trademarks of Wi-Fi Alliance. The Bluetooth®word mark and logos
are registered trademarks of Bluetooth SIG, Inc. and are used under license. Google Play and Google Maps are
trademarks of Google LLC.

3
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. The treadmill is not intended for use by
persons with reduced physical, sensory,
or mental capabilities or lack of experience
and knowledge unless they have been given
supervision or instruction concerning use
of the treadmill by someone responsible for
their safety.
4. Use the treadmill only as described in this
manual.
5. The treadmill is intended for home use only.
Do not use the treadmill in any commercial,
rental, or institutional setting.
6. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
7. Place the treadmill on a level surface, with
at least 8 ft. (2.4 m) of clearance behind it
and 2 ft. (0.6 m) on each side. Do not place
the treadmill on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
8. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
9. Keep children under age 16 and pets away
from the treadmill at all times.
10. The treadmill should be used only by per-
sons weighing 300 lbs. (136 kg) or less.
11. Never allow more than one person on the
treadmill at a time.
12. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recom-
mended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
13. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recom-
mended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
14. When connecting the power cord (see
page 17), plug the power cord into an earthed
circuit. No other appliance should be on the
same circuit. When replacing the fuse in the
power cord adapter, insert an ASTA-approved
BS1362, 13-amp fuse into the fuse carrier.
15. If an extension cord is needed, use only a
3-conductor, 14-gauge (2 mm2) cord that is
no longer than 5 ft. (1.5 m).
16. Keep the power cord away from heated
surfaces.
17. Never move the walking belt while the power
is turned off. Do not operate the treadmill
if the power cord or plug is damaged, or if
the treadmill is not working properly. (See
MAINTENANCE AND TROUBLESHOOTING
on page 30 if the treadmill is not working
properly.)
18. Read, understand, and test the emergency
stop procedure before using the treadmill
(see HOW TO TURN ON THE POWER on
page 19). Always wear the clip while using the
treadmill.
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your treadmill before
using your treadmill. ICON assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
IMPORTANT PRECAUTIONS

4
19. Always stand on the foot rails when starting
or stopping the walking belt. Always hold the
handrails while using the treadmill.
20. When a person is walking on the treadmill,
the noise level of the treadmill will increase.
21. Keep fingers, hair, and clothing away from
the moving walking belt.
22. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
23. Never leave the treadmill unattended while
it is running. Always remove the key, press
the power switch into the off position (see
the drawing on page 5 for the location of the
power switch), and unplug the power cord
when the treadmill is not in use.
24. Do not attempt to move the treadmill until
it is properly assembled. (See ASSEMBLY
on page 7 and HOW TO FOLD AND MOVE
THE TREADMILL on page 29.) You must be
able to safely lift 45 lbs. (20 kg) to move the
treadmill.
25. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position. Do
not operate the treadmill while it is folded.
26. Do not change the incline of the treadmill by
placing objects under the treadmill.
27. Never insert any object into any opening on
the treadmill.
28. Inspect and properly tighten all parts each
time the treadmill is used.
29. DANGER: Always unplug the power
cord immediately after use, before clean-
ing the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized ser-
vice representative only.
30. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
31. IMPORTANT: To satisfy exposure compliance
requirements, the antenna and transmit-
ter in the console must be at least 8 in.
(20 cm) from all persons and must not be
near or connected to any other antenna or
transmitter.
SAVE THESE INSTRUCTIONS

5
Thank you for selecting the revolutionary
NORDICTRACK®EXP 10I treadmill. The EXP 10I
treadmill offers an impressive selection of features
designed to make your workouts at home more effec-
tive and enjoyable. And when you’re not exercising, the
unique treadmill can be folded up, requiring less than
half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, please note the product
model number and serial number before contacting us.
The model number and the location of the serial num-
ber decal are shown on the front cover of this manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
BEFORE YOU BEGIN
Handrail
Length: 5 ft. 11 in. (180 cm)
Width: 3 ft. 3 in. (99 cm)
Weight: 209 lbs. (95 kg)
Upright
Tray
Tray
Key/Clip
Power Switch
Walking Belt
Platform Cushion
Foot Rail
Idler Roller Screws
Console

6
PART IDENTIFICATION CHART
Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is
preattached. Extra parts may be included.
3/8" Star
Washer (10)–8
5/16" Star
Washer (12)–6
#10 x 3/4"
Screw (4)–4
5/16" x 2 1/2" Screw (8)–4
#8 x 3/4"
Screw (3)–8
3/8" x 1 3/4" Screw (6)–2
3/8" x 2 3/8" Screw (5)–4
3/8" x 1 1/4"
Screw (7)–2
M4 x 13mm
Screw (1)–1
#8 x 1/2"
Screw (2)–6
#8 x 3/8"
Screw (34)–8
#10 Star
Washer (11)–4
1/4" Star
Washer (37)–4

7
ASSEMBLY
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• After shipping, there may be an oily substance
on the exterior of the treadmill. This is normal. If
there is an oily substance on the treadmill, wipe
it off with a soft cloth and a mild, non-abrasive
cleaner.
• To identify small parts, see page 7.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• Assembly requires the following tools:
the included hex key
one adjustable wrench
one Phillips screwdriver
To avoid damaging parts, do not use power tools.
1
1. To register your product and activate your
warranty in the UK, go to iconsupport.eu. If
you do not have internet access, call Customer
Service (see the front cover of this manual).
To register your product and activate your
warranty in Australia, email or post the
following information to the email address or
postal address on the front cover of this manual.
• your receipt (make sure to keep a copy)
• your name, address, and telephone number
• the model number, serial number, and name
of your product (see the front cover of this
manual)

8
3. Lay the Right Upright (84) near the Base (98).
Press the Upright Grommet (91) into the square
hole (B) in the Right Upright. Make sure not to
pinch the ground wire (C).
If there is a screw (D) pre-attached to the Right
Upright (84), remove and discard it.
Then, attach the ground wire (C) to the Right
Upright (84) with an M4 x 13mm Screw (1).
98
84
1
91
C
D
3
84
A
2
90
2. Make sure that the power cord is unplugged.
Remove the tie securing the Upright Wire (90) to
the front of the Base (98).
Next, identify the Right Upright (84). Have a
second person hold the Right Upright near the
Base (98).
See the inset drawing. Tie the wire tie (A) in
the Right Upright (84) securely around the end
of the Upright Wire (90). Then, insert the Upright
Wire into the lower end of the Right Upright, and
pull the other end of the wire tie, until the Upright
Wire is routed through the Right Upright.
98
90
84
90
A
B

9
4
7
6
99
98
10
10
84
5
10
90
4. Hold the Right Upright (84) against the Base
(98). Make sure not to pinch the Upright
Wire (90).
Attach the Right Upright (84) and a Wheel (99)
with two 3/8" x 2 3/8" Screws (5), a 3/8" x 1 1/4"
Screw (7), a 3/8" x 1 3/4" Screw (6), and four
3/8" Star Washers (10) as shown; do not fully
tighten the Screws yet.
Attach the Left Upright (not shown) and the
other Wheel (not shown) in the same way.
Note: There are no wires on the left side.
5. Remove and save the four 5/16" x 3/4"
Screws (9).
Identify the Left and Right Base Covers (94, 93).
Slide the Left Base Cover onto the Left Upright
(83), and slide the Right Base Cover onto the
Right Upright (84); do not press the Base
Covers into place yet.
94
84
93
5
83
9
9

10
6. Attach the Left and Right Handrails (81, 82) to
the Left and Right Uprights (83, 84) with four
5/16" x 2 1/2" Screws (8) and four 5/16" Star
Washers (12); do not fully tighten the Screws
yet. Be careful not to pinch the Upright Wire
(90) on the right side. Position the Upright
Wire in the notch (E) as shown.
Then, remove and discard the four indicated
screws (F).
F
F
E
84
90
81
12
12
6
8
8
83
82
7. Set the console assembly (G) face down on
a soft surface to avoid scratching the console
assembly. Remove and save the four 1/4" x
1/2" Screws (21).
Next, identify the Left and Right Trays (102, 103).
Attach the Trays to the console assembly (G)
with eight #8 x 3/8" Screws (34); do not over-
tighten the Screws. G
7
34
21
21
103
102
34
34

11
9. With the help of a second person, hold the con-
sole assembly (G) near the Right Handrail (82).
Connect the Upright Wire (90) to the console
wire (I). The connectors should slide together
easily and snap into place with an audible
click. If they do not, turn one connector and
try again.
Then, remove the wire tie (A) from the Upright
Wire (90).
90
G
I
A
9
82
8. IMPORTANT: To avoid damaging the Crossbar
(87), do not use power tools, and do not over-
tighten the #10 x 3/4" Screws (4).
Orient the Crossbar (87) as shown. Attach the
Crossbar to the Handrails (81, 82) with four
#10 x 3/4" Screws (4) and four #10 Star Washers
(11); start all four Screws, and then tighten
them.
Then, tighten the four 5/16" x 2 1/2"
Screws (8).
87
8
11
4
8
8
81 11
4
82

12
11. Start two #8 x 1/2" Screws (2) into the Crossbar
(87), and then tighten them; do not overtighten
the Screws.
11
2
87
10. Attach the console assembly (G) to the
Handrails (81, 82) with four 1/4" x 1/2" Screws
(21) that you removed in step 7 and four 1/4"
Star Washers (37); start all four Screws, and
then tighten them. Be careful not to pinch the
wires (I).
Insert any excess wire (I) into the top of the Right
Upright (84).
10
21
37
G
37
21
82
81
I
84

13
12. Align the Right Top Handrail Cover (78) with the
Crossbar (87) and with the holes (J) in the Right
Handrail (82). Then, press the Right Top Handrail
Cover downward onto the Right Handrail. The
front of the Right Top Handrail Cover should flex
around the Console Base (101) and snap into
place around the Crossbar.
Next, start four #8 x 3/4" Screws (3) into the
Right Bottom Handrail Cover (80), the Right
Handrail (82), and the Right Top Handrail Cover
(78). Next, slide the Right Top and Bottom
Handrail Covers forward against the Console
Base (101) as shown. Then, tighten the four
Screws.
Attach the Left Top and Bottom Handrail
Covers (77, 79) to the Left Handrail (81) as
described above.
3
3
3
3
12
80
82
79
81
87
J
78
77
101
13. Carefully slide the Upright Crossbar (89)
between the Right and Left Uprights (84, 83).
Attach the Upright Crossbar with the four 5/16" x
3/4" Screws (9) that you removed in step 5; start
all four Screws, and then tighten them.
13
83
9
89
84
9

14
14. Attach the Tray (88) to the Upright Crossbar
(89) with four #8 x 1/2" Screws (2); start all four
Screws, and then tighten them. Do not over-
tighten the Screws.
14
2
89
2
88
15
15. Note: If the treadmill is assembled on a
smooth surface, it may roll forward during
this step.
Remove the two 5/16" x 3/4" Screws (9) from the
Latch Crossbar (55).
Raise the Frame (59) to the upright position.
Have a second person hold the Frame until
step 17 is completed.
Orient the Latch Crossbar (55) as shown. Make
sure that the “This side toward belt” sticker
(K) is facing the treadmill. Attach the Latch
Crossbar to the brackets (L) on the Frame (59)
with the two 5/16" x 3/4" Screws (9) that you just
removed and two 5/16" Star Washers (12).
59
55 K
L
L
9
9
12
12

15
98
58
26
36
16
16. Remove the 5/16" Nut (36) and the 5/16" x 1 3/4"
Bolt (26) from the bracket on the Base (98).
Next, orient the Storage Latch (58) as shown.
Attach the lower end of the Storage Latch
(58) to the bracket on the Base (98) with the
5/16" x 1 3/4" Bolt (26) and the 5/16" Nut (36) as
shown.
Then, raise the Storage Latch (58) to a vertical
position, and remove the tie (M).
M
55
27
59
36
58
17
17. Remove the 5/16" Nut (36) and the 5/16" x 2 1/4"
Bolt (27) from the bracket on the Latch Crossbar
(55).
Align the upper end of the Storage Latch (58)
with the bracket on the Latch Crossbar (55), and
insert the 5/16" x 2 1/4" Bolt (27) through the
bracket and the Storage Latch. This will push a
spacer (N) out of the Storage Latch; discard
the spacer.
Next, tighten the 5/16" Nut (36) onto the 5/16"
x 2 1/4" Bolt (27); do not overtighten the Nut;
the Storage Latch (58) must be able to pivot.
Then, lower the Frame (59) (see HOW TO
LOWER THE TREADMILL FOR USE on
page 29).
N

16
19. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the oor or carpet, place a mat under the treadmill. To
avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included hex keys in a secure
place; one of the hex keys is used to adjust the walking belt (see page 32). Note: Extra parts may be included.
18. Firmly tighten the four 3/8" x 2 3/8" Screws
(5) and the two 3/8" x 1 1/4" Screws (7).
Next, tighten the two 3/8" x 1 3/4" Screws (6);
make sure that the Wheels (99) turn freely.
Next, set the Left Inner Base Cover (96) onto the
lower end of the Left Upright (83). Slide the Left
Base Cover (94) downward and press it onto the
Left Inner Base Cover.
Then, set the Right Inner Base Cover (95) onto
the lower end of the Right Upright (84). Slide the
Right Base Cover (93) downward and press it
onto the Right Inner Base Cover.
96
93
94
6
83
5
5
76
95
7
18
84 99
99

17
HOW TO USE THE TREADMILL
HOW TO PLUG IN THE POWER CORD
This product must be earthed. If it should malfunc-
tion or break down, earthing provides a path of least
resistance for electric current to reduce the risk of
electric shock. This product’s power cord has an
equipment-earthing conductor and an earthing plug.
IMPORTANT: If the power cord is damaged, it must
be replaced with a manufacturer-recommended
power cord.
Follow the steps below to plug in the power cord.
1. Plug the indicated end of the power cord (A) into the
socket (B) on the treadmill.
2. Plug the other end of the power cord (A) into an
appropriate outlet (C) that is properly installed and
earthed in accordance with all local codes and
ordinances.
IT
FR/SP
UK
GR
RU
HU
BA
IT
FR/SP
UK
GR
RU
HU
UK
Dubai
DU
GR
RU
HU
CZ
TR
RO
BU
UKR
SW
FR/
SP/
PL/
SK
IT
AUS
AUS
TYPE E
TYPE F
UK Australia
A
C
A
C

18
FEATURES OF THE CONSOLE
The advanced treadmill console offers a selection of
features designed to make your workouts more effec-
tive and enjoyable.
The console features wireless technology that enables
the console to connect to iFit. With iFit, you can access
a large and varied workout library, create your own
workouts, track your workout results, and access many
other features.
When you use the manual mode, you can change the
speed and incline of the treadmill with the touch of a
button. As you exercise, the console will display instant
exercise feedback. You can even measure your heart
rate using a compatible heart rate monitor. See page
28 for information about purchasing an optional
heart rate monitor.
You can also listen to your favorite workout music or
audio books with the console’s sound system while you
exercise.
To turn on the power, see page 19. To learn how to
use the touch screen, see page 19. To set up the
console, see page 20.
ETNT15421-INTV1
CONSOLE DIAGRAM

19
HOW TO TURN ON THE POWER
IMPORTANT: If the treadmill has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you turn on the power. If you do
not do this, you may damage the console displays
or other electrical components.
Plug in the power cord (see
page 17). Next, locate the
power switch on the tread-
mill frame near the power
cord. Press the power switch
into the reset position (D).
Next, stand on
the foot rails of
the treadmill.
Locate the clip (E)
attached to the
key (F), and slide
the clip securely
onto the waistband
of your clothes.
Then, insert the key
into the console.
Note: It may take
some time for the
console to be ready for use. IMPORTANT: In an
emergency, the key can be pulled from the console,
causing the walking belt to slow to a stop. Test the
clip by carefully taking a few steps backward; if the
key is not pulled from the console, adjust the posi-
tion of the clip.
Note: The console can display speed and distance
in either miles or kilometers. To find which unit of
measurement is selected, see HOW TO CHANGE
CONSOLE SETTINGS on page 25.
HOW TO USE THE TOUCH SCREEN
The console features a tablet with a full-color touch
screen. The following information will help you become
familiar with the tablet’s advanced technology:
• The console functions similarly to other tablets.
You can slide or flick your finger against the screen
to move certain images on the screen, such as
the displays in a workout (see step 5 on page 21).
However, you cannot zoom in and out by sliding your
fingers on the screen.
• The screen is not pressure sensitive. You do not
need to press hard on the screen.
• To type information into a text box, touch the text
box to view the keyboard. To use numbers or other
characters on the keyboard, touch the ?123 but-
ton. To view more characters, touch the ~[< button.
Touch the ?123 button again to return to the number
keyboard. To return to the letter keyboard, touch the
ABC button. To use a capital character, touch the
button with an upward-facing arrow. To use multiple
capital characters, touch and hold the arrow button.
To return to the lowercase keyboard, touch the arrow
button again. To clear the last character, touch the
button with a backward-facing arrow and an X.
D
ETNT15421-INTV1
F
E

20
HOW TO SET UP THE CONSOLE
Before using the treadmill for the first time, set up the
console.
1. Connect to your wireless network.
To access the internet, download iFit workouts, and
use several other features of the console, you must
be connected to a wireless network. Follow the
prompts on the screen to connect the console to
your wireless network.
2. Customize settings.
Fill in the form on the screen to set the console
to display the desired unit of measurement and
your time zone. Note: If you need to change these
settings later, see HOW TO CHANGE CONSOLE
SETTINGS on page 25.
3. Log into or create an iFit account.
Provide your email address, and follow the prompts
on the screen to sign up for or log into your iFit
account.
4. Tour the console.
The first time you turn on the treadmill, dialogue
boxes on the screen will guide you through the
features of the console.
5. Check for firmware updates.
First, touch your name or Hello on the screen, and
then touch Settings. Next, select the maintenance
section. Then,touch Update to check for firmware
updates using your wireless network. See step 5
on page 25 for more information.
6. Calibrate the incline system.
First, touch your name or Hello on the screen.
Next, select the settings main menu. Then, select
the maintenance section, touch Calibrate Incline,
and then touch Begin to calibrate the incline sys-
tem. See step 6 on page 26 for more information.
The console is now ready for you to begin working out.
The following pages explain the various workouts and
other features that the console offers.
To use the manual mode, see page 21. To use a
map workout, see page 22. To use a draw your own
map workout, see page 23. To use a distance or
time workout, see page 24.
To view or change console settings, see page 25.
To connect to a wireless network, see page 26. To
use the sound system, see page 27. To adjust the
cushions, see page 28.
IMPORTANT: If there are sheets of plastic on the
console, remove the plastic. To prevent damage
to the walking platform, wear clean athletic shoes
while using the treadmill. The first time you use
the treadmill, observe the alignment of the walking
belt, and center the walking belt if necessary (see
page 32).
