EN - 2
Icon Type Meaning
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT / NOTE Operating the system correctly
Thank you for choosing this product.
This User Manual contains important safety information and instructions on the operation
and maintenance of your appliance.
Please take the time to read this User Manual before using your appliance and keep this
book for future reference.

CONTENTS
1.SAFETY INSTRUCTIONS .................................................................................................4
1.1 General Safety Warnings ...............................................................................................4
1.2 Installation Warnings ......................................................................................................6
1.3 During Use .....................................................................................................................7
1.4 During Cleaning and Maintenance .................................................................................8
2.INSTALLATION AND PREPARATION FOR USE ............................................................10
2.1 Instructions for the Installer ..........................................................................................10
2.2 Installation of the Oven .................................................................................................10
2.3 Electrical Connection and Safety.................................................................................. 11
3.PRODUCT FEATURES ...................................................................................................13
4.USE OF PRODUCT ........................................................................................................14
4.1 Oven Controls...............................................................................................................14
4.2 Accessories ..................................................................................................................17
5.CLEANING AND MAINTENANCE...................................................................................18
5.1 Cleaning ...................................................................................................................18
5.2 Maintenance .................................................................................................................19
6.TROUBLESHOOTING&TRANSPORT ............................................................................21
6.1 Troubleshooting ............................................................................................................21
6.2 Transport ...................................................................................................................21
7.TECHNICAL SPECIFICATIONS ......................................................................................22
7.1 Energy Fiche ................................................................................................................22

EN - 4
1. SAFETY INSTRUCTIONS
• Carefully read all instructions before using your
appliance and keep them in a convenient place for
reference when necessary.
• This manual has been prepared for more than one
model therefore your appliance may not have some
of the features described within. For this reason, it
is important to pay particular attention to any figures
whilst reading the operating manual.
1.1 General Safety WarninGS
• This appliance can be used by children aged from
8 years and above and by persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use of
the appliance in a safe way and understand the
hazards involved. Children should not play with the
appliance. Cleaning and user maintenance should
not be made by children without supervision.
WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements. Keep children less than 8
years of age away unless they are continually
supervised.
WARNING: Danger of fire: Do not store items
on the cooking surfaces.
WARNING: If the surface is cracked, switch off
the appliance to avoid the possibility of electric shock.
• Do not operate the appliance with an external timer
or separate remote-control system.
• During use the appliance will get hot. Care should
be taken to avoid touching heating elements inside

EN - 5
the oven.
• Handles may get hot after a short period during use.
• Do not use harsh abrasive cleaners or scourers
to clean the oven door glass and other surface.
They can scratch the surfaces which may result in
shattering of the door glass or damage to surfaces.
• Do not use steam cleaners for cleaning the
appliance.
WARNING: To avoid the possibility of electric
shock, make sure that the appliance is switched off
before replacing the lamp.
CAUTION: Accessible parts may be hot when
cooking or grilling. Keep young children away from the
appliance when it is in use.
• Your appliance is produced in accordance with all
applicable local and international standards and
regulations.
• Maintenance and repair work should only be carried
out by authorised service technicians. Installation
and repair work that is carried out by unauthorised
technicians may be dangerous. Do not alter or
modify the specifications of the appliance in any
way. Inappropriate hob guards can cause accidents.
• Before connecting your appliance, make sure
that the local distribution conditions (nature of the
gas and gas pressure or electricity voltage and
frequency) and the specifications of the appliance
are compatible. The specifications for this appliance
are stated on the label.
CAUTION: This appliance is designed only for
cooking food and is intended for indoor domestic
household use only. It should not be used for any
other purpose or in any other application, such as for
non-domestic use, in a commercial environment or for

EN - 6
heating a room.
• Do not use the oven door handles to lift or move the
appliance.
• All possible measures have been taken to ensure
your safety. Since the glass may break, care should
be taken while cleaning to avoid scratching. Avoid
hitting or knocking the glass with accessories.
• Make sure that the supply cord is not trapped or
damaged during installation. If the supply cord is
damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in
order to prevent a hazard.
• Do not let children climb on the oven door or sit on it
while it is open.
• Please keep children and animals away from this
appliance.
1.2 inStallation WarninGS
• Do not operate the appliance before it is fully
installed.
• The appliance must be installed by an authorised
technician. The manufacturer is not responsible
for any damage that might be caused by defective
placement and installation by unauthorised people.
• When the appliance is unpacked, make sure that
it is has not been damaged during transportation.
In case of any defect do not use the appliance
and contact a qualified service agent immediately.
The materials used for packaging (nylon, staplers,
Styrofoam, etc.) may be harmful to children and they
should be collected and removed immediately.
• Protect your appliance from the atmosphere. Do not
expose it to effects such as sun, rain, snow, dust or
excessive humidity.

EN - 7
• Any materials (i.e. cabinets) around the appliance
must be able to withstand a minimum temperature
of 100°C.
• The appliance must not be installed behind a
decorative door, in order to avoid overheating.
1.3 DurinG uSe
• When you first use your oven you may notice a
slight smell. This is perfectly normal and is caused
by the insulation materials on the heater elements.
We suggest that, before using your oven for the
first time, you leave it empty and set it at maximum
temperature for 45 minutes. Make sure that the
environment in which the product is installed is well
ventilated.
• Take care when opening the oven door during or
after cooking. The hot steam from the oven may
cause burns.
• Do not put flammable or combustible materials in or
near the appliance when it is operating.
• Always use oven gloves to remove and replace food
in the oven.
• Under no circumstances should the oven be lined
with aluminium foil as overheating may occur.
• Do not place dishes or baking trays directly onto the
base of the oven whilst cooking. The base becomes
very hot and damage may be caused to the product.
Do not leave the oven unattended while cooking
with solid or liquid oils. They may catch fire under
extreme heating conditions. Never pour water on to
flames that are caused by oil, instead switch the oven
off and cover the pan with its lid or a fire blanket.
• If the product will not be used for a long period of
time, turn the main control switch off.

EN - 8
•Make sure the appliance control knobs are always
in the “0” (stop) position when it is not in use.
•The trays incline when pulled out. Take care not
to spill or drop hot food while removing it from the
ovens.
•Do not place anything on the oven door when it is
open. This could unbalance the oven or damage the
door.
•Do not hang towels, dishcloths or clothes from the
appliance or its handles.
1.4 DurinG CleaninG anD MaintenanCe
•Make sure that your appliance is turned off at
the mains before carrying out any cleaning or
maintenance operations.
•Do not remove the control knobs to clean the control
panel.
•To maintain the efficiency and safety of your
appliance, we recommend you always use original
spare parts and to call our authorised service agents
in case of need.
CE Declaration of conformity
We declare that our products meet the
applicable European Directives, Decisions
and Regulations and the requirements listed
in the standards referenced.
This appliance has been designed to be used only
for home cooking. Any other use (such as heating a
room) is improper and dangerous.
The operating instructions apply to several models.
You may notice differences between these instructions
and your model.

EN - 9
Disposal of your old machine
This symbol on the product or on its packaging
indicates that this product should not be
treated as household waste. Instead it should
be handed over to the applicable collection
point for the recycling of electrical and
electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential
negative consequences for the environment and
human health, which could otherwise be caused by
inappropriate waste handling of this product. For more
detailed information about recycling of this product,
please contact your local city office, your household
waste disposal service or the retailer who you
purchased this product from.

EN - 10
2. INSTALLATION AND
PREPARATION FOR USE
WARNING : This appliance must be
installed by an authorised service
person or qualified technician, according to
the instructions in this guide and in
compliance with the current local
regulations.
• Incorrect installation may cause harm
and damage, for which the manufacturer
accepts no responsibility and the
warranty will not be valid.
• Prior to installation, ensure that the local
distribution conditions (electricity voltage
and frequency) and the adjustments
of the appliance are compatible. The
adjustment conditions for this appliance
are stated on the label.
• The laws, ordinances, directives and
standards in force in the country of use
are to be followed (safety regulations,
proper recycling in accordance with the
regulations, etc.).
• If the product contains removable shelf
guides (wire racks) and the user manual
includes recipes like yoghurt, the wire
racks shall be removed and the oven
operated in the defined cooking mode.
Removal of the Wire Shelf information
is included in the CLEANING AND
MAINTENANCE section.
2.1 inStruCtionS for the inStaller
General instructions
• After removing the packaging material
from the appliance and its accessories,
ensure that the appliance is not
damaged. If you suspect any damage,
do not use it and contact an authorised
service person or qualified technician
immediately.
• Make sure that there are no flammable
or combustible materials in the close
vicinity, such as curtains, oil, cloth etc.
which may catch fire.
• The worktop and furniture surrounding
the appliance must be made of
materials resistant to temperatures
above 100°C.
• The appliance should not be installed
directly above a dishwasher, fridge,
freezer, washing machine or clothes
dryer.

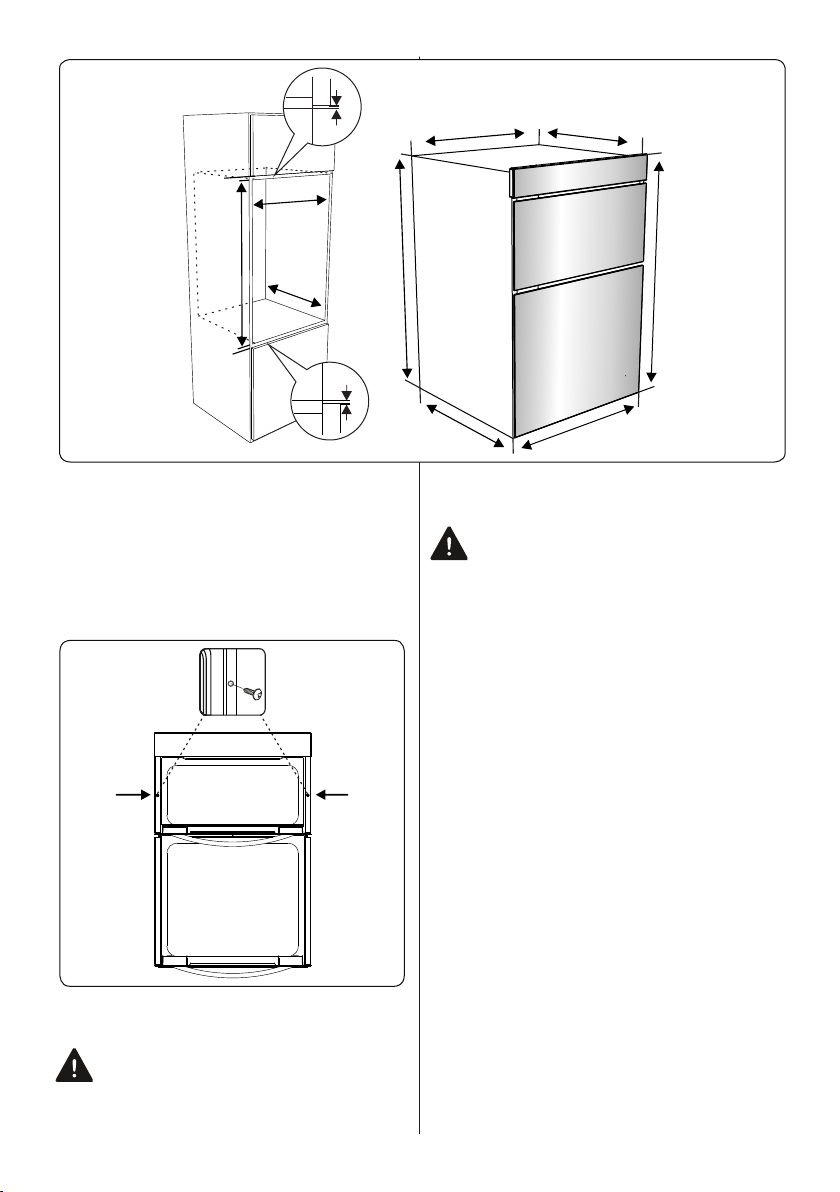

2.2 inStallation of the oven
The appliances are supplied with
installation kits and can be installed in a
worktop with the appropriate dimensions.
The dimensions for hob and oven
installation are given below.
A (mm) 557 E (mm) 878
B (mm) 550 min./max. F (mm) 560/580
H (mm) 890 min. G (mm) 555
C (mm) 595 min. I (mm) 880
D (mm) 575 min. J/K (mm) 5/10

EN - 11
F
AB
C
H
D
E
G
I
J
K
After making the electrical connections,
insert the oven into the cabinet by pushing
it forward. Open the oven door and insert
2 screws in the holes located on the oven
frame. While the product frame touches the
wooden surface of the cabinet, tighten the
screws.
2.3 eleCtriCal ConneCtion anD Safety
WARNING: The electrical connection
of this appliance should be carried out
by an authorised service person or
qualified electrician, according to the
instructions in this guide and in compliance
with the current local regulations.
WARNING: THE APPLIANCE MUST
BE EARTHED.
• Before connecting the appliance to the
power supply, the voltage rating of the
appliance (stamped on the appliance
identification plate) must be checked for
correspondence to the available mains
supply voltage, and the mains electric
wiring should be capable of handling the
appliance’s power rating (also indicated
on the identification plate).
• During installation, please ensure
that isolated cables are used. An
incorrect connection could damage
your appliance. If the mains cable is
damaged and needs to be replaced
this should be done by a qualified
personnel.
• Do not use adaptors, multiple sockets
and/or extension leads.
• The supply cord should be kept away
from hot parts of the appliance and must
not be bent or compressed. Otherwise
the cord may be damaged, causing a
short circuit.
• If the appliance is not connected
to the mains with a plug, a all-pole
disconnector (with at least 3 mm contact
spacing) must be used in order to meet
the safety regulations.

EN - 12
•The appliance is designed for a power
supply of 220-240V ~ and 380-415V
3N~. If your supply is different, contact
the authorised service person or a
qualified electrician.
•The power cable (H05VV-F) must be
long enough to be connected to the
appliance, even if the appliance stands
on the front of its cabinet.
•Ensure all connections are adequately
tightened.
•Fix the supply cable in the cable clamp
and then close the cover.

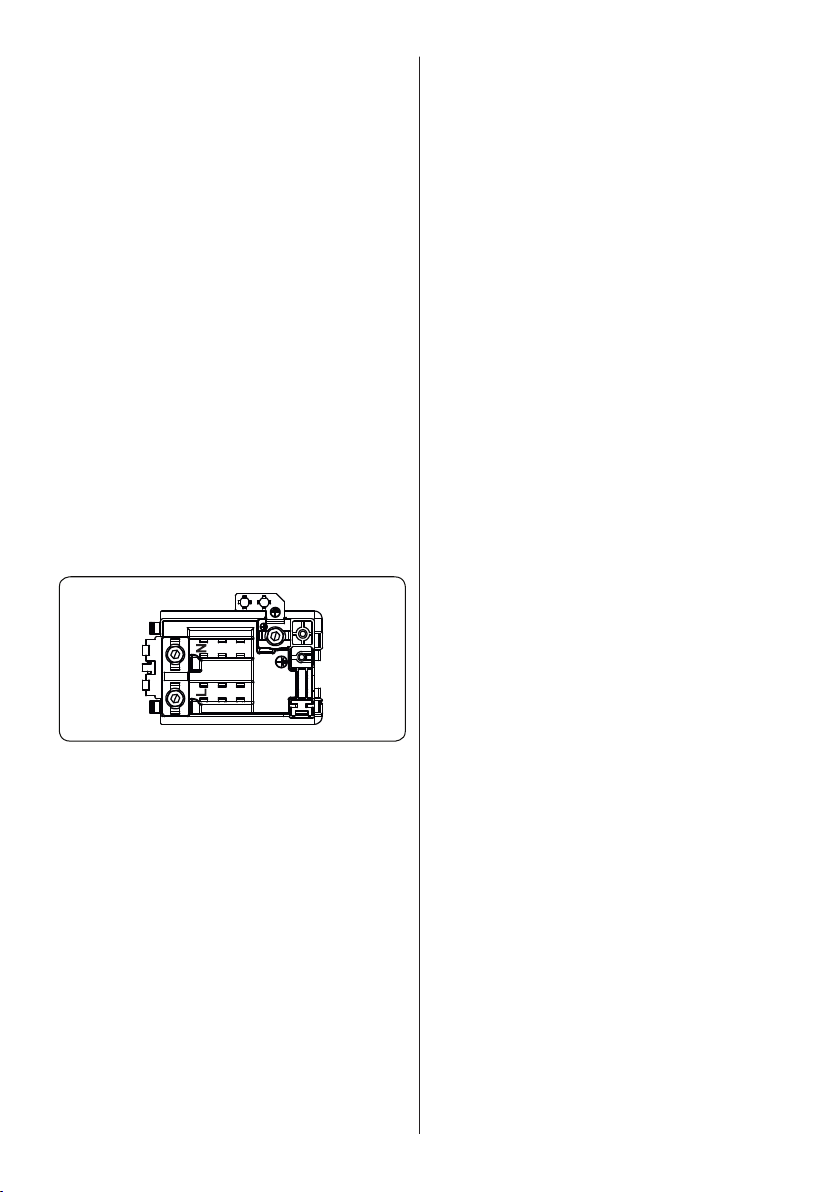

•The terminal box connection is placed
on the terminal box.
•Green/Yellow (Earth) wire to the
terminal marked "PE".
•Brown (Live) wire to the terminal
marked "L".
•Blue (Neutral) wire to the terminal
marked "N".
•For this connection, a ‘Twin and Earth
6242Y’ type cable should be used.

EN - 13
3. PRODUCT FEATURES
Important: Specifications for the product vary and the appearance of your appliance
may differ from that shown in the figures below.
List of Components
1
2
3
4
5
1. Control Panel
2. Top Oven Door Handle
3. Top Oven Door
4. Main Oven Door Handle
5. Main Oven Door
Control Panel
6. Timer
7. Top Oven Control Knob
8. Top Oven Thermostat Knob
9. Main Oven Control Knob
7869

EN - 14
4. USE OF PRODUCT
4.1 oven ControlS
Oven function control knob
Turn the knob to the corresponding symbol
of the desired cooking function. For the
details of different functions see ´Oven
Functions`.
Oven thermostat knob
After selecting a cooking function, turn
this knob to set the desired temperature.
The oven thermostat light will illuminate
whenever the thermostat is in operation
to heat up the oven or maintain the
temperature.

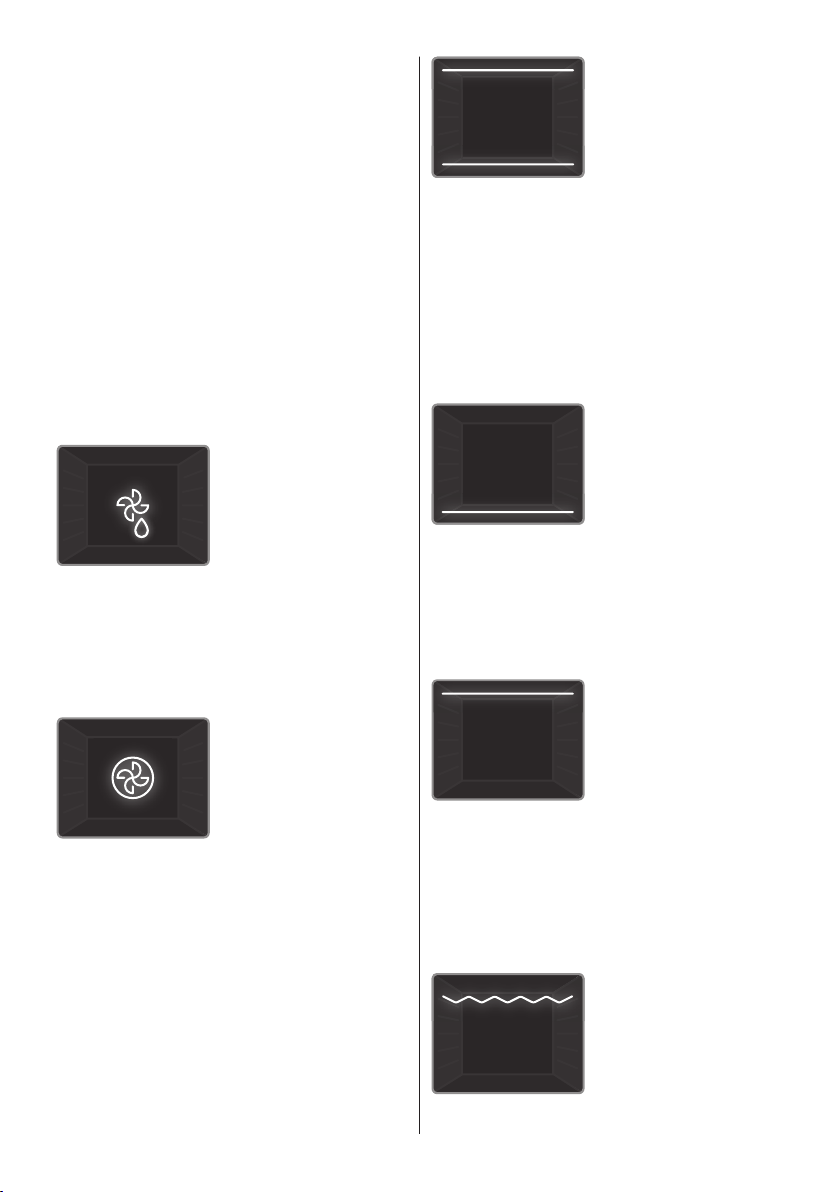

Main Oven Functions
* The functions available on your oven may
differ from those listed below depending on
the model purchased.
Defrost Function:
Switch on the
DEFROST function
using the main oven
function control knob.
The oven’s warning
lights will switch on,
and the fan will start operating. To use the
defrost function, place your frozen food on
a shelf in the middle of the oven. It is
recommended that you put an oven tray
under the defrosting food to catch
accumulated water due to melting ice. This
function will not cook or bake your food, it
will only help to defrost it.
Turbo Function:
Switch on the TURBO
function using the main
oven function control
knob. The oven’s
thermostat and
warning lights will
switch on, and the ring heating element and
fan will start operating. The temperature
can be adjusted using the main oven
function control knob. The turbo function
evenly disperses the heat in the oven so all
food on all racks will cook evenly. It is
recommended that you preheat the oven for
10 minutes.
Top Oven Functions
* The functions available on your oven may
differ from those listed below depending on
the model purchased.
Static Cooking
Function: Switch on
the STATIC function
using the top oven
function control knob.
The oven thermostat
and warning lights will
illuminate, and the
upper and lower heating elements will
switch on. The temperature can be adjusted
using the top oven function control knob.
The heat generated by the upper and lower
heating elements ensures that food is
cooked evenly. You will find this setting
ideal for cooking cakes, baked pasta,
lasagne, and pizza. We recommend that
the oven is preheated for 10 minutes before
use and that you cook on one rack at a
time.
Lower Heating
Function: Switch on
the LOWER function
using the top oven
function control knob.
The oven thermostat
and warning lights will
illuminate, and the
lower heating element will switch on. The
temperature setting will set to the highest
level for this function. The LOWER heating
function is ideal for warming pizza as the
heat rises up from the bottom of the oven,
warming the food. This function is suitable
for heating food instead of cooking.
Upper Heating
Function: Switch on
the UPPER function
using the top oven
function control knob.
The oven thermostat
and warning lights will
illuminate, and the
upper heating element will switch on. The
temperature setting will set to the highest
level for this function. The UPPER heating
function is ideal for heating food or for frying
the top of food that has already been
cooked, as the heat radiates from the upper
heating element, closest to the top of the
food.
Grilling Function:
Switch on the GRILL
function using the top
oven function control
knob. The oven
thermostat and
warning lights will
illuminate, and the grill heating element will
switch on. Use this function for grilling.

EN - 15
When you have finished grilling, switch the
top oven off. Keep children away from the
oven during grilling and until it has fully
cooled after use.
Warning: The top oven door must be
closed when this function is selected.

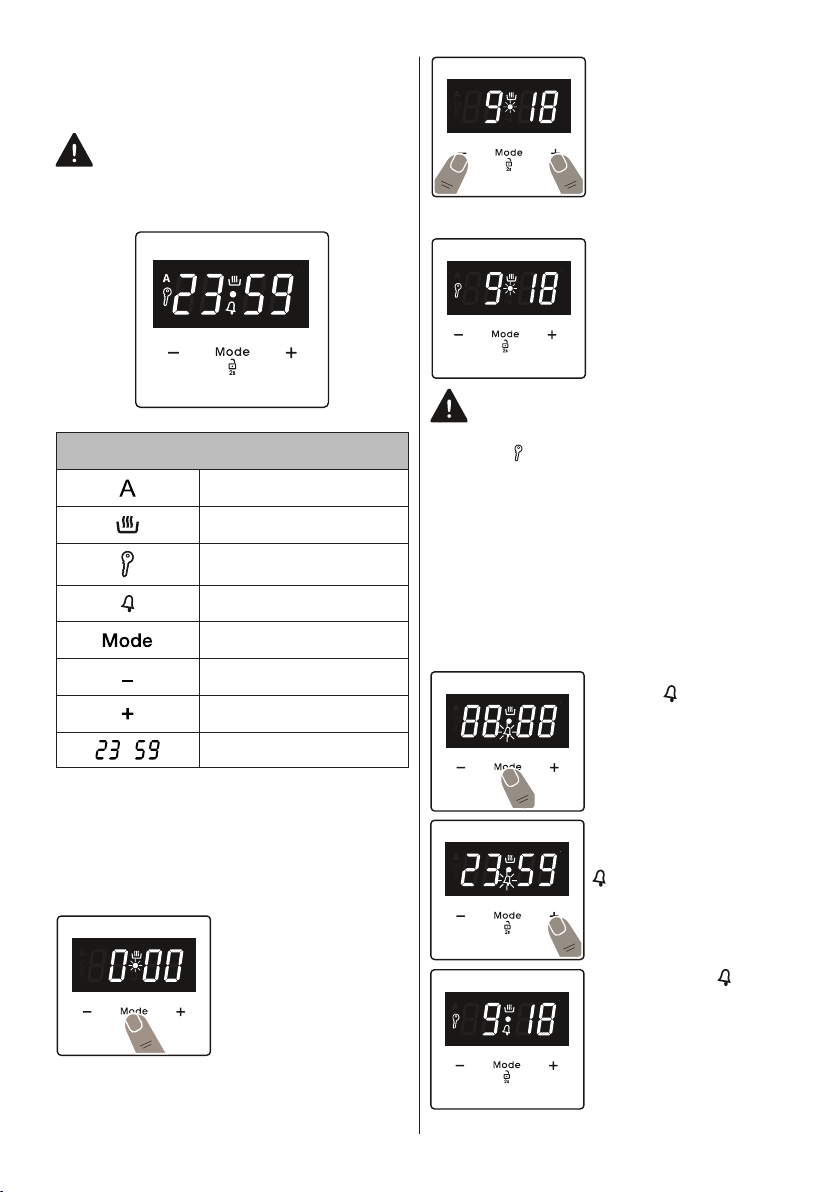

Use of the Digital Touch Timer
Function Description
Auto cooking
Manual cooking
Key Lock
Minute minder
Mode function
Decrease timer
Increase timer
Timer display
Time adjustment
The time must be set before you start using
the oven. Following the power connection,
the symbol “A” and “00:00” or “12:00” will
flash on the display.
1. Press the “MODE”
for 2 sec to deactive
keylock and the dot
in the middle of the
screen will start to
flash.
2. Adjust the time while
the dot is flashing
using the “+” and “-”
keys.
3. After a few
seconds, the dot will
stop flashing and will
remain illuminated.
Key Lock
The key lock automatically activates
after the timer has not been used for 7
seconds. “ ” symbol will appear and remain
illuminated. To unlock the timer buttons,
press and hold the “MODE” button for 2
seconds. The desired operation can then be
carried out.
Audible warning time adjustment
The audible warning time can be set to any
time between “00:00” and “23:59” hours.
The audible warning time is for warning
purposes only. The oven will not
be activated with this function.
1. Press “MODE”. The
symbol “ ” will begin to
flash and “000” will be
displayed.
2. Select the desired
time period using the
“+” and “-” keys while “
” is flashing.
3. The symbol “ ” will
remain illuminated, the
time will be saved and
the warning will be set.
When the timer reaches

EN - 16
zero, an audible warning will sound and the
symbol “ ” will flash on the display. Press
any key to stop the audible warning. Press
“MODE” for 2 seconds the “ ” symbol will
disappear and the clock will be displayed.

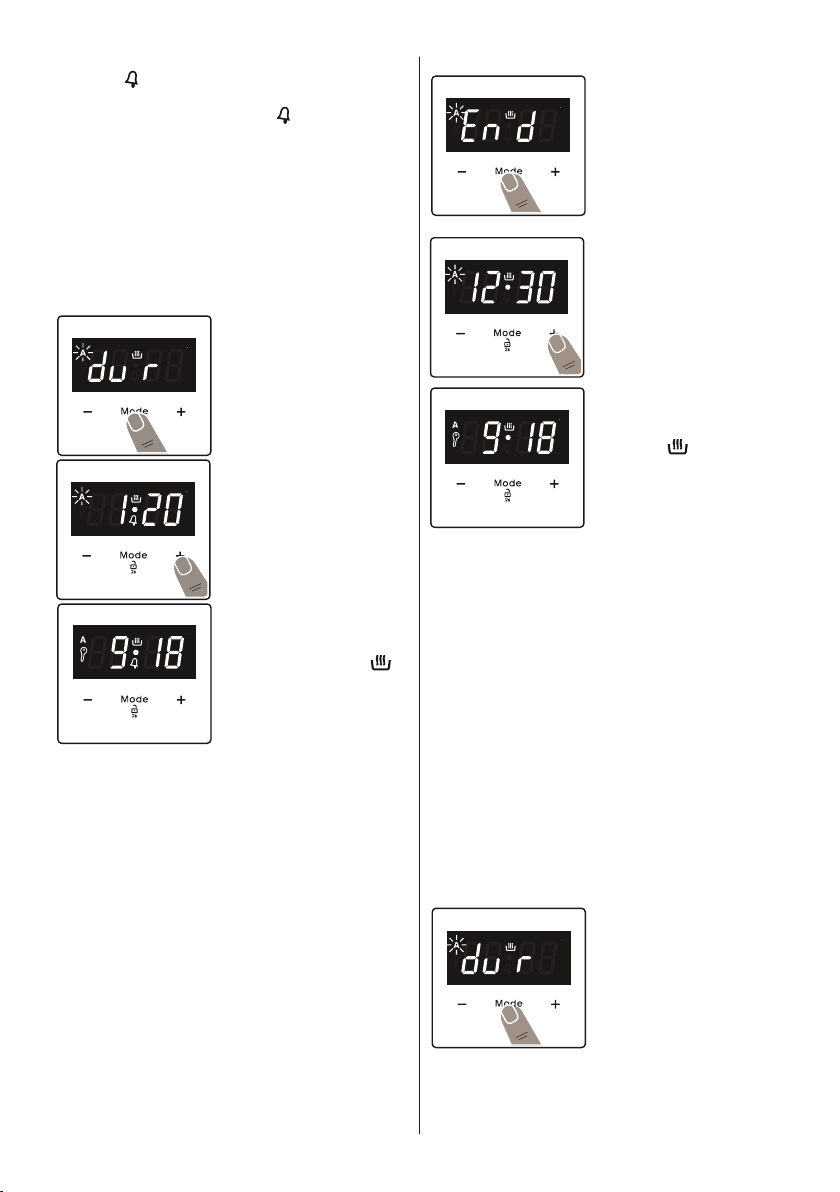

Semi-automatic time adjustment
(cooking period)
This function helps you to cook for a fixed
period of time. A time range between 0 and
10 hours can be set. Prepare the food for
cooking and put it in the oven.
1. Select the desired cooking function and
the temperature using the control knobs.
2. Press “MODE” until
you see “dur” symbol
on the display screen.
The symbol “A” will
flash.
3. Select the desired
cooking time period
using the “+” and “-”
keys.
4. The current time will
reappear on the
screen, and the
symbols “A”, and “ ”
will remain illuminated.
When the timer reaches zero, the oven
will switch off and an audible warning will
sound. The symbols “A” will flash. Turn both
control knobs to the “0” position and press
any key on the timer to stop the warning
sound. Press “MODE” for 2 seconds the
“A” symbol will disappear and the timer will
switch back to manual function.
Semi-automatic time adjustment
(finishing time)
This function automatically starts the oven
so that cooking will finish at a set time. You
can set an end time of up to 10 hours after
the current time of day. Prepare the food for
cooking and put it in the oven.
1. Select the desired cooking function and
the temperature using the control knobs.
2. Press “MODE” until
you see “end” symbol
on the display screen.
“A” and the current
time of day will flash.
3. Use the “+” and
“-” buttons to set the
desired finishing time.
4. The current time will
reappear on the
screen, the symbols
“A” and “ ” will remain
illuminated.
When the timer reaches zero, the oven
will switch off and an audible warning will
sound. The symbol “A” will flash. Turn
both control knobs to the “0” position and
press any key on the timer to stop the
sound. Press “MODE” for 2 seconds the
“A” symbol will disappear and the timer will
switch back to manual function.
Full-automatic programming
This function is used to start cooking after
a certain period of time and for a certain
duration. A time of up to 23 hours and 59
minutes after the current time of day can be
set. Prepare the food for cooking and put it
in the oven.
1. Select the desired cooking function and
the temperature using the control knobs.
2. Press “MODE” until
you see “dur” symbol
on the screen. The
symbol “A” will flash.

EN - 17
3. Select the desired
cooking time period
using the “+” and “-”
keys.
4. Press “MODE” until
you see “end” symbol
on the screen. The
time and the symbols
“A” will flash.
5. Select the desired
finishing time using the
“+” and “-” keys. “ ”
symbol will disappear.
Add the cooking period
to the current time of
day. You can set a time
of up to 23 hours and
59 minutes after this.
6. The current time
will reappear on
the screen, and the
symbols “A”, and will
remain illuminated.
The operating time will be calculated and
the oven will automatically start “ ” symbol
will reappear on the screen so that cooking
will finish at the set finishing time. When the
timer reaches zero, the oven will switch off,
an audible warning will sound and the
symbols “A” will flash. Turn both control
knobs to the “0” position and press any key
to stop the sound. The symbol will
disappear and the timer will switch back to
manual function. Press “MODE” for 2
seconds the “A” symbol will disappear and
the timer will switch back to manual
function.
Sound Adjustment
To adjust the volume of the audible warning
sound, while the current time of day is
displayed, press “+” and “-” keys and the
dot in the middle of the screen will start
to flash. Press “MODE” to display current
signal sound. After this, each time the “-”
button is pressed, a different signal will
sound. There are three different types of
signal sounds. Select the desired sound
and do not press any other buttons. After
a short time, the selected sound will be
saved.
4.2 aCCeSSorieS

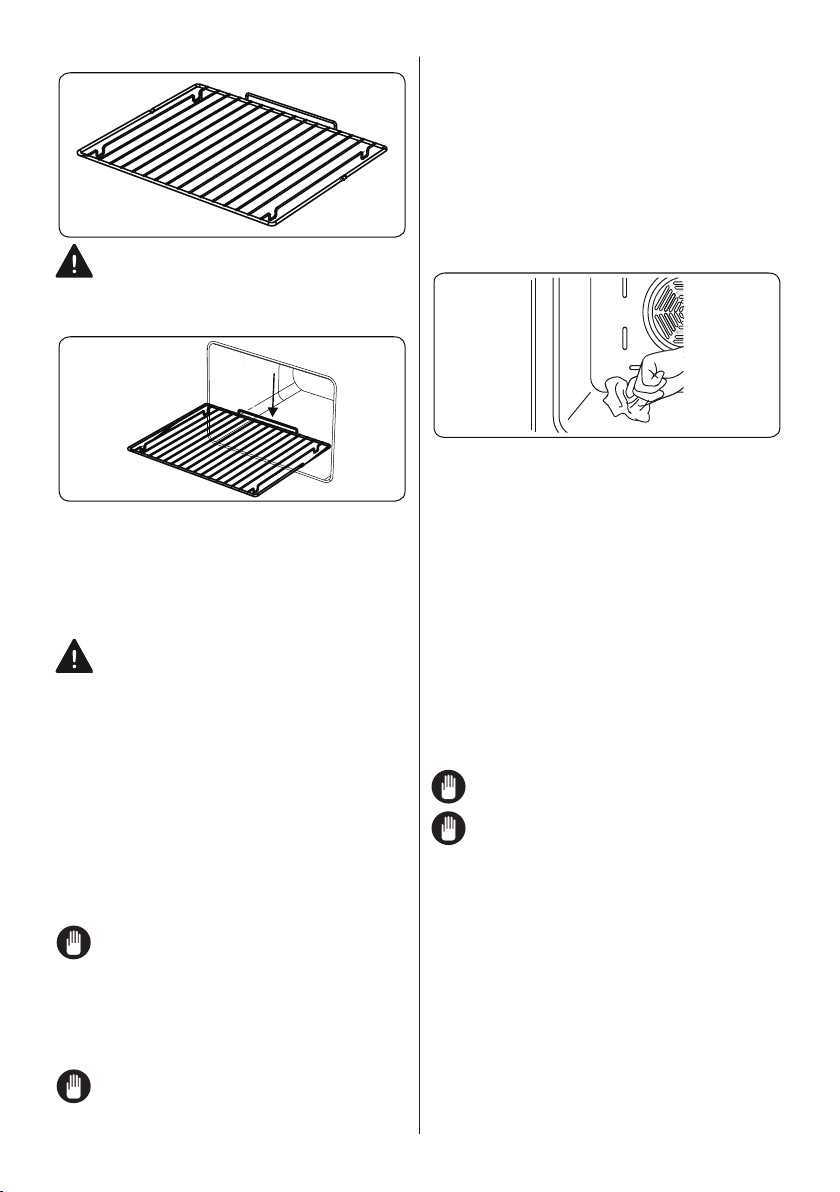

The Wire Grid for Deep Trays
Make sure the wire grid is correctly placed
within a deep tray. It is recommended
to use this accessory for grilling steaks,
meatballs and similar food.
The Deep Tray
The deep tray is best used for cooking
stews.
Put the tray into any rack and push it to the
end to make sure it is placed correctly.
The Shallow Tray
The shallow tray is best used for baking
pastries.
Put the tray into any rack and push it to the
end to make sure it is correctly placed.
The Wire Grid
The wire grid is best used for grilling or for
processing food in oven-friendly containers.

EN - 18
WARNING
Place the grid to any corresponding
rack in the oven cavity correctly and push it
to the end.
5. CLEANING AND
MAINTENANCE
5.1 CleaninG
WARNING: Switch off the appliance
and allow it to cool before cleaning is
to be carried out.
General Instructions
• Check whether the cleaning materials
are appropriate and recommended by
the manufacturer before use on your
appliance.
• Use cream cleaners or liquid cleaners
which do not contain particles. Do not
use caustic (corrosive) creams, abrasive
cleaning powders, rough wire wool or
hard tools as they may damage the
cooker surfaces.
Do not use cleaners that contain
particles as they may scratch the
glass, enamelled and/or painted parts
of your appliance.
• Should any liquids overflow, clean them
immediately to avoid parts becoming
damaged.
Do not use steam cleaners for
cleaning any part of the appliance.
Cleaning the Inside of the Oven
• The inside of enamelled ovens are best
cleaned while the oven is warm.
• Wipe the oven with a soft cloth soaked
in soapy water after each use. Then,
wipe the oven over again with a wet
cloth and dry it.
• You may need to use a liquid cleaning
material occasionally to completely
clean the oven.
Cleaning the Glass Parts
• Clean the glass parts of your appliance
on a regular basis.
• Use a glass cleaner to clean the inside
and outside of the glass parts. Then,
rinse and dry them thoroughly with a dry
cloth.
Cleaning the Stainless Steel Parts (if
available)
• Clean the stainless steel parts of your
appliance on a regular basis.
• Wipe the stainless steel parts with a soft
cloth soaked in only water. Then, dry
them thoroughly with a dry cloth.
Do not clean the stainless steel parts
while they are still hot from cooking.
Do not leave vinegar, coffee, milk, salt,
water, lemon or tomato juice on the
stainless steel for a long time.
Cleaning Painted Surfaces (if available)
• Spots of tomato, tomato paste, ketchup,
lemon, oil derivatives, milk, sugary
foods, sugary drinks and coffee should
be cleaned with a cloth dipped in warm
water immediately. If these stains are
not cleaned and allowed to dry on the
surfaces they are on, they should NOT
be rubbed with hard objects (pointed
objects, steel and plastic scouring wires,
surface-damaging dish sponge) or
cleaning agents containing high levels
of alcohol, stain removers, degreasers,
surface abrasive chemicals. Otherwise,

EN - 19
corrosion may occur on the powder
painted surfaces, and stains may occur.
The manufacturer will not be held
responsible for any damage caused
by the use of inappropriate cleaning
products or methods.
Removal of the Inner Glass
You must remove the oven door glass
before cleaning, as shown below.
1. Push the glass in the direction of Band
release from the location bracket (x). Pull
the glass out in the direction of A.
xA
B
To replace the inner glass:
2. Push the glass towards and under the
location bracket (y), in the direction of B.
y
B
3. Place the glass under the location
bracket (x) in the direction of C.
x
C
If the oven door is a triple glass oven
door, the third glass layer can be
removed the same way as the second
glass layer.
Removal of the Oven Door
Before cleaning the oven door glass, you
must remove the oven door, as shown
below.
1. Open the oven door.
2. Open the locking catch (a) (with the aid
of a screwdriver) up to the end position.
a
3. Close the door until it is almost in the
fully closed position, and remove the door
by pulling it towards you.
5.2 MaintenanCe
WARNING: The maintenance of this
appliance should be carried out by an
authorised service person or qualified
technician only.
Changing the Oven Lamp
WARNING: Switch off the appliance
and allow it to cool before cleaning
your appliance.
• Remove the glass lens, then remove the
bulb.
• Insert the new bulb (resistant to 300 °C)
to replace the bulb that you removed
(230 V, 15-25 Watt, Type E14).
• Replace the glass lens, and your oven
is ready for use.
• The product contains a light source of
energy efficiency class G.

EN - 20
•Light source can not be replaced by end
user. After sales service is needed.
•The included light source is not intended
for use in other applications.

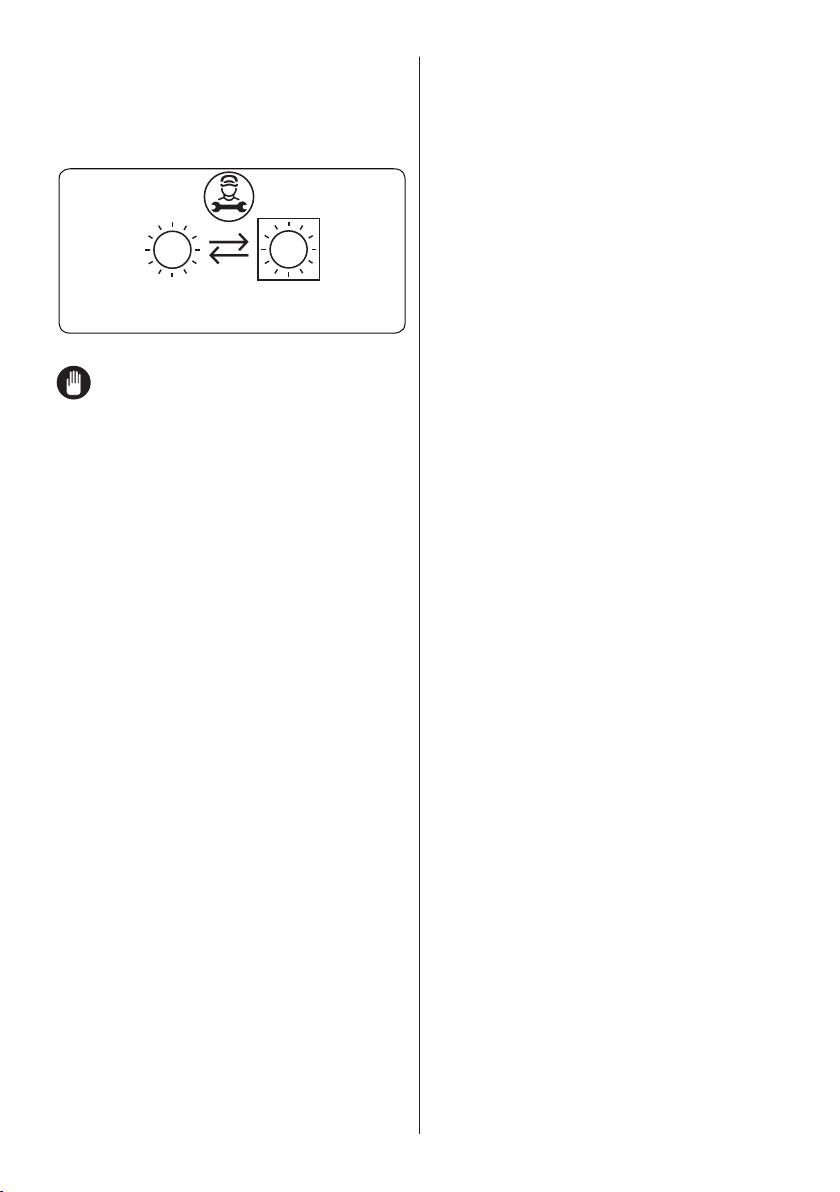

Replaceable light source by a
professional
The lamp is designed specifically for
use in household cooking
appliances. It is not suitable for
household room illumination.
