NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE. 1
I N S T A L L A T I O N I N S T R U C T I O N S
WARNING: If the information in this
manualisnotfollowedexactly,afireor
explosion may result causing property
damage, personal injury or loss of life.
– Do not store or use gasoline or
other flammable vapors and liq-
uids in the vicinity of this or any
other appliance.
– WHATTODOIFYOUSMELLGAS
• Donot tryto lightany appliance.
• Do not touch any electrical
switch; do not use any phone in
your building.
• Immediately call your gas sup-
plier from a neighbor’s phone.
Followthegassupplier’sinstruc-
tions.
• Ifyoucannotreachyourgassup-
plier, call the fire department.
– Installation and service must be
performed by a qualified in-
staller, service agency or the
gas supplier.
This is an unvented gas-fired
heater. It uses air (oxygen) from
the room in which it is installed.
Provisions for adequate combus-
tion and ventilation air must be
provided.Refertocombustionand
ventilation air section, page 3.
Due to high temperatures, the ap-
pliance should be located out of
traffic and away from furniture or
draperies.
Do not place clothing or other ma-
terials on or near this appliance.
PLEASE RETAIN THIS MANUAL FOR FUTURE
REFERENCE.
*Note: Manual control models are also design
certified for use as vented gas log sets.
Installation
And Operation
Instructions
Unvented Gas Log
Room Heaters
VFGL-18MSN-3 Series*
VFGL-18MSP-3 Series*
VFGL-24MSN-3 Series*
VFGL-24MSP-3 Series*
VFGL-28MSN-3 Series*
VFGL-28MSP-3 Series*
VFGL-18VSN-3 Series
VFGL-18VSP-3 Series
VFGL-24VSN-3 Series
VFGL-24VSP-3 Series
VFGL-28VSN-3 Series
VFGL-28VSP-3 Series

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE.
2
WARNING: THIS APPLIANCE IS FOR IN-
STALLATION ONLY IN A SOLID FUEL
BURNING FIREPLACE WITH A WORKING
FLUEORANAPPROVEDVENTLESSFIRE-
BOX ENCLOSURE.
Minimum Fireplace (Firebox) Size
Log Set Height Depth Width
18" Models 16" 14" 20" Front
19" Rear
24" Models 16" 14" 35" Front
27" Rear
28" Models 16" 14" 38" Front
30" Rear
Table 1
Do not install these Unvented Gas Log Room
Heaters in a bedroom or a bathroom as all
units exceed maximum allowable BTU/hr in-
put of 10,000.
Checkthe inventory listtobe sure thatyouhave
allthe necessarypartsin usable condition.Also
check for concealed damage.
Inventory
Unvented gas log room heater
Two (2) screws
Bag of decorative volcanic rock
Ceramic fiber logs
Installation and Operating Instructions
Tools and Supplies Normally Required
Externalregulator(Propanemodelsonly)
Manual shut-off valve
Sediment trap
Piping complying with local codes
Pipe compound
Pipe wrench
Tee joint
Screwdriver
IMPORTANT SAFETY INFORMATION
INSTALLER:PLEASE LEAVE THESEINSTRUC-
TIONS WITH THE OWNER.
OWNER: PLEASE RETAIN THESE INSTRUC-
TION FOR FUTURE REFERENCE
IMPORTANT:READTHESEINSTALLATIONIN-
STRUCTIONS CAREFULLY BEFORE INSTALL-
ING OR TRYING TO OPERATE THIS HEATER.
WARNING: FAILURE TO COMPLY WITH
THEINSTALLATIONANDOPERATINGIN-
STRUCTIONS PROVIDED IN THIS DOCU-
MENTWILLRESULTINANIMPROPERLY
INSTALLED AND OPERATING APPLI-
ANCE, VOIDING ITS WARRANTY. ANY
CHANGE TO THIS APPLIANCE AND/OR
ITS OPERATING CONTROLS IS DANGER-
OUS. IMPROPERINSTALLATIONORUSE
OF THIS APPLIANCE CAN CAUSE SERI-
OUS INJURY OR DEATH FROM FIRE,
BURNS, EXPLOSION OF CARBON MON-
OXIDE POISONING.
Carbon Monoxide Poisoning: Early signs of
carbon monoxide poisoning are similar to
thefluwithheadaches,dizzinessand/ornau-
sea. If you have these signs, obtain fresh air
immediately. Turn off the gas supply to the
appliance and have it serviced by a qualified
professional, as it may not be operating
correctly.
•Due to high temperatures, the heater should
belocated outoftraffic andawayfrom furniture
and draperies.
•Children and adults should be alerted to the
hazard of high surface temperature and should
stay away to avoid burns or clothing ignition.
•Young children should be carefully super-
vised when they are in the same room with the
heater.
•Do not place clothing or other flammable
material on or near the heater.
•Any safety screen or guard removed for
servicing the heater must be replaced prior to
operating the heater.
•Installation and repair should be done by a
qualified service person. The heater should be
inspected before use and at least annually by a
professional service person. More frequent
cleaning may be required due to excessive lint
from carpeting, bedding material, etc. It is
important that control compartments, burners
and circulating air passageways of the heater
be kept clean.
•Allow the heater to cool before servicing.
Always shut off the gas to the heater while
performing service work.
•Do not install the heater in a bedroom or
bathroom.
TABLE OF CONTENTS
General Information......................... page 2
Inventory ......................................... page 2
Tools Required ................................ page 2
Important Safety Information .......... page 2
Codes .............................................. page 3
Combustion and Ventilation Air ....... page 3
Preinstallation.................................. page 4

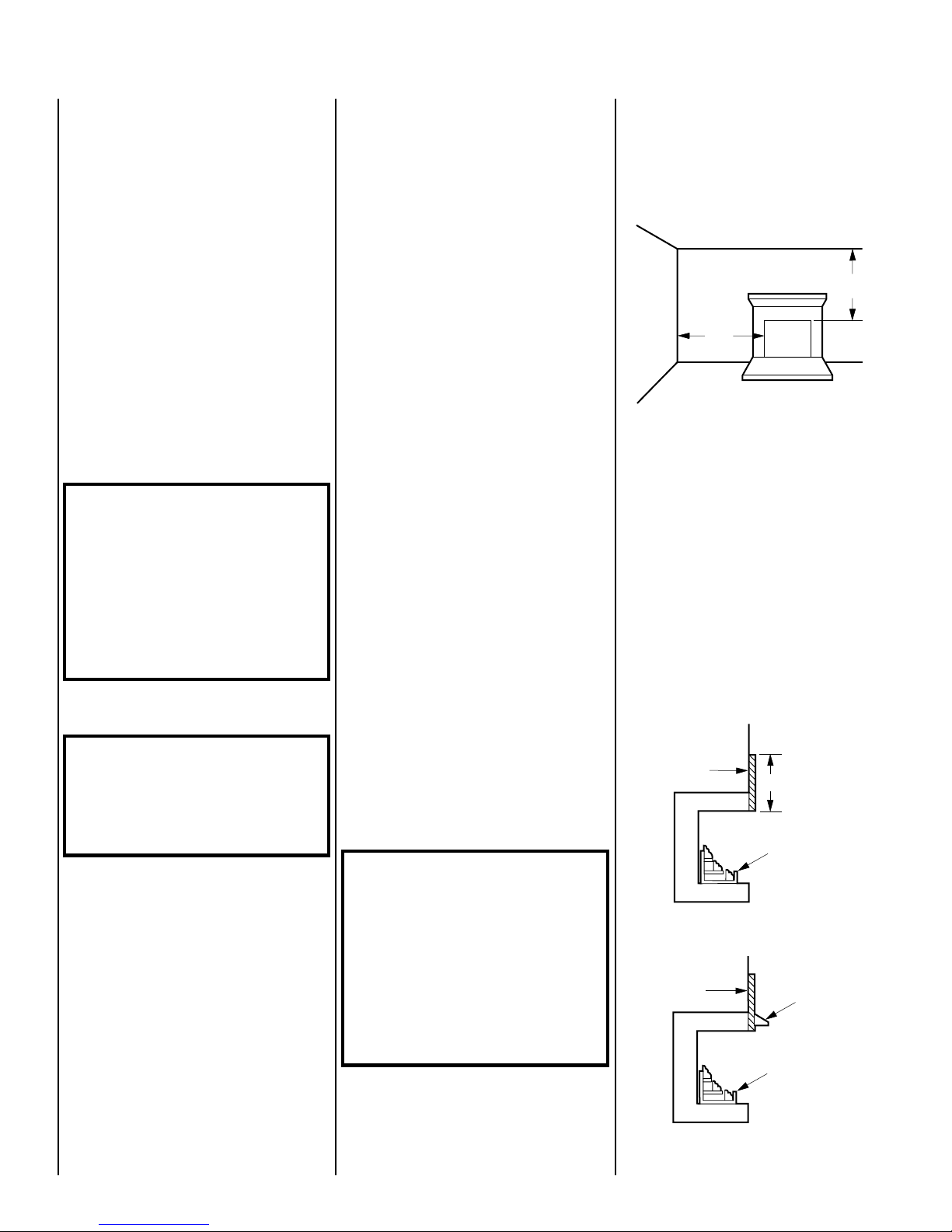

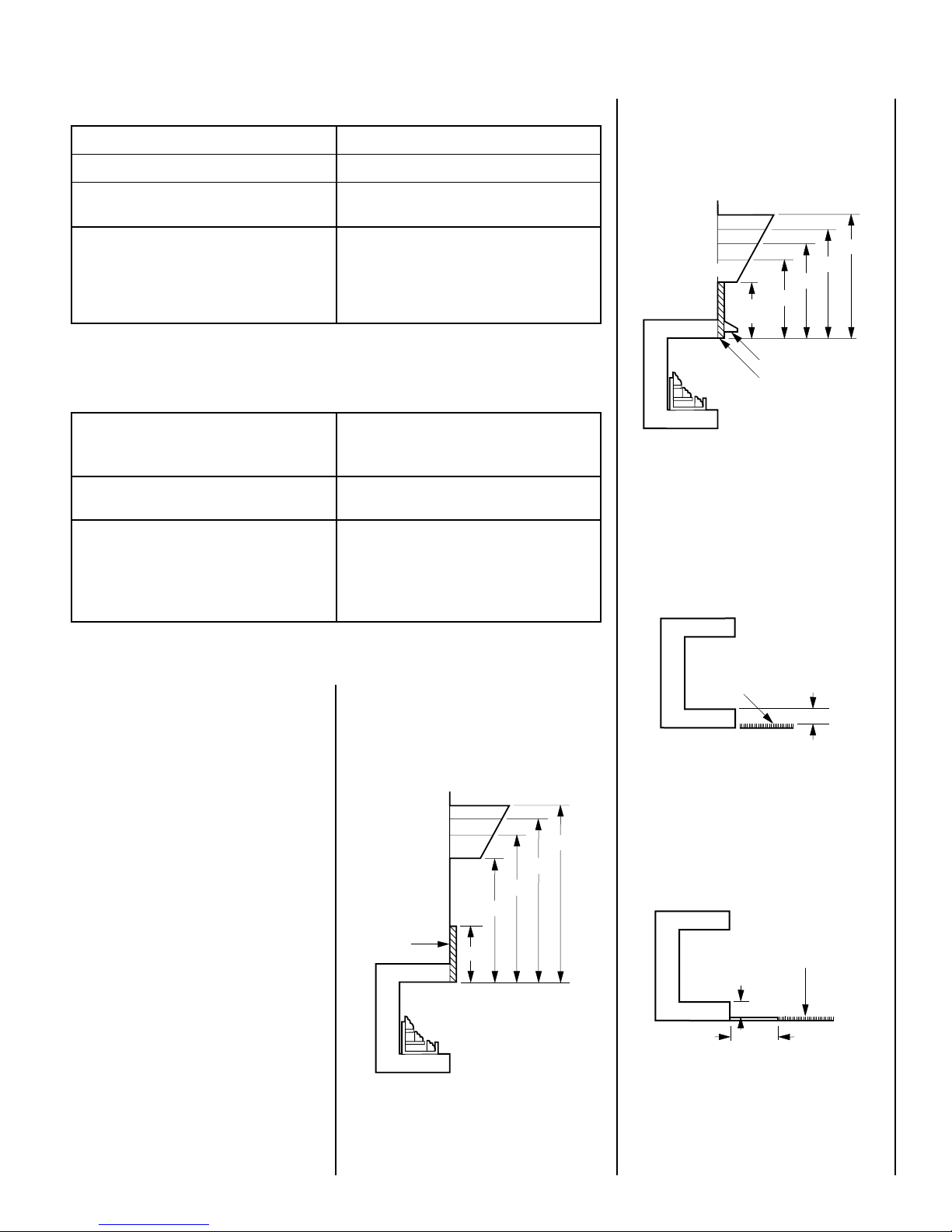

Clearances ....................................... page 4
Installation ....................................... page 6
Gas Pressure Check......................... page 7
Flame Appearance ........................... page 7
Operation ......................................... page 8
Cleaning and Servicing .................... page 8
Replacement Parts .......................... page 8

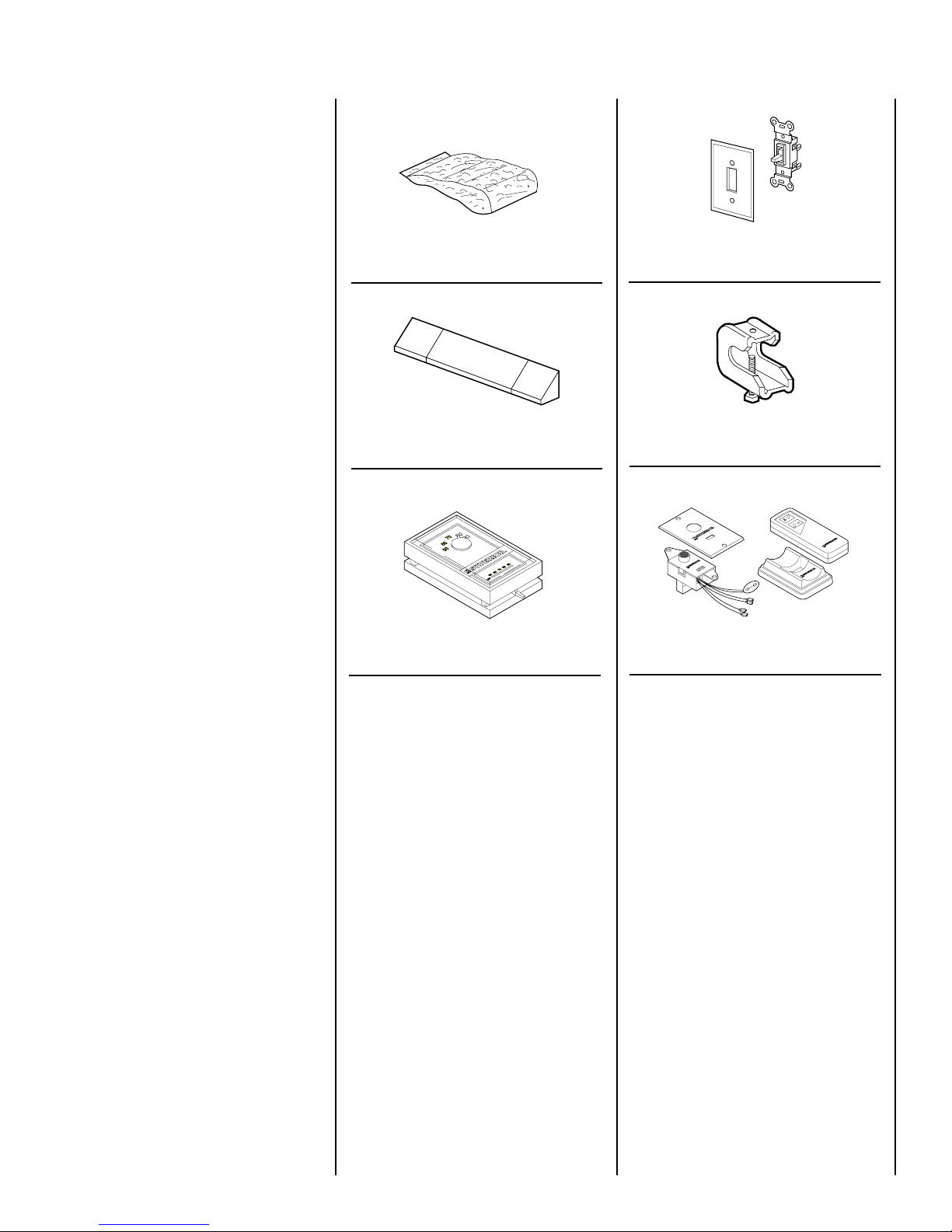

Accessories ..................................... page 9
Heater Specification Chart ............... page 10
Heater Technical Detail Chart ........... page 10
Troubleshooting Guide .................... page 11
Operating Instructions – Manual ..... page 12
Operating Instructions – Millivolt .... page 14

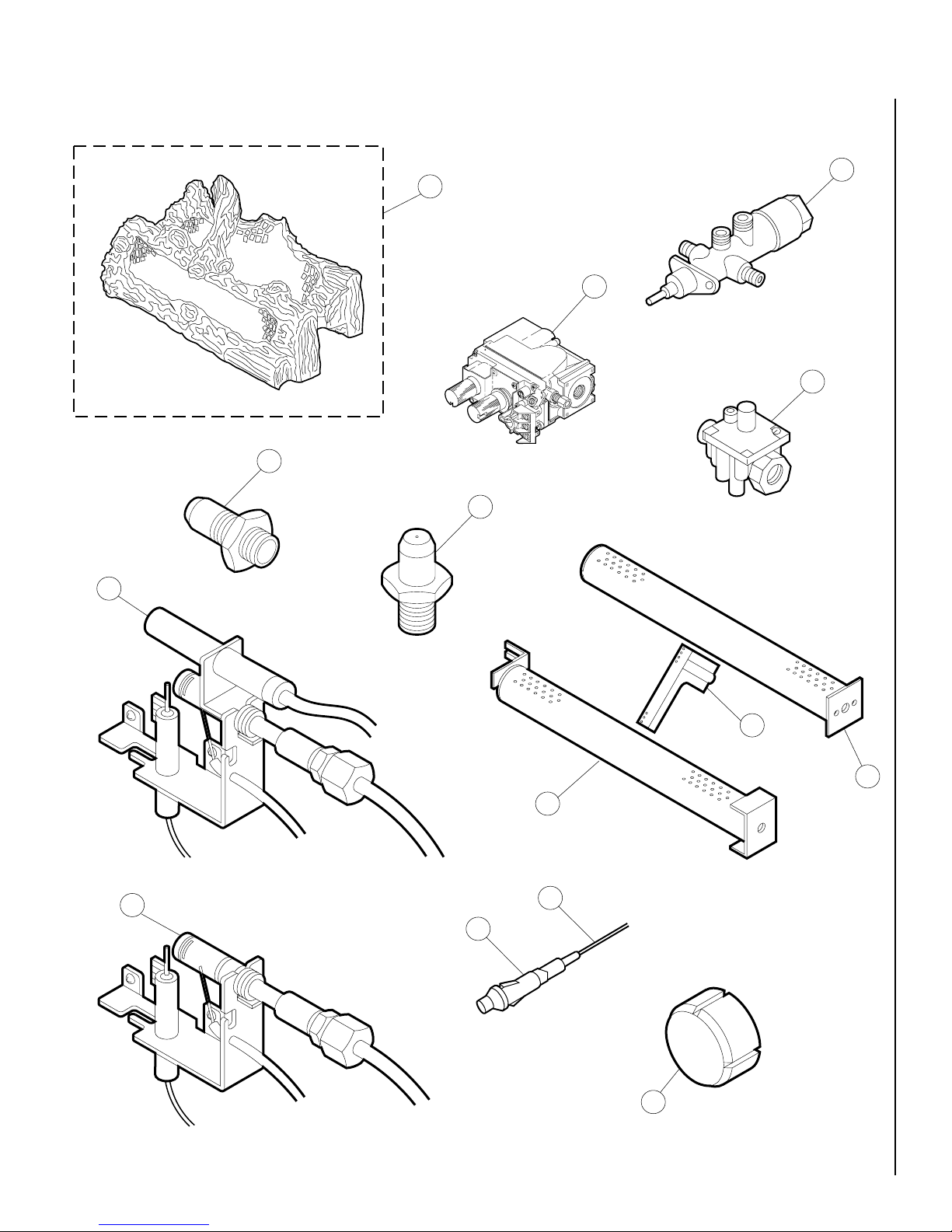

Replacement Parts List.................... page 16
Warranty .......................................... page 20
GENERAL INFORMATION
These Unvented Gas Log Room Heaters incor-
porate unitized ceramic fiber logs which glow
realistically when the heater is operating.
The log sets covered in this document are
manually controlled heater rated units. These
unitsare equiped witheithera standard manual
gas valve or a millivolt gas valve. The control
knob is set to the desired position, which main-
tains a continuous gas burning rate.
A spark ignition system (piezo) allows the gas
pilot to be lit without the use of matches or
batteries and permits operation of the heater
during a power outage.
These heaters are fitted with a specially de-
signed pilot utilizing an oxygen depletion sen-
sor (ODS) which responds to the amount of
oxygen available in the room and shuts the
heater off before the oxygen level drops below
18%. The pilot can be relit only when fresh air
is available. Refer to the Combustion and Ven-
tilation Air section.

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE. 3
•The installation must conform with local
codes or, in the absence of local codes with the
National Fuel Gas Code, ANSI Z223.1.
•The heater and its individual shut-off valve
must be disconnected from the gas supply
pipingsystem whileperforming anytests ofthe
gas supply piping system at pressures in ex-
cess of 1/2 psig.
•The heater must be isolated from the gas
supply piping system by closing its individual
manualshut-offvalve duringany pressuretest-
ing of the gas supply piping system at test
pressures equal to or less than 1/2 psig.
•Keep heater area clear and free from com-
bustible materials, gasoline and other flam-
mable vapors and liquids.
•Do not use this heater if any part has been
under water. Immediately call a qualified ser-
vice technician to inspect the room heater and
to replace any part of the control system and
any gas control which has been under water.
•Input ratings are shown in BTU per hour and
arefor elevationsup to4,800 feet.Do notinstall
thisheateratanelevation above4,800feetifthe
gas supply has not been derated for that eleva-
tion. Consult your local gas supplier. (For op-
eration at elevations above 4,800 feet, equip-
ment ratings shall be reduced at the rate of 4
percent for each 1,000 feet above sea level
beforeselectingappropriatelysizedequipment.)
•Ensure that the heater is clean when operat-
ing.Excessivedustaccumulation onthe burner
and/or logs will increase the amount of carbon
monoxide formation and could lead to carbon
monoxide poisoning and/or death.
CODES
Adhere to all local codes or in their absence the
latest edition of The National Fuel Gas Code
ANSI Z223.1 or NFPA54 which can be obtained
from The American National Standards Insti-
tute, Inc. (1430 Broadway, New York, NY,
10018) or National Fire Protection Association,
Inc. (Batterymarch Park, Quincy, MA, 02269).
Stateorlocal codesmayonlyallowoperation of
thisappliance(manualversiononly)inavented
configuration. Check your state or local codes.
Superior Unvented Gas Log Room Heaters are
certified by AGA to ANSI Z21.11.2 standard.
These gas log room heaters may be used as a
spaceheatsource fora roominconjunctionwith
an approved unvented firebox. Additionally,
manually controlled units are design certified by
AGA to ANSI 21.60 as a vented gas log set.
As such manually controlled units may be used
as vented gas log set in any wood-burning
fireplace that has been properly constructed to
code, and in the case of factory built fireplaces,
installedincompliancewithmanufacturerslist-
ing and installation instruction.
Useof the manually controlled logsets covered
by this manual in a properly vented wood-
burning fireplace which has had the damper
blocked open as detailed in these installation
instructionsprecludeconsiderationofthecom-
bustion and ventilation air and clearance to
combustible restrictions discussed herein.
COMBUSTION AND VENTILATION AIR
This heater shall not be installed in a confined
space or unusually tight construction unless
provisions are provided for adequate combus-
tion and ventilation air.
The National Fuel Gas Code defines a confined
space as a space whose volume is less than
50 ft 3per 1,000 BTU/Hr (4.8 m3per kw) of the
aggregate input rating of all appliances in-
stalled in that space and an unconfined space
as a space whose volume is not less than 50 ft 3
per 1,000 BTU/Hr (4.8 m3per kw) of the aggre-
gate input rating of all appliances installed in
thatspace.Roomscommunicatingdirectlywith
the space in which the appliances are installed,
throughopeningsnotfurnishedwithdoors, are
considered a part of the unconfined space.
Unusually tight construction is defined as con-
struction where:
a. wall and ceilings exposed to the outside
atmosphere have a continuous water vapor
retarder with a rating or one perm or less with
openings gasketed or sealed, and
b. weather stripping has been added on oper-
able windows and doors, and
c.caulkingorsealantsareappliedtoareassuch
as joints around window and door frames,
between sole plates and floors, between wall-
ceiling joints, between wall panels, at penetra-
tions for plumbing, electrical, and gas lines,
and at other openings.
Use the following equations to determine if you
have a confined or unconfined space.
1. Determine the volume of space — ft 3.
Length x Width x Height = _____ ft 3
(Include adjoining rooms with doorless pas-
sageways or ventilation grills between
rooms.)
Example:24'(L) x16' (W)x 8'(H) =3072 ft 3
2. Divide the volume of space by 50 ft 3to
determine the maximum BTU/Hr the space
can support.
______ (volume of space – ft 3)/ 50 ft 3=
(Maximum BTU/Hr the space can support)
Example: 3072 ft 3/ 50 ft 3= 61.44
or 61,440 BTU/Hr the space can support.
3. Add the BTU/Hr of all the fuel burning appli-
ances in the space.
Vent-Free heater _______ BTU/Hr
Gas appliance #1* _______ BTU/Hr
Gas appliance #2 + _______ BTU/Hr
Total = _______ BTU/Hr
Example:
Vent-free heater 32,000 BTU/Hr
Gas appliance #1 35,000 BTU/Hr
(water heater) Total = 67,000 BTU/Hr
* Do not include direct-vent gas appliances.
Direct-vent is sealed combustion and draws
combustion air from the outdoors.
4. Compare the maximum BTU/Hr the space
can support with the actual amount of BTU/
Hr used.
_________ BTU/Hr
(max. the space can support)
_________ BTU/Hr
(actualamountofBTU/Hrused)
Example:
61,440 BTU/Hr
(max. the space can support)
67,000 BTU/Hr
(actualamountofBTU/Hrused)
The space in the above example is a confined
space because the actual BTU/Hr used is more
than the maximum BTU/Hr the space can sup-
port. You must provide additional fresh air.

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE.
4
Your options are:
a. Rework equations adding the space of ad-
joiningroom(s). Ifthe extravolume provides
an unconfined space, then remove door or
add ventilation grills between rooms. Refer
to National Fuel Gas Code, ANSI Z223.1,
Section 5.3.
b.Vent room directly to the outdoors. Refer to
National Fuel Gas Code, ANSI Z223.1, Sec-
tion 5.3.
c. Install a lower BTU/Hr heater, such as a
24,000 BTU/Hr, to make the area an uncon-
fined space.
If the actual BTU/Hr used is less than the
maximum BTU/Hr the space can support, then
thespace is an unconfinedspace.You will need
no additional fresh air ventilation for an uncon-
fined space.
WARNING: IF THE AREA IN WHICH THE
HEATERMAY BEOPERATEDISSMALLER
THANTHATDEFINEDASANUNCONFINED
SPACE OR IF THE BUILDING IS OF UN-
USUALLY TIGHT CONSTRUCTION, PRO-
VIDEADEQUATECOMBUSTIONANDVEN-
TILATION AIR BY ONE OF THE METHODS
DESCRIBED IN THE NATIONAL FUEL GAS
CODE, ANSI Z223.1, SECTION 5.3 OR
APPLICABLE LOCAL CODES.
PREINSTALLATION
WARNING: BEFORE INSTALLING IN A
SOLID FUEL BURNING FIREPLACE, THE
CHIMNEY FLUE AND FIREBOX MUST BE
CLEANED OF SOOT, CREOSOTE, ASHES
ANDLOOSEPAINTBYAQUALIFIEDCHIM-
NEY CLEANER.
Note: Illustrations shown in this manual reflect
“typical”installationswith nominaldimensions
and are for reference only. Actual installations
may vary due to individual design preferences.
However,alwaysmaintainminimumclearances
to combustible materials and do not violate any
specific installation requirements. Refer to Fig-
ures 1 through 7 for clearances.
Note: Thefollowing steps represent the normal
sequence of installation. Each installation is
unique, however, and might require a different
sequence.
When local codes require the damper to be
fixed open, a damper stop must be installed to
prevent full closure of the fireplace damper and
provide a minimum 29 square inch flue open-
ingat alltimes. Referto accessoriesfor damper
clamp.
If damper clamp is not available, the damper
may be fixed open in the following manner.
Drill a hole in the end of the damper. Screw in
abolt of sufficient size and adjust to provide the
minimum 29 square inches of flue opening.
CAUTION:HEATERSCREATEWARMAIRCUR-
RENTS. THESE CURRENTS MOVE HEAT TO
WALLSURFACESNEXTTOHEATER.INSTALL-
INGHEATER NEXT TOVINYLOR CLOTH WALL
COVERINGS OR OPERATING HEATER WHERE
IMPURITIES IN THE AIR (SUCH AS TOBACCO
SMOKE) EXISTS, MAY DISCOLOR WALLS.
•Turnoffgassupplytothe fireplaceor firebox.
•Position heater in fireplace or firebox.
•Connect gas line.
•Secure heater.
•Assemble logs and test flame.
•Sprinklevolcanic rock over base plate infront
of and below the main burner.
Check Gas Type
This heater can only be connected to the gas
type specified on the heater rating plate. This
heater can not be modified in the field for a
different gas type. If the gas supply differs, DO
NOTINSTALLtheheater.Contactyourdealerto
obtain the correct heater.
CLEARANCES
WARNING: DO NOT INSTALL THIS GAS
HEATER:
•IN SLEEPING QUARTERS, BATH-
ROOMS, A MOBILE HOME, OR A REC-
REATIONAL VEHICLE.
•WHERE CURTAINS, FURNITURE,
CLOTHINGOROTHERFLAMMABLEOB-
JECTS ARE LESS THAN 42" FROM THE
FRONT OF THE GAS HEATER.
•IN HIGH TRAFFIC AREAS.
•IN WINDY OR DRAFTY AREAS.
Ensure the minimum clearances shown in
Figures 1 through 7 are maintained. Left and
right clearances are determined when facing
the front of the heater.
Follow these instructions carefully to ensure
safeinstallation. Failureto followthese require-
ments may create a fire hazard.
Step 1. Sidewall Clearances: The sides of the
fireplace opening must be at least 16" from any
combustible side wall (
Figure 1 ).
Figure 1
Step 2. Ceiling Clearance: The ceiling must be
at least 42" from the top of the heater opening
( Figure 1 ).
Step3. Noncombustible materials (minimum
requirements):Toinstall theroomheater with-
out wood mantels, shelves or other combus-
tible projections directly above the opening of
the fireplace (firebox) refer to Figure 2 and
Table 2. Note that at least 8" of noncombustible
material must be installed above the heaters
described in this manual.
Noncombustible materials, such as slate and
marble, must be at least 1/2" thick.
Figure 2
Figure 3
16"
Min.
42"
Min.
Noncombustible
Material A
Heater in Fireplace
or Firebox
8" or More of
Noncombustible
Material Adjustable
Canopy
Heater in Fireplace
or Firebox

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE. 5
Step 4. Wood mantel, shelf or combustible
projection requirements: To install a wood
mantel, shelf or other combustible projection
directly above the fireplace (firebox), refer to
Table 3 and to Figures 4 and 5 for installation
profiles.
If your mantel profile is unsafe, you may either:
•Raise the mantel to an acceptable height, or
•Remove the mantel.
Example:Thebottomofthemantelmayproject
from the wall a maximum of 2 ¹₂ " at a minimum
of 28" above the opening. The top shelf of the
mantel may project a maximum of 6" at a
minimum of 34 ¹₂ " above the opening.
Figure 4
Example:Thebottomofthemantelmayproject
from the wall a maximum of 2
¹₂ " at a minimum
of 8" above the opening. The top shelf of the
mantel may project a maximum of 6" at a
minimum of 14
¹₂ " above the opening.
Figure 5
Step 5. Floor clearance: If combustible floor-
ing materials, such as carpeting or asphalt tile,
are to be located within 14" of the fireplace or
firebox opening, the room heater base must be
at least 5" above the combustible flooring ma-
terial ( Figure 6 ).
Figure 6
The room heater base may be lower than 5"
above the combustible flooring materials if the
combustible flooring materials are more than
14" from the fireplace or firebox opening ( Fig-
ure 7 ).
Figure 7
Noncombustible Material Requirements with No Mantel Installed
(A) Noncombustible Material Measurement Requirements for Safe Installation
12" or more Adjustable canopy not required.
8" minimum to 12" Install adjustable canopy, P/N 053751 or
P/N 053752 (
Figure 3 ).
Less than 8" Extend noncombustible material to at least
8" and install adjustable canopy (
Figure 3 ).
or
Extend noncombustible material to a height
of at least 12".
Table 2
Noncombustible Material Heights and Mantel Location
Requirements for Safe Installation
with Wood Mantel, Shelf or
Noncombustible Material Measurement Other Combustible Projection
12" or more Adjustablecanopynotrequired.Observepro-
files shown in
Figure 4 .
8" minimum to 12" Install adjustable canopy and observe pro-
files shown in
Figure 5 .
or
Extend heat resistant material to at least 12"
and observe profiles shown in
Figure 4 .
Table 3
Heat Resistant
Material 12"
28"
34 ¹⁄₂"
38 ⁵⁄₈"
42"
10"
2 ¹⁄₂"
6"
8"
Ceiling
Heat Resistant
Material
14 ¹⁄₂"
18 ⁵⁄₈"
22 ¹⁄₂"
26"
10"
2 ¹⁄₂"
6"
8"
12"
8"
Min.
Hood (Canopy)
Combustible
Material
5" Min.
Combustible
Material
Can be less
than 5"
14" Min.

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE.
6
Figure 9
An external regulator must be used on all pro-
pane (L.P.G.) heaters, in addition to the regula-
torfittedto theheater, toreduce thesupplytank
pressure to 13" w.c. (maximum).
WARNING: CONNECTING DIRECTLY TO
AN UNREGULATED PROPANE TANK MAY
CAUSE AN EXPLOSION.
Theheater gas inlet connection is ³⁄₈" NPTatthe
regulator, located on the right side facing the
heater. If a left side connection is required, the
connection pipe may be piped under the rear of
the appliance to end at the left hand side for
connection to the inlet.
When tightening up the joint to the regulator
hold the regulator securely with a wrench to
prevent the regulator from moving.
Checking Gas Connections: Test all gas joints
from the gas meter to the gas fireplace regula-
torfor leaksusingsoap and watersolution after
completing connection. DO NOT USE AN OPEN
FLAME.
A. Mix a 50% dish soap, 50% water solution.
B. Light the appliance (see safety and lighting
instructions on pages 12 and 14).
C. Brush all joints and connections with the
soapy water solution to check for leaks. If
bubbles are formed, or gas odor is detected,
turn the gas control knob to the “OFF” position.
Either tighten or refasten the leaking connec-
tion and retest as described above.
D. When the gas lines are tested and leak free,
observe the individual tongues of flame on the
burner. Make sure all ports are open and pro-
ducing flame evenly across the burner. If any
ports are blocked, or partially blocked, clean
out the ports.
Union
Regulator
Fireplace or
Firebox Wall
Wall
Shut-Off
Key
3"
Manual
Shut-Off
Valve
Fireplace or
Firebox Wall
Sediment
Trap Down
Step 1. Placement of Heater –Center the
heater in the fireplace or firebox. Make certain
the grate front feet sit inside the front edge of
the fireplace or firebox.
To avoid any movement of the heater during
operation, attach the grate to the floor of the
fireplace or firebox using the screws provided.
Slots along the back flange of the log set are
provided. After centering the grate correctly,
mark the positions of the bottom of the slots on
the fireplace/firebox floor. Drill two (2) ⁹⁄₆₄"
diameterholeswithmasonrydrillapproximately
¹⁄₂" deep.
Preliminarily anchor the grate to the fireplace/
firebox floor with the two (2) screws provided
(
Figure 8 ). Loosen screws and proceed with
the installation.
Figure 8
Step 2. Connecting Gas Line –A qualified gas
appliance installer must connect the gas room
heater to the gas supply.
Consult all local codes.
Route gas line using techniques and materials
prescribed by local and/or national codes. Only
use pipe of ¹⁄₂" or greater diameter to allow full
gas volume to the gas fireplace. Undue pres-
sure loss will occur if the pipe is too small.
An ANSI approved manual shut-off valve and
union must be installed upstream of the heater
within the fireplace cavity when rigid pipe is
used.
Ensure that a sediment trap is installed up-
stream of the heater within the structures pip-
ing system to prevent moisture and contami-
nants from passing through the pipe to the
heater controls and burners ( Figure 9 ). Failure
to do so could prevent the heater from operat-
ing reliably.
IMPORTANT: HOLD HEATER REGULATOR
WITH A WRENCH TO PREVENT MOVEMENT
WHEN CONNECTING TO INLET PIPING
INSTALLATION
WARNING: DO NOT ALLOW FANS TO
BLOW DIRECTLY INTO THE FIREPLACE.
AVOID ANY DRAFTS THAT ALTER
BURNER FLAME PATTERNS.
WARNING: DO NOT USE A BLOWER IN-
SERT, HEAT EXCHANGER INSERT OR
OTHER ACCESSORY NOT APPROVED
FOR USE WITH THIS HEATER.
This appliance must not be operated without a
fireplace screen installed. Fireplace screens
must not impair the free flow of combustion air
to the appliance.
Donotburnsolidfuelsinanyfireplaceequipped
with this listed unvented gas room heater.
WARNING: INSTALLED DECORATIVE
GLASS DOOR ENCLOSURES MUST BE
FULLY OPENED WHEN OPERATING THIS
LISTED UNVENTED GAS ROOM HEATER.
Anyoutsideairductsand/orash dumpsthatare
part of the original solid fuel burning fireplace
system must be fully closed and sealed at the
time of installation of this listed unvented gas
room heater.
WARNING: SPECIAL CARE IS REQUIRED
IF YOU ARE INSTALLING THE UNIT INTO
ASUNKENFIREPLACE.YOUMUSTRAISE
THE FIREPLACE FLOOR TO ALLOW AC-
CESSTOGASLOGCONTROLS.THISWILL
INSURE ADEQUATE AIR FLOW AND
GUARD AGAINST SOOTING. RAISE THE
FIREPLACEFLOORUSINGNONCOMBUS-
TIBLE MATERIALS.
A qualified gas appliance installer must install
this heater.
Check gas type: The gas supply must be the
same as stated on the heater’s rating plate. If
the gas supply is different, DO NOT INSTALL
the heater. Contact your dealer for the correct
model.
Anchor Screw
(Both Sides)
Alternate
Location

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE. 7
Each heater includes a unitized set of ceramic
fiber logs. The heater and logs are assembled
as shown in Figure 11 . Handle these logs with
great care. The logs can be easily damaged, but
when handled properly they can provide years
of performance and enjoyment.
Figure 11
Manual Log Set
Shown, Millivolt
Similar
Gas Pressure Check
The heater regulator controls the burner pres-
sure which should be checked at the pressure
test point (¹⁄₈" NPT plugged tap) located at the
bottomof the regulator(on manual models) or
on the control valve itself (on Millivolt mod-
els),identified A for the manifold side and E for
inlet pressure. Ensure operatilng pressures
are within the limits specified in the techinical
chart on page 10.
Figure 10
The pressure should be checked with the gas
heater burning and the control set to high (3).
The pressure regulator on manual models is
preset and locked to avoid tampering. If the
pressure is not as specified in the Technical
Details Chart on page 10, replace the regulator
with P/N 110351 for natural gas and P/N
110352 for propane (L.P.G.) heaters.
Replace the test point plug after pressure
measurement ensuring no gas leaks.
Step 3. Secure the log set within the firebox
using the screws and drilled holes discussed
in Step 2.
Step 4. Assembling the Logs
WARNING: DO NOT ADD EXTRA LOGS OR
ORNAMENTSSUCHASPINECONES, VER-
MICULITE OR ROCK WOOL. USING THESE
ADDED ITEMS CAN CAUSE SOOTING.
Manual Valve
Pressure Test Point
Millivolt Valve
Pressure Test Point
On Front Of Valve
Periodically check the positioning of all logs.
Flame Appearance
REFER TO THE OPERATING INSTRUCTIONS
LOCATED AT THE BACK OF THIS MANUAL
BEFORELIGHTINGTHEHEATERTOOBSERVE
THE FLAMES.
Flames from the pilot, front and rear burner
should be visually checked as soon as the
heater is installed. In addition a periodic visual
check of the flames should be made. The pilot
flameshouldalwaysbepresentwhentheheater
is in operation (
Figure 12 ).
WARNING: NO ADJUSTMENTS ARE TO
BE MADE TO THE ODS PILOT SYSTEM.
TAMPERING WITH THIS SYSTEM CAN
BE EXTREMELY HAZARDOUS.
Figure 12
An incorrect pilot flame pattern is shown in
Figure 13 . This pilot flame will cause the
thermocoupleto cool. When the thermocouple
cools, the log set will shut off. If pilot flame
pattern is incorrect, or if log set shuts off,
contact your service representative.
Figure 13
WARNING: FAILURE TO POSITION THE
PARTS IN ACCORDANCE ITH THESE DIA-
GRAMSORFAILURETOUSEONLYPARTS
SPECIFICALLY APPROVED WITH THIS
HEATER MAY RESULT IN PROPERTY
DAMAGE OR PERSONAL INJURY.
WARNING: DO NOT PLACE ANY LAVA
ROCKON LOGS ORBURNERS. THISMAY
CAUSE SOOTING. ONLY PLACE LAVA
ROCK ON FLOOR OF FIREPLACE.

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE.
8
In normal operation, at full rate, after 15 min-
utes the following flame appearance should be
observed:
RearBurnerCharacteristics–Therear flames
should be yellow. The flames should extend
about 3 – 4" above the front log for natural gas
and 2 – 3" above for propane (L.P.G.) gas
(
Figure 14 ).
Figure 14
Main Burner Characteristics –The flames at
the front burner holes will be blue becoming
orange as they hit the bark-like texture of the
base and front face of the log.
OPERATION AND CARE OF YOUR
APPLIANCE
1. Appliance operation may be controlled
through the ON/OFF unit rocker switch, located
in the control compartment, or through a re-
motely located optional wall switch or wall
thermostat.
2. Thermostat units are equipped with a two
stage (HI, LOW) gas control valve. To cycle the
burnerbetweenthe HIand LOWsettings,rotate
the control knob clockwise and counterclock-
wise respectively.
3. When lit for the first time, the appliance will
emit a slight odor for an hour or two. This is
due to the “burn-in” of the internal paints and
lubricants used in the manufacturing process.
For the first few hours, operate the appliance
with doors and windows open to encourage
the dissipation of odor.
REPLACEMENT PARTS
An exploded view of the room heater with
numberedpartsand aparts listcanbefoundon
page 16. All parts should be ordered through
your Superior distributor or dealer. Parts will
be shipped at prevailing prices at time of order.
When ordering repair parts, always give the
following information:
1. The model number of the heater.
2. The serial number of the heater.
3. The part number.
4. The description of the part.
5. The quantity required.
6. The installation date of the heater.
If you encounter any problems or have any
questions concerning the installation of this
heater, please contact your distributor. For the
name of your nearest distributor contact:
SFC
1110 West Taft Avenue
Orange, CA 92865
OPTIONAL EQUIPMENT
All options are available in kit form, are easy to
install and are packaged complete with all re-
quired parts and instructions. Some of the
option kits need to be fitted prior to completing
the installation of the appliance. The following
paragraphs detail the kit options available.
The appliances covered in this manual are
heater rated and produce a great deal of heat.
Decorative brass trim pieces and hoods may
tarnish because of their proximity to the heater
opening and front face. Tarnishing of these
pieces is normal, unavoidable and should be
expected.
Remote Control Kit
The Model RCK adds the convenience of re-
mote control for your appliance. The kit in-
cludes a wireless, hand held transmitter and a
receiver. This special receiver permits either
manualorremotecontrolmodes.Bothreceiver
and transmitter operate on standard 9 volt
batteries (not included). Refer to the RCK in-
stallation instruction for specific details.
CLEANING AND SERVICING
WARNING: TURN OFF THE UNVENTED
GASROOMHEATERANDALLOWTOCOOL
BEFORE CLEANING.
CAUTION: YOU MUST KEEP CONTROL AR-
EAS, BURNERS AND CIRCULATING AIR PAS-
SAGEWAYS OF FIREPLACE CLEAN. INSPECT
THESE AREAS OF FIREPLACE BEFORE EACH
USE. HAVE FIREPLACE AND CHIMNEY (IF
APPLICABLE) INSPECTED YEARLY BY A
QUALIFIED SERVICE PERSON. FIREPLACE
MAY NEED MORE FREQUENT CLEANING DUE
TO EXCESSIVE LINT FORM CARPETING, BED-
DING MATERIAL, ETC.
Only limited cleaning will be required under the
normal use of the heater. Dust the front grate,
the top of the piezo cover and the control knob
occasionally. Do not use cleaning fluids to
clean the logs or any other part of the room
heater.
Remove the logs, gently handling at each end.
Useavacuumcleaner toremovelooseparticles
from the base and from around the burners.
Gloves are recommended to prevent the fibers
from pricking your skin. If the skin is pricked,
wash gently with soap and water. Replace the
logs as detailed in Step 4 Assembling the Logs.
If, after a period of use, the flames start to
exhibit unusual shapes and behavior, or the
burners fail to ignite smoothly, then the burner
holes may require some cleaning. If this hap-
pens, it is preferable to contact your nearest
dealer to get the appliance serviced.

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE. 9
ACCESSORIES
Decorative
Volcanic Stone P/N 110791 VFVS
Brass P/N 053751 AC - SPB
Black P/N 053752 AC - BLK
Adjustable Canopy
Damper Clamp P/N 110701 DCK
Thermostat P/N 064248 WTK Remote Control Kit P/N 064453 RCK
Wall Switch Kit P/N 064035 WSK
Damper Clamp Kit
A Damper Clamp Kit is available for use when
required by local codes. Using the damper
clamp to fix open the fireplace damper will
allow this vent free product to be utilized as a
vented decorative gas log set, (see details on
pages 3 and 4).
Wall Switch Kit*
An optional wall switch kit can be installed
along with all vent-free appliances. The kit
consists of a standard UL wall switch with
cover plate. This kit provides for remote (wall)
operation of the appliance. Replace the wall
switch and cover plate of this kit with the
components of the RCK and you can have true
remote control of your vent-free appliance,
turning it on and off from your favorite easy
chair. The wall switch kit should be installed
along with the appliance.
Wall Thermostat Kit*
A wall thermostat kit is available for use with
these appliances. The wall thermostat is de-
signed to be wired directly to the appliance
millivolt gas control circuit and provide auto-
matic On/Off control of the appliance to main-
tain a desired temperature within the room.
Decorative Volcanic Stone
The decorative volcanic stone, Model VFVS,
can be used to enhance the look of your appli-
ance. Spread the decorative volcanic stone
evenly around the bottom of the firebox.
Adjustable Canopy
An attractive black or brass canopy kit is avail-
able for use with these VF appliances. The
canopy kit is designed to be fitted to the wall
above the firebox opening. In addition to pro-
viding an aesthetically pleasing appearance,
the canopy reduces heat effects to decorative
mantles and finish materials located directly
above the fireplace opening. The canopy kit
includes the necessary attaching hardware.
*Use 18GA, solid two conductor wire to
connect these kits to the appliance.

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE.
10
UNVENTED GAS LOG ROOM HEATER SPECIFICATION CHART
Model No. Valve Operation BTU/hr Input Gas Type
* Manual control models are also design certified for use as vented gas log sets.
UNVENTED GAS LOG ROOM HEATER TECHNICAL CHART
BTU/HR Regulator Gas Inlet Valve
Model No. High Gas Type Ignition Pres. Setting Pressure** Operation
* Manual control models are also design certified for use as vented gas log sets.
** For the purpose of input adjustment.
VFGL - 18N 25,000 Natural Piezo 5" w.c. Max. 10.5" w.c. Manual*/Millivolt
Min. 6" w.c.
VFGL - 18P 25,000 Propane/LPG Piezo 10" w.c. Max. 13" w.c. Manual*/Millivolt
Min. 11" w.c.
VFGL - 24N 32,000 Natural Piezo 5" w.c. Max. 10.5" w.c. Manual*/Millivolt
Min. 6" w.c.
VFGL - 24P 32,000 Propane/LPG Piezo 10" w.c. Max. 13" w.c. Manual*/Millivolt
Min. 11" w.c.
VFGL - 28N 32,000 Natural Piezo 5" w.c. Max. 10.5" w.c. Manual*/Millivolt
Min. 6" w.c.
VFGL - 28P 32,000 Propane/LPG Piezo 10" w.c. Max. 13" w.c. Manual*/Millivolt
Min. 11" w.c.
VFGL - 18 MSN-3 Manual* 14,000 - 25,000 Natural
VFGL - 18 MSP-3 Manual* 14,000 - 25,000 Propane/LPG
VFGL - 24 MSN-3 Manual* 17,000 - 32,000 Natural
VFGL - 24 MSP-3 Manual* 17,000 - 32,000 Propane/LPG
VFGL - 28 MSN-3 Manual* 17,000 - 32,000 Natural
VFGL - 28 MSP-3 Manual* 17,000 - 32,000 Propane/LPG
VFGL - 18 VSN-3 Millivolt 19,500 - 25,000 Natural
VFGL - 18 VSP-3 Millivolt 19,500 - 25,000 Propane/LPG
VFGL - 24 VSN-3 Millivolt 25,000 - 32,000 Natural
VFGL - 24 VSP-3 Millivolt 25,000 - 32,000 Propane/LPG
VFGL - 28 VSN-3 Millivolt 25,000 - 32,000 Natural
VFGL - 28 VSP-3 Millivolt 25,000 - 32,000 Propane/LPG

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE. 11
1. When igniter button is
pressed, there is no spark
at ODS/pilot.
2. Heater produces unwanted
odors.
3. Heater shuts off in use
(ODS operates).
4. Gas odor even when control
knob is in “OFF” position.
5. When igniter button is
pressed, there is spark at
ODS/pilot, but no ignition.
6. ODS/pilot lights, but flame
goes out when control knob
is released.
7. Burner does not light after
ODS/pilot is lit.
8. Delayed ignition of burner.
9. Burner backfiring during
combustion.
10. Slight smoke or odor during
initial operation.
11. Heater produces a whistling
noise when burner is lit.
Replace igniter.
Replace igniter.
Reconnect igniter cable.
Free igniter cable if pinched by any metal or tubing. Keep igniter cable dry.
Tighten nut.
Replace igniter cable.
Replace piezo igniter.
Ventilate room. Stop using odor-causing products while fireplace is running.
Locate and correct all leaks.
Open window and/or door for ventilation.
Contact local gas company.
Clean ODS/pilot.
Locate and correct all leaks (see Checking Gas Connections, page 6).
Replace control valve.
Turn on gas supply or open manual shut-off valve.
Turn control knob to pilot position.
Press in control knob while in pilot position.
Continue holding down control knob. Repeat igniting operation until air is
removed.
Replace ODS/pilot assembly or get it serviced.
Replace gas regulator.
Press in control knob fully.
After ODS/pilot lights, keep control knob pressed in 30 seconds.
Fully open manual shut-off valve.
Hand tighten until snug, then tighten ¹⁄₄ turn more.
1). Contact local gas company.
2). Replace ODS/pilot assembly or get pilot serviced.
Replace thermocouple.
Replace control valve.
Clean burner or replace burner orifice.
Replace burner orifice.
Contact local gas company.
Contact local gas company.
Clean burner or replace burner orifice.
Clean burner or replace burner orifice.
Replace burner.
Replace gas regulator.
Problem will stop after a few hours of operation. Superior recommends
running the heater with the excess ventilation for the first few hours.
Turn control knob to “LO” position and let warm up for a minute.
Operateburneruntil air isremovedfrom line.Havegas linecheckedby local gas
company.
Clean burner or replace burner orifice.
A. Igniter electrode positioned wrong.
B. Igniter electrode broken.
C. Igniter electrode not connected to igniter cable.
D. Igniter cable pinched or wet.
E. Piezo igniter nut is loose.
F. Broken igniter cable.
G. Bad piezo igniter.
A. Heater burning vapors from paint, hair spray, glues, etc.
B. Gas leak. See Warning statement on the front page.
A. Not enough fresh air is available.
B. Low line pressure.
C. ODS/pilot is partially clogged.
A. Gas leak. See Warning statement on the front page.
B. Control valve defective.
A. Gas supply turned off or manual shut-off valve closed.
B. Control knob not in “PILOT” position.
C. Control knob not pressed in while in “PILOT” position.
D. Air in gas lines when installed.
E. ODS/pilot is clogged.
F. Gas regulator setting is not correct.
A. Control knob not fully pressed in.
B. Control knob not pressed in long enough.
C. Manual shut-off valve not fully open.
D. Thermocouple connection loose at control valve.
E. Pilot flame not touching thermocouple, which allows
thermocouple to cool, causing pilot flame to go out. This
problem could be caused by one or both of the following:
1). Low gas pressure
2). Dirty or partially clogged ODS/pilot
F. Thermocouple damaged.
G. Control valve damaged.
A. Burner orifice is clogged.
B. Burner orifice diameter is too small.
C. Inlet gas pressure is too low.
A. Manifold pressure is too low.
B. Burner orifice is clogged.
A. Burner orifice is clogged or damaged.
B. Burner damaged.
C. Gas regulator defective.
A. Vapors from paint or curing process of logs.
A. Turning control knob to “HI” position when burner is cold.
B. Air in gas line.
C. Dirty or partially clogged burner orifice.
OBSERVED PROBLEM POSSIBLE CAUSE REMEDY
TROUBLESHOOTING GUIDE FOR VENT-FREE GAS PRODUCTS

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE.
12
OPERATING INSTRUCTIONS —MANUAL CONTROL MODELS
FOR YOUR SAFETY READ BEFORE LIGHTING
LIGHTING INSTRUCTIONS
1. Stop! Read the safety information above.
2. Make sure manual shut-off valve is fully open.
3. Refer to
Figure 15 to locate gas control knob and piezo.
4. Depress control knob in and turn clockwise to the
“OFF” position (
Figure 16 ).
5. Wait 5 minutes to clear out any gas. Then smell for gas,
including near the floor. If you smell gas, STOP! Follow “B” in
the safety information above. If you do not smell gas, go to the
next step.
6. The pilot is located on the right side in front of the burner
(
Figure 17 ).
7. Depress control knob in and turn counterclockwise
to the “IGN” position (
Figure 18 ). Press the control knob all
the way in for 5 seconds.
Note: If you are running the heater for the first time it will be
necessary to press the control knob all the way in for 30
seconds to allow air to bleed out of the gas piping.
MANUAL MATCH LIGHTING PROCEDURE —EMERGENCY ONLY
1. If the pilot cannot be lit with the piezo igniter, the heater can be
manually lit with a match.
2. With the right hand, depress and turn the control knob
counterclockwise to the “IGN” position. Hold in the
knob.
TO TURN OFF GAS TO APPLIANCE
1. Depress and turn control knob clockwise to the “OFF”
position (
Figure 18 ).
3. Light the match and hold the flame to the end of the pilot and
ignite the pilot.
4. Continue to hold control knob for an additional 10 seconds to
insure pilot remains lit.
5. Release the control while turning control knob to desired
setting.
8. With the control knob pressed in, push in and release the
piezo igniter button to light the pilot.
9. Hold the control knob in for a further 10 seconds to prevent
the flame failure detector from shutting off the gas while the
probe is warming up.
10. Release the control knob while turning counterclockwise
to the preferred setting.
•If the knob does not pop out when released, stop and
immediately call your service technician or gas supplier.
•If the pilot will not stay lit after several tries, depress and
turn the gas control knob clockwise to “OFF”
and wait 30 seconds. Depress and turn knob counter-
clockwise to “IGN” and press igniter button
again. If your pilot does not relight depress and turn
control knob clockwise to “OFF” and call your
service technician or gas supplier.
11. Wait 30 seconds before readjusting the heater when the
control knob has been turned down to a lower setting.
•Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
•If you cannot reach your gas supplier, call the fire
department.
C. Use only your hand to push in or turn the gas control knob.
Never use tools. If the knob will not push in or turn by hand, do
not try to repair it, call a qualified service technician. Forced or
attempted repair may result in a fire or explosion.
D. Do not use this heater if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and any
gas control which has been under water.
A. This heater has a pilot which must be lit by hand. When
lighting the pilot, follow these instructions exactly.
B. BEFORE OPERATING smell all around the heater area for gas.
Be sure to smell next to the floor because some gas is heavier
than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
•Do not try to light any appliance.
•Do not touch any electric switch; do not use any phone
in your building.
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY
RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE. 13
Figure 16
Figure 15
Gas Control Knob Location Pilot Location
Turn Control Knob to “OFF”Position (Manual) Turn Control Knob to “IGN”Position (Manual)
Figure 18
Figure 17
Pilot
O
F
F
I
G
N
L
O
W
H
I
O
F
F
I
G
N
L
O
W
H
I
Piezo Control Knob

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE.
14
OPERATING INSTRUCTIONS
FOR YOUR SAFETY READ BEFORE LIGHTING
LIGHTING INSTRUCTIONS
1. Stop! Read the safety information above.
2. Make sure manual shut-off valve is fully open.
3. Locate gas control knob and piezo.
4. Depress control knob in and turn clockwise to the
“OFF” position (
Figure 19 ).
5. Wait 5 minutes to clear out any gas. Then smell for gas,
including near the floor. If you smell gas, STOP! Follow “B” in
the safety information above. If you do not smell gas, go to the
next step.
6. The pilot is located on the right side in front of the burner
(
Figure 20 ).
7. Depress control knob in and turn counterclockwise
to the “PILOT” position (
Figure 21 ). Press the control knob all
the way in for 5 seconds.
Note: If you are running the heater for the first time it will be
necessary to press the control knob all the way in for 30
seconds to allow air to bleed out of the gas piping.
MANUAL MATCH LIGHTING PROCEDURE —EMERGENCY ONLY
1. If the pilot cannot be lit with the piezo igniter, the heater can be
manually lit with a match.
2. With the right hand, depress and turn the control knob
counterclockwise to the “ON” position. Hold in the
knob.
TO TURN OFF GAS TO APPLIANCE
1. Depress and turn control knob clockwise to the “OFF”
position ( Figure 19 ).
3. Light the match and hold the flame to the end of the pilot and
ignite the pilot.
4. Continue to hold control knob for an additional 10 seconds to
insure pilot remains lit.
5. Release the control while turning control knob to desired
setting.
•Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
•If you cannot reach your gas supplier, call the fire
department.
C. Use only your hand to push in or turn the gas control knob.
Never use tools. If the knob will not push in or turn by hand, do
not try to repair it, call a qualified service technician. Forced or
attempted repair may result in a fire or explosion.
D. Do not use this heater if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and any
gas control which has been under water.
A. This heater has a pilot which must be lit by hand. When
lighting the pilot, follow these instructions exactly.
B. BEFORE OPERATING smell all around the heater area for gas.
Be sure to smell next to the floor because some gas is heavier
than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
•Do not try to light any appliance.
•Do not touch any electric switch; do not use any phone
in your building.
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY
RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
8. With the control knob pressed in, push in and release the
piezo igniter button to light the pilot.
9. Hold the control knob in for a further 10 seconds to prevent
the flame failure detector from shutting off the gas while the
probe is warming up.
10. Release the control knob while turning counterclockwise
to the "ON" Position (
Figure 22 ). Then adjust
"HI"-"LOW" knob to prefered setting.
•If the knob does not pop out when released, stop and
immediately call your service technician or gas supplier.
•If the pilot will not stay lit after several tries, depress and
turn the gas control knob clockwise to “OFF”
and wait 30 seconds. Depress and turn
knob counterclockwise to
“IGN” and press igniter button again. If
your pilot does not relight depress and
turn control knob clockwise
to “OFF” and call your service technician or gas supplier.
11. Wait 30 seconds before readjusting the heater when the
control knob has been turned down to a lower setting.

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE. 15
Note: Knob cannot be turned from “PILOT” to “OFF”
unless the knob is pushed in slightly. Do not force.
Figure 19
Pilot Location
Figure 20
Pilot
Figure 21
Turn Control Knob to “OFF”Position Turn Control Knob to “PILOT”Position
EA
TPTH TP TH
P
I
L
O
T
H
I
L
O
W
P
I
L
O
T
O
N
it
O
F
F
EA
TPTH TP TH
P
I
L
O
T
H
I
L
O
W
P
I
L
O
T
O
N
it
O
F
F
Figure 22
Turn Control Knob to “ON”Position
EA
TPTH TP TH
P
I
L
O
T
H
I
L
O
W
P
I
L
O
T
O
N
it
O
F
F

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE.
16
REPLACEMENT PARTS LIST
18N/18P 24N/24P 28N/28P
No. Description Part No. Part No. Part No.
1. Valve - Manual (Natural) 110331 110331 110331
Valve - Manual (Propane, L.P.G.) 110331 110331 110331
2. Valve, Millivolt (Natural) 903489 903489 903489
Valve, Millivolt (Propane, L.P.G.) 901917 901917 901917
3. Pilot (Natural) 110341 110341 110341
Pilot (Propane, L.P.G.) 110342 110342 110342
4. Pilot, Millivolt (Natural) 901914 901914 901914
Pilot, Millivolt (Propane, L.P.G.) 901915 901915 901915
5. Regulator (Natural) 110351 110351 110351
Regulator (Propane, L.P.G.) 110352 110352 110352
6. Front Burner 110281 110282 110282
7. Rear Burner (Natural) 110684 110682 110682
Rear Burner (Propane, L.P.G.) 113301 110302 110302
8. Crossover Burner 110321 110321 110321
9. Piezo 111061 111061 111061
10. Piezo Wire 110361 110361 110361
11. Log Assembly – Split Oak 112901 112902 112903
12. Control Knob - Manual 110401 110401 110401
13. Injector, Burner (Natural) 110381 110383 110383
Injector, Burner (Propane, L.P.G.) 110382 110384 110384
14. Injector, Crossover Burner (Natural) 110387 110387 110387
Injector, Crossover Burner (Propane, L.P.G.) 110388 110388 110388

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE. 17
REPLACEMENT PARTS
1
2
5
9
10
11
13
14
12
8
7
6
3
4

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE.
18

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE. 19

SFC reserves the right to make changes at any time, without notice, in design, materials, specifications, prices and also to discontinue colors, styles and products.
Consult your local distributor for fireplace code information.
Printed in U.S.A. © 1997 by SFC
P/N 903623 REV. D 09/02
Manufacturer's Unvented Gas Room Heater
Limited Warranty 1 Year
THE WARRANTY
The Manufacturer warrants this Unvented Gas Room Heater to be free from defects in materials and workmanship at the time of manufacture.
REMEDY AND EXCLUSIONS
The coverage of this Warranty is limited to all components of the Unvented Gas Room Heater supplied by the Manufacturer.
This Warranty only covers Unvented Gas Room Heaters installed in the United States or Canada.
If the Unvented Gas Room Heater covered by this Warranty is foundto be defective withinone year from thedate of installation (see manufacturer’sright of investigation outlinedbelow),
the manufacturer will, at its option, replace or repair defective components of the Unvented Gas Room Heater supplied by the manufacturer at no charge and will also pay for reasonable
labor costs incurred in replacing or repairing such components. If repair or replacement is not commercially practical, the manufacturer will, at its option, refund the purchase price
of the manufacturers Unvented Gas Room Heater.
This Warranty covers only parts and labor as provided above. In no case shall the manufacturer be responsible for materials, components, or construction which are not manufactured
orsuppliedbytheManufacturer,orforthelabornecessarytoinstall,repair,orremovesuchmaterials, components or construction. All replacement or repair components will beshipped
F.O.B. the nearest Manufacturers factory.
QUALIFICATIONS TO THE WARRANTY
The Unvented Gas Room Heater Warranty outlined above is further subject to the following qualifications:
(1) The Unvented Gas Room Heater must be installed in accordance with the Manufacturer's installation instructions and local building codes. The Warranty on this Manufacturer's
Unvented Gas Room Heater covers only the component parts supplied by the Manufacturer. The use of components manufactured by others with this Manufacturers Unvented
Gas Room Heater could create serious safety hazards, may result in the denial of certification by recognized national safety agencies, and could be in violation of local building codes.
This Warranty does not cover any damages occurring from the use of any components not manufactured or supplied by the Manufacturer.
(2) The Unvented Gas Room Heater must be subjected to normal use. The Unvented Gas Room Heaters are designed to burn either natural or propane gas only. Burning conventional
fireplace fuels such as wood, coal, or any other solid fuel will cause damage to the Unvented Gas Room Heater, will produce unsafe levels of carbon monoxide and will result in
a fire hazard.
LIMITATION ON LIABILITY
It is expressly agreed and understood that the Manufacturer’s sole obligation and purchaser’s exclusive remedy under this warranty, under any other warranty, expressed or
implied, or in contract, tort or otherwise, shall be limited to replacement, repair, or refund, as specified above.
In no event shall The Manufacturer be responsible for any incidental or consequential damages caused by defects in its products, whether such damage occurs or is discovered
before or after replacement or repair, and whether or not such damage is caused by the Manufacturer’s negligence. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation or exclusion may not apply to you. The duration of any implied warranty with respect to this Unvented Gas Room
Heater is limited to the duration of the foregoing warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above may not apply to you.
INVESTIGATION OF CLAIMS AGAINST WARRANTY
The Manufacturer reserves the right to investigate any and all claims against this Warranty and to decide upon method of settlement.
THE MANUFACTURER NOT RESPONSIBLE FOR WORK DONE WITHOUT WRITTEN CONSENT
The Manufacturer shall in no event be responsible for any warranty work done without first obtaining Superior’s written consent.
DEALERS HAVE NO AUTHORITY TO ALTER THIS WARRANTY
The Manufacturer’s employees and dealers have no authority to make any warranties nor to authorize any remedies in addition to or inconsistent with those stated above.
HOW TO REGISTER A CLAIM AGAINST WARRANTY
In order for any claim under this Warranty to be valid, The Manufacturer must be notified of the claimed defect in writing to SFC, attention Customer Service Department, 1110
West Taft Avenue, Orange, California 92865, as soon as reasonably possible after the defect is discovered. Claims against this Warranty in writing should include the date of
installation, product serial number and a description of the defect.
OTHER RIGHTS
This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
SFC
1110 West Taft Avenue
Orange, CA 92865
