ELITE PROGRAMMABLE THERMOSTAT WITH MENU DRIVEN DISPLAY
User’s Manual
• Customizable programming options for every
day, weekdays, weekends, or individual days.
• Smart recovery gradually adjusts indoor
temperatures for greater comfort.
• Communicates to various components within
the iQ Drive®system.
• Auto changeover automatically switches the
thermostat from heating to cooling or vice
versa, based on programmed setpoints.
• Serves as the primary controller for an iQ Zone
system.
• No batteries required. Settings are stored
internally in the event of power failure.
• On-board diagnostics alert when service or
maintenance is needed.
• Two color backlight for easy viewing of the
display at night time or in poorly lit rooms.
• Energy saving features (temperature setbacks,
heat pump/electric heat or furnace changeover)
are customizable.
• Senses and controls temperature and humidity.
• Provides system maintenance reminders.
FEATURES:
DO NOT DESTROY THIS MANUAL. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.

2
70°
HUMIDITY
50
HEAT
FAN AUTO
MODE MENU
FAN
RH TEMP
1/19/09 10:00 AM
OUTDOOR
46
HEAT 70
COOL 80
Date, Day, Time,
Maintenance Reminders
or Service Issues
Temperature at
Outdoor Unit
Indoor
Temperature
Indoor
Humidity
Level
Menus
Heat & Cool
Setpoints
Fan Setting
Navigation and
Entry Buttons
Mode of Operation
ABOUT THE IQ DRIVE THERMOSTAT ..............3
Navigation...................................................................... 3
Main Screen .................................................................. 3
SCREEN SETTINGS...........................................4
Date & Time................................................................... 4
Auto Daylight Saving ..................................................... 4
Fahrenheit or Celsius .................................................... 5
12 or 24 Hour Clock....................................................... 5
Contrast......................................................................... 5
Backlight ON Time......................................................... 5
OPERATING THE THERMOSTAT.......................6
Selecting an Operating Mode........................................ 6
Off Mode ................................................................... 6
Auto Mode................................................................. 6
Cool Mode ................................................................ 6
Heat Mode ................................................................ 6
E - Heat Mode........................................................... 6
Temperature Holds ........................................................ 6
Temporary Hold ........................................................ 6
Permanent Hold........................................................ 6
Vacation Hold............................................................ 7
Canceling a Hold ...................................................... 7
Fan Operation................................................................ 7
On ............................................................................. 7
Auto........................................................................... 7
Ventilation Speed ...................................................... 7
Programmed Fan ...................................................... 8
Intermittent Fan......................................................... 8
Security Lockout ............................................................ 8
How to Lock the Thermostat ..................................... 8
How to Unlock the Thermostat.................................. 8
What to Do If You Forget Your PIN Number ............. 8
TABLE OF CONTENTS
PROGRAMMING THE THERMOSTAT................9
Changing Program Schedules....................................... 9
Copying a Program........................................................ 9
Changing the Time of an EVENT ................................10
Changing the HEAT Setpoint.......................................10
Changing the COOL Setpoint......................................10
Changing the FAN Setting ...........................................10
ADVANCED THERMOSTAT SETTINGS.......... 11
Program Schedule Usage ...........................................11
Programmable Options ...........................................11
Nonprogrammable Option.......................................11
Auto Changeover Time................................................12
Smart Recovery...........................................................12
Dehumidification..........................................................12
Minimum Heat Pump Usage Temperature...................13
Backup Heat Response...............................................13
Offsets .........................................................................14
Indoor Temperature.................................................14
Remote Temperature ..............................................14
Outdoor Temperature..............................................14
Relative Humidity....................................................14
Heat Anticipator ......................................................14
Humidity Control..........................................................14
Humidify / Dehumidify.............................................14
ZONE CONTROL OPERATION....................... 15
IQ DRIVE® THERMOSTAT SCREEN MAP ..... 16
IQ DRIVE® THERMOSTAT DEFAULT
SETTINGS........................................................ 17

3
ABOUT THE IQ DRIVE THERMOSTAT
• The iQ DriveThermostat is a wall mounted controller
that accurately maintains room temperature by
controlling conventional or iQ Drive compatible
components in a heating and air conditioning
system. Easy-to-use operating modes activate
cooling equipment (heat pump or air conditioner)
during warm seasons and heating equipment (heat
pump, electric heater, gas furnace or heat pump/
electric heat combination) when the temperature
gets colder. For operating mode setup instructions,
See page 6.
• The iQ Drive Thermostat serves as the primary
controller for homes equipped with the iQ Zone
system. In such systems there will be a separate
zone thermostat in each of the zones set up, in
addition to this controller. See the iQ Zone System
Zone Thermostat User’s Manual for information on
how to operate the local zone thermostats. See the
Zone Control section (page 13) for a description
of operation and features which only apply to iQ
Zone systems.
• Dehumidification mode quickly removes moisture
from the air and regulates humidity levels
throughout the home. Control output for optional
humidifier is also provided. See page 12.
• The blue backlight feature makes viewing the
screen easier at night or in poorly lit rooms. The
backlight turns on for a certain amount of time
when any one of the five buttons is pressed.
The duration that the backlight stays on can be
programmed for 30, 60, 90, 120 seconds, or ON.
See page 5.
• Complete system monitoring alerts the homeowner
when service is needed.
Navigation
• Navigation between display screens or changing
operating commands can easily be made by using
the five keys to the right of the screen (see page 2).
NOTE: Selecting an item means that its name or
value appears in a highlighted band on the screen.
Another button will need to be pressed afterwards
to access another menu or to select or change a
value.
• The buttons navigate up or down in a screen,
within a list of choices, or to increase/decrease a
number. NOTE: On some screens holding these
buttons down for several seconds will adjust the
value in larger increments.
* Outdoor temperature can only be displayed if a heat pump
or iQ Drive AC is installed outside.
• The buttons navigate right or left in a screen,
or move to the previous or next screen within a
screen sequence.
• The button selects an option category or value
so that it can change or save a modified entry.
NOTE: When a value is selected, the dark band
will blink in most screens.
Main Screen
• The main screen of the iQ Drive Thermostat
displays normal system information including:
indoor temperature, outdoor air temperature*,
heating and cooling setpoints, fan setting, relative
humidity, and the system’s current operating mode
(See page 2).
• The top line of the Main
Screen alternates between
showing: date and time,
day of the week, service
alerts such as: change
air filter, change UV lamp,
service air cleaner, or
service humidifier, Status
info such as: hold until, perm hold, smart recovery
on, intermittent fan on, and locked. In the event of
an equipment issue, a one-line description of the
issue will also display. In response to an extended
or repeated problem, the screen will flash red
indicating service is needed. See page 2.
70°
HUMIDITY
12
HEAT
FAN AU TO
MODE MENU
FAN
RH TEMP
1/19/09 10:00 AM
OUTDOOR
46
HEAT 70
COOL 80
IMPORTANT! If the Main Screen flashes red
or displays CONFIGURATION NEEDED with
a message at the top of the screen, contact an
authorized installer immediately with a detailed
description of the message.Only iQ Drive certified
technicians can correct these conditions.
• The bottom line of the Main Screen displays five
menus [RH, TEMP, MODE, FAN and MENU] that
are entry points to other submenus (see page 2).
To access these screens, select the menu with the
buttons and then the button.To return to the
Main Screen, press the button repeatedly from
any screen. If no buttons are pressed for 3 minutes,
the thermostat will automatically revert back to the
Main Screen. If a service alert appears at the top
of the Main Screen, CANCEL ALERT will also be
displayed at the bottom. To cancel the alert, use
the or buttons and then the button.
• The Main Screen will appear different for iQ Zone
systems when Zone Control is enabled (normal
operation). For Zone Control, see page 13.

4
11.Set the DAY:
The button adjusts
the day forward and the
button adjusts the day
backward.
12. Press the button to save
the setting.
13.Set the HOUR:
The button adjusts
the hour forward and the
button adjusts the hour
backward.
14. Press the button to save
the setting.
15.Set the MINUTE:
The button adjusts
the minutes forward and
the button adjusts the
minutes backward.
Holding the or button
down for several seconds
will adjust the value in
larger increments.
16. Press the button to save
the setting.
1. Select MENU on the
Main Screen using the
or button.
2. Press the button.
3. Select SET DATE AND
TIME using the or
button.
4. Press the button.
5. Select SET DATE AND
TIME using the or
button.
6. Press the button.
7. Set the YEAR.
The button adjusts
the year forward and the
button adjusts the year
backward.
8. Press the button to save
the setting.
9. Set the MONTH:
The button adjusts the
month forward and the
button adjusts the
month backward.
10. Press the button tosave
the setting.





Date & Time
The SET DATE and TIME screen contains the setup menus for changing the current date and time that
is displayed on the Main Screen.
SCREEN SETTINGS
Many items that are displayed on the main screen can be easily changed by the homeowner. Some of
these items include: Setting the date and time, 12 or 24 hour clock, auto daylight saving, temperature
readings in Fahrenheit or Celsius scales and backlight on timer.



SET YEAR




SET MONTH




SET HOUR





SET MINUTE

Auto Daylight Saving
This thermostat can be set to automatically observe the new daylight saving hours established in 2007:
between the second Sunday of March to the first Sunday in November.
1. Select MENU on the Main Screen using the or button.
2. Press the button.
3. Select SET DATE AND TIME using the or button.
2. Press the button.
4. Select AUTO DAYLIGHT SAVING using the or button.
5. Press the button.
6. Select ON or OFF using the or button.
7. Press the button to save the setting.








SET DAY


5
Fahrenheit or Celsius
The indoor and outdoor temperatures displayed on
the main screen of the thermostat can be changed
to the Fahrenheit or Celsius scale.
Backlight ON Time
The blue backlight feature makes viewing the screen
easier at night or in poorly lit rooms. The backlight
turns on for a certain amount of time when any one
of the five buttons are pressed. The duration that
the backlight stays on can be programmed for 30,
60, 90, 120 seconds, or ON (all the time).
Contrast
The contrast level of the screen can be changed from
1 (lightest) to 15 (darkest).The level is adjustable in
increments of 1. NOTE: If power to the thermostat
is shut off, the contrast level will return to the default
setting (4) when power is restored.





 

 











 

 







 

 
 





 

 


12 or 24 Hour Clock
The time displayed on the main screen of the
thermostat can be set to display the clock in 12 hour
(standard) time or 24 hour (military) time.
1. Select MENU on the
Main Screen using
the or button.
2. Press the button.
3. Select SETTINGS
using the or
button.
4. Press the button.
The SETTINGS
MENU will appear
in the display with
SCREEN SETTINGS
already selected.
5. Press the button.
The SCREEN
SETTINGS MENU
will appear in the
display with the
temperature scale
already selected.
6. Press the button.
7. Change the
temperature scale.
Use the button
to change the scale
to Celsius or the
button to Fahrenheit.
8. Press the button to
save the setting.
1. Select MENU on the
Main Screenusing the
or button.
2. Press the button.
3. Select SETTINGS
using the or
button.
4. Press the button.
5. Select SCREEN
SETTINGS using the
or button.
6. Press the button.
7. Select the option
beneath 12 or 24
HOUR CLOCK using
the or button.
8. Press the button.
9. Change the clock
type:
The buttonchanges
the time to 24 hour and
the button changes
the time to 12 hour.
10. Press the button
to save the setting.
1. Select MENU on the
Main Screen using
the or button.
2. Press the button.
3. Select SETTINGS
using the or
button.
4. Press the button.
5. Select SCREEN
SETTINGS using the
or button.
6. Press the button.
7. Select the option
beneath CONTRAST
using the or
button.
8. Press the button.
9. Change the contrast
level.
Use the button to
darken the contrast or
the button to lighten
the contrast.
10.Press the button to
save the setting.
1. Select MENU on the
Main Screen using
the or button.
2. Press the button.
3. Select SETTINGS
using the or
button.
4. Press the button.
5. Select SCREEN
SETTINGS using the
or button.
6. Press the button.
7. Select the option
beneath BACKLIGHT
ON TIME using the
or button.
8. Press the button.
9. Change the value
to 30, 60, 90, 120
seconds, or ON (all
the time) using the
or button.
10.Press the button to
save the setting.

6
Selecting an Operating Mode
OFF MODE: Deactivates all equipment in the
heating/cooling system.The furnace, air conditioner,
or heat pump will not operate when in this mode.
However, the fan can be set to operate in off mode.
See Fan Operation (pages 7 - 8).
AUTO MODE: The thermostat chooses the
appropriate mode (HEAT or COOL) for maintaining
the desired temperature between the configured
heating and cooling setpoints.To prevent the system
from jumping back and forth, the controller waits for
the auto changeover time to end before changing
modes. See page 12 for more informaton.
COOL MODE: Activates cooling equipment (Heat
Pump or Air Conditioner) during warmer seasons.
HEAT MODE: Activates heating equipment (Heat
Pump, Electric Heater, Gas Furnace, etc.) during
cold seasons.
E-HEAT MODE: For systems with Heat Pumps, this
mode will heat only using separate gas or electric
heat. This will disable heat pump operation.
1. Select MODE on the Main Screen using the
or button.NOTE:The MODE MENU can also
be accessed through MENU on the Main Screen.
2. Press the button.
3. Select AUTO, COOL, HEAT, E HEAT, or OFF
using the or button.
4. Press the button.
NOTE: When changing modes, the system may
continue in the previous mode for a few minutes to
avoid sudden changes.
Temperature Holds
By default, the iQ Drive Thermostat operates by
controlling temperature to a timed schedule;however,
if desired, you can override the current temperature
setpoint in the Program Menu. Temperature holds
can be used for quick temperature changes without
having to modify the thermostat’s Program Menu.
This function is not available when the thermostat is
set to the nonprogrammable option.NOTE: Holding
the or button down for several seconds will
adjust some of the values in larger increments.
OPERATING THE THERMOSTAT
The iQ Drive Thermostat can control conventional or iQ Drive compatible equipment in the heating or
cooling system. Before the heating or cooling system can be activated, an operating mode such as
AUTO, COOL, HEAT, or E HEAT must be selected. Many of the features described below are not used
with an iQ Zone system when Zone Control is enabled. For Zone Control, see page 13.
Permanent Hold
A permanent hold can be used to override the
temperature setpoints in the timed program. Just
set the temperature to a desired setting and the
thermostat permanently maintains the temperature
until the hold is cancelled on the Main screen.
NOTE:This option is only used when the thermostat
is in programmable operation.
1. Select MENU on the Main Screen using the
or button.
2. Press the button.
3. Select HOLD using the or button.
4. Press the button.
5. Select PERMANENT using the or button.
6. Press the button.
7. Change the temperature setting:
The button raises the temperature and the
button lowers the temperature.
8. Press the button to save the setting.
NOTES:
• CANCEL HOLD will appear at the bottom of the
Main screen. To cancel the hold, see page 7.
• A permanent hold can be modified by simply
pressing the or button when the Main screen
is displayed.
Temporary Hold
Temporary Holds change the temperature setpoint
until the next programmed event and can be set
using any of these two methods:
METHOD 1: Change the temperature setting by
pressing the or button anytime the main
screen is displayed during system operation.When
the desired temperature is displayed, press the
button to save the setting.
METHOD 2: Select TEMP on the Main Screen
using the or button and then the button.
Change the temperature setting using the or
button.When the desired temperature is displayed on
the screen, press the button to save the setting.
NOTE: CANCEL HOLD will appear at the bottom of
the Main Screen. The hold can be canceled using
the steps on page 7 or allowed to expire at the time
shown in the HOLD THIS TEMPERATURE screen.

7
1. Select MENU on the
Main Screen using
the or button.
2. Press the button.
3. Select HOLD using
the or button.
4. Press the button.
5. Select VACATION
using the or
button.
6. Press the button.
7. Change the tempera-
ture setting:
The button raises
the temperature and
the button lowers
the temperature.




60°
Vacation Hold
A vacation hold can be used to control the heating/
cooling system when away from home for an
extended amount of time. Just set the temperature
to hold the house at, and the date and time when
you want the hold to expire. The thermostat will
maintain the temperature until the hold is cancelled
or expires.




5/08/09







10.Press the button to
save the setting.
11.Change the time:
The button adjusts
the minutes forward
and the button
adjusts the minutes
backward.
12.Press the button
to save the setting.
CANCEL HOLD will
appear at the bottom
of the Main screen.
NOTE:Avacationhold
temperature setting
can be modified by
pressing the or
button when the Main
screen is displayed.
8. Press the button to
save the setting.
9. Change the date:
The button adjusts
the day forward and
the button adjusts
the day backward.
Canceling a Hold
1. Select CANCEL HOLD
on the Main Screen using
the or button.
2. Press the button.
NOTE: The CANCEL
HOLD disappears from
the Main screen and the
setpoints revert to the
programmed schedule.
Fan Operation
Multiple fan options are available when running the
heating/cooling system. The default setting for the
iQ thermostat is AUTO.
1. Select FAN on the
Main Screen using the
or button.NOTE:The
FAN MENU can also be
accessed through MENU
on the Main Screen.
2. Press the button.
3. Select AUTO, ON or
PROGRAMMED FAN using the or button.
4. Press the button to save the setting.
On
The fan will run continuously without operating any
heating or cooling equipment (including OFF mode).
The fan speed is manually set to different speeds
using the or buttons
and is indicated by the bar
graph in the Manual Fan
Speed screen.When heating
or cooling is needed, the fan
speed changes as needed.
NOTE: In fan mode, the
humidification option is
turned on by default.
Ventilation Speed
This screen looks similar to the screen above, with
the bar graph for speed selection. It is for use with
iQ Zone control only.
Auto
The fan switches on when the thermostat senses
the need for heating or cooling and will run for the
duration of the operation.When the heating/cooling
equipment has shut off, the fan will continue to run
for a short period of time afterwards.





70°
HUMIDITY
12
HEAT
1/19/09 10:00 AM
FAN AU TO
MODE
RH TEMP MENU
FAN
70°
HUMIDITY
12
HEAT
1/19/09 10:00 AM
FAN AU TO
MODERH MENUFAN
CANCEL
HOLD

8
Security Lockout
Security Lockout preventsaccidental orunauthorized
changing of the thermostat settings. This feature
allows either the total lockout of the keypad or
lockout of everything but the temperature setpoint
adjustment. Both options require a 4 digit PIN
number to be entered and saved. NOTE: Security
lockout will not prevent changing settings in local
zone thermostats in an iQ Zone system.
Intermittent Fan
The fan will run for up to 20 minutes and then turn off
for up to 40 minutes if the thermostat doesn’t sense a
need for cool or heat for at least one hour.This option is
typicallyused whenrunning theheating/coolingsystem
in a vacation or permanent hold setting. Setting the
FAN ON time to OFF disables this feature. See page
6 or 7 for HOLD setup instructions.











1. Select MENU on the Main Screen using the
or button.
2. Press the button.
3. Select SETTINGS using the or buttons.
4. Press the button.
5. Select INTERMITTENT FAN using the or
button.
6. Press the button.NOTE:The INTERMITTENT
FAN menu will appear in the display with the
value beneath FAN ON TIME already selected.
7. Press the button.
8. Change the FAN ON TIME to OFF or between
5 - 20 minutes.
The button adjusts the
time 5 minutes forward
and the button adjusts
the time 5 minutes
backward.
9. Press the button to
save the setting.
10.Select FAN OFF TIME
using the or button.
11.Press the button.
12.Change the FAN OFF
TIME between 5 - 40
minutes.
The button adjusts the
time 5 minutes forward
and the button adjusts
the time 5 minutes
backward.
13. Press the button to
save the setting.
NOTE: The fan ON & OFF cycles will continue until the
fan has been called for heating or cooling.
Programmed Fan
The fan will operate based on the fan setting (ON or
AUTO) in the Program Schedule.Setup instructions
are shown on page 10.

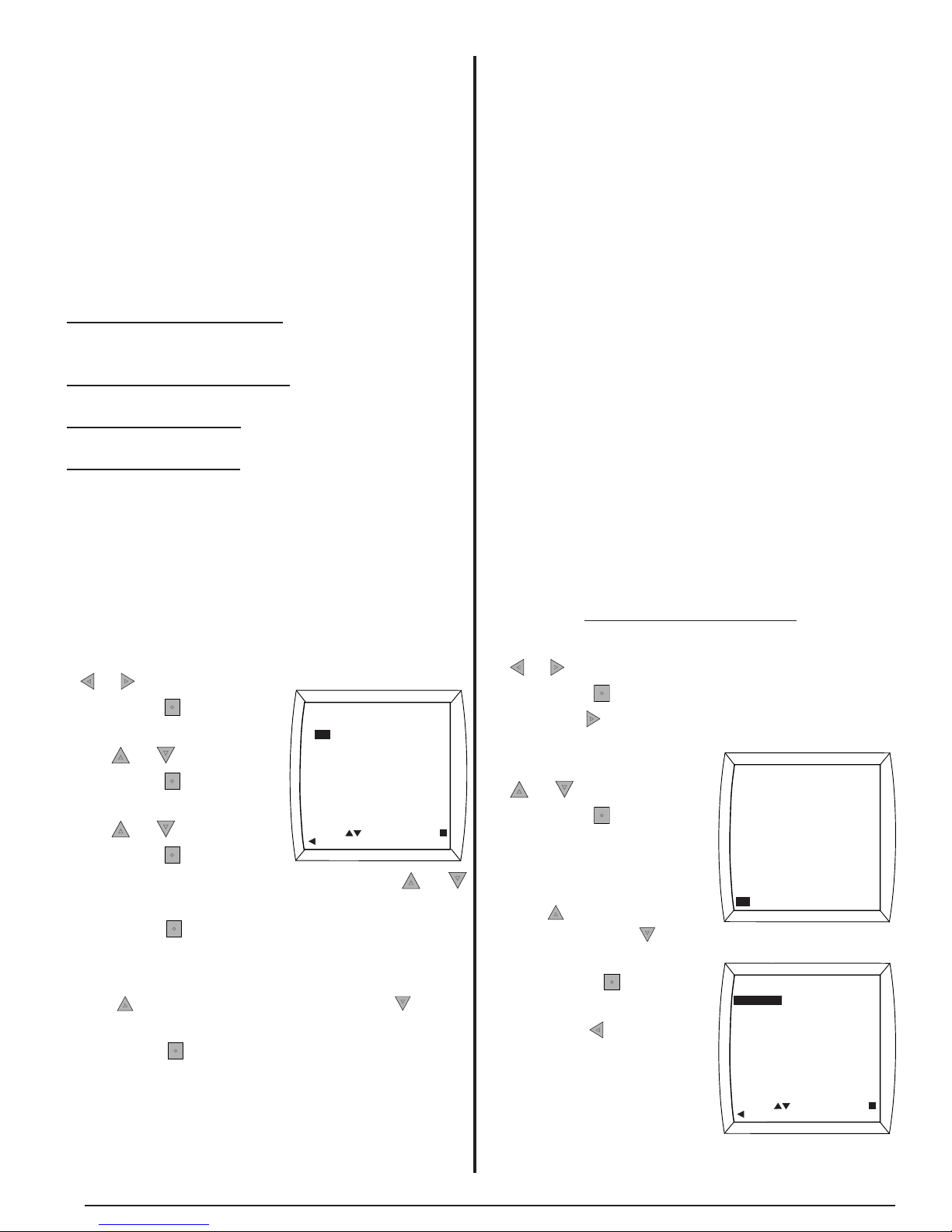

What to Do If You
Forget Your PIN
Number:
Return to the PIN logon
screen and type in the
code 9999.This will clear
out the lock and reset all
values back to 0000.
How to Unlock the
Thermostat:
1. Press the button to
access the PIN logon
screen.
2. Enter the first digit of
the lockout number
using the or
button. When the
desired number is
displayed, press the
button to jump to
the next digit. Repeat
this process until the
final digit is entered.
3. Press the button
after the last digit
has been entered.
The thermostat is
now unlocked and will
remain unlocked until
PIN is re-entered.
How to Lock the
Thermostat:
1. Select MENU on the
MainScreenusingthe
or button.
2. Press the button.
3. Select SECURITY
LOCKOUT using the
or button.
4. Press the button.
5. Select the type of
lockout using the
or button.
6. Press the button.
7. Enter the first digit of
the PIN number using
the or button.
When the desired
number is displayed,
press the button to
jump to the next digit.
Repeat this process
until the final digit is
entered.
8. Press the button
after the last digit
has been entered.
The PIN number is
saved internally until
the thermostat is
unlocked.
IMPORTANT! Write your
PIN number down on
page 16 and store this
manual in a safe place
for future reference.








 








 

9
1. Select COPY at the
top of the PROGRAM
MENU using the
or button.
2. Press the button. The
thermostat will display a
list of days to copy from.
3. Select a day in the COPY
FROM list using the
or button.
4. Press the button. The
thermostat will display a
list of days to copy your
program to.
5. Select a day in the COPY
TO list using the or
button.
6. Press the button
to save the setting.
NOTE: To schedule
additional days, repeat
steps 3 - 6.

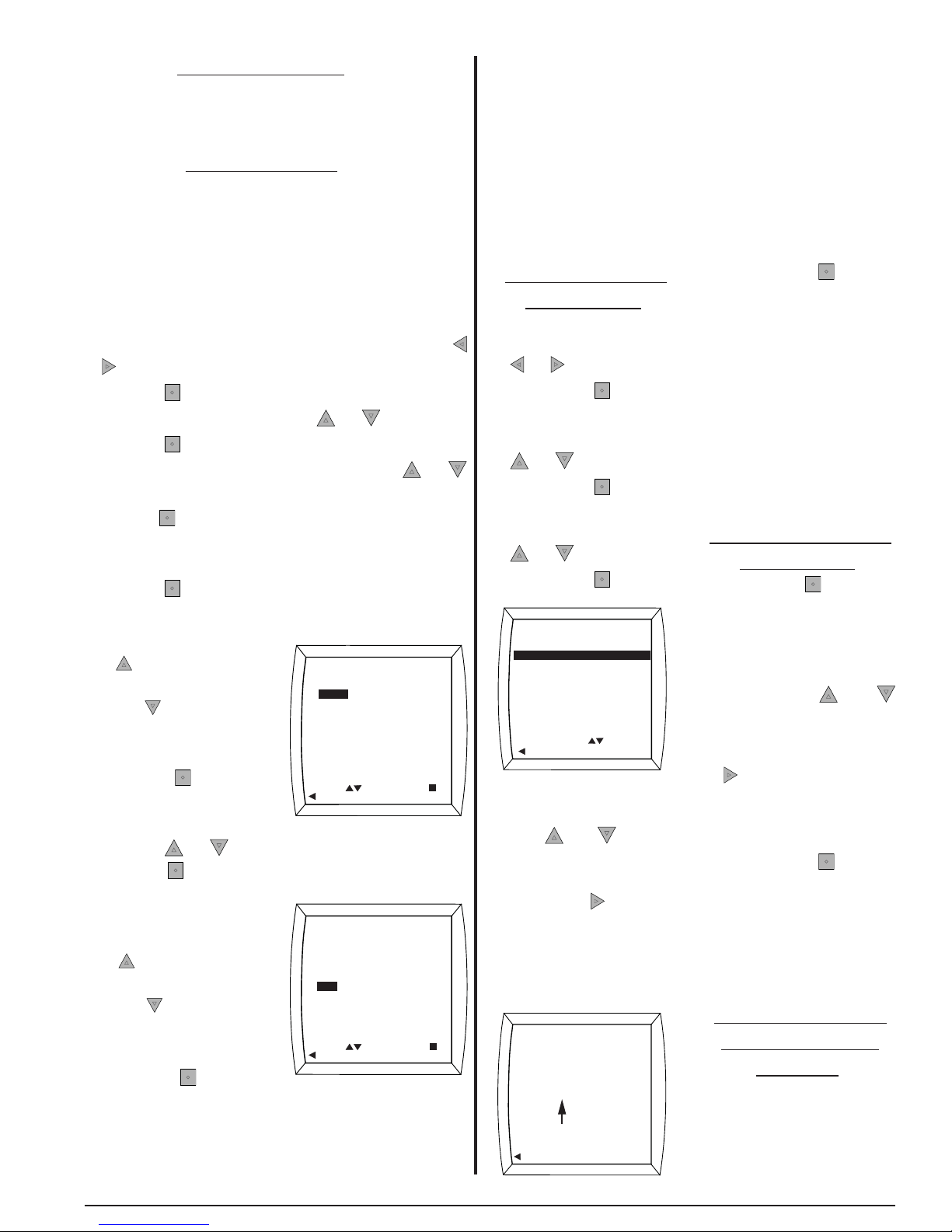

Copying a program:
The COPY option is displayed at the top of the
PROGRAM MENU and can be used to copy a
schedule from one day to many other days without
having to perform redundant programming of the
thermostat.This feature can be used after a schedule
has been set in one of the days.
Changing Program Schedules
Each day in the PROGRAM MENU contains 2 or
4 customizable schedules (also called events) that
display the TIME an event begins, temperature
setpoints (HEAT and COOL), and FAN setting
(AUTO or ON).The default setting for this thermostat
is 4 Schedule Events/Day, but can be changed by
performing the setup instructions on page 11. The
thermostat requires that the COOL setpoint must
be at least 2° (F) above the HEAT setpoint. This
minimum difference is automatically maintained by
the thermostat. NOTE: Holding the or button
down for several seconds will adjust some of the
values in larger increments.
PROGRAMMING THE THERMOSTAT
The iQ Drive Thermostat is factory programmed with default schedules based on typical usages.
Modification of the program schedules is not required, but can still be customized to adjust the heating/
cooling system on individual days, a combination of days, weekdays, weekends, every day, or an entire
week. The instructions below do not apply to iQ Zone Systems with zone control enabled. Before the
heating or cooling system can be activated, the thermostat must be placed in an operating mode
(AUTO, HEAT, COOL, or E HEAT). See Page 6 for mode setup instructions.
Other features include a nonprogrammable option that manually controls the heating or cooling equipment
by disabling the usage of all programming schedules, Smart Recovery, and temperature holds. In
nonprogrammable operation, the thermostat requires less user setup. If this option is desired, see page
11 for setup instructions.

















 

 
 






 
 
 
 










1. Select MENU on the
Main Screenusing the
or button.
2. Press the button.
3. Select PROGRAM
using the or
button.
4. Press the button.
5. Select an option
from the list in the
PROGRAM MENU
using the or
button.
6. Press the button.
7. See page 10 to
change the time of
an EVENT, the HEAT/
COOL setpoints, or
FAN setting.















10

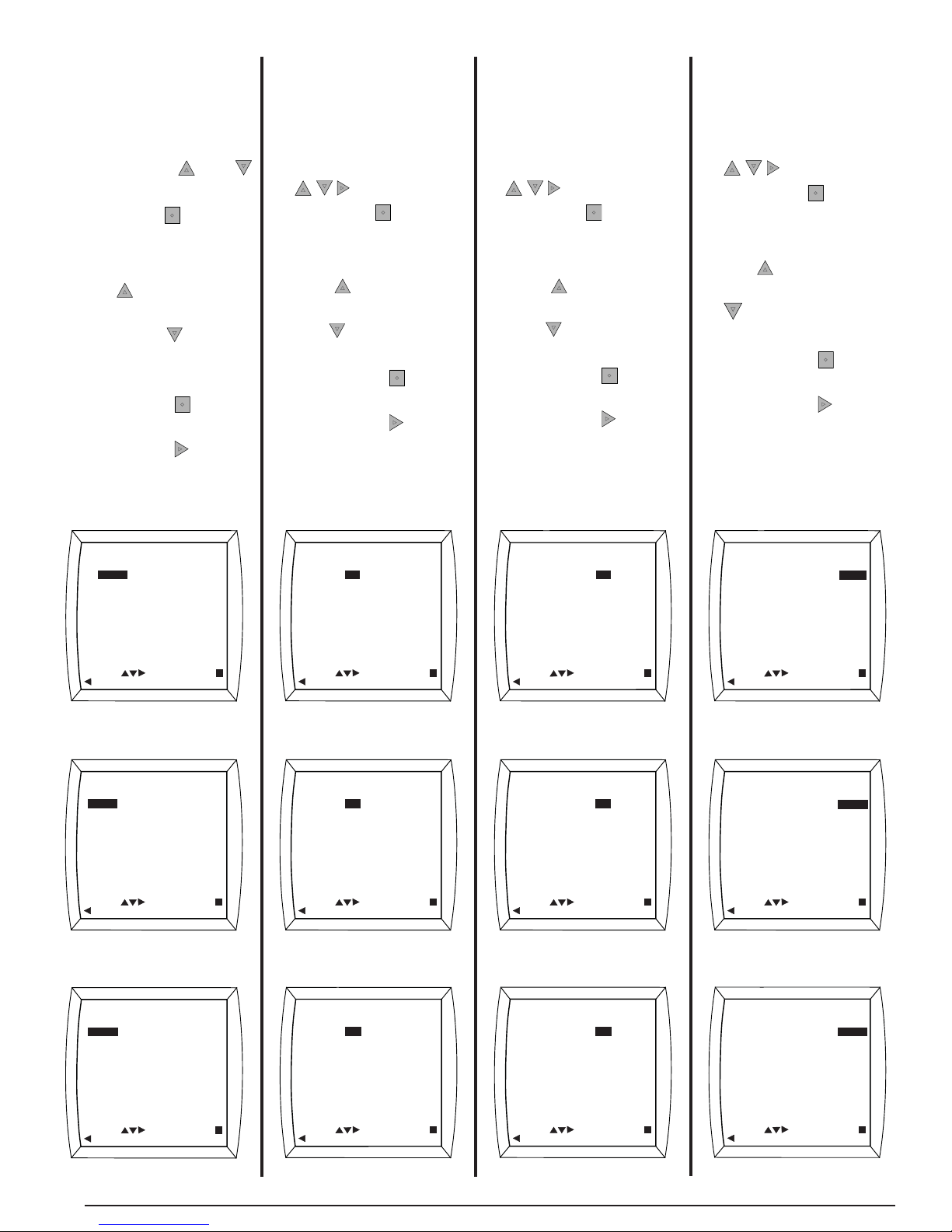

Changing the Time
of an EVENT:
1. Select the starting
time for the EVENT
using the or
button.
2. Press the button.
3. Change the time of
the event:
The button adjusts
the minutes forward
and the button
adjusts the minutes
backward.
4. Press the button
to save the setting or
press the button
to jump to another
column.
Changing the
COOL Setpoint:
1. Select the temperature
to be changed in the
COOLcolumnusingthe
buttons.
2. Press the button.
3. Change the COOL
setpoint:
The button raises
the temperature and
the button lowers
the temperature.
4. Press the button
to save the setting or
press the button
to jump to another
column.
Changing the
FAN Setting:
1. Select the FAN
setting using the
buttons.
2. Press the button.
3. Change the FAN
setting:
The buttonchanges
the fan to ON and the
button changes the
fan to AUTO.
4. Press the button
to save the setting or
press the button
to jump to another
column.



 





 
  


2 Events/Day Business



 





 
  


2 Schedule Events/Day















 










4 Schedule Events/Day















 










4 Schedule Events/Day



 





 
  


2 Events/Day Business



 





 
  


2 Schedule Events/Day















 










4 Schedule Events/Day



 





 
  


2 Schedule Events/Day



 





 
  


2 Events/Day Business



 





 
  


2 Schedule Events/Day



 





 
  


2 Events/Day Business















 










4 Schedule Events/Day
Changing the
HEAT Setpoint:
1. Select the temperature
to be changed in the
HEAT column usingthe
buttons.
2. Press the button.
3. Change the HEAT
setpoint:
The button raises
the temperature and
the button lowers
the temperature.
4. Press the button
to save the setting or
press the button
to jump to another
column.

11
Program Schedule Usage
This thermostat contains customizable energy-
saving schedules (also called events) that can
adjust the heating/cooling system 2 or 4 times a
day on individual days, every day, just weekdays,
just weekends, an entire week or a combination
of days. Residential systems can be setup for a
2 event or 4 event per day schedule. Companies
can set their schedule to 2 events per day using
the business option. By default, this thermostat
is factory set to a 4 Schedule Events/Day. If
the nonprogrammable option or other event
schedule is desired, then this setting must be
changed before programming the thermostat.
NOTE:Full programmable operation may be resumed
by performing steps 1 - 9 below and selecting a
programmable option in the program schedule
usage menu.Programmable and nonprogrammable
options in this thermostat do not apply to iQ Zone
systems with zone control enabled.

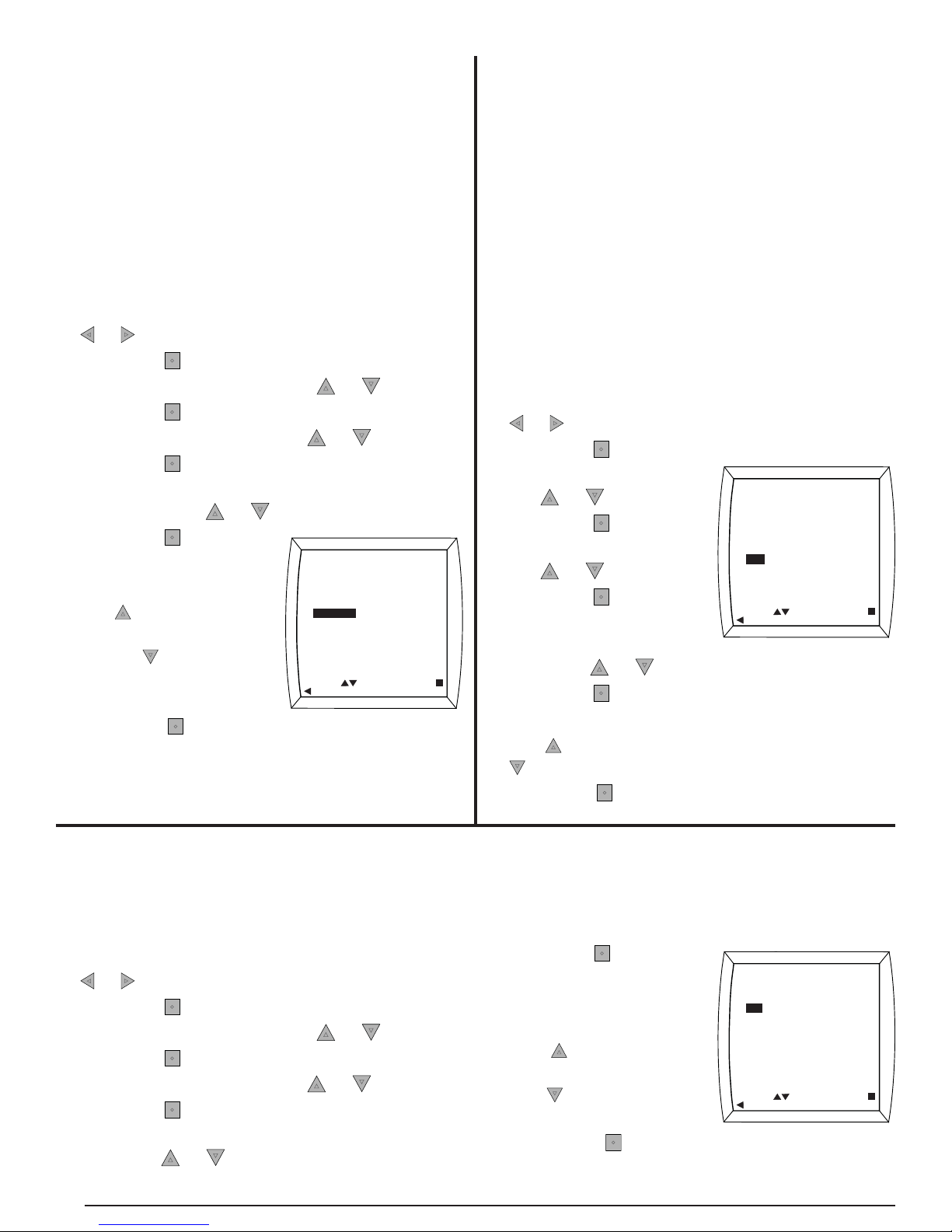

ADVANCED THERMOSTAT SETTINGS
The iQ Drive Thermostat features additional fine-tuning options that can increase comfort, save energy,
and maximize the performance of the heating and cooling system. These settings are optional and do
not require modification for the heating/cooling system to operate. However, some of these settings may
require the consultation of an installer for determining which settings will achieve peak performance.
1. Select MENU on the Main Screen using the
or button.
2. Press the button.
3. Select SETTINGS
using the or
button.
4. Press the button.
5. Select OPTIONS using
the or button.
6. Press the button.
NOTE: The OPTIONS
menu will appear in the display with an event
beneath EVENTS PER DAY already selected.
7. Press the button.
8. Change the event using the or buttons.
9. Press the button to save the setting.







  

  







Nonprogrammable Option
The nonprogrammable option disables the
usage of all programming schedules, Smart
Recovery, and temperature holds. It requires no
programming and is as basic as operating an old
manual style rotary thermostat.
To use this option, perform steps 1 - 9 below
and select NONPROGRAMMABLE in step 8.To
activate an air conditioner, furnace, or heat pump,
place the thermostat in an operating mode as
described on page 6. Adjust the temperature by
simply pressing the or buttons anywhere
on the Main Screen (or by accessing the TEMP
menu on the Main Screen). When the desired
temperature setting is displayed, press the
button to save the setting.
Programmable Options
4 Schedule Events/Day
• WAKE: The temperature setting in the morning
when everyone wakes up.
• LEAVE: The temperature setting for the time
away from home and energy savings are
wanted.
• RETURN: The temperature setting in the
evening when everyone returns home.
• SLEEP: The temperature setting at night when
everyone is asleep.
2 Schedule Events/Day
• DAY: The temperature setting during daylight
hours.
• NIGHT: The temperature setting during night
time hours.
2 Events/D Business
• ACTIVE: The temperature setting during
business hours.
• IDLE: The temperature setting when business
is closed.

12
Dehumidification
Dehumidification is the process of reducing the level of humidity in the air. The system can only provide
dehumidification when an air conditioner or heat pump is connected to the heating/cooling system. The
default setting is ON.
Smart Recovery
The Smart Recovery option (disabled by default) can
enhance comfort by modifying heating and cooling
setpoints to ease the transition from one program
schedule to the next. During the time prior to a
program schedule change (which will call for higher
heating setpoint or lower cooling setpoint), Smart
Recovery gradually adjusts the setpoint in 1 degree
increments to anticipate this change. Thus room
temperature will be at or close to the setpoint for the
next time block when that time block begins. Actual
results depend on home system characteristics.This
function is not available when the thermostat is in
nonprogrammable mode.Smart Recovery does not
apply to iQ Zone systems with zone control enabled.
1. Select MENU on the Main Screen using the
or button.
2. Press the button.
3. Select SETTINGS using
the or button.
4. Press the button.
5. Select OPTIONS using
the or button.
6. Press the button.
7. Select the option beneath
SMART RECOVERY
using the or button.
8. Press the button.
9. Change the SMART RECOVERY setting:
The button changes the setting to ON and the
button changes the setting to OFF.
10.Press the button to save the setting.
Auto Changeover Time
Auto Changeover Time sets the minimum time
off before the thermostat can change from heat
to cool or vice versa when in auto mode. This
prevents the system from jumping back and forth
between heating and cooling equipment. The time
can be set between 15 - 120 minutes (in 15 minute
increments) or DISABLE. Setting auto changeover
time to DISABLE removes AUTO from the operating
mode menu. To select an operating mode see
page 6.
1. Select MENU on the Main Screen using the
or button.
2. Press the button.
3. Select SETTINGS using the or button.
4. Press the button.
5. Select OPTIONS using the or button.
6. Press the button.
7. Select the option beneath AUTO CHANGEOVER
TIME using the or button.
8. Press the button.
9. Change the Auto
Changeover Time:
The button adjusts the
time 15 minutes forward
and the button adjusts
the time 15 minutes
backward.
10.Press the button to save the setting.













  
  









  

  







1. Select MENU on the Main Screen using the
or button.
2. Press the button.
3. Select SETTINGS using the or button.
4. Press the button.
5. Select OPTIONS using the or button.
6. Press the button.
7. Select the option beneath DEHUMIDIFICATION
using the or button.
8. Press the button.
9.Change the
DEHUMIDIFICATION
setting:
The button changes
the setting to ON and
the button changes
the setting to OFF.
10.Press the button to
save the setting.






  

  









13
Minimum Heat Pump Usage
Temperature
Under most circumstances, the iQ Drive system uses
a heat pump (if available) as the primary source of
heating because it is usually less expensive to run
than the gas furnace or electric heat.The Heat Pump
UsageTemperature limit can be adjusted so that the
heat pump will not operate below this temperature
and switches the system to the furnace or electric
heater for heat.The system will not allow the heat
pump to operate below an outdoor temperature
of 12° F (-11° C). Some reasons for choosing to
increase this temperature above the default limit of
12° (F) include:
• If the cost of electricity is high compared to gas in
the area, it may be cheaper to run the furnace at
higher temperatures. Consult the local dealer or
utility for recommendations.
• Comfort levels created by the gas furnace during
cold weather may be preferred.
Backup Heat Response
The system will switch automatically from the heat
pump to the furnace (when needed) to heat the
room more quickly. If the system uses an iQ Drive
modulating furnace with a conventional heat pump,
there is some control over this response.If the“Fast”
response is selected, the furnace will take over if the
room temperature is 4°(F) lower than the setpoint
after 10 minutes. “Slow” response will act after 20
minutes. NOTE: This option is only available when
a one or two stage heat pump is installed with an
iQ Drive furnace.
1. Select MENU on the Main Screen using the
or button.
2. Press the button.
3. Select SETTINGS using the or button.
4. Press the button.
5. Select OPTIONS using
the or button.
6. Press the button.
7. Select the option
beneath BACKUP HEAT
RESPONSE using the
or button.
8. Press the button.
9. Change the BACKUP HEAT RESPONSE to fast
or slow using the or buttons:
10.Press the button to save the setting.







  

  







IMPORTANT:
Changing the Minimum Heat Pump Usage
Temperature affects when and how much the
furnace will be used instead of the heat pump
for heating. This will change the total cost of
heating your residence. In some areas, the total
cost will decrease if the temperature is chosen
correctly. However, this can only be determined
by consulting with an iQ Drive trained, licensed
dealer.Please do not alter this setting without
first obtaining proper information specific to
your area.
1. Select MENU on the Main Screen using the
or button.
2. Press the button.
3. Select SETTINGS using the or button.
4. Press the button.
5. Select OPTIONS using
the or button.
6. Press the button.
7. Select the option beneath
HEAT PUMP USAGE
LIMIT using the or
button.
8. Press the button.
9. Change the HEAT PUMP USAGE LIMIT:
The button raises the temperature and the
button lowers the temperature.
10.Press the button to save the setting.








  

  







14
Humidity Control
Relative Humidity (RH) is the ratio of water vapor in
the air compared to the maximum amount of water
vapor the air can hold at the same temperature. RH
is typically expressed as a percentage and is closely
related to personal comfort. When humidity is high
we tend to feel hotter than the actual temperature
and when humidity is low, the air is drier and we
feel cooler.
While the iQ Drive compatible indoor furnace or
air handler will always provide a humidifier control
output, actual humidification equipment is optional
and not provided with the heating units.
A limited capability for dehumidification control
is provided with all iQ Drive air conditioning and
heat pump systems and in iQ Drive modulating
furnace systems coupled with any compatible air
conditioner or heat pump.Dehumidification is not the
primary function of an iQ Drive component. It may
not be able to fully dehumidify under all conditions.
Dehumidification may be enabled or disabled by
changing the setting in the OPTIONS screen. See
page 12.
Humidify / Dehumidify
1. Select RH on the Main Screen using the
or button.
2. Press the button.
3. Press the button to access the humidity settings.
4. Select HUMIDIFY or
DEHUMIDIFY using the
or button.
5. Press the button.
6. Change the HUMIDIFY/
DEHUMIDIFY setpoint:
(5% increments only)
The button raises the
humidity andthe button
lowers the humidity.
7. Press the button to
save the setting.
8. Press the button to exit
the Humidity Settings
screen.
70°
HUMIDITY
12
HEAT
FAN AU TO
MODE MENU
FAN
TEMP
1/19/09 10:00 AM
OUTDOOR
46
HEAT 70
COOL 80
RH










 
 
Offsets
Many factors such as a room’s air flow, direct sunlight
on the thermostat, positioning of the thermostat near
windows, doors, etc. can cause the temperature or
relative humidity on the Main Screen to vary from
the actual value. Offsets can be used to balance out
these fluctuations so that the temperature on the
Main Screen more closely reflects the temperature of
the living space.Temperature offsets can be changed
to ±5 degrees. The relative humidity has a range
of ±10%. The default setting for all the offsets is 0.
• INDOOR TEMPERATURE:The temperature of the
living space and is the largest number displayed
on the Main Screen.
• REMOTE TEMPERATURE: This offset is not used
with standard system equipment.
• RELATIVE HUMIDITY:The humidity level measured
at the thermostat and shown on the Main Screen.
• HEAT ANTICIPATOR:The heat anticipator tells the
furnace when to shut off as the room reaches the
desired temperature. This also affects how much
temperature swing will occur in the room. The
heat anticipator function operates similar to the
anticipator found in older thermostats and is only
used with 1 or 2 stage conventional furnaces.This
setting should only be changed after consulting
with your dealer.
1. Select MENU on the Main Screen using the
or button.
2. Press the button.
3. Select SETTINGS using
the or button.
4. Press the button.
5. Select OFFSETS using
the or button.
6. Press the button.
7. Select an offset from the list using the or
button.
8. Press the button. The option will blink in the
display indicating the offset can be changed.
9. Change the offset:
The button raises the offset and the button
lowers the offset.
10.Press the button to save the setting.
11.Repeat steps 7-10 for additional offsets.
SELECT
PREVIOUS
OFFSETS
0
INDOOR TEMPERATURE
DEGREES F
CHANGE
0
REMOTE TEMPERATURE
DEGREES F
0%
RELATIVE HUMIDITY
0
HEAT ANTICIPATOR

15
iQ Zone is a special variation of the iQ Drive system
which combines the features of an iQ Drive heating and
cooling system with that of zoning. Zoning subdivides
the home into two to eight separate rooms or groups of
rooms (zones) which can be individually controlled for
heating, ventilation, and air conditioning. An iQ Zone
system is controlled through a combination of the iQ
Drive thermostat/controller and local zone thermostats,
whose operation is described in detail in the iQ Zone
System Zone Thermostat User’s Manual.
When zone control is in effect, the Main Screen of
the iQ controller will appear
slightly different from that
shown on page 3, which is
for non-zoning operation. No
temperature will be displayed,
and ZONE CNTL appears
beneath the operating mode.
For zoning operation, the
Operating Mode (COOL,
HEAT, AUTO, E-HEAT, or OFF) must be selected from
the iQ Drive thermostat/controller as with non-zoning
systems. However, the temperature setpoints that
will be used are entered and stored at the local zone
thermostats.With iQ Zone systems, all settings made
in the iQ thermostat/controller relevant to a temperature
setpoint (temporary hold, vacation hold, permanent
hold, time schedule, smart recovery) do not apply
unless zone control is disabled. Similar features are
provided and controlled at each zone independently
from the local zone thermostats. For example,
Manual Setpoint Control replaces Temporary Hold,
Automatic Setpoint Control replaces time schedules,
and Sleep Mode replaces Smart Recovery. See the
iQ Zone System Zone Thermostat User’s Manual for
information on these alternative features. NOTE: The
iQ Zone system uses a single setpoint for both heating
and cooling, as opposed to the standard non-zoning
system, which uses a different setpoint for each.
Zone Control is enabled by default if your system is
equipped with and wired for iQ Zone.This is the normal
operating situation. However, zone control operation
can be disabled by choice or it may be automatically
disabled if a problem is detected.When zone control is
disabled, the thermostat operates as explained in this
manual, and the Main Screen will revert to displaying
the temperature value.
To manually disable zone control when zoning is
already enabled:
1. Select MENU on the Main Screen using the
or button.
2. Press the button.
3. Select SETTINGS using
the or button.
4. Press the button.
5. Select ZONE CONTROL
using the or button.
6. Press the button.
7. Press the or button
to change ENABLE to DISABLE.
8. Press the button to save the setting.
NOTE:To restore zone control, follow steps 1-8 above,
but in step 7 change DISABLE to ENABLE.
Current date and time must be set in the iQ thermostat/
controller as described on page 4. Date and time will
be transmitted to and continually updated in the local
zone thermostats.
iQ Zone offers two types of ventilation that can be
turned on when the cooling or heating systems are
not running:
• If you wish to use the fan to deliver air to some but
not all zones when not heating or cooling, use the
zone ventilation feature that is set up at the individual
zone thermostats. See the iQ Zone System Zone
Thermostat User’s Manual for information on how
to set up zone-by-zone ventilation. From the FAN
MENU, enter the VENTILATION SPEED screen
in the iQ thermostat/controller to select or modify
the relative speed to be used when this type of
ventilation is operating.
• If you wish to use the fan to deliver air to all zones
when not heating or cooling, set the Fan Mode to ON
as described earlier in this guide. The Intermittent
Fan feature described earlier will also operate,
serving all zones.
Temperature units can be changed to Fahrenheit or
Celsius, but should be converted by an installer trained
and certified in iQ systems.
The Security Lockout feature described on page 8 will
not prevent changing settings in local zone thermostats
in an iQ Zone system. NOTE: When changes are
made with iQ Zone, the system may appear to have
a delayed response. Generally this is due to extra
time needed for zones to open or shut in preparation
for the change.
HUMIDITY
36
COOL
FAN AUTO
MODE MENU
FAN
RH TEMP
1/19/09 10:00 AM
OUTDOOR
46
ZONE CNTL
ZONE CONTROL
MODIFY
PREVIOUS
ENABLE
SAVE
ZONE CONTROL
ZONE CONTROL OPERATION

16
Main Screen
MODE FANTEMP MENURH
HUMIDITY
HUMIDITY SETTINGS
HUMIDIFY
DEHUMIDIFY
HOLD THIS
TEMPERATURE
UNTIL
OPERATING MODE
MENU
OFF
AUTO
COOL
HEAT
E HEAT
FAN MENU
AUTO
ON
PROGRAMMED FAN
VENTILATION SPEED*
PROGRAMMED FAN
MAIN MENU
SET TIME AND DATE
HOLD
PROGRAM
FAN
MODE
SETTINGS
SECURITY LOCKOUT
SET DATE AND TIME
SET DATE AND TIME
AUTO DAYLIGHT SAVING
HOLD MENU
VACATION
PERMANENT
AUTO DAYLIGHT SAVING
ON
OFF
SET DATE AND TIME
SET YEAR
SET MONTH
SET DAY
SET HOUR
SET MINUTE
VACATION HOLD
HOLD TEMPERATURE
PERMANENT HOLD
HOLD TEMPERATURE
VACATION HOLD
HOLD UNTIL DATE
VACATION HOLD
HOLD UNTIL TIME
FAN MENU
AUTO
ON
PROGRAMMED FAN
MODE MENU
OFF
AUTO
COOL
HEAT
E HEAT
SECURITY LOCKOUT
TEMP ADJUST ONLY
TOTAL KEYPAD LOCKOUT
ENTER PIN NUMBER
SETTINGS MENU
SCREEN SETTINGS
OPTIONS
OFFSETS
INTERMITTENT FAN
ZONE CONTROL*
OPTIONS
PROGRAM SCHED USAGE
DEHUMIDIFICATION
AUTO CHANGEOVER TIME
SMART RECOVERY
HEAT PUMP USAGE LIMIT
BACKUP HEAT RESPONSE
OFFSETS
INDOOR TEMPERATURE
REMOTE INDOOR TEMP
OUTDOOR TEMPERATURE
RELATIVE HUMIDITY
HEAT ANTICIPATOR
SCREEN SETTINGS
FAHRENHEIT OR CELSIUS
12 OR 24 HOUR CLOCK
CONTRAST
INTERMITTENT FAN
BACKLIGHT ON TIME
INTERMITTENT FAN
FAN ON TIME
FAN OFF TIME
PROGRAM MENU
COPY
[list of days]
EVERY DAY
WEEKDAYS
WEEKENDS
MONDAY
TIME HEAT COOL FAN
SCHEDULE BLOCK 1 SCHEDULE BLOCK 2 SCHEDULE BLOCK 3 SCHEDULE BLOCK 4
COPY FROM
COPY TO
COPY PROGRAM
(Confirmation)
(TYPICAL FOR EACH DAY OR GROUP OF DAYS LISTED)
NOTE: Bold Font Indicates Menu or Screen Title Name * For iQ Zone Usage Only.
ZONE CONTROL*
ENABLE / DISABLE
IQ DRIVE® THERMOSTAT SCREEN MAP

17
iQ DRIVE THERMOSTAT SETTINGS
MENU /OPTION RANGE UNITS DEFAULT
SETTING
SCREEN
SETTINGS
Auto Daylight Savings OFF or ON ON
Fahrenheit or Celsius Fahrenheit
or Celsius Fahrenheit
12 or 24 Hour Clock 12 or 24 12
Contrast 1 to 15 Increments of 1 4
Backlight On Time 30 to 120 seconds
or Continuously ON 30 second increments 30
THERMOSTAT
OPERATION
Holds (all) OFF or ON OFF
Intermittent Fan On Time Off or 5 to 20 minutes 5 minute increments OFF
Intermittent Fan Off Time 5 to 40 minutes 5 minute increments 40
Security Lockout Total keypad or
Temp adjust only
Write PIN number here:
_____________________
OFF
PROGRAMMING
THE
THERMOSTAT
EVENTS
TIME 24 Hours 10 minute increments
6:00 a.m.
8:00 a.m.
5:00 p.m.
10:00 p.m.
HEAT 40° F to 90° F
4° C to 32° C Increments of 1°
70° F (21° C)
62° F (16° C)
70° F (21° C)
62° F (16° C)
COOL 40° F to 90° F
4° C to 32° C Increments of 1°
78° F (25° C)
85° F (29° C)
78° F (25° C)
82° F (27° C)
FAN AUTO or ON AUTO
ADVANCED
THERMOSTAT
SETTINGS
Program Schedule Usage
4 Schedule Events/Day
2 Schedule Events/Day
2 Events/D Business
Nonprogrammable
4 Schedule
Events/Day
Auto Changeover Time 0 to 120 Minutes 15 minute increments 60 Minutes
Smart Recovery OFF or ON OFF
Dehumidification OFF or ON ON
Minimum Heat Pump Usage 12° F to 74° F Increments of 1° 12° F
Backup Heat Response Fast (10 Minutes)
Slow (20 Minutes) Slow
OFFSETS
Indoor Temperature to 5° F to + 5° F Increments of 1° F 0
Remote Temperature Not Used
Relative Humidity to 10% to + 10% Increments of 1% 0
Heat Anticipator
(conventional furnaces only) 0 to 9 Increments of 1 0

18

19

709063A (Replaces 7090630)
¢709063'¤
iQ Drive®is a registered trademark of Nordyne.
Specifications & illustrations subject to change without notice or incurring obligations.
O’ Fallon, MO | Printed in U.S.A. (08/10)
