2Structure of the machine

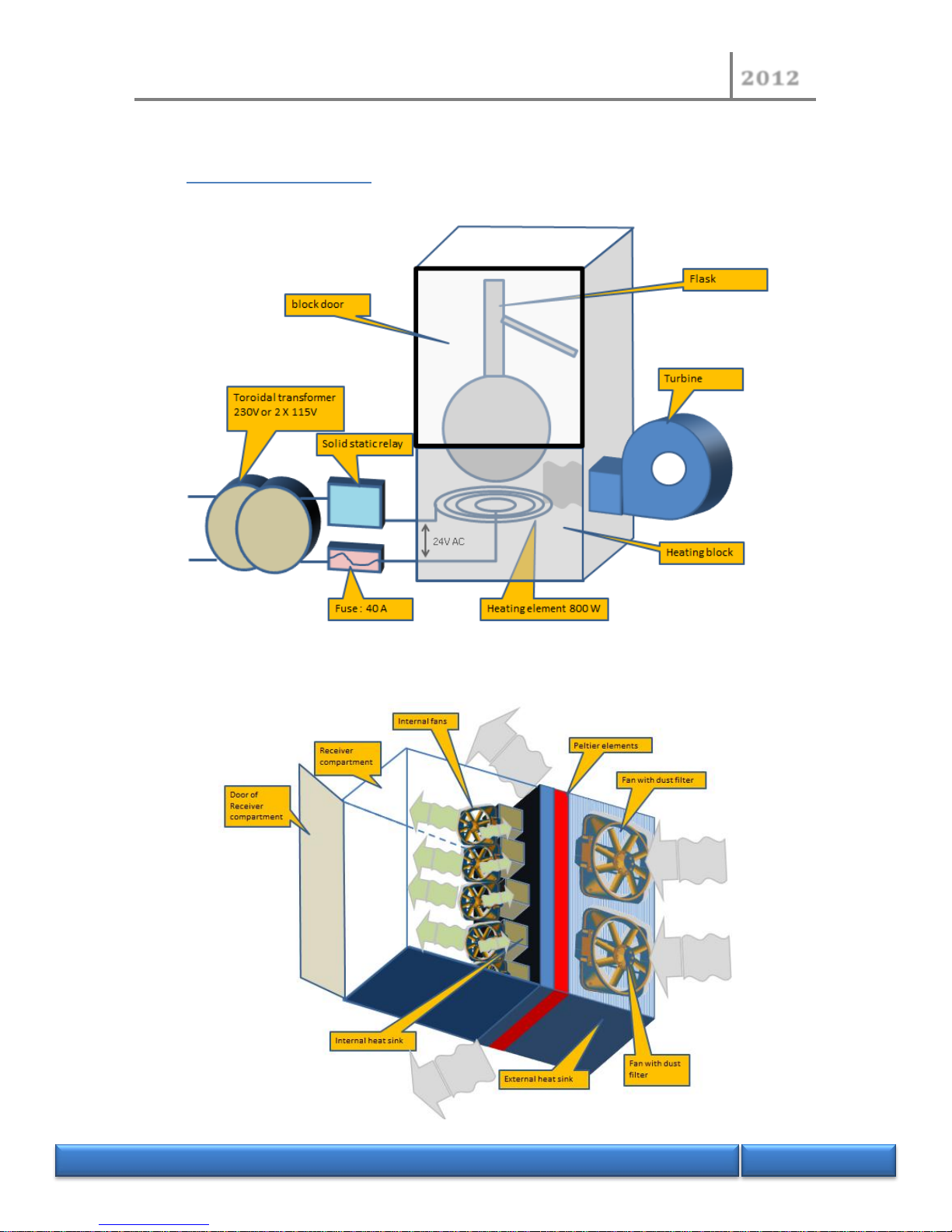

2.1 Mechanical structure
2.1.1 Heating block
2.1.2 Subset compartment

NORMALAB France
2012
N O R M A L A B F r a n c e
7/118
2.1.3 Subset condenser
2.1.4 The ventilation

NORMALAB France
2012
N O R M A L A B F r a n c e
8/118
2.2 Environnement of the machine

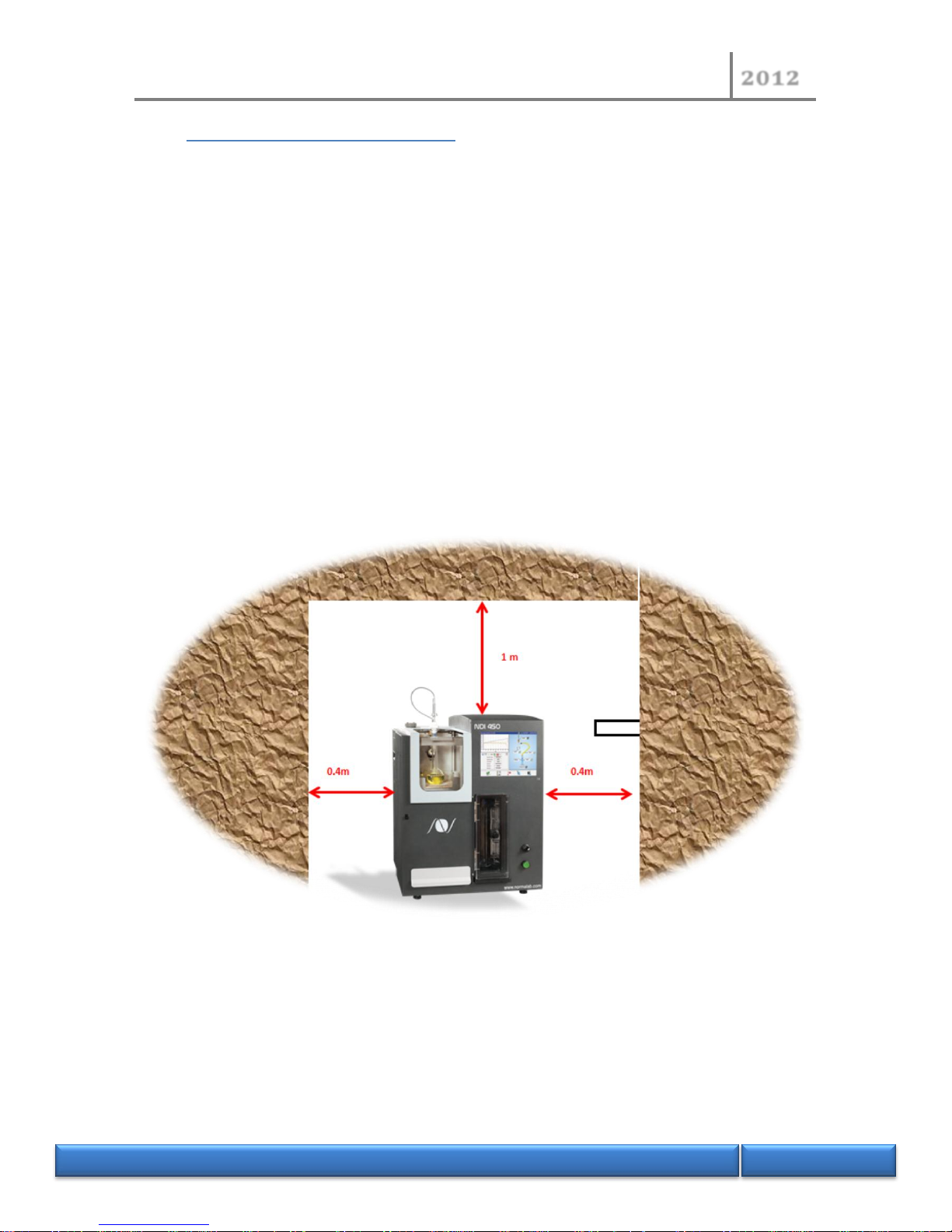

The machine must be installed on the stable bench , can supported the weight of the apparatus ( see
characteristics)
It is necessary to respect a minimum environment volume to ensure proper operation and longevity
.
Allow minimum space : 25cm behind and 40 cm on the sides , 100 cm above to ensure adequate
ventilation space.
Do not install the machine near the heating source ( radiator , stove , oven or apparatusl sending hot
air , …), or behing a window receiving the sun

NORMALAB France
2012
N O R M A L A B F r a n c e
9/118
2.3 Electronic structure
2.3.1 Electronic structure
2.3.2 Location of the electronic boards
CL3
board
CL2 board and
Stepper motor
board

NORMALAB France
2012
N O R M A L A B F r a n c e
10/118
CL56F
board
CL56C
board
Inverter pour
backlight
CL56F
board
MMI CPU
board
Touch screen’s
driver
Hard
drive disk
Inverter pour
backlight
CL56F
board

NORMALAB France
2012
N O R M A L A B F r a n c e
11/118
2.3.3 The external connections
2.3.3.1 Keyboard, mouse, printer, monitor, network
Devices type
Port
Video monitor
VGA port on the back side
Keyboard
USB Port on the left side and back side
Printer
USB Port on the left side and back side
Network
Port RJ 45 on the back side
Serial port
Com port on the back side ( 9 pins SubD)
USB key for exportation files
USB Port on the left side and back side
USB key for process restoration
Update port USB
USB Key for MMI or standard update
USB Port on the left side and back side
Power supply
for CPU
Power supply for
stepper motor
CL4 Board
CL1 Board
CPU Process

NORMALAB France
2012
N O R M A L A B F r a n c e
12/118
3Instruction sheets
3.1 Access to parts of the machine

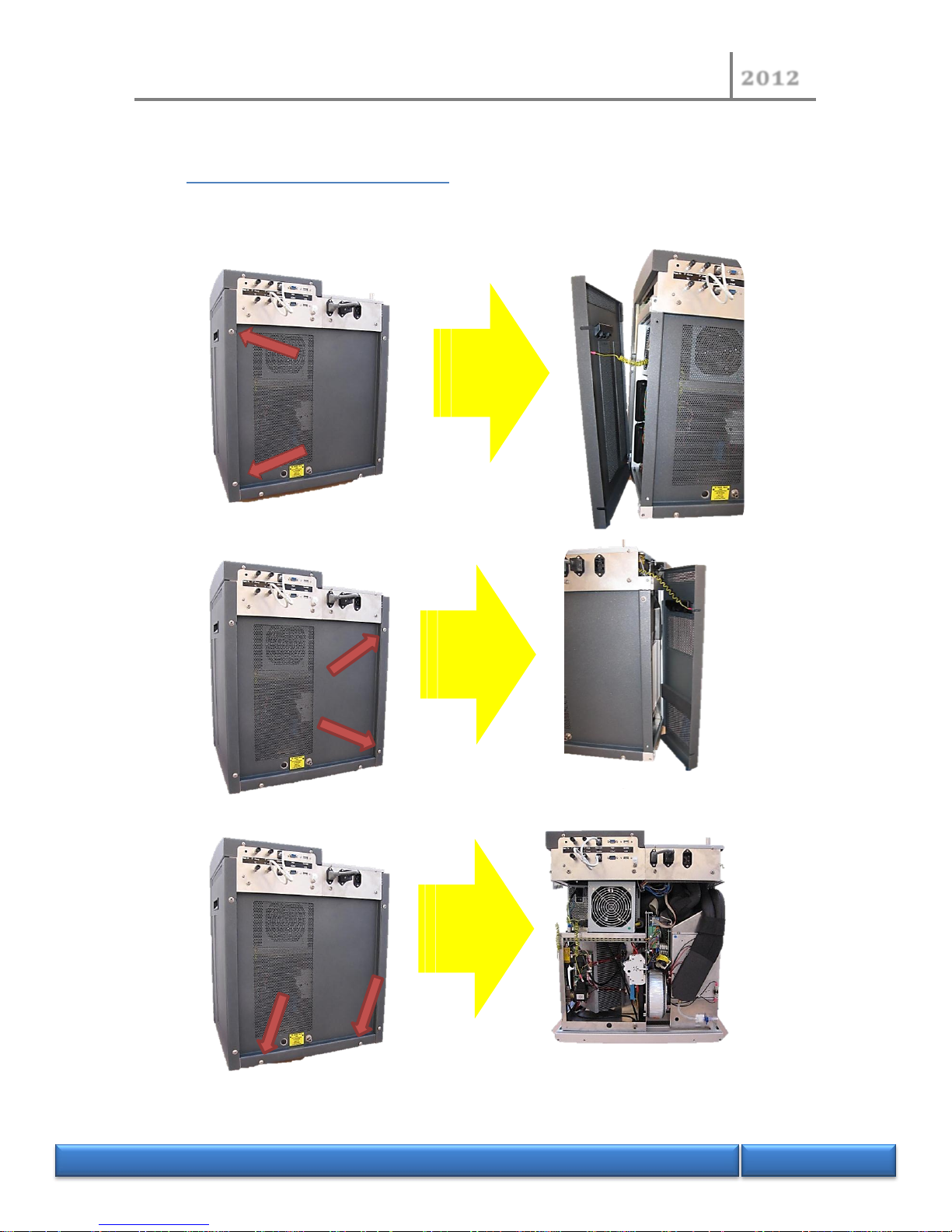

3.1.1 Opening the panels

NORMALAB France
2012
N O R M A L A B F r a n c e
13/118
3.1.2 Removing the front panel

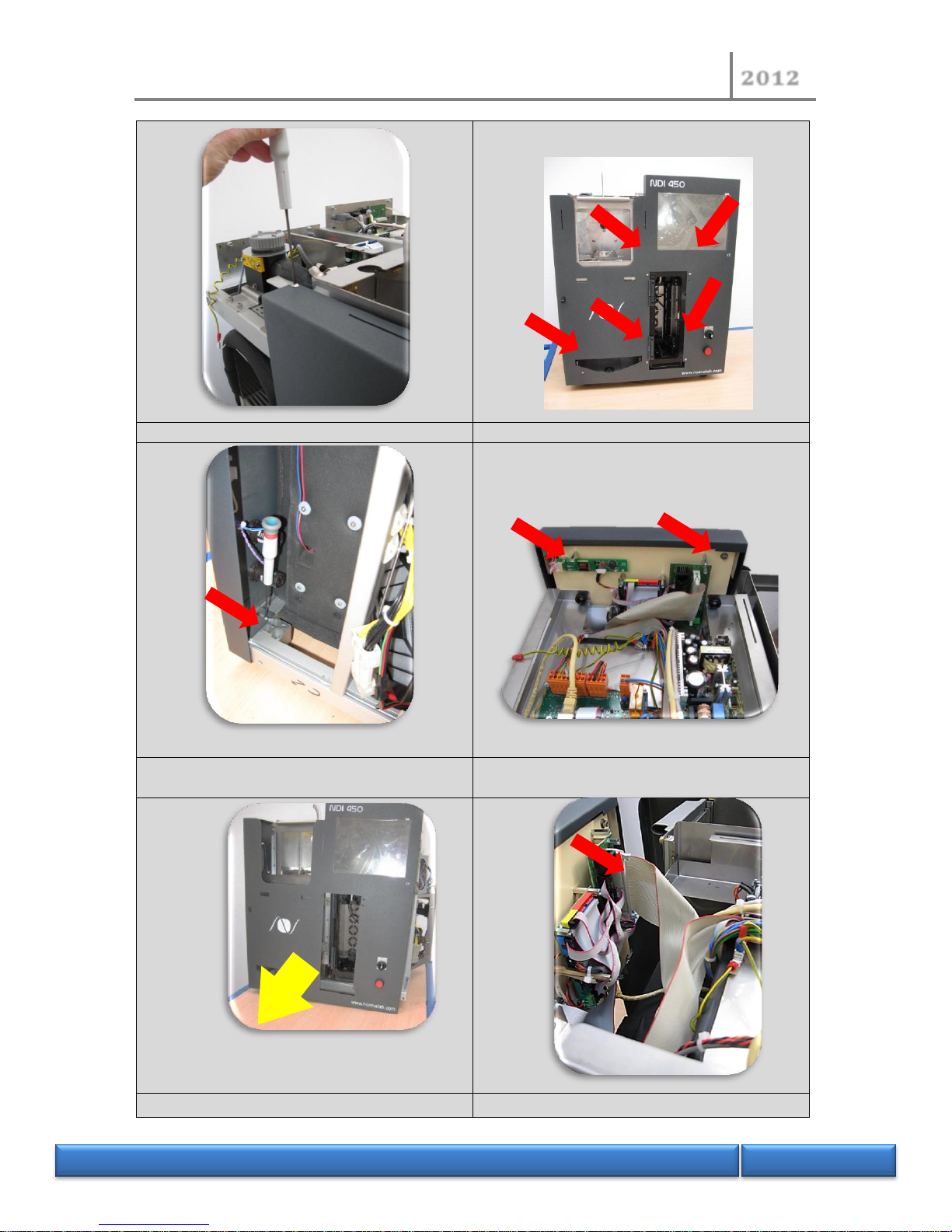

Remove the side and rear panels (see
above procedure 3.1.1)
Remove the compartment door : remove the 4
hinge screws
Remove the 2 drawers :
-Condensates drawer of compartment
-Drawer under heating block
Remove the cap of the expansion tank
Remove the 2 screws
Remove the upper panel
Tools
1 hex head key 2 mm
1 hex head key 2.5 mm
1 hex head key 3 mm

NORMALAB France
2012
N O R M A L A B F r a n c e
14/118
Remove the holding screw on the left side
Remove the 5 screw of the front panel
Remove this holding screw
Remove the 2 black knobs fixing the electronic
drawer
Pull slightly the panel forward
Unplug the ribbon of front panel

NORMALAB France
2012
N O R M A L A B F r a n c e
15/118
Unplug the network cable ( RJ45)
The front panel is free , you can remove it
3.1.3 Access to the electronic drawer
Remove the 2 screws of the upper left panel and
lift the panel on the back
Remove the ground wire

NORMALAB France
2012
N O R M A L A B F r a n c e
16/118
3.2 Level follower
3.2.1 Replacement of the 1rst drop optical sensor

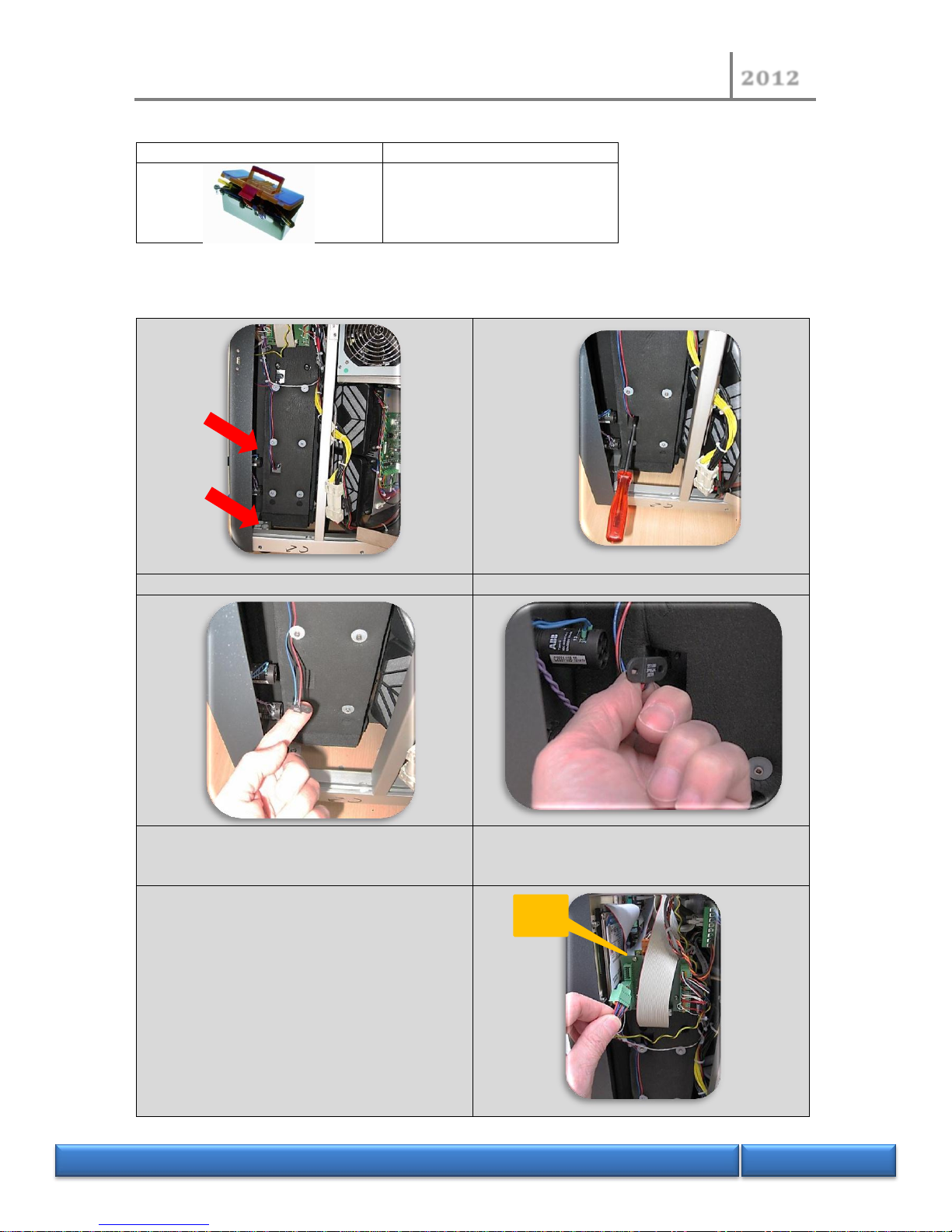

Remove the holding screw
Pull out the optical sensor from the slide
Remove the Jack connector
Plug the connector on the new optical sensor
(Pay attention at the cable to not hinder the
movement of the follower)
Replace the new optical sensor in the slide
Tighten the holding screw
Loosen the locking screw to adjust the optical
position with the adjusting screw
Place a 4mm Ø screwdriver in vertical position
and aligned with the condenser
Read the good position on the maintenance screen
( adjust slowly because the refreshment is slow)
Locking
screw
Holding
screw
Adjusting
screw

NORMALAB France
2012
N O R M A L A B F r a n c e
17/118
3.2.2 Replacement of the follower optical sensor
With the
maintenance
functions ,to do
raise the follower
sensor of 5 cm to
release it from the
follower base
Proceed the same
way as first drop
sensor to remove
the optical sensor
Loosen the
blocking screw and
adjust the optical
sensor position
with the adjusting
screw

NORMALAB France
2012
N O R M A L A B F r a n c e
18/118
3.2.3 Replacement of the limit switches of follower

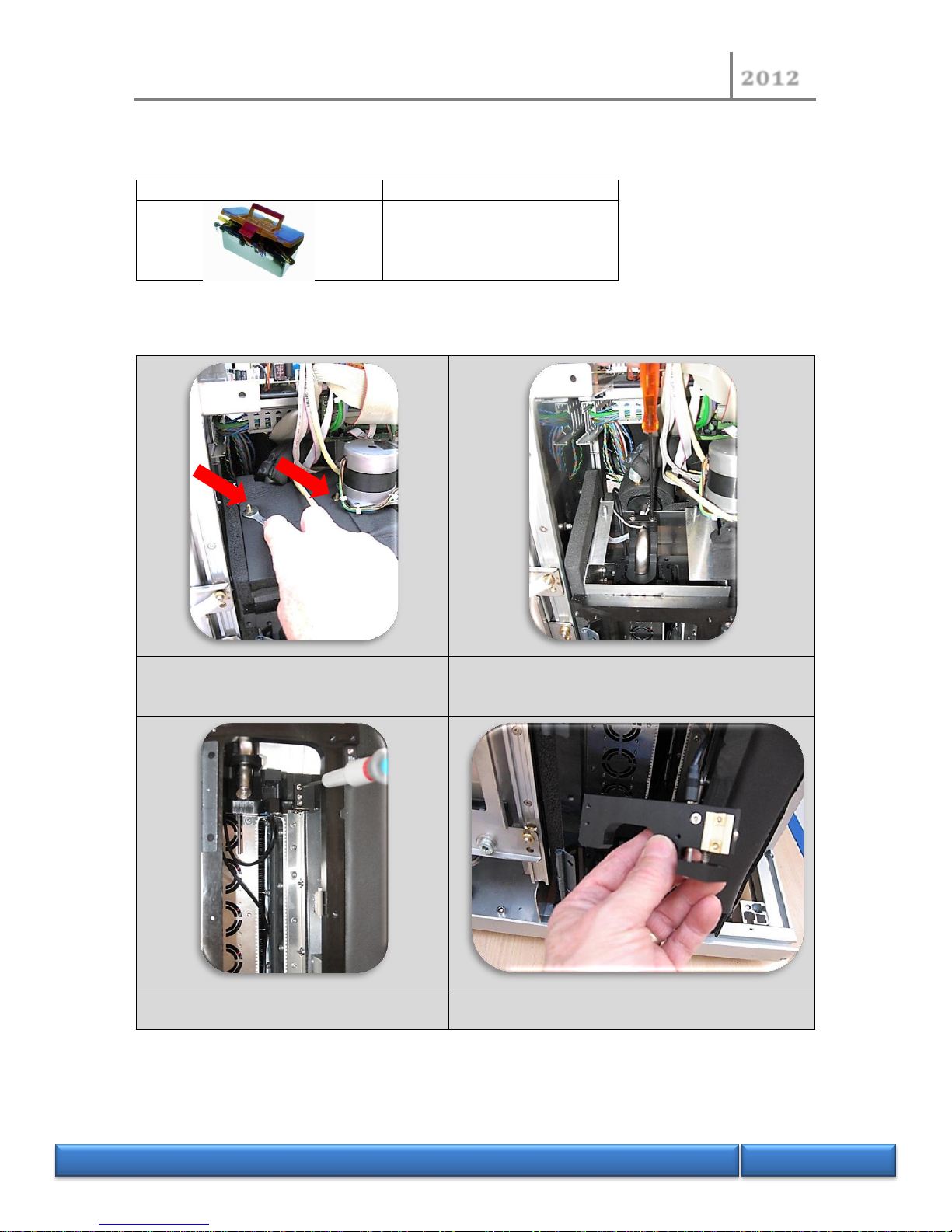

Tools
1 hex head key 4 mm
1 tubular key 5.5 mm
1 flat blade screwdriver 3.5m
Remove the right panel (see the above procedure 3.1.1)
Position of the low and high sensors
Loosen the maintaining nut of sensor
Release the wires
Extract the sensor ( identify the sense of the
position to replace the new one in the same
sense)
Disconnect the wires from connector of
CL2 board
Low sensor :
-Red 1
-Blue 2
-Black 3
High sensor
-Red 4
-Blue 5
-Black 6
1

NORMALAB France
2012
N O R M A L A B F r a n c e
19/118
3.2.4 Replacement of drip deflector detector
Tools
1 hex head key 3 mm
1 wrench 7mm
Remove the front panel (see above procedure 3.1.1)
Remove the roof of the receiver
compartment(2 hex screws)and extract it
(take care at the heating insulation)
Remove the flange around the condenser
Remove the optical sensor ( without
modifying the position adjustment)
Unplug the optical sensor cable

NORMALAB France
2012
N O R M A L A B F r a n c e
20/118
Remove the 2 maintaining scews
Remove the compartment probe

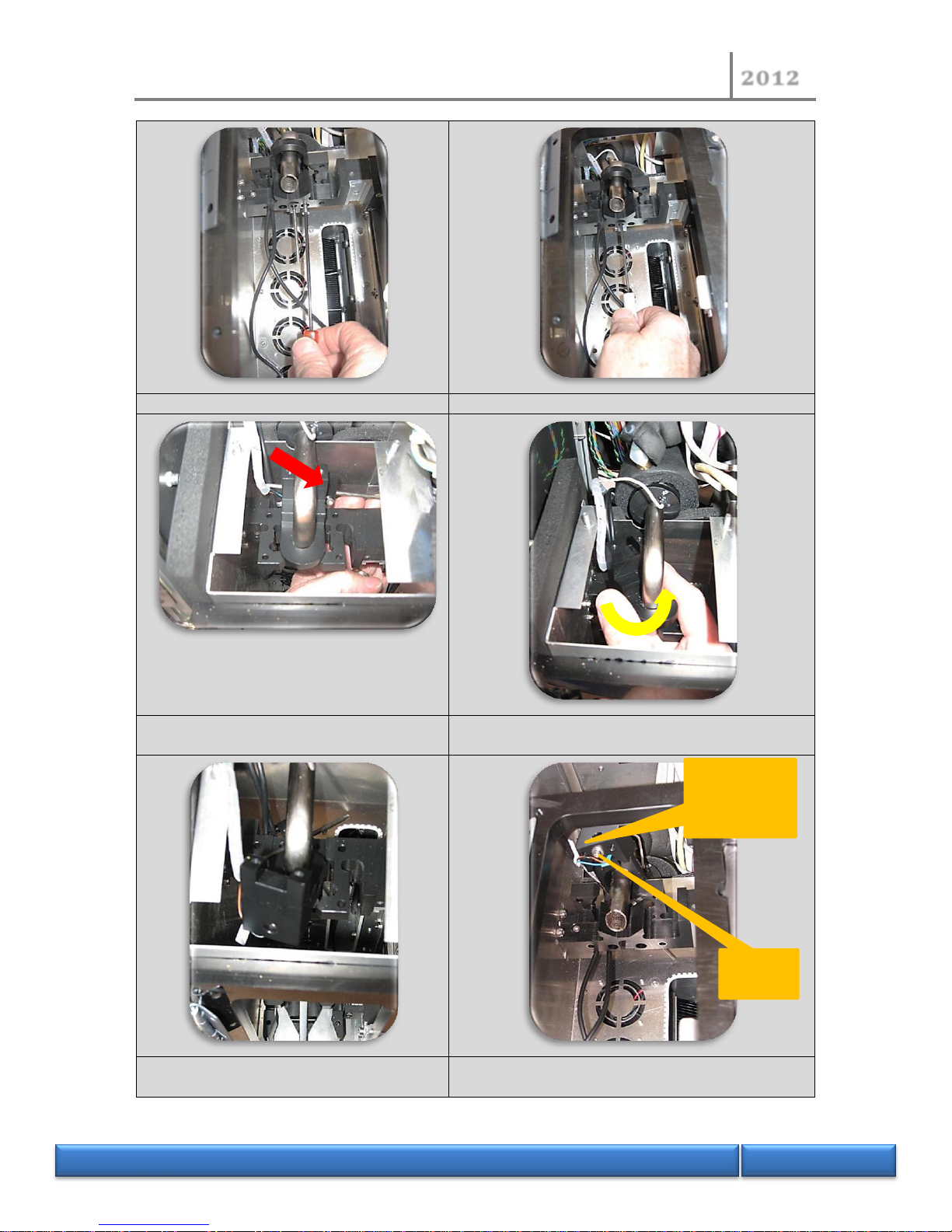

Lift the probe above condenser
Release the wires and turn the holder around the
condenser ( lift slightly the condenser tube)
Place the holder in front of condenser tube
to access by above
Loosen the maintaining screw
Vis de
maintien
capteur
Capteur
