Norsup P13V/32 Service manual

BRINGING WATER TO THE NEXT LEVEL
SWIMMING POOL HEAT PUMP UNIT
Installation & Instruction Manual
Part no. Type
7026965 P13V/32
7026966 P17V/32
7026967 P21V/32
7026968 P21TV/32
7026969 P24V/32
7026970 P24TV/32
7026971 P31V/32
7026972 P31TV/32
7026973 P35V/32
7026974 P35TV/32
EN

CONTENTS
1. PREFACE....................................................................................................................................... 3
2. SPECIFICATION........................................................................................................................... 6
2.1 Performance data of Swimming Pool Heat Pump Unit........................................................6
2.2 The dimensions for Swimming Pool Heat Pump Unit....................................................... 10
3. INSTALLATION AND CONNECTION.....................................................................................12
3.1 Installation illustration........................................................................................................ 12
3.2 Swimming Pool Heat Pumps Location...............................................................................13
3.3 How Close To Your Pool?..................................................................................................13
3.4 Swimming Pool Heat Pumps Plumbing............................................................................. 13
3.5 Swimming Pool Heat Pumps Electrical Wiring................................................................. 14
3.6 Initial startup of the Unit.....................................................................................................15
4. OPERATION AND USE..............................................................................................................16
4.1 Color screen wire controller interface introduction............................................................16
4.2 Color screen wire controller function introduction............................................................ 16
4.3 Parameter list and breakdown table....................................................................................22
4.4 Interface draw in................................................................................................................. 25
5. MAINTENANCE AND INSPECTION.......................................................................................30
6.APPENDIX....................................................................................................................................36
6.1 Circuit diagram................................................................................................................... 36
6.2 Cable specification..............................................................................................................43
6.3 Comparison table of refrigerant saturation temperature.....................................................44

1. PREFACE
1. PREFACE
In order to provide our customers with quality, reliability and versatility, this product has
been made to strict production standards. This manual includes all the necessary information
about installation, debugging, discharging and maintenance. Please read this manual carefully
before you open or maintain the unit. The manufacture of this product will not be held
responsible if someone is injured or the unit is damaged, as a result of improper installation,
debugging, or unnecessary maintenance. It is vital that the instructions within this manual are
adhered to at all times. The unit must be installed by qualified personnel.
The unit can only be repaired by qualified installer centre, personnel or an authorized dealer.
Maintenance and operation must be carried out according to the recommended time and
frequency, as stated in this manual.
Use genuine standard spare parts only.
Failure to comply with these recommendations will invalidate the warranty.
Swimming Pool Heat Pump Unit heats the swimming pool water and keeps the temperature
constant. For split type unit. The indoor unit can be Discretely hidden or semi-hidden to suit a
luxury house.
Our heat pump has following characteristics:
1 Durable
The heat exchanger is made of PVC & Titanium tube which can withstand prolonged
exposure to swimming pool water.
2 Installation flexibility
The unit can be installed outdoors or indoors.
3 Quiet operation
The unit comprises an efficient rotary/ scroll compressor and a low-noise fan motor,
which guarantees its quiet operation.
4 Advanced controlling
The unit includes micro-computer controlling, allowing all operation parameters to be
set. Operation status can be displayed on the LCD wire controller. Remote controller can be
chosen as future option.
WARNING
It is recommended that your pool filtration pump and your heat pump are wired
independently. Wiring your pool pump into the heat pump will result in your filtration being
switched off once the pool water has reached temperature. Only wire the pool pump through
the heat pump if you have a pool pump for heating only that is independent to your pool
filtration system. Do not use means to accelerate the defrosting process or to clean, Other
than those recommended by the manufacturer.
The appliance shall be stored in a room without continuously operating ignition sources (for
example: open flames, an operating gas appliance or an operating electric heater.) Do not
pierce or burn.
Be aware that refrigerants may not contain an odour,
Appliance shall be installed, operated and stored in a room with a floor area larger than X m2.
NOTE The manufacturer may provide other suitable examples or may provide additional

1. PREFACE
information about the refrigerant odour.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children without supervision.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
The appliance shall be installed in accordance with national wiring regulations.
Do not operate your air conditioner in a wet room such as a bathroom or laundry room.
Before obtaining access to terminals, all supply circuits must be disconnected.
An all-pole disconnection device which has at least 3mm clearances in all poles, and have a
leakage current that may exceed 10mA, the residual current device (RCD) having a rated
residual operating current not exceeding 30mA, and disconnection must be incorporated in
the fixed wiring in accordance with the wiring rules.
Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer
The appliance shall be stored in a room without continuously operating ignition sources (for
example: open flames, an operating gas appliance or an operating electric heater.)
Do not pierce or burn
Appliance shall be installed, operated and stored in a room with a floor area larger than X m2
Be aware that refrigerants may not contain an odour.
The installation of pipe-work shall be kept to a minimum X m2
Spaces where refrigerant pipes shall be compliance with national gas regulations.
Servicing shall be performed only as recommended by the manufacturer.
The appliance shall be stored in a well-ventilated area where the room size corresponds to the
room area as specified for operation.
All working procedure that affects safety means shall only be carried by competent persons.
Transport of equipment containing flammable refrigerants
Compliance with the transport regulations
Marking of equipment using signs
Compliance with local regulations
Disposal of equipment using flammable refrigerants
Compliance with national regulations
Storage of equipment/appliances
The storage of equipment should be in accordance with the manufacturer's instructions.
Storage of packed (unsold) equipment
Storage package protection should be constructed such that mechanical damage to the
equipment inside the package will not cause a leak of the refrigerant charge.
The maximum number of pieces of equipment permitted to be stored together will be
determined by local regulations.
Caution & Warning
1. The unit can only be repaired by qualified installer centre personnel or an authorized dealer.
(for Europe market)

1. PREFACE
2. This appliance is not intended for use by persons (including children) with reduced physical
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety. (for Europe market)
Children should be supervised to ensure that they do not play with the appliance.
3. Please make sure that the unit and power connection have good earthing, otherwise may cause
electrical shock.
4. If the supply cord is damaged, it must be replaced by the manufacturer or our service agent or
similarly qualified person in order to avoid a hazard.
5. Directive 2002/96/EC (WEEE):
The symbol depicting a crossed-out waste bin that is underneath the appliance indicates that
this product, at the end of its useful life, must be handled separately from domestic waste,
must be taken to a recycling centre for electric and electronic devices or handed back to the
dealer when purchasing an equivalent appliance.
6. Directive 2002/95/EC (RoHs): This product is compliant with directive 2002/95/EC (RoHs)
concerning restrictions for the use of harmful substances in electric and electronic devices.
7. The unit CANNOT be installed near the flammable gas. Once there is any leakage of the gas,
fire can be occur.
8. Make sure that there is circuit breaker for the unit, lack of circuit breaker can lead to electrical
shock or fire.
9. The heat pump located inside the unit is equipped with an over-load protection system. It does
not allow for the unit to start for at least 3 minutes from a previous stoppage.
10. The unit can only be repaired by the qualified personnel of an installer center or an authorized
dealer. (for North America market)
11. Installation must be performed in accordance with the NEC/CEC by authorized person only.
(for North America market)
12. USE SUPPLY WIRES SUITABLE FOR 75℃.
13. Caution: Single wall heat exchanger, not suitable for potable water connection.

2. SPECIFICATION
2. SPECIFICATION
2.1 Performance data of Swimming Pool Heat Pump Unit
*** REFRIGERANT: R32
UNIT
P13V/32
P17V/32
P21V/32
Part nr.
7026965
7026966
7026967
Heating capacity
(A27/W26)
kW
3.7-13.5
3.4-17.0
6.2-21.3
Btu/h
12580-45900
11560-57800
21080-72420
COP
13.4-3.7
13.0-6.6
15.6-7.3
Heating capacity
(A15/W26)
kW
2.7-10.0
2.7-12.7
6.5-16.3
Btu/h
9180-34000
9180-43180
22100-55420
COP
6.2-5.0
6.8-5.0
7.0-5.4
Heating power input
kW
0.23-2.9
0.31-3.54
0.43-4.55
Power Supply
220-240V /50Hz
220-240V /50Hz
220-240V /50Hz
Compressor Quantity
1
1
1
Compressor
rotary
rotary
rotary
Fan Number
1
1
1
Noise
dB(A)
44-54
46-56
48-56
Water Connection
mm
50
50
50
Water Flow Volume
m3/h
4.2
5.5
7
Water Pressure Drop(max)
kPa
5
9
16
Unit Net Dimensions(L/W/H)
mm
See the drawing of the units
Unit Ship Dimensions(L/W/H)
mm
See package lable
Net Weight
kg
see nameplate
Shipping Weight
kg
see package label
Heating: Outdoor air temp: 27℃/24.3℃, Inlet water temp:26℃
Outdoor air temp: 15℃/12℃, Inlet water temp:26℃
Operating range:
Ambient temperature: -15 43℃
Water temperature: 9-40℃

2. SPECIFICATION
2.1 Performance data of Swimming Pool Heat Pump Unit
*** REFRIGERANT: R32
UNIT
P21TV/32
P24V/32
P24TV/32
Part nr.
7026968
7026969
7026970
Heating capacity
(A27/W26)
kW
6.3-21.1
5.6-24.9
5.5-24.3
Btu/h
21420-71740
19040-84600
18700-82620
COP
14.8-7.6
15.2-6.4
14.2-6.6
Heating capacity
(A15/W26)
kW
4.5-16.3
4.4-18.7
4.1-18.8
Btu/h
15300-55420
14960-63580
13940-63920
COP
7.4-5.6
7.1-5.1
7.1-5.1
Heating power input
kW
0.43-5.2
0.47-5.3
0.47-5.7
Power Supply
380V/3N /50Hz
220-240V /50Hz
380V/3N /50Hz
Compressor Quantity
1
1
1
Compressor
rotary
rotary
rotary
Fan Number
1
1
1
Noise
dB(A)
48-56
50-56
50-56
Water Connection
mm
50
50
50
Water Flow Volume
m3/h
7.1
9.0
9.0
Water Pressure Drop(max)
kPa
16
16
16
Unit Net Dimensions(L/W/H)
mm
See the drawing of the units
Unit Ship Dimensions(L/W/H)
mm
See package lable
Net Weight
kg
see nameplate
Shipping Weight
kg
see package label
Heating: Outdoor air temp: 27℃/24.3℃, Inlet water temp:26℃
Outdoor air temp: 15℃/12℃, Inlet water temp:26℃
Operating range:
Ambient temperature: -15 43℃
Water temperature: 9-40℃

2. SPECIFICATION
2.1 Performance data of Swimming Pool Heat Pump Unit
*** REFRIGERANT: R32
UNIT
P31V/32
P31TV/32
P35TV/32
Part nr.
7026971
7026972
7026974
Heating capacity
(A27/W26)
kW
8.5-30.6
8.8-31.2
7.8-35.5
Btu/h
28900-104040
29920-106080
26520-120700
COP
14.3-6.3
15.7-6.1
12.2-5.2
Heating capacity
(A15/W26)
kW
6.4-23.8
6.5-23.6
6.4-27.5
Btu/h
21760-80920
22100-80240
21080-93500
COP
7.8-5.0
8.2-5.0
6.8-4.1
Heating power input
kW
0.53-7.0
0.55-7.0
0.66-8.95
Power Supply
220-240V/50Hz
380V/3N /50Hz
220-240V /50Hz
Compressor Quantity
1
1
1
Compressor
rotary
rotary
rotary
Fan Number
1
1
1
Noise
dB(A)
50-57
50-57
53-59
Water Connection
mm
50
50
50
Water Flow Volume
m3/h
12.5
12.5
14.6
Water Pressure Drop(max)
kPa
23
23
23
Unit Net Dimensions(L/W/H)
mm
See the drawing of the units
Unit Ship Dimensions(L/W/H)
mm
See package lable
Net Weight
kg
see nameplate
Shipping Weight
kg
see package label
Heating: Outdoor air temp: 27℃/24.3℃, Inlet water temp:26℃
Outdoor air temp: 15℃/12℃, Inlet water temp:26℃
Operating range:
Ambient temperature: -15 43℃
Water temperature: 9-40℃

2. SPECIFICATION
2.1 Performance data of Swimming Pool Heat Pump Unit
*** REFRIGERANT: R32
UNIT
P35V/32
Part nr.
7026973
Heating capacity
(A27/W26)
kW
7.1-35.0
Btu/h
24140-119000
COP
11.4-5.1
Heating capacity
(A15/W26)
kW
6.4-27.5
Btu/h
21760-93500
COP
6.5-4.1
Heating power input
kW
0.64-8.6
Power Supply
220-240V /50Hz
Compressor Quantity
1
Compressor
rotary
Fan Number
1
Noise
dB(A)
53-59
Water Connection
mm
50
Water Flow Volume
m3/h
14.6
Water Pressure Drop(max)
kPa
23
Unit Net Dimensions(L/W/H)
mm
See the drawing of the units
Unit Ship Dimensions(L/W/H)
mm
See package lable
Net Weight
kg
see nameplate
Shipping Weight
kg
see package label
Heating: Outdoor air temp: 27℃/24.3℃, Inlet water temp:26℃
Outdoor air temp: 15℃/12℃, Inlet water temp:26℃
Operating range:
Ambient temperature: -15 43℃
Water temperature: 9-40℃

2. SPECIFICATION

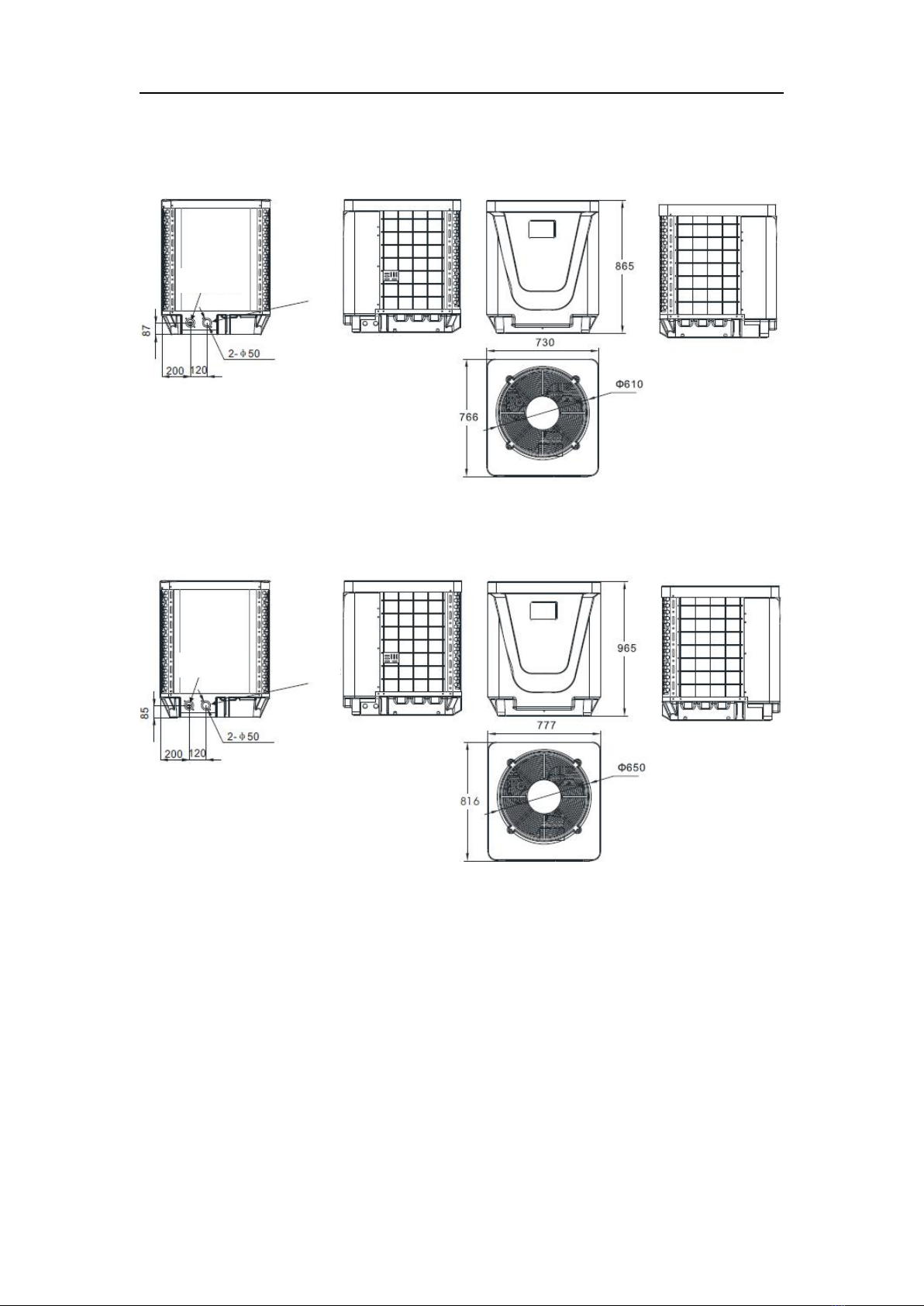

2.2 The dimensions for Swimming Pool Heat Pump Unit
UNIT: P13V/32 /P17V/32 Unit mm
UNIT: P21V/32 /P21TV/32/P24V/32 /P24TV/32 Unit mm
Water inlet
Water outlet
Water outlet
Water inlet

2. SPECIFICATION
2.2 The dimensions for Swimming Pool Heat Pump Unit
UNIT: P31V/32 /P31TV/32/P35V/32/P35TV/32 Unit mm
Water outlet
Water inlet

3. INSTALLATION AND CONNECTION
3. INSTALLATION AND CONNECTION
3.1 Installation illustration

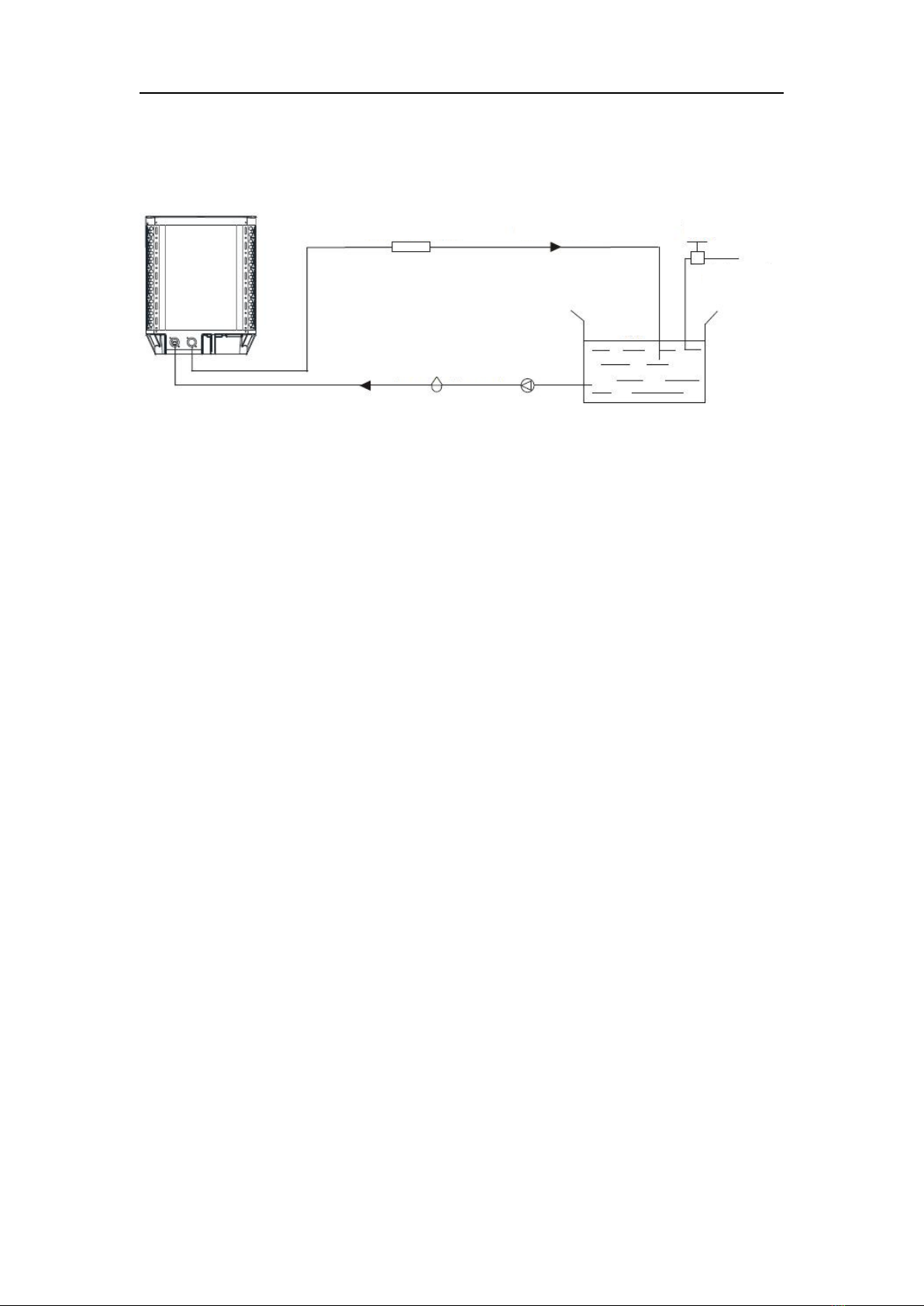

Installation items:
The factory only provides the main unit and the water unit; the other items in the illustration are
necessary spare parts for the water system, that provided by users or the installer.
Attention:
Please follow these steps when using for the first time
1.Open valve and charge water.
2.Make sure that the pump and the water-in pipe have been filled with water.
3.Close the valve and start the unit.
ATTN: It is necessary that the water-in pipe is higher than the pool surface.
The schematic diagram is for reference only. Please check the water inlet/outlet label on the heat
pump while plumbing installation.
The controller is mounted on the wall
Pool
Water inlet Sand filter Water pump
(or other type filter)
Water supply
Valve
Water outlet
Chlorinator cell

3. INSTALLATION AND CONNECTION
3.2 Swimming Pool Heat Pumps Location
The unit will perform well in any outdoor location provided that the following three factors are
presented:
1. Fresh Air - 2. Electricity - 3. Pool filter piping
The unit may be installed virtually anywhere outdoors. For indoor pools please consult the
supplier. Unlike a gas heater, it has no draft or pilot light problem in a windy area.
DO NOT place the unit in an enclosed area with a limited air volume, where the units discharge
air will be re-circulated.
DO NOT place the unit to shrubs which can block air inlet. These locations deny the unit of a
continuous source of fresh air which reduces it efficiency and may prevent adequate heat delivery.
Air inlet
Air outlet
3.3 How Close To Your Pool?
Normally, the pool heat pump is installed within 7.5 metres of the pool. The longer the distance
from the pool, the greater the heat loss from the piping. For the most part, the piping is buried.
Therefore, the heat loss is minimal for runs of up to15 meters (15 meters to and from the pump =
30 meters total), unless the ground is wet or the water table is high. A very rough estimate of heat
loss per 30 meters is 0.6 kW-hour,(2000BTU) for every 5℃difference in temperature between
the pool water and the ground surrounding the pipe, which translates to about 3% to 5% increase
in run time.
3.4 Swimming Pool Heat Pumps Plumbing
The Swimming Pool Heat Pumps exclusive rated flow titanium heat exchanger requires no special

3. INSTALLATION AND CONNECTION
plumbing arrangements except bypass (please set the flow rate according to the nameplate). The
water pressure drop is less than 10kPa at max. Flow rate. Since there is no residual heat or flame
Temperatures. The unit does not need copper heat sink piping. PVC pipe can be run straight into
the unit.
Location: Connect the unit in the pool pump discharge (return) line downstream of all filter and
pool pumps, and upstream of any chlorinators, ozonators or chemical pumps.
Standard model have slip glue fittings which accept 32mm or 50 mm PVC pipe for connection to
the pool or spa filtration piping. By using a 50 NB to 40NB you can plumb 40NB
Give serious consideration to adding a quick coupler fitting at the unit inlet and outlet to allow
easy draining of unit for winterizing and to provide easier access should servicing be required.
Condensation: Since the Heat pump cools down the air about 4 -5, water may condense on the fins
of the horseshoe shaped evaporator. If the relative humidity is very high, this could be as much as
several litres an hour. The water will run down the fins into the base pan and drain out through the
barbed plastic condensation drain fitting on the side of the base pan. This fitting is designed to
accept 20mm clear vinyl tubing which can be pushed on by hand and run to a suitable drain. It is
easy to mistake the condensation for a water leak inside the unit.
NB: A quick way to verify that the water is condensation is to shut off the unit and keep the pool
pump running. If the water stops running out of the base pan, it is condensation. AN EVEN
QUICKER WAY IS to TEST THE DRAIN WATER FOR CHLORINE - if the is no chlorine
present, then it's condensation.
3.5 Swimming Pool Heat Pumps Electrical Wiring
NOTE: Although the unit heat exchanger is electrically isolated from the rest of the unit, it simply
prevents the flow of electricity to or from the pool water. Grounding the unit is still required to
protect you against short circuits inside the unit. Bonding is also required.
The unit has a separate molded-in junction box with a standard electrical conduit nipple already in
place. Just remove the screws and the front panel, feed your supply lines in through the conduit
nipple and wire-nut the electric supply wires to the three connections already in the junction box
(four connections if three phase). To complete electrical hookup, connect Heat Pump by electrical
conduit, UF cable or other suitable means as specified (as permitted by local electrical authorities)
to a dedicated AC power supply branch circuit equipped with the proper circuit breaker,
disconnect or time delay fuse protection.
Disconnect - A disconnect means (circuit breaker, fused or un-fused switch) should be located
CONDENSATION DRAIN
From pump (outside)
To pool (inside)
PVC COUPLER
RECOMMENDED (Provided)

3. INSTALLATION AND CONNECTION
within sight of and readily accessible from the unit. This is common practice on commercial and
residential air conditioners and heat pumps. It prevents remotely-energizing unattended equipment
and permits turning off power at the unit while the unit is being serviced.
3.6 Initial startup of the Unit
NOTE- In order for the unit to heat the pool or spa, the filter pump must be running to circulate
water through the heat exchanger.
Start up Procedure - After installation is completed, you should follow these steps:
1. Turn on your filter pump. Check for water leaks and verify flow to and from the pool.
2. Turn on the electrical power supply to the unit, then press the key ON/OFF of wire controller. It
should start in several seconds.
3. After running a few minutes make sure the air leaving the top(side) of the unit is cooler
(Between 5-10℃)
4. During the operation of the unit, if the filter pump turns off, the unit should also turn off
automatically.
5. Allow the unit and pool pump to run 24 hours per day until desired pool water temperature is
reached. When the water-in temperature reaches this setting, the unit will slow down for a period
of time, if the temperature is maintained for 45 minutes the unit will turn off. The unit will now
automatically restart (as long as your pool pump is running) when the pool temperature drops
more than 0.2 below set temperature.
Time Delay- The unit is equipped with a 3minute built-in solid state restart delay included to
protect control circuit components and to eliminate restart cycling and contactor chatter. This time
delay will automatically restart the unit approximately 3 minutes after each control circuit
interruption. Even a brief power interruption will activate the solid state 3minute restart delay and
prevent the unit from starting until the 5minute countdown is completed.

4. OPERATION AND USE
4. OPERATION AND USE
4.1 Color screen wire controller interface introduction

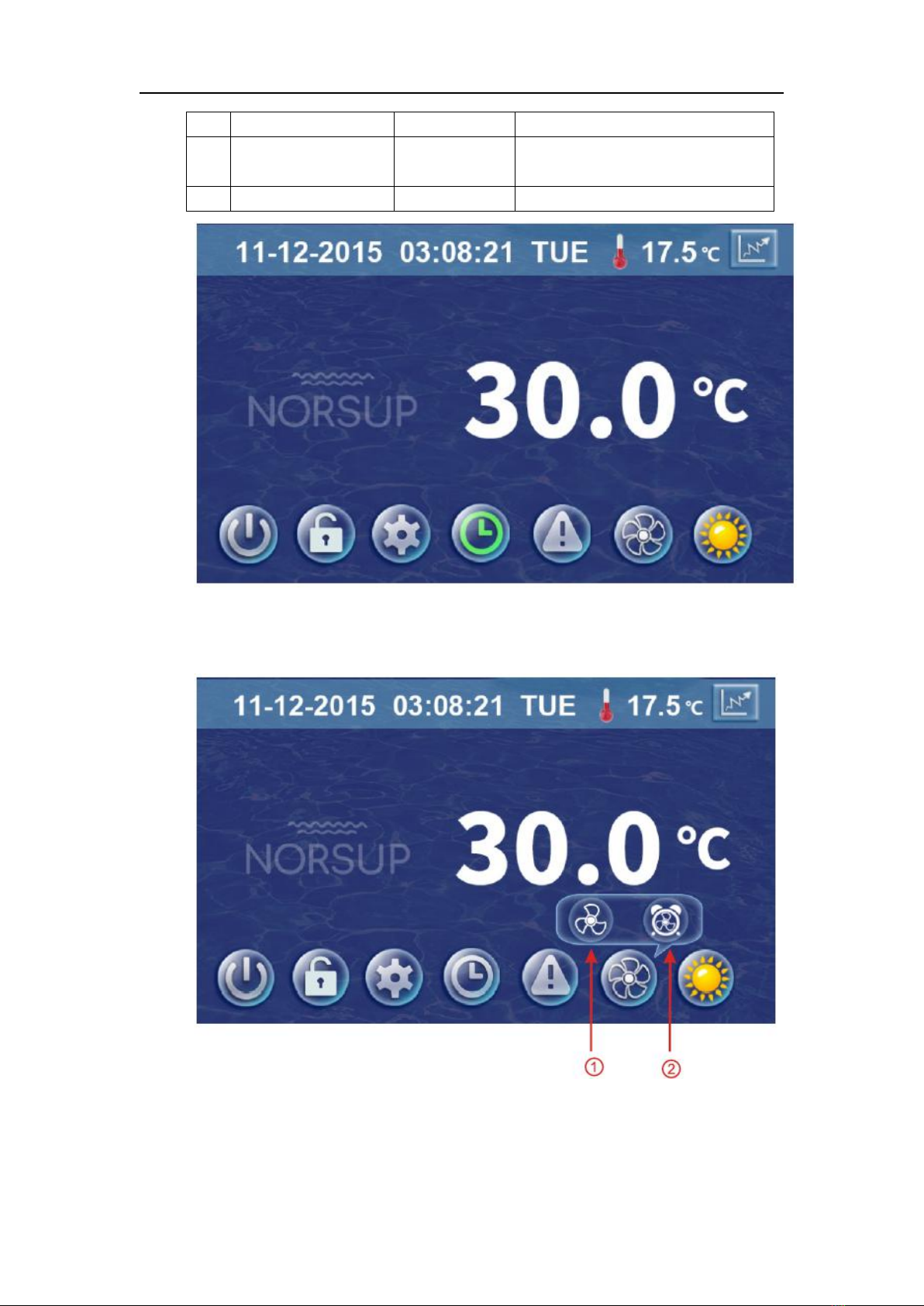

(1) Main interface
(2) Button Description
NO.
Name
The button function
1
ON/OFF
Press to start /shut off the unit
2
Parameter
Click this button to view the unit state and the parameter
3
CLOCK
Press to set the clock, the timer on or timer off. When the
timer was starting, the button is green
4
Fault display
Click to view fault history
5
Silent setting
Click to turn on/off silent function and to set timing Low
speed function.
6
MODE
Click to enter mode setting and the target temp. Setting
interface
7
Temp. curve
Click to view the temp. and power curve
8
Water Inlet Temp.
Click to enter mode setting and the target temp. Setting
interface
⑨
LOCK
Click to lock the screen. Input “22” to unlock the screen by
press the “lock button”
4.2 Color screen wire controller function introduction
(1) Booting and shutdown
As shown in figure 1.1:
In shutdown status, click ①then the unit will be booted

4. OPERATION AND USE
In booting status, click ①then the unit will be shut down.
(2) Mode switch and target temperature Setting
2.2 1 Mode switch
In the main interface, click mode button or inlet water temperature setting button,
interface displays as follows:
Click the refrigeration mode button ①, automatic mode button ②or heating mode
button ③then you can select the corresponding mode.
Note: when the unit is designed for single automatic mode or single thermal mode, the
mode can not be switched.
2-2 Target temp. setting
Click the temperature set button ④, you can set the target temperature.
(3) Clock setting
In the main interface, click on the clock Settings button, interface displays as follows:

4. OPERATION AND USE
3-1 The operation of time setting
Click on the time Settings button ①, interface displays as follows:
Click the value to set time directly, the click confirm button to save the Settings.
For example: setup time: the 30-11-2016 16:00:00, input 30 11 16 16 00 00, the time
change then click confirm button.
Note: if the input format is not correct, the wrong time will be saved by clicking confirm
button.

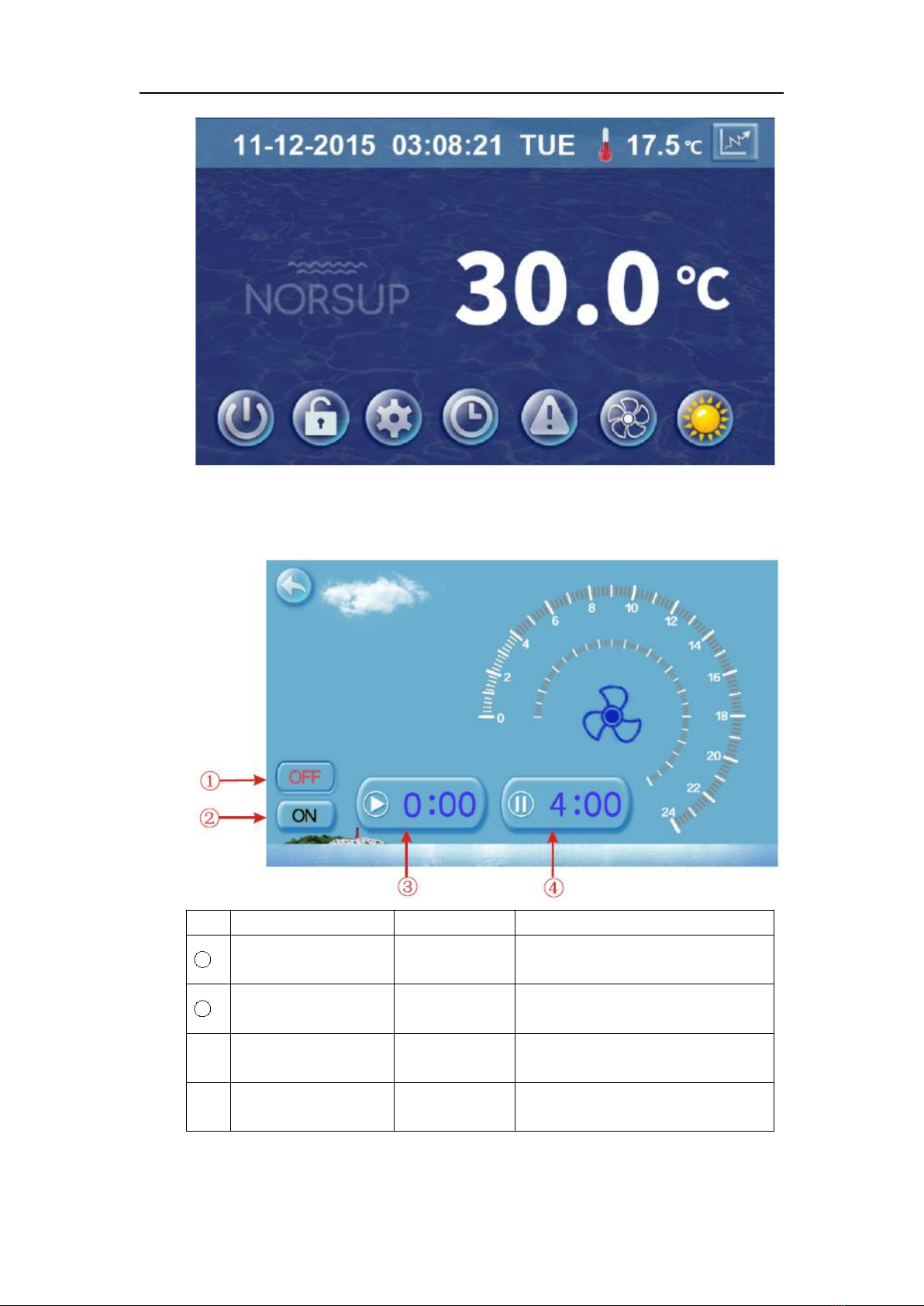

3-2 The operation of timing setting
Click the timing set button ②to enter timing setinterface.
NO.
Name
Button color
Button function
①
Timing table
Start: green
End: gray
Click this button to start or end
timing start setting function

4. OPERATION AND USE
②
Timing on setting
Click to set start time of the timing
③
Timing end button
Open: red
End: gray
Click this button to start or end
timing end setting function
④
Timing off setting
Click to set end time of the timing
When the timer was starting, the clock button is green in the main interface.
(4) Silent setting and silent timing setting
Click the silent setting button, and the interface displays as follows:
4-1 The silent button
Click the silent button ①, the unit will enter the silent mode, and interface displays as
follows:

4. OPERATION AND USE
Click the silent button ①again, to exit the silent mode.
4-2 Timing silent function setting
Click timing silent button ②, and interface displays as follows:
NO.
Name
Color
Function
1
Timing silent off
Used: red
Unused: gray
Click to use or unuse timing off
function
2
Timing silent on
Use: green
Unused: gray
Click to use or unuse timing on
function
③
Timing silent start
time
Click this button to set the timing
silent start time
④
Timing silent end
time
Click this button to set the timing
silent end time
Start time and end time setting value must be among the range of 0:00 -23:00, and setting
