Rheem Raypak RPAGP75 User manual

E󰀨ective: 01-15-20
Replaces: 12-10-19
P/N 241831 Rev 3
INSTALLATION
AND OPERATION
MANUAL
Models
RPAGP75, RPAGP100,
RPAGP102, RPAGP150,
RPAGP152
IMPORTANT SAFETY INSTRUCTIONS. READ AND FOLLOW ALL
INSTRUCTION. SAVE THESE INSTRUCTIONS.
NOTE: The instructions in this manual are for the use of qualied individuals specially trained and experienced
in the installation and maintenance of this type of equipment and related system components. Installation and
service personnel are required by some states to be licensed. Persons not qualied shall not attempt to install,
service, or maintain this equipment.
This manual should be maintained in legible condition and kept adjacent to the sand lter or in a safe place for
future use.
SWIMMING POOL
PUMP
CONTROLLED COPY approved for factory use on 4/16/2020. RAYPAK PROPRIETARY AND CONFIDENTIAL INFORMATION . Approval signatures on file in Engineering.

2
Revision 3 reects the following changes:
Figure 1 modied on page 7. Parts list descriptions updated on page 10. Added warranty certicate on pages 11 and 12.
CONTENTS
1. WARNINGS ............................................................ 3
Pay Attention to these Terms .................................. 3
2. IMPORTANT SAFETY INSTRUCTIONS.............. 5
Entrapment Prevention ........................................... 5
3. OVERVIEW.............................................................. 6
Constant Speed Pump Models ............................... 6
Dual Speed Pump Models ...................................... 6
4. INSTALLATION....................................................... 6
Pump ....................................................................... 6
5. START-UP................................................................ 8
6. GENERAL MAINTENANCE .................................. 8
Winterizing .............................................................. 8
7. TROUBLESHOOTING ........................................... 9
8. ILLUSTRATED PARTS LIST............................... 10
9. WARRANTY .......................................................... 11
CONTROLLED COPY approved for factory use on 4/16/2020. RAYPAK PROPRIETARY AND CONFIDENTIAL INFORMATION . Approval signatures on file in Engineering.

3
1. WARNINGS
Pay Attention to these Terms
AADANGER Indicates the presence of immediate hazards which will cause severe personal injury, death or substantial
property damage if ignored.
AAWARNING Indicates the presence of hazards or unsafe practices which could cause severe personal injury, death or
substantial property damage if ignored.
AACAUTION Indicates the presence of hazards or unsafe practices which could cause minor personal injury or product
or property damage if ignored.
CAUTION CAUTION used without the warning alert symbol indicates a potentially hazardous condition which could
cause minor personal injury or product or property damage if ignored.
NOTE Indicates special instructions on installation, operation, or maintenance which are important but not related
to personal injury hazards.
AADANGER: Serious bodily harm or death can result if
this pump and motor is not installed and used correctly.
AAWARNING: Risk of electrical shock. More than one
disconnect switch may be required to de-energize the
equipment before servicing.
AAWARNING: This pump and motor is intended for use
in swimming pool applications.
AAWARNING: Most states and local codes regulate the
construction, installation, and operation of public pools
and spas, and the construction of residential pools and
spas. It is important to comply with these codes, many
of which directly regulate the installation and use of this
product. Consult your local building and health codes
for more information.
AAWARNING: Do not permit children to use or operate
this pump and motor.
AAWARNING: When setting up pool water turnovers
or ow rates the operator must consider local codes
governing turnover as well as disinfectant feed ratios.
AAWARNING: DO NOT increase pump size, this will
increase the ow rate through the system and exceed
the maximum ow rate stated on the drain cover.
AAWARNING: Before installing this product, read
and follow all warnings notices and instructions in this
manual. Failure to follow warnings and instructions can
result in severe injury, death, or property damage. Please
call 1-877-213-3726 or refer to www.raypak.com for more
information related to this product.
AAWARNING: Improper installation, adjustment,
alteration, service, or maintenance can cause property
damage, personal injury or loss of life.
AAWARNING: A pool or spa pump must be installed
by a qualied pool and spa service professional in
accordance with the National Electrical Code and
all applicable local codes and ordinances. Improper
installation may cause and electrical hazard which could
result in death or serious injury to pool users, installers,
or others due to electrical shock, and also cause
property damage.
AAWARNING: Pumps are not a substitute for properly
installed and secured pool drain covers. An ANSI/ASME
A112.19.8 approved anti-entrapment drain cover must
be used for each drain. Pools and spas should utilize a
minimum of 2 drains per pump. If a drain cover becomes
loose, broken, or is missing, close the pool or spa
immediately and shut o󰀨 the pump until an approved
anti-entrapment drain cover is properly installed with
the manufacturer's supplied screws.
AAWARNING: Pump suction is hazardous and can
trap and drown or disembowel bathers. Do not use or
operate swimming pools, spas, or hot tubs if a suction
outlet cover is missing, broken, or loose.
AADANGER: Hazardous suction can
trap hair or body parts, causing severe
injury or death. Do not block suction.
CONTROLLED COPY approved for factory use on 4/16/2020. RAYPAK PROPRIETARY AND CONFIDENTIAL INFORMATION . Approval signatures on file in Engineering.

4
AADANGER: ELECTROCUTION
OR ELECTRICAL SHOCK RISK.
DISCONNECT ELECTRICITY BEFORE
WORKING ON PUMP, OR SHOCK, BURN
OR ELECTROCUTION CAN RESULT.
Always disconnect pool pump power at the circuit breaker
before servicing the pump. Death or serious injury to
service people, pool users or others due to electric shock
could result from failure to avoid the high danger risk.
AADANGER: For continued protection against possible
electrical shock, this unit is to be mounted to the base in
accordance with the installation instructions.
NOTE: Always turn o󰀨 all power to the pool pump before
installing the cover or working on any suction outlet.
NOTE: This pump operates with electrical voltage, and
can generate both vacuum and pressure in the water
system. When properly wired and plumbed, this pump
will operate in a safe manner. AAWARNING: Do not bury the electrical cord. Place
the cord so as to eliminate contact to from lawnmowers,
hedge trimmers, other equipment and to avoid a tripping
hazard.
AACAUTION: This pump is for use with permanently
installed pools and may also be used with hot tubs and
spas. Do not use with storable pools unless the pump
is protected by a factory installed double insulated
enclosure. A permanently installed pool is constructed
in or on the ground or in a building such that it cannot
be readily disassembled for storage. A storable pool is
constructed so that it may be readily disassembled for
storage and reassembled to original integrity.
AAWARNING: To reduce the risk of electrical shock,
connect ground wires to grounding screw located in the
motor. Use no smaller than a #12 AWG (3.3 mm) wire.
AAWARNING: To reduce the risk of electrical shock,
replace any damaged electrical cord immediately.
AAWARNING: Never work on the pump while it is
running or the power is still connected. High voltage
can cause serious or fatal injury. A suitable ground
fault interrupter (GFCI) should always be installed at
the power supply source of this unit. Article 681-31 of
the NEC requires that a GFCI be used if this pump is
used with a storage pool. Be sure to ground the motor
before connecting to electrical AC power source. Failure
to ground the motor can cause serious or fatal electrical
shock hazard. DO NOT ground to a gas supply pipe line.
AAWARNING: Ground and bond the pump before
connecting to electrical power supply. Failure to ground
and bond the pump can cause serious or fatal electrical
shock hazard. DO NOT ground to a gas supply line. To
avoid dangerous or fatal electrical shock, turn OFF power
to the pump before working on electrical connections.
NOTE: Always turn o󰀨 all power to the pool pump before
installing the cover or working on any suction outlet.
AACAUTION: Elevated water temperature can
be hazardous. The U.S. Consumer Product Safety
Commission has these guidelines:
1. Spa water temperatures should never exceed 104°F
(40°C). A temperature of 100°F (38°C) is considered
safe for a healthy adult. Special caution is suggested
for young children.
2. Drinking of alcoholic beverages before or during spa
or hot tub use can cause drowsiness which could
lead to unconsciousness and subsequently result in
drowning.
3. Pregnant Women Beware! Soaking in water over
102°F (39°C) can cause fetal damage during the rst
three months of pregnancy resulting in the birth of a
brain-damaged or deformed child.
4. Before entering the spa or hot tub, users should
check the water temperature with an accurate
thermometer; spa or hot tub thermostats may err
in regulating water temperatures by as much as 4°F
(2.2°C).
5. Persons with a medical history of heart disease,
circulatory problems, diabetes, or blood pressure
problems should obtain a physician’s advice before
using pools or hot tubs.
6. Persons taking medications which induce
drowsiness, such as tranquilizers, antihistamines,
or anticoagulants, should not use spas or hot tubs.
CONTROLLED COPY approved for factory use on 4/16/2020. RAYPAK PROPRIETARY AND CONFIDENTIAL INFORMATION . Approval signatures on file in Engineering.

5
2. IMPORTANT SAFETY
INSTRUCTIONS
Entrapment Prevention
AADANGER: DO NOT BLOCK SUCTION.
AADANGER: Hazardous suction can
trap hair or body parts, causing severe
injury or death. Do not block suction.
SUCTION HAZARD. Can cause serious injury or death.
Do not use this pump for wading pools, shallow pools,
or spas containing bottom drains, unless the pump is
connected to at least two functioning suction outlets.
AAWARNING: Pump suction is hazardous and can
trap and drown or disembowel bathers. Do not use or
operate swimming pools, spas, or hot tubs if a suction
outlet cover is missing, broken, or loose.
The following guidelines provide information for pump
installation to minimize risk of injury to users of pools,
spas, and hot tubs.
Entrapment Protection
The pump suction system must provide protection against
the hazards of suction entrapment.
Suction Outlet Covers
All suction outlets must have screw-fastened covers
installed. All suction outlet (drain) covers must be
maintained. Drain covers must be listed/certied to the
latest published edition of ANSI/ASME A112.19.8 (ANSI/
APSP-16, 2011). They must be replaced if cracked,
broken, or missing.
Number of Suction Outlets Per Pump
Provide at least two hydraulically-balanced main drains,
with covers, as suction, for each circulating pump suction
line. The centers of the main drains (suction outlets) on
any one suction line must be at least 3 ft (.9 m) apart,
center to center.
The system must be built to include at least two suction
outlets (drains) connected to the pump whenever the pump
is running. However, if the two main drains run into a single
suction line, the single suction line may be equipped with a
valve that will shut o󰀨 both main drains from the pump. The
system shall be constructed so that it shall not allow for
separate or independent shuto󰀨 or isolation of each drain.
More than one pump can be connected to a single suction
line as long as the requirements above are met.
Water Velocity
The water velocity through the suction tting or cover
for any suction outlet must be 1.5 ft (.5 m) per second or
less, unless the outlet complies with the latest published
edition of ANSI/ASME A112.19.8 (ANSI/APSP-16, 2011),
the standard for Suction Fittings For Use in Swimming and
Wading Pools, Spas, Hot Tubs, and Whirlpool Bathtub
Applications. In any case, do not exceed the suction
tting's maximum designed ow rate.
If 100% of the pump’s ow comes from the main drain
system, the water velocity in the pump suction hydraulic
system must be 6 ft (1.8 m) per second or less, even if one
main drain (suction outlet) is completely blocked. The ow
through the remaining main drain(s) must comply with the
latest published edition of ANSI/ASME A112.19.8 (ANSI/
APSP-16, 2011), the standard for Suction Fittings For Use
in Swimming and Wading Pools, Spas, Hot Tubs, and
Whirlpool Bathtub Applications.
Testing and Certication
Suction outlet covers must have been tested by a nationally-
recognized testing laboratory and found to comply with the
latest published edition of ANSI/ASME A112.19.8 (ANSI/
APSP-16, 2011), the standard for Suction Fittings For Use
in Swimming and Wading Pools, Spas, Hot Tubs, and
Whirlpool Bathtub Applications.
Fittings
Fittings restrict ow; for high e󰀩ciency use the fewest
possible ttings (but at least two suction outlets).
Avoid ttings that could cause an air trap.
Pool cleaner suction ttings must conform to applicable
International Association of Plumbing and Mechanical
O󰀩cials (IAPMO) standards.
CONTROLLED COPY approved for factory use on 4/16/2020. RAYPAK PROPRIETARY AND CONFIDENTIAL INFORMATION . Approval signatures on file in Engineering.

6
3. OVERVIEW
Constant-Speed Pump Models
This above-ground pool centrifugal pump is designed to
operate for years with proper maintenance. The pump
body, trap with basket, di󰀨user and impeller are made from
high quality thermoplastic materials. These materials are
made using corrosion resistant materials.
These pumps are driven by an electric motor which
is directly attached to an impeller. When the electric
motor turns, the impeller turns too, moving water from
the trap inlet, to the outlet for water circulation. The trap
basket stops debris from going into the pump to protect
the impeller. It has a transparent lid cover which can be
opened for cleaning out the trap.
Dual-Speed Pump Models
Some of the pump models feature both high speed and
low speed settings. At low speed, the pump runs at half of
the high speed rate and thus has a di󰀨erent performance
curve. In low speed mode, the electrical energy savings
are 60%, based on an equal amount of circulated water.
Switch the motor to low speed for quiet operation and
electrical cost savings if circulation turnover time is not
of critical concern. Expect that minor adjustments may
be required with the automatic chlorine dispenser, the
skimmers, and the heater, due to the lower ow. Refer to
the manual as necessary.
High speed mode is ideal for vacuuming the pool, quick
ltering action, priming the system, and for keeping up with
heavy pool usage.
4. INSTALLATION
AAWARNING: Blockage of suction ttings can cause
serious or fatal injury due to drowning. To reduce the
risk of injury, do not permit children to use this product.
AAWARNING: Never work on the pump while it is
running or power is still connected. High voltage can
cause serious or fatal injury. A suitable ground fault
interrupter (GFCI) should always be installed at the
power supply source of this unit. Article 681-31 of the
NEC requires that a GFCI be used if this pump is used
with a storage pool. Be sure to ground the motor before
connecting it to an electrical AC power source. Failure
to ground the motor can cause serious or fatal electrical
shock hazard. DO NOT ground to a gas supply pipe line.
AAWARNING: The system's centrifugal pump operates
with electrical voltage, and can generate both vacuum
and pressure in the water system. When properly wired
and plumbed, this pump will operate in a safe manner.
AAWARNING: Chemical fumes and/or spills can cause
serious corrosion to the lter and pump structural
components. Structurally weakened components can
cause lter, pump, or valve attachments to separate and
could cause serious bodily injury or property damage.
Packaging
A hose barb kit and union kit are included and needed to
make the connections.
UNION KIT HOSE BARB KIT
Figure 1. Connection Kits
Pump
1. Only qualified, licensed personnel should install
pump and wiring.
2. Electrical Contractors Please Note: All 115VAC 60Hz
pumps must be wired to the main power supply
through an approved and correctly rated contactor.
3. Allow for an isolation valve in the suction piping.
Upon receipt of the pump, check the carton and check
valve for damage. Open the carton and check the pump
for concealed damage, such as cracks, dents, or a broken
base. If damage is found, contact the shipper or distributor
from which the pump was purchased.
• Inspect the contents of the carton and verify that all
parts are included. See page 10.
• Install the pump as close to the pool as possible,
preferably in a dry, well ventilated area away from
direct sunlight. Protect the pump from excessive
moisture. Make sure there is drainage available near
to where the filter is to be installed. Give consideration
to:
a. Drainage distance from the pump.
b. Pump motor ventilation.
c. Service Access for maintenance and winterizing.
• Place the pump as close to the water source as
possible, so that the suction pipe is short, straight
and direct, thereby reducing friction loss.
CONTROLLED COPY approved for factory use on 4/16/2020. RAYPAK PROPRIETARY AND CONFIDENTIAL INFORMATION . Approval signatures on file in Engineering.

7
• Before installing the pump, make sure that the
surface is solid, elevated, rigid and vibration free.
• Secure the pump to the base with screws or bolts
to limit the vibration and the stress on the pipes and
joints.
• Leave enough space for the isolation and check
valves on the suction and discharge piping, as
required.
• Connect the suction and discharge pipes to the outlet
and inlet of the swimming pool.
• Make sure that ground level drainage is adequate so
as to prevent flooding.
Model Input power Power (HP) Speed Voltage Connection
Size
RPAGP75 0.55kW 0.75 Single
115V/60Hz 1.5”
RPAGP100 0.75kW 1.0 Single
RPAGP102 0.75kW(Max) 1.0 Dual
RPAGP150 1.1kW 1.5 Single
RPAGP152 1.1kW(Max) 1.5 Dual
• DO NOT store or use gasoline or other flammable
vapors or liquids in the vicinity of this pump. DO NOT
store pool chemicals near the pump.
• DO NOT remove any safety alert labels such as
DANGER, WARNING, or CAUTION. Keep safety
labels in good condition and replace any missing or
damaged labels.
• Make sure that the pump and piping are accessible
for servicing.
NOTE: The pump suction and discharge connections
have molded-in thread stops. DO NOT try to screw pipes
beyond these stops.

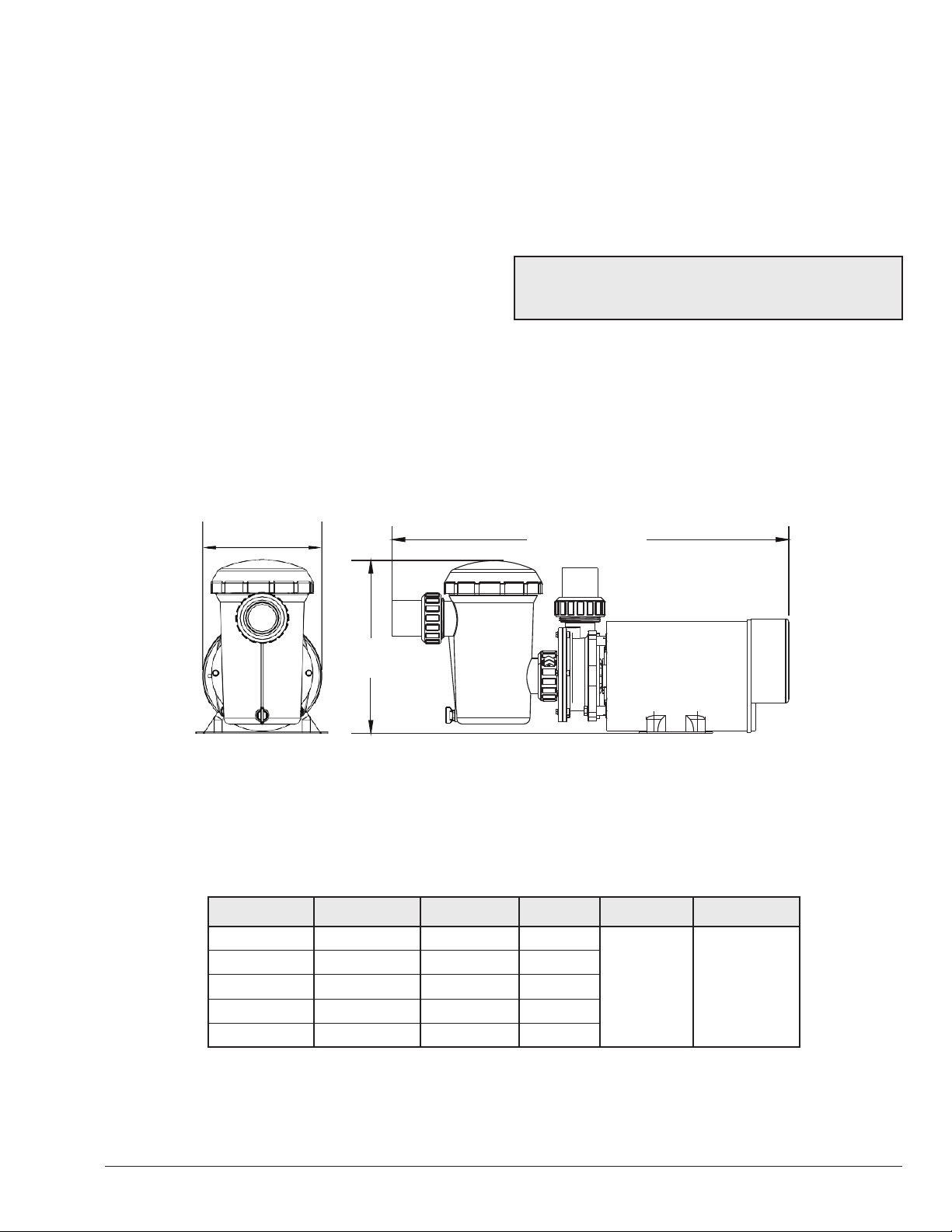

Table A. Specications
24.4" (620 mm)
10.8"
(274 mm)
6.3" (160 mm)
Figure 2. Dimensions
CONTROLLED COPY approved for factory use on 4/16/2020. RAYPAK PROPRIETARY AND CONFIDENTIAL INFORMATION . Approval signatures on file in Engineering.

8
5. START-UP
AAWARNING: NEVER run pump dry! Running the pump
dry may damage seals, causing leakage or ooding! Fill
the pump with water before starting the motor. It is an
above ground pool pump and cannot self-prime. Fill the
pump with water before starting.
• Always STOP THE PUMP before and RELEASE ALL
PRESSURE from the pump and the piping system
before proceeding.
• NEVER tighten or loosen screws while the pump is
operating.
• Do not block pump suction.
AAWARNING: Do not block pump suction! To do so with
body parts may cause severe or fatal injury. Children
using pool must ALWAYS have close adult supervision.
Priming Pump
• Release all air from the filter and piping system (see
filter instructions below).
• In a flooded suction system (water source higher than
pump) the pump will prime itself when the suction
and discharge valves are opened.
• If the pump is not in a flooded suction system,
unscrew and remove the trap cover, then fill the trap
and pump with water.
• Clean and inspect the O-Ring. Re-install it on the trap
cover.
• Replace the trap cover on the trap; turn clockwise to
tighten the cover.
NOTE: Tighten the trap cover by hand only. Priming
time will depend on the vertical length of suction lift and
the horizontal length of the suction piping.
6. GENERAL MAINTENANCE
AAWARNING: To prevent damage to the pump and for
proper operation of the system, clean the pump strainer
and skimmer baskets regularly.
The only routine maintenance needed is inspection and
cleaning of the trap basket (pre-lter basket). Debris or
trash that collects in the basket will restrict water ow
through the pump. Follow the instructions below to clean
the trap.
1. Stop the pump, close the suction and discharge gate
valves, and release all pressure from the system
before proceeding.
2. Unscrew the trap lid (pre-filter lid) by turning
counterclockwise.
3. Remove the strainer basket and clean it. Be sure
all holes in the basket are unclogged, then flush the
basket with water and put the trap (pre-filter) back
into position with the large opening facing the pipe
connection port. If the basket is replaced backwards,
the cover will not fit on the trap body.
4. Clean and inspect the lid.
5. Clean the O-ring and its groove on trap body (pre-
filter) and replace the lid. To help keep the lid from
sticking, tighten by hand only.
6. Prime pump (see priming instructions above).
Winterizing
AACAUTION: The pump must be protected when
freezing temperatures are expected. Allowing the pump
to freeze will cause severe damage. Such damage will
not be covered under warranty.
There are two options when winterizing the pump.
Option 1
1. Drain all the water from the pump, system equipment,
and piping.
2. Remove the drain plugs. Do not put plugs back on.
Store the plugs in the empty strainer basket for winter.
3. Keep the motor covered and dry.
Option 2
1. Drain all the water from the pump, system equipment,
and piping.
2. Remove the pump and motor from the plumbing lines
and store indoors in a warm and dry location.
NOTE: When the winter season is over the pump
will need to be primed prior to start. Refer to Start-Up
instructions.
AACAUTION: DO NOT run the pump dry. If the pump
is run dry, the mechanical seal will be damaged and
the pump will start to leak at the seal. If this occurs,
the mechanical seal will need to be replaced. ALWAYS
maintain the proper water level in the pool. Continued
operation with low water level could cause a loss of
water pressure, resulting in damage to the pump casing,
impeller, and mechanical seal. Such damage will not be
covered under warranty.
CONTROLLED COPY approved for factory use on 4/16/2020. RAYPAK PROPRIETARY AND CONFIDENTIAL INFORMATION . Approval signatures on file in Engineering.

9
7. TROUBLESHOOTING
Problem Cause Action
Motor Does Not Start
Switch or circuit breaker is in ON position Turn to ON position
Fuses blown or thermal overload open Replace fuses
Locked motor shaft Replace the pump
Motor windings burned out Replace the pump
Defective starting switch inside single-phase motor Replace the pump
Disconnected or defective wiring Repair the wiring
Low voltage Call an electrician
Pump Does Not Reach Full
Speed
Low voltage Call an electrician
Pump connected to the wrong voltage Call an electrician
Motor Overheats (Circuit
Breaker Trips)
Low voltage Call an electrician
Motor windings connected to the wrong voltage on dual-
voltage models Call an electrician
Inadequate ventilation Relocate the pump
Pump Delivers No Water
Pump is not primed Prime the pump
Closed valve in the suction or discharge line Open the valve
Leakage or air into suction system Call a plumber
Impeller is clogged Disassemble the pump
Leakage Of Water At Shaft Shaft seal requires replacement Replace the seal
Low Pump Capacity
Valve in suction or discharge line is partly closed Open or replace the valve
Suction or discharge line is partly plugged Clear the obstruction
Suction or discharge line is too small Re-plumb, use a larger pipe
diameter
Plugged basket in skimmer or hair and lint strainer Clean the basket
Dirty lter Clean the lter
Impeller clogged Disassemble the pump
High Pump Pressure
Discharge valve or inlet ttings closed too much Readjust or replace
Return lines is too small Re-plumb, use a larger pipe
diameter
Dirty lter Clean the lter.
Noisy Pump And Motor
Plugged basket in skimmer or hair in lint strainer Clean the basket
Worn motor bearings Replace the pump
Valve in suction line is partly closed Readjust the valve
Suction line is partly plugged Clean or remove the plug
Vacuum hose is plugged or too small Clean or remove the plug
Pump not supported properly Examine or replace the base
Air Bubbles At Inlet Fittings
Leakage of air into suction line at connections or valve stem Call a plumber
Cover gasket of hair and lint strainer needs cleaning Clean the cover gasket
Low water level in pool Rell pool
Table B. Troubleshooting Guide
CONTROLLED COPY approved for factory use on 4/16/2020. RAYPAK PROPRIETARY AND CONFIDENTIAL INFORMATION . Approval signatures on file in Engineering.

10
Item Description Raypak Order No.
1
2
3
4Kit - Pump Basket AGP 018226F
Kit - Pump Impeller RPAGP75 018249F
Kit - Pump Impeller RPAGP100/102 018250F
Kit - Pump Impeller RPAGP150/152 018251F
6
7
018225F
018227F
5
Kit - Transparent Cover AGP
Kit - Mechanical Seal 1/2" with O-Ring
Table C. Replacement Parts
1
2
3
4
67
5

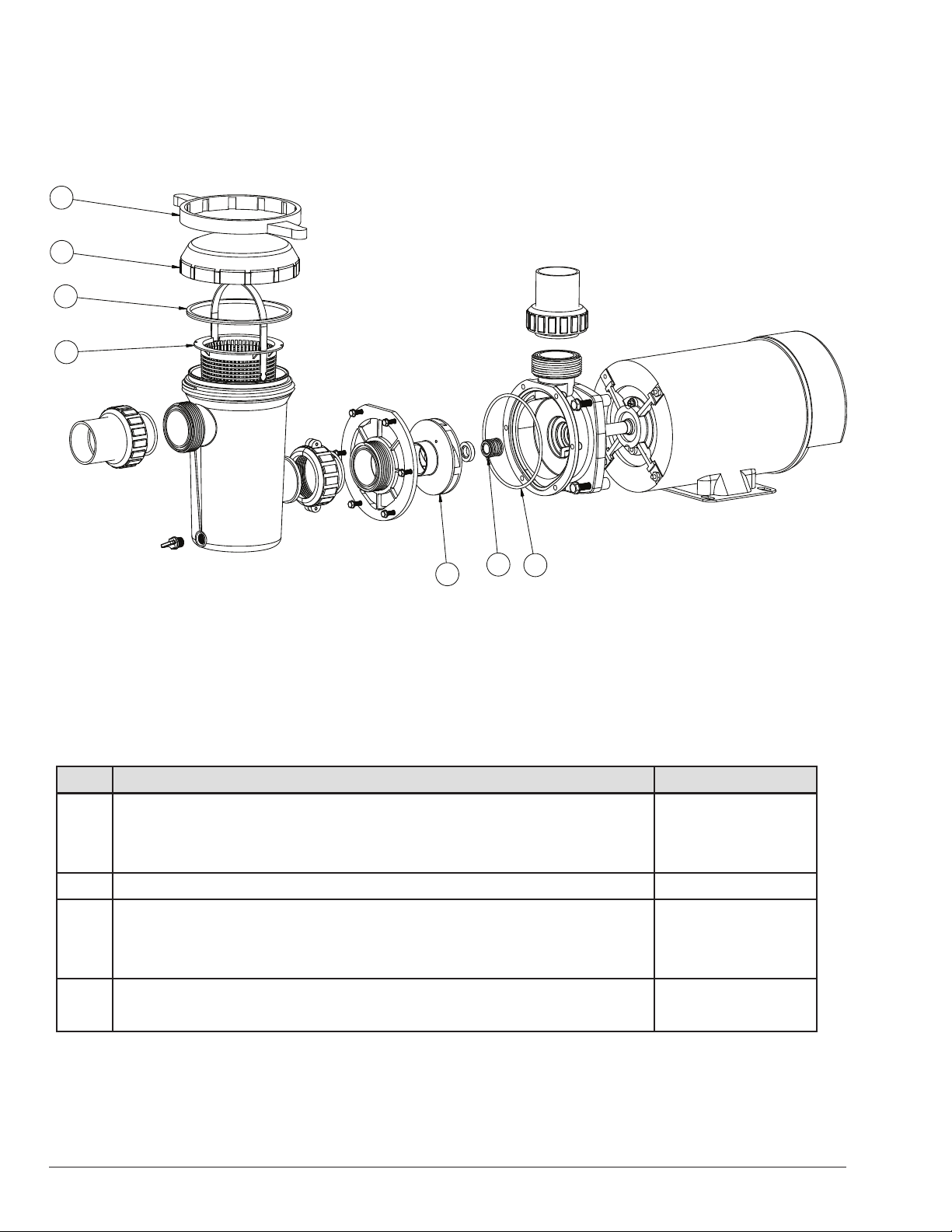

Figure 3. Pump with Motor Exploded View
8. ILLUSTRATED PARTS LIST
CONTROLLED COPY approved for factory use on 4/16/2020. RAYPAK PROPRIETARY AND CONFIDENTIAL INFORMATION . Approval signatures on file in Engineering.

11
9. WARRANTY
Catalog Number: 6000.954
Effective 01/01/20
LIMITED WARRANTY
ABOVE GROUND SWIMMING POOL PUMPS
Models: RPAGP75, RPAGP100, RPAGP102, RPAGP150, RPAGP152, and RPVSP1
SCOPE OF WARRANTY
Raypak, Inc. (“Raypak”) warrants to the original owner that the above ground swimming pool pump
models listed above and sold with this Limited Warranty certificate (the “Pump”), when installed in the
United States of America with a pool, will be free from defects in materials and workmanship under
normal use and service for the Applicable Warranty Period defined herein. In accordance with the terms
of this Limited Warranty, Raypak will, at its option, repair or furnish a replacement for the PUMP or any
defective part of the PUMP that fails in normal use and service during the Applicable Warranty Period.
The repair or replacement will be warranted for only the unexpired portion of the original Applicable
Warranty Period, or the Extended Warranty Period, as the case may be.
EFFECTIVE DATE
The Effective Date of this Limited Warranty is the date of original installation if properly documented. If
you are not able to provide documentary proof of the date of original installation, the Effective Date will be
the date of manufacture plus thirty (30) days. All Applicable Warranty Periods specified in this Limited
Warranty are measured from the Effective Date.
APPLICABLE WARRANTY PERIOD – UNREGISTERED
If the PUMP is installed with a pool, the Applicable Warranty Period is ninety (90) days from the
Effective Date, parts only, for the PUMP and component parts.
EXTENDED WARRANTY PERIOD – REGISTERED
If, within 90 days of the Effective Date, the PUMP is installed in a pool at a single family
residential dwelling and registered with Raypak (www.raypak.com/warranty), then the Applicable
Warranty Period is one (1) year from the Effective Date for the PUMP and component parts.
LABOR AND SHIPPING COSTS
This Limited Warranty does NOT cover any travel time or any labor costs. Furthermore, unless applicable
state law provides otherwise, this Limited Warranty does NOT cover any shipping costs to and from
Raypak’s designated service provider or to or from the installation site. All of the foregoing costs and
expenses are your responsibility, unless applicable state law provides otherwise.
WARRANTY EXCLUSIONS
This Limited Warranty does NOT apply:
1. if the PUMP has been moved from its original place of installation, or if the original owner no longer
owns the property where the original installation was made;
2. if the PUMP is not properly installed in a pool in accordance with applicable local codes and
ordinances, good trade practices and the manufacturer’s installation instructions;
3. if the rating plate(s) or serial number(s) are altered or removed;
4. if the PUMP is modified in any way, or if non-factory authorized accessories or other components are
used in conjunction with the PUMP;
5. to damage, malfunctions or failures resulting from failure to properly install, operate or maintain the
PUMP in accordance with the manufacturer’s instructions;
6. to damage, malfunctions or failures resulting from abuse, act of nature, accident, fire, flood, freeze,
lightning or the like;
7. to damage, malfunctions or failures resulting from connected system control devices;
8. to performance problems caused by improper sizing of the PUMP or electric service voltage,
wiring or fusing;
9. to damage, malfunctions or failures resulting from any alteration, including the use of any attachment,
including without limitation, any energy saving device not authorized by the manufacturer;
CONTROLLED COPY approved for factory use on 4/16/2020. RAYPAK PROPRIETARY AND CONFIDENTIAL INFORMATION . Approval signatures on file in Engineering.

Raypak, Inc., 2151 Eastman Avenue, Oxnard, CA 93030 [phone] Fax [phone]
www.raypak.com
10. to damage, malfunctions or failures resulting from misuse or neglect, including but not limited to,
freeze-ups.
HOW TO MAKE A WARRANTY CLAIM
You should immediately notify your dealer and provide proof of purchase model number serial number
and date of installation. If the dealer is not available, please contact Raypak customer service at 805-
278-5300. Proper authorization MUST be obtained PRIOR to any repairs for the Limited Warranty
to apply. This Limited Warranty is VOID if the product is repaired or altered in any way by ANY
persons or agencies other than those authorized by Raypak.
When requesting support please be ready to supply the model number, serial number, date of original
installation and a description of the problem. Raypak reserves the right at all times to inspect, or require
the return of, the defective PUMP or component part and to verify warranty coverage at its factory.
Warranty service CANNOT be initiated until the status of the warranty coverage has been
established.
EXCLUSIVE WARRANTY -LIMITATION OF LIABILITY
THE LIMITED WARRANTY IS THE ONLY WARRANTY PROVIED BY RAYPAK IN
CONNECTION WITH THE PUMP AND ITS COMPONENT PARTS. NO ONE IS
AUTHORIZED TO MAKE ANY OTHER WARRANTIES ON RAYPAK’S BEHALF. ANY
IMPLIED WARRANTIES, INCLUDING MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, SHALL NOT EXTEND BEYOND THE APPLICABLE
WARRANTY PERIOD SPECIFIED IN THIS LIMITED WARRANTY. RAYPAK’S SOLE
LIABILITY WITH RESPECT TO ANY DEFECT SHALL BE AS SET FORTH IN THIS
LIMITED WARRANTY. IT IS AGREED THAT RAYPAK SHALL HAVE NO LIABILITY
WHETHER UNDER THIS LIMITED WARRANTY OR IN CONTRACT, TORT OR
NEGLIGENCE OR OTHERWISE FOR CLAIMS FOR SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES (INCLUDING NO LIABILITY FOR DAMAGE FROM
WATER LEAKAGE), ALL OF WHICH ARE EXPRESSLY EXCLUDED,
NOTWITHSTANDING ANY FAILURE OF ESSENTIAL PURPOSE OF ANY LIMITED
REMEDY. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS, OR FOR THE EXCLUSION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY
NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE
TO STATE.
We suggest you immediately record the model, serial number, date of original installation and receipt of
purchase and retain this Limited Warranty Certificate in the event warranty service is needed.
DO NOT RETURN THIS DOCUMENT TO RAYPAK. KEEP IT WITH YOUR POOL PUMP OR
BUSINESS RECORDS.
Register your product online at www.raypak.com/warranty
RAYPAK, INC., 2151 Eastman Avenue, Oxnard, CA 93030 • [phone] FAX [phone]
CONTROLLED COPY approved for factory use on 4/16/2020. RAYPAK PROPRIETARY AND CONFIDENTIAL INFORMATION . Approval signatures on file in Engineering.
