GEOTHERMAL HEAT PUMP
IMPORTANT SAFETY INFORMATION
WARNING:
To avoid possible equipment damage, fire,
or death, the following instructions must be
observed regarding unit maintenance and
operational procedures.
Please read all information in this manual thoroughly
and become familiar with the capabilities and use of your
appliance before attempting to operate or maintain this
unit. Pay attention to all safety warnings and any other
special notes highlighted in the manual. Safety markings
are used frequently throughout this manual to designate a
degree or level of seriousness and should not be ignored.
WARNING indicates a potentially hazardous situation that
if not avoided, could result in personal injury or death.
CAUTION indicates a potentially hazardous situation that
if not avoided, may result in minor or moderate injury or
property damage.
Keep this literature where you have easy access to it in
the future. If a problem occurs, check the instructions and
follow recommendations given. If these suggestions don’t
eliminate your problem, call your servicing contractor. Do
not attempt to service this unit yourself!
• To achieve optimum performance and minimize
equipment failure, it is recommended that periodic
maintenance be performed on this unit. The ability
to properly perform maintenance on this equipment
requires certain mechanical skills and tools. Please
consult your dealer for maintenance information and
availability of maintenance contracts.
• Theareaaroundtheunitamustbekeptclearandfree
of combustible materials, gasoline, and other flammable
vapors and liquids. Do not store or use flammable items
such as paint, varnish, or strippers in the vicinity of the
unit.
• Donotusetheareaaroundtheunitasastoragearea.
This area must be kept clean and clear of loose or
exposed insulation materials. Examine the unit’s area
when it is installed or when insulation is added, since
some insulation materials may be combustible.
• Donotusethisapplianceifanyparthasbeenunder
water. Immediately call a qualified service technician
to inspect the unit and to replace any part of the control
system and any gas control which has been under water.
• Familiarizeyourselfwiththecontrolsthatshutoffthe
electrical power to the unit. If the unit needs to be shut
down for an extended period of time, turn off electrical
power at the circuit breaker. For your safety always
turn off the electrical power before performing service
or maintenance on the unit.
• Panelsshouldbekeptinplaceatalltimes.Onlytrained
/ qualified personel should remove the panels when
servicing or performing maintenance.
USER'S MANUAL
WARNING
• Undernocircumstancesshouldtheapplianceownerattempttoinstalland/orservicethis
equipment. Some local codes require licensed installation / service personnel for this
type of equipment. Improper service, adjustment, or maintenance may cause explosion,
fire, electrical shock or other hazardous conditions which may result in personal injury or
property damage.
• Readtheseinstructionsthoroughlybeforeusingtheequipment.Followallprecautionsand
warnings contained within these instructions and on the unit.
• Improper installation, adjustment, alteration, service, or maintenance can cause personal
injury or property damage. For assistance or additional information, consult a qualified
installer or service agency.
• Donotstoreorusegasolineorotherammablevaporsandliquidsinthevicinityofthisor
any other appliance.
DONOTDESTROY.PLEASEREADCAREFULLY&KEEPINASAFEPLACEFORFUTUREREFERENCE.

2
ABOUT THE SYSTEM
Geothermal heating/cooling systems operate via sub-
surface conductive heat transfer, using the naturally
renewable temperature of the earth’s crust as a heat
source in the winter, and as a heat sink in the summer.
Thisunithasbeentestedforcapacityandefciencyand
will provide many years of safe and dependable comfort,
providing it is properly installed and maintained. With
regular maintenance, this unit will operate satisfactorily
year after year. Abuse, improper use, and/or improper
maintenance can shorten the life of the appliance and
create unsafe hazards.
Toachieveoptimumperformanceandminimizeequipment
failure, it is recommended that periodic maintenance be
performed on this unit. The ability to properly perform
maintenance on this equipment requires certain tools
and mechanical skills.
OPERATING INSTRUCTIONS
Thermostatstylesvary.Somemodelsmaynotinclude
theAUTOmodeandotherswillhavetheAUTOinplace
oftheHEATandCOOL.Othersmayincludeallthree.
Please refer to the thermostat’s User Manual for detailed
programming instructions.
Thethermostatshouldbemountedabout5feetabovethe
floor on an inside wall and not on an outside wall or other
location where its operation may be adversely affected by
radiant heat from fireplaces, sunlight, or lighting fixtures,
and convective heat from warm air registers or electrical
appliances.
Cooling Operation Only
1. Setthethermostat’ssystemmodetoCOOLorAUTO
andchangethefanmodetoAUTO.SeeFigure1
2. Set the temperature selector to the desired
temperaturelevel.Theoutdoorfan,compressor,and
blower motor will all cycle on and off to maintain the
indoor temperature at the desired cooling level.
NOTE: If the temperature level is re-adjusted, or the
system mode is reset, the fan and compressor in the
outdoor unit may not start immediately. A protective
timer circuit holds the compressor and the outdoor
fan off for approximately three minutes following a
previous operation or the interruption of the main
electrical power.
Heating Operation Only
1. Setthethermostat’ssystemmodetoHEATorAUTO
andchangethefanmodetoAUTO.SeeFigure1.
2. Set the temperature selector to the desired
temperaturelevel.Thecompressor,outdoorfan,and
blower motor will cycle on and off to maintain the
indoor temperature at the desired heating level.
NOTE: If the temperature level is re-adjusted, or the
system mode is reset, the fan and compressor in the
outdoor unit may not start immediately. A protective
timer circuit holds the compressor and the outdoor
fan off for approximately three minutes following a
previous operation or the interruption of the main
electrical power.
Emergency Heat
Some thermostats may include a system mode called EM
HTorAUXHT,etc.Thisisaback-upheatingmodethat
should only be used if a problem is suspected. With the
modesettoEMHT,etc.,thecompressorandoutdoorfan
will be locked off and supplemental heat (electric resistance
heating) will be used as a source of heat. Sustained use
of electric resistance heat in place of the heat pump will
result in an increase in electric utility costs.
Operating the Heat Pump for Automatic
Cooling&Heating
1. SetthethermostatsystemswitchtoAUTOandthe
thermostatfanswitchtoAUTO.SeeFigure1
NOTE:Thermostats will vary. Some models will not
include the AUTO mode, and others will have the
AUTOinplaceoftheHEATandCOOL,andsome
will include all three.
2. Set the thermostat temperature to the desired heating
and cooling temperature level(s).The outdoor unit
and the indoor blower will then cycle on and off
in either the heating or cooling mode of operation
as required to automatically maintain the indoor
temperature within the desired limits.
Operating the Indoor Blower Continuously
Thecontinuousindoorbloweroperationistypicallyusedto
circulate the indoor air to equalize a temperature unbalance
due to a sun load, cooking, or fireplace operation.
SetthethermostatfanmodetoON(Figure1).Theindoor
blower starts immediately, and will run continually until
thefanmodeisresettoAUTO.

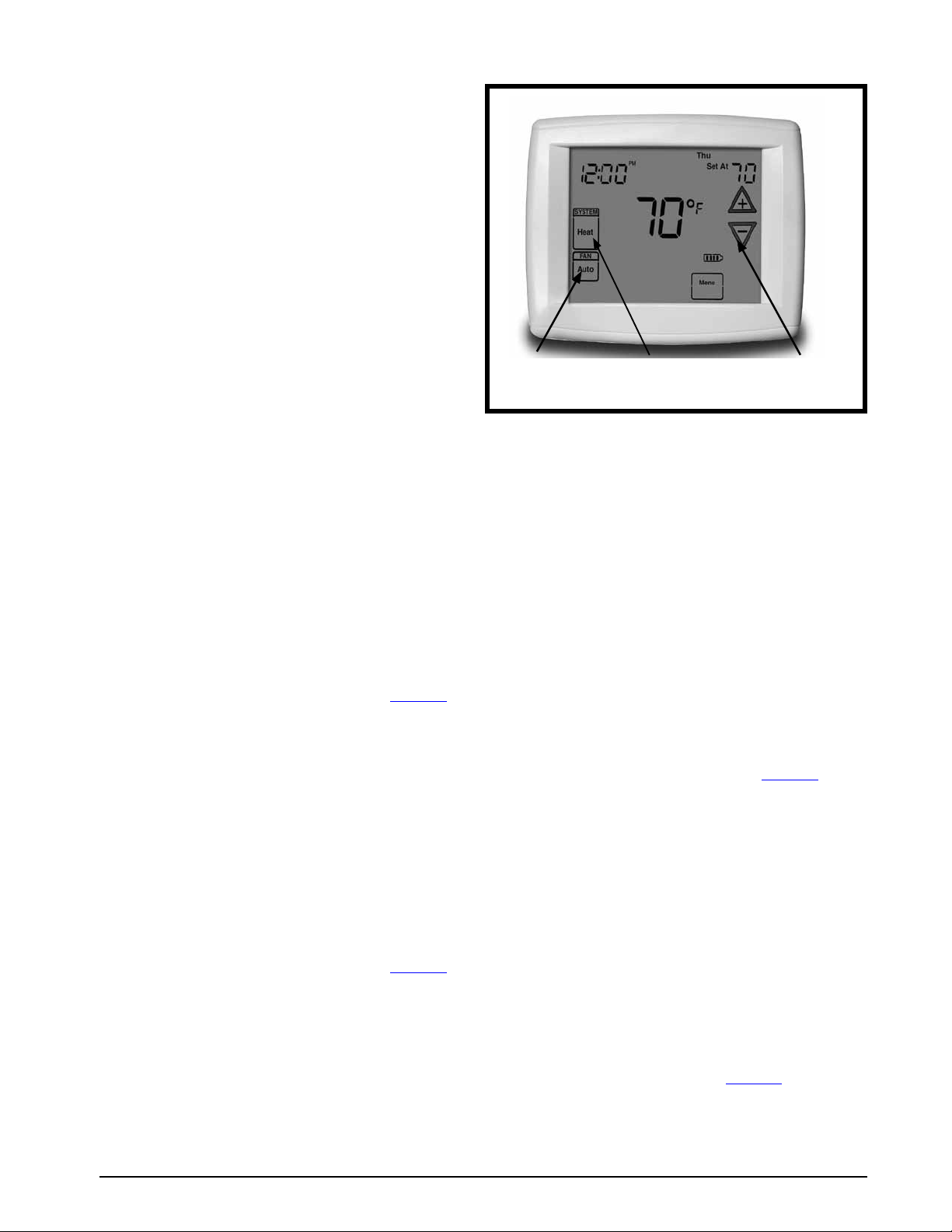

Figure 1. DigitalThermostat
Fan
Mode
Temperature
Selector
System
Mode

3
Thecontinuousindoorbloweroperationcanbeobtained
with the thermostat system mode set in any position,
includingOFF.
Shutting the Heat Pump Off
Changethethermostat’ssystemmodetoOFFandthe
fanmodetoAUTO.SeeFigure1. NOTE:Thesystemwill
not operate, regardless of the temperature selector setting
HEAT PUMP MAINTENANCE
WARNING:
This heat pump contains liquid and gaseous
refrigerant under pressure. Installation and
servicing should only be attempted by qualified,
trained personnel thoroughly familiar with the
equipment and safe responsible refrigerant
handling procedures. Failure to comply with
this warning could result in equipment damage,
personal injury, or death.
WARNING:
To prevent electrical shock, personal injury, or
death, disconnect all electrical power to the unit
before performing any maintenance or service.
The unit may have more than one electrical supply.
Proper maintenance is important to achieve optimum
performancefromtheheatpump.Theabilitytoproperly
perform maintenance on this equipment requires certain
mechanical skills and tools. If you do not possess these
skills,contactyourdealerformaintenance.Consultyour
local dealer about the availability of maintenance contracts.
Routine maintenance should include the following:
Regular Cleaning
CAUTION:
DO NOT touch any of the internal electrical
components while cleaning the unit.
• Theareaaroundtheunitandthevicinityofanyother
appliances must be kept clear and free of combustible
materials, gasoline, and other flammable vapors and
liquids. Do not store or use flammable items such as
gasoline, paint, varnish, or strippers in the vicinity of
the unit.
• Inspectthecondensatedrainatthebeginningofeach
cooling season. Remove any debris.
• Annuallyinspectthephysicalsupportoftheunittoensure
that it is physically sound without sagging, cracks, gaps,
etc.
Air Filters
WARNING:
Never operate the unit without a filter in the return
air system. Dust and lint in the return air can
build up on the internal components, resulting
in loss of efficiency, equipment damage, and
possible fire risk.
• Inspectandcleanorreplaceairltersatthebeginning
of each heating and cooling season, or more frequently
if required. A clogged filter could cause airflow related
problems and reduce the overall efficiency of your unit.
Always replace disposable filter(s) installed in your
system only with the same size dimensional filters
that are being replaced.
System Integrity
• The unit should be kept closed and sealed. Check
integrity of panel tubing seals. Make sure all panels
are in place.
• Checkintegrityoftubinginsulation.Bothtubinglines
between the unit and indoor air handler should be fully
covered with foam insulation.
TROUBLESHOOTING
BeforeyoucallaTechnician,checkthefollowing:
• Checkthethermostatsetting.Makesurethesystem
mode and temperature settings are correct.
• Checktheelectricalpanelfortrippedcircuitbreakers.
• Checktheltersfordustaccumulation.
• Iftheitemsabovedon’tresolveyourproblems,then
call your nearest service technician.
WARRANTY INFORMATION
A warranty certificate with full details is included with the
equipment. Carefully review these responsibilities with
yourdealerorservicecompany.Themanufacturerwillnot
be responsible for any costs found necessary to correct
problems due to improper setup, improper installation,
adjustments, improper operating procedure on the part
of the user, etc.
Some specific examples of service calls which are not
included in the limited warranty are:
• Correcting wiring problems in the electrical circuit
supplying the equipment.
• Resettingcircuitbreakersorotherswitches.
• Adjustingorcalibratingofthermostat.

7097310 (NEW)
Specications&illustrationssubjecttochangewithoutnoticeorincurringobligations(05/15).
O’Fallon,MO,©NortekGlobalHVACLLC2015.AllRightsReserved.
