North KLASIK Series User manual

PART NUMBER: OM-104A EN ISSUE: 01-0522
KLASIK SERIES
PUSH PULL & SPOOL
Jinan North welding Tools Co Ltd The North of 308 National Highway, Daqiao Town, Tianqiao Zone, Jinan 250121, Shandong, China
OPERATING MANUAL / INSTRUCTIONS

Read and understand this entire Manual and your employer’s safety practices before installing, oper-
ating, or servicing this Product. While the information contained in this Manual represents the Manu-
facturer’s best judgment, the Manufacturer assumes no liability for its use
User Manual No: OM-104A EN for: KLASIK Spool and Push-Pull MIG/MAG Manual Welding Torches
KLASIK
Spool and Push-Pull MIG/MAG Manual Welding Torch Model Number
Spool Torch
QLBF-200 III-6E, QLBF-200 III-8E, QLBF-200 III-6T, QLBF-200 III-8T; QLBF-185-6, QLBF-185-8.
QTLB-24D-SP-6E, QTLB-24D-SP-8E, QTLB-24D-SP-6T, QTLB-24D-SP-8T.
QTLB-36D-SP-6E, QTLB-36D-SP-8E, QTLB-36D-SP-6T, QTLB-36D-SP-8T.
Push-Pull
Torch
PG4000-6, PG4045-6, PG4000-8, PG4045-8; PW5000-6, PW5045-6, PW5000-8, PW5045-8.
QTLB-24D-6, QTLB-24D-6, QTLB-24D-8, QTLB-24D-8; QTLB-36D-6, QTLB-36D-6, QTLB-36D-8, QTLB-36D-8.
Published by: Jinan North Welding Tools Co Ltd
The North of 308 National Highway, Daqiao Town,
Tianqiao Zone, Jinan 250121, Shandong, China.
Website: www.northweld.com
Copyright © 2018 by: Jinan North Welding Tools Co. Ltd.
® All rights reserved.
Reproduction of this User Manual, in whole or in part, without written permission of the publisher is prohibited.
The publisher does not assume and hereby disclaims any liability to any party for any loss or damage caused by
any error or omission in this User Manual, whether such error results from negligence, accident, or any other
cause.
Publication Date: May 2022
Record the following information for Warranty purposes
Place of Purchase:
Purchase Date:

Declaration of Conformity
Jinan North Welding Tools Co. Ltd. declares that the product(s) identified in this declaration conform to the
essential requirements and provisions of the stated Council Directives and Standards.
Product Description: Arc Welding Equipment MIG/MAG Manual Welding Spool Torch & Push-Pull Torches
Product Models: KLASIK SERIES of Spool Torch & Push-Pull MIG/MAG Manual Welding Torches
Manufacturer: Jinan North Welding Tools Co. Ltd.
Address: The North of 308 National Highway, Daqiao Town, Tianqiao Zone, Jinan 250121,
Shandong, China.
Product Identification:
KLASIK
Spool and Push-Pull MIG/MAG Manual Welding Torch Model Numbers
Spool Torch
QLBF-200 III-6E, QLBF-200 III-8E, QLBF-200 III-6T, QLBF-200 III-8T; QLBF-185-6, QLBF-185-8.
QTLB-24D-SP-6E, QTLB-24D-SP-8E, QTLB-24D-SP-6T, QTLB-24D-SP-8T.
QTLB-36D-SP-6E, QTLB-36D-SP-8E, QTLB-36D-SP-6T, QTLB-36D-SP-8T.
Push-Pull
Torch
PG4000-6, PG4045-6, PG 000-8, PG4045-8; PW5000-6, PW5045-6, PW5000-8, PW5045-8.
QTLB-24D-6, QTLB-24D-6, QTLB-24D-8, QTLB-24D-8; QTLB-36D-6, QTLB-36D-6, QTLB-36D-8, QTLB-36D-8.
Council Directives:
•2006/95/EC Low Voltage Directive
•2011/65/EU Restriction of the use of certain hazardous substances in electrical and
electronic equipment
Standards:
•GB/T 15579.7-2013 Standardization Administration of China - Arc Welding Equip-
ment - Part 7: Torches
•IEC 60974-7:2013 Arc welding equipment –Part 7: Torches
Signature of Manufacturer’s responsible representative:
May 25, 2022
Signature
Date
Zhang Jinlu
Manager-Engineering
Name
Title

Table of Contents
SECTION 1 –SAFETY INSTRUCTIONS: Read Before Using this Product ........................................................ 5
1.01 Arc Welding Hazard Symbols....................................................................................................5
1.02 Additional Installation, Operation and Maintenance Hazard Symbols....................................................7
1.03 Read Principal Safety Standards ...............................................................................................8
1.04 California Proposition 65 Warnings ............................................................................................8
1.05 ELECTRIC and MAGNETIC FIELDS (EMF) Recommendations...............................................................8
SECTION 2 –WARRANTY .............................................................................................................. 9
2.01 Conditions of Intended Use ......................................................................................................9
SECTION 3 –INTRODUCTION.........................................................................................................10
3.01 KLASIK Torch Description...................................................................................................... 10
3.02 KLASIK Spool Torches Duty Cycle ............................................................................................ 10
3.03 KLASIK Push-Pull Torches Duty Cycle ....................................................................................... 10
3.04 KLASIK Torch Contents ......................................................................................................... 10
3.05 KLASIK Spool Torch Specifications........................................................................................... 11
3.06 KLASIK Push-Pull Torch Specifications: QTLB-24D, QTLB-36D.......................................................... 11
3.07 KLASIK Push-Pull Torch Specifications: PG4000 / PG4045, PW5000 / PG5045 ....................................... 11
SECTION 4 –SPOOL TORCH: Installation and Operation......................................................................... 12
4.01 SPOOL TORCH: Environmental Limits ....................................................................................... 12
4.02 SPOOL TORCH: Operation Guidelines........................................................................................ 12

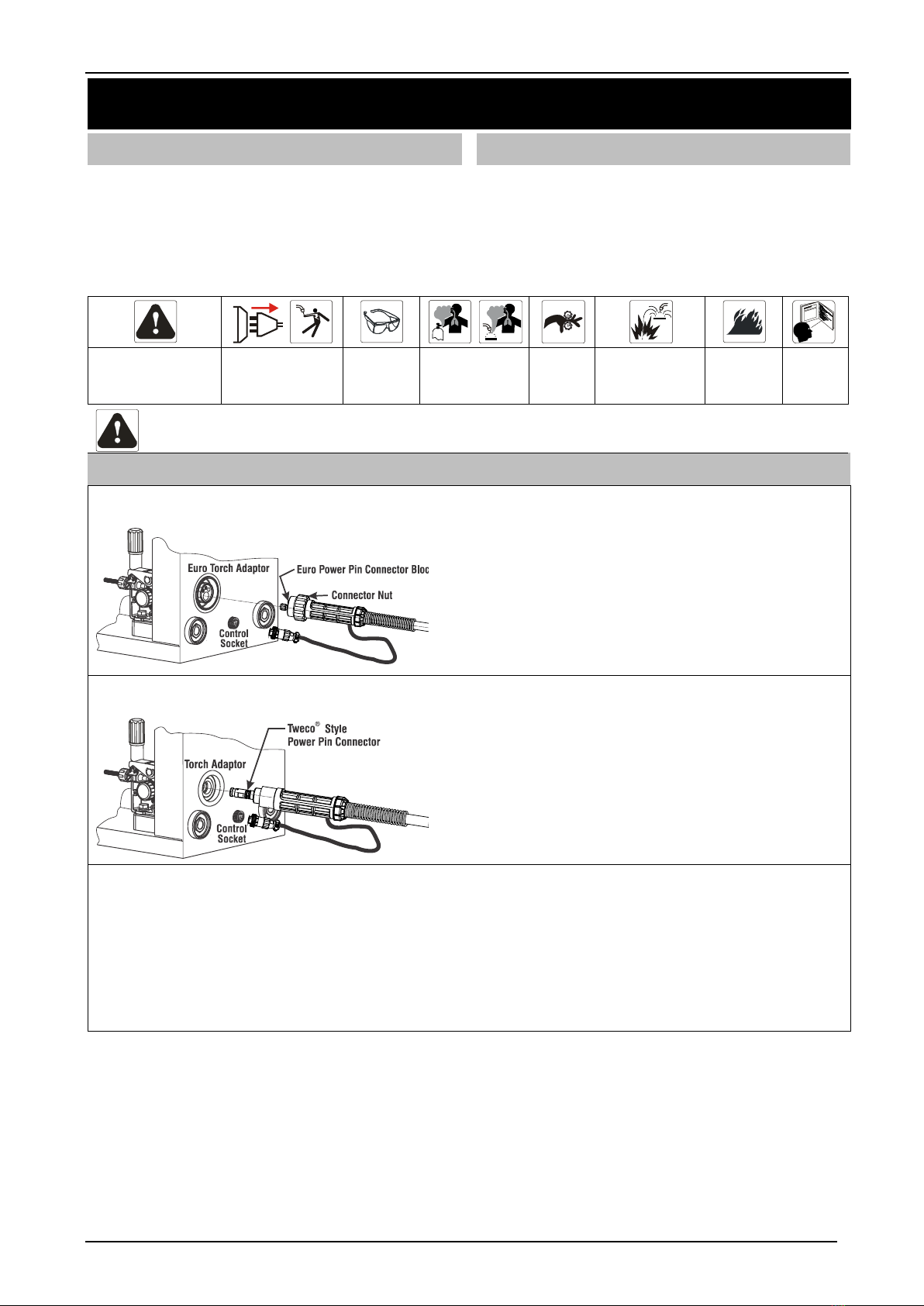

4.03 SPOOL TORCH: Connecting Torch Power Pin to MIG Equipment Adaptor .............................................. 12
4.04 SPOOL TORCH: Install Welding Wire Spool Then Threading the Welding Wire....................................... 13
4.05 SPOOL TORCH: How to Feed Welding Wire................................................................................. 14
4.06 SPOOL TORCH: Depress Torch Trigger Switch ............................................................................. 15
SECTION 5 –SPOOL TORCH: Wear Parts & Torch Parts.......................................................................... 16
5.01 SPOOL TORCH: Change Wear Parts .......................................................................................... 16

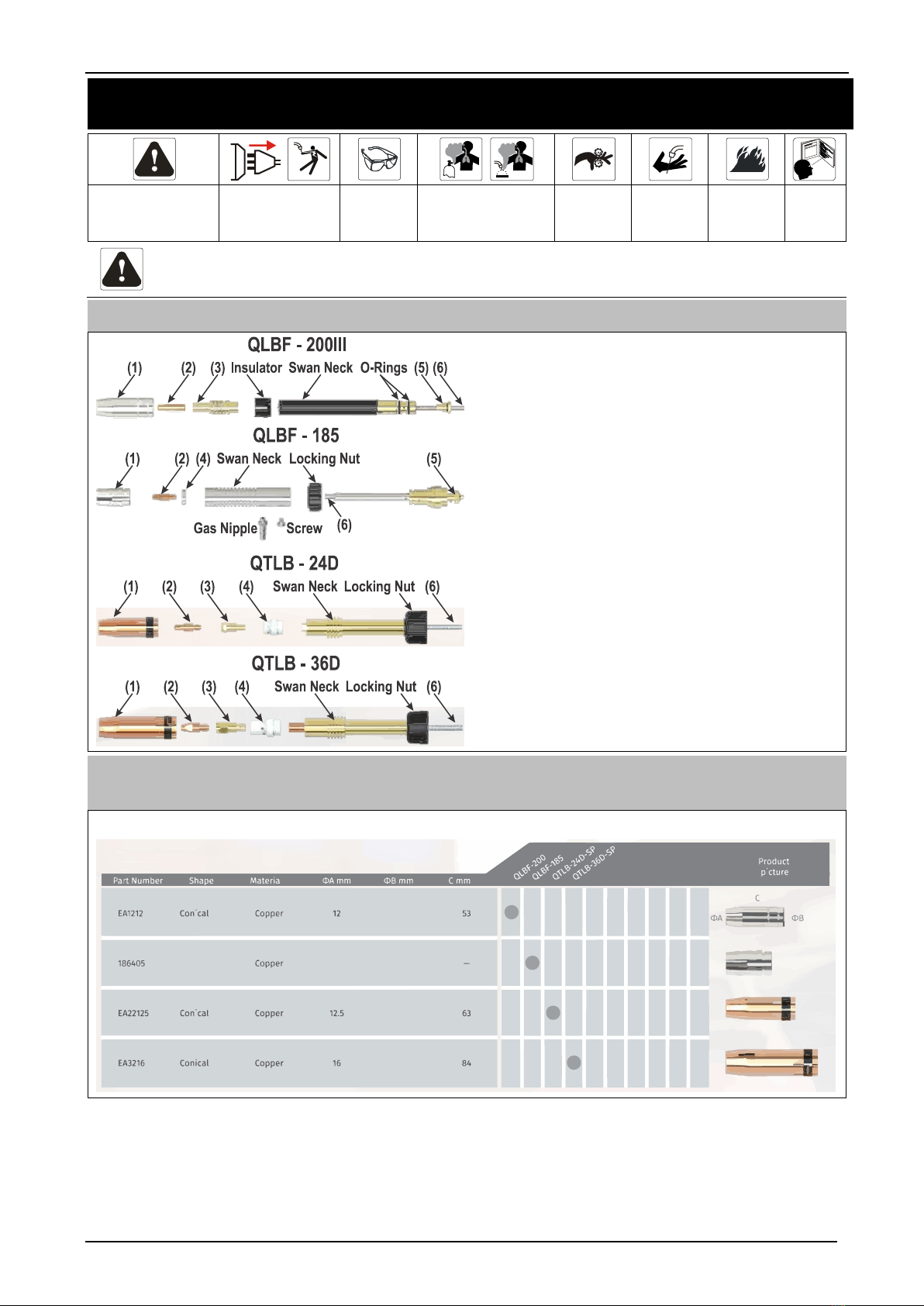

5.02 SPOOL TORCH: Nozzles, Contact Tips, Contact Tip Holders, Gas Diffusers, and Liners Parts...................... 16

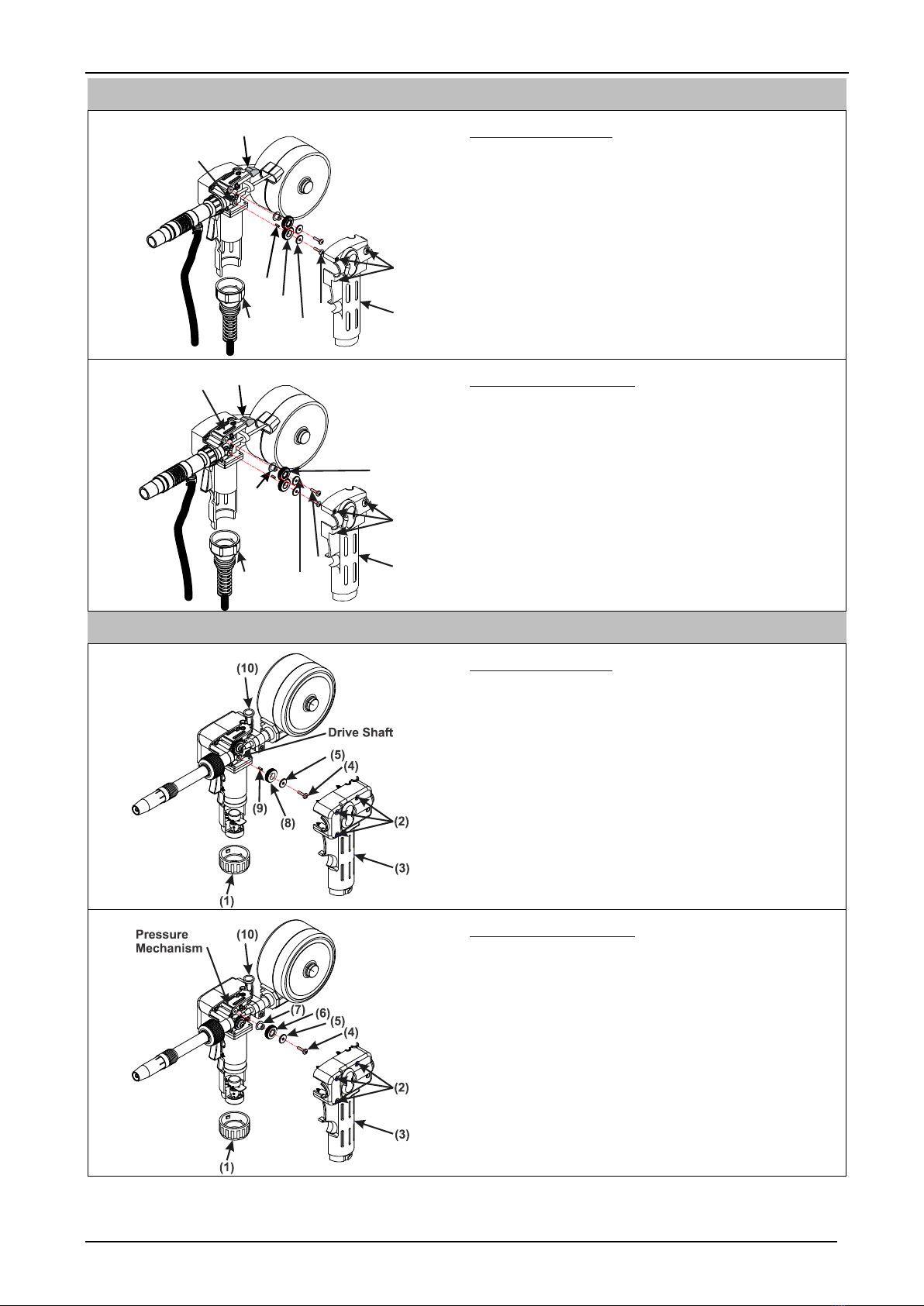

5.03 SPOOL TORCH QLBF-200 III: Change Pressure Roll / Drive Roll ........................................................ 19
5.04 SPOOL TORCH QLBF-185: Change Pressure Roll / Drive Roll............................................................ 20
5.05 SPOOL TORCH QTLB-24D / QTLB-36D: Change Pressure Roll / Drive Roll............................................. 20
5.06 SPOOL TORCH QLBF-200 III: Torch Parts.................................................................................... 21
5.07 SPOOL TORCH QLBF-185: Torch Parts....................................................................................... 22
5.08 SPOOL TORCH QTLB-24D: Torch Parts ...................................................................................... 23
5.09 SPOOL TORCH QTLB-36D: Torch Parts ...................................................................................... 24
SECTION 6 –PUSH-PULL TORCH: Installation and Operation...................................................................25
6.01 PUSH-PULL: Environmental Limits........................................................................................... 25
6.02 PUSH-PULL: Operation Guidelines ........................................................................................... 25
6.03 PUSH-PULL TORCH: Connecting Torches Euro Power Pin to MIG Equipment Adaptor ............................... 25
6.04 PUSH-PULL TORCH QTLB-24D, QTLB-36D: How to Feed Welding Wire................................................ 26
6.05 PUSH-PULL TORCH PG4000 / PG4045, PW5000 / PW5045: How to Feed Welding Wire ............................ 27
6.06 PUSH-PULL TORCH: Depress Torch Trigger Switch ....................................................................... 27
SECTION 7 –PUSH-PULL TORCH: Wear Parts & Torch Parts....................................................................28
7.01 PUSH-PULL: Change Wear Parts for QTLB-24D, QTLB-36D, PG4000 / PG4045, PW5000 / PW5045............... 28
7.02 PUSH-PULL: Nozzles, Contact Tips, Contact Tip Holders, Gas Diffusers, and Liners Parts ......................... 29
7.03 PUSH-PULL TORCH QTLB-24D / QTLB-36D: Change Pressure Roll / Drive Roll....................................... 31
7.04 PUSH-PULL TORCH PG4000 / PG4045, PW5000 / PW5045: Change Pressure Roll / Pressure Arm Assy ......... 31
7.05 PUSH-PULL: Changing Torch Cable Liner ................................................................................... 32
7.06 PUSH-PULL TORCH QTLB-24D: Torch Parts ................................................................................ 33
7.07 PUSH-PULL TORCH QTLB-36D: Torch Parts ................................................................................ 34
7.08 PUSH-PULL TORCH PG4000 / PG4045: Torch Parts ....................................................................... 35
7.09 PUSH-PULL TORCH PW5000 / PW5045: Torch Parts ...................................................................... 36
SECTION 8 –TROUBLESHOOTING ...................................................................................................37
SECTION 9 –ROUTINE SERVICE and MAINTENANCE ............................................................................. 39
SECTION 10 –CIRCUIT DIAGRAMS FOR SPOOL & PUSH-PULL TORCHES ....................................................39

SECTION 1 –SAFETY INSTRUCTIONS: Read Before Using this Product
DANGER! –Protect yourself and others around you from possible serious injury or death.
1) Read, follow, and understand this User Manual before installing, operating, or servicing this
Product. 2) Pacemaker wearers keep away until consulting your doctor. 3) Have all installation,
operation, maintenance, and repair work performed only by Suitably Trained and Qualified Trades-
person. 4) Keep children away. 5) Do not lose these instructions.
6) When shipped, ownership is passes to the purchaser upon receipt from the transportation company. Accordingly,
claims for component damaged in shipment must be made by the purchaser against the transportation company at
the time the shipment is received.
“NOTE:” Provides information regarding operating recommendations for this Product.
Product and processes can cause serious injury or death, or damage to other equipment or property, if the operator does
not strictly observe all safety instructions and take precautionary actions.
Anyone not extensively trained in welding and cutting practices should not attempt to weld or cut metal.
Safe practices are outlined in American National Standard Z49.1 entitled: SAFETY IN WELDING AND CUTTING. This pub-
lication and other guides to what you should learn before using this product are listed at the end of these safety instruc-
tions.
1.01 Arc Welding Hazard Symbols
ELECTRIC SHOCK can kill
Touching live electrical parts can cause fatal
shocks or severe burns. The electrode and
work circuit are electrically live whenever
the output is on. DO NOT WORK ALONE!
The input power circuit and Power Source
internal circuits are also electrically live
when power is on. In semiautomatic or au-
tomatic wire welding, the wire, wire reel,
drive roll housing, and all metal parts touch-
ing the welding wire are electrically live. In-
correctly installed or improperly grounded
welding equipment is a hazard.
•Do not touch live electrical parts.
•Beware of electric shock from wiring.
•Keep all panels and covers securely in place.
•Wear dry, hole-free insulating gloves, and body protection.
•Insulate yourself from work and ground using dry insulating mats or
covers big enough to prevent any physical contact with the work or
ground.
•Additional safety precautions are required when any of the following
electrically hazardous conditions are present:
--- In damp locations or while wearing wet clothing.
--- On metal structures such as floors, gratings, or scaffolds.
--- When in cramped positions such as sitting, kneeling, or lying.
--- When there is a high risk of unavoidable or accidental contact with
the workpiece or ground.
For these conditions, use the following equipment:
1) A semiautomatic DC constant voltage (wire) welder, or
2) A DC manual (stick) welder. In most situations a DC welder is rec-
ommended.
•Disconnect input power or stop engine before installing or servicing
this Product. Lockout/Tagout input power according to OSHA 29 CFR
1910.147.
•Properly install and ground this Power Source according to its User
Manual and national, state, and local codes.
•Use only well-maintained equipment. Repair or replace damaged parts
at once.
•Do not wrap cables around your body.
•Always verify the Input Power Cord ground −check and be sure that
Input Power Cord ground wire is properly connected to ground termi-
nal in disconnect box or that Input Power Cord plug is connected to a
properly grounded receptacle outlet.
•When making input connections, attach proper grounding conductor
first. DOUBLE - CHECK ALL CONNECTIONS.
•Keep all electrical Power Cords dry, free of oil and grease, and pro-
tected from hot metal, sparks, and sharp metal edges.
•Frequently inspect Input Power Cord and ground conductor for dam-
age or bare wiring. Replace immediately if damage, bare wiring can
kill.
•Turn off all equipment when not in use. Disconnect power to equip-
ment if it will be left unattended or out of service.
•Use fully insulated Torch. Never dip Torch in water to cool it or lay it
down on the ground or the work surface. Do not touch Torches con-
nected to two Power Sources at the same time or touch other people
with the Torch or electrode.
•Do not use worn, damaged, undersized, repaired or poorly spliced ca-
bles.
•Ground the work piece to a good electrical (earth) ground.
•Do not touch electrode while in contact with the work (ground) circuit.
•In confined spaces or damp locations, do not use a welder with AC
output unless it is equipped with a voltage reducer. Use equipment
with DC output.
•Wear a safety harness to prevent falling if working above floor level.
•Do not touch electrode holders connected to two Power Sources at the
same time as double open-circuit voltage will be present.
•Insulate work clamp when not connected to workpiece to prevent con-
tact with any metal object.
•Do not connect more than one electrode or work cable to any single
weld output terminal. Disconnect cable for process not in use.
•Use ground-fault circuit interrupter (GFCI) protection when operating
auxiliary equipment in damp or wet locations.
FLYING METAL or DIRT can injure eyes
Welding, chipping, wire brushing, and grind-
ing cause sparks and flying metal.
•Welding slag can be thrown off welds as they
cool down.
•Wear approved safety glasses with side shields even under your weld-
ing helmet.
HOT PARTS can burn
Nozzles, contact tips, gas diffuser welded
parts, cut metal, or ground clamp can cause
burn bare skin when hot.
•Do not touch hot parts with bare skin.
•To handle hot parts, use proper tools and/or wear heavy, insulated
welding gloves and clothing to prevent burns.
Disconnect

SAFETY INSTRUCTIONS
May 25, 2022 Page 6 User Manual No: OM-104A EN
ARC RAYS can injure eyes and burn skin
Arc rays from the welding process produce
intense heat and strong ultraviolet rays that
can burn eyes and skin.
•Wear approved safety glasses. Side shields rec-
ommended.
•Wear a welding helmet fitted with a proper shade of filter (see ANSI Z49.1
listed in Safety Standards) to protect your face and eyes when welding or
watching.
•Use protective screens or barriers to protect others from flash and glare;
warn others not to watch the arc.
•Wear protective clothing made from durable, flame-resistant material
(wool and leather) and foot protection.
NOISE can damage hearing
Noise from some processes can damage
hearing.
•Use approved ear plugs or earmuffs for high
noise levels environments.
FLYING SPARKS can injure
Flying sparks and hot metal can cause in-
jury. Chipping and grinding cause flying
metal.
•Wear proper body protection to protect skin.
•Wear approved face shield or safety goggles. Side shields are recom-
mended.
•Sparks can cause fire, remove all flammable materials within 35 ft (10.7
m) of the working zone.
EQUIPMENT OVERHEATING
Power Source casing, terminals, cables,
ground clamp, electrode stub or torch parts
can cause inquiry when overheated.
•Allow cooling period before touching MIG
Torch.
•Allow cooling period; follow rated duty cycle of MIG Torch.
•Reduce amperage and/or arc on time before starting to weld again.
•Do not block or filter air vent to Power Source.
BUILDUP OF GAS can injure or kill
Shielding GAS used for wire welding can
cause asphyxiation or death in confined
places.
•Shut off compressed shielding gas supply when
not in use.
•Always ventilate confined spaces or use approved air supplied respirator.
FUMES and GASES can be hazardous
FUMES and GASES can be hazardous to
your health. Welding produces fumes and
gases. Breathing these fumes and gases can
be hazardous to your health.
•Keep your head out of the fumes. Do not breathe the fumes.
•If inside, ventilate the area and/or use local exhaust at the arc to remove
welding fumes and gases.
•If ventilation is poor, use an approved air-supplied respirator.
•Read the Material Safety Data Sheets (MSDSs) and the manufacturer’s
instruction for consumables, coatings, cleaners, consumables, coolants,
degreasers, fluxes, and metals.
•Work in a confined space only if it is well ventilated, or while wearing an
air-supplied respirator. Always have an observer trained in rescue and
emergency procedures to monitor the person in a confined space. Shield-
ing gases used for welding can displace air causing injury or death. Be
sure the breathing air is safe.
•Do not weld in locations near degreasing, cleaning, or spraying opera-
tions. The heat and rays of the arc can react with vapours to form highly
toxic and irritating gases.
•Do not weld on coated metals, such as galvanized, lead, or cadmium
plated steel, unless the coating is removed from the weld area, the area
is well ventilated, and if necessary, while wearing an air supplied respira-
tor. The coatings and any metals containing these elements can give off
toxic fumes if welded.
MOVING PARTS can cause injury
Moving parts, such as fans, drive gears, ro-
tating wire spools, rotors, and belts can cut
fingers and hands and catch loose clothing.
•Keep all doors, panels, covers, and guards
closed and securely in place.
•Switch OFF Power Source before installing or
connecting it.
•Keep hands, hair, loose clothing, and tools
away from moving parts.
•Have only suitably Trained and Qualified Tradesperson remove guards or
covers for maintenance and troubleshooting, as necessary.
•To prevent accidental starting during servicing, disconnect Power Source
from power receptacle or disconnect negative battery cable from battery.
•Reinstall panels or guards and close doors when servicing is finished and
before starting engine.
ELECTRIC and MAGNETIC FIELDS (EMF)
can affect Implanted Medical Devices
Consult your doctor and the Implanted
Medical Device manufacturer before going
near arc welding, spot welding, gouging or
plasma arc cutting.
•Wearers of Pacemakers and other Implanted Medical Devices should
keep away.
SHIELDING GAS CYLINDERS can explode
Shielding gas cylinders contain gas under
high pressure. If damaged, a cylinder can
explode. Since gas cylinders are normally
part of the welding process; be sure to treat
them carefully.
•Protect compressed gas cylinders from excessive heat, mechanical
shocks, and arcs.
•Install and secure cylinder(s) in an upright position by chaining cylin-
der(s) to a stationary support or equipment cylinder rack to prevent falling
or tipping.
•Keep cylinders away from any welding or other electrical circuits.
•Never allow a welding electrode to touch any cylinder.
•Use only correct shielding gas cylinders, regulators, hoses, and fittings
designed for the specific application; maintain them and associated parts
in good condition.
•Turn face away from valve outlet when opening cylinder valve.
•Keep protective cap in place over valve except when cylinder is in use or
connected for use.
•Read and follow instructions on compressed gas cylinders, associated
equipment, and CGA publication P-1 listed in Safety Standards.
WELDING WIRE can cause injury
Welding wire can cause injuries to hands,
ears, eyes, etc.
•Do not depress Torch Trigger or commence
welding process until it is safe to do so.
•Do not point the end of the MIG Torch near any part of your body, other
people, or any metal when threading the welding wire thru the MIG Torch.
•
•

SAFETY INSTRUCTIONS
May 25, 2022 Page 7 User Manual No: OM-104A EN
Eye protection filter shade selector numbers for welding (goggles or helmet)
Welding operation
Arc Amperage (Amps)
Minimum Filter Shade Number
Suggested ^ Filter Shade Number
Gas Metal Arc Welding (GMAW)
and
Flux Cored Arc Welding (FCAW)
Less than 60
60 –160
160 –250
250 –550
7
10
10
10
7
11
12
14
^ As a rule of thumb, start with a shade that is too dark to see the weld zone. Then go to a lighter shade which gives sufficient view of the weld zone
without going below the minimum. This Lens Shade Selector Guide was adapted from ANSI Z49.1, 2012.
WELDING can cause fire or explosion
Sparks and spatter fly off from the welding arc.
The flying sparks and hot molten metal, weld spat-
ter, hot work piece and hot equipment can cause
fires and burns.
Welding on closed containers, such as tanks, drums, or pipes, can cause
them to blow up. Accidental contact of electrode or welding wire to metal
objects can cause sparks, overheating, fire, or explosion. Check that the
area is safe before doing any welding.
•Protect yourself and others from flying sparks and hot metal.
•Do not weld where flying sparks can strike flammable material.
•Remove all flammables within 35 ft (10.7 m) of the welding arc. If this
is not possible, tightly cover them with approved covers.
•Be alert that welding sparks and hot materials from welding can easily
go through small cracks and openings to adjacent areas.
•Watch for fire and keep a fire extinguisher nearby.
•Be aware that welding on a ceiling, floor, bulkhead, or partition can
cause fire on the hidden side.
•Do not weld on containers that have held combustibles or on closed
containers such as tanks, drums, or pipes unless they are properly
prepared according to AWS F4.1 and AWS A6.0.
•Do not weld where the atmosphere contains flammable dust, gas, or
liquid vapours (gasoline for example).
•Connect work cable to the work as close to the welding area as practi-
cal to prevent welding amperage from travelling long, possibly un-
known paths and causing electric shock and fire hazards.
•Use only correct fuses or circuit breakers. Do not oversize or bypass
them.
•Cut off welding wire at contact tip when not in use.
•Wear body protection made from durable, flame−resistant material
(leather, heavy cotton, wool). Body protection includes oil-free cloth-
ing such as leather gloves, heavy shirt, cuff less trousers, high shoes,
and a cap.
•Remove any combustibles, such as butane lighter or matches, from
your person before doing any welding.
•After completion of work, inspect area to ensure it is free of sparks,
glowing embers, and flames.
•Follow requirements in OSHA 1910.252 (a) (2) (iv) and NFPA 51B for
hot work and have a fire watcher and extinguisher nearby.
•Read and understand the Safety Data Sheets (SDSs) and the manufac-
turer’s instructions for adhesives, coatings, cleaners, consumables,
coolants, degreasers, fluxes, and metals.
1.02 Additional Installation, Operation and Maintenance Hazard Symbols
READ USER MANUAL
Read and follow all Power Source labels and
User Manual carefully before installing, op-
erating, or servicing the Power Source.
•Read the safety information at the begin-
ning of the manual and in each section.
•Perform installation, maintenance, and ser-
vice according to the User Manual, industry
standards, and national, state, and local
codes.
IMPROPER INSTALLATION can cause fire
Improper equipment installation can cause
fire.
•Do not install or place Power Source on,
over, or near combustible surfaces.
•Do not install Power Source near flammables.
•Do not overload building wiring; be sure Input Power Supply system
is properly sized, rated, and protected for weld system.
ARC WELDING can cause interference
Arc welding produces electromagnetic en-
ergy that can interfere with sensitive elec-
tronic equipment.
•Electronic equipment that can be affected are computers, telecom-
munication equipment, and computer-driven equipment such as ro-
bots.
•Be sure all equipment in the welding area is electromagnetically com-
patible.
•To reduce possible interference, keep weld cables as short as possi-
ble, close together, and down low, such as on the floor.
•Locate welding operation 100 meters from any sensitive electronic
equipment.
•Be sure this Power Source is installed and grounded according to
this manual.
•If interference still occurs, the user must take extra measures such
as moving the Power Source, using shielded cables, using line filters,
or shielding the work area.
COMPRESSED AIR can injure or kill.
Whipping air hoses can injure.
A concentrated stream of air at high pres-
sure and high speed that can cause serious
injury you or people around you.
•Do not direct air stream toward self or others.
•Wear protective equipment such as safety
glasses, hearing protection, leather gloves,
heavy shirt / trousers, steel toe boots, and a
cap when working on compressed air system.
•Release air pressure from air system / air tools before servicing, add-
ing, or changing attachments.
•Turn off and lockout / Tagout air compressor, release air pressure from
system and be sure air pressure cannot be accidentally reapplied be-
fore working on compressed air system.
•Relieve air pressure before disconnecting or connecting air lines.
•Check compressed air system components and all connections and
hoses for damage, leaks, and wear before operating unit.
•Use soapy water to search for leaks; never use bare hands. Do not use
equipment if leaks are found.
?
?

SAFETY INSTRUCTIONS
May 25, 2022 Page 8 User Manual No: OM-104A EN
FALLING EQUIPMENT can injure
Use designated lifting device on power
source to lift the power source only, NOT
cart/running gear, gas cylinders, or any
other accessories
•Use lifting equipment of adequate capacity to lift and support power
source.
•If using lift forks to move power source, be sure forks are long
enough to extend beyond opposite side of power source.
•Keep cables and Power Cords away from moving vehicles when
working from an aerial location.
•Follow the guidelines in the Applications Manual for the Revised
NIOSH Lifting Equation [DHHS (NOISH) Publication No. 94−110]
when manually lifting heavy parts or Power Source.
1.03 Read Principal Safety Standards
Safety in Welding, Cutting, and Allied Processes, ANSI Standard Z49.1,
is available as a free download from the American Welding Society at
(Website: www.aws.org).
Safe Practices for the Preparation of Containers and Piping for Welding
and Cutting, American Welding Society Standard AWS F4.1, from
Global Engineering Documents (Website: www.global.ihs.com).
Safe Practices for Welding and Cutting Containers that have Held Com-
bustibles, American Welding Society Standard AWS A6.0, from Global
Engineering Documents (Website: www.global.ihs.com).
National Electrical Code, NFPA Standard 70, from National Fire Protec-
tion Association, Quincy, MA 02269 (Website: www.nfpa.org).
Safe Handling of Compressed Gases in Cylinders, CGA Pamphlet P-1,
from Compressed Gas Association, 14501 George Carter Way, Suite
103, Chantilly, VA 20151 (website: www.cganet. com).
Safety in Welding, Cutting, and Allied Processes, CSA Standard W117.2,
from Canadian Standards Association, Standards Sales, 5060 Spectrum
Way, Suite 100, Mississauga, Ontario, Canada L4W 5NS (Website:
www.csagroup.org).
Safe Practice for Occupational and Educational Eye and Face Protection,
ANSI Standard Z87.1, from American National Standards Institute, 25
West 43rd Street, New York, NY 10036 (Website: www.ansi.org).
Standard for Fire Prevention During Welding, Cutting, and Other Hot
Work, NFPA Standard 51B, from National Fire Protection Association,
Quincy, MA 02269 (Website: www.nfpa.org).
OSHA, Occupational Safety and Health Standards for General Industry,
Title 29, Code of Federal Regulations (CFR), Part 1910, Subpart Q, and
Part 1926, Subpart J, from U.S. Government Printing Office, Superin-
tendent of Documents, (Website: www.osha.gov).
Applications Manual for the Revised NIOSH Lifting Equation, The Na-
tional Institute for Occupational Safety and Health (NIOSH), 1600 Clifton
Rd, Atlanta, GA 30329-4027 (Website: www.cdc.gov/NIOSH).
1.04 California Proposition 65 Warnings
This product contains chemicals, including lead, or otherwise produces chemicals known to the State of California to cause
cancer, birth defects and other reproductive harm. Wash hands after handling. (California Health & Safety Code 25249.5 et
seq.)
Welding and cutting equipment produce fumes or gases which contain chemicals known to the State of California to cause
birth defects and, in some cases, cancer. Wear an approved air-supplied respirator for welding and cutting. (California Health
& Safety Code Section 25249.5 et seq.)
1.05 ELECTRIC and MAGNETIC FIELDS (EMF) Recommendations
Consult your doctor and the Implanted Medical Device manu-
facturer before going near arc welding, spot welding, gouging,
or plasma arc cutting.
EMF is produced around welding cables / accessories during
the welding operation and can interfere with some medical im-
plants such as pacemakers. All Welding Operators should use
the following procedures in order to minimize exposure to EMF
when welding.
•Keep electrode / ground cables together by twisting or taping them
together.
•Keep electrode / ground cables away from your body.
•Do not place your body in between the electrode and ground cables.
•Do not coil or drape cable around the body.
•Keep Power source and accessories as far away from your body as
possible.
•Do not weld whilst carrying the Power source or accessories.
•Connect the ground clamp to the workpiece as close as possible to
the weld zone.

WARRANTY
May 25, 2022 Page 9 User Manual No: OM-104A EN
SECTION 2 –WARRANTY
The MIG/MAG Manual Welding Torch is
safe and reliable in operation when han-
dled, installed, and maintained by suita-
bly Trained and Qualified Tradesperson.
JINAN NORTH WELDING TOOLS products are meticu-
lously checked during and at completion of manufacture.
JINAN NORTH WELDING TOOLS guarantees that each
product is free from material defects and workmanship at
the time of dispatch and functions according to its intended
use.
JINAN NORTH WELDING TOOLS provides warranty on ma-
terial defects and workmanship according to national or
state legal requirements.
Contact Tips, Nozzles, and Liners (consumables) are ex-
empt from this warranty.
The warranty does not cover any damages or functional de-
fects resulting from:
•Overloading, abusing, or diverting from intended use
of the product.
•Collisions or accidents.
•Non-compliance with instructions stated in this docu-
ment.
•Improper installation or assembly.
•Insufficient maintenance.
•Modifying the product from its original state.
•Chemical influences.
•Normal wear and tear.
JINAN NORTH WELDING TOOLS assumes no liability other
than for replacement or repair of faulty parts.
JINAN NORTH WELDING TOOLS makes no other warranty
of any kind, expressed or implied, including, but not limited
to the warranties of merchantability, or fitness for any pur-
pose. JINAN NORTH WELDING TOOLS shall not be liable
under any circumstances to Buyer, or to any person who
shall purchase from Buyer, for damages of any kind, in-
cluding, but not limited to any direct, indirect incidental or
consequential damages or loss of production or loss of
profits resulting from any cause whatsoever, including, but
not limited to any delay, act, error, or omission of JINAN
NORTH WELDING TOOLS.
Genuine JINAN NORTH WELDING TOOLS parts must be
used for safety and performance reasons, or the warranty
becomes invalid. Warranty shall not apply if accident,
abuse, or misuse damages of a product, or if a product is
modified in any way except by authorized JINAN NORTH
WELDING TOOLS personnel.
2.01 Conditions of Intended Use
•This product is intended for industrial and commercial
use and must only be utilized by suitably trained per-
sonnel. JINAN NORTH WELDING TOOLS is not liable
for any damage or accidents resulting from improper
usage.
•The instructions for installation, operation and mainte-
nance described in this document must be followed.
•The MIG/MAG Manual Welding Torch must only be in-
stalled, operated, and serviced by suitably Trained and
Qualified Tradesperson. The installation, operation, and
maintenance regulations detailed in this manual are to
be followed.
•The MIG/MAG Manual Welding Torch must solely be
used for the intended purpose by the user within the
Torches technical specifications and with an automated
welding system. The type of Torch must be selected to
suit the welding task.
•The MIG/MAG Manual Welding Torch was designed for
use as a complete system. The incorporation of com-
ponents from other manufacturers into the system is
not permissible.
•The product must be kept dry and protected from hu-
midity when transported, stored, or used.
•The system is designed for environmental temperature
range from 5 °C to 40 °C (41 °F to 104 °F). In case
these limits are exceeded, specific action is needed.

INTRODUCTION
May 25, 2022 Page 10 User Manual No: OM-104A EN
SECTION 3 –INTRODUCTION
3.01 KLASIK Torch Description
These air-cooled or water-cooled Spool / Push-Pull MIG/MAG
Manual Welding Torches are designed for hand Metal Inert Gas
welding (MIG) and Metal Active Gas welding (MAG) welding us-
ing MIG/MAG welding Power Source.

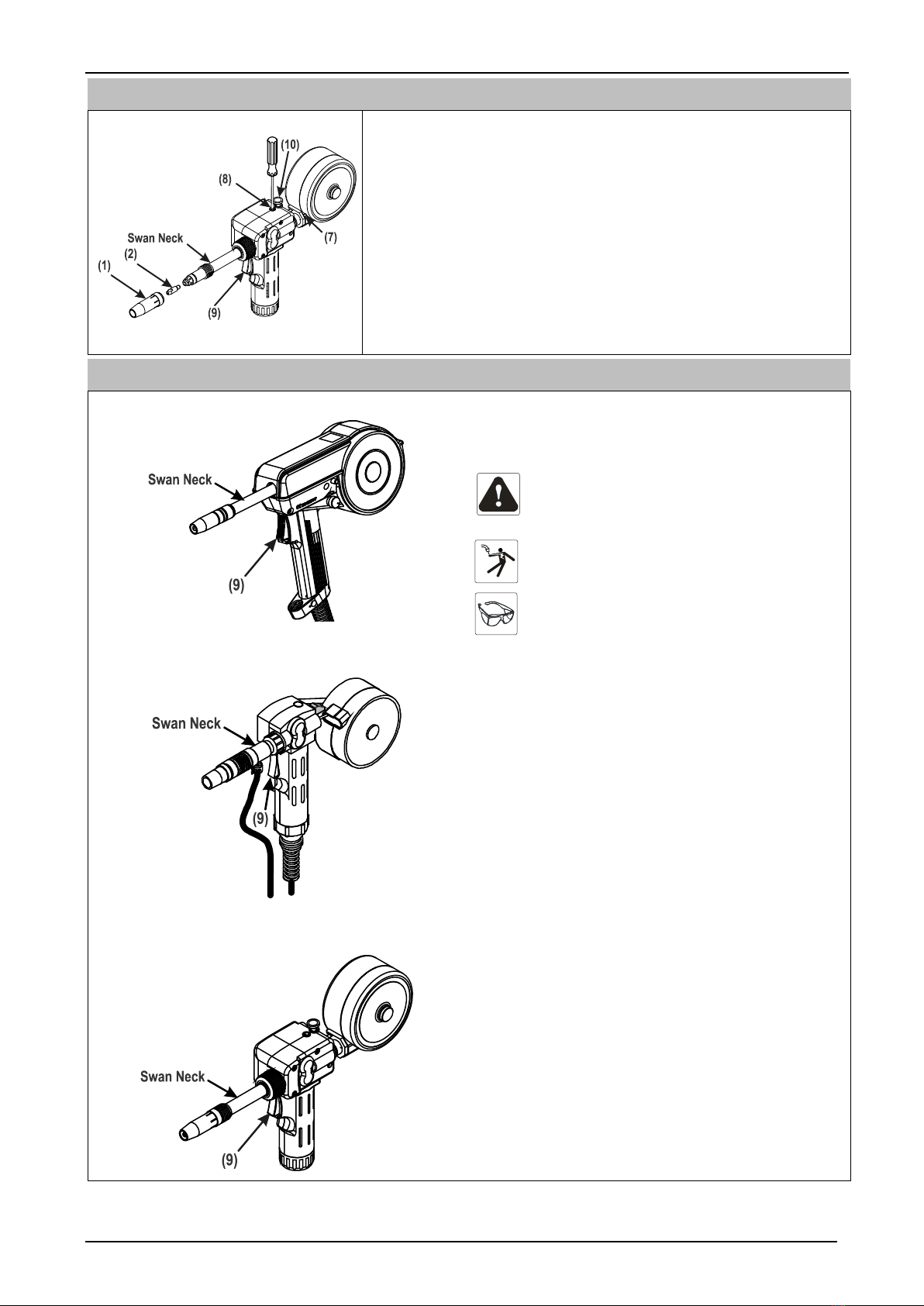

The Torches consist of a variety design elements:
1. CNC machined tips and gas diffusers are 100% compat-
ible with OEM MIG Torches.
2. Ergonomic, solid handle design.
3. Positive grip Trigger Button with long life contacts.
4. Heavy Duty insulated metal jacketed swan neck with high
conductivity inner copper tube.
5. Cable supported by steel spring to reduce hand fatigue.
These elements create a very reliable and long-lasting Torch
system with minimal maintenance.
The JINAN NORTH WELDING TOOLS ordering numbers, avail-
able accessories, spare parts, and wear parts are found within
this User Manual.
3.02 KLASIK Spool Torches Duty Cycle
The MIG/MAG Manual Welding Spool Torches rated duty cycles
is a statement of the time it may be operated at its rated welding
amperage without exceeding the temperature limits of the com-
ponent parts.
Spool Torches QLBF-200 III / QLBF-185 / QTLB-24D-SP /
QTLB-36D-SP @ 60%
60% Duty Cycle at Rated Weld Current - Mixed or CO2Gas
6 Minutes Welding
in any 10 Minute Period
4 Minutes Non-Welding
in any 10 Minute Period
Push-Pull Torches QTLB-24D / QTLB-36D @ 60%
60% Duty Cycle at Rated Weld Current - Mixed or CO2Gas
6 Minutes Welding
in any 10 Minute Period
4 Minutes Non-Welding
in any 10 Minute Period
3.03 KLASIK Push-Pull Torches Duty Cycle
The MIG/MAG Manual Welding Push-Pull Torches rated duty cycles
is a statement of the time it may be operated at its rated welding
amperage without exceeding the temperature limits of the compo-
nent parts.
Push-Pull Torches QTLB-24D / QTLB-36D @ 60%
60% Duty Cycle at Rated Weld Current - Mixed or CO2 Gas
6 Minutes Welding
in any 10 Minute Period
4 Minutes Non-Welding
in any 10 Minute Period
Push-Pull Torches PG4000 / PG4045 @ 40%
40% Duty Cycle at Rated Weld Current - Mixed or CO2Gas
4 Minutes Welding
in any 10 Minute Period
6 Minutes Non-Welding
in any 10 Minute Period
Push-Pull Torches PW5000 / PW5045 @ 100%
100% Duty Cycle at Rated Weld Current - Mixed or CO2Gas
10 Minutes Welding
in any 10 Minute Period
0 Minutes Non-Welding
in any 10 Minute Period
3.04 KLASIK Torch Contents
All KLASIK Torches come complete with:
•MIG/MAG Manual Welding Torch
•Contact Tip
•Nozzle
•
User Manual No: OM-104A EN
NOTE 1: JINAN NORTH WELDING TOOLS reserves the right to change, improve or revise the specifications or design of this product
without prior notice. Such updates or changes do not entitle the buyer of this Product previously sold or shipped to the corresponding
changes, updates, improvements, or replacement. The values specified in the table above are nominal parameters. An individual Torch
may differ from the above specifications due to in part, but not exclusively, to any one or more of the following variations
or changes in manufactured components, installation location/conditions.

INTRODUCTION
May 25, 2022 Page 11 User Manual No: OM-104A EN
3.05 KLASIK Spool Torch Specifications
Refer to NOTE 1 on Page 10
Part Numbers
QLBF-200 III-6E,
QLBF-200 III-8E,
QLBF-200 III-6T,
QLBF-200 III-8T
QLBF-185-6,
QLBF-185-8
QTLB-24D-SP-6E,
QTLB-24D-SP-8E,
QTLB-24D-SP-6T,
QTLB-24D-SP-8T
QTLB-36D-SP-6E,
QTLB-36D-SP-8E,
QTLB-36D-SP-6T,
QTLB-36D-SP-8T
Torch Length (m)
6 = 6 m,
8 = 8 m
6 = 6 m,
8 = 8 m
6 = 6 m,
8 = 8 m
6 = 6 m,
8 = 8 m
Torch Power Connector
E = Euro Fitting,
T = Tweco Fitting
13mm Diameter Hole Lug,
5mm ID Hose & 4 Pin Plug
E = Euro Fitting,
T = Tweco Fitting
E = Euro Fitting,
T = Tweco Fitting
Swan Neck Angle (°)
180
180
180 or 45 180 or 45
Wire Size Range (mm)
0.6–1.0
0.8–0.9
0.6–1.2
0.8–1.2
Standardization Administration of China –
Arc Welding Equipment –Part 7: Torches
IEC Standard for Safety –Arc Welding
Equipment –Part 7: Torches
GB/T 15579.7-2013
IEC 60974-7:2019
Cooling Method
Air-Cooled
Air-Cooled
Operating Temperature Range
-10 °C to +40 °C (+14 °F to +104 °F)
Storage/Transportation
Temperature Range
-25 °C to +55 °C (-13 °F to +131 °F)
Relative Air Humidity
During Operating
0% to 90% (at +20 °C ambient air temperature)
Welding Power Rating for MIG/MAG Manual Welding Torch [+40 °C Air Temperature]
Rated Amps / Duty Cycle using:
CO2Shielding Gas
Mixed Shielding Gas
200A/60%
160A/60%
180A/60%
160A/60%
200A/60%
160A/60%
350A/60%
300A/60%
MIG/MAG Torch Maximum Voltage
113 VDC (Peak Welding Voltage)
3.06 KLASIK Push-Pull Torch Specifications: QTLB-24D, QTLB-36D
Refer to NOTE 1 on Page 10
Part Number
QTLB-24D-6
QTLB-24D-8
QTLB-36D-6
QTLB-36D-8
Torch Length
6 = 6 m
8 = 8 m
6 = 6 m
8 = 8 m
Torch Power Connector
Euro Fitting
Euro Fitting
Swan Neck Angle (°)
180 or 45
180 or 45
Wire Size Range (mm)
0.8–1.2
0.8–1.2
Standardization Administration of China –
Arc Welding Equipment –Part 7: Torches
IEC Standard for Safety –Arc Welding
Equipment –Part 7: Torches
GB/T 15579.7-2013
IEC 60974-7:2019
Cooling Method
Air-Cooled
Air-Cooled
Air-Cooled Air-Cooled
Operating Temperature Range
-10 °C to +40 °C (+14 °F to +104 °F)
Storage/Transportation
Temperature Range
-25 °C to +55 °C (-13 °F to +131 °F)
Relative Air Humidity
During Operating
0% to 90% (at +20 °C ambient air temperature)
Welding Power Rating for MIG/MAG Manual Welding Torch [+40 °C Air Temperature]
Rated Amps / Duty Cycle using:
CO2Shielding Gas
Mixed Shielding Gas
200A/60%
160A/60%
350A/60%
300A/60%
MIG/MAG Torch Maximum Voltage
113 VDC (Peak Welding Voltage)
3.07 KLASIK Push-Pull Torch Specifications: PG4000 / PG4045,
PW5000 / PG5045
Refer to NOTE 1 on Page 10
Part Number
PG4000-6
PG4000-8
PG4045-6
PG4045-8
PW5000-6
PW5000-8
PW5045-6
PW5045-8
Torch Length
6 = 6 m
8 = 8 m
6 = 6 m
8 = 8 m
6 = 6 m
8 = 8 m
6 = 6 m
8 = 8 m
Torch Power Connector
Euro Fitting
Euro Fitting
Swan Neck Angle (°)
180
45
180
45
Wire Size Range (mm)
0.8–1.2
0.8–1.6
Standardization Administration of China –
Arc Welding Equipment –Part 7: Torches
IEC Standard for Safety –Arc Welding
Equipment –Part 7: Torches
GB/T 15579.7-2013
IEC 60974-7:2019
Cooling Method
Air-Cooled
Air-Cooled
Water-Cooled
Water-Cooled
Operating Temperature Range
-10 °C to +40 °C (+14 °F to +104 °F)
Storage/Transportation
Temperature Range
-25 °C to +55 °C (-13 °F to +131 °F)
Relative Air Humidity
During Operating
0% to 90% (at +20 °C ambient air temperature)
Welding Power Rating for MIG/MAG Manual Welding Torch [+40 °C Air Temperature]
Rated Amps / Duty Cycle using:
CO2Shielding Gas
Mixed Shielding Gas
400A/40%
350A/40%
500A/100%
400A/100%
MIG/MAG Torch Maximum Voltage
113 VDC (Peak Welding Voltage)

SPOOL TORCH: Installation and Operation
May 25, 2022 Page 12 User Manual No: OM-104A EN
SECTION 4 –SPOOL TORCH: Installation and Operation
4.01 SPOOL TORCH: Environmental Limits
These air-cooled MIG/MAG Manual Welding Torches are
designed for use in environments where:
•Operating temperature range is -10 °C to +40 °C
(+14 °F to +104 °F)
•Relative air humidity during operating is 0% to 90% @
+ 20 °C ambient air temperature
4.02 SPOOL TORCH: Operation Guidelines
Be sure to locate the MIG/MAG equipment according to
the following guidelines:
•In areas, free from moisture and dust.
•In areas, free from oil, steam, and corrosive gases.
•In areas, not subjected to abnormal vibration or shock.
•In areas, not exposed to direct sunlight or rain.
Torch installation must be
done by a suitably Trained
and Qualified Tradesperson.
Disconnect Power to
MIG/MAG equipment. Elec-
tric shock can kill.
Flying metal or
dirt can injure
eyes.
FUMES and Shielding
GAS can be hazardous
to your health.
Moving parts
can cause in-
jury.
Sparks, weld spatter or
hot work piece can
cause fires and burns.
Improper instal-
lation can cause
fire.
Read User
Manual.
Genuine JINAN NORTH WELDING TOOLS parts must be used for safety and performance reasons, or the warranty becomes
invalid. Inspect all parts for transportation damage. Do not use damaged parts.
4.03 SPOOL TORCH: Connecting Torch Power Pin to MIG Equipment Adaptor
For Spool Torches QLBF-200 III-6E, QLBF-200 III-8E, QTLB-24D-SP-6E, QTLB-24D-SP-8E, QTLB-36D-SP-6E, QTLB-36D-SP-8E.
Euro Power Pin Connector Block to Euro Style Adaptor
a) Disconnect Power to the MIG/MAG equipment.
b) Align Euro Power Pin Connector Block with Euro Torch Adaptor then insert it.
c) Secure tighten the Connector Nut into the Euro Adaptor.
d) Connect the Multi-Pin Plug to the MIG/MAG equipment Control Socket.
For Spool Torches QLBF-200 III-6T, QLBF-200 III-8T, QTLB-24D-SP-6T, QTLB-24D-SP-8T, QTLB-36D-SP-6T, QTLB-36D-SP-8T.
Tweco®Power Pin Connector Block to Tweco Style Adaptor
a) Disconnect Power to the MIG/MAG equipment.
b) Insert the Tweco Power Pin into the Tweco Torch Adaptor to shoulder then se-
cure using mechanical means as described in MIG/MAG equipment user man-
ual.
c) Connect the Multi-Pin Plug to the MIG/MAG equipment Control Socket.
For Spool Torches QLBF-185-6, QLBF-185-8.
Spool Torch is Hard Wired to MIG/MAG equipment
a) Disconnect Power to the MIG/MAG equipment.
b) Refer to the MIG/MAG equipment Operating Manual to identify the connection points for the 4-pin plug, power cable with 13mm lug, and 5mm (inside
diameter) gas hose.
c) Connect power cable with 13mm lug to the MIG/MAG equipment Positive Weld Terminal as described in the MIG/MAG equipment Operating Manual.
d) Connect 5mm (inside diameter) gas hose to the MIG/MAG equipment gas hose as described in the MIG/MAG equipment Operating Manual.
e) Connect the Multi-Pin Plug to the MIG/MAG equipment Control Socket.
Disconnect

SPOOL TORCH: Installation and Operation
May 25, 2022 Page 13 User Manual No: OM-104A EN
4.04 SPOOL TORCH: Install Welding Wire Spool Then Threading the Welding Wire
MODEL: QLBF-200 III
a) Disconnect Power to the MIG/MAG equipment.
b) Ensure the Drive Roll is marked with the same size as the Welding Wire you are
about to fit in the Spool Torch.
c) Lift the Spool Cover (4) by pressing Press Button (10).
d) Unscrew Nozzle (1), Contact Tip (2), and Locking Screw (3).
e) Put the Welding Wire Spool (5) on the Spool Shaft to check the Welding Wire
Spool (5) has some friction with the Spool Shaft. If no friction, then adjust the Hub
Tension Nut (6) so some friction is felt between the Welding Wire Spool (5) and the
Spool Shaft. Remove the Welding Wire Spool (5) from the Spool Shaft.
f) Rotate the Pressure Arm Bolt (8) clockwise to release the tension on the Pressure
Roll Bearing (11).
g) Take the Wire End from the top of the Welding Wire Spool (5).
CAUTION: Hold the Wire End tightly to stop it from unravelling.
h) Feed the Wire End into the Inlet Guide (7) then push the Welding Wire 75 mm (3
in.) out past the Swan Neck.
i) Secure the Welding Wire Spool (5) using Locking Screw (3) then screw the Pres-
sure Arm Bolt (8) counter clockwise to put some tension on the Wire End.
j) Flip the Spool Cover (4) over to cover the Welding Wire Spool (5), then fit the Con-
tact Tip (2), and Nozzle (1) on the Spool Torch.
k) Before you start welding, test the Pressure Arm force to the Drive Roll is sufficient to
feed the welding wire.
i. Connect MIG/MAG Spool Torch as per Section 4.03 then connect Power to the
MIG/MAG equipment.
ii. Point the Spool Torch at 60 degree and 100mm (4 in.) from a flat non-conductive
material, e.g. wood, on the floor.
iii. Depress Torch Trigger Switch (9) to feed Welding Wire on to a flat non-conduc-
tive material, e.g. wood.
iv. If Welding Wire slips on the Drive Roll (welding wire does not feed constantly
from Torch) then adjust Pressure Arm Bolt (8).
v. Rotate Pressure Arm Bolt (8) by:
- Rotating in a counter-clockwise direction reduces Pressure Arm force to the
Drive Roll. Reduced Pressure Arm force on the Drive Roll causes the Welding
Wire to slip on the Drive Roll and can produce an inconsistent welding.
- Clockwise direction increases the Pressure Arm force to the Drive Roll. Increased
Pressure Arm force on the Drive Roll can cause the Welding Wire to deform pro-
ducing metal fragments which clogs the Liner in the Swan Neck and can produce
poor wire feedability.
MODEL: QLBF-185
a) Disconnect Power to the MIG/MAG equipment.
b) Ensure the Drive Roll is marked with the same size as the Welding Wire you are
about to fit in the Spool Torch.
c) Unscrew Nozzle (1), Contact Tip (2), and Locking Screw (3) then remove Spool
Cover (4).
d) Put the Welding Wire Spool (5) on the Spool Shaft to check the Welding Wire
Spool (5) has some friction with the Spool Shaft. If no friction, then adjust the Hub
Tension Nut (6) so some friction is felt between the Welding Wire Spool (5) and the
Spool Shaft. Remove the Welding Wire Spool (5) from the Spool Shaft.
e) Take the Wire End from the top of the Welding Wire Spool (5),
CAUTION: Hold the Wire End tightly to stop it from unravelling, then feed it into the
Inlet Guide (7) while pushing down on the red Pressure Roll Release Lever (10)
then push the Welding Wire 75 mm (3 in.) out past the Swan Neck.
f) Fit the Spool Cover (4), Locking Screw (3), Contact Tip (2), and Nozzle (1) on the
Spool Torch.
g) Before you start welding, test the Pressure Arm force to the Drive Roll is sufficient to feed the
welding wire.
i. Connect MIG/MAG Spool Torch as per Section 4.03 then connect Power to the MIG/MAG
equipment.
ii. Point the Spool Torch at 60 degree and 100mm (4 in.) from a flat non-conductive material,
e.g. wood, on the floor.
iii. Depress Torch Trigger Switch (9) to feed Welding Wire on to the flat non-conductive ma-
terial, e.g. wood.
iv. If Welding Wire slips on the Drive Roll (Welding Wire does not feed constantly from
Torch) then adjust Pressure Arm Screw (8).
v. Adjust the Pressure Arm Screw (8) using a screwdriver:
- Rotating in a clockwise direction reduces Pressure Arm force to the Drive Roll. Reduced
Pressure Arm force on the Drive Roll causes the Welding Wire to slip on the Drive Roll
and can produce an inconsistent welding.
- Counter-clockwise direction increases Pressure Arm force to the Drive Roll. Increased
Pressure Arm force on the Drive Roll can cause the Welding Wire to deform producing
metal fragments which clogs the Liner in the Swan Neck and can produce poor wire feed-
ability.

SPOOL TORCH: Installation and Operation
May 25, 2022 Page 14 User Manual No: OM-104A EN
4.04 SPOOL TORCH: Install Welding Wire Spool Then Threading the Welding Wire
MODEL: QLBF-24D and QLBF-36D
a) Disconnect Power to the MIG/MAG equipment.
b) Ensure the Drive Roll is marked with the same size as the Welding Wire you are
about to fit in the Spool Torch.
c) Remove Nozzle (1) using a twisting pull action, unscrew the Contact Tip (2),
and Locking Screw (3) then remove Spool Cover (4).
d) Put the Welding Wire Spool (5) on the Spool Shaft to check the Welding Wire
Spool (5) has some friction with the Spool Shaft. If no friction, then adjust the
Hub Tension Nut (6) so some friction is felt between the Welding Wire Spool
(5) and the Spool Shaft. Remove the Welding Wire Spool (5) from the Spool
Shaft.
e) Take the Wire End from the top of the Welding Wire Spool (5),
CAUTION: Hold the Wire End tightly to stop it from unravelling, then feed it into
the Inlet Guide (7) while pushing down on the red Pressure Roll Release But-
ton (10) then push the Welding Wire 75 mm (3 in.) out past the Swan Neck.
f) Fit the Spool Cover (5), Locking Screw (3), Contact Tip (2), and Nozzle (1) on
the Spool Torch.
g) Before you start welding, test the Pressure Arm force to the Drive Roll is sufficient to feed the
welding wire.
i. Connect MIG/MAG Spool Torch as per Section 4.03 then connect Power to the MIG/MAG
equipment.
ii. Point the Spool Torch at 60 degree and 100mm (4 in.) from a flat non-conductive material,
e.g. wood, on the floor.
iii. Depress Torch Trigger Switch (9) to feed Welding Wire on to the flat non-conductive ma-
terial, e.g. wood.
iv. If Welding Wire slips on the Drive Roll (Welding Wire does not feed constantly from
Torch) then adjust Pressure Arm Screw (8).
v. Rotate Pressure Arm Screw (8) using a screwdriver:
- Rotating in a clockwise direction reduces the Pressure Arm force to the Drive Roll. Re-
duced Pressure Arm force on the Drive Roll causes the Welding Wire to slip on the Drive
Roll and can produce an inconsistent welding.
- Counter-clockwise direction increases the Pressure Arm force to the Drive Roll. Increased
Pressure Arm force on the Drive Roll can cause the Welding Wire to deform producing
metal fragments which clogs the Liner in the Swan Neck and can produce poor wire feed-
ability.
4.05 SPOOL TORCH: How to Feed Welding Wire
MODEL: QLBF-200 III
a) Connect MIG/MAG Spool Torch as per Section 4.03 then fit the Welding Wire Spool as per
Section 4.04 for QLBF-200 III.
b) Remove Nozzle (1).
c) Remove Contact Tip (2).
d) Connect power to the MIG/MAG equipment.
e) Depress Torch Trigger Switch (9) to energizes welding power to drive Welding Wire thru the
Swan Neck.
f) Release Torch Trigger Switch (9) when Welding Wire emerges from the Swan Neck.
g) If Welding Wire slips on the Drive Roll (Welding Wire does not feed constantly from Torch)
then:
- Lift the Spool Cover (4) by pressing Press Button (10).
- Adjust the Pressure Arm Bolt (8), refer to Section 4.04 QLBF-200 III, clockwise to a point
where the Welding Wire is not slipping. DO NOT over tighten the Pressure Arm Bolt (8).
h) Close the Spool Cover (4).
i) Fit Contact Tip (2) and secure.
j) Fit Nozzle (1).
MODEL: QLBF-185
a) Connect MIG/MAG Spool Torch as per Section 4.03 then fit the Welding Wire Spool as per
Section 4.04 for QLBF-185.
b) Remove Nozzle (1).
c) Remove Contact Tip (2).
d) Connect power to the MIG/MAG equipment.
e) Depress Torch Trigger Switch (9) to energizes welding power to drive Welding Wire thru the
Swan Neck.
f) Release Torch Trigger Switch (9) when Welding Wire emerges from the Swan Neck.
g) If Welding Wire slips on the Drive Roll (Welding Wire does not feed constantly from Torch)
then adjust Pressure Arm Screw (8) in a counter-clockwise direction where the Welding
Wire is not slipping. DO NOT over tighten the Pressure Arm Screw (8).
h) Fit Contact Tip (2) and secure.
i) Fit Nozzle (1).

SPOOL TORCH: Installation and Operation
May 25, 2022 Page 15 User Manual No: OM-104A EN
4.05 SPOOL TORCH: How to Feed Welding Wire
MODEL: QLBF-24D and QLBF-36D
a) Connect MIG/MAG Spool Torch as per Section 4.03 then fit the Welding Wire Spool as per
Section 4.04 for QLBF-24D or QLBF-36D.
b) Remove Nozzle (1).
c) Remove Contact Tip (2).
d) Connect power to the MIG/MAG equipment.
e) Depress Torch Trigger Switch (9) to energizes welding power to drive Welding Wire thru the
Swan Neck.
f) Release Torch Trigger Switch (9) when Welding Wire emerges from the Swan Neck.
g) If Welding Wire slips on the Drive Roll (Welding Wire does not feed constantly from Torch)
then adjust Pressure Arm Screw (8) in a counter-clockwise direction where the Welding
Wire is not slipping. DO NOT over tighten the Pressure Arm Screw (8).
h) Fit Contact Tip (2) and secure.
i) Fit Nozzle (1).
4.06 SPOOL TORCH: Depress Torch Trigger Switch
MODEL: QLBF-200 III
MODEL: QLBF-185
MODEL: QLBF-24D and QLBF-36D
Torch Trigger Switch (9) –When depressed, the welding power is ener-
gized, Welding Wire (if fitted) is driven thru the Spool Swan Neck and
shielding gas flows (if gas is connected MIG/MAG equipment and turned
on) out of the Swan Neck.
DO NOT put Spool Torch near your ears or eyes when the
Torch Trigger (9) is depressed as Welding Wire will rapidly
exit the Contact Tip then the Nozzle and will cause serious to
your ears, eyes, or skin.
Touching Welding Wire when electrically alive may cause fatal
shocks or severe burns.
Always wear Safety glass when operating or near MIG/MAG
equipment.

SPOOL TORCH: Wear Parts & Torch Parts
May 25, 2022 Page 16 User Manual No: OM-104A EN
SECTION 5 –SPOOL TORCH: Wear Parts & Torch Parts
Torch installation must be
done by a suitably Trained
and Qualified Tradesperson.
Disconnect power to
MIG/MAG equipment. Elec-
tric shock can kill.
Flying metal or
dirt can injure
eyes.
FUMES and Shielding GAS can
be hazardous to your health.
Moving parts
can cause injury.
Welding wire
can cause in-
jury
Improper instal-
lation can cause
fire.
Read User
Manual.
Genuine JINAN NORTH WELDING TOOLS parts must be used for safety and performance reasons, or the warranty becomes invalid. In-
spect all parts for transportation damage. Do not use damaged or worn parts. Before starting the MIG/MAG equipment, check the whole
installation according to the manufacturer's instructions, this Manual and applicable national / state / local safety regulations.
5.01 SPOOL TORCH: Change Wear Parts
a) Disconnect power to MIG/MAG equipment.
b) Remove
--- Nozzle (1): Remove threaded nozzle by turning in a counter clock-
wise direction OR slide–on nozzle can be removed using a twisting
pull action.
--- Contact Tip (2): Cut Welding Wire (electrode) close to the Contact
Tip (2) and remove burrs before turning the Contact Tip (2) in a
counter clockwise direction.
--- Tip Holder (3): Remove using an appropriate tool.
--- Gas Diffuser (4): Remove using an appropriate tool.
--- Liner (6): Remove the Liner Nut (5), if fitted, by using an appropri-
ate wrench in a counter clockwise direction then pull the Liner (6)
out of the Swan Neck.
c) Replace
--- Liner (6): Fit the Liner in to the Swan Neck then secure the Liner
Nut (5), if fitted, by using an appropriate wrench in a clockwise di-
rection.
--- Gas Diffuser (4): Fit using an appropriate tool.
--- Tip Holder (3): Fit using an appropriate tool.
--- Contact Tip (2): Fit the contact tip turning the Contact Tip (2) in a
clockwise direction.
--- Nozzle (1): Fit the threaded nozzle by turning in a clockwise direc-
tion OR slide–on nozzle can be fitted using a twisting push action.
5.02 SPOOL TORCH: Nozzles, Contact Tips, Contact Tip Holders, Gas Diffusers, and Liners
Parts
NOZZLES
Disconnect

SPOOL TORCH: Wear Parts & Torch Parts
May 25, 2022 Page 17 User Manual No: OM-104A EN
5.02 SPOOL TORCH: Nozzles, Contact Tips, Contact Tip Holders, Gas Diffusers, and Liners
Parts
CONTACT TIPS
CONTACT TIPS HOLDERS
M8X1-LH

SPOOL TORCH: Wear Parts & Torch Parts
May 25, 2022 Page 18 User Manual No: OM-104A EN

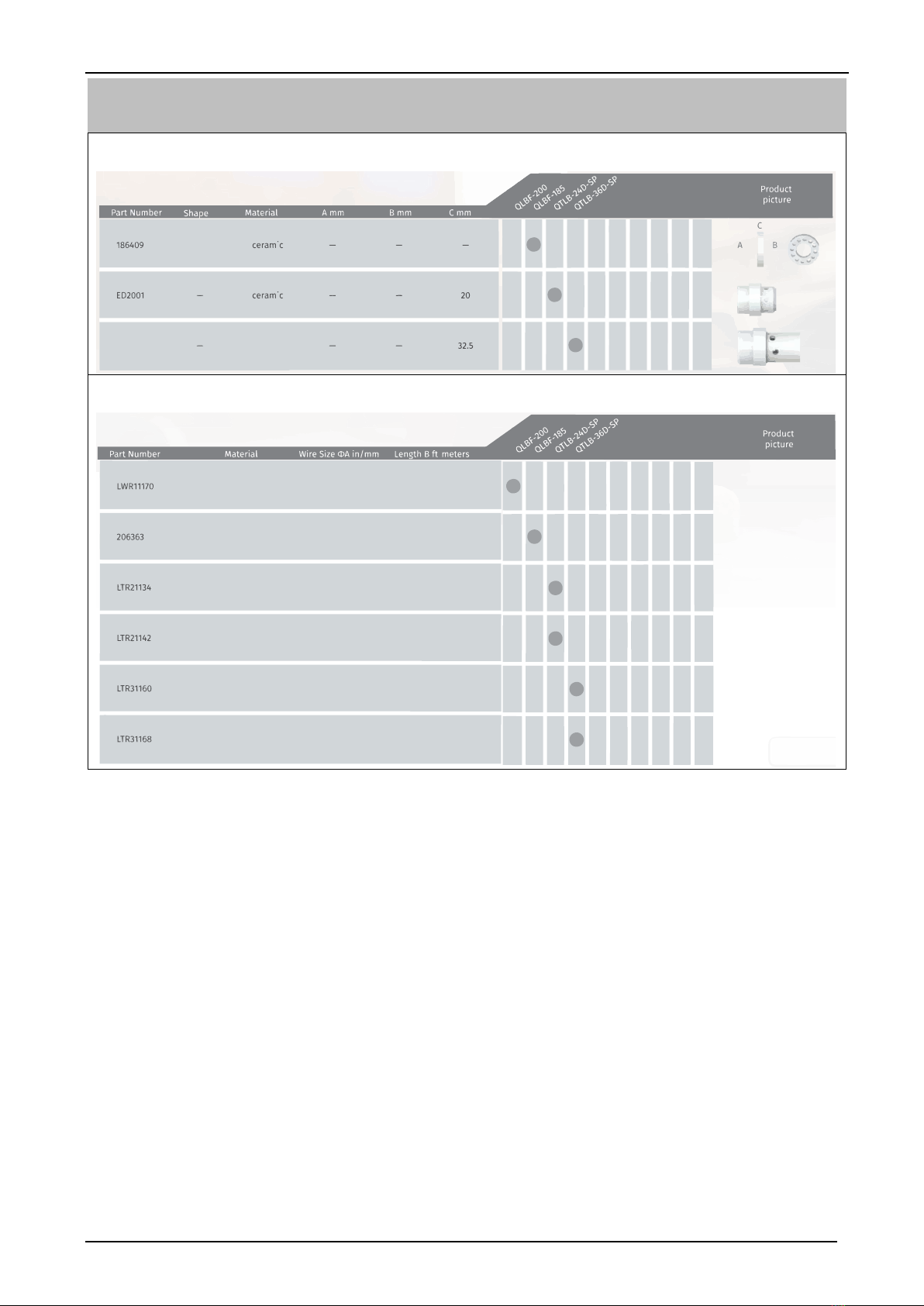

5.02 SPOOL TORCH: Nozzles, Contact Tips, Contact Tip Holders, Gas Diffusers, and Liners
Parts
GAS DIFFUSERS
LINERS
ED3002 DMC

SPOOL TORCH: Wear Parts & Torch Parts
May 25, 2022 Page 19 User Manual No: OM-104A EN
5.03 SPOOL TORCH QLBF-200 III: Change Pressure Roll / Drive Roll
CHANGE Drive Roll (5)
a) Disconnect Power to the MIG/MAG equipment.
b) Press Button to lift the Spool Cover up to expose the
Wire Drive Mechanism.
c) Remove the Welding Wire Spool by:
K) Hold Wire against the Spool.
L) Cut Wire between the Spool & Inlet Guide.
M) Put Cut Wire End from Spool into hole.
N) Unscrew the Locking Screw.
O) Pull the Welding Wire End out of the Swan Neck.
d) Rotate the Pressure Arm Bolt (8) counter-clockwise to
release the tension on the Pressure Arm Assy.
e) Remove the Pressure Arm Assy by removing Circlip (1)
using a suitable tool.
f) Unscrew Allen Key Grub Screw (6) then slide Drive Roll
(5) off the Drive Shaft.
g) Fit a new Drive Roll (5) then re-assemble the Spool
Torch.
CHANGE Pressure Roll (4)
a) Disconnect Power to the MIG/MAG equipment.
b) Press Button to lift the Spool Cover up to expose the
Wire Drive Mechanism.
c) Remove the Welding Wire Spool by:
K) Hold Wire against the Spool.
L) Cut Wire between the Spool & Inlet Guide.
M) Put Cut Wire End from Spool into hole.
N) Unscrew the Locking Screw.
O) Pull the Welding Wire End out of the Swan Neck.
d) Rotate the Pressure Arm Bolt (8) counter-clockwise to
release the tension on the Pressure Roll Bearing (4).
e) Remove the Pressure Arm Assy by removing Circlip (1)
using a suitable tool.
f) Remove the Circlip (2) using a suitable tool.
g) Remove the Roll Shaft (3) then slide out the Pressure
Roll (4).
h) Fit a new Pressure Roll (4) then re-assemble the Spool
Torch.

SPOOL TORCH: Wear Parts & Torch Parts
May 25, 2022 Page 20 User Manual No: OM-104A EN
5.04 SPOOL TORCH QLBF-185: Change Pressure Roll / Drive Roll
CHANGE Drive Roll (8)
a) Disconnect Power to the MIG/MAG equipment.
b) Unscrew Handle Nut (1), and 3 x Handle Screws (2).
c) Wiggle the Handle Half (3) away from the Spool Torch.
d) Unscrew and remove Screw (4) and Washer (5) from the Drive Shaft.
e) Push down on the red Pressure Roll Release Button (10) then slide the
Drive Roll (8) off the Drive Shaft. Do NOT lose the Drive Key (9).
f) Fit a new Drive Roll (8) and then re-assemble the Spool Torch.
Note: Ensure the Drive Key (9) is fitted into the slot of the Drive Shaft
then line up the slot in the Drive Roll (8) with the Drive Key (9).
CHANGE Pressure Roll (6)
a) Disconnect Power to the MIG/MAG equipment.
b) Unscrew Handle Nut (1), and 3 x Handle Screws (2).
c) Wiggle the Handle Half (3) away from the Spool Torch.
d) Push down on the red Pressure Roll Release Button (10) then unscrew
the Screw (4) to remove the Washer (5), Pressure Roll (6), and Bear-
ing (7) from the Pressure Mechanism. Do NOT lose the Bearing (7).
e) Fit a new Pressure Roll (6) and then re-assemble the Spool Torch.
5.05 SPOOL TORCH QTLB-24D / QTLB-36D: Change Pressure Roll / Drive Roll
CHANGE Drive Roll (8)
a) Disconnect Power to the MIG/MAG equipment.
b) Unscrew Handle Nut (1), and 3 x Handle Screws (2).
c) Wiggle the Handle Half (3) away from the Spool Torch.
d) Unscrew and remove Screw (4) and Washer (5) from the Drive Shaft.
e) Push down on the red Pressure Roll Release Button (10) then slide the
Drive Roll (8) off the Drive Shaft. Do NOT lose the Drive Key (9).
f) Fit a new Drive Roll (8) and then re-assemble the Spool Torch.
Note: Ensure the Drive Key (9) is fitted into the slot of the Drive Shaft
then line up the slot in the Drive Roll (8) with the Drive Key (9).
CHANGE Pressure Roll (6)
a) Disconnect Power to the MIG/MAG equipment.
b) Unscrew Handle Nut (1), and 3 x Handle Screws (2).
c) Wiggle the Handle Half (3) away from the Spool Torch.
d) Push down on the red Pressure Roll Release Button (10) then unscrew
the Screw (4) to remove the Washer (5), Pressure Roll (6), and Bear-
ing (7) from the Pressure Mechanism. Do NOT lose the Bearing (7).
e) Fit a new Pressure Roll (6) and then re-assemble the Spool Torch.
(2)
(3)
(4)
(5)
(8)
(9)
(10)
(1)
Drive Shaft
(2)
(3)
(4)
(5)
(6)
(10)
(1)
(7)
Pressure
Mechanism
