Northern Lights Fitness CBFTHILO150 User manual

Keep This For Warranty
CBFTHILO150
LOT:
1-866-420-4560
Northern Lights Fitness
Products Inc.
MADE IN CANADA
Specification
Weight=224 lbs
Packed in 4 Boxes
Box 1 :70" x10.75"x5.75"
:74 Lbs
Box 2,3&4 :(each)50 Lbs
NL CROSS BOX SINGLE FT HI/LO ATTACHMENT,150 LBS
ASSEMBLY INSTRUCTIONS
NL CROSS BOX SINGLE FT HI/LO ATTACHMENT,150 LBS
CBFTHILO150
OVERALL DIMENSIONS: 30"L X 7-1/2"W X 82"H
23 SEPTEMBER 2019

1
4
BOLT SIZE
1
2
1
3
4
1-1
4
2
1-1
2
1-3
4
2-1
4
3
2-1
2
2-3
4
3-1
4
4
3-1
2
3-3
4
4-1
4
5
4-1
2
4-3
4
5-1
4
6
5-1
2
5-3
4
6-1
4
7
6-1
2
6-3
4

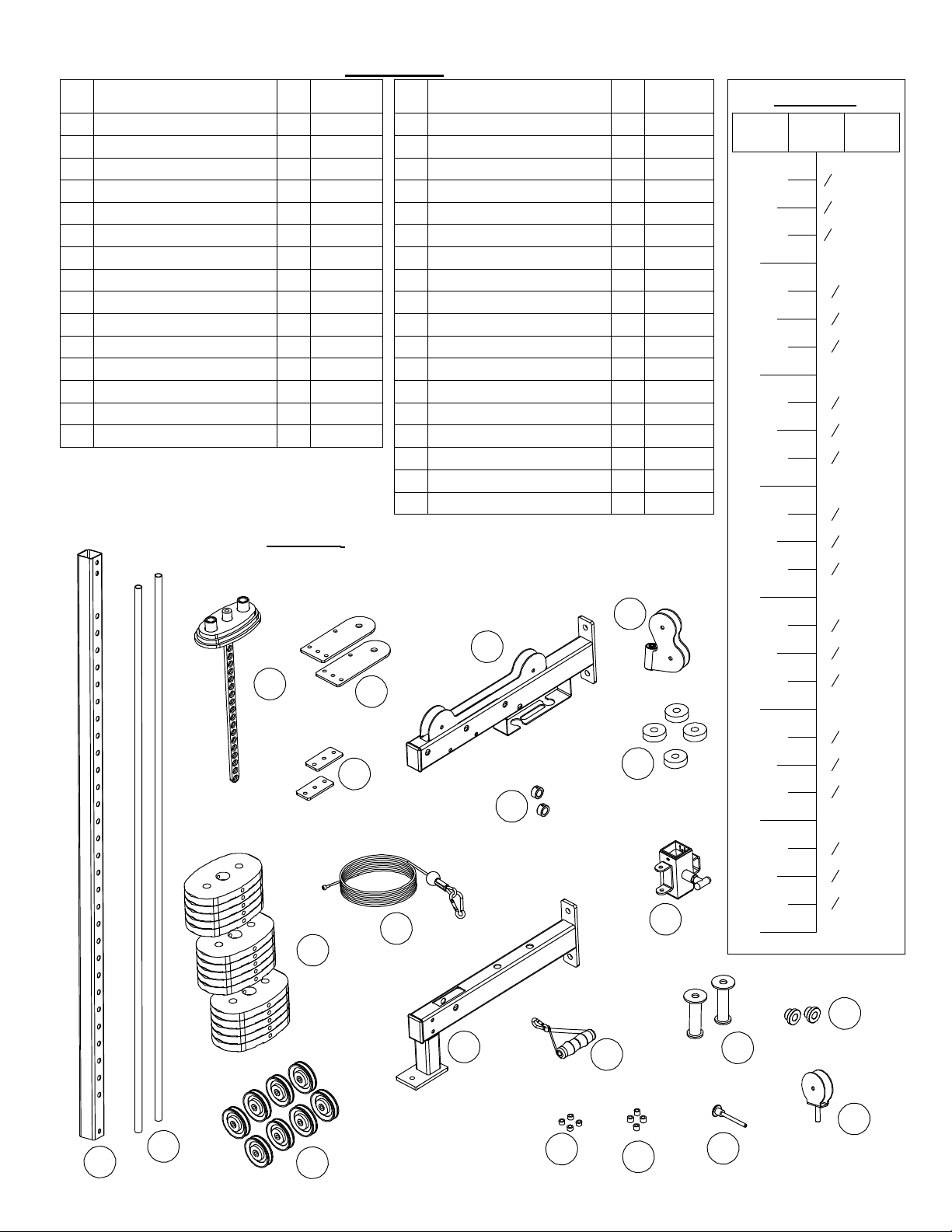

Parts List
Page:-2 of 6
2
6
L
AA
11 4
3
1
9
8
R
13
7
K
J
10
P
12
AB
5
Q
WARNING: To reduce the risk of personal injury or damage.
We recommend bolting your equipment in place.
Holes have been provided for this purpose.
Item
No Part QTY. Box/Bag#
A 3/8" x 1-3/4" Bolt 3 Bag 1
B 3/8" x 2" Bolt 2 Bag 1
C 3/8" x 2-3/4" Bolt 2 Bag 1
D 3/8" x 3-1/4" Bolt 8 Bag 1
E 3/8" x 3-3/4" Bolt 1 Bag 1
F 5/8" X 5-1/2" Bolt Full Thread 4 Bag 1
G 3/8" Thin Locknut 2 Bag 1
H 3/8" Lock nut 14 Bag 1
I 3/8" Plate Washer 24 Bag 1
J 3/8" x 3/8"Lg Nylon Spacer 4 Box 1
K 3/8" x 1/2"Lg Nylon Spacer 4 Bag 1
L 3-1/2" Pulley 8 Bag 2
M 1/2" Jam Nut 1 Bag 1
N 5/8" Lock nut 4 Bag 1
O 5/8" Plate Washer 8 Bag 1
P Cable Handle with Carabiner 1 Bag 2
Q Guide Rod Retainer 2 Bag 2
R Selector pin 1 Bag 2
Both Bags are packed in Box #1
Item
No Part QTY. Box/Bag#
1 Top Beam 1 Box 1
2 Upright 1 Box 1
3 Upright Bottom Bracket 2 Box 1
4 Upright Top Bracket 2 Box 1
5 Floor Brace 1 Box1
6 Guide Rods 2 Box 1
7 Weight Stack support 2 Box 1
8 Rubber Bumpers 4 Bag 2
9 Shaft Collar 2 Bag 2
10 Pulley Bracket 1 Box 1
11 Weight Stack selector 1 Box 1
12 Pulley Swivel 1 Box 1
13 Adjustable Pulley Bracket 1 Box 1
AA Weight Inspire style (set of 5) 3 Box 2,3&4
AB Pulley Cable W Carabiner 1 Bag 2

H
4
J
I
1
L
B
C
K
J
4
D
B
G
A
L
12
E
H
L
K
C
K
L
KH
I
3 5
D
3
2
13
One 3
8" x 1 2" Nylon Spacer (K) on
each side of this pulley (L)
4 pulleys
***IMPORTANT:-
SLIDE ADJUSTABLE PULLEY
BRACKET (Item 13) ON TO
UPRIGHT (Item 2) PRIOR TO
ATTACHING TOP BEAM***
Note:- To be removed and reinstalled
at the time of cable routing to get the
cable around the Pulley(L)- Full tight
after cable routing
One 3
8" x 1 2" Nylon Spacer (K) on
each side of this pulley (L)
Attach to rack for
support prior to installing
weight stack using
5/8" x 5.5L bolt (item F)
Attach to rack for
support prior to installing
weight stack using
5/8" x 5.5L bolt (item F)
Page:-3 of 6

Page:-4 of 6
Q
9
L
H
10
A
M
11
6
AA
R
8
7
Attach to rack using
item F (5/8" x 5.5"L Bolt)
for support prior to installing
weight stack
Attach to rack using
item F (5/8" x 5.5"L Bolt)
for support prior to installing
weight stack
Note:- Pulley(L)need to be removed
and reinstalled at the time of cable
routing to get the cable around the
Pulley(L)- Full tight after cable routing
1. Place 2x Rubber Bumpers (8) over the holes in Base Assembly (5) and slide Guide Rods (6) into them.
NOTE: For improved performance, we recommend you apply a silicone lubricant to the Guide Rods
prior to their installation .
2. Leaning Guide Rods (6) toward you, slide fifteen 15 x Weight Stack (AA) & Selector Shaft (11) onto
the Guide Rods (6) as shown.
3. Slide the Shaft Collars (9) and then the Guide Rod Retainers (Q) onto the Guide Rods(6) as shown.
4. Positon the Guide Rods(6) in the Top Beam(1) and then slide the Guide Rod Retainers (Q) up the
Guide Rods (6) until they rest against the Guide Rod Brackets. Tighten the Set Screw in the Shaft Collars (9).
5
1

Page:-5 of 6
P
1
23
5
6
4
7
8
START
FINISH
Pulley Cable
W Carabiner
Note:- Pulley(L) to be removed
and reinstalled to get the cable
around the Pulley(L)
AB
F
O
N

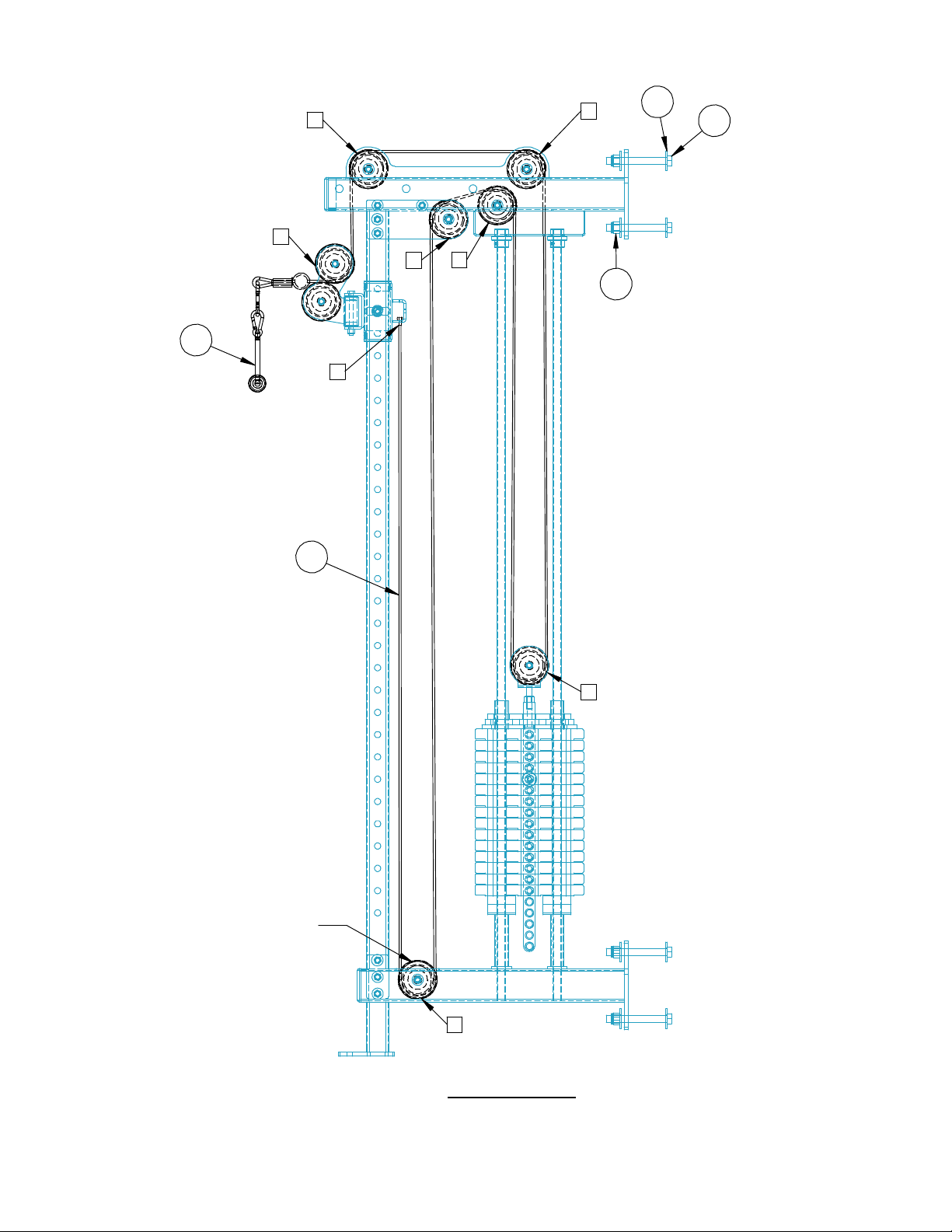

Cable Routing

NORTHERN LIGHTS
FITNESS PRODUCTS INC.
Dear Customer:
Thank you for selecting Northern Lights Exercise
Equipment. We hope that you will enjoy and
benefit from your new fitness product for years to
come. If you have any questions regarding your
new equipment or would like to find out what
other products are available to add to your
workout, feel free to contact the authorized
Northern Lights showroom in your area.
WARRANTY
Manufacturer’s Limited Lifetime Warranty
Northern Lights Fitness Products Inc. offers its
customers a lifetime warranty against broken
welds and manufacturer defects on all products.
Simply return the defective part, insured and
prepaid to Northern Lights and we will replace it
at no charge. This warranty is for original product
owners and does not cover damage resulting
from product alterations, misuse, abuse,
improper assembly, normal wear and tear or
other conditions, which are beyond our control.
No other express warranty has been made or
will be made on behalf of Northern Lights with
respect to any Northern Lights product or the
operation, repair or replacement of any Northern
Lights product. Northern Lights shall not be
responsible for injury, loss of use of the product,
inconvenience, loss or damage to personal
property, whether direct or indirect. This
warranty does not include any implied warranties
or liability for incidental or consequential
damages created by any provincial or state law.
If you feel that a Northern Lights product is
defective, please contact our parts department at
[phone].
IMPORTANT
Be sure to have all pull-pins locked
and tightened in place, BEFORE
using your equipment.
NORTHERN LIGHTS
FITNESS PRODUCTS INC.
Cher Client:
Merci d’avoir sélectionneé un produit Northern
Lights. Nous espérons que vous aimerez et
bénéficierez de votre nouveau produit pour des
années à venir. Si vous avez des questions
concernant votre nouveau produit ou si vous
aimeriez trouver d’autres produits disponible de
Northern Lights, contactez un détaillant autorisé
Northern Lights.
La GARANTIE
Garantie à Vie Limitée du Fabricant
Northern Lights Fitness Products Inc. offre à ses
clients une garantie à vie contre toutes soudures
casées et contre tout défaut de matériau et de
fabrication dans le cadre d’un entretien soigneux
et d’une utilisation conforme à l’usage prévu
réalisée dans des conditions normales.
Simplement, retrournez la pièce défectueuse à
Northern Lights, payé et ensuré, et nous la
remplacerons sans frais. Cette garantie s’étend
uniquement au propriétraire d’origine seulement
et n’est pas transferable. Elle ne couvre pas les
produits soumis à une mauvaise utilisation, à un
manque de soins, à des accidents, à des
réparations ou à des modifications non
autorisées. Aucune autre garantie n’a été faite ou
sera faite de la part de Northern Lights en ce qui
concerne tout produit de Northern Lights ou son
opération, réparation ou échange. Northern
Lights ne sera pas responsable pour blessure,
perte d’usage du produit, dérangement, perte ou
dommage de propriété personnelle, direct ou
indirect. Cette garantie n’inclut pas toutes autres
garanties implicites pour incidents ou dommages
conséquents créés par les lois provincial ou les
lois d’état. Si un produit de Northern Lights est
défectueux, s’il vous plait contactez notre
département de Pièces et Service au (866) 420-
4560
IMPORTANT
Etre sûr d’avoir toutes les
forceépingles fermées à clef et
resserrées à sa place, avant
d’utiliser votre équipement.
Page:-6 of 6
