3-WHEELED GARDEN WAGON
OWNER’S MANUAL
WARNING:
Read carefully and understand all INSTRUCTIONS before
operating. Failure to follow the safety rules and other basic
safety precautions may result in serious personal injury.
Item # 188243

Page of 6
2
Thank you very much for choosing a NORTHERN TOOL + EQUIPMENT CO., INC. Product! For
future reference, please complete the owner’s record below:
Model: _______________ Purchase Date: _______________
Save the receipt, warranty and these instructions. It is important that you read the entire manual
to become familiar with this product before you begin using it.
This machine is designed for certain applications only. Northern Tool + Equipment cannot be
responsible for issues arising from modification. We strongly recommend this machine not be
modified and/or used for any application other than that for which it was designed. If you have
any questions relative to a particular application, DO NOT use the machine until you have first
contacted Northern Tool + Equipment to determine if it can or should be performed on the
product.
For technical questions please call 1-800-222-5381.
INTENDED USE
This sturdy Cart has a unique single-wheel design for superior stability and complete
maneuverability. All-steel construction, a powder-coat finish, steel ball-bearing wheels, 10in.
pneumatic tires and an expanded metal deck allow it to handle payloads up to 350 lbs.
TECHNICAL SPECIFICATIONS
Item
Description
Capacity
350 lbs.
Tires
10in. Pneumatic
Body Size
48in. x 24in.
GENERAL SAFETY RULES
WARNING: Read and understand all instructions. Failure to follow all instructions
listed below may result in serious injury.
CAUTION: Do not allow persons to operate or assemble this cart until they have
read this manual and have developed a thorough understanding of how it works.
WARNING: The warnings, cautions, and instructions discussed in this owner's
manual cannot cover all possible conditions or situations that could occur. It must be
understood by the operator that common sense and caution are factors, which cannot be built
into this product, but must be supplied by the operator.
SAVE THESE INSTRUCTIONS.

Page of 6
3
WORK AREA
·Keep the work area clean, free of clutter and well lit. Cluttered and dark work areas can
cause accidents.
·Keep children and bystanders away while operating this cart. Distractions can cause you to
lose control, so visitors should remain at a safe distance from the work area. The Wagon is
not a toy and should not be used as such by children.
·Be aware of all power lines, electrical circuits, water pipes and other mechanical hazards in
your work area, particularly those hazards below the work surface hidden from the
operator’s view that may be unintentionally contacted and may cause personal harm or
property damage.
PERSONAL SAFETY
·Stay alert. Watch what you are doing and use common sense when using the Wagon. Do
not use the Wagon while you are tired or under the influence of drugs, alcohol or medication.
A moment of inattentiveness while operating the Wagon may result in serious personal
injury.
·Dress properly. Do not wear loose clothing, dangling objects, or jewelry. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be
caught in moving parts.
·Use safety apparel and equipment. Use safety goggles or safety glasses with side shields
which comply with current national standards, or when needed, a face shield. Use a dust
mask in dusty work conditions. This applies to all persons in the work area. Also wear
non-skid safety shoes, a hardhat and gloves. Use a dust collection system and hearing
protection when appropriate.
USE AND CARE
·Do not modify the Cart in any way. Unauthorized modification may impair the function and/or
safety and could affect the life of the equipment. There are specific applications for which
the Cart was designed.
·Always check for damaged or worn out parts before using the Cart. Broken parts will affect
the Cart’s operation. Replace or repair damaged or worn parts immediately.
·Do not exceed the load capacity of the Cart. Always block the wheels when loading or
unloading.
·Distribute the load evenly. This is especially important when loading and unloading the cart.
Uneven loads may cause the Cart to tip, resulting in personal injury to the operator or
others.
·Use the Cart on flat and level surfaces capable of supporting the maximum load capacity.
Pulling or pushing a load on a slanted or uneven surface can result in a loss of control.
·Store the cart in a secure place out of the reach of children when not in use. Make sure the
Cart is in good working condition prior to storage and before each re-use.
·Do not stand or ride on Cart. The Cart should not be used to haul people or animals.

Page of 6
4
WARNING: Make sure the tires are inflated to 30 PSI, the pressure indicated on the tire
sidewall. Do not over inflate: Use a hand pump only. A high-pressure air hose can easily overfill
the tires resulting in an explosion and possible injury.
MAINTENANCE
•Maintain your Cart. It is recommended that the general condition of the Cart be examined
before it is used. Keep your Cart in good working order by adopting a program of conscientious
repair and maintenance. If any abnormal vibrations or noise occurs, have the problem corrected
before further use. Have all necessary repairs made by a qualified service professional.

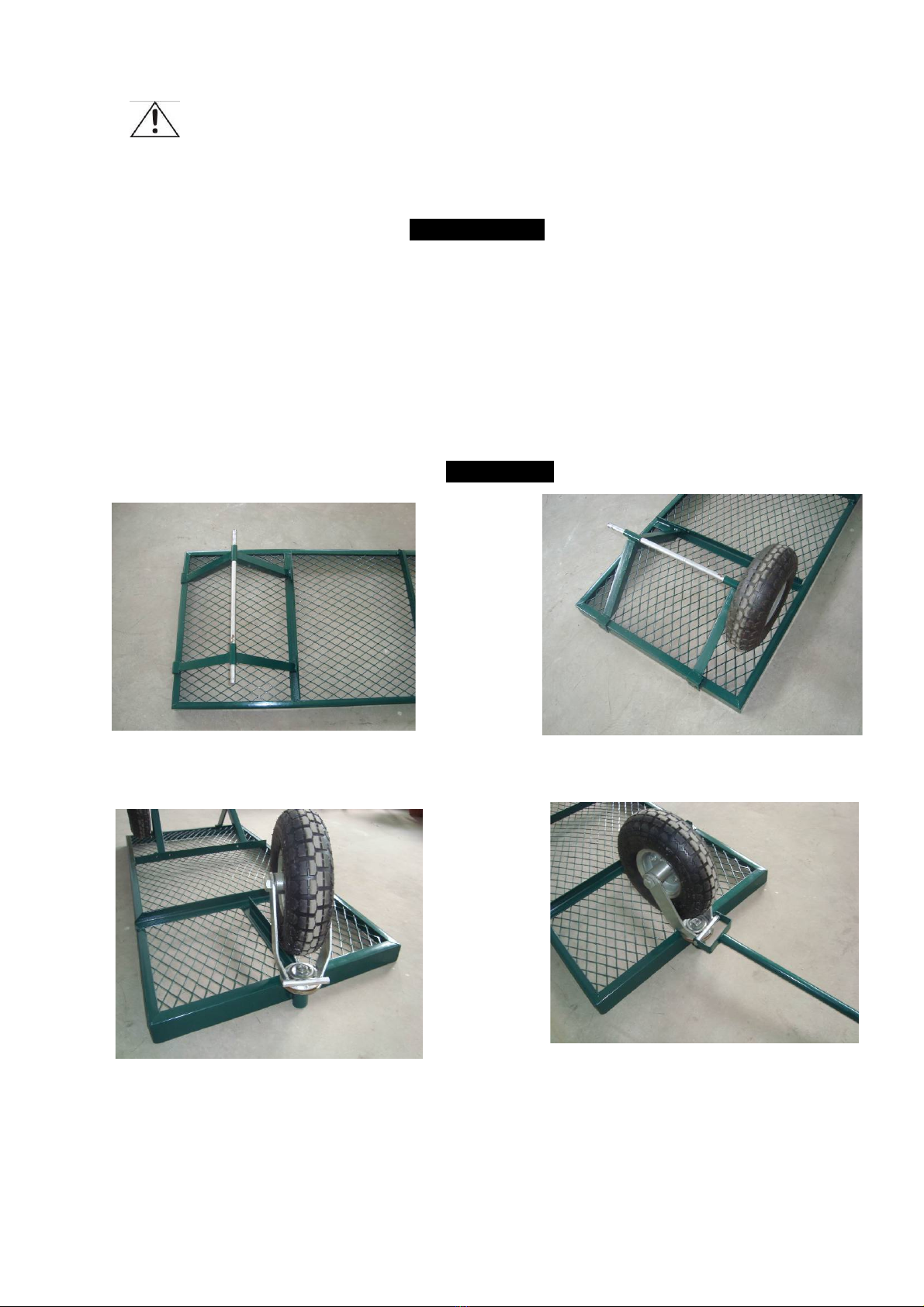

ASSEMBLY
Step
1
Step
2
Step
3
Step
4

Page of 6
5

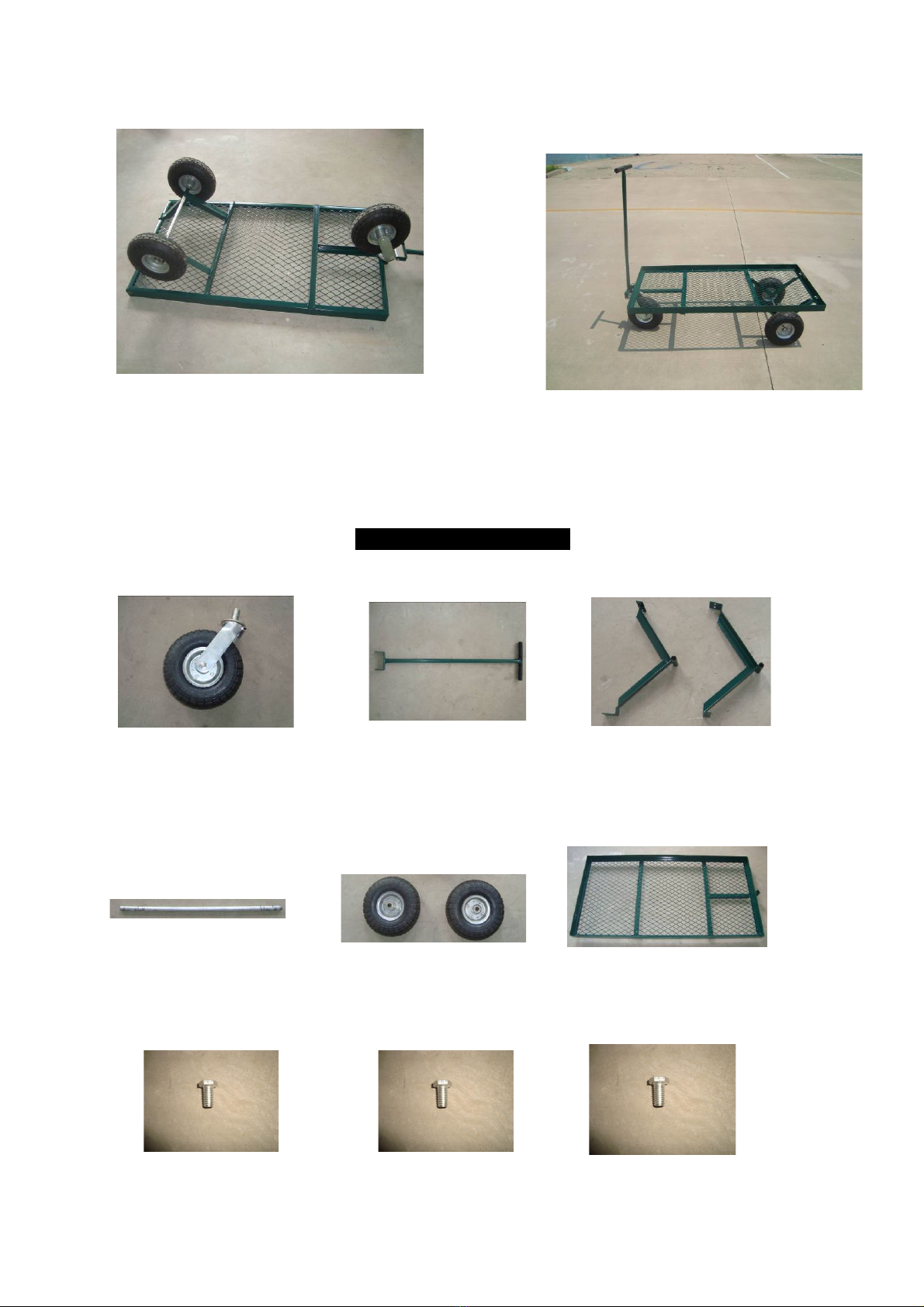

Step
5
Step
6
DIAGRAM & PARTS LIST
1# Castor (1pc)
2# Handle (1pc)
3# Rear Axle Strut ( 2pcs)
4# Axle (1pc)
5# Wheel (2pcs)
6# Steel Mesh Bed (1pc)

Page of 6
6

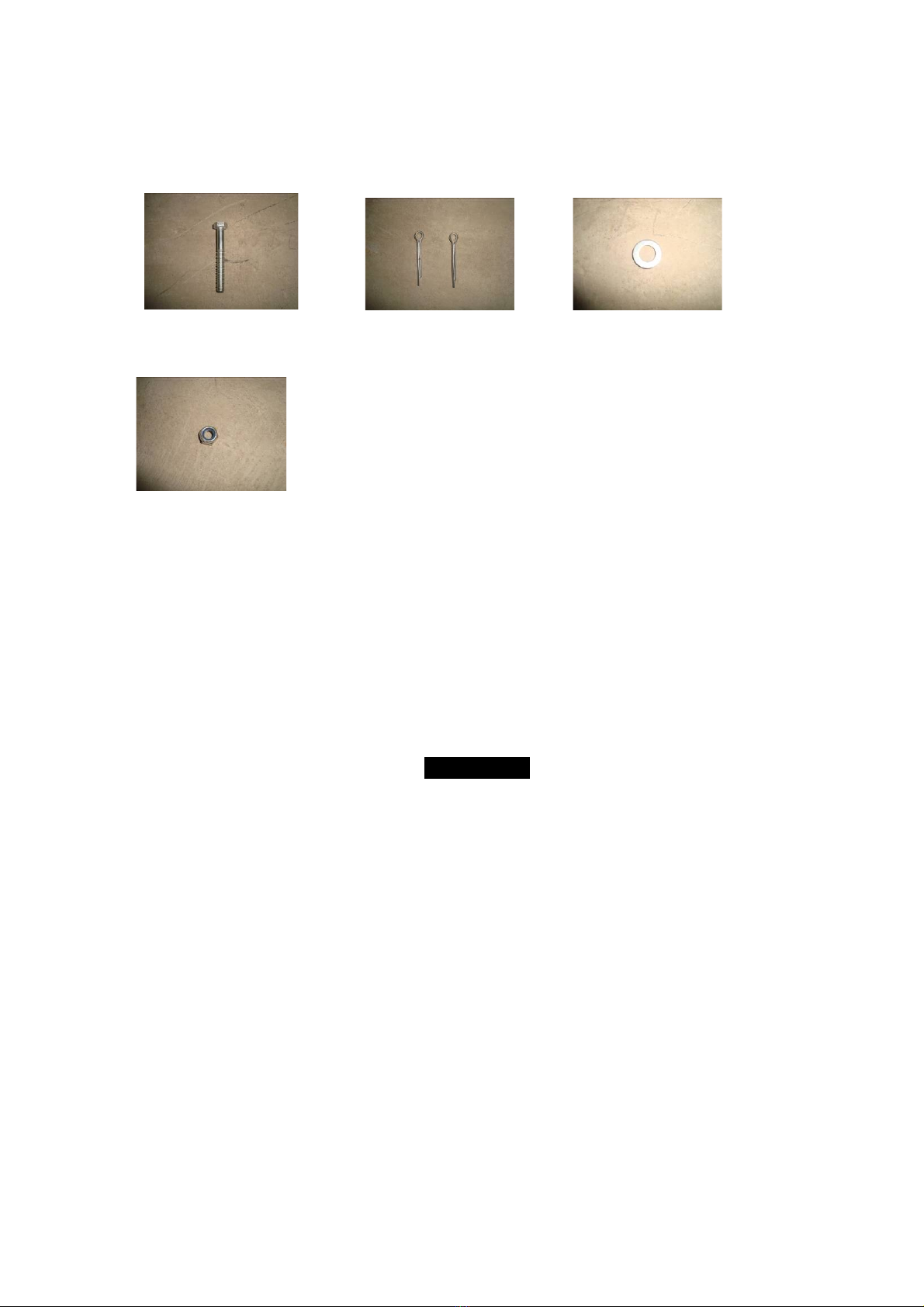

7# Hex Bolt for Strut M8x20
(4pcs)
8# Hex Bolt for Strut
M8x15 (4pcs)
9# Hex Bolt for Handle and
Nut M8x40 (1 pc)
10# Hex Bolt for Strut
M8X110 (1pc)
11# Cotter Pin M3*30
(2pcs)
12# Flat Washer for Wheel
16mm (2pcs)
13# Lock Nut M8 (10pcs)
For replacement parts and technical questions, please call 1-800-222-5381.
WARRANTY
One-Year Limited Warranty
Distributed by
Northern Tool + Equipment Co., Inc.
Burnsville, Minnesota 55306-6936
Made in China
