Northwest 80-2000A-36 User manual

ELECTRIC FIREPLACE
INSTALLATION AND OPERATING INSTRUCTIONS
Model:80-2000A-36,80-2000A-42,80-2000A-54
IMPORTANT INSTRUCTIONS
When using electrical heaters, basic precautions should always
be followed to reduce the risk of fire, electric shock and injury to
persons, including the following:
1. Read all instructions before using this heater.
2. Keep combustible materials, such as furniture, pillows,
bedding, papers, clothes and curtains at least 3 feet from front of
heater and keep them away from sides and rear.
Read these instructions completely first before
installing and using . Failure to follow them could cause
a heater malfunction resulting in serious injury and/or
property damage.
WARNING: All electric heaters have hot inside. Do
not use it in areas where gasoline, paint or flammable
liquids/vapors are or are stored.
Retain this manual for future reference
CAUTION: Do not expose the heater to the
elements (such as rain, etc).
CAUTION: The fireplace in
Due to high temperatures, the heater should be located
out of traffic and away from furniture and draperies.
Do not place clothing or other flammable material on or
near heater. Never place any objects on the heater.
Carefully supervise young children when they are in the
room with the heater.
Heater becomes very hot when running. Keep children
and adults away from hot surfaces to avoid burns or
clothing ignition. Heater will remain hot for a time after
shutdown. Allow surfaces to cool before touching.
WARNING: Electric heaters are hot inside. Do not
use it in areas where gasoline, paint or flammable
liquids/vapors are or stored.

3. Always unplug heater when not in use.
4. Do not operate any heater with a damaged cord or plug or after
heater malfunctions, has been dropped or damaged in any way.
5. Do not use outdoors.
6. This heater is not intended for use in bathrooms, laundry areas
and similar indoor locations. Never locate heater where it may
fall into a bathtub or other water container.
7. Do not run cord under carpeting. Do not cover cord with throw
rugs, runners or the like. Arrange cord away from traffic area and
where it will not be tripped over.
8. To disconnect heater, turn controls to "OFF" before removing
plug from outlet.
9. Do not insert or allow foreign objects to enter any ventilation
or exhaust opening as this may cause an electric shock or fire or
damage the heater.
10. To prevent possible fire, do not block air intakes in any
manner.
11. Use this heater only as described in this manual. Any other
use is not recommended by the manufacturer which may cause
fire, electric shock or injury to people and/or animals.
12. Always use properly grounded fused and polarized outlets.
13.Always use ground fault protection where required by
electrical codes.
14. Always disconnect power before performing any cleaning,
maintenance or relocation of heater.
15. Always plug heaters directly into a wall outlet/receptacle.
Never use with an extension cord or relocatable power tap
(outlet/power strip).
16. To prevent a possible fire, do not burn wood or other
materials in this heater.
17. To prevent electric shock or fire, always use a certified
electrician should new circuits or outlets be required.
18. When transporting or storing heater, keep in a dry place free
from excessive vibration and damage.
19. The heater must not cover up an electrical socket; the socket
must always be accessible in order to disconnect the heater from
the electrical supply for maintenance and cleaning.
20. This heater must be grounded. The main supply must be
Safely routed from the heater to an electrical socket.
Note: When the heater is turned on for the first time, it may
release a slight, harmless odor or smoke. This odor or smoke is a
normal occurrence caused by the initial heating of the internal
heating elements and should not occur again.
SAVE THESE INSTRUCTIONS
Technical Specification
Description of product
ELECTRIC FIREPLACE
Model
80-2000A-36,80-2000A-42,80-2000A-54
Rated Voltage
120V~
Rated Frequency
60 Hz
Rated Power
1500W
Lamp
LED
Unpacking and Testing
1. Carefully remove the unit from the box. Prior to using the unit,
test to make sure the unit operates properly. Plug the unit's
power supply cord into a conveniently located 120volt
grounded

outlet. Check to see the unit turns on and produces function.

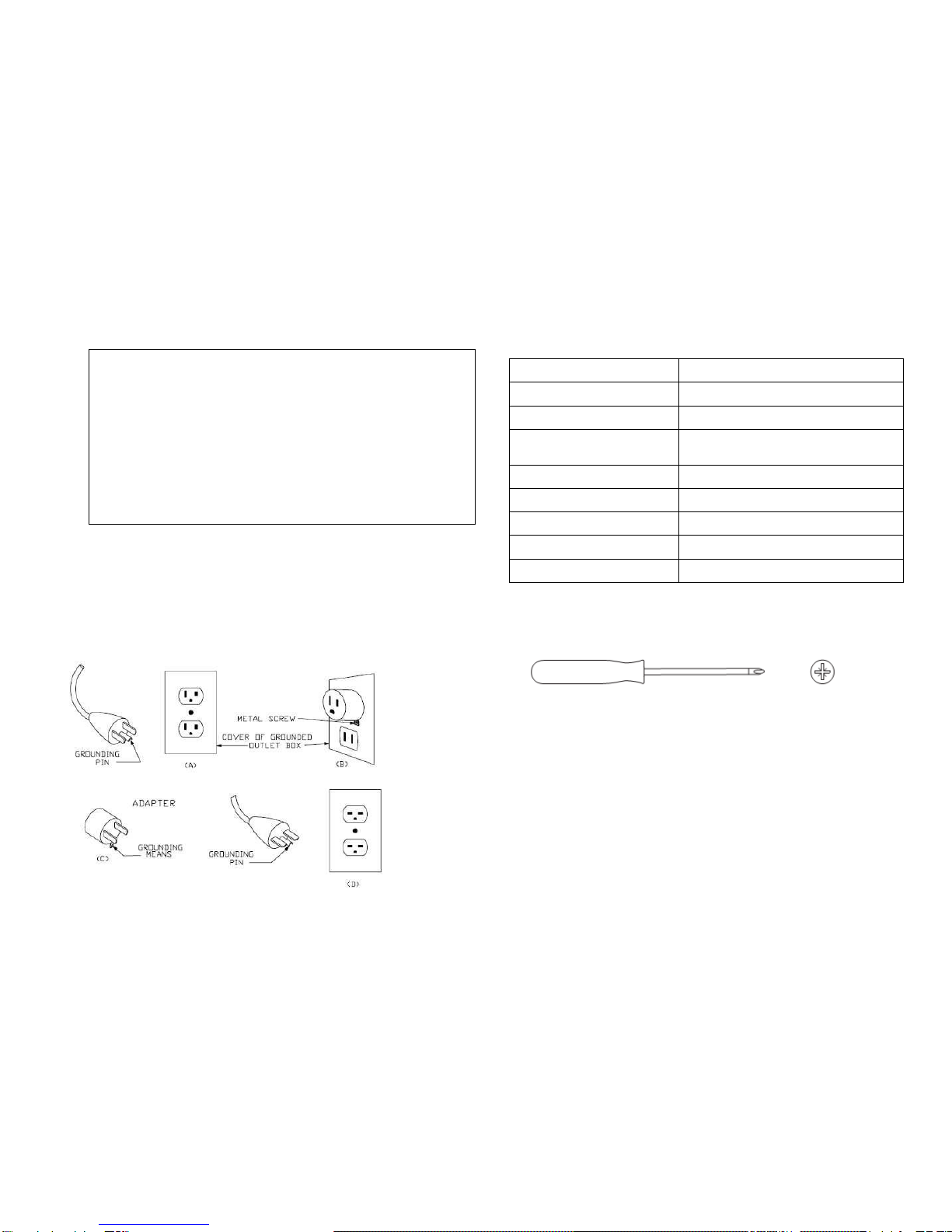

2. This heater is for use on 120 volts. The cord has a plug as
shown at A in below Figure. An adapter as shown at C is
available for connecting three-blade grounding-type plugs to
two-slot receptacles. The green grounding lug extending from
the adapter must be connected to a permanent ground such as a
properly grounded outlet box. The adapter should not be used if
a three-slot grounded receptacle is available.
Parts and hardware
Part
Quantity
Remote Control
1
Manual
1
Fixing Hanger(In the back of
the fire)
1
Fixing Bracket
1
Crystals
1or 2(80-2000A-54)
Screw ST4*8
1
Screw ST4*40
5
Plastic expansion
5
Tool required
Magnetic Phillips Screw Driver
WARNING: Do not operate the unit if it is damaged or has
malfunctioned. If you suspect the unit is damaged, please
contact customer service.
The appliance is employed a manually reset thermal cut-out
for safeguard, if it operates, please inspect for any
objects,on or adjacent to the heater ,which may cause high
temperatures.DO NOT OPERATE THE HEATER UNTIL
TROUBLESHOOTING . Reset switch by turning main power
switch off and waiting 5 to 10 minutes then turning it back
on.

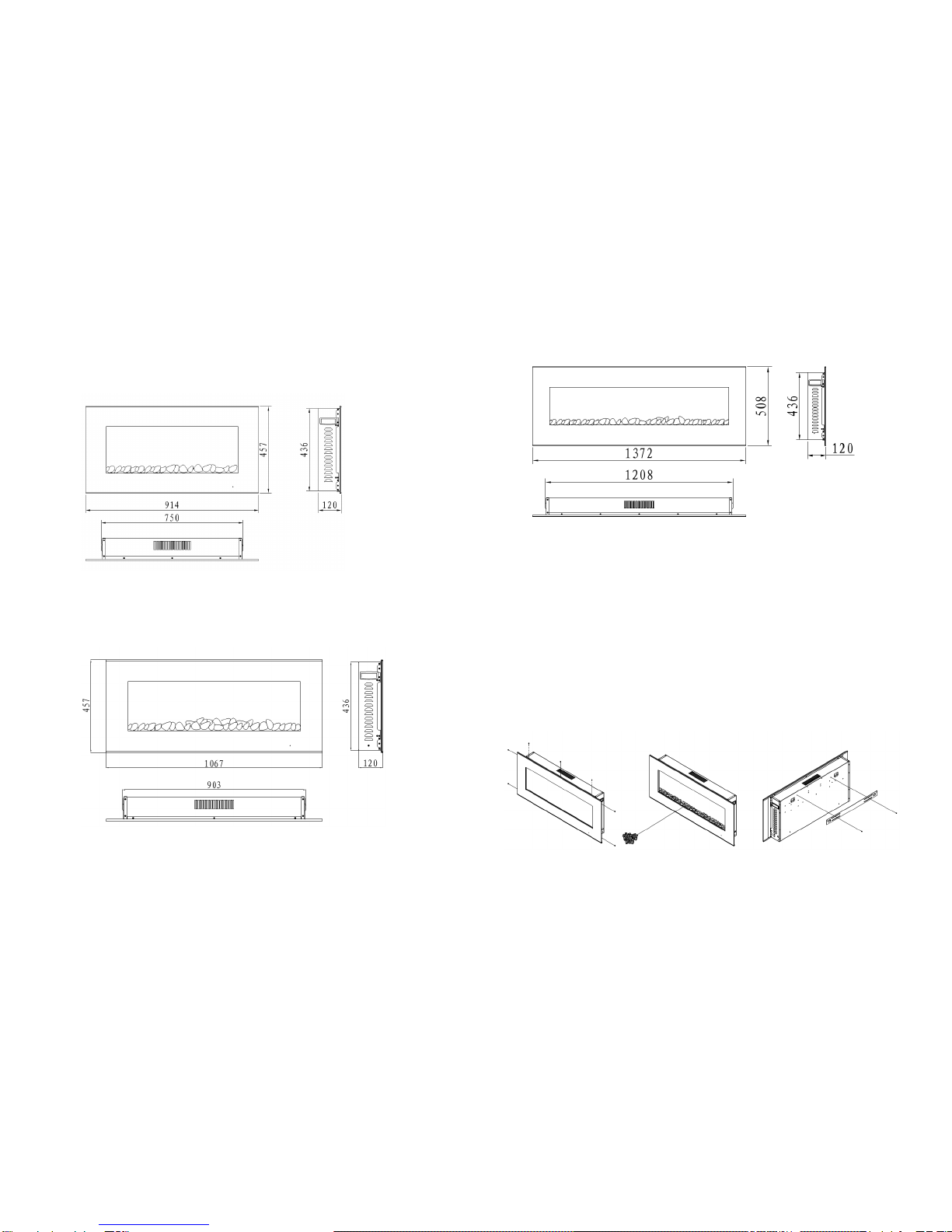

Product Dimensions
Unit:mm 80-2000A-36
80-2000A-42
80-2000A-54
Before Assembly
Before you assemble your fireplace, you should put the crystals
on the ember.
Please following below :
1) Put the fireplace on flat floor with the front glass panel on top position.
2) Use screwdriver(not supplied) to loosen the 7or 9 screws
as Fig A, and remove the glass panel.
3) Put the craystals gently on the ember,as Fig B.
4) Tighten the glass panel with the 7 or 9 screws tightly.
5) Use screwdriver(not supplied) to loosen the 2 screws as Fig C, and
remove the hanger.
Fig A Fig B Fig C

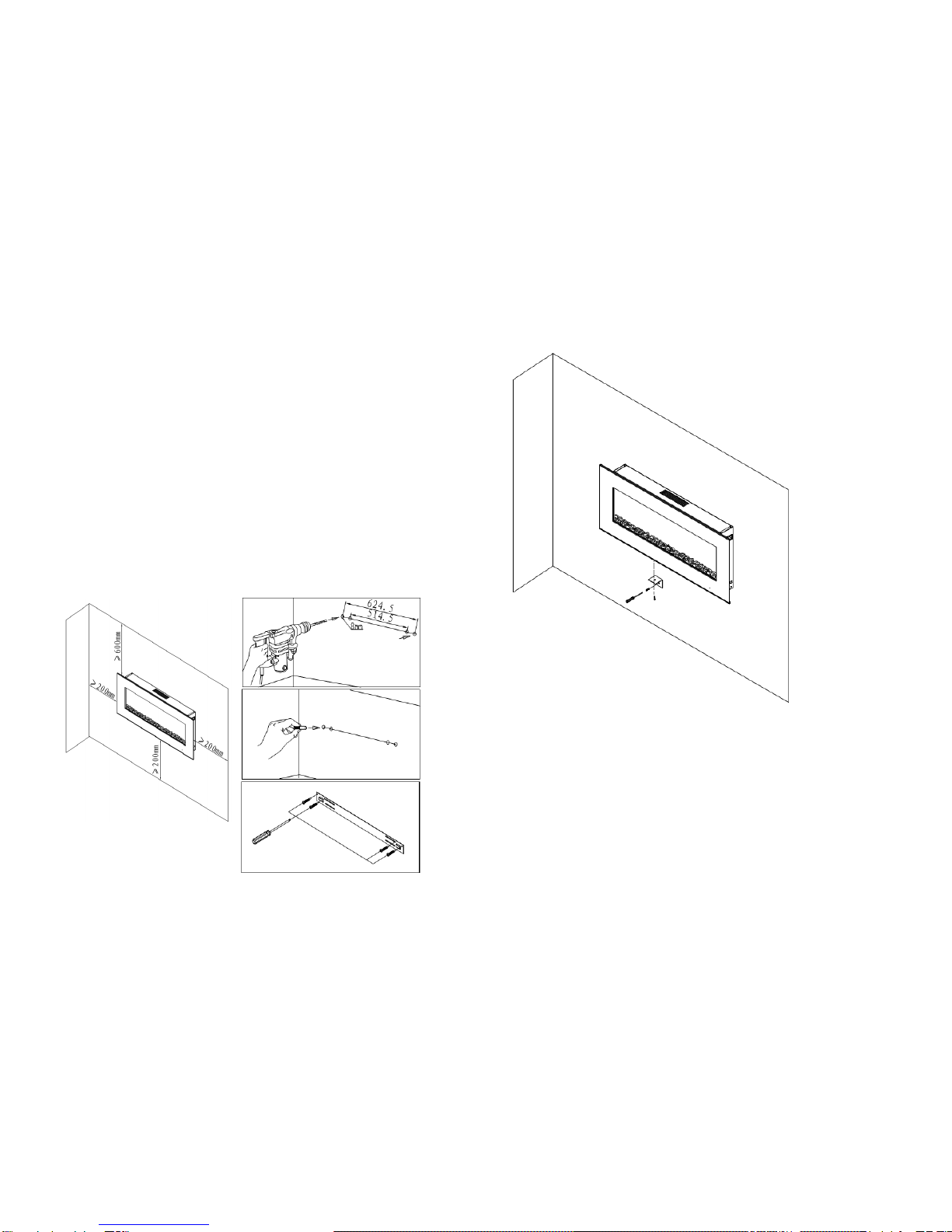

INSTALLATION
1.This heater is for wall mounting only. Do not attempt to use it free standing.
2.Referring to Fig. 3 below select a suitable position in which to mount the
heater
horizontally –use a spirit level to achieve this.
3.Check the wall to ensure there is no wiring, pipe wires etc in the area to be
drilled. Drill 4 holes (8mm diameter & 40mm depth) using a suitable size
drill and put the Plastic expansion into the holes.
4.First fix hanger to wall
5. Referring to Fig. 4，hang fireplace to hanger；.
6. Referring to Fig. 5，avoid fireplace to move,use screw fix fireplace to
wall ;
Warning! Always ensure the fireplace is at least 200mm above
the floor! Be sure that the bolts have been fixed firmly enough
to withstand the weight！
Fig 3
Fig 4
Fig 5

OPERATION
Remove all packaging before use.

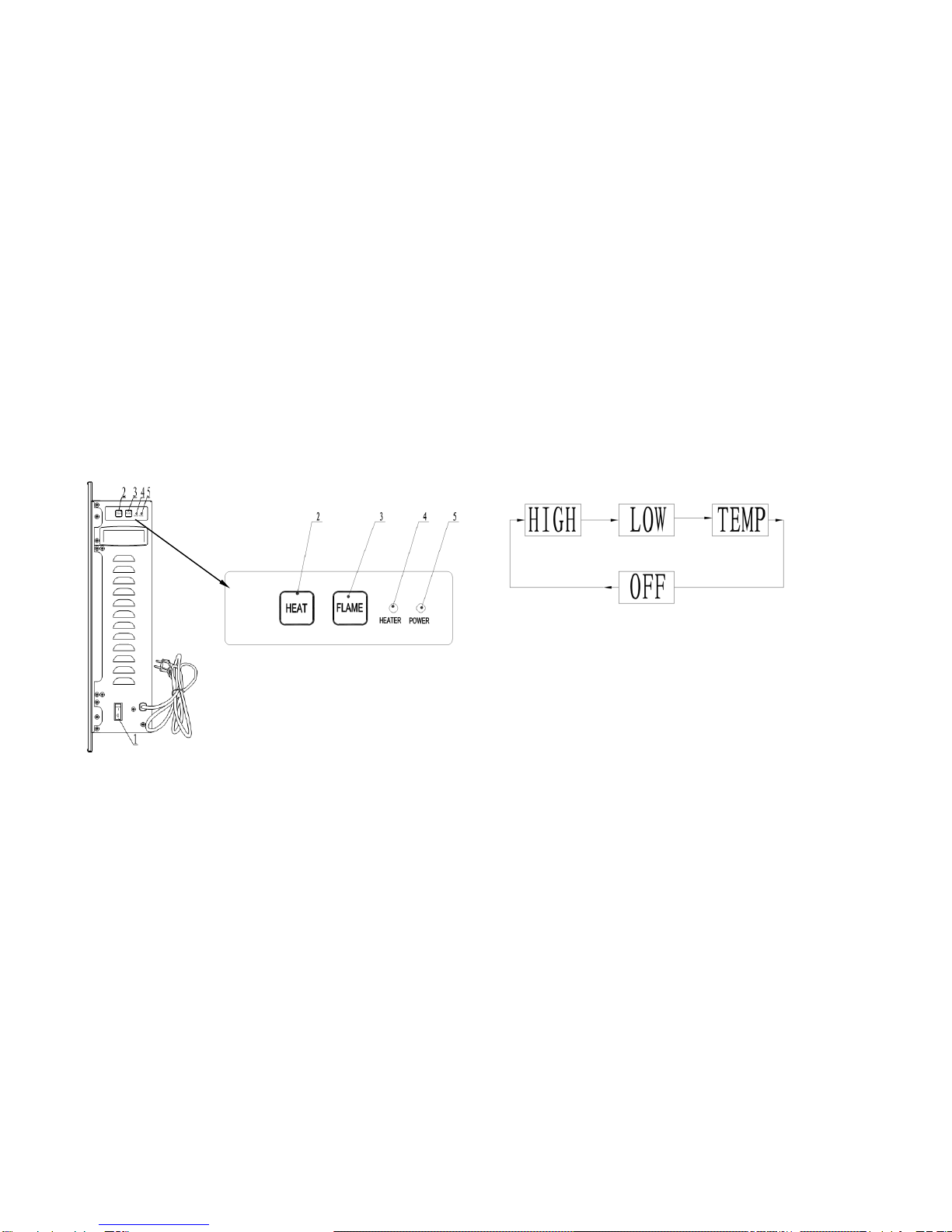

Control Panel (See also ‘Operating Instructions’ below)
As shown in the photo below you will see the control panel in the right side of
the heater.
Fig 6
1 Power switch 2. Heat control button 3. Flame control button
4. Heater LED 5. Power LED
Operating by manual
Plug the heater in to a suitable main outlet (see rating label on unit for power
requirements).
1) “Power Switch ON/OFF”
Set this switch to position “I“to turn the product ON. Setting it to “O”to turn
the product OFF. Turn on the fireplace the Power LED will be lighten.
2) “Heat control button”
Push the “HEAT”button to cycle through as bellow

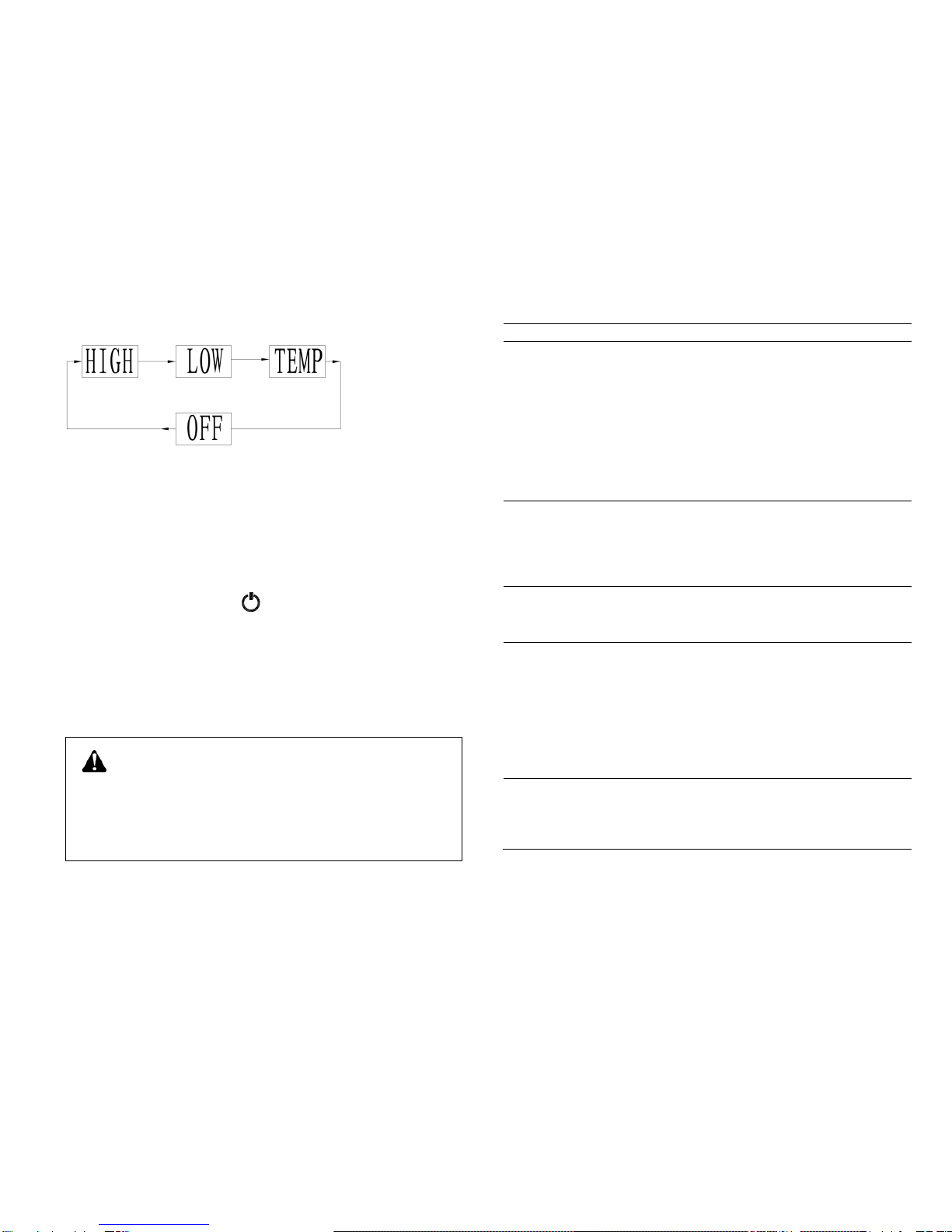

HIGH heater work with 1500W “HEATER”LED for RED
LOW heater work with 750W “HEATER”LED for Blue
TEMP “HEATER”LED for Purple
Adjusting to auto control by room temperature , the heater turns on and work
with 1500W when room temperature is below 22°C, the heater turns on
and work with 750W when room temperature is below 25°C and above22°C ,
the heater will turn off when the room temperature is above 25°C.
3) “Flame control button”
Push the FLAME control button to adjust the flame height and ember bed
brightness. Press and release the FLAME control button to cycle through
LO,MED, HI and OFF.

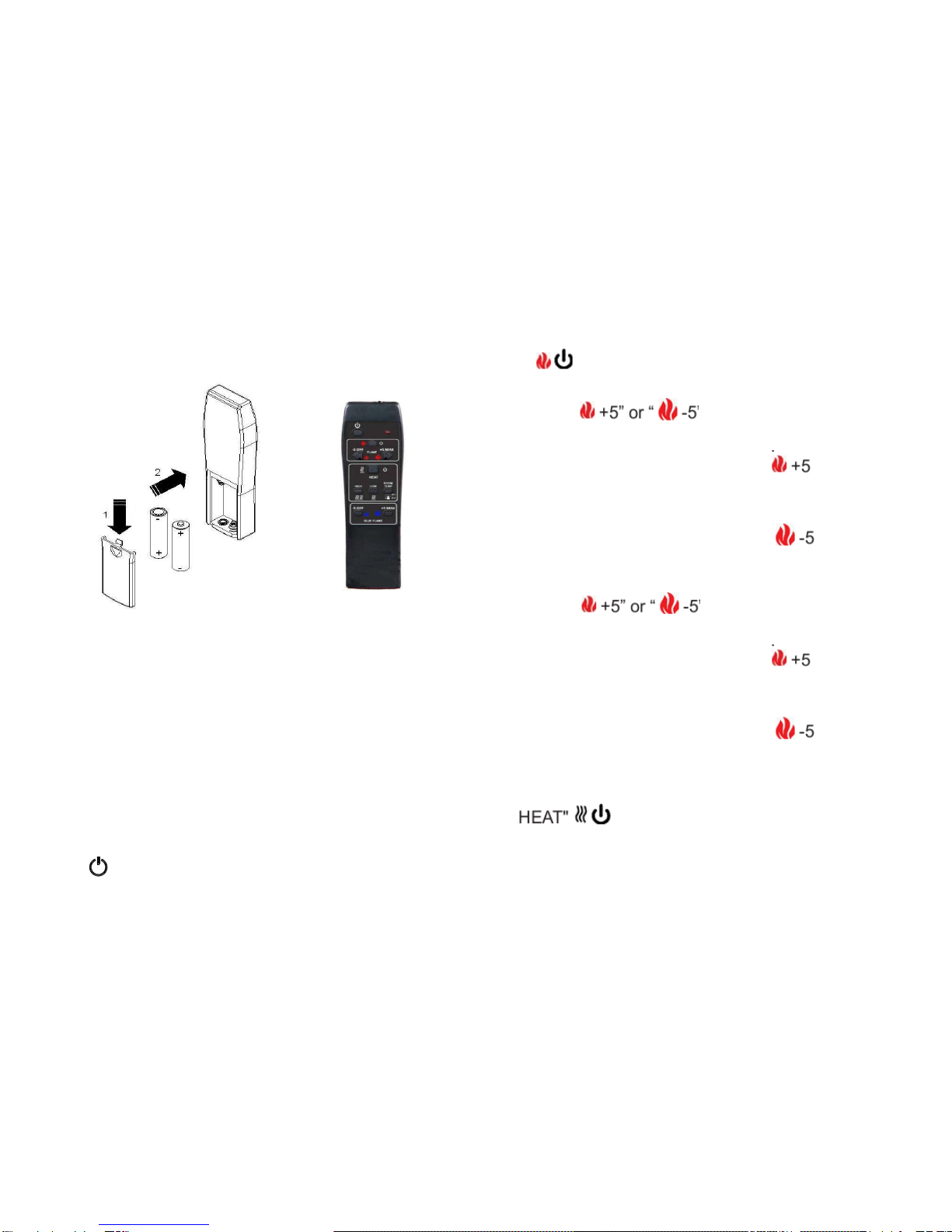

Operating by Remote Control
Fig 6
1. Plug in your electric fireplace.
Important! The Main ON/OFF power switch on the fireplace must be in the
ON position.
2. When operating the heater with the remote control, it must be pointed at
the logset inside the electric stove and the red light must blink each time you
press a function button. The blinking red light confirms the remote control is
working.
Note:Make sure your batteries are installed correctly in your remote
control.
3. “ “button of the remote control at the top left is the main ON/OFF
power button.
4. “”buttons is on/off button; to control the red and blue lamp of
flame and ember bed.
5. The Red buttons control the red brightness of
flame and ember bed.
To increase the brightness, press and release the button. Each
time you press this button the brightness will increase by a small amount,
until the maximum is reached.
To decrease the brightness, press and release the button. Each
time you press this button the brightness will decrease by small amount, until
the minimum brightness is reached.
6. The BLUE buttons control the blue brightness of
flame and ember bed.
To increase the brightness, press and release the button. Each
time you press this button the brightness will increase by a small amount,
until the maximum is reached.
To decrease the brightness, press and release the button. Each
time you press this button the brightness will decrease by small amount, until
the minimum brightness is reached.
7. Button: To activate the heater,press the heater button,
Heater work at the high ; press the Heater Button once,to turn off the heater.
.

HIGH heater work with 1500W “HEATER”LED for RED
LOW heater work with 750W “HEATER”LED for Blue
TEMP “HEATER”LED for Purple
Adjusting to auto control by room temperature , the heater turns on and work
with 1500W when roomemperature is below 22°C, the heater turns on and
work with 750W when roomemperature is below 25°C and above22°C , the
heater will turn off when the room temperature is above 25°C.
8. To turn the stove off, press the button once.
Notice:This remote control must remain within 6 metres of the fireplace
and not too far off to either side to be effective.
TROBULESHOOTING GUIDE
PROBLEM
CAUSE
CHECK
Stove turns off
and will not turn
on
Stove has
overheated and
safety device has
caused thermal
switch to
disconnect or
home circuit
breaker has
opened.
Reset switch by
turning main power
switch off and
waiting 5 minutes
then turning it back
on.
Flame is not
moving
Flame motor
defective
Call a qualified
service technician to
replace flame motor
Flame sputters
Flame motor is
defective
Call a qualified
service technician to
replace flame motor
Log set and/or
Flame is not
glowing
Ember LED PCB
are burnt out
Wiring is loose
Inspect LED PCB
and replace it if
necessary
Inspect wiring for loose
connections and repair
or replace if necessary
Remote control
does not work
Low batteries
Replace new
batteries in remote
control
CAUTION: Turn off the appliance and let it
cool before servicing it. Only a qualified service
person should service and repair the heater.
CAUTION: The fireplace in
