Nothern Industrial tools 168055 User manual

2 - i n - 1 V A C U U M C L E A N E R
OWNER’S MANUAL
WARNING: Read carefully and understand all
INSTRUCTIONS before operating. Failure to follow the
safety rules and other basic safety precautions may result
in serious personal injury.
Item #168055

Page of 8
2
Thank you very much for choosing a NORTHERN TOOL + EQUIPMENT CO., INC. Product! For
future reference, please complete the owner’s record below:
Model: _______________ Purchase Date: _______________
Save the receipt, warranty and these instructions. It is important that you read the entire manual
to become familiar with this product before you begin using it.
This machine is designed for certain applications only. Northern Tool + Equipment cannot be
responsible for issues arising from modification. We strongly recommend this machine is not
modified and/or used for any application other than that for which it was designed. If you have
any questions relative to a particular application, DO NOT use the machine until you have first
contacted Northern Tool + Equipment to determine if it can or should be performed on the
product.
For technical questions please call 1-800-222-5381.
INTENDED USE
Fast and efficient cleaning of both wet and dry spills.
TECHNICAL SPECIFICATIONS & PACKING LIST
Item
Description
Motor
110V, 50 Hz, 1250 Watts
Capacity
Approx. 7 gallons
Includes:
·Square brush
·Short nozzle
·Paper bag for dry vacuum
·Foam filter for wet vacuum
·Soft tube
·Telescopic tube
·Soft metal tube
·Aluminum tube
GENERAL SAFETY RULES
WARNING: Read and understand all instructions. Failure to follow all instructions listed
below may result in electric shock, fire and/or serious injury. The term “power tool” in all copy and
warnings listed below refers to your vacuum.
WARNING: The warnings, cautions, and instructions discussed in this instruction
manual cannot cover all possible conditions or situations that could occur. It must be
understood by the operator that common sense and caution are factors which cannot be built into
this product, but must be supplied by the operator.
SAVE THESE INSTRUCTIONS

Page of 8
3
WORK AREA
·Keep work area clean, free of clutter and well lit. Cluttered and dark work areas can cause
accidents.
·Do not use your tool where there is a risk of causing a fire or an explosion; e.g. in the
presence of flammable liquids, gasses, or dust. Power tools create sparks, which may ignite the
dust or fumes.
·Keep children and bystanders away while operating a power tool. Distractions can cause you
to lose control, so visitors should remain at a safe distance from the work area.
·Be aware of all power lines, electrical circuits, water pipes and other mechanical hazards in
your work area, particularly those hazards below the work surface hidden from the operator’s
view that may be unintentionally contacted and may cause personal harm or property damage.
·Be alert of your surroundings. Using power tools in confined work areas may put you
dangerously close to cutting tools and rotating parts.
ELECTRICAL SAFETY
WARNING: Always check to ensure the power supply corresponds to the voltage on the
rating plate.
·Do not abuse the cord. Never carry the vacuum by its power cord, or yank tool or extension
cords from the receptacle. Keep power and extension cords away from heat, oil, sharp edges or
moving parts. Replace damaged cords immediately. Damaged cords may cause a fire and
increase the risk of electric shock.
·Grounded tools must be plugged into an outlet properly installed and grounded in accordance
with all codes and ordinances.Never remove the grounding prong or modify the plug in any way.
Do not use any adapter plugs. Check with a qualified electrician if you are in doubt as to
whether the outlet is properly grounded.
·Double insulated tools are equipped with a polarized plug (one blade is wider than the other).
This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet,
reverse the plug. If it still doesn’t fit, contact a qualified electrician to install a polarized outlet. Do
not change the plug in any way.
·Avoid body contact with grounded surfaces such as pipes, radiators, ranges, and refrigerators.
There is an increase risk of electric shock if your body is grounded.
·When operating the vacuum outside, use an outdoor extension cord marked “W-A” or “W.”
These cords are rated for outdoor use and reduce the risk of electric shock.
·Extension Cord Use:
A. Use only ‘Listed’ extension cords. If used outdoors, they must be marked “For Outdoor
Use.” Those cords having 3-prong grounding type plugs and mating receptacles are to be
used with grounded tools.
B. Replace damaged or worn cords immediately.
C. Check the name plate rating of your tool. Use of improper size or gauge of extension cord
may cause unsafe or inefficient operation of your tool. Be sure your extension cord is rated
to allow sufficient current flow to the motor. For the proper wire gauge for your tool, see
chart.

Page of 8
4
CHART FOR MINIMUM WIRE SIZE OF EXTENSION CORD:
Nameplate AMPS
CORD LENGTH
25’
50’
100’
150’
0-6
18 AWG
16 AWG
16 AWG
14 AWG
6-10
18 AWG
16 AWG
14 AWG
12 AWG
10-12
16 AWG
16 AWG
14 AWG
12 AWG
12-16
14 AWG
12 AWG
(NOT RECOMMENDED)
If in doubt, use larger cord.
Be sure to check voltage requirements of the tool to your incoming power source.
·Do not expose the motor to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
·Do not let your fingers touch the terminals of plug when installing to or removing from the
outlet.
·Ground fault circuit interrupters. If work area is not equipped with a permanently installed
Ground Fault Circuit Interrupter outlet (GFCI), use a plug-in GFCI between power tool or
extension cord and power receptacle.
·Only connect to a proper 110volt, 60Hz outlet
·Minimum fuse protection 12A
·Do not handle plug or the wet/dry vacuum with wet hands.
PERSONAL SAFETY
·Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
·Dress properly. Do not wear loose clothing, dangling objects, or jewelry. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught
in moving parts. Air vents often cover moving parts and should be avoided.
·Use safety apparel and equipment. Use safety goggles or safety glasses with side shields
which comply with current national standards, or when needed, a face shield. Use as dust mask
in dusty work conditions. This applies to all persons in the work area. Also use non-skid safety
shoes, hardhat, gloves, dust collection systems, and hearing protection when appropriate.
·Avoid accidental starting. Do not carry the power tool with your finger on the switch. Ensure
the switch is in the off position before plugging tool into power outlet. In the event of a power
failure, while a tool is being used, turn the switch off to prevent surprise starting when power is
restored.
·Do not overreach. Keep proper footing and balance at all times.
TOOL USE AND CARE
WARNING: Before cleaning or maintaining the appliance, the power plug must be
removed from the outlet.
WARNING: This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person responsible
for their safety

Page of 8
5
·Do not force the tool. Tools do a better and safer job when used in the manner for which they
are designed. Plan your work, and use the correct tool for the job.
·Never use a tool with a malfunctioning switch. Any power tool that cannot be controlled with the
switch is dangerous and must be repaired by an authorized service representative before using.
·Disconnect power from tool and place the switch in the locked or off position before servicing,
adjusting, installing accessories or attachments, or storing. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
·Store idle tools. When tools are not is use, store them in a dry, secure place out of the reach of
children. Inspect tools for good working condition prior to storage and before re-use.
·Use only accessories that are recommended by the manufacturer for your model.
Accessories that may be suitable for one tool may create a risk of injury when used on another
tool.
·Never leave tool running unattended.
·Take great care when vacuuming stairs.
·Never vacuum burning matches, glowing embers, cigarette butts, inflammable, corrosive, fire
hazard or explosive substances, vapors and liquids.
·This vacuum is not suitable for vacuuming toxic vapors or dust.
ASSEMBLY
Please note:

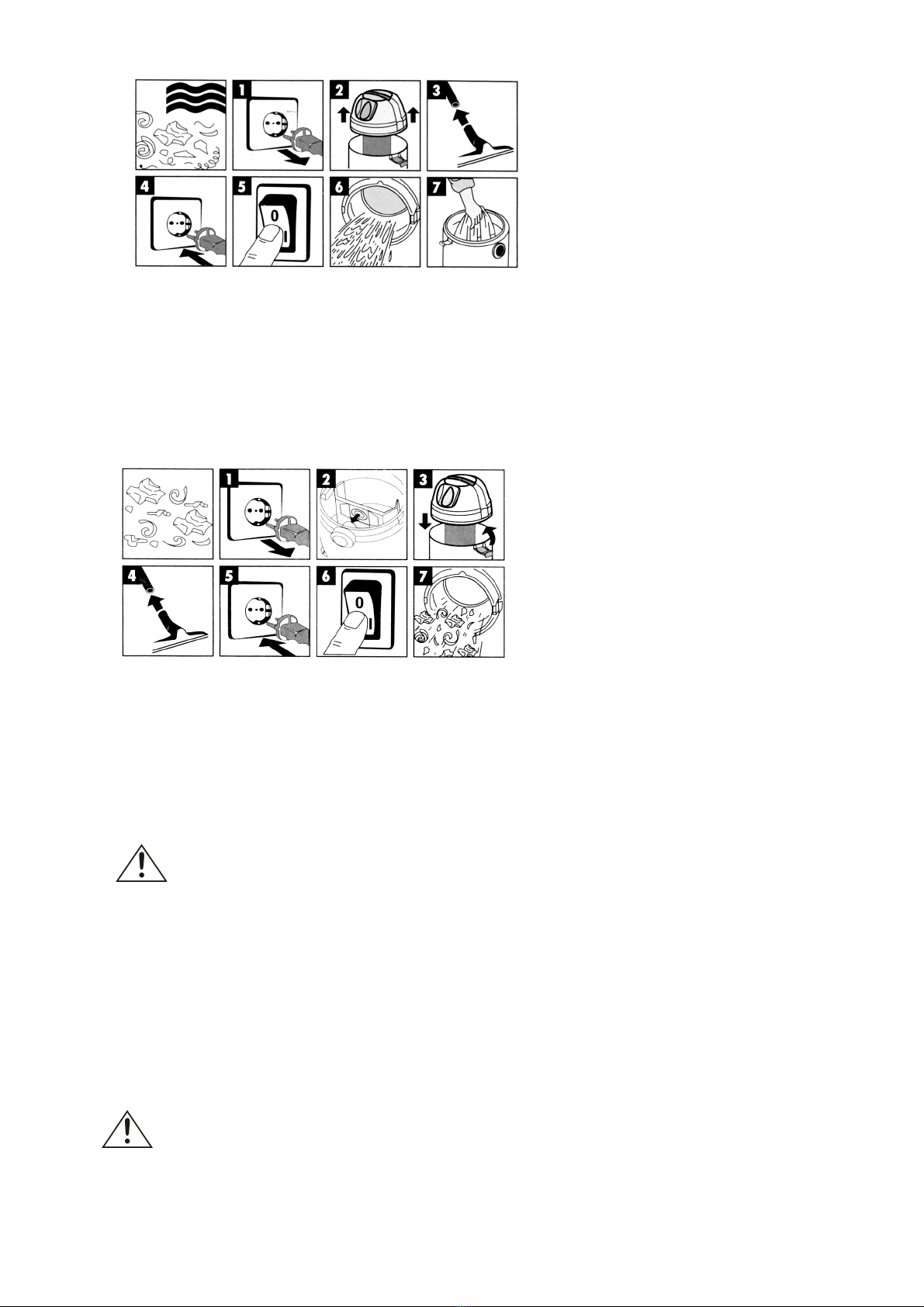

Figure 6a illustrates using the vacuum with the supplied foamed plastic filter for wet vacuum
cleaning.
Figure 6b illustrates the using the vacuum with the supplied dust bag for dry vacuum cleaning.
OPERATION:
1. WET VACUUM CLEANING

Page of 8
6
·Always unplug before changing filter (Figure 1)
·Insert the supplied foam filter over the filter basket (Figure 2) for wet vacuum cleaning.
·Insert the plug and turn on the switch.
·NOTE: The dust bag included with the vacuum upon delivery is not suitable for wet vacuum
cleaning! Do not vacuum wet spills without first installing the foam plastic filter.
2. DRY VACUUM CLEANING
·Always unplug before changing filters (Figure 1)
·Slip the dust bag onto the intake socket (Figure 2) for dry vacuum cleaning.
·Insert the plug and turn on the switch.
·NOTE: The dust bag is designed for dry vacuum cleaning only!
MAINTENANCE
WARNING: Make sure the vacuum is disconnected from its power source before
attempting any maintenance, cleaning, or inspection.
·Maintain your tools. It is recommended that the general condition of any tool be examined
before it is used. Keep your tools in good repair by adopting a program of conscientious repair
and maintenance in accordance with the recommended procedures found in this manual. If any
abnormal vibrations or noise occurs, turn the tool off immediately and have the problem
corrected before further use. Have necessary repairs made by qualified service personnel.
·Cleaning. Use only soap and a damp cloth to clean your tools. Many household cleaners are
harmful to plastics and other insulation. Never let liquid get inside a tool.
WARNING: Unplug before doing any type of maintenance (Figure 1).

Page of 8
7
CLEANING THE FOAM FILTER:
·Remove the foam filter (Figure 3) and wash with water (Figure 5).
DIAGRAM & PARTS LIST
Part#
Description
Part#
Description
1
Handle
2
ON/OFF switch
3
Top section
4
Filter basket
5
Safety float valve
6
Metal clasp
7
Upper container
8
Vacuum hose connection
9
Rollers
10
Flexible vacuum hose
11
Vacuum tube
12
Air outlet
13
Large vacuum nozzle
14
Dust bag
15
Foamed filter
16
Crevice nozzle
17
Metal hose
18
Aluminum tube
19
Flexible vacuum hose
20
Bottom container

Page of 8
8
OVERVIEW OF NOZZLES
For replacement parts and technical questions, please call 1-800-222-5381.
WARRANTY
One Year Limited Warranty
Northern Tool + Equipment Co.,
2800 Southcross Drive West
P.O. Box 1499 Burnsville, MN 55337-0499
Made in China
