Eagle power IDROLAVA User manual

REV A February 2004
IDROLAVA
PARTS & OPERATIONS MANUAL

TABLE OF CONTENTS
Important Safety Instructions ..................................................... 1
Vacuum and Accessories........................................................... 4
Operation ................................................................................... 5
Daily Maintenance ..................................................................... 11
Vacuum Parts Diagram .............................................................. 13
Warranty Information ................................................................. 17

IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precaution must
always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
This machine is for commercial use.
WARNING
DANGER: The machine should never be immersed in water or a pressure jet of water be used for cleaning.
DANGER: Keep jet directed away from all electrical switches and connections.
DANGER: Failure to read the Owner’s Manual prior to operating or attempting any service or maintenance
procedure to your machine could result in injury to you or to other personnel; damage to the machine or to other
property could occur as well.You must have training in the operation of this machine before using it. If you or
your operator(s) cannot read English, have this manual explained fully before attempting to operate this
machine.
DANGER: Failure to read and observe all DANGER statements could result in severe bodily injury or death.
Read and observe all DANGER statements found in your Owner’s Manual and on your machine.
DANGER: Operating a machine that is not completely or fully assembled could result in injury or property
damage. Do not operate this machine until it is completely assembled. Inspect the machine carefully before
operation. Use only as described in this manual. Use only the manufacturer’s recommended attachments.
DANGER: Machines can cause an explosion when operated near flammable materials and vapors. Do not use
this machine with or near fuels, grain dust, solvents, thinners, or other flammable materials.
DANGER: Components used in packaging (ex: plastic bags) can be dangerous; keep away from children and
animals.
DANGER: Do not pick up flammable fluids, dust or vapors.
DANGER: Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
DANGER: This machine is not suitable for picking up health endangering dust.
DANGER: Using a machine with a damaged power cord could result in an electrocution. Do not use the
machine if the power cord is damaged. Do not use the electrical cord to move the machine. Keep cord away
from heated surfaces. Do not unplug by pulling on the cord; grasp the plug, not the cord. Turn off all controls
before unplugging. Do not close a door on cord or pull around sharp edges or corners.
DANGER: Electrocution could occur if maintenance and repairs are performed on a unit that is not properly
disconnected from the power source. Disconnect the power supply before attempting any maintenance or
service.
Page 1
CAUTION: Failure to read and observe all CAUTION statements could result in damage to the machine or to
other property. Read and observe all CAUTION statements found in your Owner’s Manual and on your machine.
WARNING: Failure to read and observe all WARNING statements could result in injury to you or to other
personnel; property damage could occur as well. Read and observe all WARNING statements found in your
Owner’s Manual and on your machine.
DANGER: Electrical components can “short-out” if exposed to water or moisture. Keep the electrical
components of the machine dry. Always store the machine in a dry area.

SAVE THESE INSTRUCTIONS
WARNING: Rotating fan blades inside the cover. Before opening cover, switch off machine.Wait until the fan/brush
stops completely or dust and debris may be ejected.
WARNING: Electrocution could occur if you handle the plug or appliance with wet hands. Do not handle plug or
appliance with wet hands.
WARNING: Damage could occur to machine if openings are blocked. Do not put any object into openings. Do not use
with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
WARNING: If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into
water, return it to an Authorized service center.
WARNING: Injury to the operator and/or damage to the machine could occur when cleaning on stairs, unless extra
caution is used. Use extra caution when cleaning on stairs.

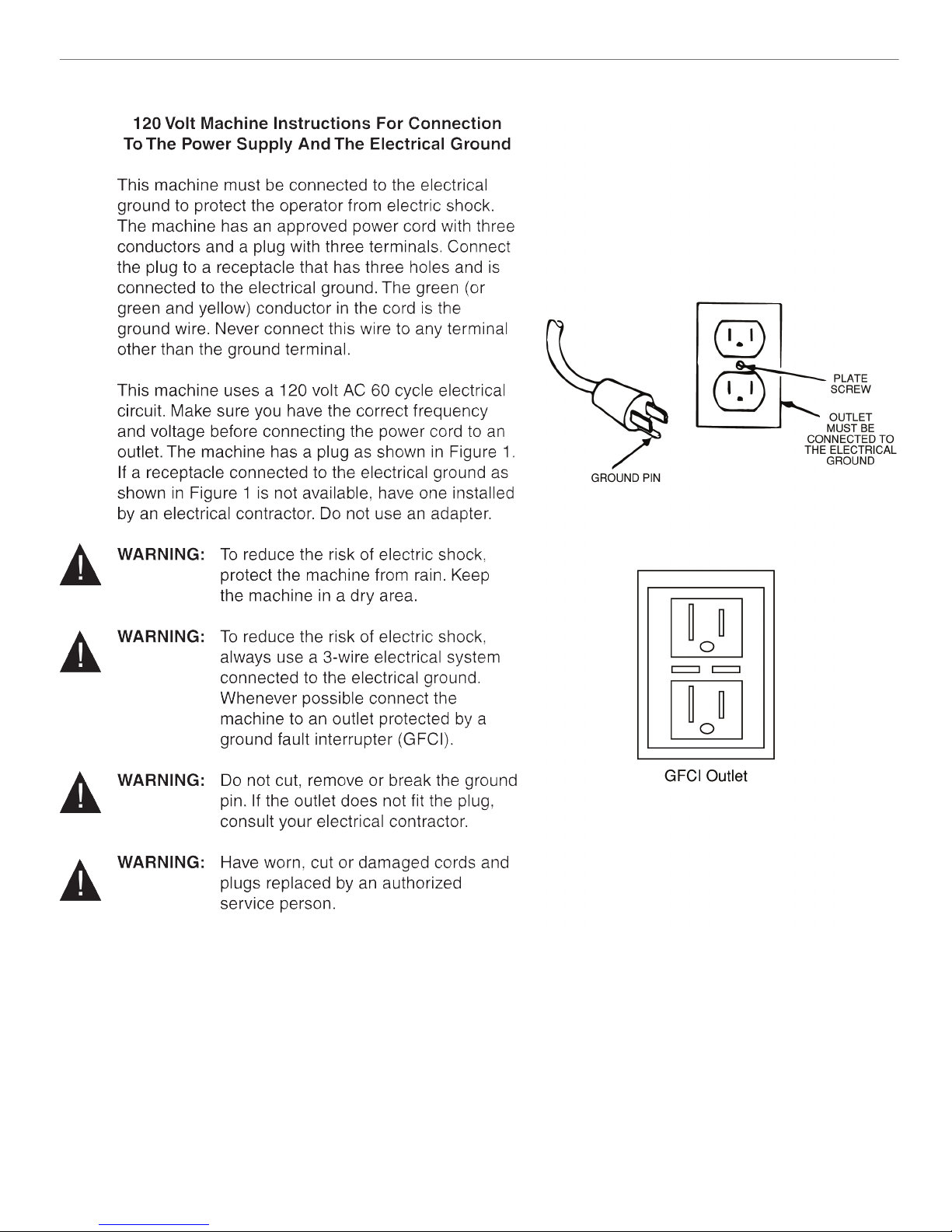

WARNING: To reduce the risk of electrical shock, always use a 3-wire electrical system connected to the electrical
ground. Whenever possible connect the machine to an outlet protected by a ground fault interrupter (GFCI). See
“Grounding Instructions.”
WARNING: The suction nozzle should be kept away from the body, especially delicate areas such as the eyes, ears
and mouth.
WARNING: When all work is completed and the pump is off, the pressure must be discharged by depressing the
valve lever.
CAUTION: Should extension cords be used, ensure that the cable rating is suitable for use with the equipment. Do
not use the cable coiled as this could result in a voltage drop or overheating. Keep dry at all times.
CAUTION: If the equipment should overturn, it is recommended that that the machine be righted before
switching off.
CAUTION: If foam or liquid should come from the machine exhaust, switch off immediately.
CAUTION: Aggressive solvents or detergents should not be used.
CAUTION: Never run the pump without liquid as this may result in damage.
WARNING: Use of this machine to move other objects or to climb on could result in injury to the operator or
damage to the machine. Do not use this machine as a step or furniture. Do not allow to be used as a toy. Close
attention is necessary when used by or near children.
Page 2
WARNING: Moving parts of this machine can cause injury and/or damage. Keep hands, feet, loose clothing,
hair, fingers, and all parts of the body away from openings and moving parts.
WARNING: Operating a machine without observing all labels, decals, etc., could result in injury or damage.
Read all machine labels before attempting to operate the machine. Make sure all of the labels are attached or
fastened to the machine. Get replacement labels and decals from the manufacturer’s distributor.

Page 3

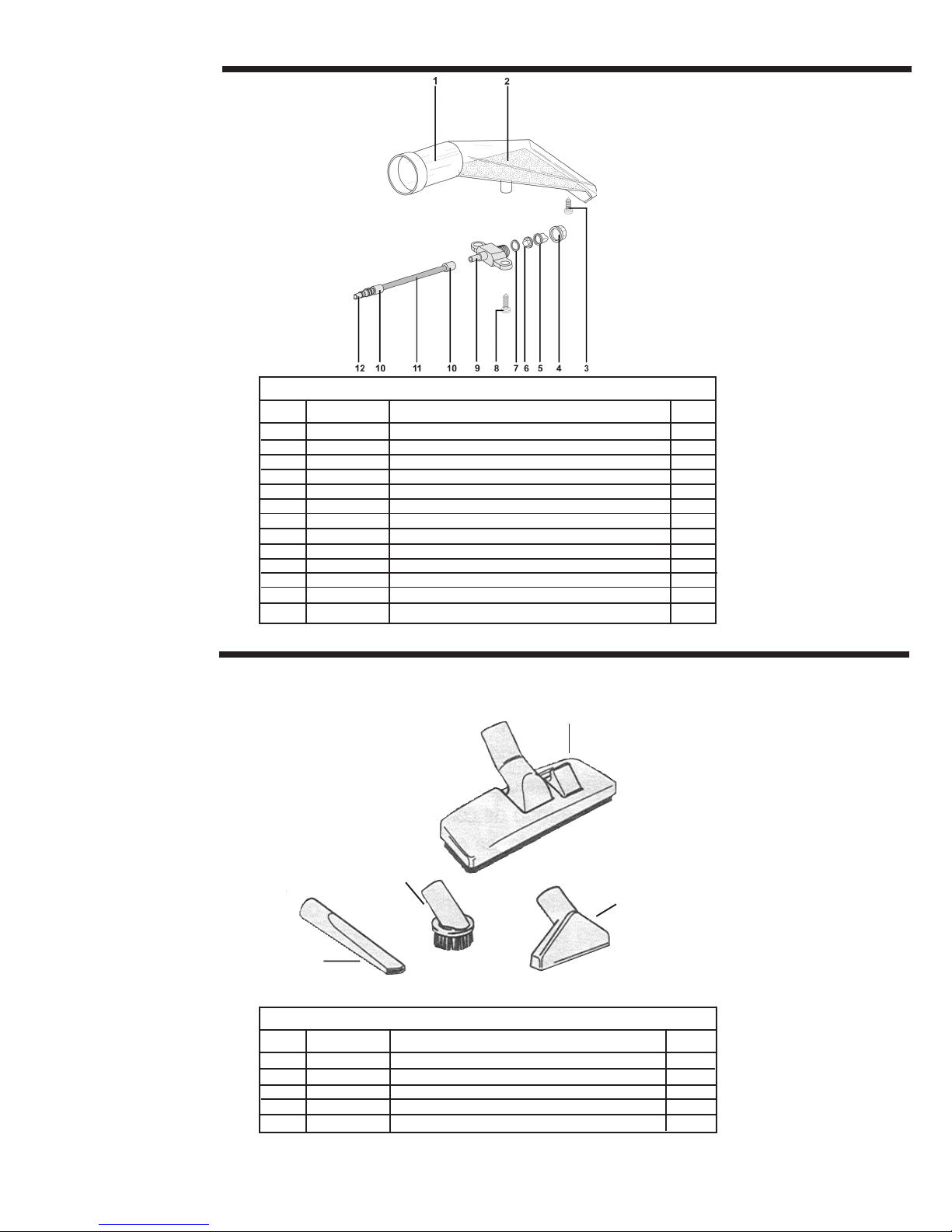

PARTS LIST
B. Purifying Tank
C. Vacuum Head
E. Tank
F. Suction Inlet
G. Flexible Hose
M. Straight Wand
P. Upper Bent Wand
S. Double Use Brush
T. Round Brush
U. Hand Tool
V. Crevis Tool
Ω Idro Device
VACUUM INJECTION/EXTRACTION
PARTS LIST
C. Vacuum Head
D. Solution Tank
E. Tank
F. Suction Inlet
G. Flexible Hose
H. Solution Hose
I. Upholstery Tool
K. Injection Trigger
M. Straight Wand
N. Solution Hose
O. Bent Wand
P. Bent Wand w/Trigger (K)
Q. Carpet Tool
R. Squeegee Brush Shoe
Y. Solution Intake Hose
Page 4

SET UP & OPERATION

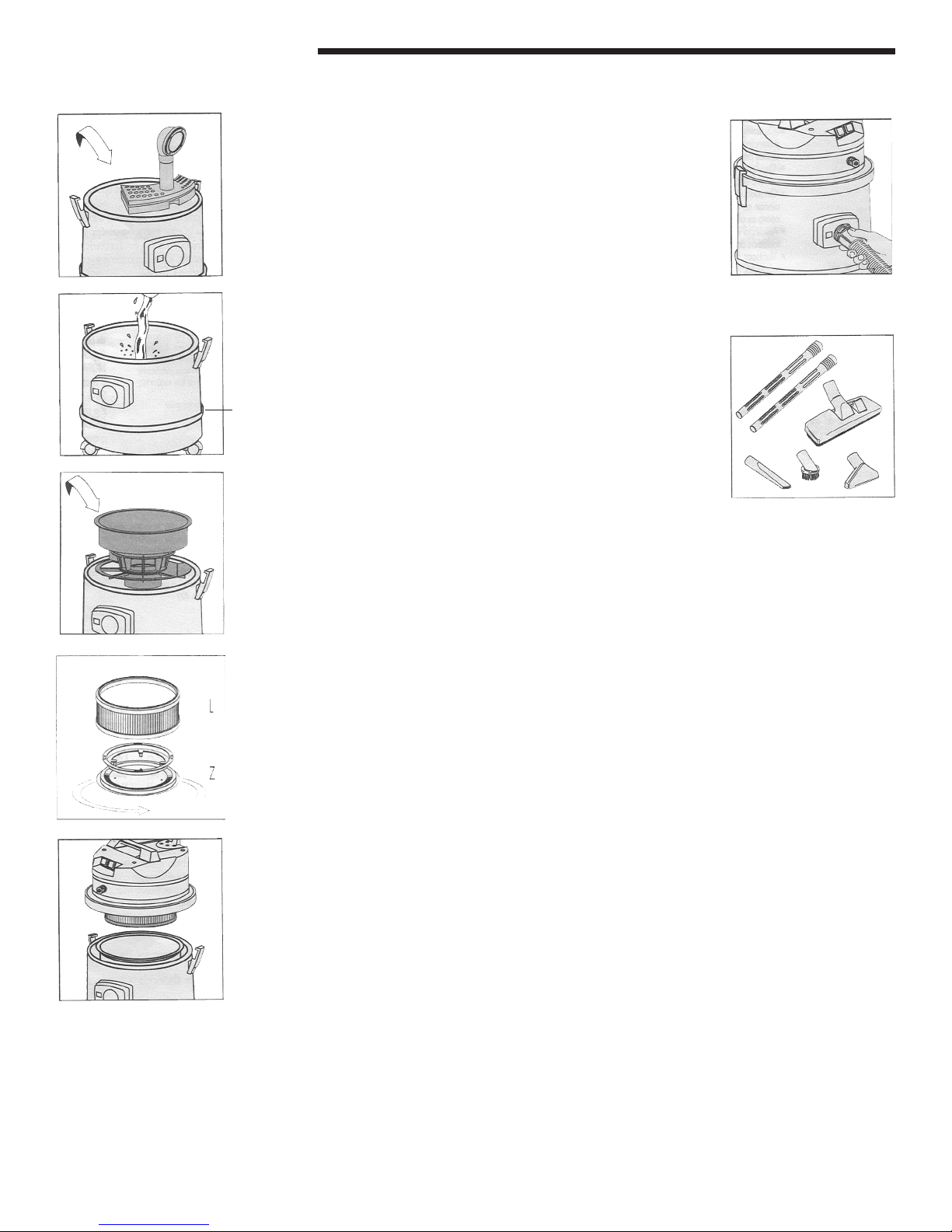

Air Filtering and Dry Vacuuming
1. Attach the Idro device
to the tank inlet deflector
located at the inside of the tank.
2. Fill with water up to the
bumper (1-1/2 gallons).
3. Insert purifier into tank.
4. Ensure cartridge filter “L” is
secured to the vacuum head by
the filter bracket “Z”. Turn
clockwise to secure, counter-
clockwise to remove.
7. Attach appropriate
accessory. For power head
assembly, see power head wand
assembly on page 8. For double
use brush, see Extraction Wand
Assembly to change from carpet
tool to double use brush
attachment on page 9 and 10.
6. Attach hose into inlet.
8.Activate the vacuum by pressing the red switch
on vacuum head.
9.Turn the vacuum speed knob located on top of
the vacuum head to:
-Air Filtering for air filtration use.
-Vac Cleaning for vacuuming use.
5. Place vacuum head C onto
the tank and lock into place with
the 2 clamps.
Page 5
Fill line

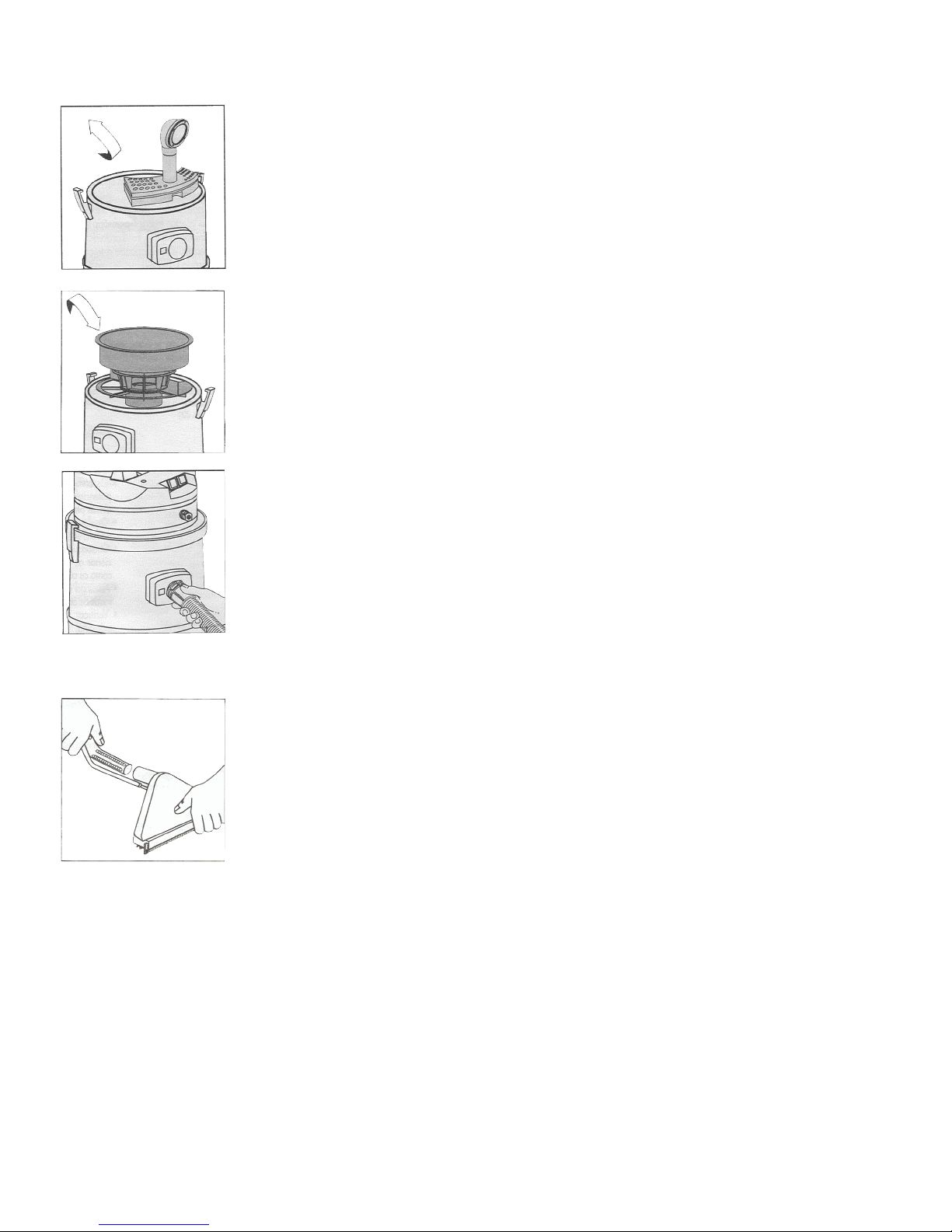

Wet Pick-Up
1. Remove Idro device (if
attached) from tank.
2. Insert purifier into the
tank.
3. Attach hose to the inlet.
4. Attach extraction wand (see
Extension Wand Assembly, page 9.
5. Activate the vacuum by pressing the red switch on vacuum head.
6. Turn the vacuum speed control knob located on top of the vacuum
head to shampoo setting.
Page 6

Injection - Extraction Washing
1. Remove cartridge filter L and
retainer Z from vacuum head.
2. Remove air purifier and
Idro unit from the tank.
3. Pour cleaning solution and
water into the solution tank.
4. Insert the solution tank into
the recovery tank.
5. Attach the vacuum head onto
the tank by guiding the solution
hose Y into the solution tank,
Clamp the vacuum head to the
tank.
6. Connect vacuum hose to the
tank.
7. Connect the solution hose to
the power head by simply
inserting the male hose end
fitting into female fitting until it
locks. To remove, press red
button to unlock and pull apart.
8. Connect trigger gun to the
solution hose.
9. Attach appropriate accessory:
- Wand and carpet tool for
carpets. See Extraction Wand
Assembly, page 9.
- Wand, carpet tool and
squeegee brush shoe for hard
floors. See Extraction Wand
Assembly, page 9.
- Upholstery tool for upholstery
10. Turn the vac speed control
knob located on top of the
vacuum head to the shampoo
setting.
11.Press the green switch to
activate the solution pump.
Press the red switch to activate
the vacuum motor.
12.To clean, press trigger to
inject cleaning solution, press
tool down firmly and pull towards
you.
Y
Page 7

Page 8

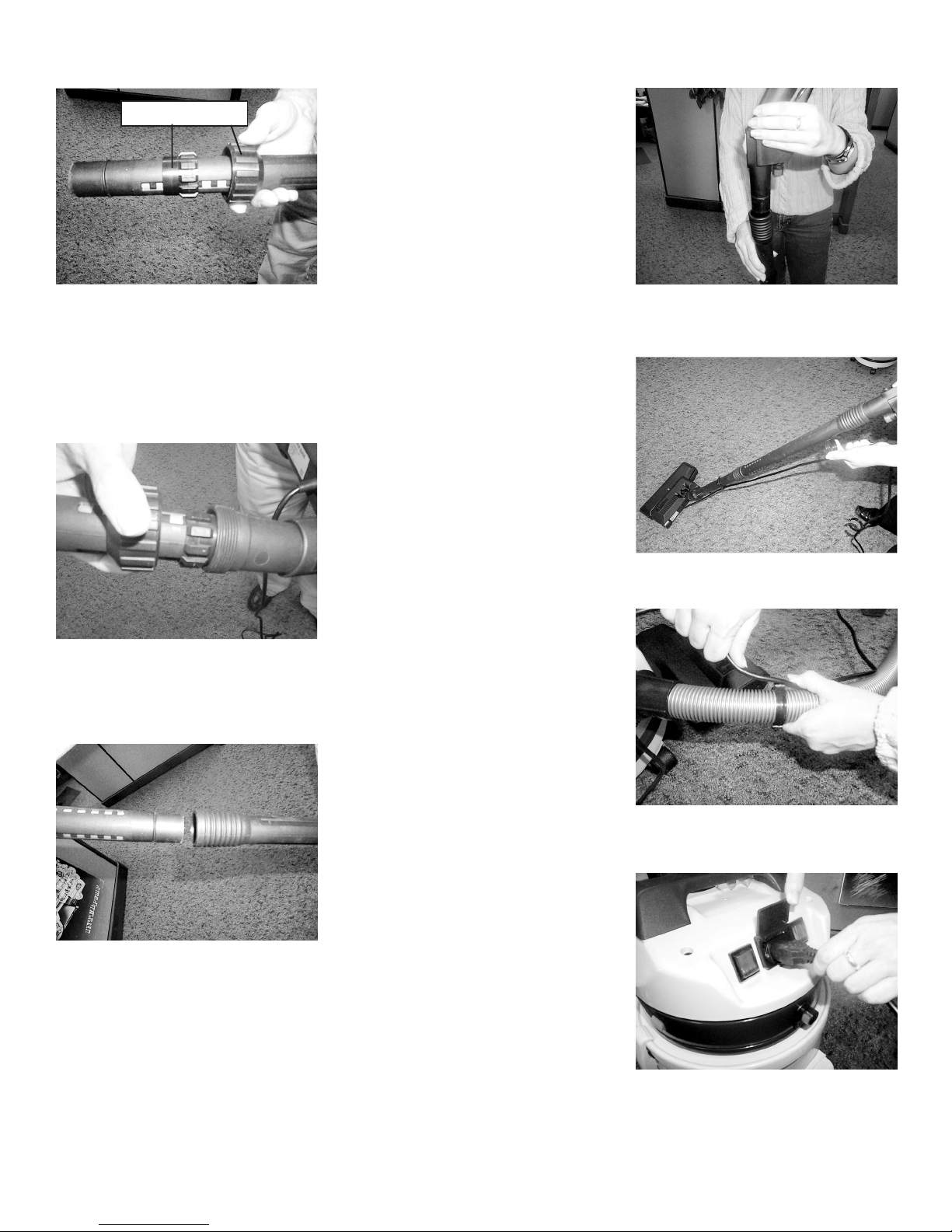

POWER HEAD AND WAND ASSEMBLY
1. Locate power head wands and locking collars.
The power head wands do not have the solution
hose guides. The wand pieces with the solution
hose guides are for the extraction wand (see
picture 1 under Extraction Wand Assembly to
identify extraction wand). Slide on the two collars
as pictured.
2. Insert wand into the power head neck until it
stops. Slide the small collar into the neck of the
power head. Screw the large collar onto the
powerhead until tight.
3. Firmly press the two wands together.
4. Firmly press upper bent wand and trigger into
the straight wand
5. Attach two cord hangers to wand and cord.
6. Evenly attach 3 cord hangers to the hose and
cord.
7. Plug power head into the power head
receptacle.
Locking Collars

Page 9

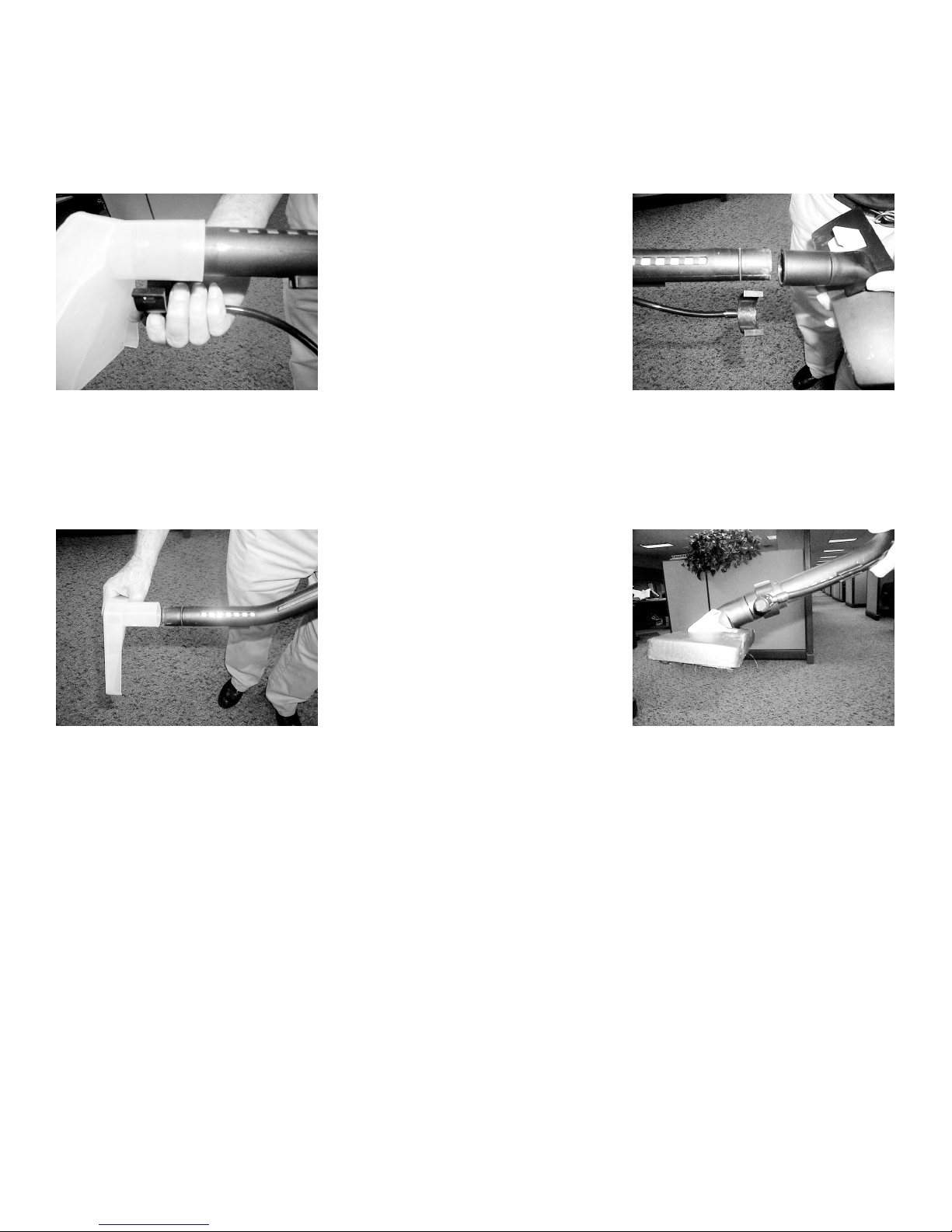

EXTRACTION WAND ASSEMBLY
2. Firmly press the lower bent wand piece into the
straight wand piece. Make sure the solution hose
guides are aligned with each other.
1. Locate the lower bent wand piece and
the straight wand piece. The solution hose guides
molded on one side easily identify these pieces.
3. Firmly press the lower bent wand piece into the
carpet tool.
4. Clip injection nozzle to carpet tool.
5. Press the solution hose into the solution hose
guide, starting at nozzle.
6. For hard floors only, snap squeegee brush shoe
onto carpet tool.
7. Firmly insert upper bent wand and trigger into
the straight wand.
8. Connect solution hose to the trigger by inserting
until it locks into place. To remove, press the red
button and pull the connector out of the trigger.
Solution hose guides

Page 10
TO CHANGE FROM CARPET TOOL TO
DOUBLE USE BRUSH ATTACHMENT
1. Unclip the injection nozzle from carpet tool.
2. Remove carpet tool from lower bent wand
piece.
3. Firmly press the double use brush attachment
into the lower bent wand piece.
4. The injection nozzle and hose serves no
function for the double use brush. Either remove
or attach the injection nozzle to the wand assem-
bly so it does not interfere with vacuuming.

DAILY MAINTENANCE
Caution: Some detergents produce foam which will damage the vac motors. The vac shut-off
may not be sensitive to all foams. Be sure to check that the tank is not filling with foam. Use
a defoaming agent to avoid pulling foam through the vac motor. Should vac motor become
wet, remove source of overflow and immediately run vac motor open to dry.
At the end of each working day:
1. After each use, rinse tank with fresh water. Periodically inspect the recovery tank and decontami-
nate if necessary, using a hospital grade virucide or a 1:10 bleach to water solution. Waste water
should be disposed properly.
2. Remove head assembly and allow tank to dry.
3. Remove filters for cleaning or allow to dry.
4. Inspect hoses for wear. Frayed or cracked hoses should be replaced to avoid vacuum loss.
5. Inspect power cord for wear. This cable will lay on wet surfaces. To prevent electrical shock
replace cords with frayed or cracked insulation immediately.
Page 11

POS P/N DESCRIPTION QTY
1 S80117 Power cord 1
2 S80138 Strain Relief 1
3 S80139 Clamp 1
4 S81006 Screw, 5 x 20 2
5 S80450 Terminal, block 1
6 S82589 Cover, hook 1
7 S81026 Screw, 5 x 30 4
8 S82588 Handle 1
9 S81050 Screw, 5 x 35 2
10 S81050 Screw, 5 x 35 2
11 S8231IDRO Cover, top 1
12 S80484 Switch 1
13 S80756 Switch 1
14 S81006 Screw, 5 x 20 4
15 S83732 Potentiometer 1
16 S83937 Filter 1
17 S81050 Screw 4
18 S82633 Cover, middle 1
19 S83969 Gasket 1
20 S82627 Screw 6
21 S80310 Plug 1
22 S81006 Screw 4
23 S82634 Plate, motor 1
24 S83901 Gasket 1
25 S81120S Motor, 120V 1
26 S83901 Gasket 1
27 S83866 Foam muffler 1
28 S82636 Base 1
60. S83658 Resistor 1
POWER HEAD
POWER HEAD
POS P/N DESCRIPTION QTY
1 S83037 Terminal protector 1
2 S82743 Hose, L=700mm 1
3 S82660 Clamp 1
4 S82659 Clamp 1
5 S83036 Filter housing 1
6 S82689 Filter, solution 1
7 S82571 Gasket 2
8 S82603 Bracket, pump 1
9 S81005 Screw, 5 x 14 2
10 S80799 Pump, 110V, 60 Hz 1
11 S82602 Clamp 2
12 S81979 Screw, 5 x 25 4
13 S81979 Screw, 5 x 25 2
14 S83035 Fitting, “Y” 1
15 S81610 O-ring 1
16 S86075 Quick disconnect, female 1
17 S82604 Clamp 1
18 S86082 Grommet 1
19 S86118 Sleeve 1
PUMP
Page 12

SOLUTION TANK ASSEMBLY
POS P/N DESCRIPTION QTY
1 S83214 Handle 1
2 S82622 Screw, 4.2 x 16 4
3 S82598 Extension, tank 1
4 S82597 Tank 1
5 S82580 Sleeve 1
6 S82622 Screw, 4.2 x 16 1
7 S82592 Filter 1
S82638 Complete Solution Tank
SOLUTION TANK
POS P/N DESCRIPTION QTY
1 S83706 Spacer 4
2 S83724 Screw, 5 x 25 4
3 S86260 Filter, cartridge 1
4 S86281 Filter, locking ring 1
5 S86278 Filter, plate 1
6 S86369 Screw, 4.2 x 16 4
7 S83156 Screw, 5 x 20 4
8 S86287 Washer 4
9 S86282IDRO Support 1
10 S86413 Center block 1
11 S86277 Air director 1
12 S86142 Filter, 50 mm φ1
S86288 Complete Filter Kit
FILTER SYSTEM
POS P/N DESCRIPTION QTY
1 S86191 Deflector 1
2 S86192 Gasket 1
3 S83049 Screw, 3.5 x 13 4
4 S86193 Flange 2
5 S87638 Tube, defuser 3
8 S86194 Defuser 1
S86198 Complete IDRO Diffuser Assembly
IDRO DEFUSER
POS P/N DESCRIPTION QTY
1 S82643 Tank 1
2 S81300 Rivet, 5 x 24.5 4
3 S81847/S Clamp, tank 2
4 S81026 Screw, 5 x 30 4
5 S82846 Gasket, φ38 1
6 S82586 Inlet, base 1
7 S82608 Spring 1
8 S82593 Deflector 1
9 S82594 Button 1
10 S82583 Inlet, cover 1
11 S82630 Bumper 1
12 S80558 Caster 4
TANK
Page 13

POS P/N DESCRIPTION QTY
1 S86167 Button 1
2 S86158A Curved plastic 1
3 S86188 Cuff 1
4 S86160OTT Trigger 1
6 S86240IDRO Wand,straight 1
7 S86261IDRO Wand, curved 1
S86175 Complete Trigger
WAND/TRIGGER ASSEMBLY
POS P/N DESCRIPTION QTY
1 S82732 Spray tip housing 1
2 S83171 Plastic sleeve 2
3 S82747 Hydrolitic hose 1
4 S82711 Filter 1
5 S83060 Gasket 1
6 S83071 Nozzle 1
7 S83664OTT Quick disconnect, male 1
8 S82713 Cap 1
9 S82730 Extraction head 1
10 S82731 Plate 1
11 S82727 Screw 2
12 S86252 Screw 5
1-8 S83572 Complete Spray NozzleAssembly
9-12 S82753 Complete Extraction Head
S82724 Complete Extraction Wand Assembly
WAND/HEAD ASSEMBLY
POS P/N DESCRIPTION QTY
1 S82733 Body, hard floor tool 1
2 S82734 Strip 1
3 S83460 Blade, hard floor tool 1
4 S82748 Brush/floor tool 1
5 S83047 Rear brush, hard floor tool 1
6 S83049 Screw 4
7 S82729 Suction strip, L= 250 1
S82707 Complete Liquid Tool
HARD FLOOR TOOL
Page 14
WAND ASSEMBLY

POS P/N DESCRIPTION QTY
1 S80652/B Cuff 1
2 S82824 Housing 1
3 S83257 Screw, 4.2 x 13 4
4 S82713 Retainer, nozzle 1
5 S82759 Nozzle 1
6 S82711 Filter 1
7 S83060 Ring 1
8 S81005 Screw, 5 x 14 2
9 S82826 Base, nozzle 1
10 S83171 Clamp 2
11 S82658A Tube, L= 75 mm 1
12 S86077 Connector, male 1
S86174 Complete Hand Tool Assembly
HAND TOOL
HAND TOOL
DRY TOOLS
POS P/N DESCRIPTION QTY
S S70632 Double Use Brush 1
T S70004 Round Brush 1
U S70616 Hand Tool 4
V S70617 Crevice Tool 1
Not Shown S71685 Hose 1
DRY TOOLS
S
U
T
V
Page 14

Warranty Policy
Limited Warranty
Eagle Power Products (EPP) warrants new cleaning equipment against defects in material and
workmanship under normal use and service to the original purchaser as detailed below.
10 Years
Subject to the conditions stated below, EPP warrants polyethylene tanks and housings to be
free from defects in materials and workmanship for a period of ten years.
3 Years
Subject to the conditions stated below, EPP warrants all automatic scrubber components to
be free from defects in materials and workmanship for a 3-year period. Parts replaced or
repaired are warranted for the remainder of the original warranty period.
1 Year
Subject to the conditions stated below, EPP warrants all other cleaning equipment
components to be free from defects in materials and workmanship for a 1-year period. Parts
replaced or repaired are warranted for the remainder of the original warranty period.
Batteries are prorated for one year.
EPP will furnish and charge for replacement parts, including transportation, to the original
owner through an EPP authorized service center. If the part is returned within 30 days and is
found defective, the owner will be credited for the cost of the replacement part including
shipping and handling.
Labor charges are covered for one year from the date of purchase if provided by an authorized
EPP service center. Travel is covered for 90 days for battery operated equipment only.
Wear items exempt from warranty include belts, carbon brushes, power cords, wheels, pad
drivers, clutch plates, brushes, pads, handle grips, filters, screens, throttle cables, and squeegees.
This warranty shall not apply to failures caused by misuse or abuse, improper
maintenance as stated in the operation manuals, use of unauthorized repair parts, repairs
by other than an EPP authorized service center, and damage in transit.
EPP disclaims and denies any liability for any direct, indirect, special incidental or consequential damage which may
be suffered as a result of sale, delivery, servicing, use, loss of any product, downtime, labor, freight, or other charges
not expressly included herein.
Please be sure to record this information. This information will be necessary for future warranty claims.
Serial Number:
Date Purchased:
Model Number:
Eagle Power Products Sales and Service Provided by:
1174 Northland Drive Mendota Heights, MN 55120
651.686.5399 Fax [phone]
www.eaglepower.com
