Novatek 195.5501 User manual

195.5501 – Air 5”
195.5701 – Air 7”
195.5551 – Electric 5”
195.5751 – Electric 7”
Shrouded Right
Angle Grinder 5” & 7”
OPERATIONS AND MAINTENANCE

OPERATION AND MAINTENANCE MANUAL FOR
SHROUDED RIGHT ANGLE GRINDERS 5” AND 7”
FOR PROFESSIONAL USE ONLY
IMPORTANT SAFETY INFORMATION ENCLOSED.
READ AND UNDERSTAND THIS MANUAL BEFORE OPERATING THIS PRODUCT.
IT IS YOUR RESPONSIBILITY TO MAKE THIS SAFETY INFORMATION
AVAILABLE TO OTHERS THAT WILL OPERATE THIS PRODUCT.
FAILURE TO OBSERVE THE FOLLOWING WARNING COULD RESULT IN INJURY.
PLACING TOOL IN SERVICE
•Always install, operate, inspect and maintain
this product in accordance with all applicable
standards and regulations (local, state, country,
federal, etc.).
•Compressed air models always use clean, dry
air at 90 psi (6.2bar/620kPa) maximum air
pressure at the inlet. Higher pressure may
result in hazardous situations including
excessive speed, rupture, or incorrect output
torque or force.
•Electric models must always utilize proper
gauge, and rated electrical cords with correct
connections.
•Be sure all hoses and fittings are the correctly
sized and secured.
•Ensure an accessible emergency shut off has
been installed in the air or electrical supply line.
Make others aware of its location.
•Do not use damaged, frayed, or deteriorated air
hoses and fittings.
•Always use proper gauge electrical cords with
correct connections. (When applicable.)
•Electric models must not use damaged, frayed, or
deteriorated electrical cords and connections.
•Keep clear of whipping air hoses. Shut off the
compressed air before approaching a whipping
hose.
•Always turn off and disconnect the tool from its
power supply before installing, removing or
adjusting any accessory, or before performing
any maintenance on the tool.
•Do not lubricate tools with flammable or volatile
liquids such as kerosene, diesel or jet fuel. Use
only recommended lubricants.
•Keep work area clean, uncluttered, ventilated and
illuminated.
•Keep all electrical connections clear of water or
other liquids. (When applicable.)
•Do not operate the machine while flammable or
volatile liquids such as gasoline, diesel or jet fuel
are present. Failure to do so can result in
explosion. (When applicable.)
•Do not remove any labels. Replace any damaged
label.
USING THE TOOL
•Always wear protection when operating or
performing maintenance on this tool.
•Always wear hearing protection when operating
this tool.
•Always use Personal Protective Equipment
appropriate to the tool used and material
worked. This may include dust mask or other
breathing apparatus, safety glasses, ear plugs,
gloves, apron, safety shoes, hard hat and other
equipment,
•Prevent exposure and breathing of harmful dust
and particles created by power tool use:
- Some dust created by power sanding, sawing,
and grinding, drilling, and other construction
activities contains chemicals known to cause
cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
- Lead from lead based paints,
- Crystalline silica from bricks and cement and
other masonry products, and
- Arsenic and chromium from chemically treated
lumber
Your risk from these exposures varies, depending
on how often you do this type of work. To reduce
your exposure to these chemicals: work in a well
ventilated area, and work with approved safety
equipment, such as those dust masks that are
specially designed to filter out microscopic
particles.
•Keep others a safe distance from your work area,
or ensure they use appropriate Personal
Protective Equipment.
•This tool is not designed for working in explosive
environments, including those caused by fumes
and dust, or near flammable materials.
NOTICE
WARNING

•Electrically powered tools are not insulated
against electric shock.
•Be aware of buried, hidden or other hazards in
your work environment. Do not contact or
damage cords, conduits, pipes, or hoses that
may contain electrical wires, explosive gases or
harmful liquids.
•Keep hands, loose clothing, long hair and
jewelry away from working end of tool.
•Power tools can vibrate in use. Vibration,
repetitive motions or uncomfortable positions
may be harmful to your hands and arms. Stop
using any tool if discomfort, tingling feeling or
pain occurs. Seek medical advices before
resuming use.
•Keep body stance balanced and firm. Do not
overreach when operating this tool. Anticipate
and be alert for sudden changes in motion,
reaction torques, or forces during startup and
operation.
•Tool and/or accessories may briefly continue
their motion after throttle is released,
•To avoid accidental starting – ensure tool in
“off” position before applying air pressure or
connecting to electricity. Avoid throttle when
carrying, and release throttle with loss of air or
electricity.
•Ensure work pieces are secure. Use clamps or
vises to hold work piece whenever possible.
•Do not carry or drag the tool by the hose or
power cord.
•Do not use power tools when tired, or under the
influence of medication, drugs, or alcohol.
•Never us a damaged or malfunctioning tool or
accessory,
•Do not modify the tool, safety devices, or
accessories.
•Do not use this tool for purposed other than
those recommended.
•Use accessories recommended by Novatek
Corp.
•Never operate a tool with an accessory unless it
is properly installed and the tool is held firmly
against the work,
•Always use a retainer, when furnished, in
addition to proper barriers to protect persons in
surrounding or lower areas from possible
ejected accessories.
•When wearing gloves and operating models
with inside trigger, always be sure that the
gloves will not prevent the trigger from being
released.
•Wear safety shoes, hard hat, safety goggles,
gloves, dust mask and any other appropriate
protective clothing while operating the tool.
•Do no indulge in horseplay. Distraction can
cause accidents.
•Keep hands and fingers away from the throttle
lever until it is time to operate the tool.
•Never rest the tool on your foot.
•Never point the tool at anyone.
•Compressed air is dangerous. Never point an air
hose at yourself or others.
•Never blow clothes free of dust with compressed
air.
•Be sure all hose connections are tight. A loose
hose not only leaks but can come completely off
the tool and while whipping under pressure, can
injure the operator and other in the area. Attach
safety cables to all hosed to prevent injury in case
a hose is accidentally broken.
•Never disconnect a pressurized air hose. Always
turn off the air supply and bleed the tool before
disconnecting a hose.
•When applicable, the operator must keep limbs
and body clear of the chisel. If a chisel breaks,
the tool with the broken chisel projecting from the
tool will suddenly surge forward.
•Do not ride the tool with one leg over the handle.
Injury can result if the chisel breaks while riding
the tool.
•Know what is underneath the material being
worked. Be alert for hidden water, gas, sewer,
telephone or electric lines.
•Use only proper cleaning solvents to clean parts.
Use only cleaning solvents which meet current
safety and health standards. Use cleaning
solvents in a well ventilated area.
•Do not flush the tool or clean any parts with diesel
fuel. Diesel fuel residue will ignite in the tool
when the tool is operated, causing damage to
internal parts. When using models with outside
triggers or throttle levers, take care when setting
the tool down to prevent accidental operation.
•Do not operate the tool with broken or damaged
parts.
•Never start the tool when it is lying on the ground.
•This tool is not designed for working in explosive
atmospheres.
Refer All Communications to the Nearest
Novatek Corporation Office or Distributor.
Printed inU.S.A.

TABLE OF CONTENTS
SECTION I
GENERAL ..........................................................................................................................................6
SECTION II
BEFORE USE ....................................................................................................................................6
IN USE ...............................................................................................................................................6
SAFETY AT WORK............................................................................................................................6
SECTION III
CLEANING.........................................................................................................................................7
DISMANTLING...................................................................................................................................7
REPLACEMTN OF BACKING PAD, CLEANING DISC & SHROUD SIZE .......................................... 7
SECTION IV
SERVICE LAYOUT.............................................................................................................................8
NOVATEK WARRANTY................................................................................................................... 11

SECTION I
GENERAL
This operation and maintenance manual is furnished with each R/A Shrouded Grinder Tool purchased. It outlines the
general operation and maintenance items critical to insure satisfactory, safe and long life of the R/A Shrouded Grinder and
accessories.
READ ALL INSTRUCTIONS AND DATA IN THIS OPERATION AND MAINTENANCE MANUAL PRIOR TO OPERATION
OF THIS EQUIPMENT.
These instructions are for your protection and convenience. Please read them carefully since failure to follow the
precautions could result in injury. Whenever using electric powered equipment, basic safety precautions should be
followed.
If after reading this manual anything seems unclear, contact a NOVATEK authorized distributor or NOVATEK directly by
dialing 1-866-563-7800.
SECTION II
BEFORE USE
Inspect he tool’s external parts, fittings and assemblies for loose or damaged parts prior to use.
CAUTION: DO NOT inspect the tool without first disconnecting it from the power supply!
AIR POWERED UNITS
•Use a minimum 3/8” diameter air hose in conjunction with a minimum of 30 SCFM of compressed air rated at 90
psi. Assure your fitting is compatible to the tool’s 3/8” MQC air inlet plug. A supply of clean, dry air is required and
suitable filter lubrication is recommended for trouble free use.
WARNING Air inlet plugs less than 3/8” will not supply sufficient air flow to the grinders for satisfactory operation.
•Tighten all hose connector fittings and blow out hose to insure that all debris is purged from the supply line.
•Put a few drops of light machine oil into the air inlet of the tool on a daily basis prior to start up and at shut down.
(See recommended air tool lubricants.)
•Remove screw (#24) and add a few drops of gear lube into the gear head.
WARNING Failure to lubricate the gear head may result in unsatisfactory performance, premature failure and may
void the warranty.
•The air motor drive unit requires the correct air input fitting to be installed (part no. 818.0255) to insure the 3/8” plug
size is used.
Electric Powered Unit
Insure that 110 volt / 10 amp electrical power is available. Power cords should be limited to 50 feet in length and be a
minimum of 14 gauges / three wires.
•Daily inspection of the electrically powered grinder is required to insure safe and reliable operation. The daily
inspection consists of the following:
- Wipe down the outside surface of the R/A gear drive until and electric motor enclosure to remove
accumulated dirt, dust and other residue from the grinder preceding cleaning operation.
- Check for loose or damaged parts. Tighten or replace as necessary.
- Clear out any dust or debris from the inside of the motor case by means of compressed air jet through the
cover case cooling slots.
- Test run the motor to insure no arcing is indicated between the brush and commutator. If arcing takes
placed and additional air jet cleaning does not correct the problem, contact Novatek or an authorized
Novatek distributor.

- Check the R/A gear drive by rotation the output shaft to determine any roughness in the bearing or gear
meshing during rotation. If roughness is indicated, inspect the tool per the corrective action section of this
manual.
Periodic Inspections and Maintenance Requirements
Electric motor arcing between the commutator and brushes indicated poor contact due to dirt accumulation, worn brushes or
worn commutator.
A. Clear out any dust or debris from the inside of the motor case by means of compressed air jet through the cover
case cooling slots.
B. If poor operation continues, contact Novatek or an authorized Novatek distributor.
If roughness of the R/A gear is detected, please contact Novatek or an authorized Novatek distributor.
IN USE
A. Always use the correct abrasive discs.
B. Experimentation with various disc materials and abrasive materials may be beneficial in terms of productions.
C. The electric motor switch should be in the “off” position when not in use.
D. After proper power has been supplied the switch should be turned to the “on” position.
E. The drive motor is capable of various rotational speeds. To determine optimal rotational speeds, refer to the
instructions provided with the abrasives.
F. No attempt should be made to increase or decrease the grinders rotational speed setting recommended for each
individual abrasive. Always follow manufacturer’s recommendations. Failure to do so could result in premature
wear of failure of the abrasive disc.
SAFETY AT WORK
The following safety precautions should be practiced when operating the Shrouded R/A tool.
•During grinding operations, the user is required to use safety and protective equipment as directed by OSHA,
Occupational Safety and Health Administration.
•Eye and face protection equipment is required to meet OSHA standards. Casual eyewear IS NOTa substitute for
industrial safety eye protection.
•The tool should be operated using both gloved hands to firmly position the pad against the work surface.
•Never operate the tool in a manor where there is the possibility of physical contact with the disc or debris from the
cleaning process.
•Always start the tool by depressing the throttle lever with a gloved hand.
•Never under any circumstances operate the tool by locking the throttle lever open by taping or other means.
•Never operate the disc over corners or sharp protrusions which can cause premature disc failure and possible
flying debris.
•For electric drive motors it is recommended to install a fault current switch (30MA) in extremely moist conditions or
if the machine is covered with conductive dust.
•The spindle lock on the electric drive motors should not be used until the rotor has come to a complete stop.
•Always use the vacuum system when operating the tool in a grinding operation to remove and dispose of debris, in
the specified manner.
•Always change pre-filters as specified (or more often) when operating on concrete to effectively contain dust and
associate hazardous debris.
•It shall be the tool owner’s responsibility to insure that the tool is maintained in a safe operating condition.
•If the tool produces unusual sounds or vibrates excessively, shut down immediately for repair or return for factory
inspection.
•Exposure to excessive vibrations or repetitive work practices may be harmful. The use of gloves will help damped
vibrations during prolong use.
•Due to fire hazards, do not use gasoline or volatile thinners to flush or clean the tool in any way.
•Maintenance and repair records should be kept on all grinders.
•Frequency and nature of repair may reveal unsafe operational conditions.
SECTION III
CLEANING

Shroud Assembles
- At intervals of no more than 50 hours of operation, or weekly, clean the tool externally and internally by removing
the shroud end plate. Inspect the hub assembly and cutting flap units and cutter heads for wear and damage.
- Use a high flash point solvent to flush debris.
- Replace or repair any defective parts found.
- Replace the end plate and run the tool to check for satisfactory operation.
Air Drive Motors
- Air drive motors require very little normal maintenance if proper air filtration and inline lubricator is installed.
- Daily external cleaning and inspection is recommended.
- Reconditioning of air drive motors after warranty operation.
Electric Drive Motors
- If inspection indicates a buildup of dust inside the cover, this build up may be removed by blowing compressed air
through the air slots.
- If excessive brush sparking is observed through the air inlet slots, switch the machine off immediately to avoid
serious damage which can occur with prolonged operation.
LUBRICATION
Input a few drops of oil daily through the air inlet fitting with any industry approved air tool lubricant. Suitable oil is NFO’s Air
Lube (10W/NR) or equivalent light machine oil (10W). A suitable air line filter and an in line lubricator are also strongly
recommended.
The drive R/A Air Motor Drive Case should be check for oil level at the filler screw oil port. A few drops of dear lube must be
added daily for satisfactory trouble free operation. A sample of the gear lube recommended is included and can be obtained
as Castrol AW-68, Dryden EP-68#2, or equivalent.
SECTION IV
ASSEMBLY AND DISMANTLING
The tool consists of three assemblies, the right angle drive air motor, and the shroud assembly. Normal maintenance
operation will require periodic inspection, lubrication and cleaning of the components.
The right angle drive air motor requires only periodic inspection. Lubrication as recommended for air motor. If a problem
occurs during the warranty period, the drive assembly should be returned for warranty inspection for repair or replacement.
DRIVE AIR MOTOR INSPECTION AND REPAIR
In the event that the Right Angle Drive Air Motor is beyond warranty (1 year) and the user wishes to recondition the Air Drive
Motor, the following steps should be taken to inspect and recondition the unit, if not returned to Novatek for service.
WARNING Following reconditions of Right Angle Drive Air Motor it is critical to insure the no load speed of the
motor is approximately 5500 RPM +/- 100 RPM. Over or under torque of the air motor assembly will result in
deviations of rotational speeds. The no load speed must be checked following assembly each time the abrasive is
secured to the locking position.
A. Release the locking screw on back flange and unscrew using pink key and end wrench.
B. Place tool in vice, clamping across flats on throttle housing, unscrew lock ring. (Note: Left hand thread on angle
head casting, right hand thread on motor housing.)
C. Pull motor assembly out and unscrew throttle assembly from motor housing, ease out rear spacer, coupling and
front spacer.
D. To disassemble the motor, grip rotor spines in soft jaws of vice and unscrew nut for RA5 (left hand thread).
E. Displace cylinder to one side and insert stripped block between bearing housings.
F. Using stripper plate, pass rear bearing housing into hole “A” so that the edge of the cylinder lodges on one side
and the stripper block on the other.
G. Push rotor through from splined end. Pass rotor through hole “B” and press out from rear bearing housing.
H. Remove space and vanes. To remove bearing from housings, place over hole “B” and push out with punch.

I. To disassemble the angle head assembly, grip casting in soft jaws, unscrew bearing housing and withdraw whole
spindle assembly unit.
J. Remove circlip. Remove bearing by sliding into slot “E” in stripper plate, support stripper plate either side of bearing
and press out.
K. Slide off circlip. Press off gear wheel and ease out woodruff key.
L. Press out spindle by placing blocks either side of bearing housing with thread in downward position.
M. Turn bearing housing over and press out bearing with punch.
N. The throttle unit can be disassembled by removing plug, O-ring and valve spring.
O. Withdraw valve stem and O-ring and with suitable punch, tap out lever pin and remove throttle lever.
NOTE: Stripping Tool Kit (part no. 312.A529) should be ordered and available prior to disassembly of the Air Drive
Motor. These special stripping or disassembly tools along with the following instructions are supplied for
customers who wish to carry out their own repairs. These repairs should only be undertaken if trained personnel
and approved speed testing equipment are available.
CLEANING, INSPECTION AND PARTS REPLACEMENT
All parts should be collected in order of disassembly, cleaned in a suitable solvent and inspected for damage or excessive
wear. All renewal parts required should be ordered to support reassembly and return to service. It should be noted that
certain parts should be stocked, based on experience, to support a rapid repair cycle.
A. Press bearings into housings and insert spacer into rear housing with taper facing away from housing.
B. Insert threaded end or rotor into rear housing and press fully home using hole “C”.
C. Fit vanes into rotor. Place cylinder over rotor, locating pin in small hole in rear housing.
D. Locale front bearing housing over splines and use bush to push bearing and housing fully home.
E. Grip splines in soft jaws and screw on nut, left hand thread.
F. Slide assembly into motor housing so that approximately 7mm of front bearing housing can be seen protruding,
replace spacer.
G. In the event that vanes are not free to move in rotor slots, they should be replaced with a new set.
H. Reassemble throttle by fitting O-ring to valve stem. Fit valve stem, spring, O-ring and throttle plug.
I. Fit lever together with spring if fitted and pin. Screw the throttle assembly into rear of motor housing.
J. To assembly angle head, place bearing over hole “D” in stripper plate and press on spindle right home to shoulder.
K. With bearing housing over hole “B”, thread upward, place spindle (thread downward) and bearing over housing and
with tube press bearing on outer race fully home.
L. Fit woodruff key, gear wheel, circlip and oiler. Place bearing over hole “C” and, with threat at top, press spindle into
bearing up to the shoulder.
M. Fit circlip. Locate spindle assembly into angle head. Screw bearing housing in and tighten.
N. Press two bearings onto pinion using hole “C” in stripped plate slid pinion assembly into angle head housing and
mesh gears.
Locate front space onto pinion bearings and fit coupling onto pinion splines.
O. There should now be two sub-assemblies for the right angle drive air motor”
- 1 – The angle head assembly.
- 2 – The motor and throttle assembly with lock-ring separate.
P. Replace back flange and tighten lock screw.
ELECTRIC DIRVE MOTOR SUB/ASSEMBLY INSPECTION
In the even the electric drive unit has accumulated 800 hours +/- any increment there after (1,000, 1,500 etc.), the drive unit
should be inspected as required to maintain warranty coverage.
SECTION V
SPECIFICATION - SR/AT SHROUDED R/A TOOL (5” DIA.)
MODEL # 195.5501 195.5551
195.5701 195.5751
RPM/HP 5500/1.2 5500
DISC DIA. 5” & 7” 5” & 7”
TOOL WT, # 5.5 8.0
TOOL LENGTH (IN.) 13.0 13.0

TOOL HEIGHT (IN.) 4.5 5.5
TOOL WIDTH (IN.) 6.5 6.5
AIR PRESS REQ. (I 10 PSI) 90 N/A
AIR CONSUMPTION (SCFM) 30 N/A
AIR INLET FITTING (SPI) 1/4” MALE NPT N/A
ELECTRIC 110/120V - 10AMP
SERVICE LAYOUT #1
The following parts list is included to identify parts from the service layout be reference number and description. A specific
parts list is also included for the tool purchased to identify specific part numbers required for ordering replacement parts.
The part lists are divided into subassemblies, Right Angle Air Motor, Shroud Assembly and other parts.
Tool Model: Right Angle Grinder Air Motor (only)
Part Number: 195.5501 & 195.5701
Ref # Part # Description
1A 312.RA5T Right Angle Motor Complete
1 312.A736T Motor Housing
2 312A930 Angle Head
3 312.A685 Lock Ring
4 312.A686 Rotor
5 312.A451 Cylinder
6 312.A421 Vanes (5 off)
7 312.A415 Rear Bearing Housing
8 312.A346 Front Bearing Housing

9 312.A101 Rotor Spacer
10 312.A604 Bearing
11 312.A689 Bearing
12 312.A722 Bearing
13 312.A723 Bearing
14 312.A605 Bearing
15 312.A725 Spindle
16 312.A100 Circlip
17 312.A142 Circlip
18 312.A724 Bearing Housing
19 312.A726 Gear Wheel
20 312.A727 Pinion
23 312.A104 Back Nut
24 312.A249 Oiling Screw
25 312.A254 Oiler – Gear Lube
26 312.A626 Rear Space
27 312.A172 Wood Ruff Key
28 312.A728 Front Spacer
29 312.A729 Coupling
30 312.A730 Back Flange
34 312.A732 Silencer Cover & Screws
35 312.A342 Lever
36 312.A756 Side Handle
38 312.A718 Throttle Housing
39 312.A719 Throttle Lever Assembly
40 312.A141 Lever Pin
41 312.A330 O-ring
42 312.A143 Throttle Valve Stem
45 312.A146 Throttle Plug
46 312.A177 Lever Return Spring
52 312.A108 Locking Screw (2)
-- 312.GLUB Oil Bottle (Sample Castrol Alpha SP68)
RIGHT ANGLE AIR MOTOR SUB-ASSEMBLY
Part No. 312.AR5T

SERVICE LAYOUT # 2
The following two tool service layouts, with referenced part numbers, are used throughout this manual to help identify parts
and location for disassembly, assembly and general service procedures. The first layout covers the R/A Air Motor Assembly
and the second layout covers the remainder Shroud & Hub Assemblies.
Tool Model: Floating Head Shroud Assembly
Part Number: 195.5501, 195.5551, 195.5701, 195.5751
Ref# Part# Description
70 312.FA09 MOUNTING COLLAR – SHROUD TO AIR MOTOR AIR
312.FE09 MOUNTING COLLAR – SHROUD TO AIR MOTOR ELECT
71 499.G005 SHROUD ASSEMBLY-5” COMPLETE (includes 70, 72, 73, 74)
499.G007 SHROUD ASSEMBLY-7” COMPLETE (includes 70, 72, 73, 74)
Not Shown 508.GA01 SCREW/LOCK WASHER (SET)-SHROUD TO MOTOR AIR
508.GE01 SCREW/LOCK WASHER (SET)-SHROUD TO MOTOR ELEC
72 312.G205 SHROUD CAST HOUSING – 5”
312.G207 SHROUD CAST HOUSING – 7”
73 731.5505 SKIRT 5”- FLOATING HEAD SHROUD ONLY
731.5707 SKIRT 7”- FLOATING HEAD SHROUD ONLY
74 731.G005 FLEXIBLE SHROUD ASSEMBLY 5”
731.G007 FLEXIBLE SHROUD ASSEMBLY 7”
CONSUMABLE REPLACEMENT PARTS AVAILABLE
66 312.M105 BACKING PAD (5”) FOR COATING REMOVAL DISC
312.M107 BACKING PAD (7”) FOR COATING REMOVAL DISC
312.P105 BACKING PAD (5”) FOR SILICON CARBIDE DISC
312.P107 BACKING PAD (7”) FOR SILICON CARBIDE DISC
67 312.M005 DISC-CLEANING & COATING REMOVAL (5”)
312.M007 DISC-CLEANING & COATING REMOVAL (7”)
312.P005 DISC-SILICON CARBIDE (5”)
312.P007 DISC-SILICON CARBIDE (7”)

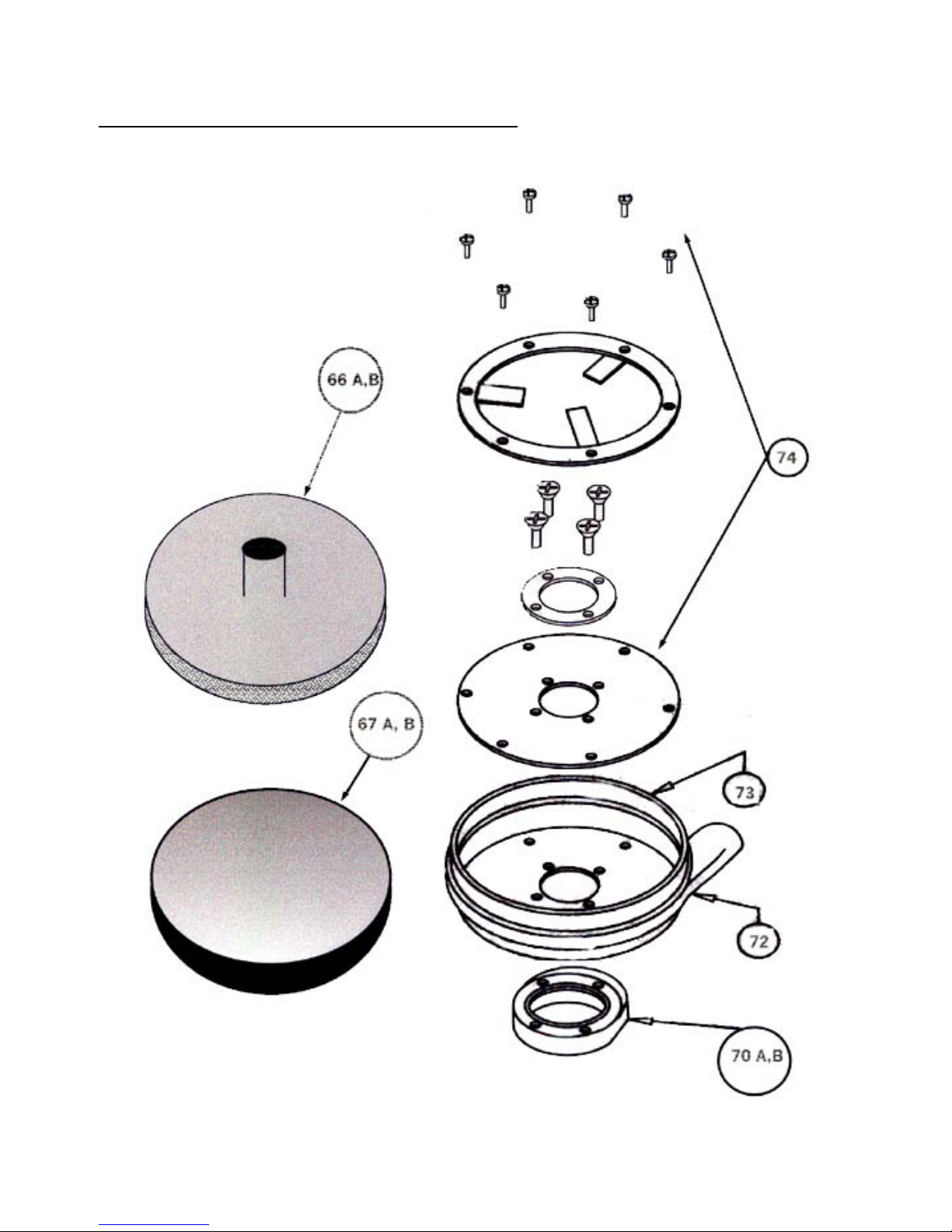

FLOATING HEAD SHROUD AND CLEANING PAD ASSEMBLIES
Part Numbers: 195.5501, 195.5551, 195.5701, 195.5751

NOVATEK CORPORATION LIMITED WARRANTY
The TOOLS manufactured/distributed by Novatek Corporation are warranted to be free from defects in
material and workmanship for a period of ONE YEAR with the exception of Electric Drive Units, Electric
Motors and Air Blowers - 6 months warranty applies on the electric components from the date of
purchase. This warranty does not apply to accessories or parts subject to normal wear.
This warranty applies only to TOOLS purchased new from NOVATEK CORPORATION or an
authorized distributor. This warranty does not apply to any TOOL which has been abused, misused,
modified or repaired by someone other than NOVATEK CORPORATION or its authorized repair
center.
If a TOOL proves defective in material or workmanship within one year of purchase from NOVATEK
CORPORATION, it should be returned to NOVATEK CORPORATION, transportation pre-paid. The
return must be authorized by a RETURN MERCHANDISE AUTHORIZATION NUMBER (R.M.A. #)
obtained from NOVATEK CORPORATION prior to returning the UNIT. All packages must show
clearly on the outside the return merchandise authorization number. All packages received without
any R.M.A. # on the outside will be refused by NOVATEK CORPORATION receiving department.
Warranty claims will only be considered upon adequate proof of date of purchase. NOVATEK
CORPORATION will, at its option, REPAIR or REPLACE DEFECTIVE PARTS. Repairs or
replacements are warranted as above for the remainder of the original warranty period. The sole
liability of NOVATEK CORPORATION and the user’s exclusive remedy under this warranty is limited
to the repair or replacement of the defective product.
THERE ARE NO OTHER WARRANTIES EXPRESSED OR IMPLIED AND NOVATEK
CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL
DAMAGES OR ANY OTHER EXPENSES OR REPAIR OR REPLACEMENT AS DESCRIBED
ABOVE.
All warranty claims should be forwarded to:
NOVATEK CORPORATION
155 Philips Road
Exton, PA 19341
ATTENTION: CLAIM AND SERVICE DEPARTMENT
R.M.A. # ____________
CALL Toll Free at 1-866-563-7800 for your RMA number prior to shipping.
Also include a brief description of the problem as well as a phone number, contact name and return
address in case NOVATEK CORPORATION service personnel has to get in contact with you.
