Novis CairMax User manual

USER GUIDE
CairMax

2
User Guide CairMax
Definitions of Symbols Used
The following symbols may appear in this user
guide, on the product, or on its accessories.
Some of the symbols represent standards and
compliances associated with the control unit and
its use.
Important Information
Caution
Infection Control
Do Not...
Manufacturer
Manufacturing Date
Serial Number
Refer to User guide
Disposal: Do not dispose of this product as
unsorted municipal waste.
Collection of such waste separately for
special treatment is necessary.
Important Notice
Before operating this medical equipment, it is
important to read this user guide and understand
the operating instructions and safety precautions.
Failure to do so could result in patient injury and/or
damage to the product.
We recommend you keep the user guide near the
product.
Therapeutic devices and/or medical equipment
should only be used in accordance with
manufacturer’s instructions and under the
consent, supervision and management of a
suitably qualified health professional.
If you have any questions, please contact Novis
Healthcare on 1300 738 885.
Novis Healthcare has a policy of continuous
product improvement and reserves the right to
amend specifications presented in this guide.
Information correct at time of production
(October 2017) .
© 2017 Novis Healthcare. All rights reserved.
FOAM CORE
BASE
AIR CELLS
HEEL SLOPE
TOPPER
TOP COVER

3CairMax User Guide
Important Notice 2
System Overview 3
Contents 3
Intended Use 4
Safety Precautions 5
Mattress Set-Up 6
Care and Cleaning 7
Storage 8
TroubleShooting 8
Technical Specifications 9
Warranty Statement 10
Contents
System Overview
The CairMax is a non-powered hybrid foam air
combination pressure redistribution surface. It is
suitable for the prevention and treatment of skin
breakdown and pressure injuries in patients at risk. It
is designed to replace your existing bed mattress on
either a standard or profiling electric bed frame.
With a focus on optimum patient comfort, the
mattress is designed as a static, non-powered
pressure relieving surface. The system uses patient
weight and movement to distribute the internal air
pressure amongst the cells, in order to maintain a low
surface pressure and deliver customised pressure
reduction regardless of body shape or posture,
while providing a stable surface to maximise weight
capacity.

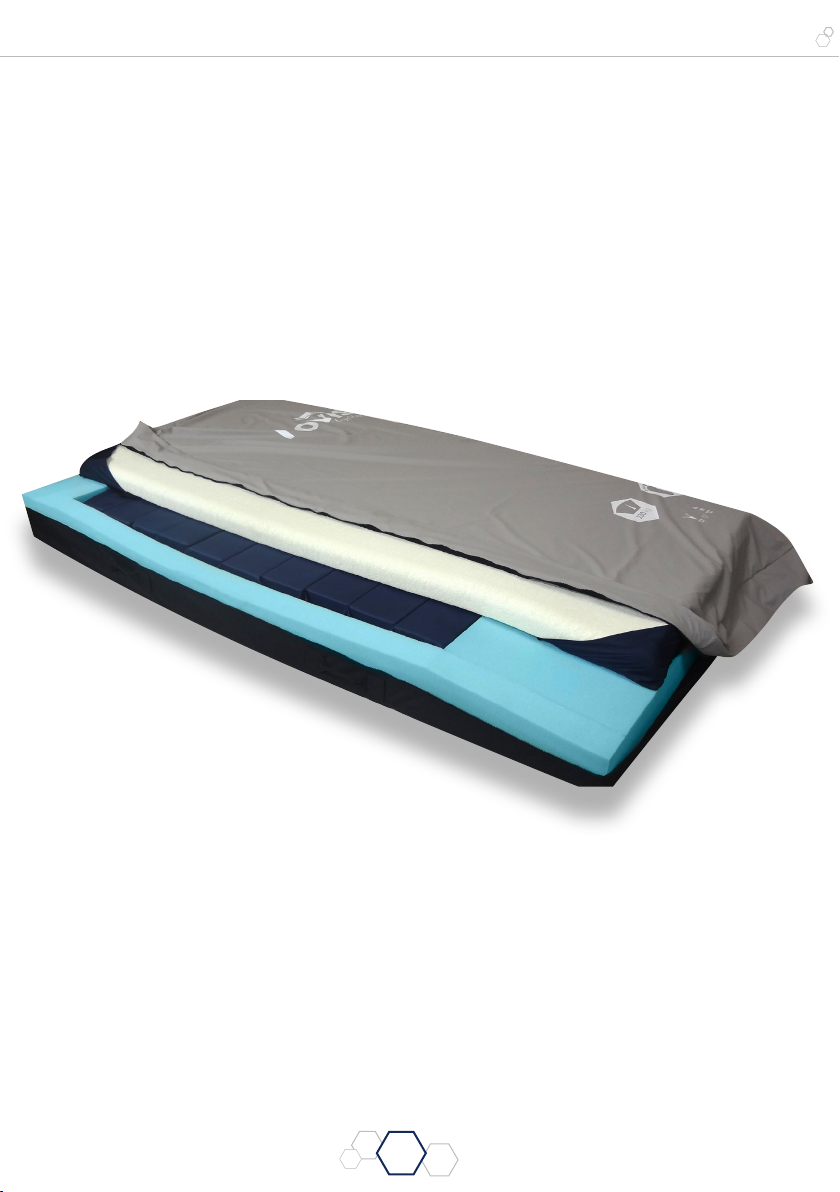

The mattress consists of a foam core, with 10
transverse air cells divided into three zones –
head (3 cells), torso (3 cells) and legs (4 cells)
– interconnected by a system of air tubes and
regulators. The foam core forms a perimeter around
the cells and gives the mattress its shape.
Each air cell contains a unique foam insert,
designed to provide support, and to achieve air
pressure equilibrium across the body contact
surface, by displacing air from one zone of high
pressure to a zone with lower pressure.
An ultra-soft foam top layer conforms to the
contours of the body.
Wrapped in an inner cotton cover, in combination
with a glide sheet underneath , this layer helps keep
shearing to a minimum. The mattress is protected by
a durable, multi-stretch vapour permeable cover and
a tough, hardwearing base.
The system consists of the following components:
⬡Foam Air Mattress
⬡User guide

4
User Guide CairMax
Intended Use
Indications
The CairMax Foam Air surfaces are indicated for:
⬡The prevention and treatment of skin breakdown
and
pressure injuries in at risk patients.
Contraindications
Patient conditions for which the application of
pressure therapy on the CairMax Foam Air surfaces
are contraindicated include:
⬡Unstable fractures
⬡Gross oedema
⬡Burns
Intended Care Setting
Intended care settings for the CairMax Foam Air
surfaces are:
⬡Home Care
⬡Aged Care
Connecting System to Other
Devices
There no are other devices necessary for normal
operation.
The CairMax Foam Air
surface can be fitted to
most standard hospital
or single bed bases
The CairMax King Single
Foam Air surface can be
fitted to most
king single sized hospital
or
king single bed bases.
Therapeutic devices should only be used in
accordance with manufacturer’s instructions and
under the consent, supervision and management of a
suitably qualified health professional.
Novis Healthcare accepts no liability for any use,
change or assembly of the product other than that
stated in this User Guide.

5CairMax User Guide
Safety Precautions
The purpose of the following safety precautions is to direct attention to possible dangers. The safety
symbols and their explanations require careful attention and understanding.
The safety warnings by themselves do not eliminate any danger. The instructions or warnings they give
are not substitutes for proper accident prevention measures.
For your own safety and the safety of equipment, always take the following precautions.
General Safety Precautions
Read all instructions before using this medical
device
This system must be used on top of an
appropriate sized bed frame and the
appropriate operating environment as stated in
this user guide.
Minimise layers between patient and mattress
and secure bed sheets loosely so as not to
aect the pressure redistrubution. As part of
a sensible pressure injury prevention strategy,
avoid wearing clothing that may cause areas
of localised damage due to creases, seams,
objects in pockets, etc.
Never use sharp objects or electrically heated
blankets on or under the system.
Product top cover may present a suocation
risk. It is the responsibility of the caregiver to
ensure that the patient can use this product
safely.
Bed frames used with the systems can vary
greatly depending on the specific healthcare
setting (ie hospitals, aged care, home care, etc).
It is the responsibility of the caregiver to take
the necessary precautions to ensure the safety
of the patient. This includes, but is not limited to,
the appropriate use of side rails to prevent falls.
User Capacity
The maximum recommended patient weight
for this system is 230 kilograms.
Do not exceed this safe working load or you risk
injury
to the patient or carer and damage to the
product.
Protection Against Hazards
Fluids
Trapped liquids/moisture in foam may lead to an
infection control hazard. Avoid exposing the foam
sections of the mattress to liquids, foam is not
washable.
Disposal
Dispose of all components (air cells, mattress
cover and base) according to local procedures and
regulations or contact Novis Healthcare for advice.

6
User Guide CairMax
Mattress Set Up
Carefully unpack the mattress and inspect for any damage that may have
occurred during transit. Any damage or missing components should be reported
to Novis Healthcare as soon as possible.
Confirm there are no sharp objects in the immediate area which may risk
damage to the mattress replacement.
FOOT SYMBOL
Remove your existing mattress and place the foam air mattress
on top of your bed – printed top cover facing upwards and foot
symbol at foot end of the bed.
The mattress can be covered with a light sheet as required, and is
now ready for use.
BED BASE

7CairMax User Guide
Care and Cleaning
To prevent cross contamination, the mattress should be examined and disinfected between patient use.
Clean the mattress in accordance with local infection control policy and government regulations.
Failure to do so could cause patient or personal injury.
The mattress is not protected against excessive amounts of water. Do not immerse the foam components in
water or allow them to get wet.
Do not use high temperature autoclave steam cleaning devices or phenolic-based products for cleaning.
This could result in damage to the equipment and loss of waterproof qualities of the top cover.
Base Cleaning
Swab the mattress base and cells with a solution
of sodium hypochlorite or similar (up to 10,000
ppm available chlorine). Dry thoroughly before
reassembly.
Do not machine wash or tumble dry the air cells
or mattress base.
If cleaning or disinfection is required, do not
allow fluid to enter air cells and air hoses.
Foam is not washable as trapped liquid may present
an infection control risk. Do not wash or saturate
any foam component. If necessary, wipe with a cloth
soaked in isopropyl alcohol and ensure the wiped
surface is completely dry before replacing the top
cover.
Cleaning and Infection Control
It is recommended that the CairMax is cleaned
every two weeks if in constant use.
Top Cover Cleaning
Unzip and remove the top cover from the base
before washing. For basic care and cleaning, wipe
down with warm water containing neutral detergent.
The top cover can also be machine washed at 95°C
using neutral detergents.
Refer to the top cover wash tag for detailed
cleaning instructions.
Do not use system without top cover.
Top Cover Removal
1 Raise the waterfall skirt and locate the zippers at
the foot end of the mattress.
2Run each zipper along the side of the mattress
from foot end to head end.
3Separate top cover from mattress base.
Before reattaching the top cover, ensure the zippers
are at their starting positions at the head end.
Disinfection
The mattress base and top cover may be
decontaminated by a solution of sodium
hypochlorite or similar (up to 10,000 ppm available
chlorine). Dry thoroughly before use.

8
User Guide CairMax
Storage and Troubleshooting
Storage
The mattress should be stored laying flat in a cool and dry area. Avoid laying
the mattress upside down, or on the side or end. Avoid stacking mattresses or
placing heavy objects on top of the the mattress when not in use.
Mattress can not be rolled or folded
Troubleshooting
SYMPTOM SOLUTION
Mattress surface
appears to be uneven
Ensure all air cells and foam core
are evenly placed along mattress,
straighten and re-lay if uneven,
crooked or protruding.

9CairMax User Guide
Technical Specifications
SYSTEM
MODEL CairMax CairMax King
Single
SYSTEM CODE FAMCM-R02 FAMCM-R02K
CAPACITY 230 kg
NO OF CELLS 10 (3 at head, 3 at torso, 4 at legs)
ARTG 292670
MATTRESS
DIMENSIONS
LENGTH 2000 mm 2000 mm
WIDTH 850 mm 1050 mm
HEIGHT 200 mm 200 mm
WEIGHT 15 kg 20.4 kg
MATERIAL
TOP COVER PU laminated nylon
BASE COVER PVC laminated polyester
AIR CELL TPU laminated nylon
CELL FOAM INSERT MATERIAL High resilience polyurethane
MATTRESS AIR SUPPLY LINE Heavy duty PVC piping
ATTACHMENT Dual zippers
All product specifications are subject to change without notice.
Waste Disposal
This product may contain
substances that could be harmful
to the environment if disposed
of in places (landfills) that are
not appropriate according
the legislation. Please be
environmentally responsible and
contact your local authority on
available options to recycle this
product at its end of life.
Service Life
The expected service life of a mattress is highly
dependent on frequency of use, servicing, care and
maintenance.
Do NOT use unapproved accessories or attempt
to modify, disassemble or otherwise misuse the
CairMax mattress.

10
User Guide CairMax
Warranty Statement
Limited Warranty
This warranty is provided by Novis Healthcare
(ABN 45 102 735 491) of Unit 12, 12 Mars Road,
Lane Cove NSW 2066
Novis Healthcare (Novis) products are manufactured
to the highest quality standards and are thoroughly
tested and inspected before leaving our factory. In
addition to any statutory rights and remedies you
may have, Novis warrants all of its products sold
directly or via an Authorised Novis Australia Dealer
against defective workmanship and faulty materials
from the date of purchase by the end user for a
period of twelve months unless otherwise specified
for that product and its components.
Soft Goods 2 year
Warranty Claims
To claim under this warranty, please contact Novis
Healthcare and have your receipt or proof of
purchase available. Novis Healthcare may need to
assess the defect before determining any claim, and
additional information may be requested to process
your claim. Claims without proof of purchase may not
be able to be processed.
Novis Healthcare may at its option inspect the goods
on site or require them to be returned to its premises
or one of its Authorised Service Agents in person or
freight prepaid by you.
Novis will undertake at its option, to repair or replace,
free of charge, each product or part thereof on the
condition that:
⬡The product found on examination, to be
suering from a manufacturing defect;
⬡The product or relevant part has been serviced
regularly by Novis or one of its Authorised
Service Agents and has not been subjected to
misuse, neglect or been involved in an accident;
⬡The repairs are not required as part of normal
wear and tear.
⬡At our option
⬡Goods repaired may be replaced by refurbished
good of the same type rather than being
repaired.
⬡Refurbished parts may be used to repair goods.
Novis Healthcare will not be held responsible for any
repair other than those carried out by it or one of its
Authorised Service Agents.
Warranty repairs do not extend the length of the
warranty period.
Limited Liabilities
Our liability under this manufacturer’s warranty is
subject to us being satisfied that a defect was caused
by faulty parts, manufacture or workmanship, and
was not caused or substantially contributed to by
other factors or circumstances beyond our control,
including (but not limited to) defective installation,
maintenance or repair, product modification
or alteration, any neglect, misuse, or excessive
use, normal wear and tear or failure to follow
manufacturer’s instructions.
IMPORTANT NOTICE FOR AUSTRALIAN
CONSUMERS:
Our goods come with guarantees that cannot be
excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a
major failure and for compensation for any other
reasonably foreseeable loss or damage. You are
also entitled to have the goods repaired or replaced
if the goods fail to be of acceptable quality and
the failure does not amount to a major failure. To
obtain compensation, you will need to provided
documentary evidence of the loss or damage
suered and documentary evidence that such loss or
damage was a reasonable foreseeable consequence
of a failure Novis Healthcare to comply with a
consumer guarantee under the Australian Consumer
Law. Subject to the provisions of the Australian
Consumer Law, Novis Healthcare excludes, to the
fullest extent permitted by law, all liability in respect
of loss of profit or other economic loss, direct to
indirect or consequential, special, general or other
damages or other expenses or costs which may
include negligence.

11 CairMax User Guide

Pressure care and patient handling specialists
novis.com.au /1300 738 885
CMXUG/0419 APR 2019
