Novus NVC-601D-white User manual

u s e r ’s m a n u a l
NVC-601D-white
NVC-601D-black

NVC-601D-white, NVC-601D-black - User’s manual ver. 1.0.
All rights reserved © AAT Holding Sp. z o.o.
2
EMC (2004/108/EC) and LVD (2006/95/EC ) Directives
CE Marking
Our products are manufactured to comply with the requirements of the following directives and national
regulations implementing the directives:
 Electromagnetic compatibility EMC 2004/108/EC.
 Low voltage LVD 2006/95/EC with further amendment. The Directive applies to electrical
equipment designed for use with a voltage rating of between 50VAC and as well as 75VDC and
1500VDC.
WEEE Directive 2002/96/EC
Information on Disposal for Users of Waste Electrical and Electronic Equipment
This appliance is marked according to the European 1000VAC Directive on Waste Electrical and Electronic
Equipment (2002/96/EC) and further amendments. By ensuring this product is disposed of correctly, you will
help to prevent potential negative consequences for the environment and human health, which could otherwise
be caused by inappropriate waste handling of this product.
The symbol on the product, or the documents accompanying the product, indicates that this appliance may not be
treated as household waste. It shall be handed over to the applicable collection point for used up electrical and
electronic equipment for recycling purpose. For more information about recycling of this product, please contact
your local authorities, your household waste disposal service or the shop where you purchased the product.
RoHS Directive 2002/95/EC
Out of concern for human health protection and friendly environment, we assure that our products
falling under RoHS Directive regulations, regarding the restriction of the use of hazardous
substances in electrical and electronic equipment, have been designed and manufactured in
compliance with the above mentioned regulations. Simultaneously, we claim that our products
have been tested and do not contain hazardous substances whose exceeding limits could have
negative impact on human health or natural environment.
Information
The device, as a part of professional CCTV system used for surveillance and control, is not designed for self
installation in households by individuals without technical knowledge.
The manufacturer is not responsible for defects and damages that result from improper or inconsistent with
user’s manual installation of the device in the system.
INFORMATION

NVC-601D-white, NVC-601D-black - User’s manual ver. 1.0.
All rights reserved © AAT Holding Sp. z o.o.
3
WARNING!
THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A
PROPER DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE
YOURSELF WITH THE MANUAL PRIOR TO INSTALLATION AND FURTHER
DEVICE OPERATION.
WARNING!
USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO
USER-SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE
PERSONNEL MAY OPEN THE UNIT
INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE
PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS
WARNING!
PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT DESCRIBED FOR THE GIVEN
PRODUCT IN USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE
PRODUCT, OR IF IT DOES NOT ARISE FROM THE USUAL APPLICATION OF THE
PRODUCT, MANUFACTURER MUST BE CONTACTED UNDER THE RIGOR OF
EXCLUDING THE MANUFACTURER’S RESPONSIBILITY FOR THE RESULTS OF SUCH AN
ACTION.
IMPORTANT SAFEGUARDS AND WARNINGS
1. Prior to undertaking any action please consult the following manual and read all the safety and
operating instructions before starting the device.
2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual
is necessary;
3. All the safety precautions referred to in this manual should be strictly followed, as they have a
direct influence on user’s safety and durability and reliability of the device;
4. All actions conducted by the servicemen and users must be accomplished in accordance with the
user’s manual;
5. The device should be disconnected from power sources during maintenance procedures;
6. Usage of additional devices and components neither provided nor recommended by the producer
is forbidden;
7. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers
etc.) is not recommended since it may lead to heat build-up and damaging the device itself
as a consequence;
8. Mounting the camera on unstable surface or using not recommended mounts is forbidden.
Improperly mounted camera may cause a fatal accident or may be seriously damaged itself. The
camera must be mounted by qualified personnel with proper authorization, in accordance with this
user’s manual;
SAFETY REQUIREMENTS

NVC-601D-white, NVC-601D-black - User’s manual ver. 1.0.
All rights reserved © AAT Holding Sp. z o.o.
4
SAFETY REQUIREMENTS
9. Device should be supplied only from a power sources whose parameters are in accordance with
those specified by the producer in the camera technical datasheet. Therefore, it is forbidden to supply
the camera from a power sources with unknown parameters, unstable or not meeting producer’s
requirements;
10. Signal cables (conducting TV or / and telemetric signal) should be placed in a way excluding the
possibility of damaging them by accident. Special attention must be paid to cables getting from the
camera and connecting the power supply;
11. To avoid equipment damage, whole TV circuit should be equipped with properly made
discharge-, overload- and lightning protection devices. Usage of separating transformers is
advised;
12. Electric installation supplying the device should be designed to meet the specifications given
by the producer in such a way that overloading is impossible;
13. User cannot repair or upgrade the equipment himself. All maintenance actions and repairs should
be conducted only by qualified service personnel;
14. Unplug the camera from the power source immediately and contact the proper maintenance
department when the following occurs:
 Damages to the power cord or to the plug itself;
 Liquids getting inside the device or exposure to strong mechanical shock;
 Device behaves in a way not described in the manual and all adjustments approved by the
manufacturer and possible to apply by user himself, seem not to have any effect;
 Camera is damaged;
 Atypical behaviour of the camera components may be seen (heard).
15. In necessity of repairs attention to using only original replacement parts (with their parameters
in accordance with those specified by the producer) should be paid. Non-licensed service and
non-genuine replacement parts may cause fire or electrocution;
16. After maintenance activities tests should be run to ensure proper operation of all the functional
components of the device.
Attention!
Technical changes reserved without prior notice and printing errors possible.

NVC-601D-white, NVC-601D-black - User’s manual ver. 1.0.
All rights reserved © AAT Holding Sp. z o.o.
5
1. PACKAGE CONTENTS
If any of the listed equipment has been damaged during transport or if the package is incomplete,
the contents of package should be packed back in to the original box. Please contact your local
NOVUS distributor for further assistance.
2. MAIN CHARACTERISTICS
 Electronical D/N function
 Horizontal resolution: up to 700 TVL
 Min. illumination: from 0.00008 lx/F=2.0
 Wide dynamic range (WDR)*
 High Light Compensation (HLC)*
 Digital Noise Reduction (DNR)
 Lens type:
Standard lens, f=3.6 / F=2.0
 3-axis camera module adjustment
 Privacy zones: 8*
 Digital Image Stabilization*
 Other functions: various picture effects, motion detection*
 OSD menu, available through optional NV-RCB2 remote controller
 Enclosure color:
- white
- black
 12VDC Power supply
*Functions are available by optional NV-RCB2 remote controller
FOREWORD INFORMATION
Camera User’s manual
Screws 3 pcs

NVC-601D-white, NVC-601D-black - User’s manual ver. 1.0.
All rights reserved © AAT Holding Sp. z o.o.
6
3. SPECIFICATION
*Functions are available by optional NV-RCB2 remote controller
FEATURES AND SPECIFICATION
NVC-601D-black NVC-601D-white
Pick-up Element CCD imager, 1/3” Nextchip NEPIS-9
Number of Effective Pixels 976 (H) x 582 (V)
Horizontal Resolution 700 TVL - color mode, 700 TVL - B/W mode
Min. Illumination 0.02 lx/F=2.0 - color mode (1/50 s),
0.02 lx/F=2.0 - B/W mode (1/50 s),
0.00008 lx/F=2.0 - color mode DSS,
0.00008 lx/F=2.0 - B/W mode DSS
S/N Ratio > 52 dB (AGC off)
Electronic Shutter Auto: 1/50 s ~ 1/100 000 s
Digital Slow Shutter (DSS) 0.04 s ~ 5.12 s
LENS
Type Standard, f=3.6 / F=2.0
Angle of View (H) 73°
DAY/NIGHT
Type Electronic D/N function
Switching Mode Auto/manual *
Switching Level Adjustment Yes *
Switching Delay 0 ~ 15 s *
OTHER FUNCTIONS
OSD English, Russian and others *
Back Light Compensation (BLC) Yes *
High Light Compensation (HLC) Yes *
Wide Dynamic Range (WDR) Yes *
Digital Image Stabilization (DIS) Yes *
Digital Noise Reduction (DNR) Yes *
Digital Zoom 32x *
Privacy Zones 8 *
Motion Detection Yes *
Image Processing Mirror effect, 180˚ image rotation, sharpening *
INTERFACES
Video Output BNC, 1.0 Vp-p, 75 Ohm
INSTALLATION PARAMETERS
Dimensions (mm) 112 (Ø) x 87 (H)
Weight 210 g
Enclosure Plastic, black Plastic, white
Power Supply 12 VDC
Power Consumption 1.3 W
Operating Temperature -10°C ~ 50°C

NVC-601D-white, NVC-601D-black - User’s manual ver. 1.0.
All rights reserved © AAT Holding Sp. z o.o.
7
3.1 Dimensions
3.2. View of the camera, layout of the camera items (after removing the cover)
1. 12V DC and video connector
2. Standard 3.6mm lens
TECH SPECIFICATION
Dome
Camera base
Dimmenstions in mm
1
2
Cover

NVC-601D-white, NVC-601D-black - User’s manual ver. 1.0.
All rights reserved © AAT Holding Sp. z o.o.
8
4. INSTALLATION
Prior to installation please familiarize yourself with the product, its parameters and installation
process.
To install the camera please follow the instructions below:
 Open the dome cover. In order to do this small coin or screwdriver might be useful. Put the coin
or screwdriver into the slot and turn gently. Pay extra attention to avoid scratching edges of the
camera.
 Place base of the camera in a desired place and use its mounting holes as a drilling pattern.
Mark drilling points using a punch.
 Drill the screw holes and cable hole using an appropriate driller, in case of concrete ceiling or
wall mounting please use appropriate plastic plug and screws (not included in the package).
 Mount the camera to desired surface using included screws or if needed, different mounting kit
(not included).
 Adjust the position of the camera module.
 If needed, unscrew the blocking screw and adjust focus.
 If needed, adjust the desired settings in the camera menu, using function button
(with optional NV-RCB2 wire controller).
 Mount the camera cover by pushing it gently onto the base, until it locks. Please ensure that
masking shield does not block the field of view of the camera.
INSTALLATION

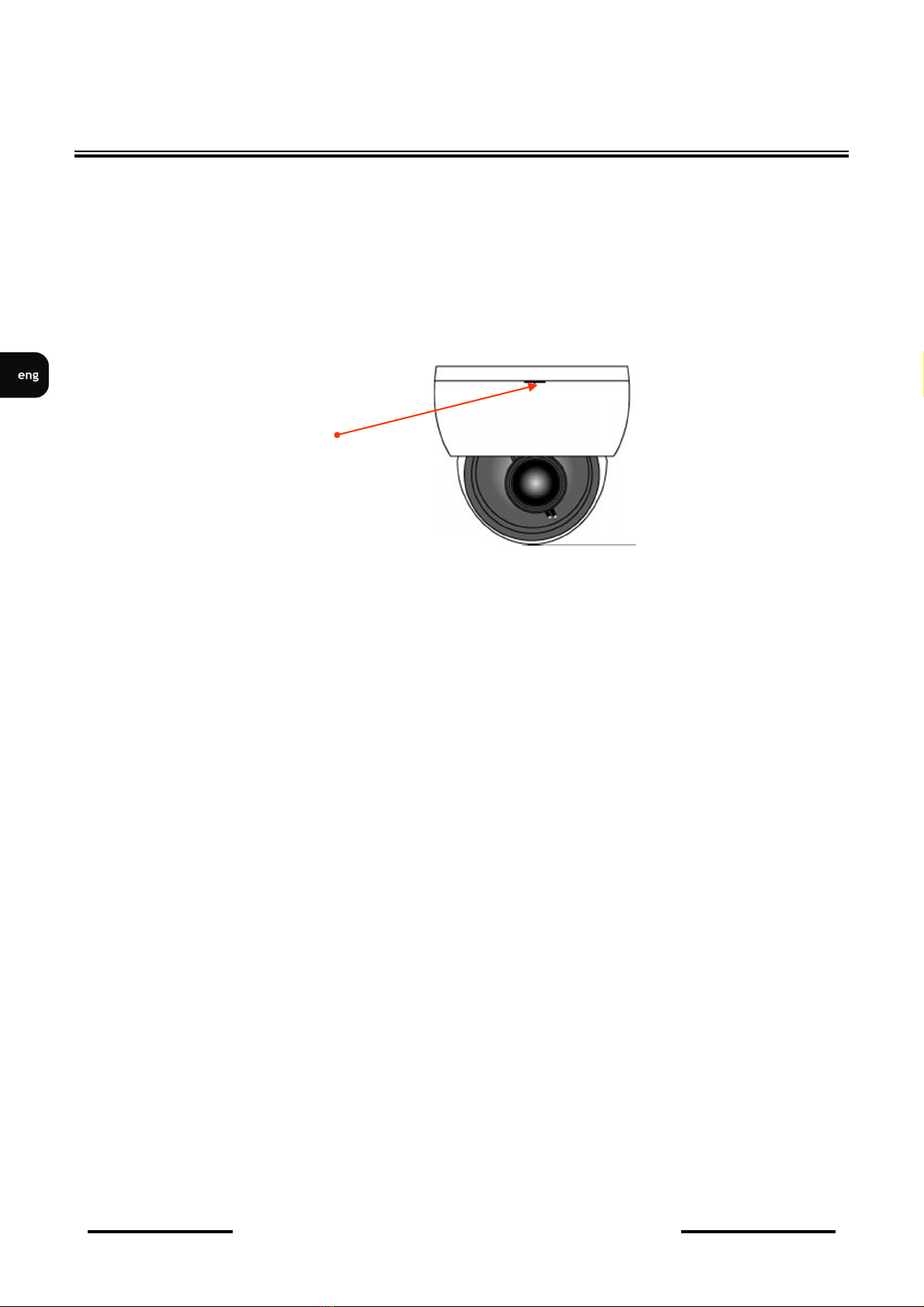

Cover slot useful for
dome opening

NVC-601D-white, NVC-601D-black - User’s manual ver. 1.0.
All rights reserved © AAT Holding Sp. z o.o.
9
INSTALLATION
4.1 Connections
The camera is equipped with a video and power cable finished with 2 plugs, one for video output
(yellow one), the other for power supply 12VDC±10% (red one). Images below show plug
polarization.
The following connecting order should be kept:
 connect video cable to the BNC plug
 connect power supply to the power plug
ATTENTION: Prior to connecting the power supply make sure that all required parameters (output
voltage, output current and polarization) are correct. Using improper power supply
may cause malfunction or camera damage. In such a case, warranty is void.
4.2 Focus setting
Camera focus is set by default. In some specific cases it may be necessary to correct the focus setting.
In that situation please follow the instruction below .
 open the dome - as shown in chapter 4
 loose the blocking screw shownon the below picture
 to set the focus turn lens to the left or to the right
 screw on the blocking screw carefully till slight resistance is felt
 close the camera dome
ATTENTION: If the lens has signs of fingerprints or other smudges/stains, the image quality
might be poor. In that case the lens should be cleaned with a special cloth designed for cleaning
the optics.
video
12 VDC +/-10%
video
ground (GND)
+
- (GND)
Allen screw blocking the lens

NVC-601D-white, NVC-601D-black - User’s manual ver. 1.0.
All rights reserved © AAT Holding Sp. z o.o.
10
INSTALLATION

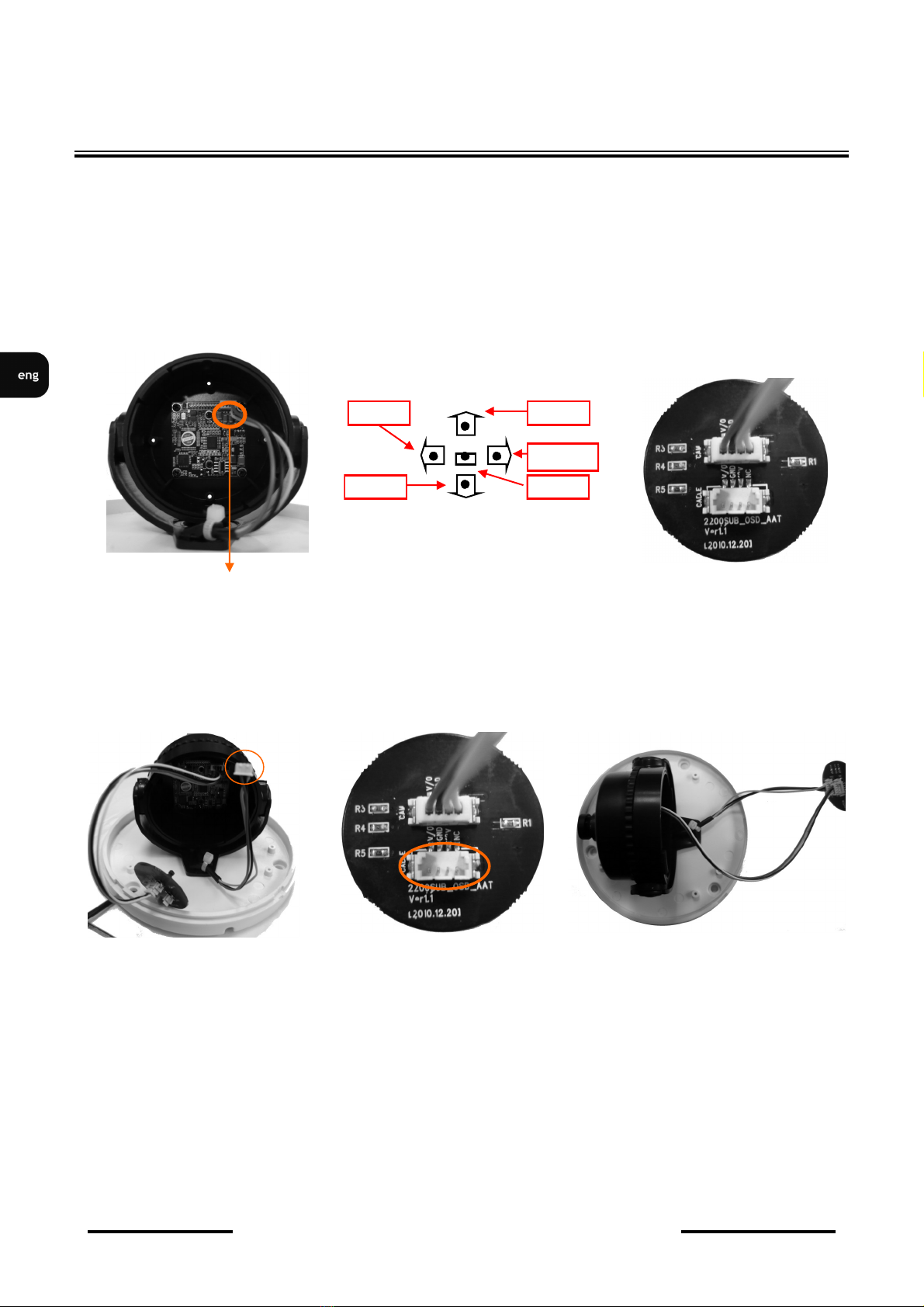

4.3 Menu (available with optional NV-RCB controller connected)
600-series dome cameras not equipped with internal joystick feature appropriate connector for
plugging external NV-RCB2 joystick, as depicted below. Connecting NV-RCB2 allows to adjust
various camera parameters via the OSD menu.
Connecting the controller:
Caution:
In order to avoid device damage, please plug the power off before performing any of the actions
described below.
Video/power connector
LEFT UP
SET
RIGHT
Joystick movements and assigned
functions
DOWN
NV-RCB2 controller
1. Disconnect video/power
cable from the camera module
(1) and plug controller there
instead.
1
2.Plug the video/power camera
cable to the CABLE socket (2)
2
1
2
3. Proper connections should result in
system as depicted above. Video/power
cable is marked (1) controller cable is
marked (2).

NVC-601D-white, NVC-601D-black - User’s manual ver. 1.0.
All rights reserved © AAT Holding Sp. z o.o.
11
5. SETTINGS
Camera is equipped with an OSD menu. During camera operation, status information can be
displayed on the screen.
5.1 Main menu
In order to enter the menu press the joystick, which results in executing SET command. For
choosing the submenus please move the joystick into UP, DOWN positions. If the symbol is
present, enter particular sub-menu by pressing SET. To change the parameters use the LEFT and
RIGHT joystick positions. In order to leave the menu select EXIT and choose the option
SAVE  saving settings and exit menu.
RESETrestoring factory defaults for the camera.
CANCELexit the menu without saving changes.
To exit submenu please select RETURN position. Select (via left/right joystick movement) option:
RETto moving to a higher-level menu.
SAVE & END to saving setting and leaving the menu immediately.
and press SET.
In order to enter the menu, please press SET. The following main menu is displayed on the screen:
SETTINGS
MAIN MENU
 LENS MANUAL
EXPOSURE 
BACKLIGHT OFF
WHITE BAL. ATW
DAY&NIGHT AUTO
SMART 3DNR ON 
F-DNR OFF
FUNCTION 
EXITSAVE

NVC-601D-white, NVC-601D-black - User’s manual ver. 1.0.
All rights reserved © AAT Holding Sp. z o.o.
12
5.1.1 LENS submenu
This submenu allows to set the lens parameters:
MANUAL manual settings of the lens operating mode.
BRIGHTNESS sets brightness level in the range from 1 to 100.
DC DC auto Iris lens mode.
BRIGHTNESS sets brightness level in the range from 1 to 100.
IRIS SPEED sets iris speed in the range from 1 to 5.
VIDEO video lens mode.
5.1.2 EXPOSURE submenu
This submenu allows to set the parameters connected with AE and controlling the iris:
SHUTTER selection of shutter mode. Automatic (AUTO) shutter mode as well as MANUAL
adjustment in the range 1/50s~1/100000s are available and FLK for flickering light conditions.
BRIGHTNESS sets brightness level in the range from 0 to 255.
AGC Automatic Gain Control function. Allows for switching between LOW, MIDDLE and HIGH
gain values.
SENSUP Digital Slow Shutter function - helps to obtain better, brighter images in low light
conditions. Longer imager exposure (from x2 to x256) causes the image to be less frequently read.
5.1.3 BACKLIGHT submenu
These compensation functions allow to enhance visibility of the objects located in the foreground,
surrounded by strongly illuminated background (BLC) or for enhancing visibility of the objects
located near the strong light source (HSBLC).
BLC function allows to enhance visibility of the objects located in the foreground, surrounded by
strongly illuminated background. Pressing SET button in this mode displays the following menu:
SETTINGS
BLC
VALUE MIDDLE
AREA SINGLE 
DEFAULT  
RETURN RET 

NVC-601D-white, NVC-601D-black - User’s manual ver. 1.0.
All rights reserved © AAT Holding Sp. z o.o.
13
Submenu presented allows to set the size and location of the area where the BLC function is active,
furthermore it allows to set the sensitivity of the function.
VALUE sets the function’s sensitivity (LOW, MIDDLE, HIGH)
AREA allows to choose beetwen SINGLE or DOUBLE zones, adjust the position and size
DEFAULT restores default BLC settings.
HSBLC high light compensation function. It allows to enhance visibility of the objects located near
the strong, point light source. If a strong, point light source appears on the screen , function will mask
it for effective observation of the scene itself (this function is best used to, for example, observe
licence-plates of the cars). Selecting displays the following screen:
GAIN sets the function’s sensitivity (from 0 to 100)
MODE ALL DAY or NIGHT ONLY (recommended)
MASK LEVEL defines size of masking area.
DEFAULT restores default HSBLC settings.
M. SKIP AREA turns on and allows to set size and position of area which isn’t masked.
D-WDR this function allows to enable/disable wide dynamic range function that enables to
effectively observe the scene with different illumination levels.
LOW LEVEL sets the function’s sensitivity for low ilumination areas (from 0 to 15).
HIGH LEVEL sets the function’s sensitivity for high ilumination areas (from 0 to 15).
SETTINGS
HSBLC
GAIN ----|--55
MODE NIGHT
MASK LEVEL --|----25
DEFAULT 
M. SKIP AREA OFF
RETURN RET 
DWDR
LOW LEVEL -|----- 2
HIGH LEVEL ------| 10
RETURN RET 

NVC-601D-white, NVC-601D-black - User’s manual ver. 1.0.
All rights reserved © AAT Holding Sp. z o.o.
14
5.1.4 WHITE BAL submenu
This feature allows to set appropriate color settings using following options:
ATW auto tracking white balance based on color temperature.
AWC→SET this mode enables adaptive setting of white balance. In order to obtain the optimum
state under the current illumination, direct the camera at a sheet of white paper and press SET. When
lighting parameters change (e.g. light bulbs changed to halogen lamps, daylight to artificial light
etc. ), procedure mentioned above should be repeated;
AWB auto white balance adjustment.
MANUAL manual mode settings. In case of inappropriate color settings for ATW, AWC modes it is
possible to set RED and BLUE values manually. Color values range from 0 to 100 and are
represented by sliders. Any change in the color components are instantly applied to the image.
5.1.5 D&N submenu
Allows to adjust day/night settings. Available settings are: AUTO, EXT, COLOR, B/W.
AUTO Camera switches between night (b/w) and day (color) mode automatically, depending on
current illumination conditions. Selecting and confirming displays the following sub-menu:
DELAY sets the delay between color and b/w mode switching (1~15 s.).
D->N (AGC) sets the illumination threshold that switches the camera from day to night mode
(0~255)
N->D (AGC) sets the illumination threshold that switches the camera from night to day
mode (0~255).
EXT selecting enables day/night switching based on indications of CDS sensor. Additionally, entering
the sub-menu allows to adjust DELAY (1~15 s.).
COLOR forces continuous color operation.
B/W forces continuous black & white operation. Selecting allows for adjusting additional values:
BURST enables/disable chrominance synchronization signal.
IR SMART function ensuring balanced brightness level of the picture during operation with an
IR illuminator (which prevents overexposure of the objects located close to the camera and its
illuminator). Entering the function allows to set function area and sensitivity, in the same
manner as in motion detection menu.
IR LED unavailable
SETTINGS
D&N AUTO
DELAY ---I--- 6
D->N (AGC) ----I-- 150
N->D (AGC) -I----- 20
RETURN RET 

NVC-601D-white, NVC-601D-black - User’s manual ver. 1.0.
All rights reserved © AAT Holding Sp. z o.o.
15
5.1.6 SMART 3DNR submenu
Digital noise reduction menu allows to adjust the value and turn on/off Smart NR. Smart NR is
Automatic Digital Noise Reduction which automatically change the level by detecting the movement.
Turning on SMART NR allows to change LEVEL and SENSITIVITY of noise reduction.
5.1.7 F-DNR submenu
F-DNR (defog) function does a process of clearing blurred image caused by fog and snow by
analyzing the brightness of video and colors compensation. Mode could be AUTO or MANUAL.
MANUAL mode sub-menu:
LEVEL adjust F-DNR level (from 0 to 31)
COLOR GAIN adjust color gain value (from 0 to 10)
EDGE GAIN adjust edge gain value (from 0 to 10)
GAMMA select gamma value (from 0.05 to 1.00)
AUTO mode allows to change DETECT LEVEL (from 0 to 5).
5.1.8 FUNCTION submenu
Selecting and entering submenu displays the following screen:
SETTINGS
SMART 3DNR
VALUE ----|--120
SMART NR ON
SMART LEVEL --|----25
SENSITIVITY --|----25
RETURN RET 
F-DNR MANUAL
LEVEL ----|--18
COLOR GAIN |------ 0
EDGE GAIN |------ 0
GAMMA 0.55
RETURN RET 
FUNCTION
MOTION OFF
PRIVACY OFF
D-EFFECT 
IMAGE ADJ 
COMM ADJ  
SYNC INT
LANGUAGE ENGLISH
RETURN RET 

NVC-601D-white, NVC-601D-black - User’s manual ver. 1.0.
All rights reserved © AAT Holding Sp. z o.o.
16
SETTINGS
MOTION DET. allows (provided that ON option is selected) to turn a built-in motion detection
feature on or off. Motion detection may simultaneously be conducted in four independent zones (with
their size and location selectable by user). Detection of motion displays an appropriate information
superimposed on the screen.
After selecting ON and pressing SET the submenu allowing to adjust motion detection settings is
displayed, as depicted below.
AREA selects the number of the area for further settings.
AREA DISPLAY turns on/off particular area. Also allows to set the position and size of the
area.
VALUE refers to sensitivity (from 0 to 100)
MOTION VIEW enable / disable indication of motion detection.
PRIVACY allows to enable (by selecting ON) privacy zones. Part of the screen may be masked using
eight rectangular zones. Selecting ON and pressing SET displays a sub-menu, containing eight
masks positions.
AREA selects the number of the area for further settings.
AREA DISPLAY turns on/off particular area. Also allows to set the position and size of the
area.
COLOR changes color of a zone (16 available).
TRANSPAR refers to transparency of the area. (from 0 - most transparent to 3 - not
transparent)
MOTION
AREA 1
AREA DISPLAY ON
VALUE ----|--60
MOTION VIEW ON
RETURN RET 
PRIVACY
AREA 1
AREA DISPLAY ON
COLOR ----|--9
TRANSPAR ----|--2
RETURN RET 

NVC-601D-white, NVC-601D-black - User’s manual ver. 1.0.
All rights reserved © AAT Holding Sp. z o.o.
17
SETTINGS
D-EFFECT menu allows to set additional digital functions.
D-ZOOM allows to set the digital zoom up to x32. After entering to sub-menu it is possible to
set:
RANGE magnification (from 1.0 to 32)
PAN refers to horizontal position of the picture (from -100 to 100)
TILT refers to vertical position of the picture (from -100 to 100)
SMART ZOOM allows to turn on the digital zoom up to x5.0 when the motion is detected.
After entering to sub-menu it is possible to set:
RANGE magnification (from 2.0 to 5.0)
POSITION allows to set the position of magnified area.
SENSITIVITY sensitivity of motion detection (from 0 to 100)
TIME sets the time of displaying magnified picture.
DIS (Digital Image Stabilisation). This function eliminates image blurring from camera
shaking caused by vibrations from passing vehicles or gusts of wind.
FREEZE holds the picture in turning on moment.
MIRROR allows to change viewpoint as mirror/ rotate/ v-flip.
NEG. IMAGE enables/disables displaying of the negative video image.
IMAGE ADJ allows for enabling the additional picture effects.
SHARPNESS changes sharpness of the displayed video picture (from 0 to 31).
MONITOR selects between CRT/LED as used monitor, and allows to set GAMMA,
PED LEVEL and COLOR GAIN.
LENS SHADING allows to compensate darkened areas appearing in screen corners due to
lens usage. Selecting ON allows to enter a sub-menu, where can be adjusted:
LEVEL sets the function sensitivity (from 0 to 60)
H-CENTER refers to horizontal position of the center.
V-CENTER refers to vertical position of the center.
DEFECT allows to adjust parameters used in Dead Pixel Correction function. pressing SET
displays the submenu allowing to adjust SENSUP, DIFF, THRESHOLD and then press
START to run.
Note: White CCD pixels are not an indicator of the CCD malfunction, but are inherent
consequence of the manufacturing process.

NVC-601D-white, NVC-601D-black - User’s manual ver. 1.0.
All rights reserved © AAT Holding Sp. z o.o.
18
COMM ADJ menu contains additional camera options.
TITLE allows to enter a string of characters that later will be displayed on the screen, e.g. as
camera title.
Screen contains mainly alphanumerical characters, which may be used in camera’s title. Select
desired character and please apply it by pressing SET key. Currently edited title is visible at
the bottom of the screen. A line just above it contains buttons for editing the title. To enable
particular functions, please highlight them as normal characters and confirm by pressing SET.
Button functions are described below:
  Moves character highlight cursor left.
  Moves character highlight cursor right.
POS adjusts the position of entered characters.
CLR erases the whole title.
END exits title editing menu.
PROTOCOL unavailable.
RS485 unavailable.
LANGUAGE switches between OSD languages: English, Russian and others.
SETTINGS
ABCDEFGHIJKLM
NOPRSTUVWXYZ
abcdefghijklm
noprstuvwxyz
_ . 0123456789
 CLR POS END
NEXTCHIP-------

NVC-601D-white, NVC-601D-black - User’s manual ver. 1.0.
All rights reserved © AAT Holding Sp. z o.o.
19
NOTES

2013-10-18 wer. 1.0 JM, MM
AAT Holding sp. z o.o., ul. Puławska 431, 02-801 Warszawa, Polska
tel.: [phone], faks: 22 546 07 59
www.novuscctv.com
