Novus NVIP-2DN5001H/IR-1P User manual

U s e r ’s m a n u a l
( s h o rt )
NVIP-2DN5001H/IR-1P
NVIP-3DN5001H/IR-1P
NVIP-5DN5001H/IR-1P

NVIP-2DN5001H/IR-1P, NVIP-3DN5001H/IR-1P, NVIP-5DN5001H/IR-1P
User’s manual (short form) ver.1.1
All rights reserved © AAT Holding sp. z o.o.
2
IMPORTANT SAFEGUARDS AND WARNINGS
EMC (2004/108/EC) and LVD (2006/95/EC ) Directives
CE Marking
Our products are manufactured to comply with requirements of the following directives and national regulations
implementing the directives:
Electromagnetic compatibility EMC 2004/108/EC.
Low voltage LVD 2006/95/EC with further amendment. The Directive applies to electrical
equipment designed for use with a voltage rating of between 50VAC and 1000VAC as well as
75VDC and 1500VDC.
WEEE Directive 2002/96/EC
Information on Disposal for Users of Waste Electrical and Electronic Equipment
This appliance is marked according to the European 1000VAC Directive on Waste Electrical and Electronic
Equipment (2002/96/EC) and further amendments. By ensuring this product is disposed of correctly, you will
help to prevent potential negative consequences for the environment and human health, which could otherwise
be caused by inappropriate waste handling of this product.
The symbol on the product, or the documents accompanying the product, indicates that this appliance may not be
treated as household waste. It shall be handed over to the applicable collection point for used up electrical and
electronic equipment for recycling purpose. For more information about recycling of this product, please contact
your local authorities, your household waste disposal service or the shop where you purchased the product.
RoHS Directive 2002/95/EC
Out of concern for human health protection and friendly environment, we assure that our products
falling under RoHS Directive regulations, regarding the restriction of the use of hazardous
substances in electrical and electronic equipment, have been designed and manufactured in
compliance with the above mentioned regulations. Simultaneously, we claim that our products have
been tested and do not contain hazardous substances whose exceeding limits could have negative
impact on human health or natural environment
Information
The device, as a part of professional CCTV system used for surveillance and control, is not designed for self
installation in households by individuals without technical knowledge.
Excluding of responsibility in case of damaging data on a disk or other devices:
The manufacturer does not bear any responsibility in case of damaging or losing data on a disk or other devices
during device operation.
WARNING!
PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT DESCRIBED FOR THE GIVEN PRODUCT IN
USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE PRODUCT, OR IF IT DOES
NOT ARISE FROM THE USUAL APPLICATION OF THE PRODUCT, MANUFACTURER MUST BE
CONTACTED UNDER THE RIGOR OF EXCLUDING THE MANUFACTURER’S RESPONSIBILITY FOR
THE RESULTS OF SUCH AN ACTION.

NVIP-2DN5001H/IR-1P, NVIP-3DN5001H/IR-1P, NVIP-5DN5001H/IR-1P
User’s manual (short form) ver.1.1
All rights reserved © AAT Holding sp. z o.o.
3
IMPORTANT SAFEGUARDS AND WARNINGS
WARNING!
THE KNOWLEDGE OF THIS MANUAL IS AN INDISPENSIBLE CONDITION OF A PROPER
DEVICE OPERATION. YOU ARE KINDLY REQEUSTED TO FAMILIARIZE YOURSELF WITH
THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION.
WARNING!
USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO USER
-SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE PERSONNEL
MAY OPEN THE UNIT
INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE
PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS
1. Prior to undertaking any action please consult the following manual and read all the safety and operating
instructions before starting the device.
2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual
is necessary;
3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct
influence on user’s safety and durability and reliability of the device;
4. All actions conducted by the servicemen and users must be accomplished in accordance with the user’s
manual;
5. The device should be disconnected from power sources during maintenance procedures;
6. Usage of additional devices and components neither provided nor recommended by the producer
is forbidden;
7. You are not allowed to use the camera in high humidity environment (i.e. close to swimming pools, bath tubs,
damp basements);
8. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.) is not
recommended since it may lead to heat build-up and damaging the device itself as a consequence;
9. Mounting the camera on unstable surface or using not recommended mounts is forbidden. Improperly
mounted camera may cause a fatal accident or may be seriously damaged itself. The camera must be mounted
by qualified personnel with proper authorization, in accordance with this user’s manual.
10. Device should be supplied only from a power sources whose parameters are in accordance with those
specified by the producer in the camera technical datasheet. Therefore, it is forbidden to supply the camera
from a power sources with unknown parameters, unstable or not meeting producer’s requirements;
Due to the product being constantly enhanced and optimized, certain parameters and functions described in the
manual in question may change without further notice. We strongly suggest visiting the www.novuscctv.com
website in order to access the newest manual
Data included in the following user’s manual is up to date at the time of printing. AAT Holding Sp z o.o. holds
exclusive rights to modify this manual. The producer reserves the rights for device specification modification
and change in the design without prior notice.

NVIP-2DN5001H/IR-1P, NVIP-3DN5001H/IR-1P, NVIP-5DN5001H/IR-1P
User’s manual (short form) ver.1.1
All rights reserved © AAT Holding sp. z o.o.
4
TABLE OF CONTENTS.....................................................................................................4
1. FOREWORD INFORMATION .....................................................................................5
1.1. General Characteristics........................................................................................5
1.2. NVIP-2DN5001H/IR-1P, NVIP-3DN5001H/IR-1P, NVIP-5DN5001H/IR-1P
specification..........................................................................................................6
2. SPECIFICATION ............................................................................................................7
2.1. Camera dimension ..............................................................................................7
2.2. Package contents..................................................................................................8
2.3. Layout of important camera items.......................................................................9
3. INSTALLATION ...........................................................................................................10
4. START-UP AND INITIAL CAMERA CONFIGURATION ....................................12
4.1. Starting the IP camera........................................................................................12
4.2. Initial configuration via the Web browser.........................................................13
5. NETWORK CONNECTION UTILIZING WEB BROSWER ................................14
5.1. Recommended PC specification for web browser .............................................14
5.2. Connection with IP camera via the web browser ...............................................14
6. WWW INTERFACE - WORKING WITH IP CAMERA.........................................16
6.1. Displaying live pictures......................................................................................16
7. ELECTRIC CONNECTORS AND ACCESORIES .................................................18
7.1. Connecting power supply to the camera. ..........................................................18
7.2. SD card installation ...........................................................................................18
8. RESTORING FACTORY DEFAULTS .....................................................................19
8.1. Restoring software factory defaults....................................................................19
8.2. Restoring hardware factory defaults in IP cameras...........................................19
TABLE OF CONTENTS

NVIP-2DN5001H/IR-1P, NVIP-3DN5001H/IR-1P, NVIP-5DN5001H/IR-1P
User’s manual (short form) ver.1.1
All rights reserved © AAT Holding sp. z o.o.
5
1. FOREWORD INFORMATION
1.1. General Characteristics
Imager resolution: 5.0 megapixels (for NVIP-5DN5001H/IR-1P)
3.0 megapixels (for NVIP-3DN5001H/IR-1P)
2.0 megapixels (for NVIP-2DN5001H/IR-1P)
Mechanical IR cut filter
IR operation capability
Min. Illumination from 0.01 lx/F=1.2 (for NVIP-5DN5001H/IR-1P)
0.005 lx/F=1.2 (for NVIP-3DN5001H/IR-1P)
0.01 lx/F=1.2 (for NVIP-2DN5001H/IR-1P)
Digital Slow Shutter (DSS)
Digital Noise Reduction (DNR)
Lens type: Auto iris DC, f=3,3 ~ 12mm F=1.2
Built-in IR illuminator, 10 LEDs
Privacy zones: 5
Video compression: H.264, M-JPEG
Max video processing resolution: 2592x1944 (for NVIP-5DN5001H/IR-1P)
2048 x 1536 (for NVIP-3DN5001H/IR-1P)
1920 x 1080 (for NVIP-2DN5001H/IR-1P)
Double streaming: compression, resolution, speed and quality defined individually for each video
stream
RTSP protocol support for video transmission
Pre & post-alarm functions
Hardware motion detection
Built-in webserver: camera configuration through the website
MicroSD/microSDHC card support
Wide range of responses to alarm events: e-mail with attachment, saving file on FTP server,
saving file on microSD/microSDHC card, saving file on NAS
Network protocol support : ONVIF (2.2)/Profile S, HTTP, TCP, IPv4/v6, UDP, FTP, DHCP,
NTP, RTSP, PPoE, SMTP
Software: NMS (NOVUS MANAGEMENT SYSTEM) for video recording, live monitoring,
playback and remote IP devices administration
Degree protection IP66
Power supply: 12VDC, PoE (Power over Ethernet)
FOREWORD INFORMATION

NVIP-2DN5001H/IR-1P, NVIP-3DN5001H/IR-1P, NVIP-5DN5001H/IR-1P
User’s manual (short form) ver.1.1
All rights reserved © AAT Holding sp. z o.o.
6
1.2. NVIP-2DN5001H/IR-1P, NVIP-3DN5001H/IR-1P, NVIP-5DN5001H/IR-1P specification
FOREWORD INFORMATION
NVIP-2DN5001H/IR-1P NVIP-3DN5001H/IR-1P NVIP-5DN5001H/IR-1P
Pick-up Element 2.0 MPX, matryca CMOS,
1/2.8”
3.0 MPX, matryca CMOS,
1/3”
5.0 MPX, matryca CMOS,
1/2.5”
Number of Effective Pixels 1920 (H) x 1080 (V) 2048 (H) x 1536 (V) 2592 (H) x 1920 (V)
Min. Illumination 0.1 lx/F=1.2 –color mode,
0.01 lx/F=1.2 –color DSS,
0 lx (IR on)
0.5 lx/F=1.2 –color mode,
0.005 lx/F=1.2 –color DSS,
0 lx (IR on)
0.5 lx/F=1.2 –color mode,
0.01 lx/F=1.2 –color DSS,
0 lx (IR on)
Digital Slow Shutter (DSS) x 5
Digital Noise Reduction
(DNR)
Yes
LENS
Type Auto iris D, f=3.3 ~ 12 mm/F=1.2
Angle of View (H) 85° ~ 35° 71° ~ 29° 88° ~ 36°
DAY/NIGHT
Type Mechanical IR cut filter
Switching Mode Auto/manual/time set
NETWORK
Stream Resolution 1920 x 1080 (FULL HD),
1280 x 720 (HD), 720 x 576
(D1), 640 x 480 (VGA),
640 x 360, 352 x 288 (CIF),
320 x 240 (QVGA),
176 x 144 (QCIF)
2048 x 1536, 1920 x 1080
(FULL HD), 1280 x 720 (HD),
720 x 576 (D1), 640 x 480
(VGA), 640 x 360, 352 x 288
(CIF), 320 x 240 (QVGA),
176 x 144 (QCIF)
2592 x 1944, 2048 x 1536,
1920 x 1080 (FULL HD),
1280 x 720 (HD), 720 x 576
(D1), 640 x 480 (VGA),
640 x 360, 352 x 288 (CIF),
320 x 240 (QVGA),
176 x 144 (QCIF)
Frame Rate 30 fps for 1920 x 1080
and other resolutions
20 fps for 2048 x 1536
30 fps for 1920 x 1080
and other resolutions
10 fps for 2592 x 1944,
20 fps for 2048 x 1536,
30 fps for 1920 x 1080
and other resolutions
Multistreaming Mode 2 streams
Video/Audio Compression H.264, M-JPEG/G.711, RAW_PCM
Network Protocols Support ONVIF (2.2)/Profile S, HTTP, TCP/IP, IPv4/v6, UDP/IP, RTSP, FTP, DHCP, NTP, PPoE, SMTP
PC Software NOVUS NMS, Internet Explorer, Google Chrome, Opera, Mozilla Firefox
OTHER FUNCTIONS
OSD IE/Chrome/Opera/Firefox browser, Polish, English, Russian, other
Privacy Zones 5
Motion Detection Yes
Prealarm/Postalarm 5 MB/86400 sec.
System Reaction
to Alarm Events
E-mail with attachment, saving file on: FTP server/SD card, NAS drive
IR LED
Number 10
Range 20 m
Angle 90°
INTERFACES
Video Output RCA - maintenance only
Audio Input/Output 1 x RCA/1 x RCA
Network Interface 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s
Memory Card Slot Yes
INSTALLATION PARAMETERS
Dimensions (mm) 69 (Ø) x 265,5 (dł)
Weight 820 g
Enclosure Aluminium, white, mounting bracket with cable and sunshield in-set included
Power Supply PoE, 12 VDC
Power Consumption 5 W,
10 W (IR on)
Operating Temperature -10°C ~ 55°C
Degree of Protection IP 66

NVIP-2DN5001H/IR-1P, NVIP-3DN5001H/IR-1P, NVIP-5DN5001H/IR-1P
User’s manual (short form) ver.1.1
All rights reserved © AAT Holding sp. z o.o.
7
SPECIFICATION
2. SPECIFICATION
2.1. Camera dimensions

NVIP-2DN5001H/IR-1P, NVIP-3DN5001H/IR-1P, NVIP-5DN5001H/IR-1P
User’s manual (short form) ver.1.1
All rights reserved © AAT Holding sp. z o.o.
8
1.4. Package contents
After you open the package make sure that the following elements are inside:
IP camera
230 VAC / 12 VDC power supply
Accessories bag
Short version of user’s manual
CD containing manual and software
If any of this elements has been damaged during transport, pack all the elements back into the original
box and contact your supplier for further assistance.
CAUTION!
If the device was brought from a location with lower temperature, please wait until it reaches the
temperature of location it is currently in. Turning the device on immediately after bringing it
from a location with lower ambient temperature is forbidden, as the condensing water vapour
may cause short-circuits and damage the device as a result.
Before starting the device familiarize yourself with the description and the role of particular
inputs, outputs and adjusting elements that the device is equipped with.
2.2. Package contents
After you open the package make sure that the following elements are inside:
IP camera,
Mounting Screw Kit
RJ45 Coupler,
BNC Test Cable,
Mounting Template,
Short version of user’s manual,
CD containing manual and software.
If any of this elements has been damaged during transport, pack all the elements back into the original
box and contact your supplier for further assistance.
CAUTION!
If the device was brought from a location with lower temperature, please wait until it reaches the
temperature of location it is currently in. Turning the device on immediately after bringing it
from a location with lower ambient temperature is forbidden, as the condensing water vapour
may cause short-circuits and damage the device as a result.
Before starting the device familiarize yourself with the description and the role of particular
inputs, outputs and adjusting elements that the device is equipped with.
SPECIFICATION

NVIP-2DN5001H/IR-1P, NVIP-3DN5001H/IR-1P, NVIP-5DN5001H/IR-1P
User’s manual (short form) ver.1.1
All rights reserved © AAT Holding sp. z o.o.
9
1.4. Package contents
After you open the package make sure that the following elements are inside:
IP camera
230 VAC / 12 VDC power supply
Accessories bag
Short version of user’s manual
CD containing manual and software
If any of this elements has been damaged during transport, pack all the elements back into the original
box and contact your supplier for further assistance.
CAUTION!
If the device was brought from a location with lower temperature, please wait until it reaches the
temperature of location it is currently in. Turning the device on immediately after bringing it
from a location with lower ambient temperature is forbidden, as the condensing water vapour
may cause short-circuits and damage the device as a result.
Before starting the device familiarize yourself with the description and the role of particular
inputs, outputs and adjusting elements that the device is equipped with.

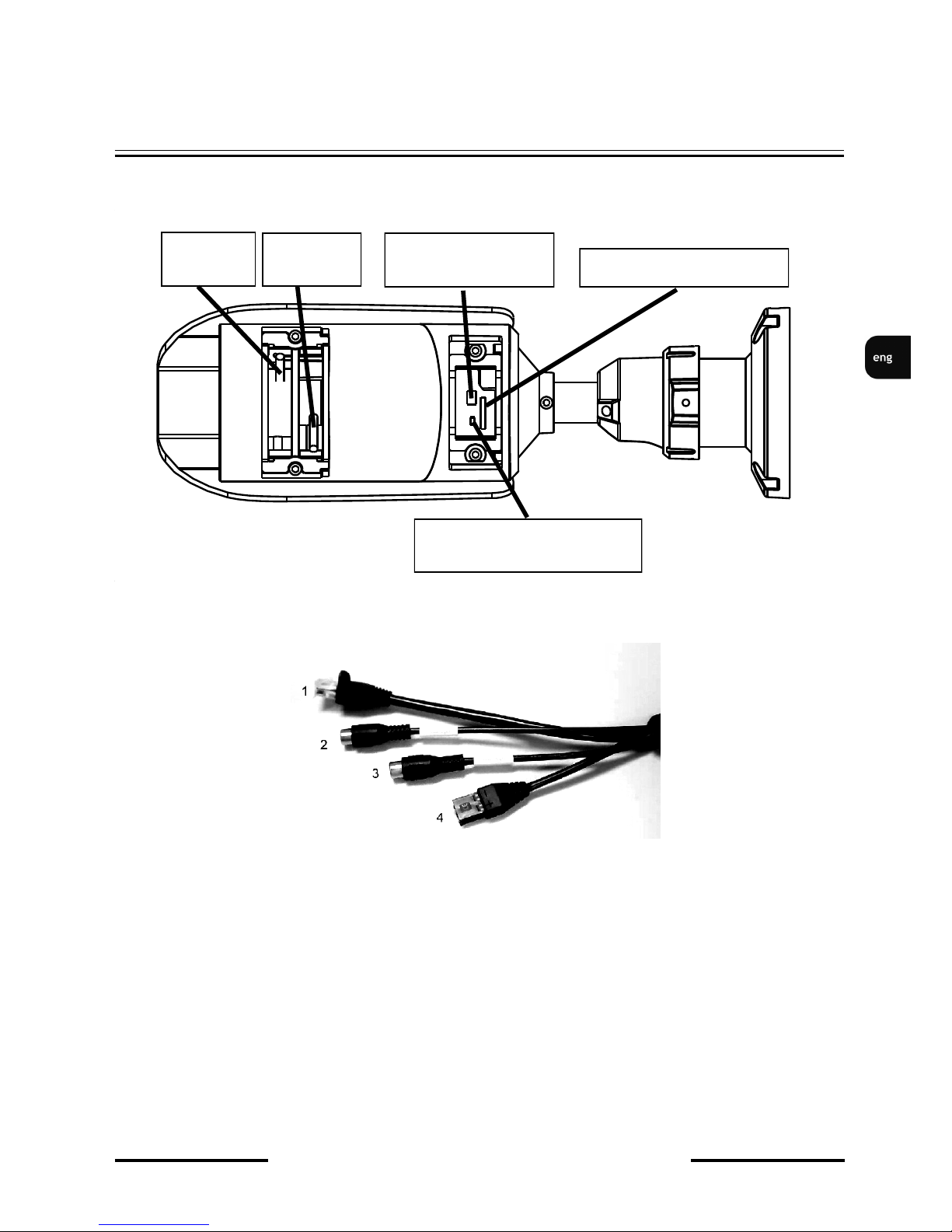

2.3. Layout of important camera items
1. RJ45 Network Interface: (PoE supported).
Information:
Use the included RJ45 coupler to connect to male end of RJ45 Ethernet cable.
2. Audio Input (RCA): Connect to a self-powered microphone for listen-in audio.
3. Audio Output (RCA): Connect to an amplifier or self-powered speaker for intercom/2-way audio.
4. DC12V: 12V DC power input.
NOTICE: Make sure to follow correct polarity (+/-) marked on the power connector when connecting
to power.
SPECIFICATION
Focus
adjustment
Zoom
adjustment
Reset button
(reverts to factory defaults)
MicroSD card slot
BNC service
analog output

NVIP-2DN5001H/IR-1P, NVIP-3DN5001H/IR-1P, NVIP-5DN5001H/IR-1P
User’s manual (short form) ver.1.1
All rights reserved © AAT Holding sp. z o.o.
10
3. INSTALLATION
 Put mounting drawing paper to the wall or ceiling and mark drill holes.
 Drill holes using markings.
 Drill additional hole for video and power cables.
 Put video and power cables through a previously drilled hole in the wall/ceiling.
 Using mounting screws from the package, attach the plate of camera to the ceiling/wall.
 Unscrew the service compartment screws and open the service compartment. Connect the BNC
test cable to video output and monitor.
INSTALLATION
Plate of the
camera
Service
compartment

NVIP-2DN5001H/IR-1P, NVIP-3DN5001H/IR-1P, NVIP-5DN5001H/IR-1P
User’s manual (short form) ver.1.1
All rights reserved © AAT Holding sp. z o.o.
11
 Unscrew the locking screw and the stopping ring, and then manually point the camera in a
desired direction to obtain a desired scene view.
 Firmly screw the locking screw and the stopping ring.
 Adjust the camera zoom and focus as needed. It is recommended to check focus settings in
infrared illumination and make correction in colour mode to have proper focus in both modes.
 Close the service compartment and firmly screw the service compartment screws.
INSTALLATION
Locking screw
Tighten Loosen
Horizontal/vertical rotation
Stopping ring
Focus
adjustment
Zoom
adjustment

NVIP-2DN5001H/IR-1P, NVIP-3DN5001H/IR-1P, NVIP-5DN5001H/IR-1P
User’s manual (short form) ver.1.1
All rights reserved © AAT Holding sp. z o.o.
12
4, START-UP AND INITIAL CAMERA CONFIGURATION
4.1. Starting the IP camera
To run NOVUS IP camera you have to connect ethernet cable between camera and network switch
with PoE support (IEEE 802.3af).
You can also connect it directly via power supply adapter with parameters compatible with camera
power supply specification.
After connecting power supply initialization process is started, which takes about 2 minutes.
The recommended way to start an IP camera and perform its configuration is connect directly to the
network switch which is not connected to other devices. To obtain further information about network
configuration parameters (IP address, gateway, network mask, etc.) please contact your network
administrator.

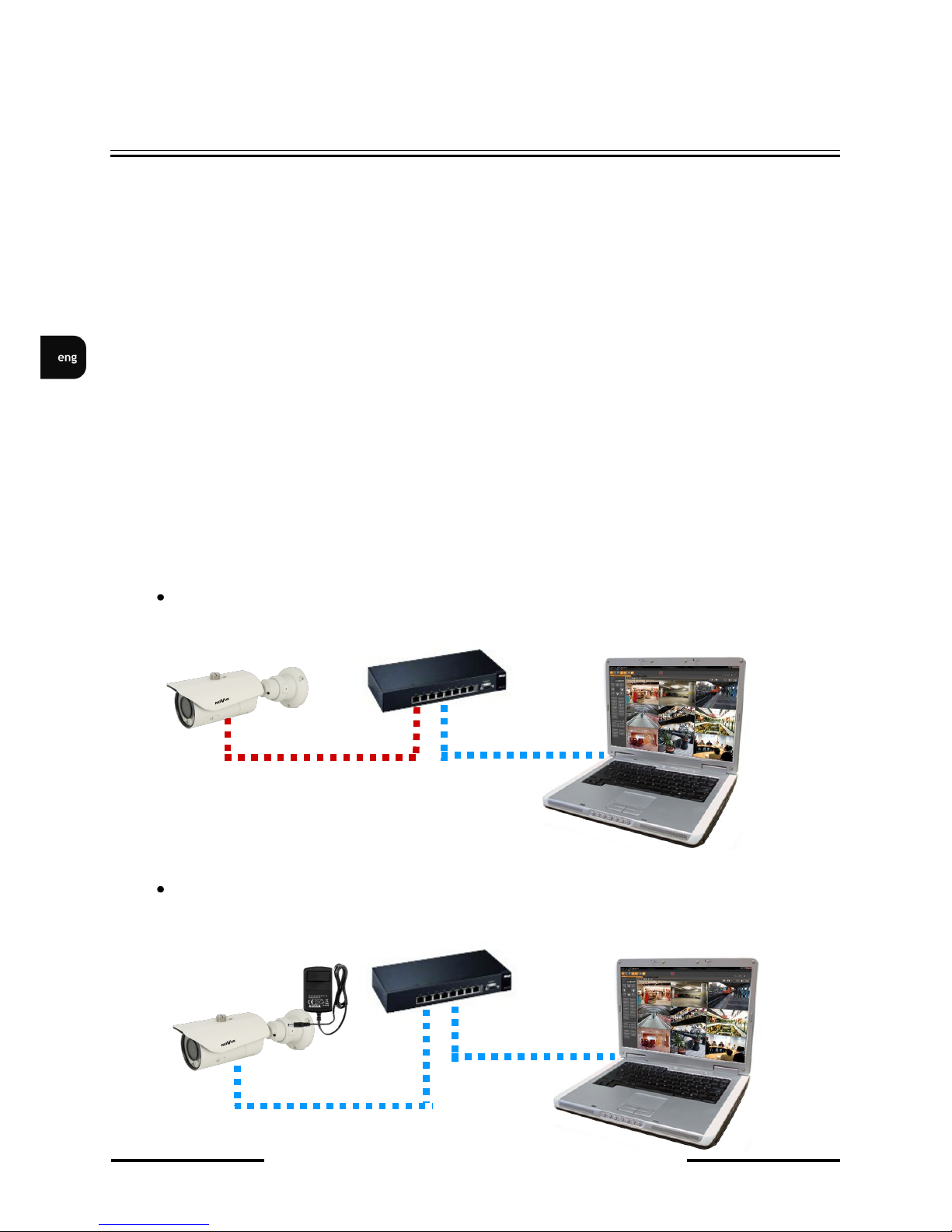

Connection utilising network switch with PoE support
Connection utilising external power supply and network switch
START-UP AND INITIAL CAMERA CONFIGURATION
Power supply and
Computer
IP Camera Network Switch PoE
Network transmission
IP Camera
Network transmission
Network Switch PoE Computer
Network transmission

NVIP-2DN5001H/IR-1P, NVIP-3DN5001H/IR-1P, NVIP-5DN5001H/IR-1P
User’s manual (short form) ver.1.1
All rights reserved © AAT Holding sp. z o.o.
13
Connection utilising external power supply directly to the computer
Information:
Power supply adapter is not included. Please use power adapter with parameters specified in user
‘smanual.
Caution:
In order to provide protection against voltage surges/lightning strikes, usage of appropriate surge
protectors is advised. Any damages resulting from surges are not eligible for service repairs.
4.2. Initial configuration via the web browser
The default network settings for NVIP-2DN5001H/IR-1P, NVIP-3DN5001H/IR-1P,
NVIP-5DN5001H/IR-1P IP cameras are :
1. IP address= 192.168.1.200
2. Network mask - 255.255.255.0
3. Gateway - 192.168.1.1
4. User name - root
5. Password - pass
Knowing the camera’s IP address you need to appropriately set PC IP address, so the two devices can
operate in one network subnet ( e.g. for IP 192.168.1.1, appropriate address for the camera ranges from
192.168.1.2 to 192.168.1.254, for example 192.168.1.60). It is not allowed to set the same addresses for
camera and PC computer
You can either set a network configuration (IP address, gateway, net mask, etc.) of NOVUS IP camera
yourself or select DHCP mode (DHCP server is required in this method in target network) by using
web browser or by NMS software. When you use DHCP server check IP address lease and its linking
with camera MAC address to avoid changing or losing IP address during device operation or network/
DHCP server breakdown. You have to remember to use a new camera IP address after changing
network parameters.
After network setting configuration has been done, the camera can be connected to a target network.
START-UP AND INITIAL CAMERA CONFIGURATION
IP Camera
Network transmission - cross over cable
Computer

NVIP-2DN5001H/IR-1P, NVIP-3DN5001H/IR-1P, NVIP-5DN5001H/IR-1P
User’s manual (short form) ver.1.1
All rights reserved © AAT Holding sp. z o.o.
14
5. NETWORK CONNECTION UTILIZING WEB BROSWER
5.1. Recommended PC specification for web browser connections
Requirements below apply to connection with an IP camera, assuming image display in 1920x1080
resolution and 25 fps speed.
1. CPU Intel Pentium IV 3 GHz or newer
2. RAM Memory min. 512 MB
3. VGA card (any displaying Direct 3D with min. 128 MB RAM memory)
4. OS Windows XP / Windows Vista / Windows 7 / Windows 8
5. Direct X version 9.0 or newer
6. Network card 10/100/1000 Mb/s
5.2. Connection with IP camera via the web browser
You have to enter camera IP address in the Internet browser address bar. If IP address is correct user
login window will be displayed:
Default user is root and default password is pass.
In the Language box you can change the display language (English, Polish or Russian). The default
language is English.
For safety reasons, it is recommended to change default user name and password.
It is possible to connect to the camera using Internet Explorer, Mozilla Firefox, Chrome or Opera
browsers. Running the IP camera in this browsers are very similar.
NETWORK CONNECTION UTILIZING WEB BROWSER

NVIP-2DN5001H/IR-1P, NVIP-3DN5001H/IR-1P, NVIP-5DN5001H/IR-1P
User’s manual (short form) ver.1.1
All rights reserved © AAT Holding sp. z o.o.
15
If your computer has Flash Player ins t a ll ed, the main screen for the camera web interface opens.
From here you can view and configure the ca m e ra .
NOTE: If your computer does not have Flash Player ins t a ll ed, you will be prompted t o select if y o u
would like t o use Activ eX or Flash Play er t o connect to the ca m e ra:
Click Click here to shift playing life video with short delay widget! to play live video with ActiveX
control to reduce latency (recommended): Uses an ActiveX plug-in to connect to the camera. To
install the plug-in, click on the video area, and select Install this Add-on for all users on this
computer, and follow the prompts.
NOTE: Please open the Security settings of IE browser, and enable the Download unsigned
ActiveX controls.
Click Please download the latest version of Flash Player to play live video: Opens a link to
download Flash Player from Adobe’s website. After completing the installation, restart your
browser and reconnect to the camera.
NOTE: When working in Windows Vista/7/8 the ActiveX applet may be blocked by Windows
Defender or User account control. In such case you should allow to run this applet, or simply disable
these functions.
NETWORK CONNECTION UTILIZING WEB BROWSER

NVIP-2DN5001H/IR-1P, NVIP-3DN5001H/IR-1P, NVIP-5DN5001H/IR-1P
User’s manual (short form) ver.1.1
All rights reserved © AAT Holding sp. z o.o.
16
NETWORK CONNECTION UTILIZING WEB BROWSER
NOTE: If you are running Windows Vista/7/8 with Internet Explorer 11, the ActiveX applet can be
blocked through browser security settings. In this situation, you should: add the IP address of the ca-
mera to the view of compatibility (Tools -> Compatibility View Settings, click Add).
Then, in the security settings options, add the camera address to trusted sites and lower the security
level to a minimum.

NVIP-2DN5001H/IR-1P, NVIP-3DN5001H/IR-1P, NVIP-5DN5001H/IR-1P
User’s manual (short form) ver.1.1
All rights reserved © AAT Holding sp. z o.o.
17
NETWORK CONNECTION UTILIZING WEB BROWSER
After making the changes, restart the browser, re-connect to the camera and log on.

NVIP-2DN5001H/IR-1P, NVIP-3DN5001H/IR-1P, NVIP-5DN5001H/IR-1P
User’s manual (short form) ver.1.1
All rights reserved © AAT Holding sp. z o.o.
18
6. WWW INTERFACE - WORKING WITH IP CAMERA

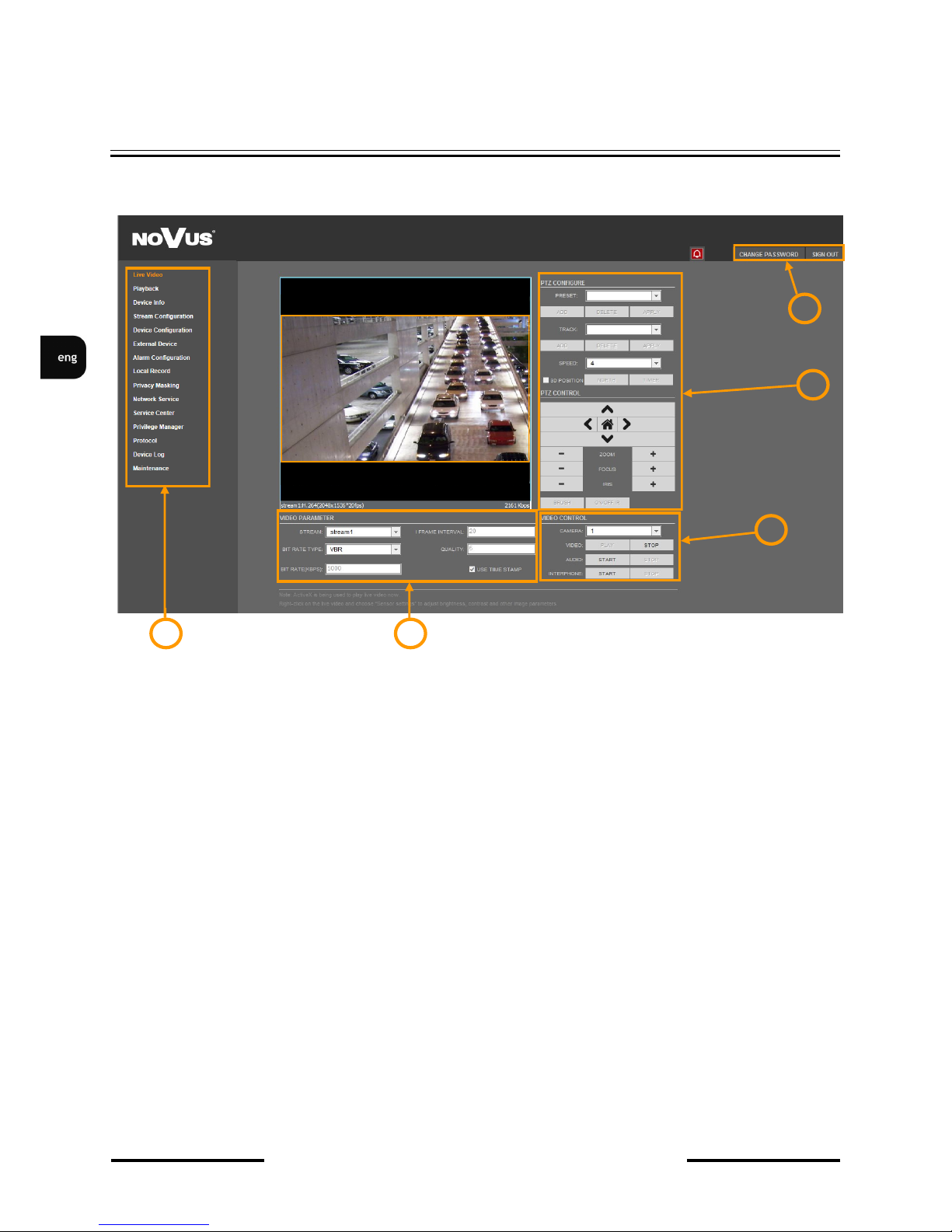

6.1. Displaying live pictures
1. Camera settings
Live Video - Live video preview
Playback - Local recordings playback
Device Info - Device information
Stream Configuration - Video and audio settings for each stream
Device Configuration - Device configuration (e.g. Local Network, Date&Time)
External Device - External device configuration (function unavailable)
Alarm Configuration - Alarm Configuration (Motion alarm, Alarm I/O)
Local Record - Local Record Configuration
Privacy Masking - Configuration up to 5 privacy masks
Network Service - Network services configuration (e.g. DDNS)
Service Center - Service center configuration (e.g. SMTP)
Privilege Manager - Users and groups management
Protocol - Protocols settings (e.g. ONVIF)
Device Log - Device Log contains: Operation Log, Alarm Log and Collect Log
Maintenance - Device Restart and restoring Default Settings
WWW INTERFACE - WORKING WITH IP CAMERA
3.
4.
1. 2.
5.

NVIP-2DN5001H/IR-1P, NVIP-3DN5001H/IR-1P, NVIP-5DN5001H/IR-1P
User’s manual (short form) ver.1.1
All rights reserved © AAT Holding sp. z o.o.
19
2. Video Parameter
Stream - Stream ID (choose one from available streams)
Bite Rate Type - Information about bit rate type
Bit Rate (kbps) - Information about bit rate
I Frame Interval - Information about I frame interval
Quality - Information about quality
USE TIME STAMP - Video buffer (increases delay when enabled, maximum delay is 5s)
NOTICE: USE TIME STAMP function will not be available when using Flash instead of Activex.
3. Camera Control
Function unavailable.
4. Menu bar
Change Password - Change users password
NOTICE: Default password "pass" can be restored only after restoring default settings of the camera)
Sign Out - Log out from camera
5. Video Control
Camera - Default number of the camera is 1.
Video - Turn on/off video
Audio - Turn on/off audio
Interphone - Turn on/off Interphone
NOTICE: Audio and Interphone functions will not be available when using Flash instead of Activex.
WWW INTERFACE - WORKING WITH IP CAMERA

NVIP-2DN5001H/IR-1P, NVIP-3DN5001H/IR-1P, NVIP-5DN5001H/IR-1P
User’s manual (short form) ver.1.1
All rights reserved © AAT Holding sp. z o.o.
20
7. ELECTRIC CONNECTORS AND ACCESORIES
7.1. Connecting power supply to the camera.
The camera is supplied by using RJ45 network socket. To run NOVUS IP camera you have to connect
ethernet cable between camera and network switch with PoE support (IEEE 802.3af). You can also use
a power injector compatible with IEEE 802.3af standard.
Information:
Power supply adapter is not included. Please use power adapter with parameters specified in user’s
manual.
Caution:
In order to provide protection against voltage surges/lightning strikes, usage of appropriate surge
protectors is advised. Any damages resulting from surges are not eligible for service repairs.
7.2. SD card installation
Camera supports microSD and microSDHC cards. In order to install the card properly, please follow
the instructions below:
Turn the camera off.
Unscrew the service compartment screws and open the service compartment.
Mount microSD/microSDHC card in the socket located at the camera’s rear, according to the
picture:
Close the service compartment and firmly screw the service compartment screws.
Turn the camera on
Format the card in SDVideo (recommended) or Ext3 file system using a IP camera.
Click Local Record ->Record Directory.Under Disk Name, select SD1. Click Modify. The Record
Disk Path menu opens. Uncheck Enable.Under File System, select SDVideo or Ext3.Click Format.
A window will appear to show the status of the f o rmatting. Wait for the formatting to complete and
then click OK.
Check the SD card by checking its capacity in the Local Record ->Record Directory tab.
ELECTRIC CONNECTORS AND ACCESORIES
