NOYAFA NF-838 User manual

INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL
MODEL:NF-838
ORIGINAL
AUTHENTIC
e
d
p
r
o
d
u
n
t
c
t
e
t
s
a
,
P
i
ng
n
o
t
e
i
t
a
r
f
l
t
e
l
o
n w
u
e
o
d
C
ORIGINAL
AUTHENTIC
REV1.0
Your excellent helper in cable test!
LCD Multifunction Wire Tester

Find target wire required from numerous
telephone wires and LAN cables
Find target wire required from numerous
telephone wires and LAN cables
Example ⅠExample Ⅱ
Hunt cable in
telephone exchanger
Hunt cable in
distribution frame
Connect launcher and telephone
wire port to be hunted in right way
Hunt at the other end with receiver
Connect launcher and LAN cable
port to be hunted in right way
Hunt at the other end with receiver
Find target wire required from numerous
telephone wires and LAN cables
Find target wire required from numerous
telephone wires and LAN cables
Find target wire required from numerous
telephone wires and LAN cables
Note: Never put a charged telephone cable into
RJ45 Port, for fear of burnout to the tester.
Your excellent helper in cable test!

Please read and learn safety instructions
before use or maintain the equipment
●
●
●
●
●
●
●
●
Please store the test in right place and operate in correct way in
case of the sharp probe hurts sb .
Never expose the equipment directly in the sun.
Never put the equipment in the place with much dust, humidity and
high temperature (over 40℃).
Please use battery according to the specification; otherwise, it
may result in damage to equipment.
Please never dismount the equipment arbitrarily. The maintenance
and care shall be conducted by professional personnel.
Please take out the battery in launcher and receiver if the
equipment is not used for a long time so as to prevent that the
battery liquid is leaked in future.
Never use the equipment to detect power cord with electricity
(such as power supply circuit of 220V), other wise, it may result in
damage to equipment and personal injury.
Never conduct related operation of communication line in
thunderstorm weather so as to prevent lightning stroke and
impact on personal safety.
Your excellent helper in cable test!

Contents
Brief Introduction..............................................01
Overview...............................................................01
Product features....................................................02
Technical indexes..................................................02
Product Interface and Keypad Functions.......03
Instrument panel and port........................................03
Instructions for LCD display....................................03
Instructions for product..................................04
Wire sequence......................................................04
Test report of different cables ....................................07
Hunting cable.........................................................08
Other functions.....................................................09
Packing list...........................................................10
Diagram of Series Products..........................11
Your excellent helper in cable test!

NF -8 3 8- M
WIREMAP
NF -8 3 8- S
Overview
Model NF-838 is composed of emitter (NF-838-M), receiver
(NF-838-R) and remote identifier (NF-838-S) .The instrument is
provided with fluent appearance, excellent hand feel and considerate
human-centered design. It owns three great functions of hunting, wire
sorting and circuit status testing, Also NF-838 highlights its function to
test all kinds of cable, such as RJ11,RJ45,COAX,USB,1394 cable, it
has 9 different tones.
Brief Introduction
Emitter(NF-838-M) Receiver(NF-838-R) Remote identifier(NF-838-S)
PUSH TO T ES T
POWE R
NF -8 3 8- R
VOL
ON/O FF L IGHT
TEST S CA N
LC D M u l t i fu n c t i o n
Ca b l e Te s t e r
EMITTER
LC D Mu lti fu nct io n
Ca bl e Tes te r
RE CE IV E R
Your excellent helper in cable test! 01

Product features:
LCD display is more direct, more visual and clearer.
The wire can be hunted directly in connection with Ethernet switch/
router /PC terminal of different models in startup.
Test 5E, 6E, telephone wire, coaxial cable, USB cable, 1394 line
and other cables for troubleshooting.
RJ45/RJ11/BNC/USB/1394 and other ports are included and other
adaptors are no need.
acklight display function.
Different tones for different circuit status.
9V battery for power supply and low-voltage hint function.
B
●
●
●
●
●
●
●
Technical indexes
Overall dimension
Emitter: 185x80x32mm; receiver: 218x46x29mm;
Remote identifier: 107x30x24mm
(2) Power
Two laminated batteries of 9V
(3) Display
Large screen LCD segmented display (effective visual area
54x26mm)
(4) Type of cable tested
RJ 45/RJ11/BNC/USB/1394 cable and other different types
(5) Type of cable detected
RJ 45/RJ11/BNC/USB/1394 cable and other metal wires
(6) Ambient temperature in work
-10℃~+60℃
(7) Signal transmission distance
More than 2 km
(8) Location of wire order and cable failure
Failure test, open circuit, short circuit, reversed position,
crossing and series winding
(1)
Your excellent helper in cable test!
02

Product Interface and Keypad Introduction
Instructions for LCD Display
NF -8 3 8- M
WIREMAP
NF- 83 8- S
Emitter
Receiver
Remote identifier
PUS H TO TEST
POWE R
NF -8 38 -R
VOL
BNCRJ45
USB
RJ11
1394
RJ45
BNC
1394
USB RJ11
ON/OFF LIGHT
TEST SCAN
LC D M u l t if u n c ti o n
Ca b l e Te s t e r
EM I T T E R
LC D Mu lti fu nct io n
Ca bl e Test er
RE CE IV ER
Your excellent helper in cable test! 03

Instructions for product
Turn on the tester. Meanwhile, the default of system is wire map
testing, LCD display is as follows if the cable is not connected.
Wire map testing (Take RJ45 as an example)
Test Result1: Short circuit (SHORT)
If there is short circuit of cable or terminal, three “tick, tick and tick”
will come out from emitter. Meanwhile, LCD display the picture below:
(take 3,4-short circuit as example)
At this moment, press “TEST” key to restart again. If the short circuit
still occurs, please solve “short” circuit problem before measuring.
Turn on the tester, connect one end of the cable to emitter, and the
other end is connected to RJ45 port of remote identifier.Press “test”
to start , if the cable is shielded (or earthing wire), LCD will display
“STP”; if the cable is unshielde (or earthing wire), LCD will display
“UTP”; press “light” key in dim environment.
Your excellent helper in cable test!
04

Test Result 2:
If the cable is not connect to the emitter or remote identifier, the
launcher will produce “tick” one time and LCD displays the picture
below in the meanwhile:
Test Result 3: Normal wiring map (WIREMAP)
If the cable is normal, the launcher will produce a long “tick” and
LCD displays the picture below in the meanwhile.
RJ45 cable without shielding wire
RJ45 cable with shielding wire
Your excellent helper in cable test! 05

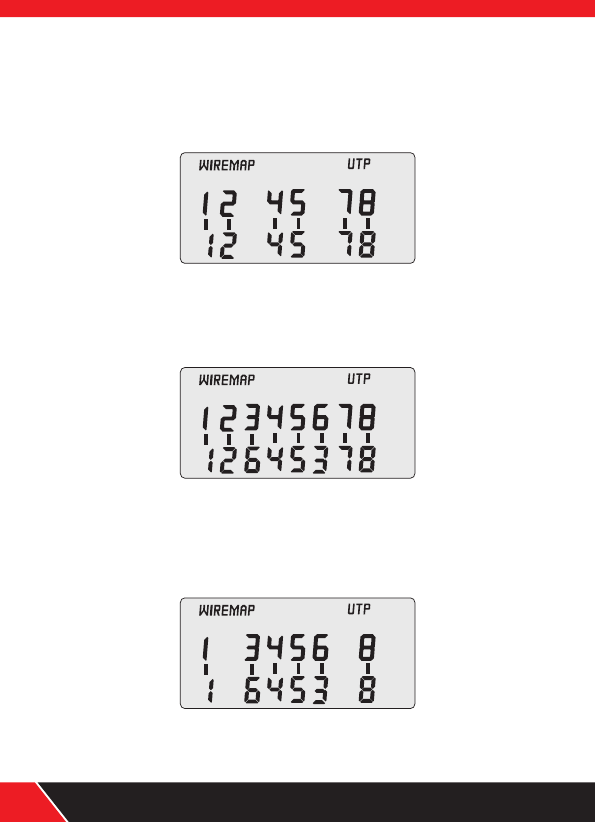

Test Result 4: When there is open circuit of cable
The emitter produces a long “tick” sound and LCD displays the picture
below in the meanwhile:
The result indicates that “3” “6” line of RJ45 cable is open.
Test Result 5: When the cable is crossed /disorder
The emitter produces two short “tick, tick” and LCD displays the
picture below in the meanwhile:
The result indicates that “3” “6” line of RJ45 cable is cross.
Test Result 6:
When the cable is cross/disorder, as well as open circuit.
The emitter produces two short “tick, tick” sound and LCD screen
displays picture below in the meanwhile:
The picture indicates that “3” “6” line of RJ 45 cable is cross and “2”
“7” lines are in open circuit.
Your excellent helper in cable test!
06

The result of normal RJ45 cable is shown as below:
Test of different cable orders
The result of normal RJ11 cable is shown as below:
The result of normal 1394 cable is shown as below:
The result of normal USB cable is shown as below:
Your excellent helper in cable test! 07

The result of normal BNC line is shown as below:
Hunting test
Press “ON/OFF” , the equipment is started up with a long sound.
Slightly touch “SCAN” key and enter hunting mode, LCD screen
displays the following in flashing:
Press “ON/OFF” , then the emitter will start working. Connect testing
cable to corresponding port of the emitter (RJ45, RJ11, USB, BNC,
1394 and others),slightly touch “SCAN” key,and select the preferred
tone (there are 9 kinds of frequency to be selected, press “SCAN” for
your desired one,then take the receiver to hunt target wire (the usage
of receiver is shown in the following) . Press “backlight” key when in
dim environment.
Usage of the receiver
Dismount the battery cover, install battery of 9V, press “PUSH” key, then
approach the cable with probe and find target wire required among lots
of cables. When the probe is near target wire, the “beep, beep and
beep” sound may occur and the signal indicator light “POWER” will be
on.Compare volume of “beep,beep and beep” and luminance of signal
indicator, the wire which makes sound is the loudest and the signal
indicator is the brightest is target one.
Your excellent helper in cable test!
08

Other functions
(1) Low-voltage hint function
When the battery voltage is low, the low-voltage hint sign“ ”on LCD
will flash and the user shall have the battery replaced at this moment.
(2) Earphone function
The earphone can be used in noisy environment for operation so as to
avoid external interference.
(3) Volume adjustment function
Turn “volume” switch on the receiver when tracing cable to adjust.
(4) Floodlight function
The floodlight can be started at night or in darkness environment.
The floodlight turns on so as to facilitate your normal operation.
(5) Keypad sound start and stop function
If the user needs to stop keypad sound in test,the user can slightly
touch “wire sorting” and hunting key, the keypad sound is stopped;
if the keypad sound is about to started again, the operations above
shall be repeated so that the keypad sound is started.
Your excellent helper in cable test! 09

1. Emitter 1PCS
2. Receiver 1PCS
4. Laminated battery of 9V 2PCS
5. Earphone 1PCS
7. Rj45 Adaptor cable 1PCS
8. Alligator clip adaptor 1PCS
6. RJ11 Adaptor cable 1PCS
9. User manual 1PCS
10. Kit 1PCS
11. Color box 1PCS
3. Remote adapter 1PCS
Packing list
Your excellent helper in cable test!
10

Your excellent helper in cable test! 11
NF-388 NF-903 NF-906A
NF-468L NF-3468 NF8108-M
NF-268 NF-806R
NF-306 NF-868 NF-8208
NF-816

Your excellent helper in cable test!
SHENZHEN NOYAFA ELECTRONIC CO.,LTD
