PCS-9611
Feeder Relay
Instruction Manual
NR Electric Co., Ltd.

Preface
PCS-9611 Feeder Relay I
Date: 2011
-
08
-
2
9
Preface
Introduction
This guide and the relevant operating or service manual documentation for the equipment provide
full information on safe handling, commissioning and testing of this equipment.
Documentation for equipment ordered from NR Electric Co., Ltd. is dispatched separately from
manufactured goods and may not be received at the same time. Therefore this guide is provided
to ensure that printed information normally present on equipment is fully understood by the
recipient.
Before carrying out any work on the equipment, the user should be familiar with the contents of
this manual and read relevant chapters carefully.
This chapter describes the safety precautions recommended when using the equipment. Before
installing and using the equipment, this chapter must be thoroughly read and understood.
Health and Safety
The information in this chapter of the equipment documentation is intended to ensure that
equipment is properly installed and handled in order to maintain it in a safe condition.
When electrical equipment is in operation, dangerous voltages will be present in certain parts of
the equipment. Failure to observe warning notices, incorrect use, or improper use may endanger
personnel and equipment and cause personal injury or physical damage.
Before working in the terminal strip area, the equipment must be isolated.
Proper and safe operation of the equipment depends on appropriate shipping and handling,
proper storage, installation and commissioning, and on careful operation, maintenance and
servicing. For this reason only qualified personnel may work on or operate the equipment.
Qualified personnel are individuals who:
zAre familiar with the installation, commissioning, and operation of the equipment and of the
system to which it is being connected;
zAre able to safely perform switching operations in accordance with accepted safety
engineering practices and are authorized to energize and de-energize equipment and to
isolate, ground, and label it;
zAre trained in the care and use of safety apparatus in accordance with safety engineering
practices;
zAre trained in emergency procedures (first aid).

Preface
PCS-9611 Feeder Relay
II Date: 2011
-
08
-
2
9
Instructions and Warnings
The following indicators and standard definitions are used:
DANGER means that death, severe personal injury, or considerable equipment damage will
occur if safety precautions are disregarded.
WARNING means that death, severe personal, or considerable equipment damage could occur
if safety precautions are disregarded.
CAUTION means that light personal injury or equipment damage may occur if safety
precautions are disregarded. This particularly applies to damage to the device and to
resulting damage of the protected equipment.
WARNING!
The firmware may be upgraded to add new features or enhance/modify existing features, please
make sure that the version of this manual is compatible with the product in your hand.
WARNING!
During operation of electrical equipment, certain parts of these devices are under high voltage.
Severe personal injury or significant equipment damage could result from improper behavior.
Only qualified personnel should work on this equipment or in the vicinity of this equipment. These
personnel must be familiar with all warnings and service procedures described in this manual, as
well as safety regulations.
In particular, the general facility and safety regulations for work with high-voltage equipment must
be observed. Noncompliance may result in death, injury, or significant equipment damage.
DANGER!
Never allow the current transformer (CT) secondary circuit connected to this equipment to be
opened while the primary system is live. Opening the CT circuit will produce a dangerously high
voltage.
WARNING!
zExposed terminals
Do not touch the exposed terminals of this equipment while the power is on, as the high
voltage generated is dangerous.
zResidual voltage
Hazardous voltage can be present in the DC circuit just after switching off the power supply. It
takes a few seconds for the voltage to discharge.

Preface
PCS-9611 Feeder Relay III
Date: 2011
-
08
-
2
9
CAUTION!
zEarthing
The earthing terminal of the equipment must be securely earthed.
zOperating environment
The equipment must only be used within the range of ambient environment detailed in the
specification and in an environment free of abnormal vibration.
zRatings
Before applying AC voltage and current or the power supply to the equipment, check that they
conform to the equipment ratings.
zPrinted circuit board
Do not attach and remove printed circuit boards when the power supply to the equipment is
on, as this may cause the equipment to malfunction.
zExternal circuit
When connecting the output contacts of the equipment to an external circuit, carefully check
the supply voltage used in order to prevent the connected circuit from overheating.
zConnection cable
Carefully handle the connection cable without applying excessive force.

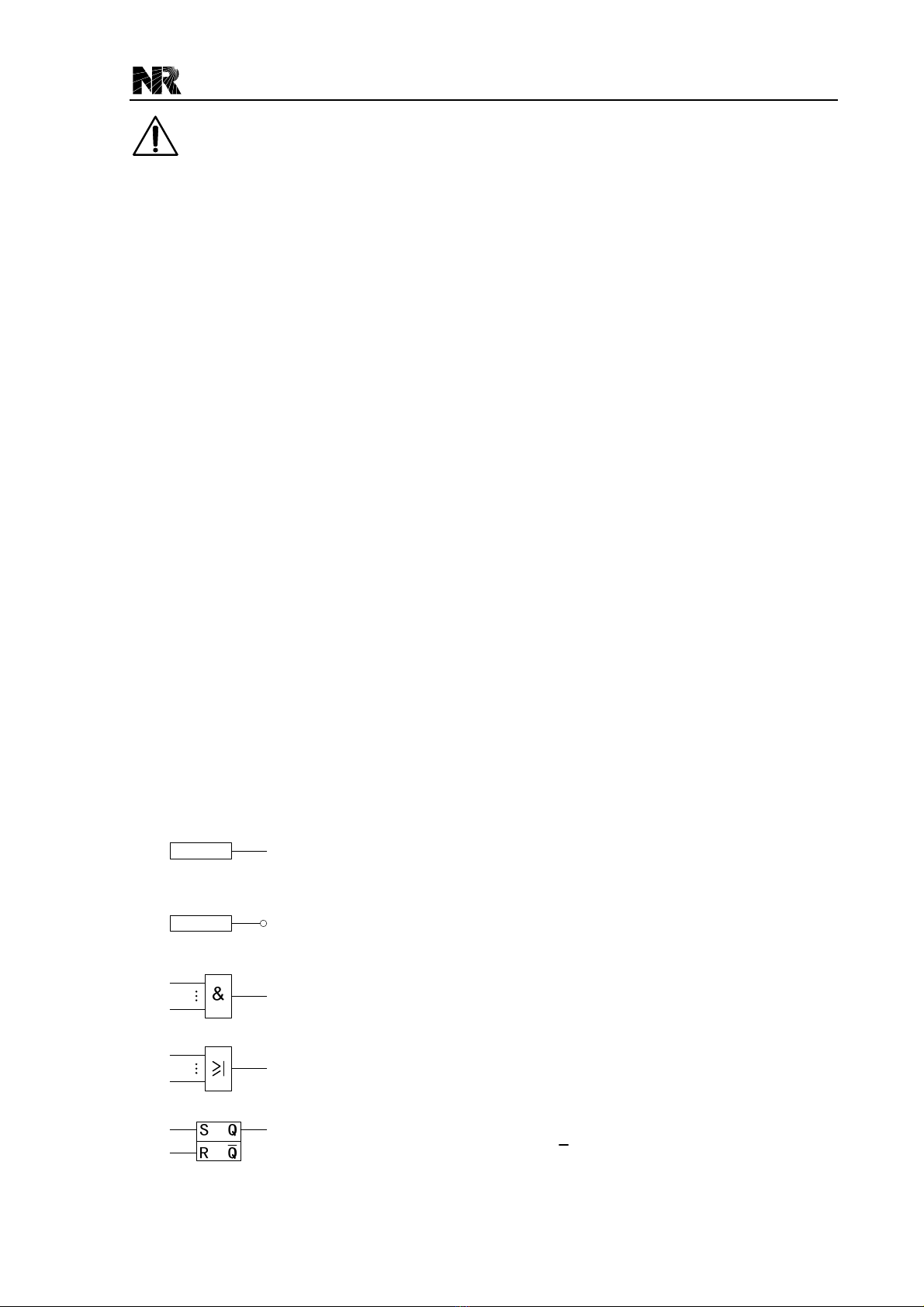

Typographic and Graphical Conventions
The following symbols are used in drawings:
Input signal of a function block, such as a logic setting, a blocking
signal or a analog comparator signal etc.
Input inversion signal of a function block, such as a logic setting,
a blocking signal or a analog comparator signal etc.
AND gate: all the input signals are “1”, then the output is “1”
OR gate: anyone the input signals is “1”, then the output is “1”
RS flipflop (static memory): setting input (S), resetting input (R),
output (Q) and inverted output (Q)

Preface
PCS-9611 Feeder Relay
IV Date: 2011
-
08
-
2
9
Timer: pickup with delay “t”, dropout without delay
Timer: pickup without delay, dropout with delay “t”
Timer: pickup with delay “t1”, dropout with delay “t2”
Junction (connection point)
Copyright
Version: 1.01
P/N: EN_DYBH5301.0086.0002
Copyright © NR 2011. All rights reserved
NR ELECTRIC CO., LTD.
69 Suyuan Avenue. Jiangning, Nanjing 211102, China
Tel: [phone], Fax: [phone]
Website: www.nrelect.com, www.nari-relays.com
Email: [e-mail]
We reserve all rights to this document and to the information contained herein. Improper use in particular reproduction and dissemination
to third parties is strictly forbidden except where expressly authorized.
The information in this manual is carefully checked periodically, and necessary corrections will be included in future editions. If
nevertheless any errors are detected, suggestions for correction or improvement are greatly appreciated.
We reserve the rights to make technical improvements without notice.

Preface
PCS-9611 Feeder Relay V
Date: 2011
-
08
-
2
9
Documentation Structure
The manual provides a functional and technical description of this relay and a comprehensive set
of instructions for the relay’s use and application.
The chapter contents are summarized as below:
1 Introduction
Briefly introduce the application, functions and features about this relay.
2 Technical Data
Introduce the technical data about this relay, such as electrical specifications, mechanical
specifications, ambient temperature and humidity range, communication port parameters, type
tests, setting ranges and accuracy limits and the certifications that our products have passed.
3 Operation Theory
Introduce a comprehensive and detailed functional description of all protective elements.
4 Supervision
Introduce the automatic self-supervision function of this relay.
5 Management Function
Introduce the management functions (such as metering, control and recording etc.) of this relay.
6 Hardware
Introduce the main function carried out by each module of this relay and providing the definition of
pins of each module.
7 Settings
List of all the settings and their ranges and step sizes, together with a brief explanation of each
setting and some notes about the setting application.
8 Human Machine Interface
Introduce the hardware of the human machine interface (HMI) module and a detailed guide for the
user how to use this relay through the HMI. It also lists all the information which can be view
through the HMI, such as settings, measurements, all kinds of reports etc.
9 Configurable Function
Introduce the configurable function (such as protection function configuration, LED configuration,
binary input configuration and binary output configuration etc.) of this relay.
10 Communication
Introduce the communication port and protocol which this relay can support, the IEC60870-5-103,
IEC61850 and DNP3.0 protocols are introduced in details.

Preface
PCS-9611 Feeder Relay
VI Date: 2011
-
08
-
2
9
11 Installation
Introduce the recommendations on unpacking, handling, inspection and storage of this relay. A
guide to the mechanical and electrical installation of this relay is also provided, incorporating
earthing recommendations. A typical wiring connection to this relay is indicated.
12 Commissioning
Introduce how to commission this relay, comprising checks on the calibration and functionality of
this relay.
13 Maintenance
A general maintenance policy for this relay is outlined.
14 Decommissioning and Disposal
A general decommissioning and disposal policy for this relay is outlined.
15 Manual Version History
List the instruction manual version and the modification history records.

1Introduction
PCS-9611 Feeder Relay 1-a
Date: 2011-08-29
1 Introduction
Table of Contents
1.1 Application........................................................................................................1-1
1.2 Functions ..........................................................................................................1-1
1.3 Features ............................................................................................................1-3
List of Figures
Figure 1.1-1 Functional diagram of PCS-9611 ........................................................................ 1-1

1 Introduction
PCS-9611 Feeder Relay
1-b Date: 2011
-
08
-
2
9

1Introduction
PCS-9611 Feeder Relay 1-1
Date: 2011
-
08
-
2
9
1.1 Application
The PCS-9611 relay is a protection, control and monitoring unit for various primary equipments
(such as overhead line, underground cable and transformer etc.) on solidly grounded, impedance
grounded, Peterson coil grounded and ungrounded system. This relay is suitable for wall surface
mounted indoors or outdoors or flush mounted into a control panel.
This relay can sample the analog values from the traditional instrument transformers, or receive
the sampled values from the electronic current and voltage transformers (via a merging unit). The
binary inputs and outputs of this relay can be configured according to the demands of a practical
engineering through the PCS-PC configuration tool auxiliary software, which can meet some
special requirements of protection and control functions.
This relay can fully support the IEC61850 communication protocol and GOOSE function, and can
completely meet the demands of a modern digitalized substation.
The function diagram of this relay is shown in Figure 1.1-1.
Figure 1.1-1 Functional diagram of PCS-9611
1.2 Functions
The functions of this relay include protective functions, management functions and auxiliary testing
functions, and the functions of this relay are listed in the following tables.
zProtective functions

1 Introduction
PCS-9611 Feeder Relay
1-2 Date: 2011
-
08
-
2
9
Protective Functions
50P Instantaneous overcurrent protection
51P Time overcurrent protection
67P Directional overcurrent protection
50G Instantaneous zero sequence overcurrent protection
51G Time zero sequence overcurrent protection
67G Directional zero sequence overcurrent protection
51SG Sensitive earth fault protection
67SG Directional sensitive earth fault protection
27 Undervoltage protection
59 Overvoltage protection
47 Negative sequence overvoltage protection
59G Zero sequence overvoltage protection
49 Thermal overload protection
46 Negative sequence overcurrent protection
46BC Broken conductor protection
81U Under-frequency protection
81O Over-frequency protection
81R Frequency rate-of-change protection
50BF Breaker failure Protection
79 Three-pole auto-recloser (Up to 4 shots)
25 Synchronism check function
SOTF Switch onto fault logic
MR Mechanical protection
AI Analog inputs
Voltage and current drift auto adjustment
Self supervision
VTS Voltage transformer supervision
CTS Current transformer supervision
Binary inputs
Binary outputs
zManagement functions
Management Functions
Metering
Circuit breaker status monitoring
2 Circuit breaker control
TCS Tripping circuit supervision
Multiple setting groups
Control inputs
64 Protection operation reports
1024 Supervision alarm records
1024 Control operation records

1Introduction
PCS-9611 Feeder Relay 1-3
Date: 2011
-
08
-
2
9
1024 User operation records
FDR 64 Fault and disturbance records
SOE
1024 latest SOE records, latest records of the following elements
state changing: operating abnormality alarm elements, supervision
alarm elements, protection elements and binary input elements.
Rear communication ports: Ethernet, RS-485, Printer port
Time synchronization port: RS-485
zAuxiliary testing functions
Auxiliary Testing Functions
Virtual tripping report generation and communication testing
Virtual self-supervision report generation and communication testing
Virtual binary input state change report generation and communication testing
Virtual metering values generation and communication testing
1.3 Features
zThis device is based on a 32-bit high performance dual-core processor, internal high speed
bus and intelligent I/O ports, and the hardware is in module design and can be configured
flexibly, featuring interchangeability and easy extension and maintenance.
zModularized hardware design makes this relay be easily upgraded or repaired by a qualified
service person. Various function optional modules can satisfy various situations according to
the different requirements of the users.
zThe adoption of 16-bit A/D converter and the dual-channel sampling technology can ensure
the accuracy and reliability of protection sampling and the correctness of protection operation.
It is also provides dedicated current transformers for metering, and ensures the high accuracy
of telemetering with 48-point high speed sampling rate per cycle.
zThis device can sample the analog values from the traditional instrument transformers, or
receive the sampled values from the electronic transformers. It can support the protocol
IEC60044-8, IEC61850-9-2 and GOOSE.
zVarious algorithms for protection and measurement have been completed in this device for
the feature of electronic transformer sampling, such as the error prevention method of
multi-algorithms data anomaly for the digital channels, to realize high accuracy and reliability
under various conditions of network faults or communication interruption.
zThis device has powerful GOOSE functions, and the connection and cooperation between
some devices can be realized without using electrical cables, to facilitate the realization of
such functions as simple bus differential protection, overload interlock shedding function and
backup automatic transfer function etc.
zThis device has fully realized the technology to integrate six functions into one device:
protection, measurement, control, remote signaling, merging unit function and remote module

1 Introduction
PCS-9611 Feeder Relay
1-4 Date: 2011
-
08
-
2
9
functions, to improve the reliability.
zVarious methods of GPS time synchronization are supported in this relay, including SNTP,
IEEE1588 (V2), pulse per second (PPS) and IRIG-B synchronization.
zThe protection modules are completely separated from other modules, and are independent
in both hardware and software. The protection functions do not depend on the communication
network, so the failure of communication network will not affect the normal operation of the
protection functions.
zMature protection configuration, fast speed and high security performance can meet the
practical requirements. Each protective element is independent, so it is very convenient for
whether adopting the selected protective element.
zThis device constantly measures and calculates a large amount of analog quantities, such as
phase voltage, phase-to-phase voltage, neutral voltage, phase current, neutral current, active
power, reactive power, power factor and frequency etc.
zThe human machine interface (HMI) with a small control module (a 240×128-dot LCD, a 9-key
keypad and 20 LED indicators) on the front panel is very friendly and convenient to the user.
zThis device can communicate with a SAS or RTU via different communication intermediates:
Ethernet network, RS-485 serial ports. The communication protocol of this device is optional:
IEC61850, IEC60870-5-103 or DNP3.0.
zThis device can detect the tripping circuit of the circuit breaker and monitor the operation
(close or trip) time of a circuit breaker by checking the auxiliary contacts of the circuit breaker.
zComplete event recording function is provided: 64 latest protection operation reports, 1024
latest supervision records, 1024 latest control operation records, 1024 latest user operation
records and 1024 latest records of time tagged sequence of event (SOE) can be recorded.
zPowerful fault and disturbance recording function is supported: 64 latest fault or disturbance
waves, the duration of a wave recording is configurable.

2TechnicalData
PCS-9611 Feeder Relay 2-a
Date: 2011
-
08
-
2
9
2 Technical Data
Table of Contents
2.1 General Specification.......................................................................................2-1
2.1.1 Electrical Specifications ..................................................................................................... 2-1
2.1.2 Mechanical Specifications.................................................................................................. 2-2
2.1.3 Ambient Temperature and Humidity ................................................................................... 2-2
2.1.4 Communication Interfaces ................................................................................................. 2-3
2.1.5 Type Test ........................................................................................................................... 2-4
2.2 Protective Functions........................................................................................2-6
2.2.1 Overcurrent Protection....................................................................................................... 2-6
2.2.2 Voltage Control Element .................................................................................................... 2-6
2.2.3 Phase Directional Element.................................................................................................2-6
2.2.4 IDMT Overcurrent Protection ............................................................................................. 2-6
2.2.5 Zero Sequence Overcurrent Protection ............................................................................. 2-6
2.2.6 Zero Sequence Directional Element .................................................................................. 2-7
2.2.7 Zero Sequence IDMT Overcurrent Protection.................................................................... 2-7
2.2.8 Sensitive Earth Fault Protection......................................................................................... 2-7
2.2.9 Sensitive Earth Fault Directional Element.......................................................................... 2-7
2.2.10 Sensitive Earth Fault IDMT Protection ............................................................................. 2-8
2.2.11 Negative Sequence Overcurrent Protection..................................................................... 2-8
2.2.12 Thermal Overload Protection ........................................................................................... 2-8
2.2.13 Undervoltage Protection ..................................................................................................2-8
2.2.14 Overvoltage Protection .................................................................................................... 2-9
2.2.15 Zero Sequence Overvoltage Protection ........................................................................... 2-9
2.2.16 Negative Sequence Overvoltage Protection .................................................................... 2-9
2.2.17 Frequency Protection....................................................................................................... 2-9
2.2.18 Frequency Rate-of-change Protection ........................................................................... 2-10
2.2.19 SOTF Overcurrent Protection ........................................................................................ 2-10

2TechnicalData
PCS-9611 Feeder Relay
2-b Date: 2011
-
08
-
2
9
2.2.20 Zero Sequence SOTF Overcurrent Protection ...............................................................2-10
2.2.21 Breaker Failure Protection..............................................................................................2-10
2.2.22 Broken Conductor Protection ......................................................................................... 2-11
2.3 Management Functions................................................................................. 2-11
2.3.1 Metering Scope and Accuracy.......................................................................................... 2-11
2.3.2 Control Performance ........................................................................................................ 2-11
2.3.3 Clock Performance ...........................................................................................................2-12
2.3.4 Fault and Disturbance Recording .....................................................................................2-12
2.3.5 Binary Input Signal ...........................................................................................................2-12
2.3.6 Transient Overreach .........................................................................................................2-12
2.4 Certification.................................................................................................... 2-12

2TechnicalData
PCS-9611 Feeder Relay 2-1
Date: 2011
-
08
-
2
9
2.1 General Specification
2.1.1 Electrical Specifications
2.1.1.1 Power Supply
Standard IEC60255-11: 2008
Rated voltage 110/125Vdc, 220/250Vdc, 220Vac
Variation 80% ~ 120%
Permissible ripple voltage Max 15% of the rated voltage (DC power supply)
Traditional AC inputs < 10W @ Quiescent condition; < 15W @ Operating condition
Burden Digital AC inputs < 15W @ Quiescent condition; < 20W @ Operating condition
2.1.1.2 Analog Current Input Ratings
Phase rotation ABC
Rated frequency (fn) 50Hz, 60Hz
Nominal range fn ± 5Hz
Application object For protection For metering
Rated current (In) 1A 5A 1A 5A
Linear to 30×In 30×In 2×In 2×In
continuously 3×In 3×In 2×In 2×In
for 10s 30×In 30×In 12×In 12×In
for 1s 100×In 100×In 30×In 30×In
Thermal
withstand
capability
for half a cycle 250×In 250×In 75×In 75×In
Burden (@ In) < 0.10VA/phase < 0.20VA/phase < 0.20VA/phase < 0.40VA/phase
2.1.1.3 Analog Voltage Input Ratings
Phase rotation ABC
Rated frequency (fn) 50Hz, 60Hz
Nominal range fn ± 5Hz
Rated voltage (Un) 100V ~ 130V (phase-to-phase voltage)
Linear to 130V
continuously 130V
10s 200V
Thermal
withstand
capability 1s 250V
Burden < 0.10VA / phase
2.1.1.4 Binary Input
Binary input number Up to 38
Rated voltage 24V 48V 110V 125V 220V 250V
Rated current 1.20mA 2.40mA 1.10mA 1.25mA 2.20mA 2.50mA
Pickup voltage 55% ~ 70% rated voltage
Dropout voltage 55% rated voltage

2TechnicalData
PCS-9611 Feeder Relay
2-2 Date: 2011
-
08
-
2
9
Maximum permitted voltage 120% rated voltage
High voltage withstand 2000Vac, 2800Vdc
Resolving time for logic input < 1ms
2.1.1.5 Binary Output
Item Tripping output Signal output
Binary output number Up to 25 Up to 10
Output model Potential-free contact Potential-free contact
Max system voltage 380Vac, 250Vdc 380Vac, 250Vdc
Voltage across open contact 1000V RMS for 1min 1200V RMS for 1min
Continuous carry 5.0A @ 380Vac; 5.0A @ 250Vdc 8.0A @ 380Vac; 8.0A @ 250Vdc
Short duration current 6A for 3000ms; 15A for 500ms 10A for 3000ms; 20A for 500ms
Breaking capacity
0.6A @ 48Vdc, L/R=40ms
0.1A @ 110Vdc, L/R=40ms
0.05A @ 220Vdc, L/R=40ms
0.6A @ 48Vdc, L/R=40ms
0.3A @ 110Vdc, L/R=40ms
0.2A @ 220Vdc, L/R=40ms
Pickup time < 8ms < 10ms
Dropout time < 5ms < 8ms
Bounce time 1ms 1ms
loaded contact 100,000 operations minimum 100,000 operations minimum
Durability unloaded contact 10,000,000 operations minimum 10,000,000 operations minimum
2.1.2 Mechanical Specifications
Enclosure dimensions 225.00×177.00×224.80 (W×H×D, unit: mm)
Trepanning dimensions 226.00×178.00, M5 screw (W×H, unit: mm)
Mounting way Flush mounted
Weight per device Approx. 7.0kg (fully equipped)
Local control panel Small control module: a 240×128-dot LCD, a 9-key keypad and 20 LEDs
Display language Optional: Chinese, English
Housing material Aluminum
Housing color Silver grey
Location of terminals Rear panel of the device
Protection class IEC60225-1: 2009
Front side: IP40, up to IP51
Rear side, connection terminals: IP20
Other Sides: IP30
2.1.3 Ambient Temperature and Humidity
Standard IEC60225-1: 2009
Operating temperature range -40°C ~ +70°C
Transport and storage temperature range -40°C ~ +70°C
Permissible humidity 5% ~ 95%, condensation not permissible
Altitude < 3000m

2TechnicalData
PCS-9611 Feeder Relay 2-3
Date: 2011
-
08
-
2
9
2.1.4 Communication Interfaces
2.1.4.1 Ethernet Port for RTU/SCADA
Medium Parameters
Port number 2 or 4
Connector type RJ-45
Transmission rate 100Mbits/s
Transmission standard 100Base-TX
Transmission distance < 100m
Protocol IEC60870-5-103:1997 or IEC61850
Electrical
Safety level Isolation to ELV level
Port number 2
Connector type SC
Transmission rate 100Mbits/s
Transmission standard 100Base-FX
Optical fiber type Multi-mode
Wavelength 1300nm
Transmission distance < 1500m
Ethernet
Optical
Protocol IEC60870-5-103:1997 or IEC61850
2.1.4.2 Serial Port for RTU/SCADA
Medium Parameters
Port number 0 or 2
Baud rate 4800 ~ 115200bps
Transmission distance < 1000m @ 4800bps
Maximal capacity 32
Protocol IEC60870-5-103:1997 or DNP3.0
RS-485 (EIA)
Safety level Isolation to ELV level
2.1.4.3 Serial Port for Printer
Medium Parameters
Port number 1
Baud rate 4800 ~ 115200bps
Printer type EPSON®LQ-300K
RS-232 (EIA)
Safety level Isolation to ELV level
2.1.4.4 Serial Port for Time Synchronization
Medium Parameters
Port number 1
Transmission distance < 500m
Maximal capacity 32
Timing standard PPS, IRIG-B
RS-485 (EIA)
Safety level Isolation to ELV level

2TechnicalData
PCS-9611 Feeder Relay
2-4 Date: 2011
-
08
-
2
9
2.1.4.5 Ethernet Port for Debugging
Medium Parameters
Port number 1
Connector type RJ-45
Transmission rate 100Mbits/s
Transmission standard 100Base-TX
Transmission distance < 100m
Electrical Ethernet
(in front panel)
Safety level Isolation to ELV level
2.1.4.6 Process Level Interface
Medium Parameters
Optical fiber material Glass fiber
Optical fiber type Multi-mode
Connector type LC ST
Wavelength 1310nm 820nm
Transmission distance < 2000m
Minimum transmission power -20dBm
Optical Ethernet
Reception sensitivity -30dBm
2.1.5 Type Test
2.1.5.1 Environmental Tests
Dry cold test IEC60068-2-1: 2007, 16h at -25°C
Dry heat test IEC60068-2-2: 2007, 16h at +55°C
Damp heat test IEC60068-2-78: 2001, 10 days, 93%RH, +55°C
Cyclic temperature with
humidity test
IEC60068-2-30: 2005, six (12+12hours) cycles, 95%RH,
low temperature +25°C, high temperature +55°C
2.1.5.2 Electrical Tests
Dielectric test IEC60255-27: 2005, test voltage: 2kV, 50Hz, 1min
Impulse voltage test IEC60255-5: 2000, test voltage: 5kV, unipolar impulses, waveform 1.2/50μs,
source energy 0.5J
Overvoltage category IEC60255-5: 2000, Class III
Insulation measurement IEC60255-5: 2000, insulation resistance >100MΩ@ 500Vdc
Pollution degree IEC60225-1: 2009, Class II
2.1.5.3 Electromagnetic Compatibility
1MHz burst disturbance tests
- Common mode
- Differential mode
IEC60255-22-1: 2007, Class III
2.5kV
1.0kV
Electrostatic discharge tests
- For contact discharge
- For air discharge
IEC60255-22-2: 2008, Class IV
8.0kV
15.0kV
