NR Electric PCS-9611 User manual

PCS-9611
Feeder Relay
Instruction Manual
NR Electric Co., Ltd.

Preface
PCS-9611 Feeder Relay
I
Date: 2014-04-08
Preface
Introduction
This guide and the relevant operating or service manual documentation for the equipment provide
full information on safe handling, commissioning and testing of this equipment.
Documentation for equipment ordered from NR Electric Co., Ltd. is dispatched separately from
manufactured goods and may not be received at the same time. Therefore this guide is provided
to ensure that printed information normally present on equipment is fully understood by the
recipient.
Before carrying out any work on the equipment, the user should be familiar with the contents of
this manual and read relevant chapters carefully.
This chapter describes the safety precautions recommended when using the equipment. Before
installing and using the equipment, this chapter must be thoroughly read and understood.
Health and Safety
The information in this chapter of the equipment documentation is intended to ensure that
equipment is properly installed and handled in order to maintain it in a safe condition.
When electrical equipment is in operation, dangerous voltages will be present in certain parts of
the equipment. Failure to observe warning notices, incorrect use, or improper use may endanger
personnel and equipment and cause personal injury or physical damage.
Before working in the terminal strip area, the equipment must be isolated.
Proper and safe operation of the equipment depends on appropriate shipping and handling,
proper storage, installation and commissioning, and on careful operation, maintenance and
servicing. For this reason only qualified personnel may work on or operate the equipment.
Qualified personnel are individuals who:
Are familiar with the installation, commissioning, and operation of the equipment and of the
system to which it is being connected;
Are able to safely perform switching operations in accordance with accepted safety
engineering practices and are authorized to energize and de-energize equipment and to
isolate, ground, and label it;
Are trained in the care and use of safety apparatus in accordance with safety engineering
practices;
Are trained in emergency procedures (first aid).

Preface
PCS-9611 Feeder Relay
II
Date: 2014-04-08
Instructions and Warnings
The following indicators and standard definitions are used:
DANGER means that death, severe personal injury, or considerable equipment damage will
occur if safety precautions are disregarded.
WARNING means that death, severe personal injury, or considerable equipment damage could
occur if safety precautions are disregarded.
CAUTION means that light personal injury or equipment damage may occur if safety
precautions are disregarded. This particularly applies to damage to the device and to
resulting damage of the protected equipment.
WARNING!
The firmware may be upgraded to add new features or enhance/modify existing features, please
make sure that the version of this manual is compatible with the product in your hand.
WARNING!
During operation of electrical equipment, certain parts of these devices are under high voltage.
Severe personal injury or significant equipment damage could result from improper behavior.
Only qualified personnel should work on this equipment or in the vicinity of this equipment. These
personnel must be familiar with all warnings and service procedures described in this manual, as
well as safety regulations.
In particular, the general facility and safety regulations for work with high-voltage equipment must
be observed. Noncompliance may result in death, injury, or significant equipment damage.
DANGER!
Never allow the current transformer (CT) secondary circuit connected to this equipment to be
opened while the primary system is live. Opening the CT circuit will produce a dangerously high
voltage.
WARNING!
Exposed terminals
Do not touch the exposed terminals of this equipment while the power is on, as the high
voltage generated is dangerous.
Residual voltage
Hazardous voltage can be present in the DC circuit just after switching off the power supply. It
takes a few seconds for the voltage to discharge.

Preface
PCS-9611 Feeder Relay
III
Date: 2014-04-08
CAUTION!
Earthing
The earthing terminal of the equipment must be securely earthed.
Operating environment
The equipment must only be used within the range of ambient environment detailed in the
specification and in an environment free of abnormal vibration.
Ratings
Before applying AC voltage and current or the power supply to the equipment, check that they
conform to the equipment ratings.
Printed circuit board
Do not attach and remove printed circuit boards when the power supply to the equipment is
on, as this may cause the equipment to malfunction.
External circuit
When connecting the output contacts of the equipment to an external circuit, carefully check
the supply voltage used in order to prevent the connected circuit from overheating.
Connection cable
Carefully handle the connection cable without applying excessive force.

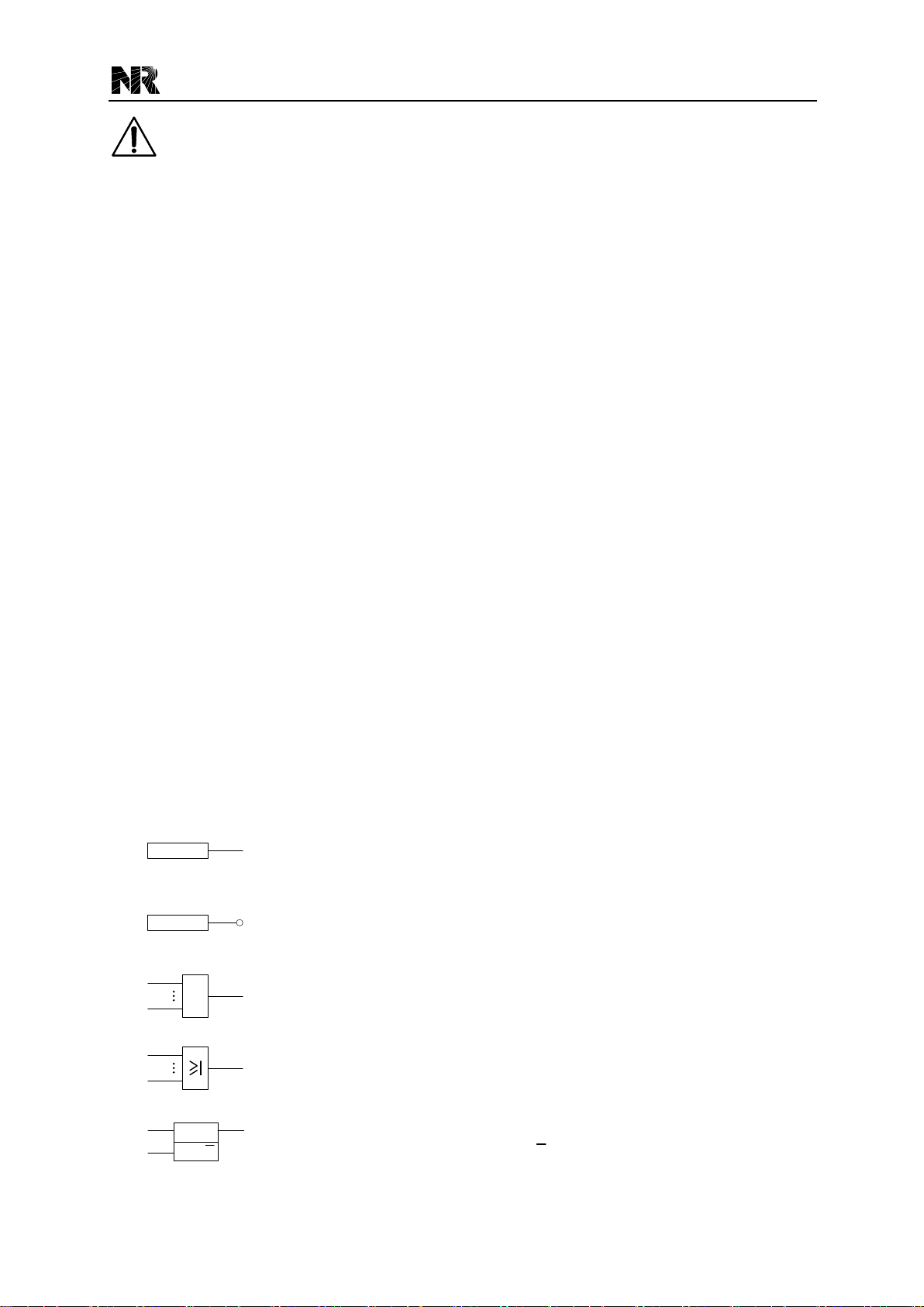

Typographic and Graphical Conventions
The following symbols are used in drawings:
Input signal of a function block, such as a logic setting, a blocking
signal or a analog comparator signal etc.
Input inversion signal of a function block, such as a logic setting,
a blocking signal or a analog comparator signal etc.
&
AND gate: all the input signalsare “1”, then the output is “1”
OR gate: anyone the input signals is “1”, then the output is “1”
S Q
R Q
RS flipflop (static memory): setting input (S), resetting input (R),
output (Q) and inverted output (Q)

Preface
PCS-9611 Feeder Relay
IV
Date: 2014-04-08
t 0
Timer: pickup with delay “t”, dropout without delay
0 t
Timer: pickup without delay, dropout with delay “t”
t1t2
Timer: pickup with delay “t1”, dropout with delay “t2”
Junction (connection point)
Copyright © 2014 NR.All rights reserved.
We reserve all rightsto this document and to the information contained herein. Improper use in particular reproduction and dissemination
to third parties is strictly forbidden except where expressly authorized.
The information in this manual is carefully checked periodically, and necessary corrections will be included in future editions. If
nevertheless any errors are detected, suggestions for correction or improvement are greatly appreciated.
We reserve the rights to make technical improvements without notice.
NR ELECTRIC CO., LTD.
69 Suyuan Avenue. Jiangning, Nanjing 211102, China
Tel: [phone],Fax: [phone]
Website: www.nrelect.com, www.nari-relays.com
P/N: EN_DYBH5321.0062.1101
Version: R1.00

Preface
PCS-9611 Feeder Relay
V
Date: 2014-04-08
Documentation Structure
The manual provides a functional and technical description of this relay and a comprehensive set
of instructions for the relay’s use and application.
The chapter contents are summarized as below:
1 Introduction
Briefly introduce the application, functions and features about this relay.
2 Technical Data
Introduce the technical data about this relay, such as electrical specifications, mechanical
specifications, ambient temperature and humidity range, communication port parameters, type
tests, setting ranges and accuracy limits and the certifications that our products have passed.
3 Operation Theory
Introduce a comprehensive and detailed functional description of all protective elements.
4 Supervision
Introduce the automatic self-supervision function of this relay.
5 Management Function
Introduce the management functions (metering, control and recording etc.) of this relay.
6 Hardware
Introduce the main function carried out by each module of this relay and providing the definition of
pins of each module.
7 Settings
List of all the settings and their ranges and step sizes, together with a brief explanation of each
setting and some notes about the setting application.
8 Human Machine Interface
Introduce the hardware of the human machine interface (HMI) module and a detailed guide for the
user how to use this relay through the HMI. It also lists all the information which can be view
through the HMI, such as settings, measurements, all kinds of reports etc.
9 Configurable Function
Introduce the configurable function (such as protection function configuration, LED configuration,
binary input configuration and binary output configuration etc.) of this relay.
10 Communication
Introduce the communication port and protocol which this relay can support, the IEC60970-5-103,
IEC61850 and DNP3.0 protocols are introduced in details.

Preface
PCS-9611 Feeder Relay
VI
Date: 2014-04-08
11 Installation
Introduce the recommendations on unpacking, handling, inspection and storage of this relay. A
guide to the mechanical and electrical installation of this relay is also provided, incorporating
earthing recommendations. A typical wiring connection to this relay is indicated.
12 Commissioning
Introduce how to commission this relay, comprising checks on the calibration and functionality of
this relay.
13 Maintenance
Ageneral maintenance policy for this relay is outlined.
14 Decommissioning and Disposal
Ageneral decommissioning and disposal policy for this relay is outlined.
15 Manual Version History
List the instruction manual version and the modification history records.

1 Introduction
PCS-9611 Feeder Relay
1-a
Date: 2014-04-08
1 Introduction
Table of Contents
1.1 Application.....................................................................................................................1-1
1.2 Functions.......................................................................................................................1-1
1.3 Features..........................................................................................................................1-3
List of Figures
Figure 1.1-1 Functional diagram of PCS-9611....................................................................... 1-1

1 Introduction
PCS-9611 Feeder Relay
1-b
Date: 2014-04-08

1 Introduction
PCS-9611 Feeder Relay
1-1
Date: 2014-04-08
1.1 Application
The PCS-9611 relay is a protection, control and monitoring unit for various primary equipments
(such as overhead line, underground cable and transformer etc.) on solidly grounded, impedance
grounded, Peterson coil grounded and ungrounded system. This relay is suitable for wall surface
mounted indoors or outdoors or flush mounted into a control panel.
This relay can sample the analog values from the traditional instrument transformers, or receive
the sampled values from the electronic current and voltage transformers (via a merging unit). The
binary inputs and outputs of this relay can be configured according to the demands of a practical
engineering through the PCS-Explorer configuration tool auxiliary software, which can meet some
special requirements of protection and control functions.
This relay can fully support the IEC61850 communication protocol and GOOSE function, and can
completely meet the demands of a modern digitalized substation.
The function diagram of this relay is shown in Figure 1.1-1.
51G 67G
51SG
51P
50G
50P 67P
FDR
PCS-9611
Busbar
Feeder
52
1
3
1
3
1
49 50BF46 46BC
67SG
SOTF
4727 59 59G 81U 81O 81R
79
CTS
VTS25
50DZ
37
Figure 1.1-1 Functional diagram of PCS-9611
1.2 Functions
The functions of this relay include protective functions, management functions and auxiliary testing
functions, and the functions of this relay are listed in the following tables.
Protective functions

1 Introduction
PCS-9611 Feeder Relay
1-2
Date: 2014-04-08
Protective Functions
50P
Instantaneous overcurrent protection
51P
Time overcurrent protection
67P
Directional overcurrent protection
50G
Instantaneous zero sequence overcurrent protection
51G
Time zero sequence overcurrent protection
67G
Directional zero sequence overcurrent protection
51SG
Sensitive earth fault protection
67SG
Directional sensitive earth fault protection
27
Undervoltage protection
59
Overvoltage protection
47
Negative sequence overvoltage protection
59G
Zero sequence overvoltage protection
49
Thermal overload protection
46
Negative sequence overcurrent protection
46BC
Broken conductor protection
81U
Under-frequencyprotection
81O
Over-frequencyprotection
81R
Frequencyrate-of-change protection
50BF
Breaker failure protection
79
Three-pole auto-recloser (Up to 4 shots)
25
Synchronism check function
SOTF
Switch onto fault logic
MR
Mechanical protection
50DZ
Dead zone protection
37
Undercurrent protection
Fault location function
AI
Analog inputs
Voltage and current driftauto adjustment
Self supervision
VTS
Voltage transformersupervision
CTS
Current transformersupervision
Binaryinputs
Binaryoutputs
Management functions
Management Functions
Metering
Circuit breakerstatus monitoring
2
Circuit breaker control
TCS
Tripping circuit supervision
Multiple setting groups
Control inputs

1 Introduction
PCS-9611 Feeder Relay
1-3
Date: 2014-04-08
64 protection operation reports
1024supervision alarm records
1024 control operation records
1024 user operation records
FDR
64 faultand disturbance records
SOE
1024 latest SOE records, latest records of the following elements
state changing: operating abnormality alarm elements, supervision
alarm elements, protection elements and binaryinput elements.
Rear communication ports: Ethernet, RS-485, Printer port
Time synchronization port: RS-485
Auxiliary testing functions
Auxiliary Testing Functions
Virtual tripping report generation and communication testing
Virtual self-supervision report generation and communication testing
Virtual binaryinput state change report generation and communication testing
Virtual metering values generation and communication testing
1.3 Features
This device is based on a 32-bit high performance dual-core processor, internal high speed
bus and intelligent I/O ports, and the hardware is in modularized design and can be
configured flexibly, featuring interchangeability and easy extension and maintenance.
Modularized hardware design makes this relay be easily upgraded or repaired by a qualified
service person. Various function optional modules can satisfy various situations according to
the different requirements of the users.
The adoption of 16-bit A/D converter and the dual-channel sampling technology can ensure
the accuracy and reliability of protection sampling and the correctness of protection operation.
It also provides dedicated current transformers for metering, and ensures the high accuracy of
telemetering with 48-point high speed sampling rate per cycle.
This device can sample the analog values from the traditional instrument transformers, or
receive the sampled values from the electronic transformers. It can support the protocol
IEC60044-8, IEC61850-9-2 and GOOSE.
Various algorithms for protection and measurement have been completed in this device for
the feature of electronic transformer sampling, such as the error prevention method of
multi-algorithms data anomaly for the digital channels, to realize high accuracy and reliability
under various conditions of network faults or communication interruption.
This device has powerful GOOSE functions, and the connection and cooperation between
some devices can be realized without using electrical cables, to facilitate the realization of
such functions as simple bus differential protection, overload interlock shedding function and
backup automatic transfer function etc.

1 Introduction
PCS-9611 Feeder Relay
1-4
Date: 2014-04-08
This device has fully realized the technology to integrate six functions into one device:
protection, measurement, control, remote signaling, merging unit function and remote module
functions, to improve the reliability.
Various methods of GPS time synchronization are supported in this relay, including SNTP,
pulse per second (PPS) and IRIG-B synchronization.
The protection modules are completely separated from other modules, and are independent
in both hardware and software. The protection functions do not depend on the communication
network, so the failure of communication network will not affect the normal operation of the
protection functions.
Mature protection configuration, fast speed and high security performance can meet the
practical requirements. Each protective element is independent, so it is very convenient for
whether adopting the selected protective element.
This device constantly measures and calculates a large amount of analog quantities, such as
phase voltage, phase-to-phase voltage, neutral voltage, phase current, neutral current, active
power, reactive power, power factor and frequency etc.
The human machine interface (HMI) with a small control module (a 240×128-dot LCD, a 9-key
keypad and 20 LED indicators) on the front panel is very friendly and convenient to the user.
This device can communicate with a SAS or RTU via different communication intermediates:
Ethernet network, RS-485 serial ports. The communication protocol of this device is optional:
IEC61850, IEC60870-5-103 or DNP3.0.
This device can detect the tripping circuit of the circuit breaker and monitor the operation
(close or trip) time of a circuit breaker by checking the auxiliary contacts of the circuit breaker.
Complete event recording function is provided: 64 latest protection operation reports, 1024
latest supervision records, 1024 latest control operation records, 1024 latest user operation
records and 1024 latest records of time tagged sequence of event (SOE) can be recorded.
Powerful fault and disturbance recording function is supported: 64 latest fault or disturbance
waves, the duration of a wave recording is configurable.

2 Technical Data
PCS-9611 Feeder Relay
2-a
Date: 2014-04-08
2 Technical Data
Table of Contents
2.1 General Specification .................................................................................................2-1
2.1.1 Electrical Specifications................................................................................................... 2-1
2.1.2 Mechanical Specifications................................................................................................ 2-2
2.1.3 Ambient Temperature and Humidity ................................................................................. 2-2
2.1.4 Communication Interfaces............................................................................................... 2-3
2.1.5 Type Test......................................................................................................................... 2-4
2.2 Protective Functions...................................................................................................2-6
2.2.1 Overcurrent Protection..................................................................................................... 2-6
2.2.2 Voltage Control Element.................................................................................................. 2-6
2.2.3 Phase Directional Element............................................................................................... 2-6
2.2.4 IDMT Overcurrent Protection........................................................................................... 2-6
2.2.5 Zero Sequence Overcurrent Protection............................................................................ 2-6
2.2.6 Zero Sequence Directional Element................................................................................. 2-7
2.2.7 Zero Sequence IDMT Overcurrent Protection................................................................... 2-7
2.2.8 Sensitive Earth Fault Protection....................................................................................... 2-7
2.2.9 Sensitive Earth Fault Directional Element ........................................................................ 2-7
2.2.10 Sensitive Earth Fault IDMT Protection............................................................................ 2-8
2.2.11 Negative Sequence Overcurrent Protection.................................................................... 2-8
2.2.12 Thermal Overload Protection ......................................................................................... 2-8
2.2.13 Undervoltage Protection................................................................................................. 2-8
2.2.14 Overvoltage Protection................................................................................................... 2-9
2.2.15 Zero Sequence Overvoltage Protection.......................................................................... 2-9
2.2.16 Negative Sequence Overvoltage Protection................................................................... 2-9
2.2.17 Frequency Protection..................................................................................................... 2-9
2.2.18 Frequency Rate-of-change Protection.......................................................................... 2-10

2 Technical Data
PCS-9611 Feeder Relay
2-b
Date: 2014-04-08
2.2.19 SOTF Overcurrent Protection....................................................................................... 2-10
2.2.20 Zero Sequence SOTF Overcurrent Protection.............................................................. 2-10
2.2.21 Breaker Failure Protection........................................................................................... 2-10
2.2.22 Broken Conductor Protection........................................................................................2-11
2.2.23 Dead Zone Protection...................................................................................................2-11
2.2.24 Undercurrent Protection................................................................................................2-11
2.3 Management Functions............................................................................................2-11
2.3.1 Metering Scope and Accuracy.........................................................................................2-11
2.3.2 Control Performance...................................................................................................... 2-12
2.3.3 Clock Performance........................................................................................................ 2-12
2.3.4 Fault and Disturbance Recording................................................................................... 2-12
2.3.5 Binary Input Signal......................................................................................................... 2-12
2.3.6 Transient Overreach ...................................................................................................... 2-12
2.3.7 Fault Location Function.................................................................................................. 2-12
2.4 Certification................................................................................................................ 2-12

2 Technical Data
PCS-9611 Feeder Relay
2-1
Date: 2014-04-08
2.1 General Specification
2.1.1 Electrical Specifications
2.1.1.1 Power Supply
Standard
IEC60255-11: 2008
Rated voltage
30Vdc, 110/125Vdc, 220/250Vdc, 110/220Vac
Variation
80% ~ 120%
Permissible ripple voltage
Max15% of the rated voltage (DC powersupply)
Burden
Traditional AC inputs
< 15W @ Quiescent condition; < 20W @ Operating condition
Digital AC inputs
< 20W @ Quiescent condition; < 25W @ Operating condition
2.1.1.2 Analog Current Input Ratings
Phase rotation
ABC
Rated frequency(fn)
50Hz, 60Hz
Nominal range
fn ±5Hz
Application object
For protection
For metering
Rated current (In)
1A
5A
1A
5A
Linear to
30×In
30×In
2×In
2×In
Thermal
withstand
capability
continuously
3×In
3×In
2×In
2×In
for 10s
30×In
30×In
12×In
12×In
for 1s
100×In
100×In
30×In
30×In
for halfa cycle
250×In
250×In
75×In
75×In
Burden (@ In)
< 0.15VA/phase
< 0.25VA/phase
< 0.20VA/phase
< 0.40VA/phase
2.1.1.3 Analog Voltage Input Ratings
Phase rotation
ABC
Rated frequency(fn)
50Hz, 60Hz
Nominal range
fn ±5Hz
Rated voltage (Un)
100V~ 130V(phase-to-phase voltage)
Linear to
130V
Thermal
withstand
capability
continuously
130V
10s
200V
1s
250V
Burden
< 0.10VA/ phase
2.1.1.4 Binary Input
Binaryinput number
Up to 38
Rated voltage
24V
30V
48V
110V
125V
220V
250V
Rated current
1.20mA
1.50mA
2.40mA
1.10mA
1.25mA
2.20mA
2.50mA
Pickup voltage
55% ~ 70% rated voltage
“ON”value voltage
70% ~ 120% rated voltage

2 Technical Data
PCS-9611 Feeder Relay
2-2
Date: 2014-04-08
“OFF”value voltage
< 50% rated voltage
Maximum permitted voltage
120% rated voltage
High voltage withstand
2000Vac, 2800Vdc
Resolving time for logic input
< 1ms
2.1.1.5 Binary Output
Item
Tripping output
Signal output
Binaryoutput number
Up to 20
Up to 10
Output model
Potential-free contact
Potential-free contact
Maxsystem voltage
380Vac, 250Vdc
380Vac, 250Vdc
Voltage across open contact
1000VRMS for 1min
1000VRMS for 1min
Continuous carry
5.0A@ 380Vac; 5.0A@ 250Vdc
5.0A@ 380Vac; 5.0A@ 250Vdc
Short duration current
6Afor 3000ms; 15Afor 500ms
6Afor 3000ms; 15Afor 500ms
Breaking capacity
0.65A@ 48Vdc, L/R=40ms
0.30A@ 110Vdc, L/R=40ms
0.15A@ 220Vdc, L/R=40ms
0.65A@ 48Vdc, L/R=40ms
0.30A@ 110Vdc, L/R=40ms
0.15A@ 220Vdc, L/R=40ms
Pickup time
< 8ms
< 8ms
Dropout time
< 5ms
< 5ms
Bounce time
1ms
1ms
Durability
loaded contact
10,000 operations minimum
10,000 operations minimum
unloaded contact
20,000 operations minimum
20,000 operations minimum
2.1.2 Mechanical Specifications
Enclosure dimensions
See Figure 11.6-1
Trepanning dimensions
See Figure 11.6-1, M6 screw
Mounting way
Flush mounted
Weight per device
Approx. 7.0kg (fullyequipped)
Local control panel
Small control module: a 240×128-dot LCD, a 9-keykeypad and 20 LEDs
Displaylanguage
Optional: Chinese, English
Housingmaterial
Aluminum
Housing color
Silver grey
Location of terminals
Rear panel of the device
Protection class
IEC60225-1:2009
Front side: IP40
Rearside, connection terminals: IP20
Other Sides: IP30
2.1.3 Ambient Temperature and Humidity
Standard
IEC60225-1:2009
Operating temperature range
-40°C ~ +70°C (for the LCD -20°C ~ +70°C )
Transport and storage temperature range
-40°C ~ +70°C
Permissible humidity
5% ~ 95%, condensation not permissible
Altitude
< 3000m

2 Technical Data
PCS-9611 Feeder Relay
2-3
Date: 2014-04-08
2.1.4 Communication Interfaces
2.1.4.1 Ethernet Port for RTU/SCADA
Medium
Parameters
Ethernet
Electrical
Port number
2 or 4
Connector type
RJ-45
Transmission rate
100Mbits/s
Transmissionstandard
100Base-TX
Transmission distance
< 100m
Protocol
IEC60870-5-103:1997, IEC61850 etc.
Safetylevel
Isolation to ELVlevel
Optical
Port number
2
Connector type
ST
Transmission rate
100Mbits/s
Transmissionstandard
100Base-FX
Optical fiber type
Multi-mode
Wavelength
1300nm
Transmission distance
< 1500m
Protocol
IEC60870-5-103:1997, IEC61850 etc.
2.1.4.2 Serial Port for RTU/SCADA
Medium
Parameters
RS-485 (EIA)
Port number
0 or 2
Baud rate
4800 ~ 115200bps
Transmission distance
< 500m @ 4800bps
Maximal capacity
32
Protocol
IEC60870-5-103:1997
Safetylevel
Isolation to ELVlevel
2.1.4.3 Serial Port for Printer
Medium
Parameters
RS-232 (EIA)
Port number
1
Baud rate
4800 ~ 115200bps
Printer type
EPSON®LQ-300K
Safetylevel
Isolation to ELVlevel
2.1.4.4 Serial Port for Time Synchronization
Medium
Parameters
RS-485 (EIA)
Port number
1
Transmission distance
< 500m
Maximal capacity
32
Timing standard
PPS, IRIG-B
Safetylevel
Isolation to ELVlevel

2 Technical Data
PCS-9611 Feeder Relay
2-4
Date: 2014-04-08
2.1.4.5 Ethernet Port for Debugging
Medium
Parameters
Electrical Ethernet
(in front panel)
Port number
1
Connector type
RJ-45
Transmission rate
100Mbits/s
Transmissionstandard
100Base-TX
Transmission distance
< 100m
Safetylevel
Isolation to ELVlevel
2.1.4.6 Process Level Interface
Medium
Parameters
Optical Ethernet
Optical fibermaterial
Glass fiber
Optical fiber type
Multi-mode
Connector type
LC
ST
Wavelength
1310nm
820nm
Transmission distance
< 2000m
Minimum transmission power
-20dBm
Reception sensitivity
-30dBm
2.1.5 Type Test
2.1.5.1 Environmental Tests
Drycold test
IEC60068-2-1:2007, 16h at -25°C
Dryheat test
IEC60068-2-2:2007, 16h at +55°C
Damp heat test
IEC60068-2-78: 2001, 10 days, 93%RH, +55°C
Cyclic temperature with
humiditytest
IEC60068-2-30: 2005,six(12+12hours) cycles, 95%RH,
low temperature +25°C, high temperature +55°C
2.1.5.2 Electrical Tests
Dielectric test
IEC60255-27: 2005, test voltage: 2kV, 50Hz, 1min
Impulse voltage test
IEC60255-5: 2000, test voltage: 5kV, unipolar impulses, waveform 1.2/50μs,
source energy0.5J
Overvoltage category
IEC60255-5: 2000, Class III
Insulation measurement
IEC60255-5:2000, insulation resistance >100MΩ @ 500Vdc
Pollution degree
IEC60225-1:2009, Class II
2.1.5.3 Electromagnetic Compatibility
1MHz burst disturbance tests
- Commonmode
- Differentialmode
IEC60255-22-1:2007, Class III
2.5kV
1.0kV
Electrostatic discharge tests
- For contact discharge
- For air discharge
IEC60255-22-2:2008, Class IV
8.0kV
15.0kV
