Operating Instructions
5“ Coin Validator
with ccTalk/S1 interface
Table of conTenTs
BA_v2_eagle_serial_EN_2-1 3
Table of contents
1 Revision protocol 7
2 About ... 8
2.1 About these operating instructions 8
2.1.1 Text conventions 8
2.1.2 Additional useful technical documentation 9
2.2 About the v2eagle 9
2.2.1 The v2eagle features 9
2.2.2 Models 10
2.2.2.1 Coin entry and return area 10
2.2.2.2 Internal 4-fold/5-fold sorting mechanism 11
2.2.2.3 Communication protocol 11
3 Safety instructions 12
3.1 Proper use 12
3.2 Protecting persons and equipment 12
4 Design 13
4.1 Overview 13
4.1.1 v2eagle with 5-fold in-line sorting mechanism (standard) 13
4.1.2 v2eagle with 5-fold cross-way sorting mechanism 14
4.1.3 v2eagle with 4-fold sorting mechanism 15
4.2 Coin path 16
4.3 Product label 17
4.3.1 Model number decoding 18
4.3.2 Data block decoding 18
4.4 Switch block 19
4.4.1 Switch functions on v2eagle ccTalk 19
4.4.2 Switch functions on v2eagle S1 19
4.5 Coin return lever 19
4.6 Status LED 20
4.7 Interfaces 20
Table of conTenTs
4BA_v2_eagle_serial_EN_2-1
5 Function 21
5.1 Coin acceptance and coin channels 21
5.2 Memory blocks 22
5.3 Accepted coin sensor and sorting control 22
5.4 Coin inhibition/activation of narrow coin channels 23
5.4.1 Inhibiting all coins/individual coin channels via machine
control system 23
5.4.2 Inhibiting a coin channel/coin channel group using the switch
block (only v2eagle ccTalk) 23
5.5 Sorting accepted coins (option) 24
5.5.1 Sorting principle of 5-fold in-line sorting (Ex8xxx. ..) 24
5.5.1.1 ccTalk sorting 24
5.5.1.2 Sorting with NRI 4-way manifold 25
5.5.2 Sorting principle of 5-fold cross-way sorting (E19xxx. ..) 26
5.5.2.1 ccTalk sorting 26
5.5.3 Sorting principle of 4-fold sorting (E17xxx. ..) 27
5.5.3.1 ccTalk sorting 27
5.5.3.2 Sorting with Money Controls 4-way manifold 28
5.5.3.3 Sorting with active Money Controls 8-way manifold 29
5.5.4 Additional s2HSD-3000 high-speed sorter
(option, not for 4-fold sorter) 30
5.6 Teach mode (option) 30
5.7 String recognition (option) 30
6 Start-up 32
7 Operation 33
7.1 Selecting the memory block ... 33
7.2 Inhibiting coins/activating narrow coin channel (only c2eagle ccTalk) 33
7.3 Teaching coin channels in teach mode (optional) 34
7.3.1 ... using the switch block on the coin validator 34
7.3.2 ... using ccTalk commands/machine service menu 35
8 Maintenance and service 36
8.1 Cleaning measurement and validation area 36
8.2 Troubleshooting 38
Table of conTenTs
BA_v2_eagle_serial_EN_2-1 5
9 What subsequent settings can be made? 39
9.1 Serviceandcongurationtools 39
9.1.1 PCcongurationsoftwareheartbeat 39
9.1.2 On-site service tool HENRI+39
9.2 Which device functions can be set? 39
10 Technical data 40
10.1 Device data 40
10.2 Interfaces 42
10.2.1 Pin assigment 42
10.2.1.1 v2eagle – machine (ccTalk) 42
10.2.1.2 v2eagle – machine (S1) 42
10.2.1.3 v2eagle – s2HSD-3000 high-speed sorter (option) 43
10.2.1.4 v2eagle – 8-way manifold (option) 43
10.2.1.5 v2eagle – BCR applications (option) 43
10.3 Accessories 44
10.3.1 Front plates 44
10.3.2 Sorters 45
10.3.3 Service tools 46
11 Index 47
Revision pRotocol
BA_v2_eagle_serial_EN_2-1 7
1 Revision protocol
Version Revision Chapters/sections concerned
_0-2 No optional on-board RS-232 interface
(only using adapter)
• 4.3.1 "Model number decoding"
• 4.3.2 "Data block number decoding"
_0-3 String recognition amended 5.7 "String recognition (option)"
_1-0 • Current consumption supplemented
• New optional sensors for measuring system
• 10.1 "Device data"
• 4.3.1 "Model number decoding"
_1-1 Revised model number decoding 4.3.1 "Model number decoding"
_1-2 Revised model number decoding 4.3.1 "Model number decoding"
_1-3
• 4-way sorting mechanism added
• Enhanced accessories
• 2.2.2 "Models"
• 4.1 "Overview"
• 4.3.1 "Model number decoding"
• 5.5 "Sorting accepted coins (option)"
• 10.2.1.3 "Implemented ccTalk com-
mands"
• 10.2.1.4 "ccTalk Error Code Table"
• 10.2.3 "Pin assignment, v2eagle – bcr-
applications" (option)
• 10.3 "Accessories"
_1-4 • Revised model number decoding
• Revised data block number decoding
• 4.3.1 "Model number decoding"
• 4.3.2 "Data block number decoding"
_1-5 Corrected order number 10.3 "Accessories"
_1-6 Corrected order numbers 10.3 "Accessories"
_2-0
• New status LED
• New options and accessories of v2eagle with
4-fold sorting mechanism
• New product label
• Revised cleaning measures
• ccTalk commands, error messages & set-
tings deleted (to be found in the separate
v2eagleccTalkprotocolspecication)
• 4 "Design"
• 8.2 "Troubleshooting"
• 2.2 "About the v2eagle"
• 4 "Design"
• 5.5 "Sorting accepted coins
(option)"
• 6 "Start-up"
• 10.2 "Interfaces"
• 10.3 "Accessories"
• 4.3 "Product label"
• 8.1 "Cleaning measurement and
validation area"
• 10.2 "Interfaces"
_2-1
• Revised model number decoding
• Revised data block number decoding
• Added cover picture
• 4.3.1 "Model number decoding"
• 4.3.2 "Data block number decoding"
• Cover
abouT ...
8BA_v2_eagle_serial_EN_2-1
2 About ...
This chapter is intended to provide a general overview of the advantages and options of the
coin validator v2eaglewithserialccTalkorS1interface.Therstsection,however,isdesigned
to help you navigate easily within these operating instructions.
2.1 About these operating instructions
These operating instructions describe the design and operation of the electronic 5" coin validator
v2eagle with serial ccTalk or S1 interface. Afterwards, chapters 6 and 7 explain the necessary
steps for starting up and operating the coin validator. Chapter 8 describes how to clean the coin
validator and remedy the cause of any malfunction.
Chap. 10 "Technical data" and the appended "Index" reduce the search for specific
explanations.
2.1.1 Text conventions
To make it easier for you to navigate within these operating instructions and to operate the
device, the following accentuations were made in the text:
Safety instructions which you must observe in order to protect operators
and equipment.
Special notes intended to facilitate the use of the coin validator.
At the beginning of each chapter you will nd a short "guide" which summarizes
the contents of the chapter.
Device functions which are set or prepared by the manufacturer according
to customer specications and can be set or changed using our service and
conguration tool (cp. Chap. "9 What subsequent settings can be made?", p. 39).
1 2 3 ... Requests to perform an action are numbered in another typeface.
[Fig. 1/2] Reference to a gure. The number preceding the slash indicates the number
of the gure, the number following the slash is the number of the item in the
gure.
abouT ...
BA_v2_eagle_serial_EN_2-1 9
2.1.2 Additional useful technical documentation
Apart from the operating instructions you already have, further documentation is available for the
v2eagle,e.g.documentationconcerningthecommunicationprotocol,congurationandspare
parts. All documentation can be downloaded from the Crane Payment Solutions home page
(www.craneps.com, Support)aspdfle.TheccTalkprotocolspecicationisavailableuponrequest.
2.2 About the v2eagle
The v2-eagle coin validator with serial ccTalk or S1 interface in the standardized 5“ format uses
thepatentedmulti-frequencytechnology(MFT)forreliablecoinvalidation.Communicationwith
the vending machine control system takes place either via the ccTalk-specied 10-pin AWP
connectingplugorviatheNRI-specied10-pinS1connectingplug.Duetotheseinterfacesand
its compact design the v2-eagle is ideally suited for slot and amusement machines; however it
is also used in the transportation sector.
For coin acceptance the coin validator has 32 coin channels which – divided into 2 x 16 coin
channels – can be managed in two memory blocks with different coin congurations and
selected individually.
Dependingontheapplicationthecoinvalidatorcanoptionallybeequippedwithdifferentsorting
mechanisms.
Tobeabletoreactasquicklyaspossibletonewfalsecoinsandtomakeyourindividualsettings,
thecoinvalidatorcanbeconguredonsiteinthemachineusingaservicetoolorintheworkshop
via a PC programming station.
Any coins or tokens not taken into account by the manufacturer can be programmed in the
optionalteachmodedirectlyonthecoinvalidatorwithoutanycongurationsoftwarebyinserting
the coins.
2.2.1 The v2eagle features
• Reliable acceptance of genuine coins and rejection of false coins due to MFT multiple
sensing of the coins inserted and evaluation of 24 measuring parameters
• Operating and manipulation safety provided by optical accepted coin sensors and sorting
control in the coin validation and coin outlet area
• Acceptance speed of two coins per second
• 32coinchannelsmanagedintwoindependentlyconguredandindividuallyselectable
memory blocks (2 x 16 coin channels)
• Serial interface
–exibleandextensivecommunicationwiththemachinecontrol
–easy transmission and control of device functions
–possibilitytoconnecttoadditionalperipheralequipment
–economical device design
• Service interface for PC programming station or on-site service tool
• Flashtechnologyforeasyandtime-savingrmwareupdates(CXash)
abouT ...
10 BA_v2_eagle_serial_EN_2-1
• Options
–Teach mode for three coin channels
–String sensor
–Top or front entry, front or bottom return
–Front plate
–4-fold sorting mechanism
–5-fold in-line or cross-way sorting mechanism
–Passive 4-way or active 8-way manifold
–Interface for s2HSD-3000 high-speed sorter (2 additional sorting chutes)
–Four different return levers depending on machine type
–LicenceforupdatingthecompleteccTalkcoinanddevicecongurationonmachines
with PC-based control (remote block upload)
2.2.2 Models
The v2eagle is available in different models. They mainly differ
• in the coin insert and return area
• in the sorting mechanism and
• in the communication protocol.
2.2.2.1 Coin entry and return area
• Top entry and bottom return (E1xxxx. ../E2xxxx. ..)
The coin is inserted into the device from the top and returned, if not
accepted, via the return area at the bottom.
• Front entry and bottom return (E3xxxx. ..) (not in combination with
5-fold cross-way sorting)
The coin is inserted into the device from the side and returned, if not
accepted, via the return area at the bottom. The coin validator with
frontentrygenerallyhasanNRIfrontplatettedtotheleft-handside
of the device (cp. Chap. "10.3 Accessories", p. 44). However, this model is
also available without front plate.
• Front entry and front return (E4xxxx. ..) (not in combination with
5-fold cross-way sorting)
The coin is inserted into the device from the side and returned, if not
accepted, via the return area also located on the side. The coin validator
withfrontentryandfrontreturngenerallyhasanNRIfrontplatetted
to the left-hand side of the device (cp. Chap. "10.3 Accessories", p. 44).
However, this model is also available without front plate.
abouT ...
BA_v2_eagle_serial_EN_2-1 11
2.2.2.2 Internal 4-fold/5-fold sorting mechanism
In order to sort the accepted coins into the cash-box or e.g. change tubes or hoppers, the v2eagle
canoptionallybeequippedwithaninternal4-foldor5-foldsortingsystem(cp. Chap. "5.5 Sorting
accepted coins (option)", p. 24):
• 4-fold sorting (Ex7xCx. .., in combination with ccTalk protocol only)
• 5-fold in-line sorting (Ex8xxx. ..)
The sorting chutes are arranged behind one another
• Fixed cash box chute in in-line sorting system (for no sorting)
(Ex1xxx. ../Ex2xxx. ../Ex3xxx. ../Ex4xxx. ../Ex5xxx. ..)
• 5-fold cross-way sorting (E19xxx. .., in combination with top entry only)
The sorting chutes are arranged beside one another
2.2.2.3 Communication protocol
The coin validator communicates with the machine control via a serial protocol. The coin validator
works as slave and the machine as master. Two communication protocols are possible:
• ccTalk protocol (ExxxCx. ..)
Open and usable by everybody without restrictions. Another advantage consists in the
remoteupload,i.e.completecoinanddevicecongurationscanbeloadedfromahost
computer to the coin validator via the ccTalk interface
–Standard
ProtocolaccordingtoccTalkspecication.
–ACMI
Thefactoryprogrammingofthecoinvalidatorinthismodelmeetsallrequirements
of the Italian gaming machine act "legge 289 – comma 6“ passed in July 2003.
The ACMI model of the v2eagle is write-protected to prevent alteration of the factory
programmingbymeansofcongurationtools.
In order to meet the requirements of the Italian gaming machine act subsequent
conguration of the ccTalk ACMI model is impossible. If you want to change the
factory settings please contact our sales representative.
• S1 protocol (ExxxS1. ..)
MDBprotocolmodiedbyNRIfortheGermangamingmachinemarket.TheS1protocol
differs from the MDB protocol only in the maximum voltage range (up to 28V instead of
42V) and the prescribed galvanic isolation of the communication lines.
Protocol specications are available on request.
safeTy insTRucTions
12 BA_v2_eagle_serial_EN_2-1
3 Safety instructions
Beforestartingupthedeviceforthersttime,pleasereadtheseinstructionsandinparticular
the safety instructions carefully at least once. This is to ensure that you have understood the
contents of this manual and how to operate the coin validator.
3.1 Proper use
The electronic 5“ coin validator v2eagle with serial ccTalk or S1 interface is intended for use
in gaming, transportation and change giving machines with serial ccTalk or S1 interface and
isdesignedtocheckthecoinsinsertedintothemachineforspecicpropertiesandtoaccept
(and sort) or reject them. Use the coin validator exclusively for this purpose. Under no circum-
stances can the manufacturer be held liable for any damage or loss resulting from improper
use of the device.
The coin validator has been built in accordance with state-of-the-art standards and the recognized
safetyrules.Nevertheless,thisequipmentcanconstituteasourceofdanger.Pleaseobserve
therefore the following safety instructions.
3.2 Protecting persons and equipment
The coin validator may only be connected by a qualied electrician.
Use the coin validator only in accordance with its proper use. Under no circumstances
can the manufacturer be held liable for any damage or loss resulting from improper
use of the device.
The coin validator PCB is tted with components which may be damaged beyond repair
by electrostatic discharges. Please observe the handling instructions for components
exposed to the risk of electrostatic discharge.
Select the correct voltage for the coin validator (see label).
Never pull the connecting cable of the coin validator from the machine when a voltage
is applied.
Pull the mains plug of the machine before installing, cleaning or removing the coin
validator.
Contact Crane Payment Solutions GmbH in Buxtehude if you want to modify the device
beyond the scope of the modications or attachments described here.
Keep water and other liquids away from the coin validator.
Please dispose of the device correctly at the end of its service life.
We reserve the right to make technical modications to the device which are not
covered by these instructions!
Design
BA_v2_eagle_serial_EN_2-1 13
4 Design
This chapter describes
• the main parts the v2eagle consists of, and
• allpartsrequiredfortheoperationofthecoinvalidator.
4.1 Overview
Of the top coin entry model with
• 5-fold in-line or cross-way sorting or
• 4-fold sorting mechanism
4.1.1 v2 eagle with 5-fold in-line sorting mechanism (standard)
8 Mounting stud
9 Interface–service/conguration
10 Label
11 Interface – s2HSD-3000 high-speed sorter
(option, not shown)
12 Interface – machine (ccTalk/S1)
13 Switch block
14 Interface – customized
15 Status LED (covered)
1 Coin insert funnel
(front entry model open on the side, see section
"Coin path" in this chapter)
2 Coin return lever (option)
3 Flight deck
4 Locking lever for sorting cover
5 Closingdeviceforightdeck
6 Coin outlet – cash-box/sorting
7 Coin outlet – return (for front return see section
"Coin path" in this chapter
Fig. 1: Design – v2eagle with 5-fold in-line sorting mechanism
8
9
8
8
10
13
15
14
12
11
Return
1
2
3
4
5
1
3
2
4
5
6
7
Design
14 BA_v2_eagle_serial_EN_2-1
4.1.2 v2 eagle with 5-fold cross-way sorting mechanism
Fig. 2: Design – v2eagle with 5-fold cross-way sorting mechanism
10
11
10
10
14
13
15
12
Return
left
right
Cash-box
Middle left
Middleright
1
2
3
4
5
1
3
5
2
4
4
6
8
7
9
9 Coin outlet – return
10 Mounting stud
11 Interface–service/conguration
12 Interface – s2HSD-3000 high-speed sorter (op-
tion, not shown)
13 Interface – machine (ccTalk/S1)
14 Switch block
15 Status LED (covered)
1 Coin insert funnel
2 Coin return lever
3 Flight deck
4 Locking lever for sorting cover
5 Label
6 Closingdeviceforightdeck
7 Coin outlet – cash-box
8 Coin outlet – sorting (left/center, left/center,
right/right)
Design
BA_v2_eagle_serial_EN_2-1 15
D [1]
C [2]
A [4]
B [3]
Return
1
3
2
4
5
6
7
8
9
8
8
14
15
13
10
11
12
9 Interface–service/conguration
10 Interface – bulk coin recycling (BCR) applica-
tions (option)
11 Interface – machine (ccTalk)
12 Interface – 8-way manifold (option)
13 Switch block
14 Label (not shown)
15 Status LED (covered)
1 Coin insert funnel
2 Coin return lever
3 Flight deck
4 Locking lever for sorting cover
5 Closingdeviceforightdeck
6 Coin outlet – cash-box/sorting
7 Coin outlet – return
8 Mounting stud
4.1.3 v2 eagle with 4-fold sorting mechanism
Fig. 3: Design – v2eagle with 4-fold sorting mechanism
Design
16 BA_v2_eagle_serial_EN_2-1

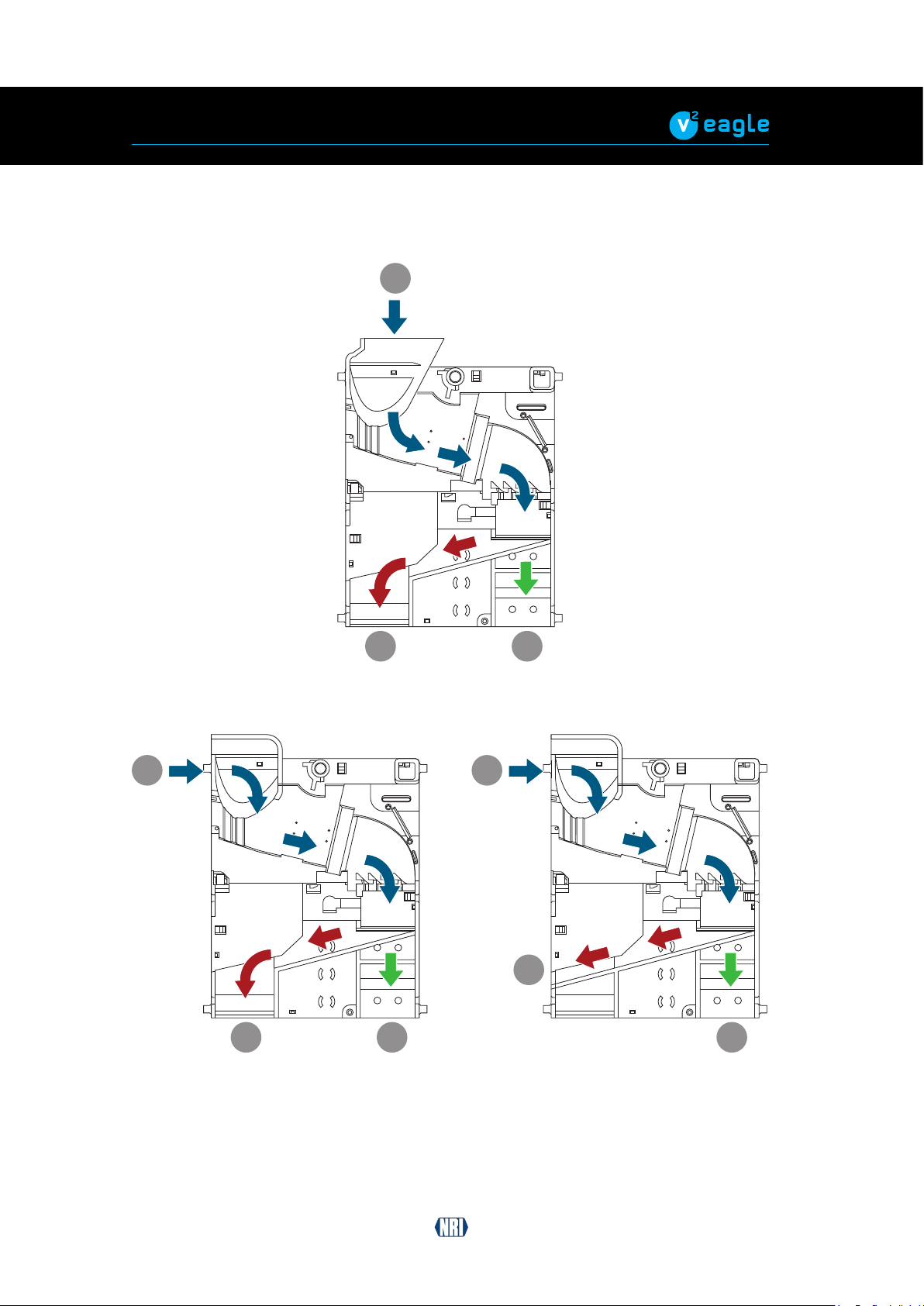

4.2 Coin path
Top entry
Fig. 4: Coin path
Front entry with bottom return ... front return
Design
BA_v2_eagle_serial_EN_2-1 17

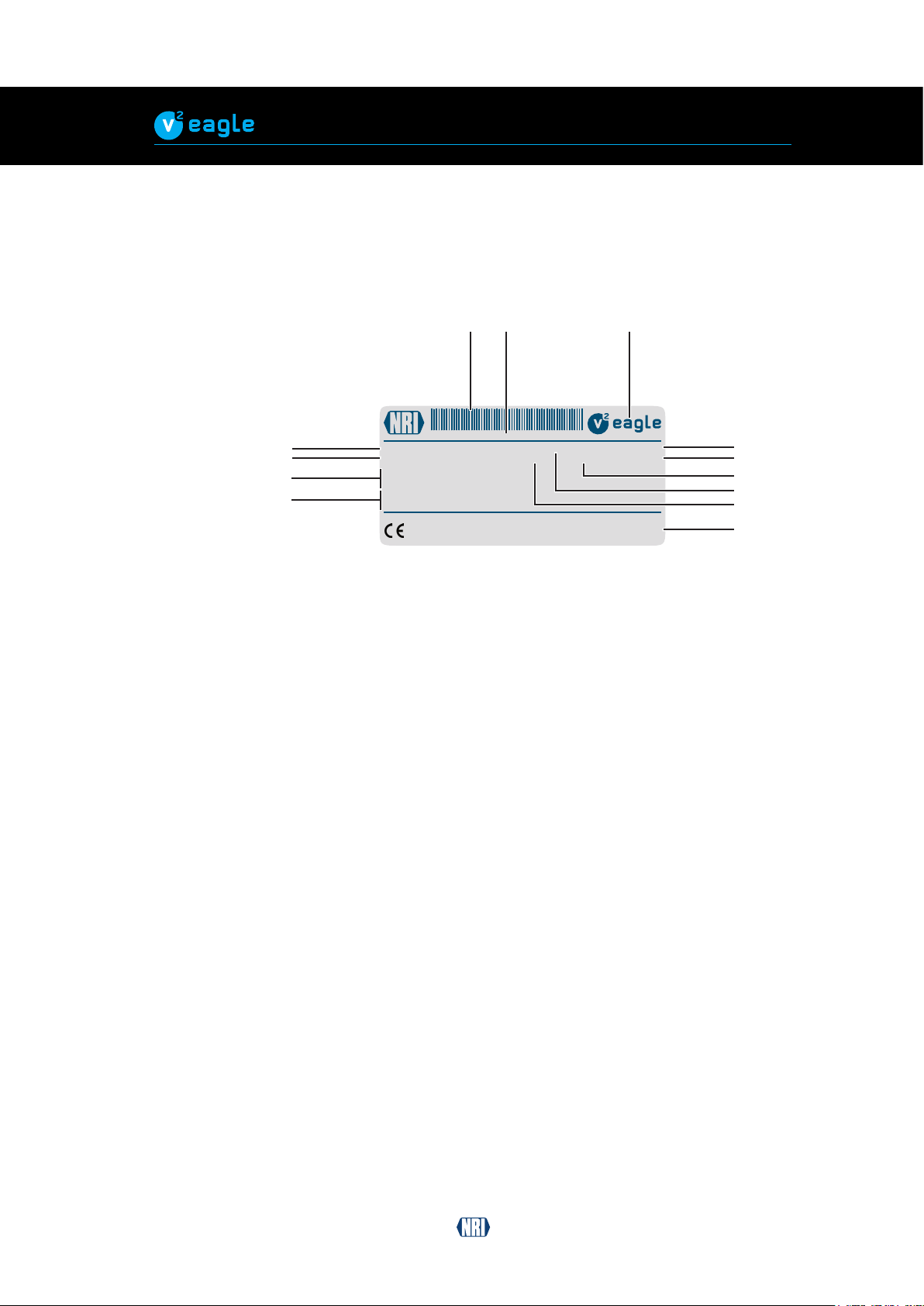

4.3 Product label
The label of the coin validator [Fig. 1/10]/[Fig. 2/5]/[Fig. 3/14] contains all data dening the
devicesuchasdevicenumberandtype,operatingvoltageandcustomer-speciccurrencyand
coin programming:
1 Bar code
2 Customer order number (10-digit),
Item no./order (4-digit),
device serial number/item (4-digit)
3 Device type
4 Purchase order number
5 Nominal voltage
6 Machine interface
7 Customer material number
8 Firmware number/version
9 Date of manufacture
10 Coin programming – memory block B
(if DIL switch S1 set to ON)
11 Coin programming – memory block A
(if DIL switch S1 set to OFF)
12 Data block number/revision A–Z (cp.
Chap. "4.3.2 Data block decoding", p. 18)
13 Model number (cp. Chap. "4.3.1 Model number
decoding", p. 18)
Fig. 5: Product label
0010118880/0010/0004
11/13
12-24V DC
EUR -,10 / -,20 / -,50 / 1,- / 2,-
EUR -,10 / -,20 / -,50 / 1,- / 2,-
E178C3.00/0.EFPS
E0C30-EUEU-22002A FW: 445-04.46 |ccTalk|
Crane Payment Solutions GmbH
MADE IN GERMANY
XXXXXXXXXXXXXXXXXXXXXXXXXX
1 2 3
13
12
11
10
4
5
9
6
8
7
Design
18 BA_v2_eagle_serial_EN_2-1
4.3.1 Model number decoding
Machine interface
Equipment
Options
11.10 Hns/Roe
Version 1.9
K.V2E-EN
MODEL NUMBER DECODING
EXXXXX.XX/X.XXX
Options –Diverter interface (s2HSD), Encryption, Hardness sensor, Jam sensor, Opto sensor, P= Write
protection, String detection, Water protected
Manufacturing process – internal option code & revision
Machine interface – C0= ccTalk, C1= ccTalk with USB, C3= ccTalk for 4-way sorter, C4 = ccTalk ACMI, P4= BDTA,#
P5= BACTA, S0 = S1
Coin return lever – 0= no lever 1–8= rf. table
Sorting – 1..5 = without sorting with fi xed cash box chute 1..5, 7= 4-fold sorter, 8 = 5-fold in-line sorter, 9 = 5-fold cross-way sorter
Coin entry/outlet – 1= Top entry, 3= Front entry/bottom return, 4= Front entry & return
v2family – Eagle
Coin return lever # 1 2 3 4 5 6 8
Crane Payment Solutions GmbH • Zum Fruchthof 6 • D-21614 Buxtehude • Tel.: +49 (0) 41 61-729-0 • Fax: +49 (0) 41 61-729-115 • E-mail: [email protected] • www.craneps.com
0010118880/0010/0004
11/13
12-24V DC
EUR -,10 / -,20 / -,50 / 1,- / 2,-
EUR -,10 / -,20 / -,50 / 1,- / 2,-
E178C3.00/0.EFPS
E0C30-EUEU-22002A FW: 445-04.46 |ccTalk|
Crane Payment Solutions GmbH
MADE IN GERMANY
XXXXXXXXXXXXXXXXXXXXXXXXXX
E181C0.00/0.EPS
4.3.2 Data block decoding
Currency
Hardware
Confi guration
11.10 Hns/Roe
Version 1.6
K.V2E-EN
DATA BLOCK NUMBER DECODING
EXXXX-XXXX-XXXXXX
Data block revision A–Z
3-digit consecutive number
Write protection – 0= No protection, 1=ACMI, 2= VDAI
Memory block/Coin channels – 1 = 1 x 32 coin channels, 2 = 2 x 16 coin channels
Second currency – XX = First 2 digits of ISO4217 currency code, --= no 2nd currency, +2 = 2nd & 3rd currency,
+3 = 2nd, 3rd & 4th currency
Main currency – XX = First 2 digits of ISO4217 currency code (EU = Euro, CH = Swiss franc, US = US dollar)
Hardware relevant to coin acceptance – 0= Top entry, 2= Front entry
Machine interface – C0 = ccTalk, C1 = ccTalk with USB, C3 = ccTalk for 4-way sorter, C4 = ccTalk ACMI, P4 = BDTA, P5 = BACTA, S0 = S1
Measurement variant – V0, V1
v2family – Eagle
Crane Payment Solutions GmbH • Zum Fruchthof 6 • D-21614 Buxtehude • Tel.: +49 (0) 41 61-729-0 • Fax: +49 (0) 41 61-729-115 • E-mail: [email protected] • www.craneps.com
0010118880/0010/0004
11/13
12-24V DC
EUR -,10 / -,20 / -,50 / 1,- / 2,-
EUR -,10 / -,20 / -,50 / 1,- / 2,-
E178C3.00/0.EFPS
E0C30-EUEU-22002A FW: 445-04.46 |ccTalk|
Crane Payment Solutions GmbH
MADE IN GERMANY
XXXXXXXXXXXXXXXXXXXXXXXXXX
E0C00-EUCH-20243A
Design
BA_v2_eagle_serial_EN_2-1 19
4.4 Switch block
The coin validator has a switch block [Fig. 1/13]/[Fig. 2/14]/[Fig. 3/13] with six DIL switches S1-6
on the rear of the device. The DIL switches can be used to set certain device functions:
For details on how to use the switch block to set the individual functions, see Chap. "7 Operation",
p. 33.
On the rear of the device you will nd a brief description of the individual switch
functions.
4.4.1 Switch functions on v2eagle ccTalk
DIL switch Function OFF ON
S1 Memory block A B
S2 Denedcoinchannels enabled inhibited
S3 Teach mode – Teach channel 14
S4 Teach mode – Teach channel 15
S5 Teach mode – Teach channel 16
S6 Operating mode Normal mode Teach mode
4.4.2 Switch functions on v2eagle S1
DIL switch Function OFF ON
S1 Memory block A B
S2 not used – –
S3 Teach mode – Teach channel 14
S4 Teach mode – Teach channel 15
S5 Teach mode – Teach channel 16
S6 Operating mode Normal mode Teach mode
4.5 Coin return lever
The return lever [Fig. 1/2]/[Fig. 2/2]/[Fig. 3/2] on the top of the device is operated using the return
button on the machine when coins which have been inserted are to be returned or e.g. a jam
caused by coins which have become stuck needs to be removed. Actuation of the return lever
opens the measurement and validation area of the coin validator so that all objects in the coin
validator are directed to the return area.
The v2eaglecanbeequippedwithdifferentreturnlevers,dependingonthedimensionsofthe
machine (cp. Chap. "4.3.1 Model number decoding", p. 18).
ON
OFF
ON
OFF
Design
20 BA_v2_eagle_serial_EN_2-1
4.6 Status LED
Ontherearside,thecoinvalidatorisequippedwitharedstatusLED[Fig. 1/15]/[Fig. 2/15]/
[Fig. 3/15] indicating the operating state of the v2eagle:
Flashing cycle Meaning
Once a second Validator powered, no error
3 times a second Error, no coin acceptance
4.7 Interfaces
For details of the machine and optional sorting and BCR interfaces [Fig. 1/11, 12]/[Fig. 2/12, 13]/
[Fig. 3/10-12] please refer to Chap. "5 Function", p. 21 and Chap. "10 Technical data", p. 40.
Other manuals for v2 eagle
2
Table of contents
Other NRI Bank Note Validator manuals
