NTC vengio User manual

Manual Code UME-TVW01-05/16 www.newtableconcept.com All rights reserved
VENGIO’
WITH WALL IMAGE OPTION
USER MANUAL
NTC srl - Sales Office

UME-TVW01-05/16 www.newtableconcept.com
Page 2
SUMMARY
1. INTRODUCTION ___________________________________________________ 3
2. PACKAGE CONTENT _______________________________________________ 3
3. REQUIRED TOOLS _________________________________________________ 3
4. WARNINGS _______________________________________________________ 4
5. UNPACKING ______________________________________________________ 4
6. PREPARE VENGIO’ FOR ASSEMBLY __________________________________ 5
7. ASSEMBLY _______________________________________________________ 7
8. OPENING AND CLOSING ___________________________________________ 10
9. CLEANING AND MAINTENAINCE ____________________________________ 11
10. WARRANTY _____________________________________________________ 11

UME-TVW01-05/16 www.newtableconcept.com
Page 3
1. INTRODUCTION
Dear Customer, thank you for choosing the VENGIO’ folding table!
The VENGIO’ folding table is built with high quality materials and extensive attention to detail. The compact
"Counter Weight System" (CWS) is the NTC srl exclusively patented marvel, which ensures everlasting
functionality and beauty.
We are confident that you will appreciate the value of our product and enjoy its convenient, space-saving
and aesthetic features.
2. PACKAGE CONTENT
A - wall image panel mounting bar holes template (1)
B - wall image panel mounting bar (1)
C - wall image panel (1)
D - Vengiò table (1)
E - mounting screws (6)
F - dowel (8)
G - mounting support (1)
H - Vengiò mounting holes template (1)
Fig. 1
WARNING! The screws and dowels we provide are suitable for walls made of solid bricks or concrete. In all
other cases you must use dowels and screws appropriate for the wall in question.
3. REQUIRED TOOLS

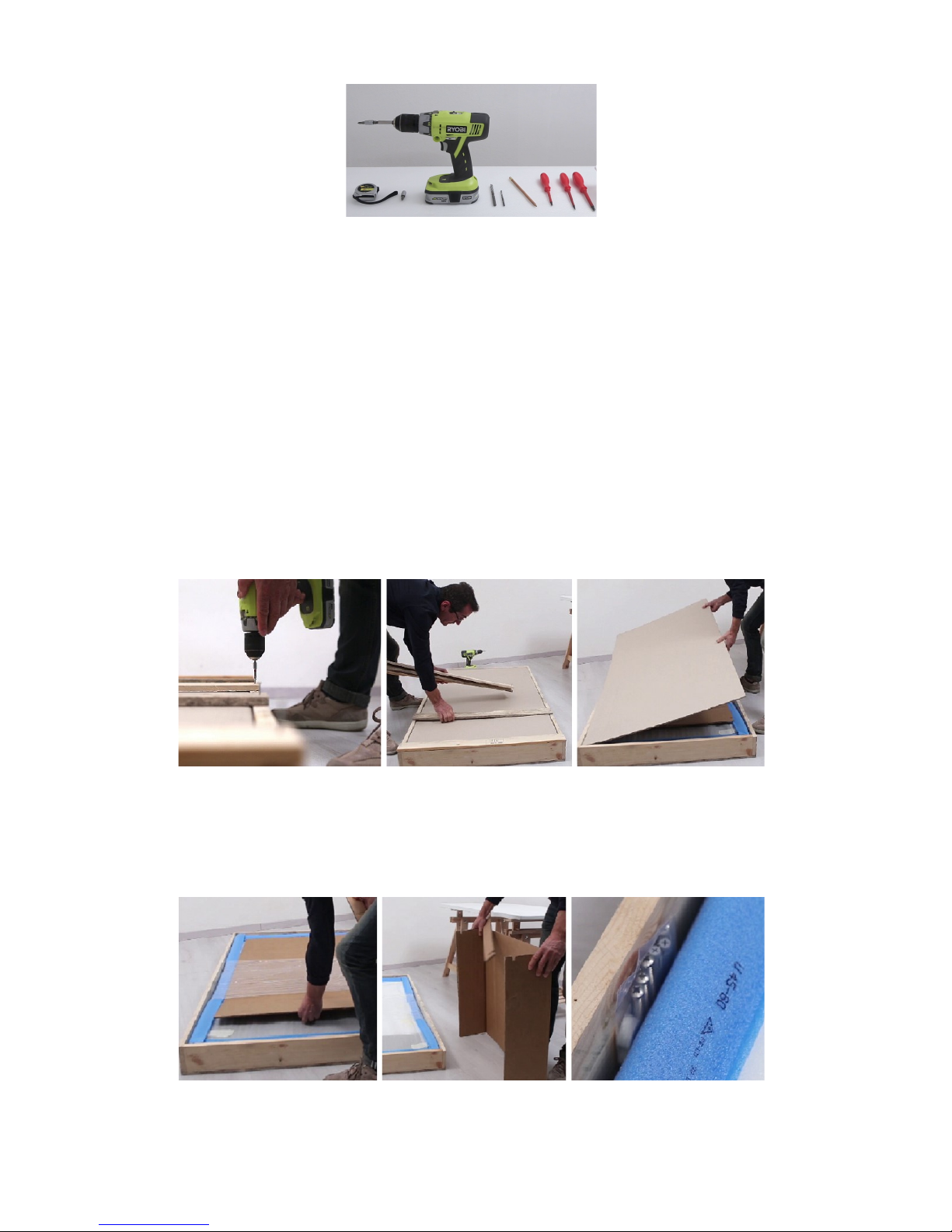

The tools you will need are: measuring tape, screwdrivers (electric screwdriver is better), drill, drill bits: 6
and 8 mm (1/4” and 5/16”) and pencil (Fig. 2).

UME-TVW01-05/16 www.newtableconcept.com
Page 4
Fig. 2
4. WARNINGS
The table is attached to the wall: all the mechanical stresses are mainly supported by the wall. It is essential
to position the table on a wall suitable to support the table with its load.
The NTC srl ensures the robustness of the table, but is not responsible for any failure due to the wall or to
an insufficient mounting to the wall itself.
5. UNPACKING
The wooden cage is assembled with nails on one side and with screws on the side which has to be open.

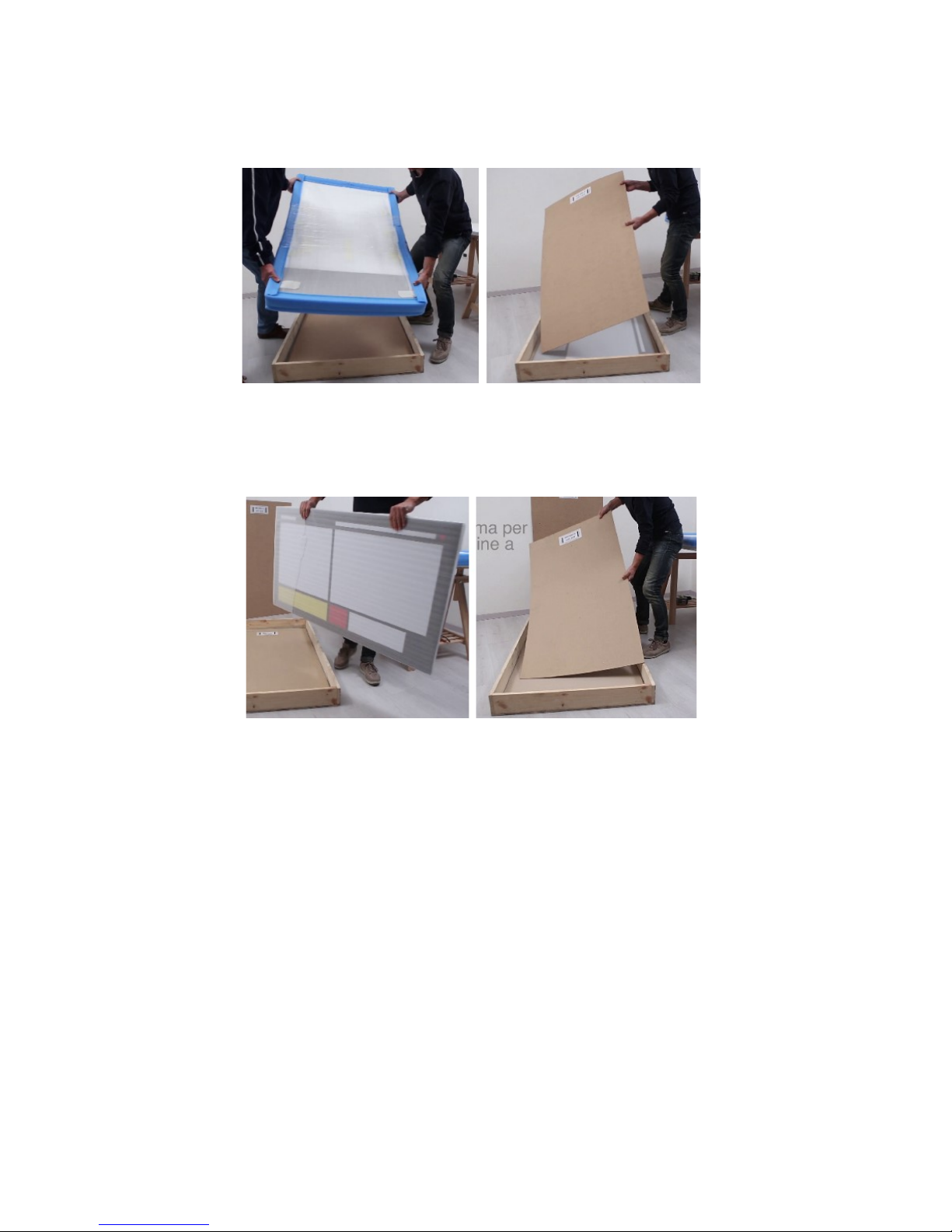

1. Unscrew the cage and remove all the wooden bars (Fig. 3 and Fig 4).
2. Remove the card board protection sheet (Fig. 5).
Fig. 3 Fig. 4 Fig. 5
3. Take out the card board mounting support and assemble it (Fig. 6 and Fig. 7).
4. Take out the screws and dowels bag (Fig. 8).
Fig. 6 Fig. 7 Fig. 8

UME-TVW01-05/16 www.newtableconcept.com
Page 5
5. Take out the Vengiò table and place it on a bench (Fig 9).
6. Take out the Vengiò mounting holes template (Fig 10).
Fig. 9 Fig. 10
7. Take out the panel with the wall image (Fig. 11).
8. Take out the wall image mounting holes template (Fig. 12).
Fig. 11 Fig. 12
6. PREPARE VENGIO’ FOR ASSEMBLY
The table is shipped assembled and, to mount it on the wall, it is necessary to partially disassemble it.
Figure 13 shows the table parts that will be referenced later in this manual.

UME-TVW01-05/16 www.newtableconcept.com
Page 6
Fig 13
A - mounting plate
B - springs cover
C - springs compartment
D - table frame
E - table top
F - legs module
1. Place the Vengiò table on a bench (Fig. 14) and remove the packing material.
2. Unscrew the two M6 cylindrical screws and remove the legs module (Fig. 15).
Fig. 14 Fig. 15
3. Unscrew the two M6 conical head screws that fix the table top to the table frame .Remove the table
top and place it on the ground using the foam rubber protection (Fig. 16 and 17).
Fig. 16 Fig. 17
4. The table frame is now ready for installation.

UME-TVW01-05/16 www.newtableconcept.com
Page 7
7. ASSEMBLY
1 Determine the location and make sure the wall can adequately support the table and the stress that
it will be exposed to. The wall should be flat, free from any obstacles (sockets, air intakes, etc.) and
at least 240 cm (95”) high.
2 Place the holes template in the desired position (Fig 18).
3 IMPORTANT: The position of the holes in the template is not vertically symmetric; there is a label
on the template which identifies the side that must be on top when marking the holes (Fig. 18).
4 Mark with a pencil the six holes.
5 Remove the template and make the holes To obtain a greater precision, we recommend to make
four lines around the circular mark (Fig. 19) and to drill the holes first with a small drill bit and then
re-drill with the 8 mm (5/16”) drill bit to enlarge the holes.
6 Insert the dowels into the holes.
7 Position the mounting support under the holes centred with the middle holes (Fig 20).
Fig. 18 Fig. 19 Fig. 20
8 Position the table frame above the support aligning the mounting plate holes with the holes in the
wall (Fig. 21).
9 Screw the three upper screws (central one first) of the mounting plate without tightening (Fig. 22
and Fig 23). Pay attention not to scratch the frame when fasten the lateral screws.
Fig. 21 Fig. 22 Fig. 23
10 Remove the mounting support (Fig. 24).
11 Open the table frame and remove the two wooden spacers located in the springs compartment

UME-TVW01-05/16 www.newtableconcept.com
Page 8
under the springs cover (Fig. 25).
12 Screw the three lower screws of the mounting plate without tightening them. Pay attention not to
scratch the frame.
13 Place a piece of foam of the packaging in the middle of the spring cover (Fig. 26). The piece of
foam will protect the spring cover against scratches during the table top assembly.
Fig. 24 Fig. 25 Fig. 26
14 Lift the spring cover and place one of the two wooden spacer (removed a little earlier) between the
table frame and the springs cover (Fig. 27).
15 Close slowly the table frame. It will remain about 15 degrees open due to the presence of the
wooden spacer and the piece of foam (Fig. 28). This will allow the assembly of the table top.
Fig. 27 Fig. 28
16 Slide carefully the table top inside the table frame and make sure the table top will fully slide inside
the table frame (Fig. 29).
17 Screw the table top to the table frame using the two M6 conical head screws (Fig. 30).
Fig. 29 Fig. 30

UME-TVW01-05/16 www.newtableconcept.com
Page 9
18 Open the table and assemble the legs module. Fix the legs module to the table top with the two M6
cylindrical screws (Fig. 31 and Fig 32).
Fig. 31 Fig. 32
19 With the table open, remove the piece of foam and the wooden spacer (Fig. 33).
20 Make sure both legs touch the floor by rotating the table around the top central screw of the
mounting plate (Fig. 34).
Fig. 33 Fig. 34
21 Tighten the six screws of the mounting plate (Fig. 35). Pay attention not to scratch the frame.

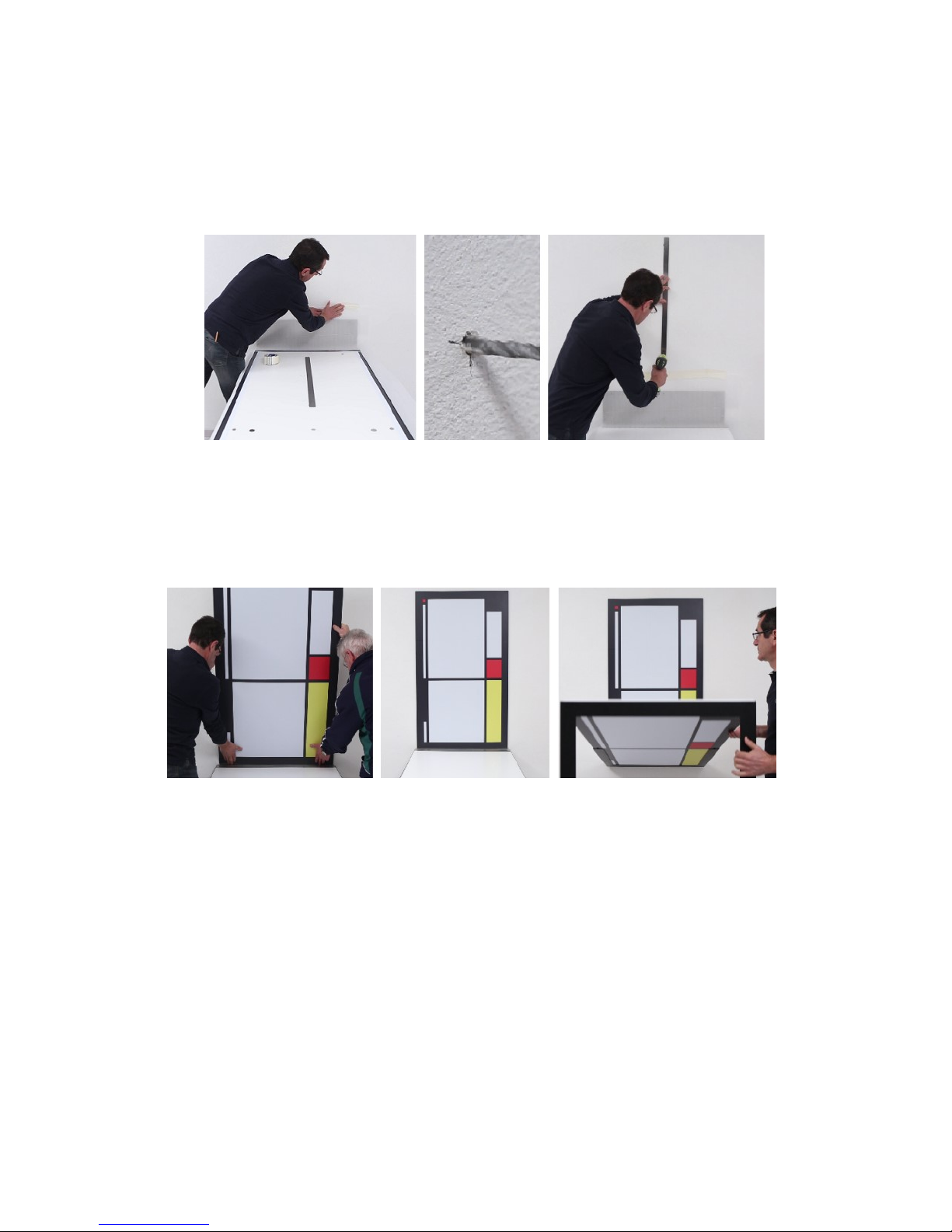

22 Position the wall image mounting hole template centred with the table and mark the holes (Fig.36).
23 Add reference marks around the two circular mark (Fig.37).
Fig. 35 Fig. 36 Fig. 37

UME-TVW01-05/16 www.newtableconcept.com
Page 10
24 Position the panel with the wall image on the table and unpack it. Use the packaging material to
protect the table while drilling the two holes (Fig. 38). Remove the wall image assembly bar from
the back of the panel simply sliding sideway (it is attached magnetically to the panel).
.
25 Drill the two holes to fix the wall image bar (Fig. 39).
26 Screw the wall image mounting bar to the wall (Fig. 40).
Fig. 38 Fig. 39 Fig 40
27 Slightly pull out the springs cover to position the panel with the wall image behind it (Fig. 41). The
panel is bound to the wall by the magnets on its back which are attracted by the table mounting
plate on the bottom and by the wall image assembly bar on the top (Fig. 42).
28 Set back in position the springs cover.
Fig. 41 Fig. 42 Fig 43
29 The assembly is complete and you can close and open the table (Fig. 43).
8. OPENING AND CLOSING
To open the Vengiò folding table, simply pull it away from the wall staying on one side and accompany it to
its open position holding it under the tabletop at about cm 20 from the leg module.
To close the Vengiò folding table, simply lift and accompany it to its closed position staying on one side
using one hand and control with the second hand the leg module making sure the module will not hit the
lifting hand.
The effort required for the opening and closing operations is minimum since the patented "Counter Weight
System" (CWS) reduces dramatically the gravity effect.
The action of the CWS is the same as the gravity action when the table forms about 20 degree with the
wall. In this position, if left, the table will remain in that position in equilibrium.
For angles less than 20 degrees, the CWS action is greater than the gravity action so, if left, the table will
return to its close position (angle 0 degree).

UME-TVW01-05/16 www.newtableconcept.com
Page 11
For angles greater than 20 degrees, the gravity action is greater than the CWG action so the table will
rotate toward its open position (angle 90 degree) and has to be accompanied.
When opening and closing the table, never drop it because the table could be severely damaged.
9. CLEANING AND MAINTENAINCE
The Vengiò folding table does not require special maintenance. Cleaning can simply be done with a damp
cloth or with a standard furniture cleaning product.
10. WARRANTY
The warranty is valid for two years from shipment date of the product and covers only defective parts or
breakage due to production defects. The warranty does not cover breakage or damage due to improper
use of the table. The broken parts will be replaced free of charge. The shipping expenses will be charged to
the customer.
To make a claim under the warranty, send an e-mail to [e-mail] with a description
and pictures of the defect.
NTC srl reserves the right to modify the product without any notice.
