Nugen NW-200TR User manual
- 1 -
HDMI Wireless Extender
Quick Installation Guide
Model: NW-200TR
- 2 -
▼Disclaimer
•The specifications and information contained in this manual are for
reference only, and the content and information are subject to change
without prior notice.
•If other product or company names appear in the content of the
manual, they are only used to describe the product description, and
there is no intention of infringement.
•Nugens reserves the right to update this disclaimer at any time and
shall not be liable for any damage or compensation caused by issues
beyond our control or improper use.
▼Warnings and Precautions
•The installation and use of this product must strictly abide by the
electrical safety regulations of the country and the region of use.
•This product contains small parts. Please do not place it in areas where
children can easily access it.
▼Instructions
•After taking out the product, install it according to the installation
manual.
•Please keep it away from heat sources and humid environments.
•Product performance may vary in different environments.
▼Safety Instructions
Before using this product, please read and follow the instructions below to
ensure safe operation.
•Please use the charging cable provided by the original factory to avoid
damage to the product.
•Do not use the charging cable if it is damaged to avoid any potential
hazards.
•Do not attempt to repair or disassemble any components of this
product by yourself, otherwise it may cause product damage or
personal injury, and will also invalidate the warranty of this product.
•Before cleaning this product, unplug the charging cable and turn off the
power first.
•Please use a soft cloth to remove the dust on the lens; do not spray the
cleaning fluid directly on the interface of the charging cable, to avoid
infiltration and cause electric shock.
•Ensure good ventilation to avoid product overheating and damage.
•Use only DC12V for the power adapter. If using a third-party adapter,
make sure the specifications are the same as the designated adapter.
- 3 -
Overview

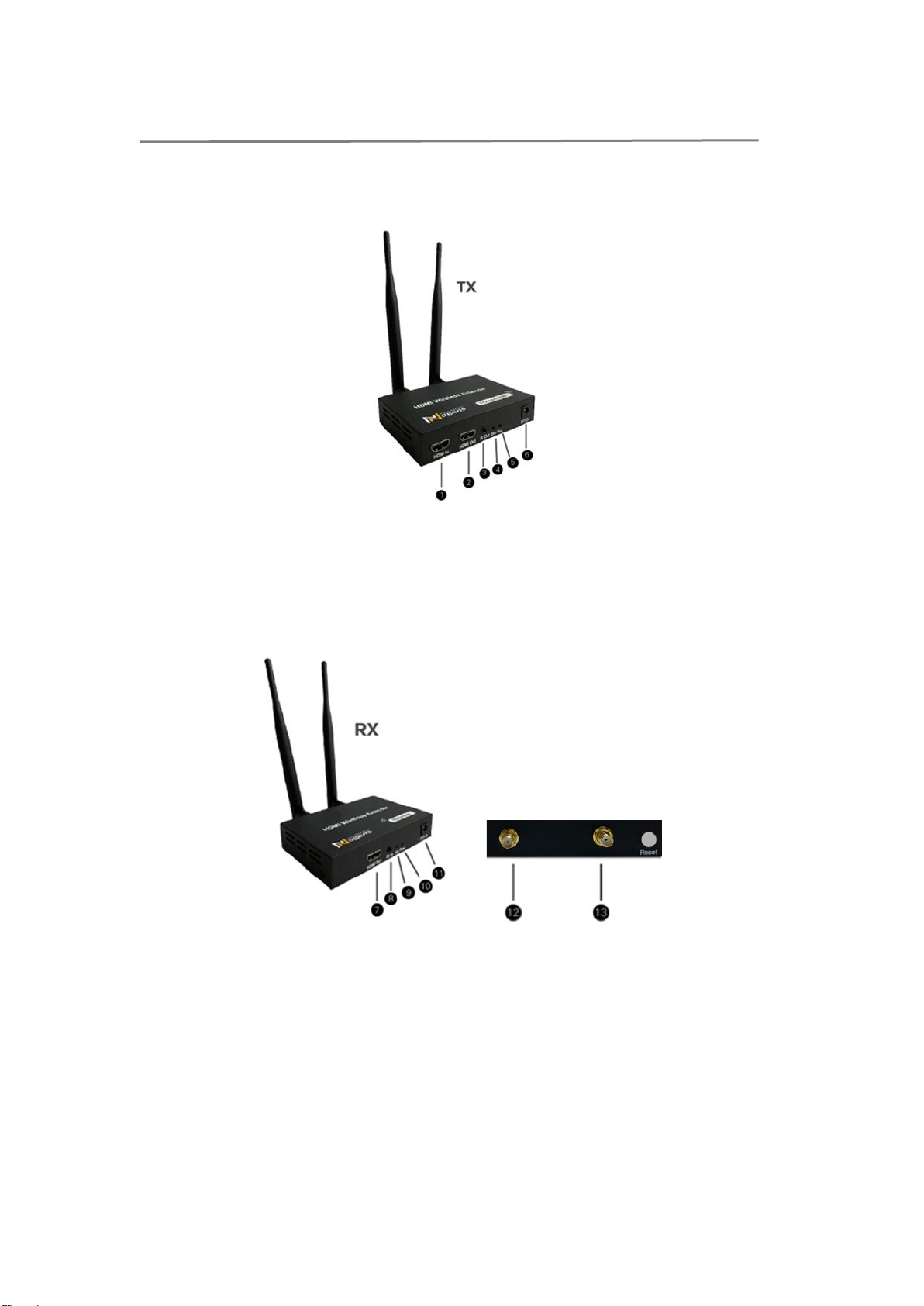

[ Appearance ]
① HDMI Input ② HDMI Output ③ Infrared Output
④ Status Indicator ⑤ Power Indicator ⑥ Power DC12V
⑦ HDMI Output ⑧ Infrared Input ⑨ Status Light
⑩ Power Indicator ⑪ Power In DC12V ⑫ Antenna Connector
⑬ Antenna Connector
Note: Reset Button is for engineering use only.
- 4 -
[ Specification ]
Video
HDMI/HDCP
HDMI V1.4 / HDCP V1.2
Compression format
H.264
Maximum pixel clock
165MHz
Maximum data rate
6.75Gbps
Resolution
1920X1080@60Hz (Max.) FHD
Connector
HDMI Type-A
Impedance
100Ω
Recommended HDMI Max. in/out
range
When 1920 x 1080 @ 60Hz, <3m
Infrared
Interface
3.5mm IR port
Signal direction
Unidirectional
Signal type
Digital
Signal frequency
20-60kHz
Wi-Fi
Wireless transmission max. power
13dbm
Wireless transmission standard
802.11ac
Signal direction
Unidirectional
Wireless transmission frequency
band
5GHz
Transmission distance
200m
Antenna type
Omnidirectional antenna
Port
Transmitter
HDMI In x1, HDMI Out x1, IR Out
x1, Power In DC 12V x1
Receiver
HDMI Out x1, IR In x1, Power in
DC 12V x1
LED
Indicator
Light
Transmitter
Sta Status LED x 1
Pow Power LED x 1
Receiver
Sta Status LED x 1
Pow Power LED x 1
Others
Power Input
DC 12V/1A
Power
Transmitter/Receiver Max 9W
Working temperature
-5°C ~ 70°C
Working humidity
5% ~ 90%
Product Size
117 x 82 x 25 (mm)
Package
Contents
HDMI Transmitter TX x 1, HDMI Receiver RX x 1
External Antenna x 4, Power Transformer x 2
Infrared Transmitter x 1, Infrared Receiver x 1
Quick Installation Manual x 1
- 5 -
Instructions
Thank you for purchasing the Nugens NW-200TR HDMI Wireless Extender.
•This product can connect up to 4 receivers with 1 transmitter, and a
total can be displayed up to 4 displays.
•The transmitter and receiver are paired right out of the factory; a set of
plug-and-play devices.
•Connect more than 2 receivers need to be paired manually, please
refer to the pairing instructions.
Note: You can identify the "Transmitter" and "Receiver" from the product.
Transmitter Connection
1. Connect the 2 antennas to the Antenna Connector.
2. Insert the power transformer into the power input hole on the front panel
and connect the other end to the socket.
3. Connect the HDMI cable to the HDMI-in port of a computer or other player.
If the transmitter needs to be connected to another display, connect the HDMI
cable to the HDMI-Out port.
Receiver Connection
For Step 1 and Step 2, Antenna and power connection are the same as the
transmitter, please refer to the above transmitter connection steps.
Step 3. Connect the HDMI cable to HDMI-Out of the TV, monitor and other
display to complete the connection.
- 6 -
Infrared booster Transmitter/Receiver Connection
Connect the IR booster transmitter to the IR-Out port of the HDMI transmitter,
and the other end to the IR receiver of the player (please refer to the player's
user manual for the location of the IR receiver);
The infrared booster receiver is connected to the IR-In port of the HDMI
receiver, and the other end is fixed in a position where the IR controller is
visible.
Infrared booster
HDMI Transmitter and Receiver Pairing
1. Connect the transmitter and receiver to the power supply, connect the
HDMI input interface of the transmitter to the HDMI transmission line, and
connect the other end directly to the HDMI output interface of the receiver.
2. When the Sta working status indicator is on, press the Reset button on the
transmitter, then press the Reset button on the receiver.
3. If the Sta working status indicators of the transmitter TX and the receiver
RX flash at the same time, the pairing is completed.
- 7 -
Frequently Asked Questions
Problems
Solutions
The power light is off
⚫Make sure the power transformer is
connected correctly.
⚫Make sure the power supply is not
interrupted.
The display shows
"Searching..." for a
long time
⚫Check if the transmitter is turned on.
⚫Check that the transmitter is connected
correctly.
No video or poor video
quality
⚫Check if the connectors and transmission
cables are damaged, and make sure they are
properly connected to the corresponding
interfaces.
⚫Check if the receiver is properly connected to
the display device.
⚫Make sure all equipment is within acceptable
distance.
Infrared remote control
not responding
⚫Check whether the infrared booster and
infrared receiver are connected correctly.
⚫Check that the infrared booster and infrared
receiver are firmly inserted into the right port.
- 8 -

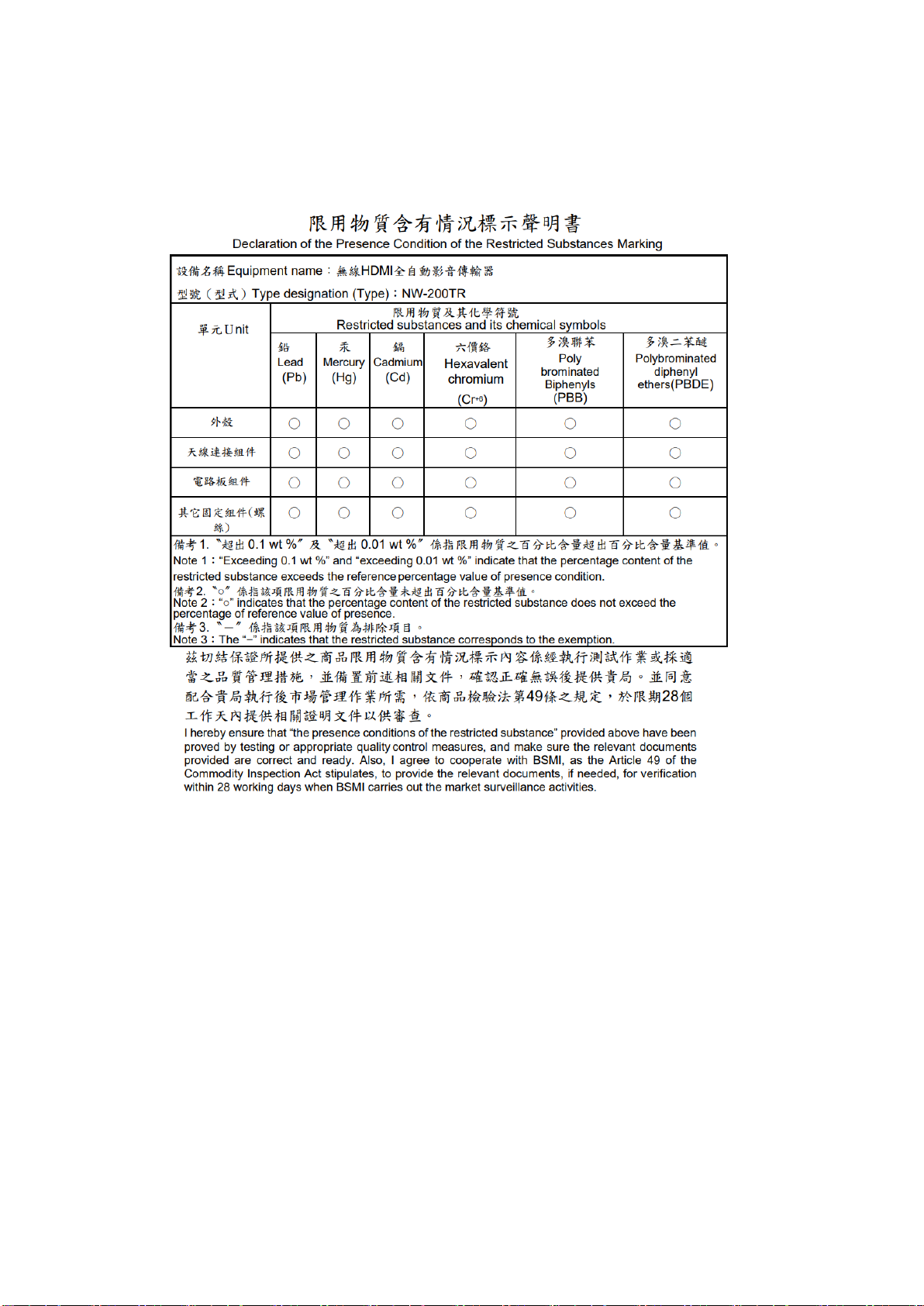

Declaration of the Presence Condition of the Restricted
Substances Marking
