Introduction

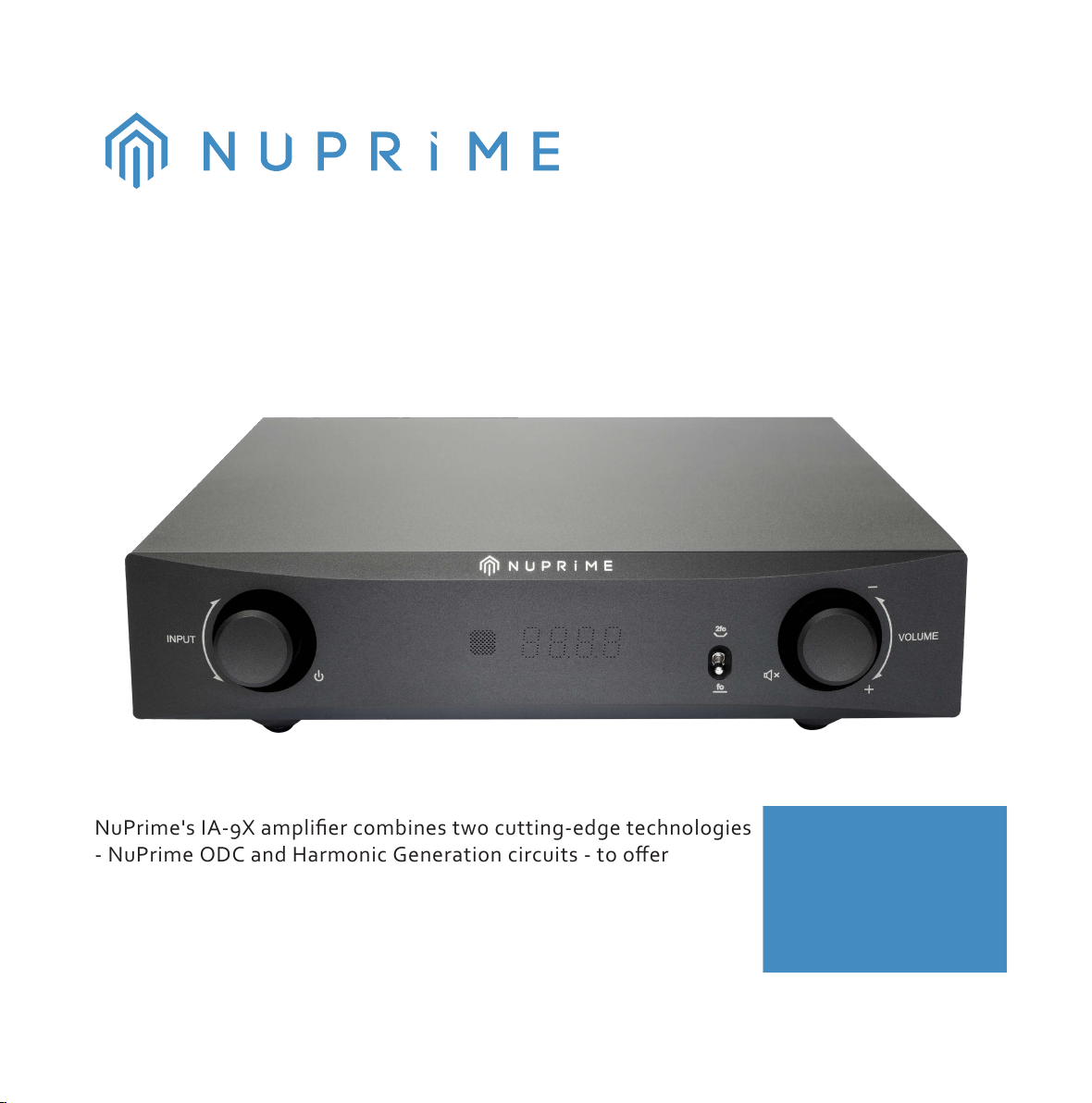

NuPrime's IA-9X is an integrated amplifier designed to work well in an analogue audio
system. It combines two innovative designs to give it adjustable sonic characteristics.
•NuPrime Only Distortion Cancellation (ODC) circuit for ultra-low distortion for neutral
and detailed sound.
•Harmonic generation circuit (utilizing Class A transistors) for slightly warm,
end-rhyme, and rich sound similar to that of a vacuum tube amplifier.
The IA-9X offers the unique ability to customize its sound characteristics to suit your
musical preferences. A toggle switch that allows you to select only ODC circuit or ODC
with natural harmonics. In Ultra-Low Distortion mode, it is typically suitable for studio
monitoring or music with many dynamics, such as Rock & Roll. Alternatively, you can
increase natural harmonics when relaxing and listening to more vocal or classical music.

www.nuprimeaudio.com
8
The ODC class D PWM module include two NuPrime's new ultra-low distortion amplifier
modules (THD=0.0014%) composed of MUSES8820 op-amp in a new delta sigma circuit.
It has excellent ultra-low distortion and high driving force characteristics.

NuPrime IA-9X pre-amp includes a MM phono input. The input and output use a special
audio Relay Switch, which has the lowest interference and highly accurate transmission,
to switch the source.

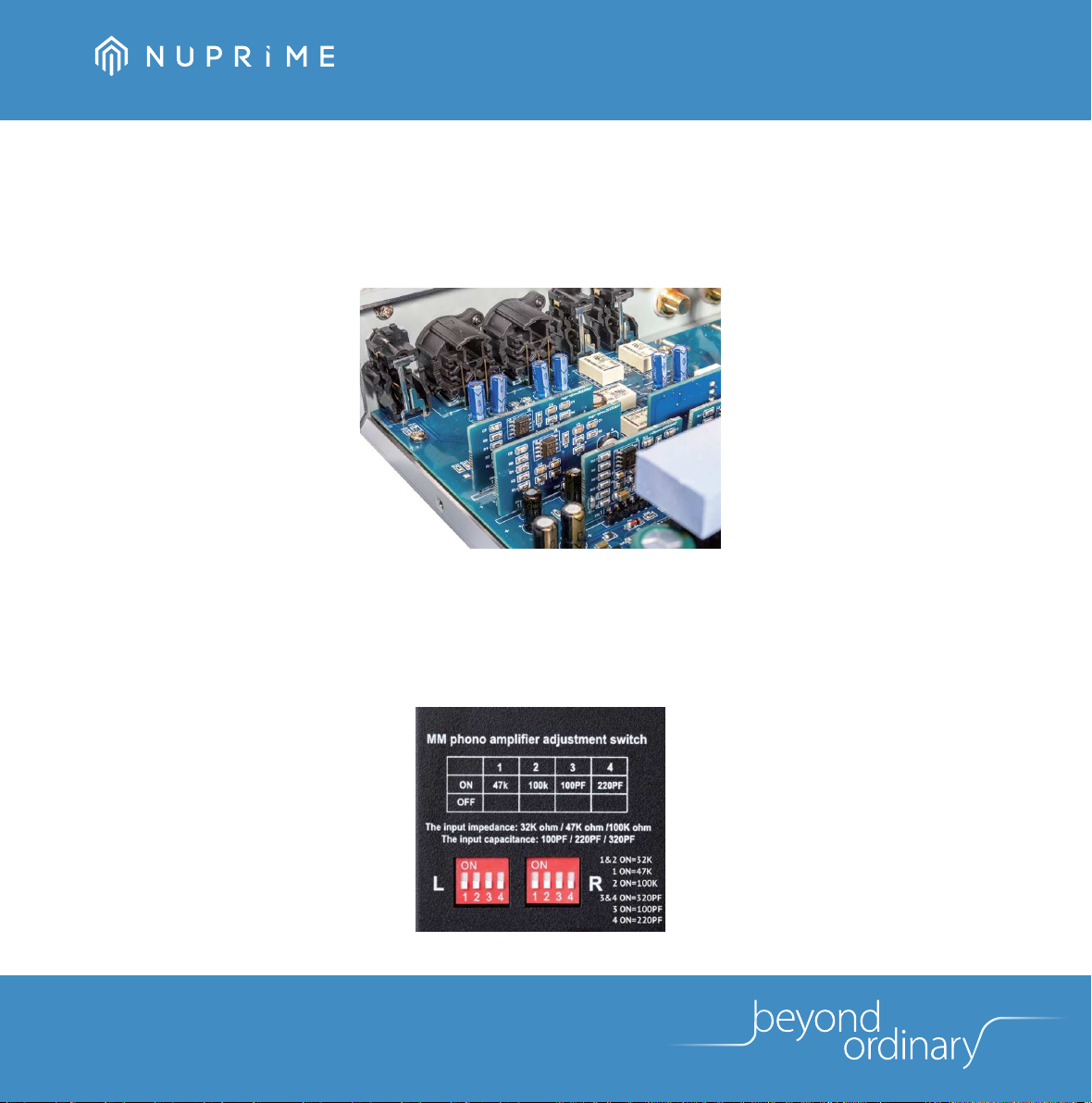

The phono input has a variety of settings for input resistors and capacitors to match
different MM cartridges. PRA-9X phono amplifier is a 2-stage RIAA amplifier that utilises
NJR MUSES8820 audio quality op-amp to provide an accurate RIAA curve and low
distortion at high amplification and performance.
www.nuprimeaudio.com
9

www.nuprimeaudio.com
10
Features
• LP vinyl RIAA phono amplifier circuit, with adjustable input capacitance and impedance.
• 1 set of Phono input, 1 set of XLR input, 2 sets of RCA input.
• Input digital volume, adjustable in 99 segments. Automatic memory when powered off.
• Input and output Trigger for power on/off control of multiple devices.
• Nuprime specially customized audio-specific capacitors, 13200uf and 25A high-current
bridge rectifiers, providing fast and dynamic speaker driving force.

www.nuprimeaudio.com
11
Inputs:
• 1 x Phono Stage
• 2x Analog Stereo RCA
• 1 x Analog Stereo XLR
• 1 x Trigger in : DC12V in (3-pin 3.5mm phone jack)
Outputs:
• 2 x Speaker Out
• 1 x Trigger Out : DC12V Out (3-pin 3.5mm phone jack)
• Gain: x 17
• Sensitivity (to ratedpower): 1.5Vrms
• Input Impedance: 47K Ohms
• IA-9X WATT /THD / S/N (typcial) : @5W (0.0014%,95dB) , @50W (0.003%, 105dB)
• Frequency Response: 10Hz to 50kHz (-3dB)
• Standby Power : 4.6W @ 115Voutlet, 3.3W @ 230Voutlet
• Idle Power : 13.5W @ 115Voutlet, 11.5W @ 230Voutlet
Specifications
Power Output (RMS): 90W @ 8 Ohms , 145W @ 4 Ohms
Power Output (peak): 100W @ 8 Ohms , 160W @ 4 Ohms

www.nuprimeaudio.com
12
Phono Stage :

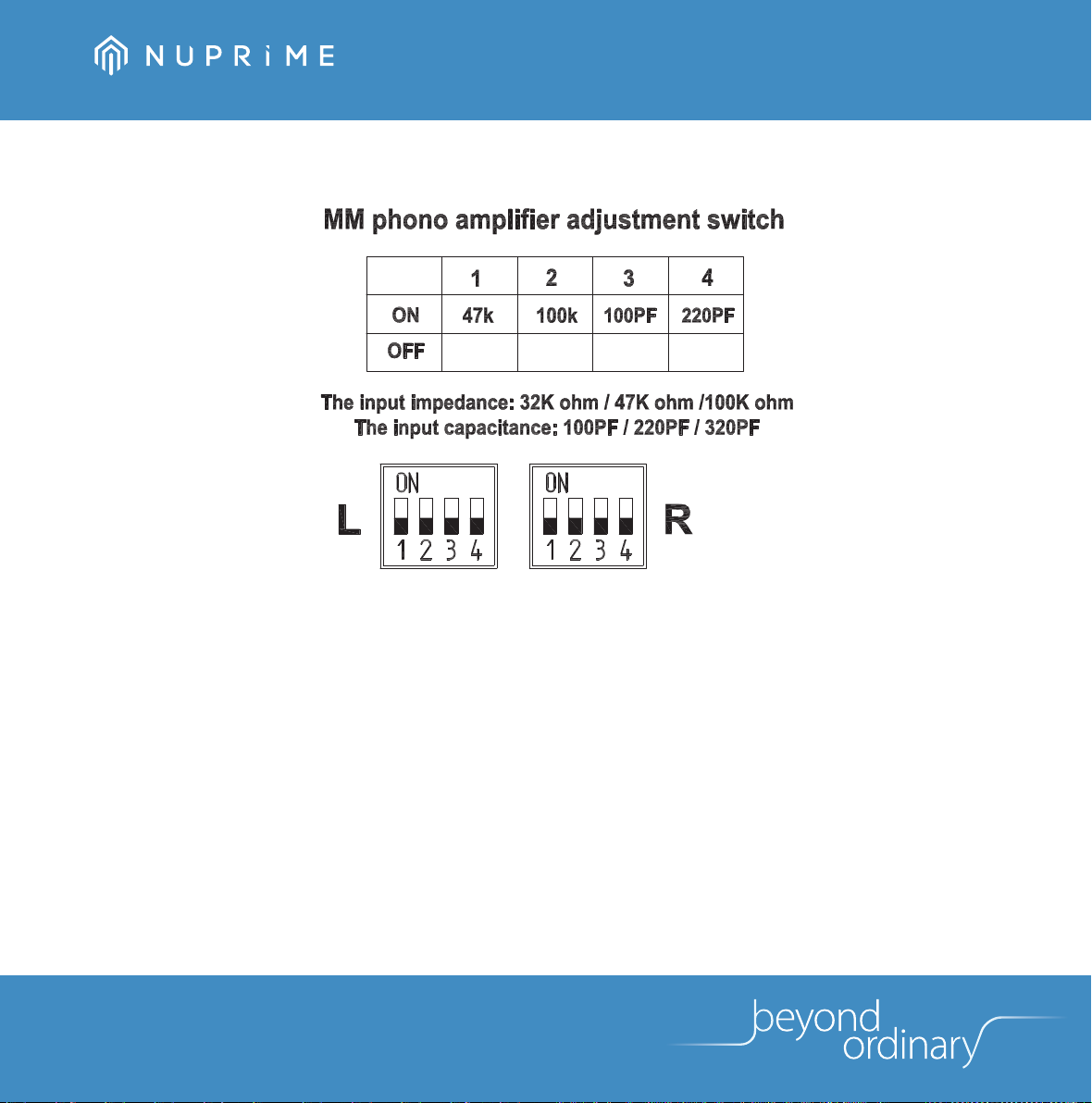

• Input resistance: 32K ohm / 47K ohm / 100K ohm
• Input capacitance: 100 pF / 220 pF / 320 pF
• MM Input Sensitivity: 4.0 mV @ 1KHz
• GAIN: MM input to LINE output (Vol./Max.) => 65dB @ 1K Hz
Dimensions and Weight:
• Worldwide AC voltage: (115VAC /230VAC) with Voltage Select Switch
• AC Fuse : Slow blow , 5A , 250VAC
• Dimensions: (W x H x D): 235 mm x 60 mm x 281 mm (including feet)
• Weight : 3.8Kg
Color : Black or Silver

21 3 4 5
Quick Start Guide
Front Panel
Power / Input Selector:
Briefly press for 3 sec to On/Off standby mode
Turn the knob to switch between inputs
1
2Remote IR receiver
3Display
4
5
2fo : NuPrime ODC with natural harmonics Model
fo : NuPrime ODC Model
Volume control:
Turn the knob clockwise to increase volume
Turn the knbo counterwise to decrease volume
Briefly press the knob to Mute / un-Mute
www.nuprimeaudio.com
13

Display
Volume display:
00 ~ 99
Inputs Display:
C1 : MM Phono Stage input
C2 : Analog Stereo XLR input
C3 : L1 Analog Stereo RCA input
C4 : L2 Analog Stereo RCA input
www.nuprimeaudio.com
14

Rear Panel
NuPrime DAC-9X or
CD/DVD/BD Player
Omnia Stream Mini
DAC
XLR or RCA input
Phono Stage
Stereo
Speakers
www.nuprimeaudio.com
15
Phono (RIAA): MM Phono input.
Line In: One stereo XLR inputs. Two pairs of stereo RCA inputs.
Outputs:
Speaker Out: Two Stereo Speaker Output
Inputs:

Bottom Phono Switch
Input Impedance :
Switch 1 ON = 47K
Switch 2 ON = 100K
Switch 1&2 ON = 32K
Input Capacitance :
Switch 1 ON = 100PF
Switch 2 ON = 220PF
Switch 1&2 ON = 320PF
www.nuprimeaudio.com
16

www.nuprimeaudio.com
17
AC Inlet : Connect the supplied mains lead to the AC IN (115V or 230 V) terminal on the rear of the
IA-9X.
Others :
AC Voltage Selector : Make sure that the AC voltage selector switch at the bottom of the unit is
switched to the appropriate voltage for your country. All NuPrime products
are shipped with the switch set to 230V AC in order to prevent accidental
damage.
230

www.nuprimeaudio.com
18
Remote Control
• Toggle power STANDBY and ON
• DIS:
• Vol +: Volume up
• Vol –: Volume down
• Mute: Volume Mute
•
: input selection
• : input selection
• : input selection
• : selection
• :
Battery Replacement:
To change the battery, please remove the bottom cover to reveal the battery casing.

www.nuprimeaudio.com
19
NuPrime’s Limited Warranty and Limitation of Liabilities
ADDITIONAL RIGHTS
For consumers, who are covered by consumer protection laws or regulations in their country of
purchase or, if different, their country of residence, the benefits conferred by this warranty are in
addition to all rights and remedies conveyed by such consumer protection laws and regulations.
This warranty does not exclude, limit or suspend any rights of consumers arising out of
nonconformity with a sales contract. Some countries, states and provinces do not allow the
exclusion or limitation of incidental or consequential damages or allow limitations on how long an
implied warranty or condition may last, so the limitations or exclusions described below may not
apply to you. This warranty gives you specific legal rights, and you may also have other rights that
vary by country, state or province. This limited warranty is governed by and construed under the
laws of the country in which the product purchase took place.
LIMITED WARRANTY
For a period of ONE (1) YEAR from the date of retail purchase by the original end-user purchaser
(“Warranty Period”), NuPrime warrants (in) this product against defects inmaterials and
workmanship, and (ii) thateach Product, unmodifiedand under normal use and conditions, will
substantially comply with NuPrime’ applicable writtentechnical documentation for the Product.
NuPrime reserves the right to make substitutions and modifications from time to time inthe
specifications of Products soldby NuPrime, providedthatsuch substitutions or modifications do
not materially affect overall Product performance.
Ifa hardware defect exists and a validclaim is receivedwithinthe Warranty Period, atits option
and to the extent permittedby law, NuPrime will (1) repair the hardware defect atno charge,
using new or refurbishedreplacement parts, (2) exchange the product with a product thatis new
or which has beenmanufacturedfrom new or serviceable usedparts and is atleastfunctionally
equivalentto the original product, or (3) refund the purchase price of the product. NuPrime may
requestthatyou replace defective parts with user-installable new or refurbishedparts that
NuPrime provides infulfillment of its warranty obligation. A replacementproduct/partassumes
