NuPrime AMG DAC User manual
AMG DAC
U S ER’S MANUAL
The AMG DAC uses dual ESS DACs with discrete Class-A
transistors for natural, detailed, and expansive sound
stage sound characteristics.
Table of Contents

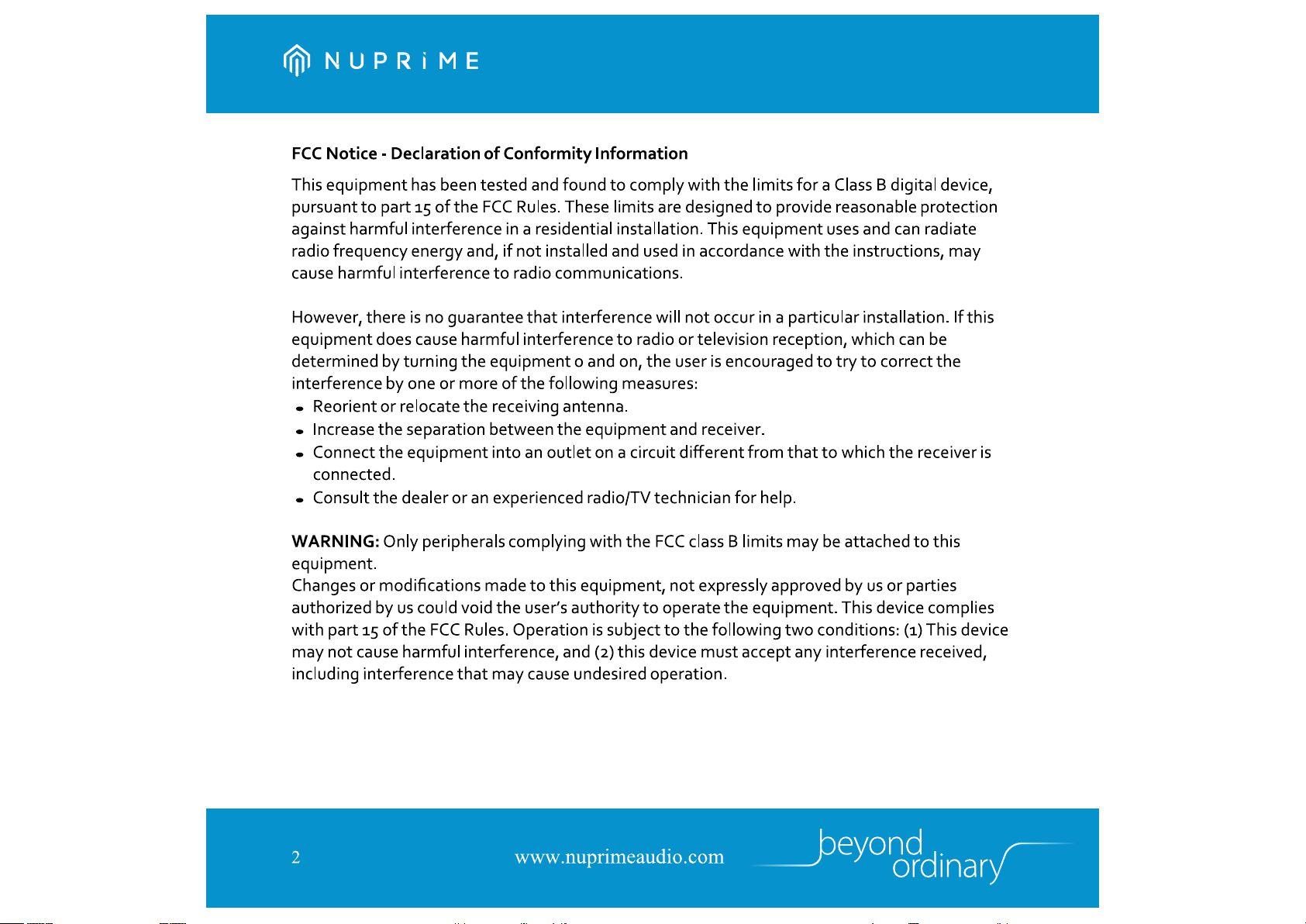

FCC Notice - Declaration of Conformity Information ..................................................................... 2

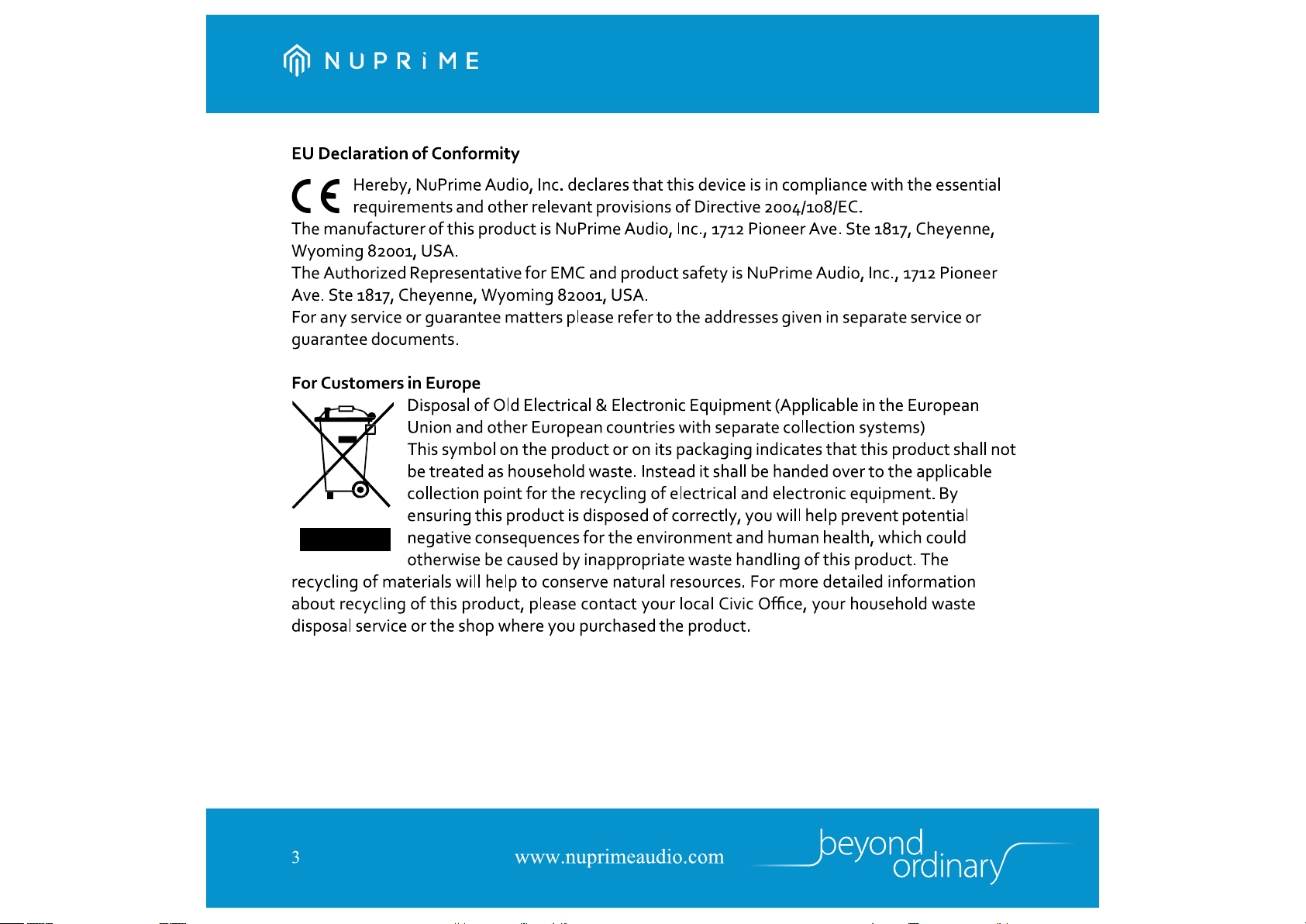

EU Declaration of Conformity ....................................................................................................... 3

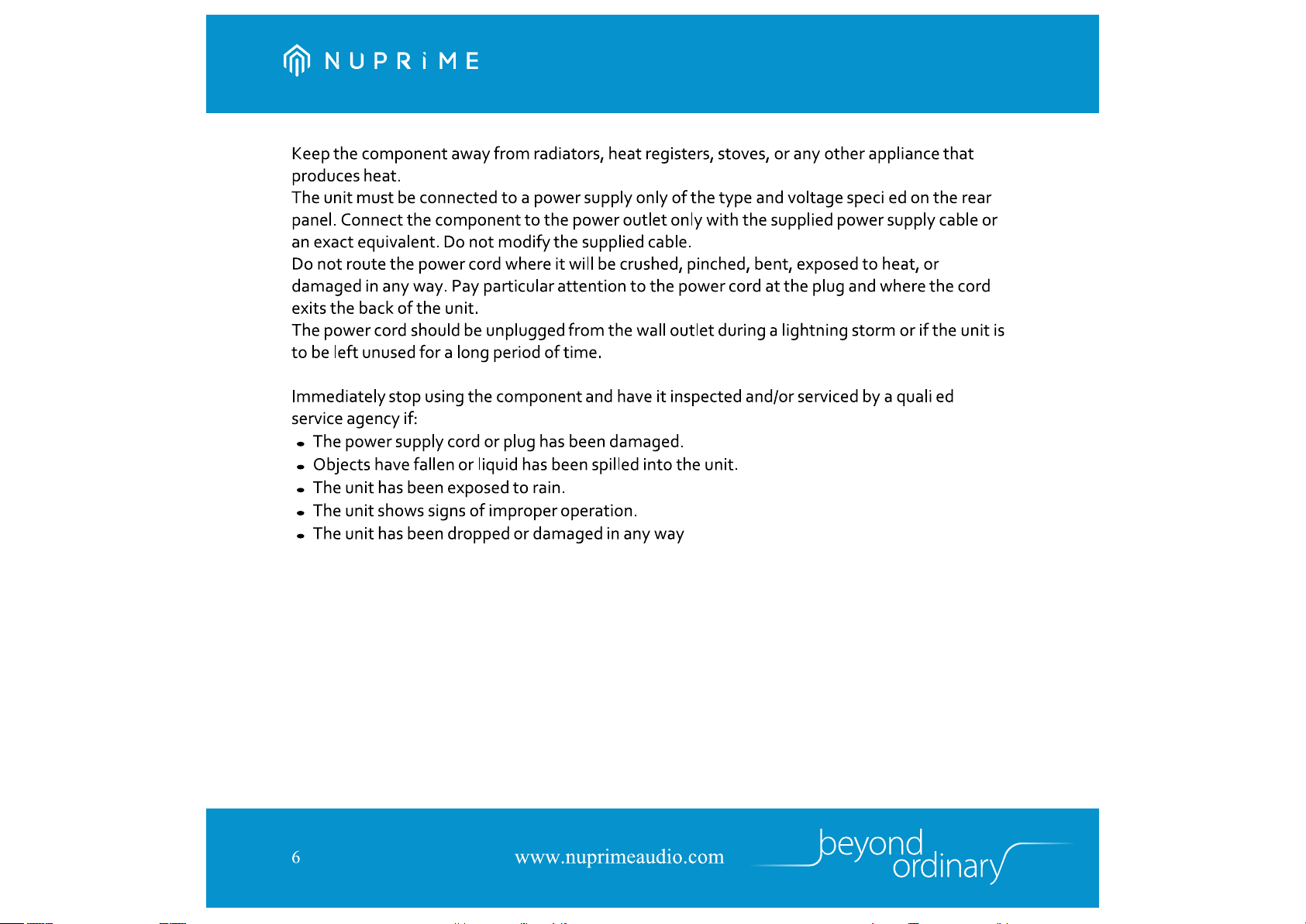

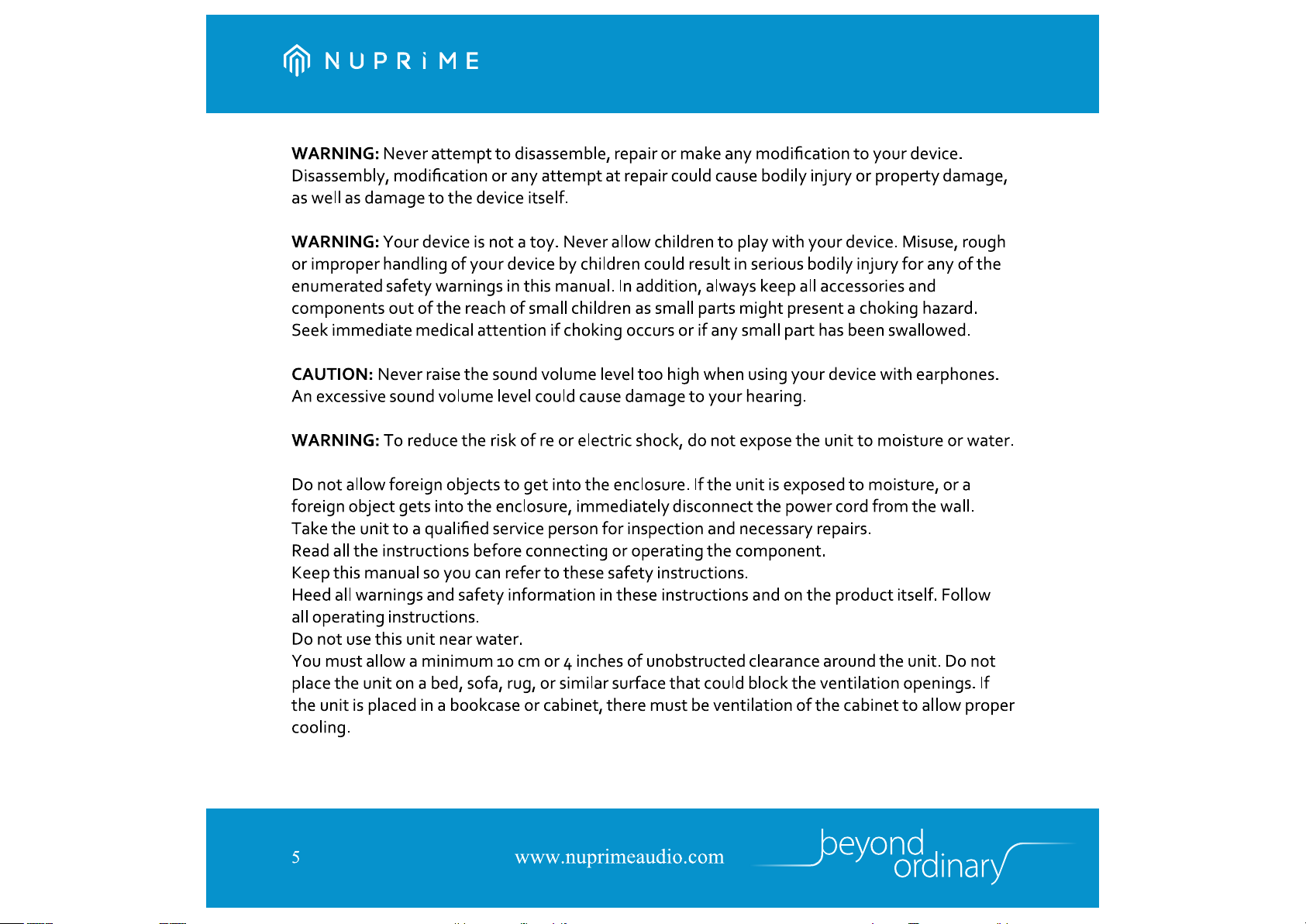

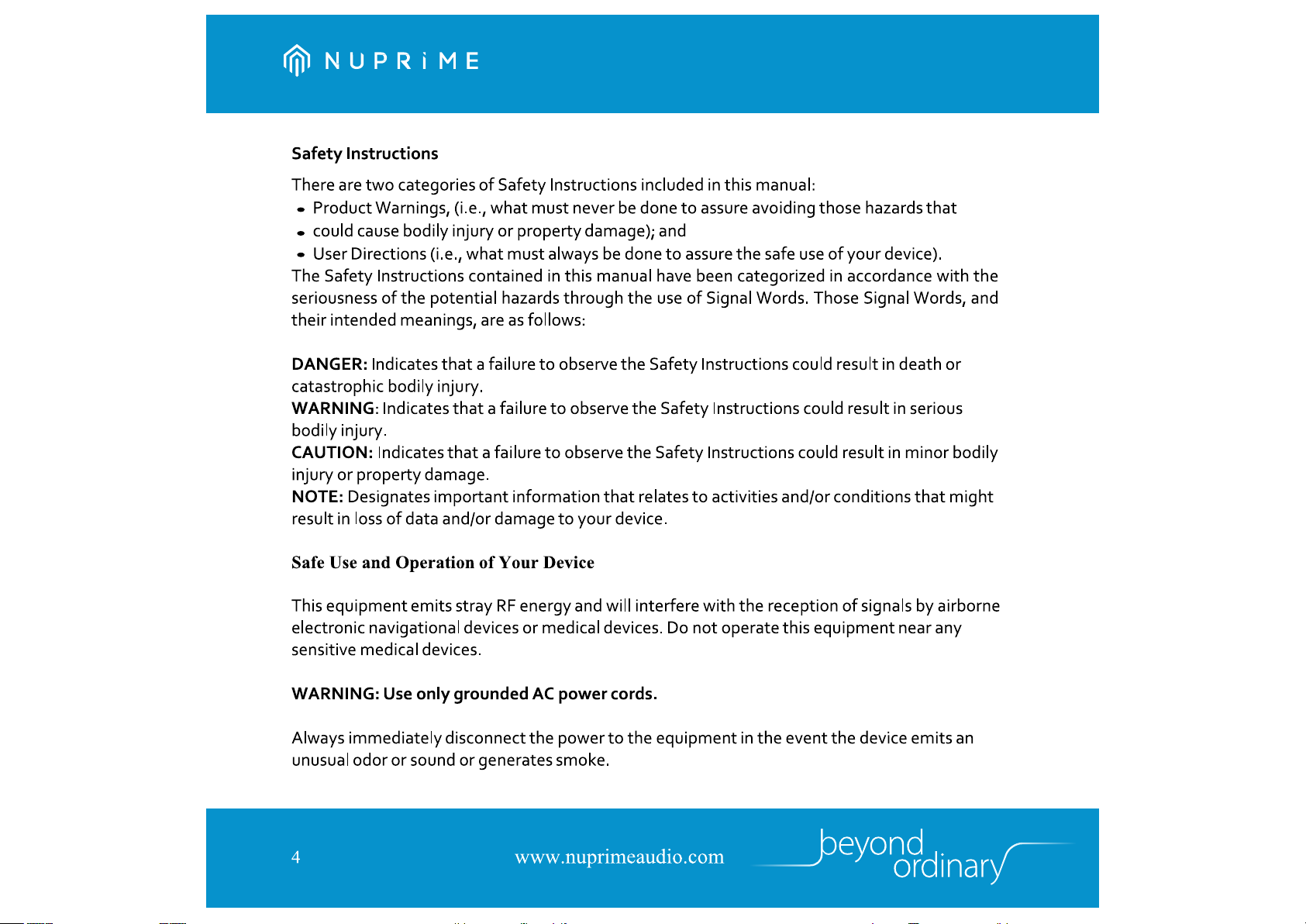

Safety Instructions ......................................................................................................................... 4
Introduction ................................................................................................................................... 7
Specifications ...............................
..........................................................................................................................
............................................................................................................................
................................................................................................. 12
. 10
15
NuPrime’s Limited Warranty and Limitation of Liabilities .............................................................16
Quick Start Guide
Remote Control
•Output stage voltage amplification employing all discrete components.
• Output stage current amplification utilising a high-speed amplifier with complete
discrete components.
• "Current transmitter" has no negative feedback amplifier.
Introduction
With five digital including IIS/DSD and one analog stereo inputs, RCA stereo and XLR balanced outputs,
and decoding capability of PCM 384K, DSD256, the NuPrime AMG-DAC is a reference-class DAC with
natural, detailed, and expansive sound stage sound characteristics designed for studio professionals and
high-end audiophiles.
Preamp
In a modern high-end DAC, the preamp stage plays a prominent role in determining the sound qualify
and characteristics. AMG DAC preamp design features:
The sound is natural and relaxed with no hint of digital. Users can hear a very open sense of live
performance space with a focused sound field. The guitar and piano melody naturally scattered in the
listening space, making people relax and immerse themselves in it, transforming the stiff strings into
natural and smooth sounds.
The Heart
As the heart of an audio system, the AMG-DAC supports an extensive number of inputs and formats.
Dual ESS Technology 32-bit audio DAC ESS9038Q2M independently decode left and right channels
improve channel separation and reducing overall noise.

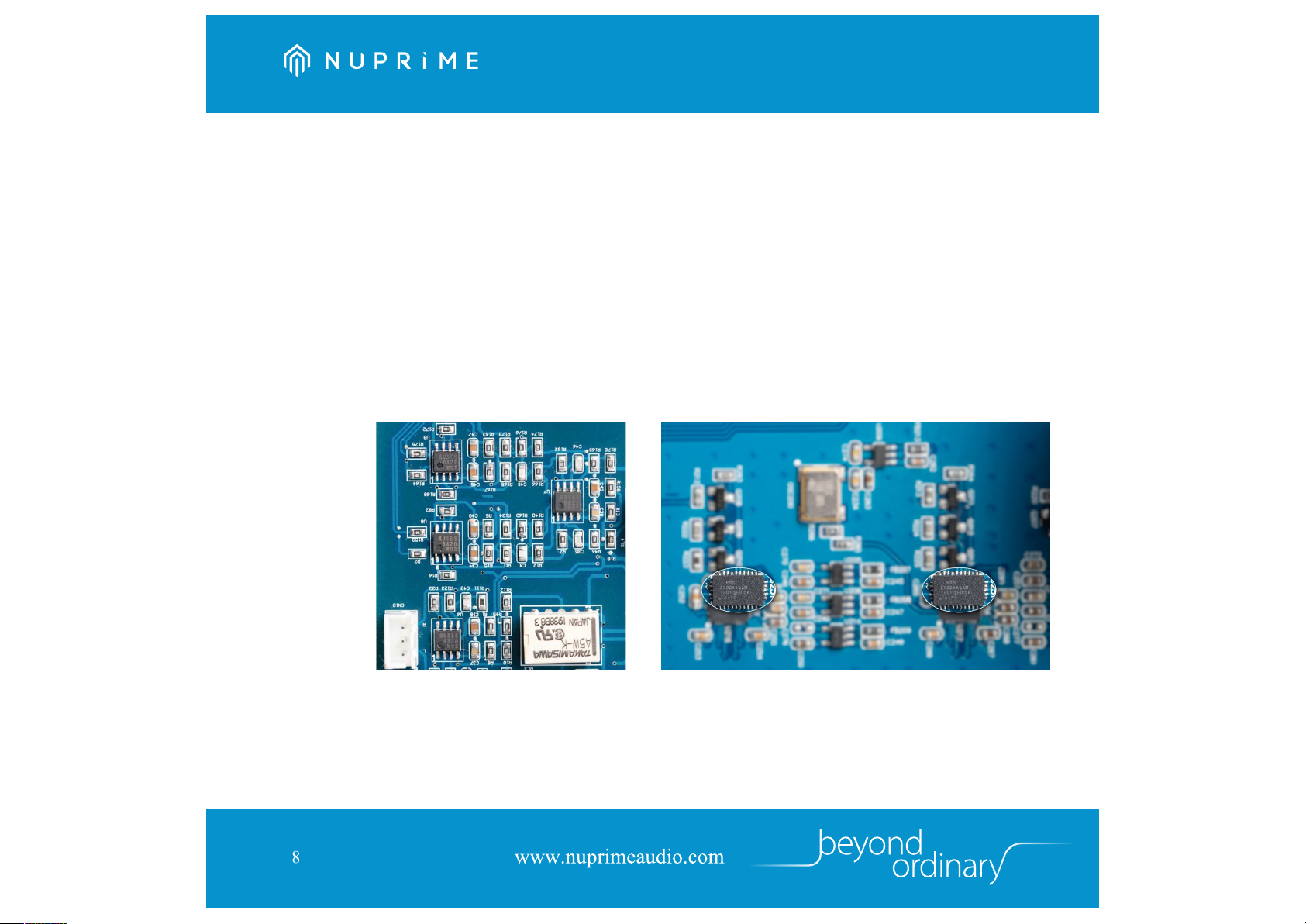

MUSES 8820 DAC IV Circuit Dual ESS DACs
Other notable features:
• MUSES 72320 volume control
• NuPrime SRC IC chip (co-developed with IC vendor) provides DSP processing where
Input signals are up sampled to megahertz before down converted to the targeted
sampling rate with ultra-low jitter and distortion.
• Extension port for Bluetooth receiver and WIFI audio streamer (optional).
• Full microprocessor control with memory retention.
• Supports DSD native playback by ASIO2.1 and DoP method.
• Ultra- low-noise JFETs in the input stage for the lowest possible noise floor.
• Individually adjustable volume on each input for precise level matching of sources.
• Asynchronous transfer mode.

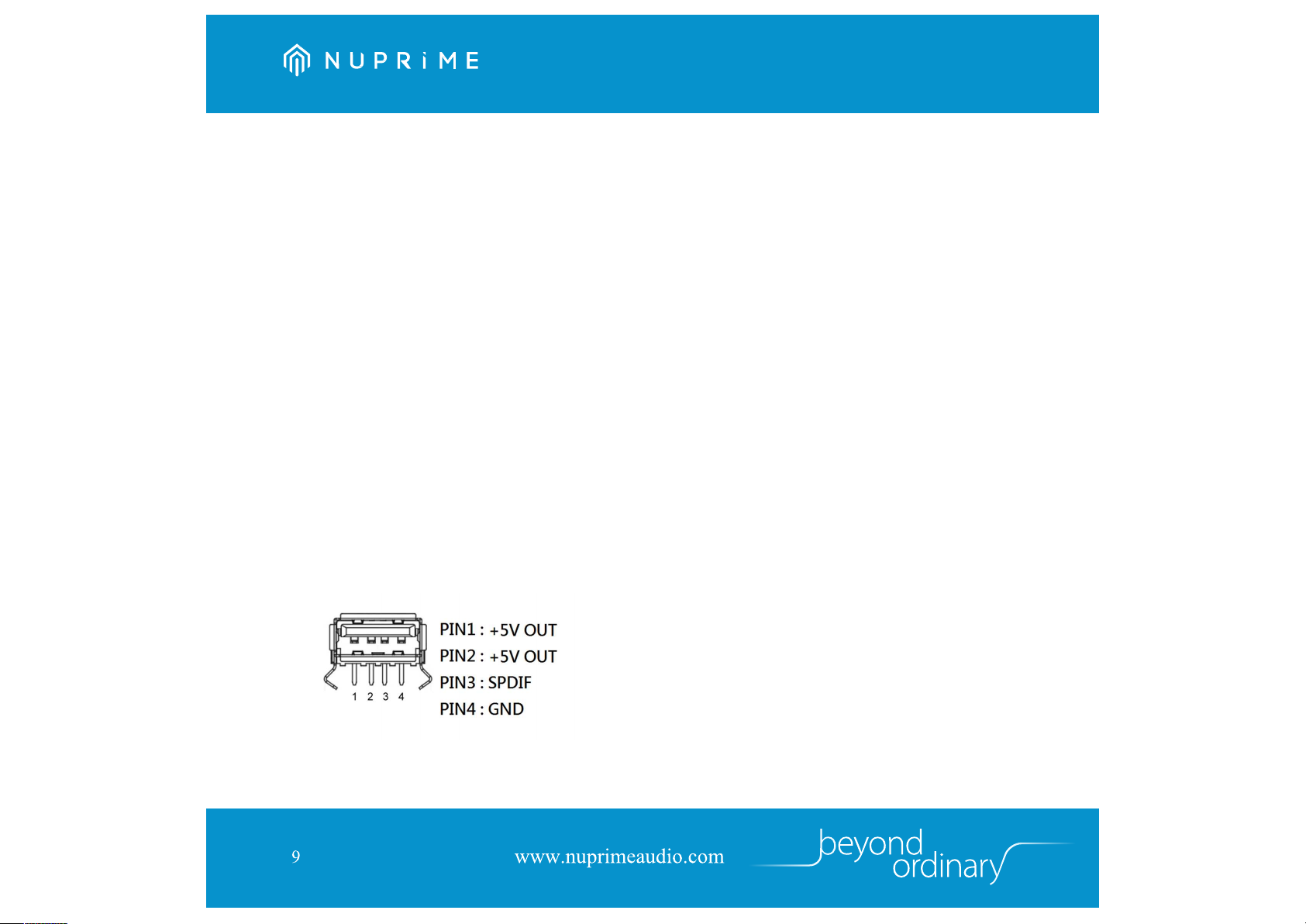

NuPrime Extension Port
NuPrime defined an USB Type -A port to carry S/PDIF data and 5V power for connecting to
external wireless audio receiver using just one standard USB cable. The NuPrime Omnia WR-1,
BTR-HD, Stream Mini, and Stream Mini DAC wireless receivers have a micro-USB port that is
compatible this specification.
Quick Start Guide
Left Knob
•
Power / Input Selector:
■ Briefly press for 3 sec to On/Off standby mode
■ Turn the knob to switch between inputs
Right Knob
•
Volume control:
■ Turn the knob clockwise to increase volume
■ Turn the knob counterclockwise to decrease volume
■ Briefly press the knob to Mute / un-Mute
Output Gain: Left Toggle Switch
•
Upwards: High Gain
•
Downwards: Low Gain
FIX Output On/Off: Right Toggle Switch
•
Upwards: Output is at max volume and can’t be adjusted
•
Downward: Volume can be adjusted
Display:
•
PCM Sample rate: 44.1,48,88.2,96,176.4,192,352.8,384
•
DSD Sample rate: d2.8 (64), d5.6 (128), d11.2 (256)
•
Volume display: 00 ~ 99
•
Inputs Display:
C1: Coaxial input
O2: Optical input
U3: USB input
E4: Extension port input
A5: Stereo analog input
HE: IIS/DSD Digital input
Specifications:
Inputs:
•
C1: Coaxial input for CD/DVD/BD players, TV and any device with a coaxial source.
Supports PCM 44.1KHz ~ 384KHz/24Bit and DOP 64 and 128.
•
O2: Optical input for CD/DVD/BD players, TV and any device with an optical source.
Supports PCM 44.1KHz ~ 192KHz/24Bit and DOP 64.
•
U3: USB input for computer (PC/MAC) and for NAS devices.
Type B 2.0 Hi-Speed, Windows OS : data stream up to 384KHz/24Bit and Native DSD 256.
Type B 2.0 Hi-Speed, Mac / Lunix OS : data stream up to 384KHz/24Bit and DOP DSD 128.
•
E4: Extension port for Bluetooth or WIFI. (Optional) Supports PCM 44.1KHz ~ 192KHz/24Bit.
•
A5: Stereo analog for CD/DVD/BD players, TV and any analog source device.
•
HE: IIS/DSD Digital input With HDMI cable to transfer IIS and DSD data from NuPrime source
devices.Supports PCM 44.1KHz ~ 384KHz/32Bit and DSD 64 ~ DSD 256 data streams.
Do not connect to the HDMI output of Set Top Box or BD / DVD player.
Note: AMG-DAC does not guarantee that all NAS devices will operate and be compatible due to
wide variety of brands and custom specs.
230
Outputs:
•
1 x RCA unbalanced High / Low outputs : 4 / 2 Vrms
•
1 x XLR balanced High / Low outputs : 8 / 4 Vrms
•
Frequency Response: 20 Hz - 20 KHz / ±0.3 dB
•
S/N ratio > 110 dB
•
THD+N: < 0.01%
•
TRIGGER out
•
Dimensions: (W x H x D): 235 mm x 55 mm x 300 mm
•
Weight: 5.5 pounds (2.5 kg)
•
Worldwide AC Voltage: 90VAC~130VAC / 210VAC~ 250VAC with Voltage Select Switch
•
AC Fuse: Slow-blow, T2.5A, 250VAC
AC Inlet Voltage Selector:
Make sure that the AC voltage selector switch at the bottom of the unit is switched
to the appropriate voltage for your country. All NuPrime products are shipped with
the switch set to 230V AC to prevent accidental damage.
1
CASE
3
21

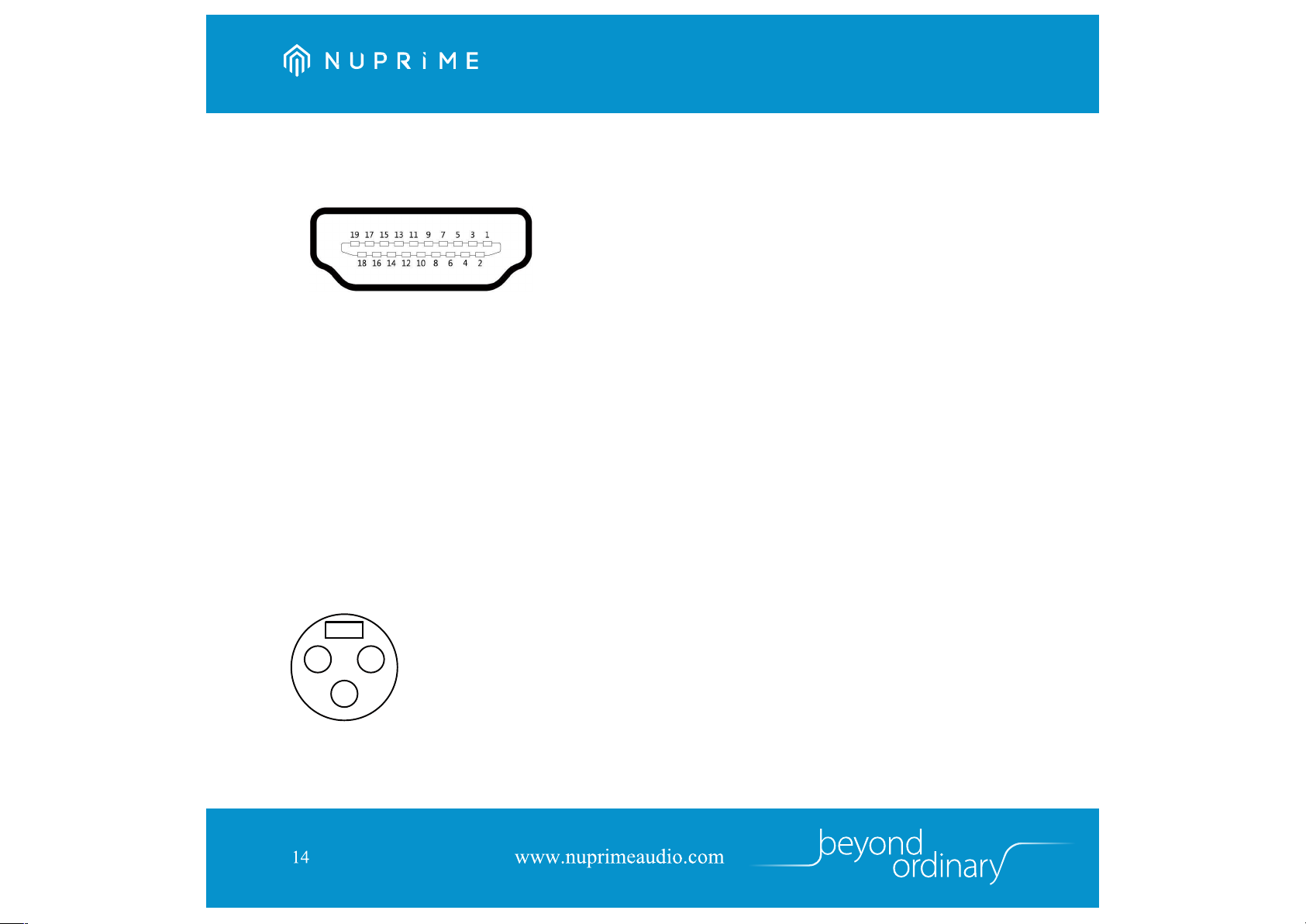

Pin 1 : Ground
Pin 2 : Positive (+)
Pin 3 : Negative (-)
XLR MALE Pin Definition:
Note: AMG-DAC does not guarantee that all IIS/DSD sources from other manufacturers will operate
and be compatible due to custom specs.
PIN14 : NC
PIN13 : NC
PIN12 : NC
PIN11 : GND
PIN10 : NC
PIN9 : LRCK + / DSD L +
PIN8 : GND
PIN15 : NC
PIN16 : NC
PIN17 : GND
PIN18 : NC
PIN19 : + 3.3V OUTPUT
PIN3 : SDATA + / DSD R+
PIN1 : SDATA - / DSD R-
PIN2 : GND
PIN4 : BCK + / DSD CLK +
PIN5 : GND
PIN6 : BCK - / DSD CLK -
PIN7 : LRCK - / DSD L -
IIS / DSD Pin Definition:
Outputs:
•
1 x RCA unbalanced High / Low outputs : 4 / 2 Vrms
•
1 x XLR balanced High / Low outputs : 8 / 4 Vrms
•
Frequency Response: 20 Hz - 20 KHz / ±0.3 dB
•
S/N ratio > 110 dB
•
THD+N: < 0.01%
•
TRIGGER out
•
Dimensions: (W x H x D): 235 mm x 55 mm x 300 mm
•
Weight: 5.5 pounds (2.5 kg)
•
Worldwide AC Voltage: 90VAC~130VAC / 210VAC~ 250VAC with Voltage Select Switch
•
AC Fuse: Slow-blow, T2.5A, 250VAC
AC Inlet Voltage Selector:
Make sure that the AC voltage selector switch at the bottom of the unit is switched
to the appropriate voltage for your country. All NuPrime products are shipped with
the switch set to 230V AC to prevent accidental damage.

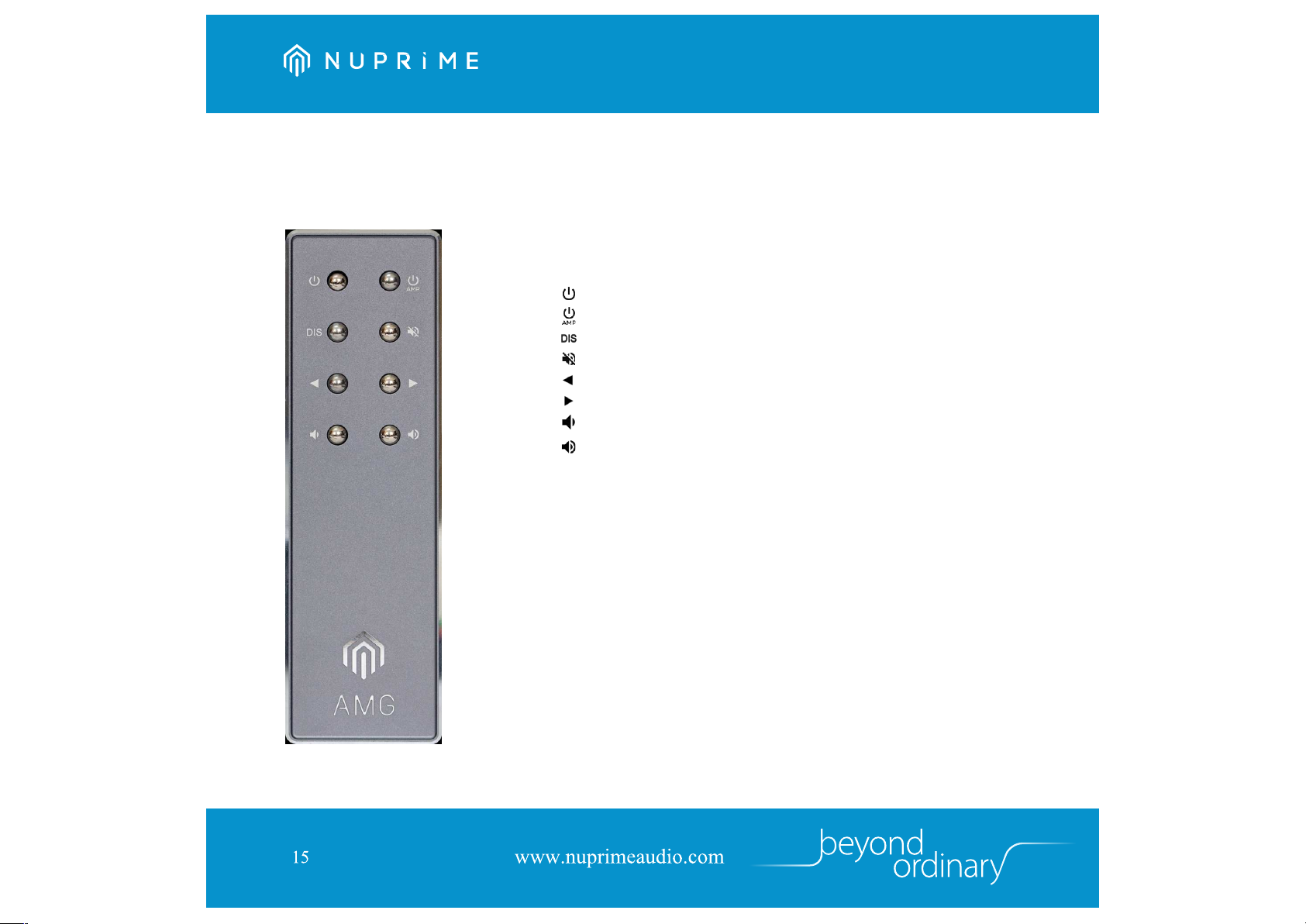

Remote Control:
Toggle power standby and on
Toggle power standby and on for AMG STA
Sample Rate
Volume mute
Previous channel
Next channel
Volume down
Volume up
