Steam. Grease. Smoke. They are the unwanted side effects of a home-cooked meal. Beside being
unpleasant, they are unhealthy. Cooking creates more airborne contaminates than anything else in the
home. Luckily, they are concentrated in one area and a kitchen ventilation system from NuTone®can easily alleviate the problem. Whether
it’s performance or design that matters most to you, you’ll find just what you are looking for in the complete line of NuTone range hoods.
Why Kitchens
need ventilation...
| 1 |
Problem
While the over-the-stove microwave brought you
additional counter space, you’ve sacrificed safety,
convenience and function. The built-in exhaust
fans are far less effective at capturing airborne
contaminants. Children are reaching
over a hot stove to reach a microwave
that is too high for them. And, everyone
is using the same workspace.
Solution
A NuTone range hood will provide significantly better
ventilation for your stove. Moving the microwave
closer to the refrigerator improves the efficiency of
quick reheating, provides added workspace for more
than one chef, and moves your children
away from the dangers of the stove.

NuTone
®
Range Hoods
a safer, more effective way
to duct your kitchen.

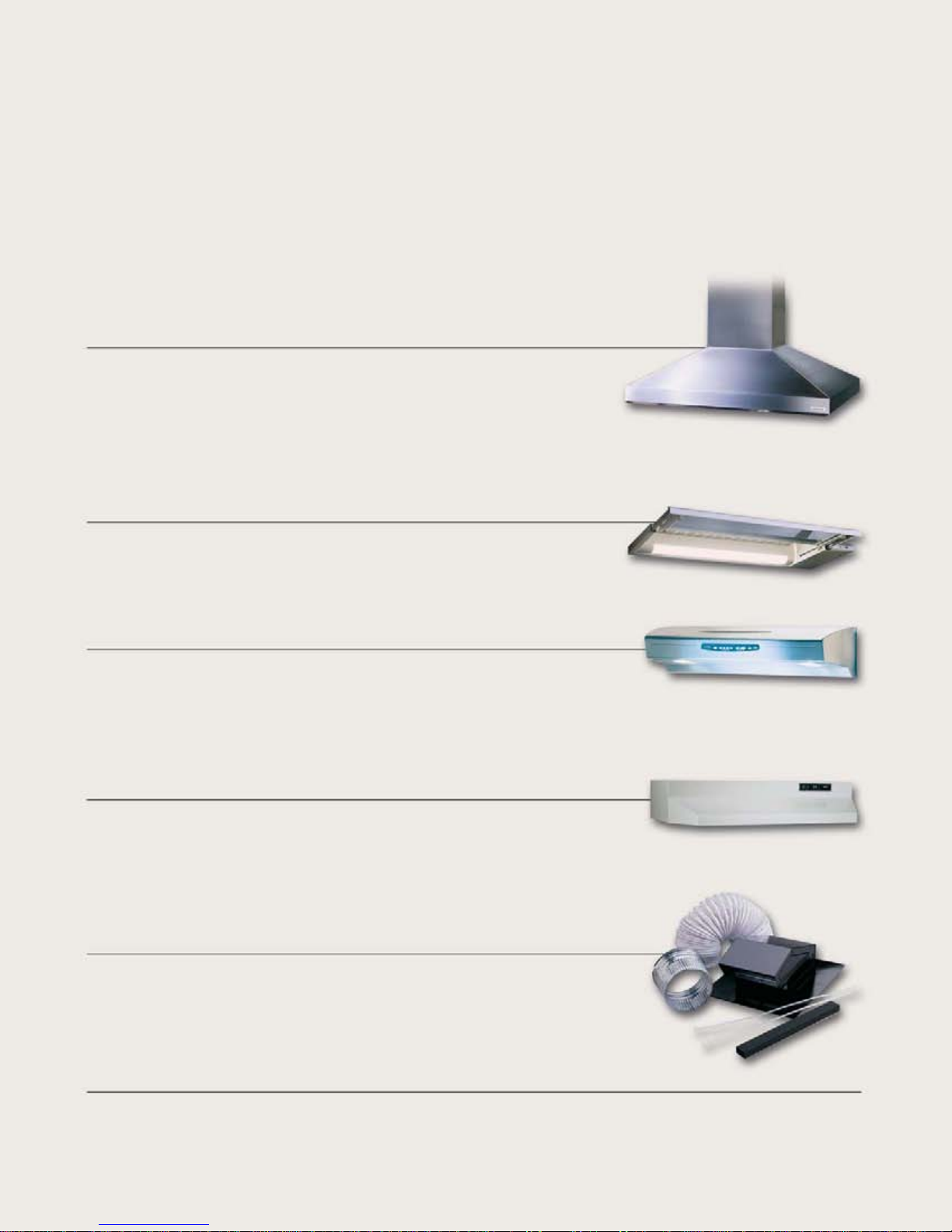

Rangemaster
®
|3–14|
These Rangemaster range hoods provide a decorative solution to high
ventilation requirements. All three designer models give your kitchen
that special look that makes the difference. The professional series offers
top performance and a high-end look.

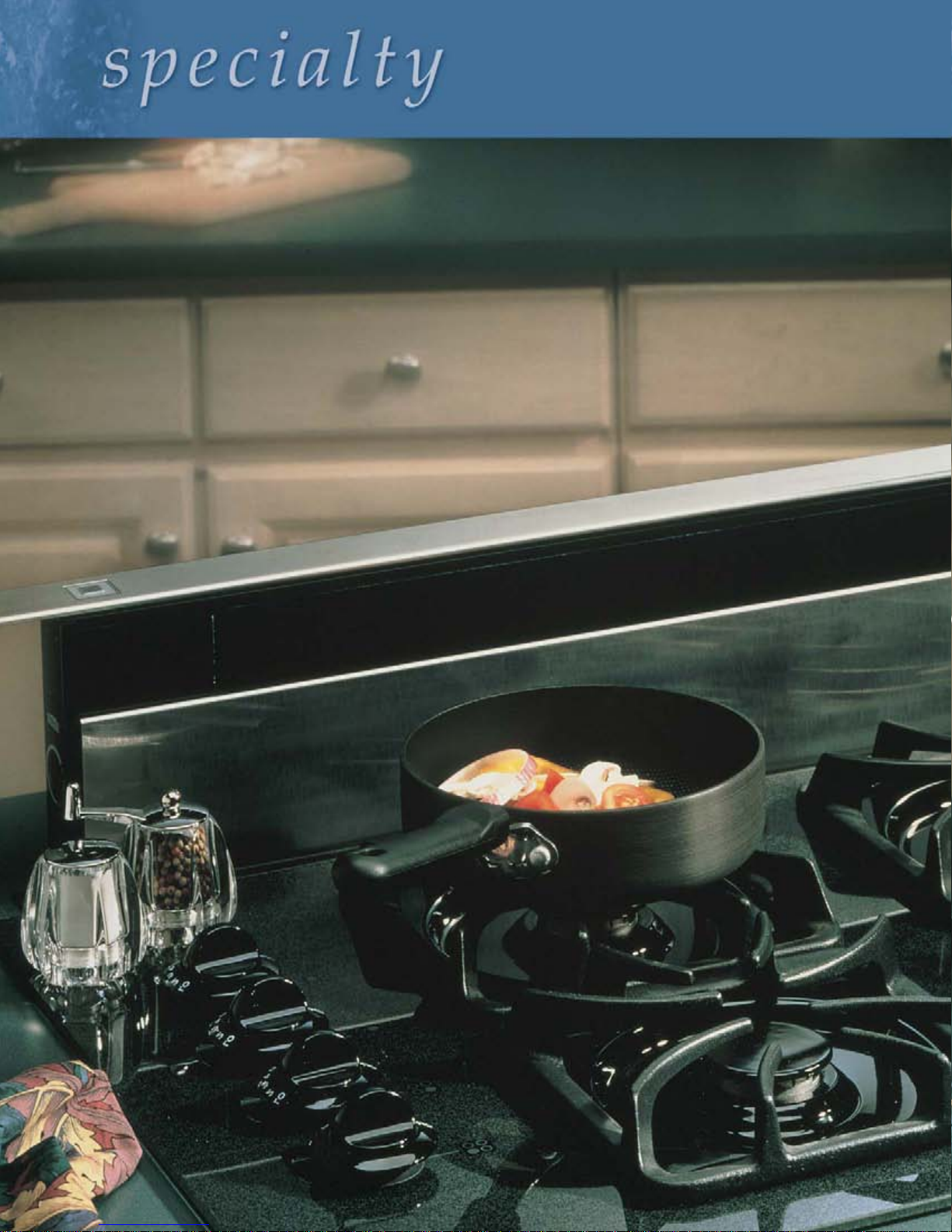

Specialty Ventilation |15–20|

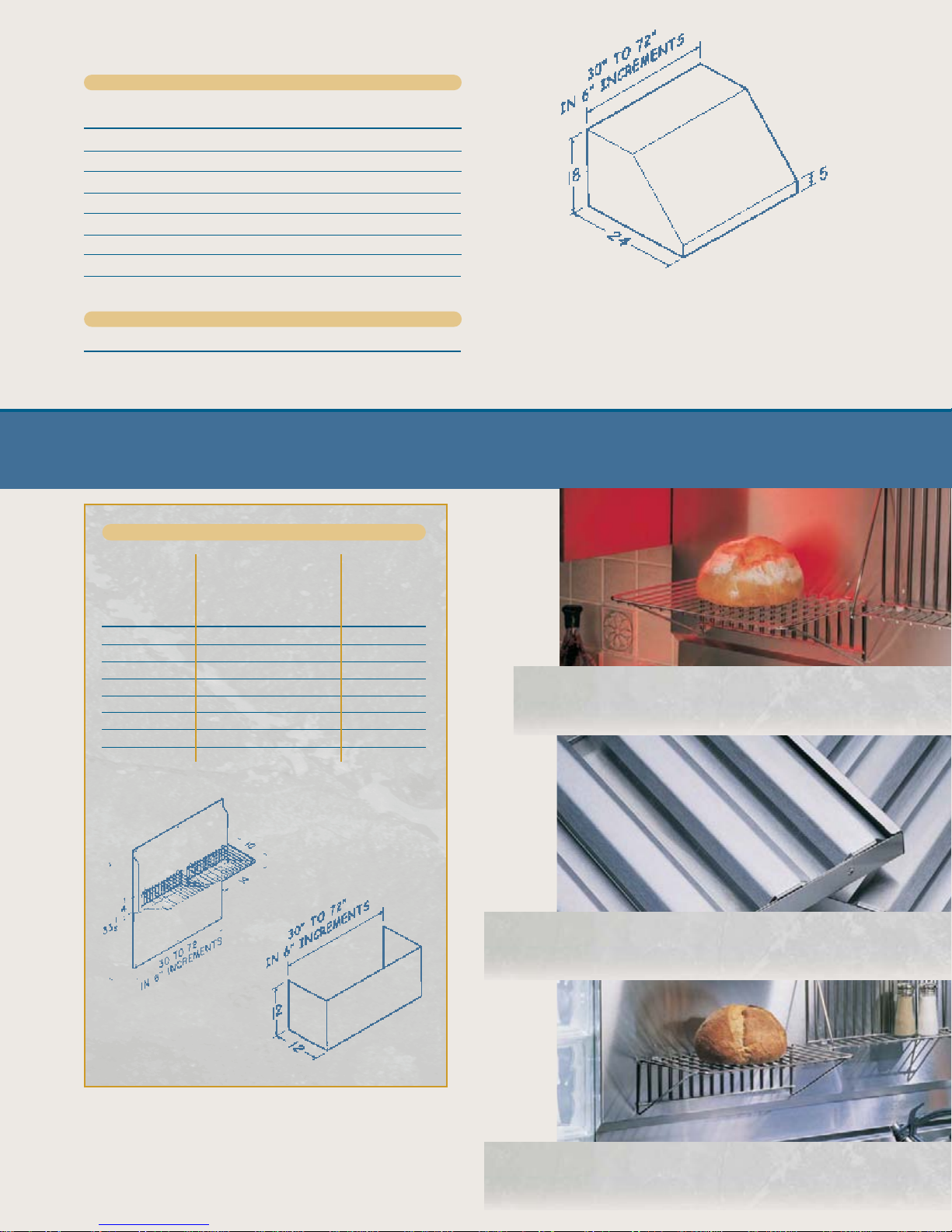

For customers who want a custom look in kitchen ventilation,
NuTone has the fans and motors to suit any requirement.
Allure
®
Hoods |21–24|
We listened to our customers and designed the Allure line to offer optimum
quiet, easy cleaning, choice of lighting, improved ventilating performance,
and sleek, innovative styling.
Intermediate & Economy Hoods |25–30|
The intermediate line offers more styles, sizes and colors to choose from
than the competition. The economy line is the dependable quality you
want from NuTone at an affordable price to fit any budget.
Filters & Accessories |31–34|
NuTone offers customers a range of exterior blowers with powerful ventilation
performance, as well as ducting accessories to assure proper installation, and
one benefit they won’t find anywhere else... NuTone quality.
Index |35-38|
Quick reference for model numbers, color, dimension and power choices.
| 2 |

| 3|

Elegant Designs
for gourmet tastes and
Uncompromising
Performance.
As a cook, you look for the best ingredients to enhance the flavor of
your meal. Removing unwanted smoke and grease from the air can
also lead to the enjoyment of your cooking.

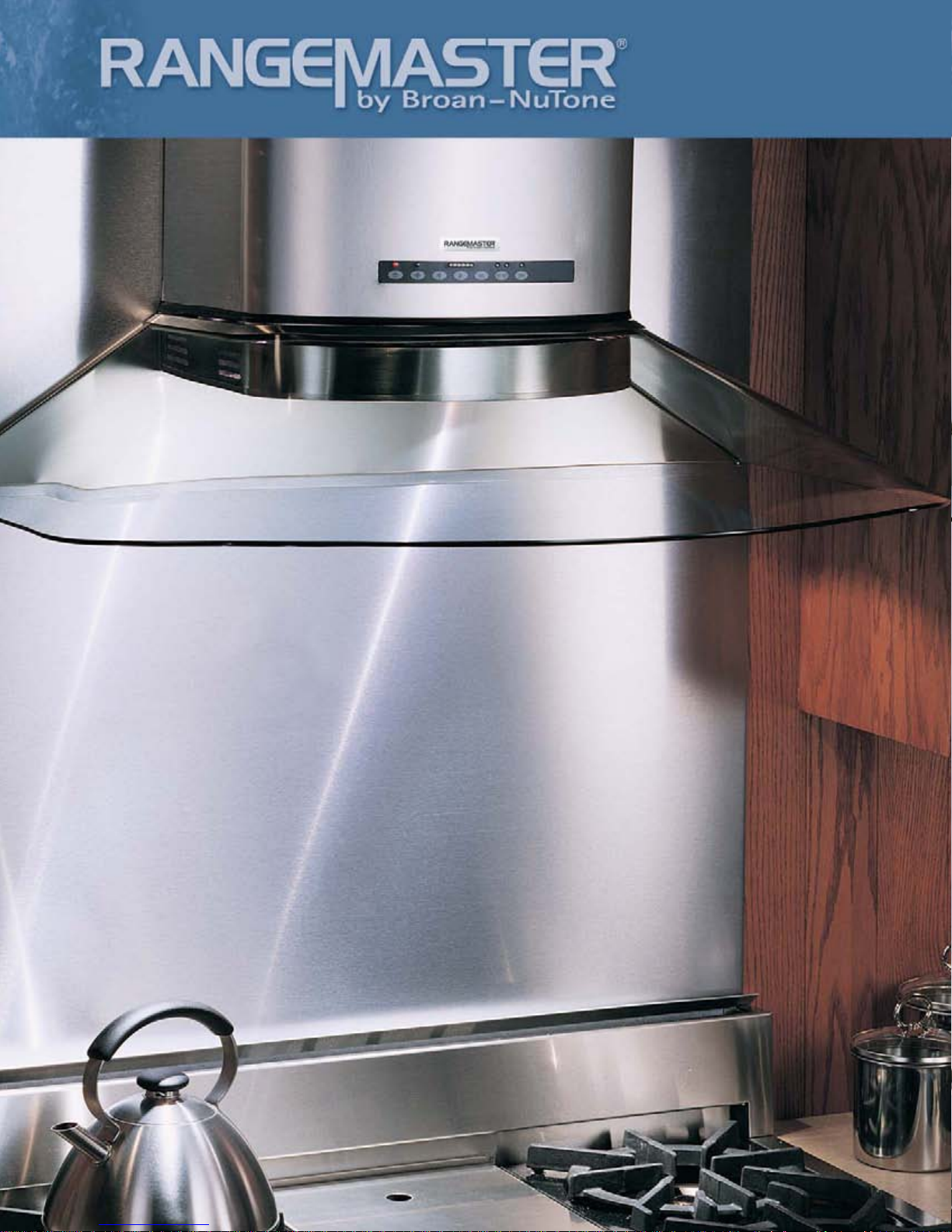

The Rangemaster series of range hoods from NuTone combines
designs for gourmet tastes with superior function that connoisseurs
of quality will appreciate.
This premium line offers styles to complement a well-designed
kitchen and high ventilation function for the household that takes
cooking seriously.
So make certain that dinner guests remember the aroma of their
meal, not the scent of it cooking, with a Rangemaster range hood
from NuTone.
designer series |3-11|
professional series |11-14|
| 4 |

| 5 |
61000/61000EX
The Ballista offers streamline stainless steel construction in a wall mounted
design. Its flawless look and seamless corners provide easy cleaning.
61000 Unique Features
450 CFM (900 CFM - 48") Internal centrifugal blower, HVI 2100 certified
Convertible to ducted or non-ducted operation (excludes 48" model)
Available widths: 30" (76.2 CM), 35-1/2" (90 CM), 48" (121.9 CM)
61000EX Unique Features
Exterior blower design provides exhaust options of 600, 900, 1200
or 1500 CFM (see page 34 – sold separately)
Available widths: 35-1/2" (90 CM), 48" (121.9 CM)
General Features
Concealed three-speed slide control adjusts to cooking conditions
 Two 20-watt (Four in 48") halogen lights (included)
Telescopic flue fits 8' to 9' ceilings with optional ducted flue extension
for up to 10' ceilings
Easily removable, dishwasher-safe, stainless steel grease filters
6" round duct connector with built-in backdraft damper
(8" round in 48" and EX models)
62000
The Mirage features a dramatic pairing of the high-tech look of stainless steel
with the beauty of hand-blown glass all in a wall mounted design. Seamless
corners and underside provide easy cleaning and recessed lighting.
Variable speed 450 CFM centrifugal blower, HVI 2100 certified, features
electronic touch control with delay off and filter maintenance indicator
Two 20-watt halogen lights (included)
Telescopic flue fits 8' to 10' ceilings
Stylish stainless steel grease filter is dishwasher-safe
6" round duct connector with built-in backdraft damper
Available width: 35-1/2" (90 CM)
63000/63000EX
The Provisa features free-hanging stainless steel design to draw the eye
from every vantage point. It’s the perfect choice for the household that
makes cooking the center of attention.
The 63000 has an internal 900 CFM dual centrifugal blower,
HVI 2100 certified
The 63000EX is designed to operate with Rangemaster exterior
blowers that provide a choice of 600, 900, 1200 or 1500 CFM
(see page 34 – sold separately)
Concealed three-speed control
Superior lighting from four 20-watt halogen lights (included)
Telescopic flue fits 8' to 9' ceilings
Seamless corners and easily removable, dishwasher-safe stainless steel
grease filter provide easy cleaning
6" round duct connector with built-in backdraft damper
Available widths: 39-3/8" x 27-5/8" (100 CM x 70 CM)

| 6 |

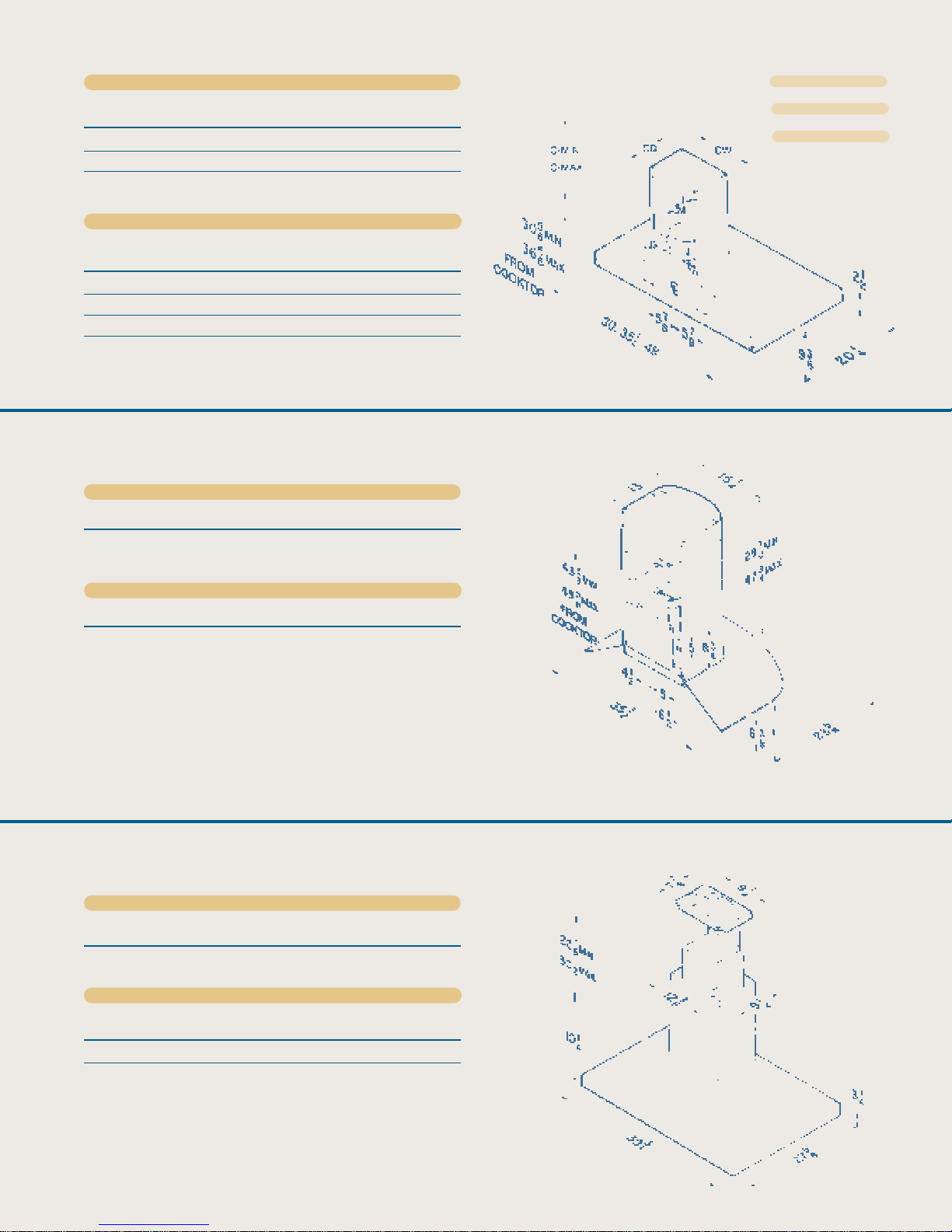

RANGEMASTER BALLISTA 61000/61000EX
SPECIFICATIONS – Exterior Blowers Sold Separately
Volts Amps CFM
(For exterior see page 34) Duct
Width Stainless Steel
Interior Stainless Steel
Exterior
Model
30" 613004 –
90 cm 619004 619004EX
48" 614804 614804EX
613004 & 619004 120 3.1 450 6" RD (V)
614804 120 5.5 900 8" RD (V)
619004EX 120 0.5** 600, 900, 1200, 1500 8" RD (V)
614804EX 120 0.8** 600, 900, 1200, 1500 8" RD (V)
**Hood Amps without blower, for total system Amps combine hood with exterior blower Amps.
613004 25-5/8" 45-1/2" 6-5/8" 9-1/4"
619004 25-5/8" 45-1/2" 6-5/8" 9-1/4"
619004EX 22" 37" 10-3/8" 12-3/4"
614804 22" 37" 10-3/8" 12-3/4"
614804EX 22" 37" 10-3/8" 12-3/4"
C-Min C-Max CD CW
35-1/2" 629004
RANGEMASTER MIRAGE 62000
120 3.1 450 6" RD (V)
SPECIFICATIONS
Volts Amps CFM Duct
Width Stainless Steel
SPECIFICATIONS – Exterior Blowers Sold Separately
39-3/8" x 27-5/8" 637004 637004EX
RANGEMASTER PROVISA 63000/63000EX
637004 120 5.5 900 8" RD (V)
637004EX 120 0.8** 600, 900, 1200, 1500 8" RD (V)
**Hood Amps without blower, for total system Amps combine hood with exterior blower Amps.
Width Stainless Steel
Interior Stainless Steel
Exterior*
Volts Amps CFM
(For exterior see page 34) Duct
Model

| 7 |

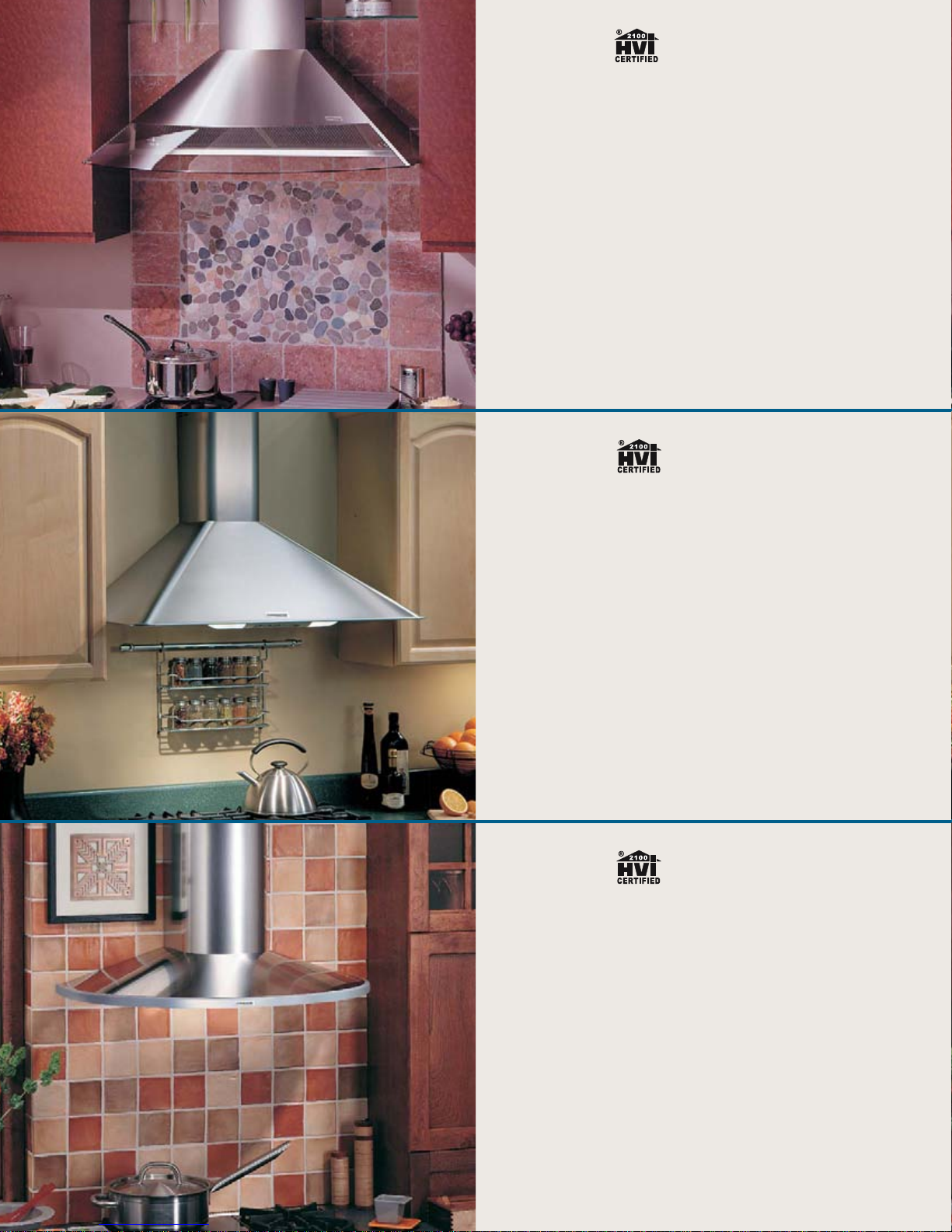

RM65000
This delightful, hand-crafted design blends curved and angular surfaces
for an uncommon union of stainless steel and glass.
450 CFM centrifugal blower, HVI 2100 certified, with an advanced,
multi-speed, electronic control featuring a convenient 10-minute
delay shutoff
Multi-speed, electronic push-button control features stylish, rounded
buttons with individual speed indicators
Two 20-watt halogen lamps provided
Dishwasher-safe aluminum filters feature a quick-release latch
Control light flashes when it’s time to clean the filter
Two-level lighting provides bright cooktop illumination and a low
nighttime setting
Available widths: 30-7/16" (90 CM)
RM50000
The 50000 Series combines stainless steel construction, European style and
great value, designed to meet the requirements of today’s conventional
appliances and kitchens. A fully enclosed bottom contains a dishwasher-safe
filter for easy cleaning. Dual lighting provides excellent cooktop illumination.
Its 270 CFM centrifugal blower, HVI 2100 certified, and multi-speed
control provide quiet, effective performance
Multi-speed slide control and integrated dual-light assembly
Dual 40-watt incandescent lamps (included)
Dishwasher-safe aluminum filter features a quick-release latch
Includes non-ducted kit for indoor exhaust recirculation
Available widths: 30" (76.2 CM) and 36" (91.5 CM)
RM51000
The 51000 Series is a wall-mounted stainless steel chimney hood with sleek,
graceful curves engineered to blend with today’s highly styled, conventional
appliances and kitchens. Halogen lighting accentuates the beauty of a full
enclosed bottom with dishwasher-safe filters.
370 CFM centrifugal blower, HVI 2100 certified, and multi-speed
control provide quiet, enhanced performance
Multi-speed slide control
Two 20-watt halogen lamps (included)
Dishwasher-safe aluminum filters feature a quick-release latch
Requires separate purchase of a non-ducted kit for indoor exhaust
recirculation – RRK51
Available widths: 35-1/16" (90 CM)

| 8 |
120 3.5 270 6" RD (V)
SPECIFICATIONS
Volts Amps CFM Duct
30" RM503004 RM503001 RM503023
36" RM503604 RM503601 RM503623
Width Stainless
Steel White Black
RM50000
120 3.1 370 6" RD (V)
SPECIFICATIONS
Volts Amps CFM Duct
35-7/16" RM519004
Width Stainless
Steel
RM51000
120 3.1 450 6" RD (V)
SPECIFICATIONS
Volts Amps CFM Duct
35-7/16" RM659004
Width Stainless
Steel
RM65000

| 9 |

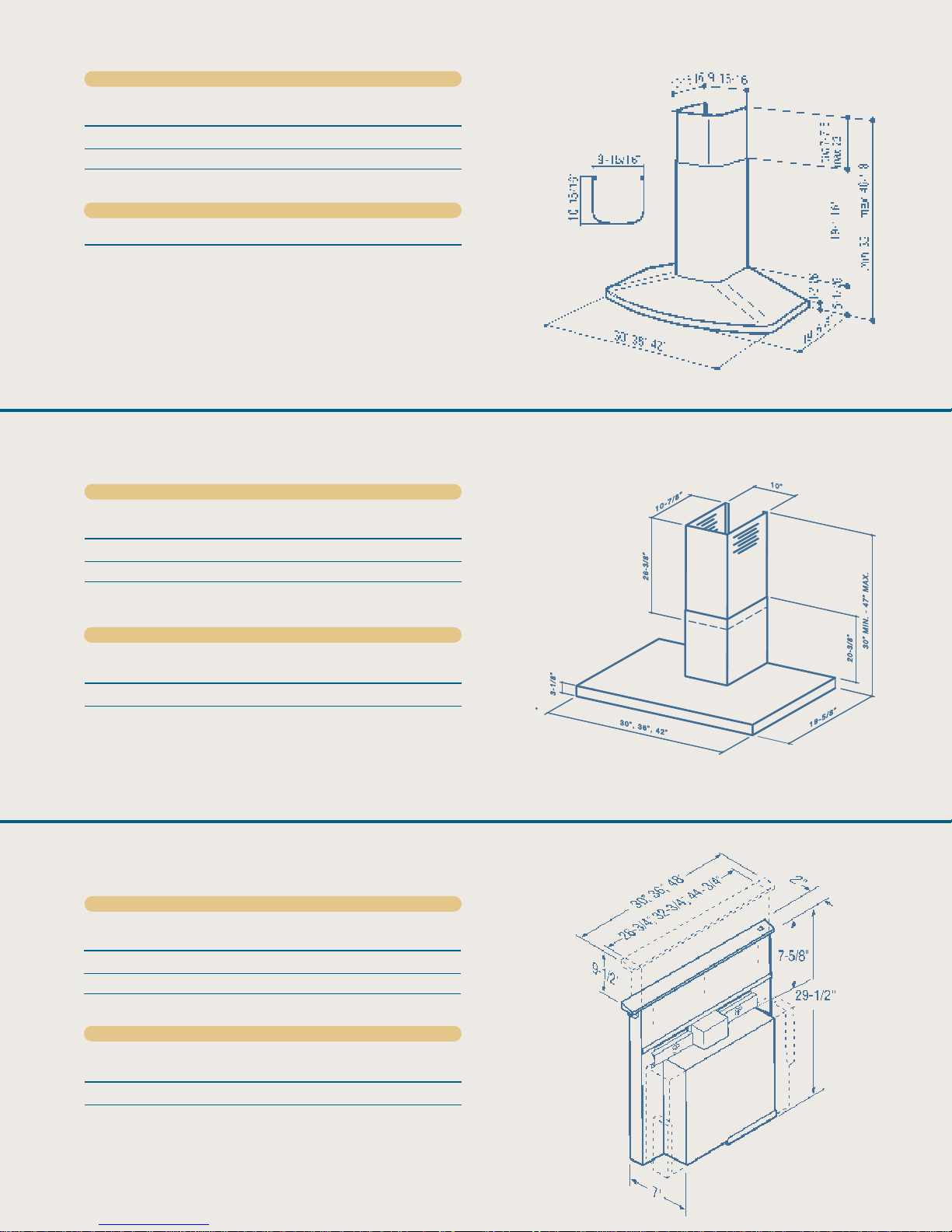

RM52000
This wall-mounted stainless steel chimney hood combines graceful
curves and traditional European styling, and is engineered to meet
the requirements of today’s highly styled, conventional appliances and
kitchens. Halogen lighting accentuates the beauty of a fully enclosed
bottom containing dishwasher-safe filters.
370 CFM centrifugal blower, HVI 2100 certified, and multi-speed control
provide quiet, enhanced performance
Multi-speed slide control
Two 20-watt halogen lamps (included)
Dishwasher-safe aluminum filters feature a quick-release latch
Requires separate purchase of a non-ducted kit for indoor exhaust
recirculation – RRK51
Available widths: 30" (76.2 CM), 36" (91.5 CM), and 42" (106.7 CM)
RM53000
This Italian-inspired brushed stainless steel range hood proves that simplicity
can be the perfect design statement, and a match for today’s conventional
cooking appliances. Clean lines complement the contemporary kitchen or
boldly contrast the flowing styles of more traditional settings. A quiet 370
CFM multi-speed blower, convenient dishwasher-safe filters and generous
lighting all perform beautifully as well.
370 CFM centrifugal blower
Multi-speed slide control
Ducted/non-ducted telescopic flue accommodates ceiling heights from
8 to 9 feet. Extension flues for higher ceilings are also available for
ducted and non-ducted applications.
Requires separate purchase of a non-ducted kit (RRK51) for indoor
exhaust recirculation
Dishwasher-safe aluminum filters feature a quick-release latch and
professional-style appearance
Two 20-watt halogen lamps (included)
Heat Sentry adjusts speed of blower to high in case of excess heat
Install hood so that the bottom of the unit is 24 to 30 inches above the
cooking surface
Available widths: 30" (76.2 CM), 36" (91.5 CM), and 42" (106.7 CM)

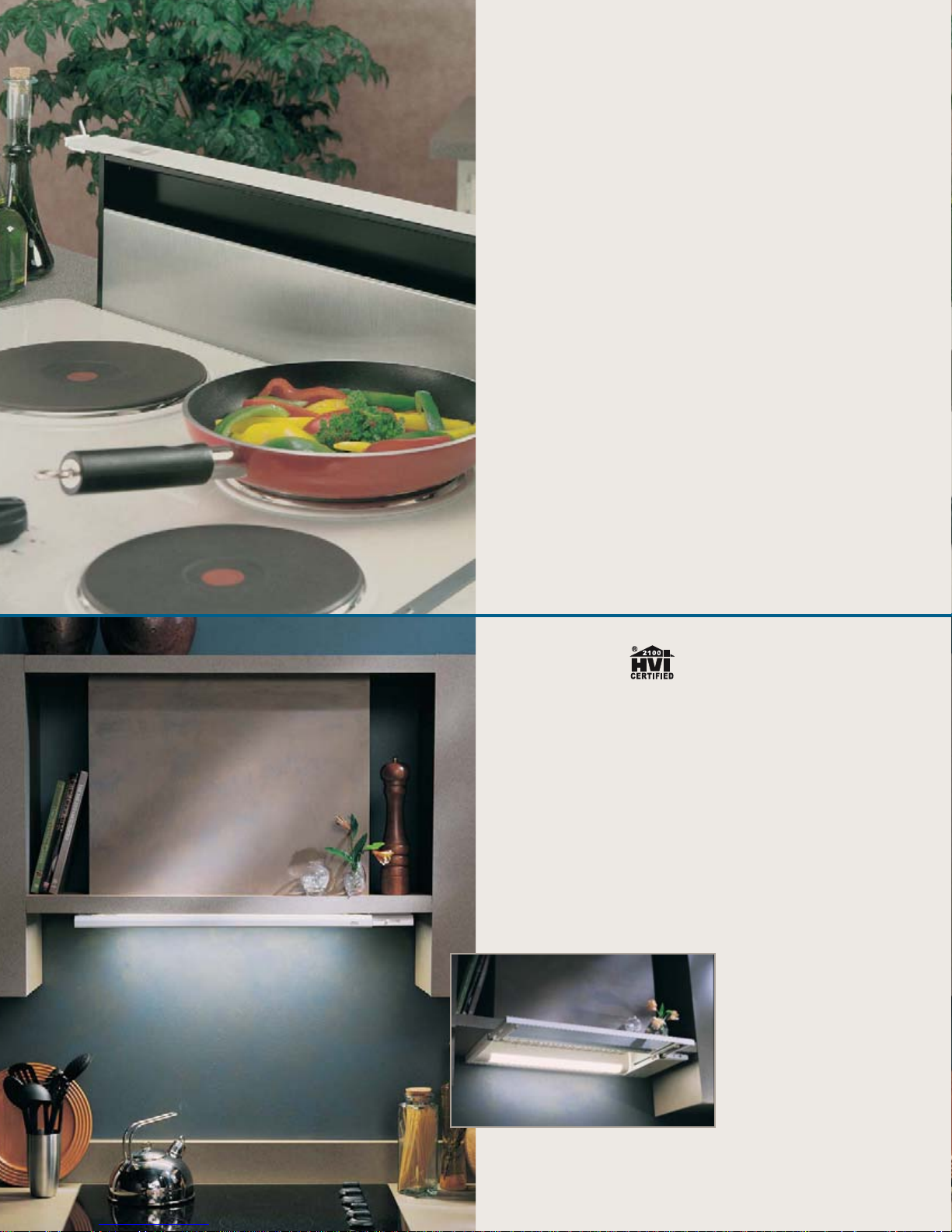

RMDD/RMDDEX: Down Draft System
Designed to be compatible with most conventional and commercial
cooktops, combining a sensational look with high performance features.
Stainless steel construction on exposed surfaces provides a durable finish
and unforgettable style.
Quiet variable-speed operation, high-efficiency interior and exterior
blower options
RMDD model has an integrated 500 CFM interior blower, HVI 2100 certified
RMDDEX model can be combined with all our exterior blowers
(see page 34), for exhaust option up to 1500 CFM
Dishwasher-safe filters are easy to remove
Heat Sentry adjusts blower to high in the case of excess heat
Optional remote control will activate system from an alternate location
Unique ducting capability allows the internal or remote blower
connection to be ducted to the left, right or downward
Available widths: 30" (76.2 CM), 36" (91.5 CM), and 48" (121.9 CM)

| 10 |
120 3.1 370 6" RD (V)
SPECIFICATIONS
Volts Amps CFM Duct
RM52000
30" RM523004
36" RM523604
42" RM524204
Stainless
Steel
Width
Width Stainless Steel
Interior Stainless Steel
Exterior
Interior 120 4.0 500 3-1/4" x 10"
Exterior 120 6.0 600, 900, 1200, 1500 3-1/4" x 14"
SPECIFICATIONS – Exterior Blowers Sold Separately
RMDD: DOWN DRAFT SYSTEM
30" RMDD3004 RMDD3004EX
36" RMDD3604 RMDD3604EX
48" RMDD4804 RMDD4804EX
Volts Max
Amps CFM
(For exterior see page 34) Duct
Model
RM53000
30" RM533004
36" RM533604
42" RM534204
Stainless
Steel
Width
Interior 120 3.1 370 6" RD (V)
Exterior 120 3.1 370 6" RD (V)
SPECIFICATIONS – Exterior Blowers Sold Separately
Volts Max
Amps CFM
(For exterior see page 34) Duct
Model

| 11 |

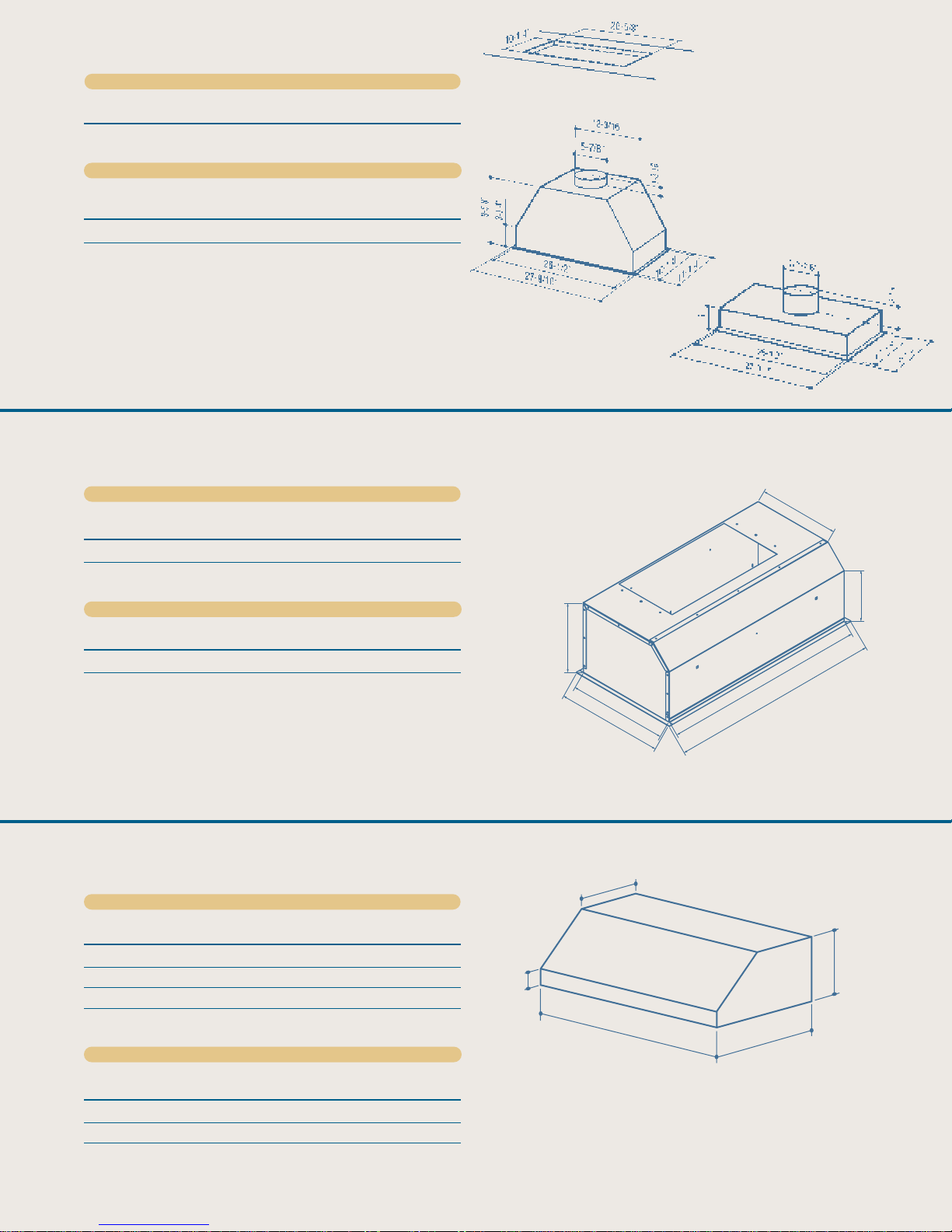

Custom Power Pack RMP1/RMPE
The Rangemaster Custom Power Pack is designed to fit flush with the
bottom of a cabinet or custom hood that’s 30 to 48" wide.
The RMP1 has an integrated 400 CFM centrifugal blower, HVI 2100 certified
The RMPE model is designed to work with all our exterior blowers
(see page 34), providing four exhaust options up to 1500 CFM
(sold separately)
Multi-speed control to provide quiet and effective performance
Two 20-watt halogen lamps provided
Dishwasher-safe aluminum filters feature a quick-release latch
Optional non-ducted filters (FILTEREB40) for indoor exhaust recirculation,
some ductwork required
Available widths: 27-1/2" (70 CM)
in stainless steel finish
Optional custom hood liners in
30", 36" and 48" widths (see page 13)
64000
The Rangemaster Encore offers the professional look and performance
you want in the size to fit beneath just about any kitchen cabinet. Built of
durable, heavy-gauge steel construction, the Encore can be combined with
one of six ducted blower options; 500 or 850 CFM internal (see page 13)
or 600, 900, 1200, 1500 CFM, external (see page 34).
Two or three bright, 50-watt halogen lamps for multi-level cooktop
lighting (lamps not included)
Two 175-watt infrared food warming lamps keep side dishes warm
(lamps not included)
Available in your choice of colors
Optional backsplash with fold-down wire shelves
Optional stainless steel baffle filters
Exclusive Heat SentryTM automatically turns blower to high speed when
high heat is detected
Infinite-speed control with blower memory “remembers” last setting used
Available widths: 30" (76.2 CM), 36" (91.5 CM), 42" (106.7 CM),
48" (121.9 CM)
RMIP shown with optional custom hood liner and baffle filters
RMIPWC Wall-Mounted Remote Control
Remote wall control provides both variable-speed and
lighting control from a more convenient location.
Available for use with the RMIP Pro-Style Power Pack
only. (6-3/8" w x 4-1/2" h x 2-7/16" d)
Custom Pro-Style Power Pack RMIP
The RMIP is equipped with a centrifugal blower, which has a multi-speed
control to deliver from 500 to 1500 CFM. Unit is designed to fit flush with
the bottom of the cabinet or custom hood. See optional liners on page 13
to help protect custom hoods.
HVI certified blower performance for confidence in specification
Optional remote wall control available (See below)
Bright halogen lighting, two 50-watt lamps, bulbs not included
Dishwasher-safe stainless steel/aluminum filters, or optional baffle filters
Available widths: 33" and 45"
64000 shown with optional backsplash

| 12 |
Interior 120 3.1 400 6" RD (V)
Exterior 120 0.5 600, 900, 1200, 1500 8" RD (V)
SPECIFICATIONS – Exterior Blowers Sold Separately
Volts Amps CFM
(For exterior see page 34) Duct
27-1/2" RMP17004 RMPE7004
Width Stainless Steel
Interior
CUSTOM POWER PACK RMP1/RMPE
Model
Stainless Steel
Exterior
RMP1
RMPE
Cutout
32
3/8"
(RMIP33), 44
3/8"
(RMIP45)
11
1/2"
8"
16
"
18
7/16"
12
5/8"
33
3/4"
(RMIP33), 45
3/4"
(RMIP45)
Width
32-3/8", 33-3/4" RMIP33
44-3/8", 45-3/4" RMIP45
CUSTOM PRO-STYLE POWER PACK
Stainless
Steel
Interior 460V (P5), 850V (P8) 430 Brushed Stainless Steel
Exterior 600, 900, 1200, 1500 430 Brushed Stainless Steel
SPECIFICATIONS – All Blowers Sold Separately
Model(s) CFM
32
3/8"
(RMIP33), 44
3/8"
(RMIP45)
11
1/2"
8"
16
"
18
7/16"
12
5/8"
33
3/4"
(RMIP33), 45
3/4"
(RMIP45)
FINISH
30" 36" 42" 48"
12"
10"
2-1/2"
21"
Width
30" 643004 643001 643002 643023 Qty - 2 Qty - 2
36" 643604 643601 643602 643623 Qty - 2 Qty - 2
42" 644204 644201 644202 644223 Qty - 3 Qty - 2
48" 644804 644801 644802 644823 Qty - 3 Qty - 2
RANGEMASTER ENCORE 64000 – SHELL
Halogen* Heat**
Stainless
Steel White Black
30" 120 3.8 P5, 331H, 332H, 335, 336
36" 120 3.8 P5, P8, 331H, 332H, 335, 336
42" & 48" 120 4.2 P5, P8, 331H, 332H, 335, 336
SPECIFICATIONS – All Blowers Sold Separately
Volts
Model(s) Amps ++ Blower Systems (see pages 13 and 34)
Biscuit
*Halogen lights are 50 watt PAR 20 (not included).
** Heat lamps are 175 watt infrared PAR 38 (not included).
When using infrared heat lamps the optional backsplash
is recommended.
++ Hood amps without blower. For total system
amps combine hood and blower amps.

| 13 |

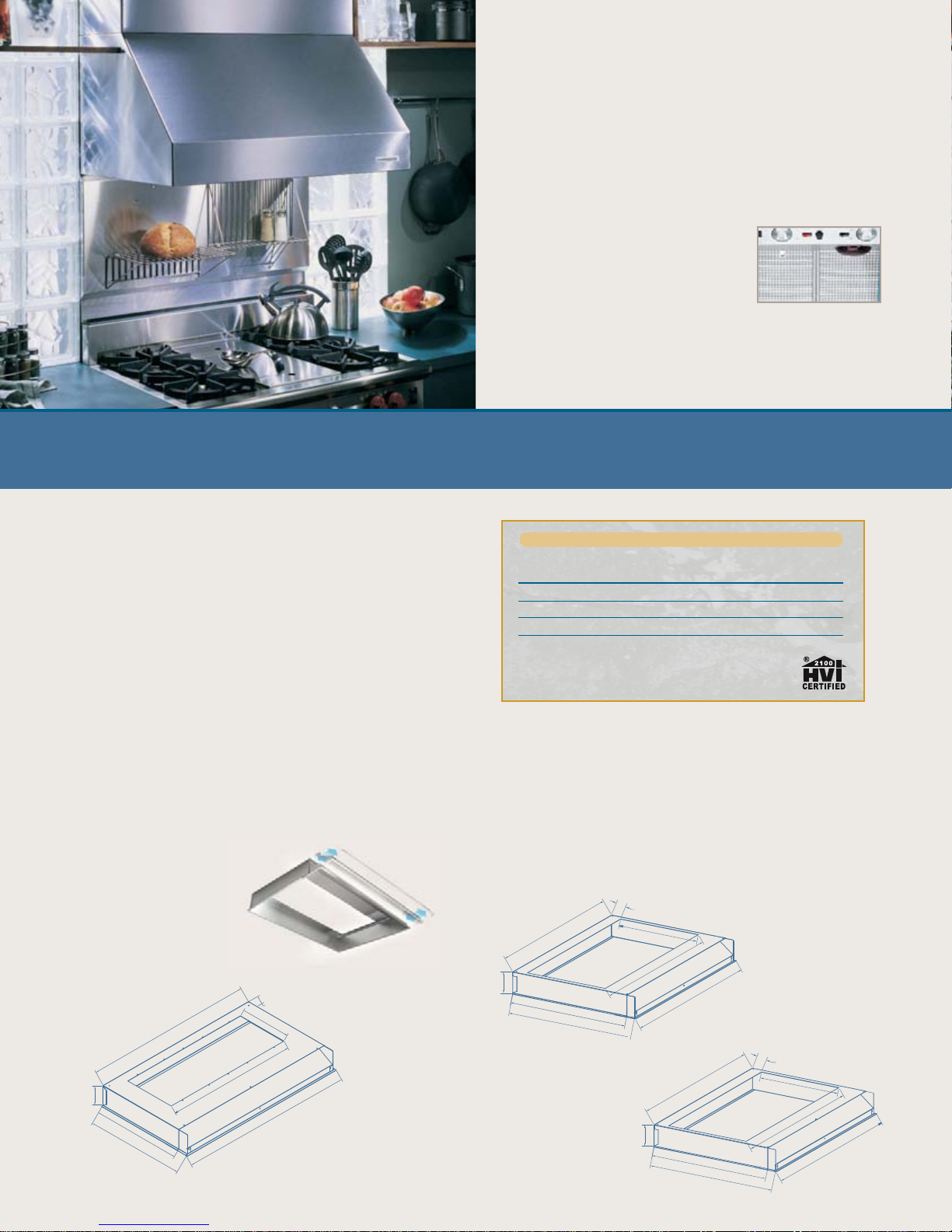

RM60000
It is the classic choice, with options to spare. The Rangemaster Original features
durable, heavy-gauge, double-wall steel construction and an easy-to-clean interior
with no sharp edges. Select from six ducted blower options; 600, 1200 CFM
internal (see page 13) or 600, 900, 1200, 1500 CFM external (see page 34).
Three, 50-watt halogen lights for multi-level cooktop lighting
(lamps not included)
Two, 250-watt infrared food warming lamps keep side dishes warm
while you finish preparing others (lamps not included)
Available in your choice of colors
Optional backsplash with fold-down
wire shelves
Optional stainless steel baffle filters
Exclusive Heat Sentry™ automatically
turns blower to high speed when
high heat is detected
Infinite-speed control with blower
memory “remembers” last setting used
Available widths: 30" (76.2 CM), 36" (91.5 CM), 48" (121.9 CM)
RM60000 shown with optional soffit chimney and backsplash
RM60000 Standard Filters
Custom Hood Liners RMIP
Designed to work with the Rangemaster Pro-Insert, the liners feature a 3" adjustable
nose to provide application flexibility, and 4" depth for excellent capture.
Brushed stainless steel finish
Available for 36", 42", 48" and 60" widths
Liners allow depth adjustment from 22-1/2" to 25-1/2"
Restaurant-quality stainless steel backsplash with fold-down shelves designed
for use with RM60000 and 64000 infrared food-warming system completes
the professional look and provides easy cleaning.
Select horizontal or vertical exhausting
Optional baffle filters on RM60000 and 64000
Optional matching soffit chimney extends the streamline look up to a 8 foot
ceiling on the RM60000
FOR EXTERIOR BLOWERS, REFER TO PAGE 34.
INTERIOR BLOWER SELECTION TABLE & SPECIFICATION
RM325H RM60000 Interior 600 Y 120 3.3 7" Round V
RM326H RM60000 Interior 1200 Y 120 5.0 4-1/2" x 18-1/2"** V
P5 64000 Interior 500 Y 120 1.8 3-1/4" x 10" V(H)
P8* 64000 Interior 850 Y 120 3.4 3-1/4" x 10" V(H)
* Not available on 30" models
**Transitions to 10" round available.
Blower
Model Hood
Model Mounting CFM HVI Volts Duct Size Duct
Direction
Amps
28
3/8"
,
34
3/8"
,
44
3/8"
2"
26
11/16"
29
7/32"
(R
ML7030S, RML7030L)
35
7/32"
(R
ML7036S, RML7036L)
47
7/32"
(R
ML7048S, RML7048L)
4"
17
1/2"
,20
1/2"
max 20
1/2"
,23
1/2"
10
5/16"
Quality Rangemaster Options Let You
Create the Look You Want and the
Function You Need.
Options
max 26
1/2"
4
"
23
1/2"
34
3/8"
,
40
3/8"
2
1/4"
16
3/8"
35
3/32"
(RML3336S), 41
3/32"
(RML3342S)
32
1/2"
46
3/8"
,
58
3/8"
44
1/2"
2
1/4"
Max 26
1/2"
23
1/2"
4
"
16
3/8"
47
3/32"
(RML4548S), 59
3/32"
(RML4560S)
For use with RMIP33
For use with RMIP45
Custom Hood Liners RMP1/RMPE
Rangemaster liners provide a beautiful way to finish your custom hood and protect
your cabinetry. Designed to work with the Rangemaster RMP1/RMPE Power Packs,
the liners feature a 3" adjustable nose to provide application flexibility, and 4" depth
for excellent capture.
Brushed stainless steel finish
Available for 30", 36" and 48" widths
Two versions for maximum flexibility
in depth adjustment:
“S” version adjusts 17-1/2" to 20-1/2"
“L” version adjusts 20-1/2" to 23-1/2"

| 14 |
OPTIONS SELECTION TABLE
30" RMP3004* RMN3004 RMN3001 RMN3023 RBF30 RBF6030
36" RMP3604* RMN3604 RMN3601 RMN3623 RBF36 RBF6036
42" RMP4204* RMN4204 RMN4201 RMN4223 RBF42 RBF6042
48" RMP4804* RMN4804 RMN4801 RMN4823 RBF48 RBF6048
54" RMP5404 RMN5404 + + + RBF6054
60" RMP6004 RMN6004 + + + RBF6060
66" RMP6604 RMN6604 + + + RBF6066
72" RMP7204 RMN7204 + + + RBF6072
* Will work with 64000 Series
+ Available as special order
Backsplash – RMP Series
Soffit Chimney – RMN Series
BACKSPLASH
Width
Stainless
Steel Stainless
Steel White Black 64000
SOFFIT CHIMNEY
RM60000
Series Only
BAFFLE FILTERS
Stainless Steel
RM60000
Width White Black
30" RM603004 RM603001 RM603023 Qty - 3 Qty - 2
36" RM603604 RM603601 RM603623 Qty - 3 Qty - 2
42" RM604204 RM604201 RM604223 Qty - 3 Qty - 2
48" RM604804 RM604801 RM604823 Qty - 3 Qty - 2
54" RM605404 ++Qty - 3 Qty - 2
60" RM606004 ++Qty - 3 Qty - 2
66" RM606604 ++Qty - 3 Qty - 2
72" RM607204 ++Qty - 3 Qty - 2
RANGEMASTER ORIGINAL RM60000 – SHELL
Halogen* Heat**
Stainless
Steel
120 5.4 RM325H, RM326H, 331H, 332H, 335, 336
SPECIFICATIONS – All Blowers Sold Separately
Volts Amps++ Blower Systems (see pages 13 and 34)
+Available as special order.
*Halogen lights are 50 watt PAR 20 (not included).
** Heat lamps are 250 watt infrared BR40 (not included). When using infrared heat
lamps the optional backsplash is recommended.
++ Hood amps without blower. For total system amps combine hood and blower amps.
Infrared Warming Lamp
Keep prepared food warm while the rest of the meal is finishing with
the handy infrared warming lamp and optional wire warming racks.
Baffle Filters
Complete the professional look with the baffle filter option.
Backsplash
Stainless steel backsplash makes for easy cleaning.

| 15 |

The
Perfect Match...
Range Hoods that
Blend Right In.
Sometimes the best way to fit in is to not be seen. When you want
a range hood that performs, but doesn’t draw attention, the NuTone
Specialty Range Hoods offer the perfect option. Downdraft styles
or range hoods that tuck away under the cabinet allow you to
bring them out when you are cooking and hide them away when
you’re done.
For a sleek, clean look and the power of a professional, the NuTone
specialty range hoods clean up.
| 16 |

| 17 |
Eclipse®27000 and 28000
When updraft venting is impractical or a range hood detracts from
the styling of your kitchen, the Eclipse downdraft system offers a sleek,
trim-line style. It is ideal for cooking surfaces on islands or peninsulas.
This space-saving design saves you valuable undercounter space. The
Eclipse is compatible with virtually all cooktops and the flexibility of
the blower discharge allows you to duct to the right, left, down or
side-to-side to avoid floor joists. Access panel allows for easy cleaning.
Choose powerful, quiet 500 CFM internal blower or 900 CFM external
blower (model 332H, see page 34)
Top cover available in your choice of finishes: stainless steel, white,
biscuit or black
Fits all standard kitchen cabinets
Available widths: 30" (76.2 CM), 36" (91.5 CM)
Silhouette®
The Silhouette hood fits under kitchen cabinets and slides conveniently
out of sight when not in use. The compact, trim-line styling maximizes
kitchen cabinet space and dramatic glass visor slides out to turn on blower.
Ideal for today’s contemporary-styled kitchens.
Provides powerful ventilation performance of 300 CFM with the
ultra-quiet performance of 4.5 Sones, HVI certified
Infinite speed blower control
Exclusive Heat Sentry™ system automatically turns blower to
high speed when excess heat is detected
Includes 3-1/4" x 10" adapter with built-in damper
Available in your choice of finishes: white, black, biscuit or stainless steel
Fits all standard kitchen cabinets
Available widths:30" (76.2 CM), 36" (91.5 CM)

| 18 |
To Fit Nominal
Cooktop Size** Description
30" 273003 Interior Blower Unit Stainless Steel
36" 273603 Interior Blower Unit Stainless Steel
30" 283003 Exterior Blower Unit * Stainless Steel
36" 283603 Exterior Blower Unit * Stainless Steel
30" 273001C Optional Cover White
36" 273601C Optional Cover White
30" 273002C Optional Cover Biscuit
36" 273602C Optional Cover Biscuit
30" 273023C Optional Cover Black
36" 273623C Optional Cover Black
*
Exterior unit utilizes Model 332H Exterior-Mounted Blower, sold separately.
** Cooktops, countertops and cabinets vary in dimension and support systems depending upon manufacturer.
These factors may impact the Eclipse’s ability to fit with every worktop/cabinet combination.
Specifications subject to change without notice.
ECLIPSE®27000 AND 28000
Cover Color
Model
30" 153001 153002 153023 153004
36" 153601 153602 153623 153604
SILHOUETTE®
Black
Model 27000
With 500 CFM interior blower
Model 28000
Use with 900 CFM exterior blower (Model 332H)
27000 120 4.0 500 3-1/4" x 10"
28000+120 6.0 900 3-1/4" x 10"
+The 28000 requires transition from 3/4" x 10" to 10" round before connection to the exterior blower.
Exterior unit utilizes Model 332H Exterior-Mounted Blower, sold separately.
SPECIFICATIONS
Model(s) Amps CFM Duct
120 3.7 4.5 300 3-1/4" x 10" (V)
SPECIFICATIONS
Volts Amps CFM Duct
Sones
Volts
Width White Biscuit Stainless Steel

| 19 |
When your taste requires a custom approach, NuTone’s line of
Custom Hood Modules is the Ultimate Ventilating Solution to fit
any custom range hood design. High performance integrated
modules that provide the ventilation and lighting you need to
finish off the practical side of your custom creation.
