nux duotime NDD-6 User manual

Verdugo Series
Owner's Manual
使用手册
103mm
107mm
双延迟运算引擎
NDD-6

Copyright
Copyright 2020 Cherub Technology Co. All rights reserved. NUX and Duotime are trademarks of Cherub Technology Co. Other product
names modeled in this product are trademarks of their respective companies that do not endorse and are not associated or affiliated
with Cherub Technology Co.
Accuracy
Whilst every effort has been made to ensure the accuracy and content of this manual, Cherub Technology Co. makes no representations
or warranties regarding the contents.
WARNING!-IMPORTANT SAFETY INSTRUCTIONS
BEFORE CONNECTING, READ INSTRUCTIONS
WARNING: To reduce the risk of fire or electric shock, do not expose
this appliance to rain or moisture.
CAUTION: To reduce the risk of fire or electric shock, do not remove
screws. No user-serviceable parts inside. Refer servicing to qualified
service personnel.
CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of FCC
Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
The lightning symbol within a triangle means "electrical
caution!" It indicates the presence of information about
operating voltage and potential risks of electrical shock.
The exclamation point within a triangle means "caution!"
Please read the information next to all caution signs.
Follow all instructions and heed all warnings
KEEP THESE INSTRUCTIONS!
1. Use only the supplied power supply or power cord. If you are not sure of the type of power available, consult your dealer.
2. Do not place near heat sources, such as radiators, heat registers, or appliances which produce heat.
3. Guard against objects or liquids entering the enclosure.
4. Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other
risks. Refer all servicing to qualified service personnel.
5. Servicing is required when the apparatus has been damaged in any way, such as when the power supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally or has been dropped.
6. The power supply cord should be unplugged when the unit is to be unused for long periods of time.
7. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and at the point where they exit
from the apparatus.
8. Prolonged listening at high volume levels may cause irreparable hearing loss and/or damage. Always be sure to practice "safe
listening".

Verb. Delay (80ms~1000ms) is the way to make your delay sound 3 dimensional. Similar to our
Atlantic Delay & Reverb, we added Shimmer into the Plate reverb algorithm. It became the iconic
sound of our NUX reverb. Inspired by Kit Tang, the famous Hong Kong studio guitarist,
Jamtrackcentral® artist, a master of different reverb parallels with different frequency bands to add
to his effect yielding an authentic 3 dimensional sound, we combined parallel digital delay, plate
reverb, and various filter shimmers to offer you an unmatched sacred atmosphere to explore.
*All the brand and model names mentioned are Trademarks of their respective owners, which are in no way
associated or affiliated with NUX and Cherub Technology CO. LTD.
*Using Tap Tempo, the longest delay time can reach 1800ms with all delay styles.
Duotime is a real stereo delay pedal with independent time / sub-division & repeat knobs. In the
80's, all of the professional musicians used rack-mount effects to run stereo delay. It was the
golden era of legendary engineering like Lexicon Delta, TC 2290, Eventide H3000, and more. When
we talked to “working musicians” we found that they were looking for a great stereo delay with a
compact size and ultra-simple controls. So we discussed the absolute essential requirements and
developed the duotime Dual Delay Engine. It's ultra-musical, and easy to operate. So, let's dive-in
and experience the most versatile delay pedal ever:
Duotime offers analog delay, tape echo, digital delay, modulation delay, and verb delay.
Analog Delay (40ms~402ms) is based on the bucket-brigade device (BBD), discrete-time analog
delay. The PARAMETER tweaks your modulation depth. When LEVEL and REPEAT are at maximum,
turn down the TIME knob to zero, and experience the natural infinite feedback of the old school BBD
delay.
Tape Echo (55ms~552ms) is based on RE-201 Tape Echo algorithm with NUX Core Image
Technology. Use the PARAMETER to tweak the saturation, and feel the distorted sound decay. Just
like the real tape echo machine, when you adjust LEVEL and REPEAT to maximum, try adjusting the
TIME knob down to zero, and you will have infinite feedback and pitch shift flange.
Digi Delay (80ms~1000ms) is based on the modern digital delay algorithm with magic
compression and filter. After reviewing decades of delay algorithm evolution, we noticed musicians
were not satisfied with the mathematical digital delay sound. So we added a bit of non-digital
flavour—inspired by Strymon® and Neunaber® making the sound much more musical.
PARAMETER controls the hardness of the repeat signals, so you can feel the unique compressed
filter.
Mod. Delay (20ms~1499ms) is based on the Ibanez DML algorithm; a weird and wonderful
modulation delay. It was released in the 80's with experimental nature. We selected the most
wonderful aspects highlighting the musical time sync modulation rate, offering a simple, seamless
romantic tone.
OverviewOverview
Features
Up to 1800ms stereo delay time by Tap Tempo
5 Delay types: Analog Delay / Tape Echo / Digi Delay / Mod Delay / Verb Delay
True stereo delay engine with independent controls in a compact size
Realistic infinite pitch-shift feedback in Analog and Tape modes
Sub-division time signature with Tap Tempo foot switch
40 seconds stereo phrase loop with OLED status display
Optional delay time display (MS/BPM)
Musical time sync modulation rate in Analog and Modulation delay
Pioneer 3 dimensional feeling Verb. delay

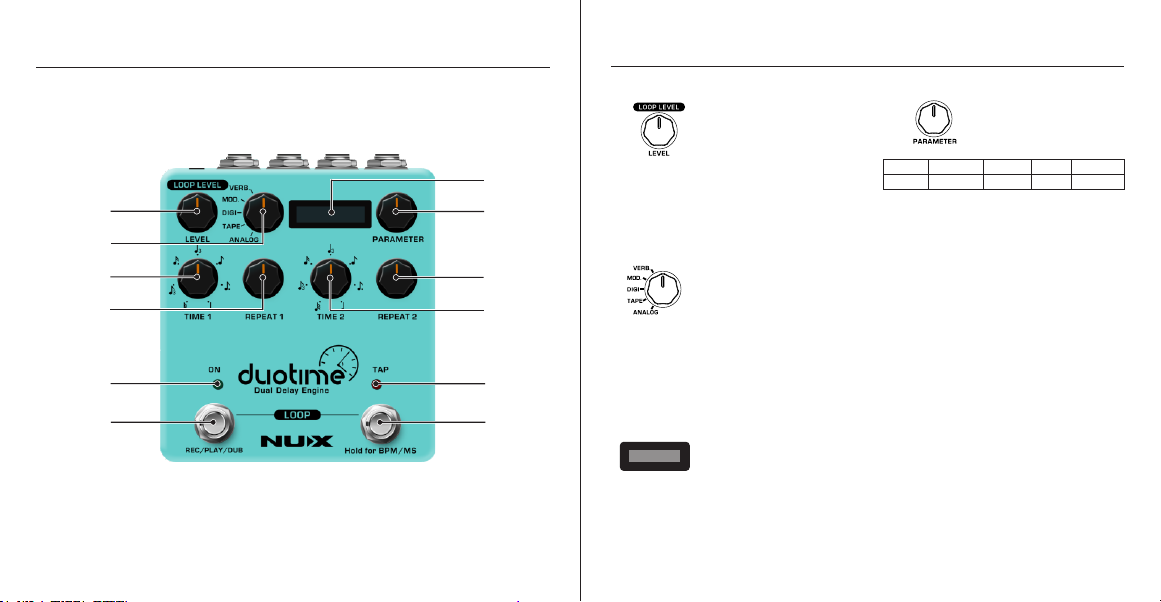

LEVEL knob
REPEAT 2 knob
PARAMETER
knob
TIME 2 knob
TAP LED
indicator
TAP footswitch
TIME 1 knob
ON LED
indicator
ON footswitch
DELAY TYPE
knob
REPEAT 1 knob

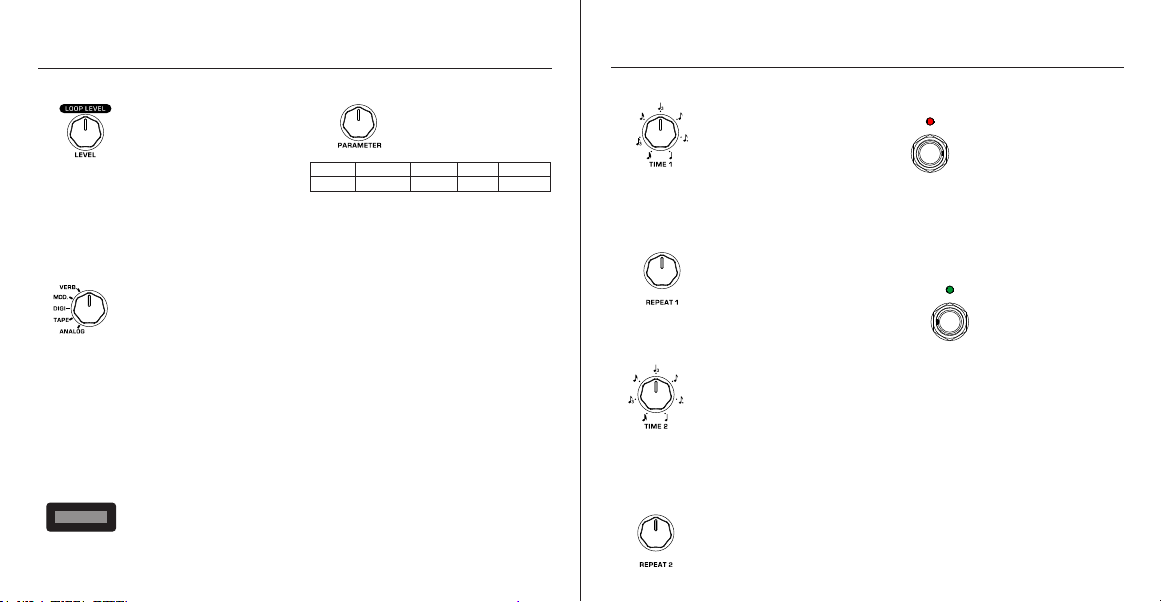

OLED display Controls the delay mix level. When using
LOOP mode, it controls phrase loop volume.
PARAMETER knob
DELAY TYPE knob
This is a 5-way rotary switch. You can choose
the delay type as ANALOG, TAPE, DIGI, MOD.,
or VERB.
ANALOG
M.DEPTH
TAPE
SATURATION
DIGI
HARDNESS
MOD D
M.DEPTH
VERB D
VERB LEVEL
Control PanelControl Panel
LEVEL knob
For Analog Delay, PARAMETER controls
Modulation Depth. Increase to get wider
modulated sound.
For Tape Echo, PARAMETER controls signal
Saturation. Increase to get more saturated and
distorted sound.
For Digi Delay, PARAMETER controls signal
Hardness. Increase to get a more compressed
and brighter sound.
For Mod Delay, PARAMETER controls
Modulation Depth. Increase to get a wider
modulated sound.
For Verb Delay, PARAMETER controls Reverb
and Shimmer Mix Level. Increase to get more
depth and a 3 dimensional feeling.
OLED display
Shows current delay type, and delay time in
MS/BPM.

Control PanelControl Panel
REPEAT 2 knob
Controls delay2's number of repeats.
ON footswitch
Engages the delay effect.
When u sing LOOP m ode, it con trols
REC/PLAY/DUB.
ON
RE C/P LA Y /D UB
TAP footswitch
Tap this foot switch to adjust the speed and
delay sub-division. You can set the target sub-
division by TIME 1 and TIME 2 knobs, then TAP
this foot switch to adjust the speed, the DELAY
1 and DELAY 2 will change the delay time
according to the current sub-division note
signature. Hold this foot switch for 2 seconds,
to switch current delay time between MS or
BPM.
TA P
Ho l d for B PM/M S

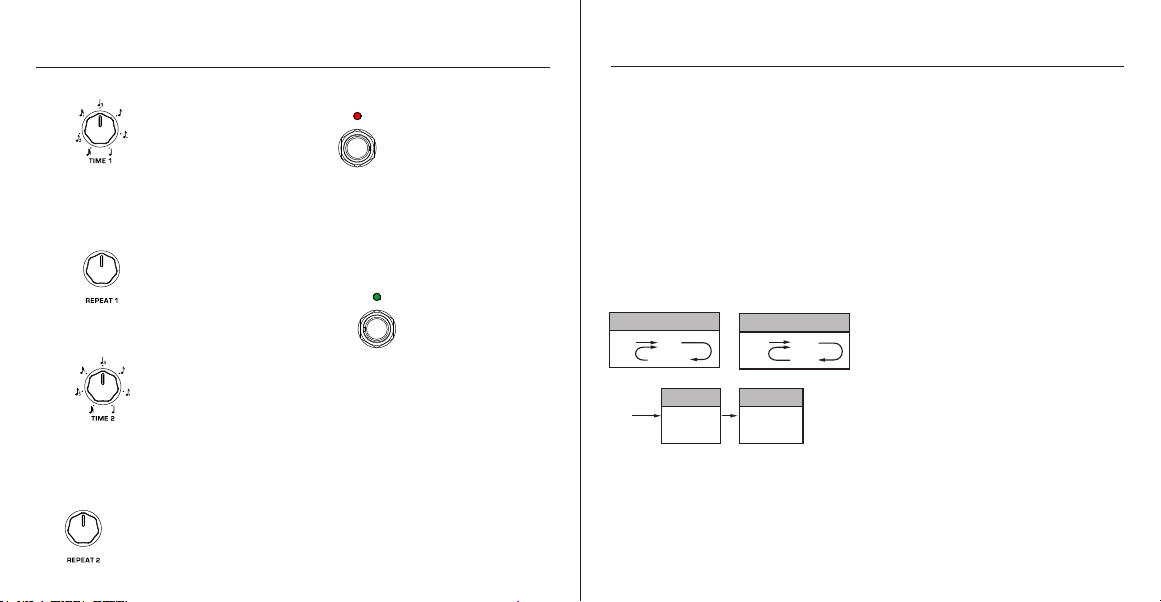

LOOP mode
Press ON and TAP foot switches simultaneously,
to enter / quit PHRASE LOOP mode. In LOOP
mode, press ON foot switch to activate
REC/PLAY/DUB and hold to UNDO/REDO as a
normal looper pedal. OLED display shows your
phrase loop status. LEVEL knob becomes LOOP
LEVEL to adjust phrase loop volume. (Pedal will
remember the current delay mix level when you
enter LOOP mode.) All other knobs work in
normal mode independently.
REC PLAY
OVERDUB
Press Once
PLAY
Hold
UNDO
REDO
PLAY STOP CLEAR
Press Twice Press & Hold
(ALL)
LOOP FOOTSWITCH
When playing phrase loop, if you quit LOOP
mode, the phrase loop will continue playing.
Now all knobs work in normal mode. OLED
display shows delay type and delay time.
LEVEL knob reverts back to the role of
controlling delay mix level. ( Pedal will
remember the current LOOP LEVEL when you
quit. )
*Duotime offers 40 seconds real stereo phrase loop.
Controls delay2's delay time. When in Tap
Tempo, it becomes a sub-division according
to current parameter.
TIME 1 knob
Controls delay1's delay time. When in Tap
Tempo, it becomes a sub-division according
to current parameter.
REPEAT 1 knob
Controls delay1's number of repeats.
TIME 2 knob

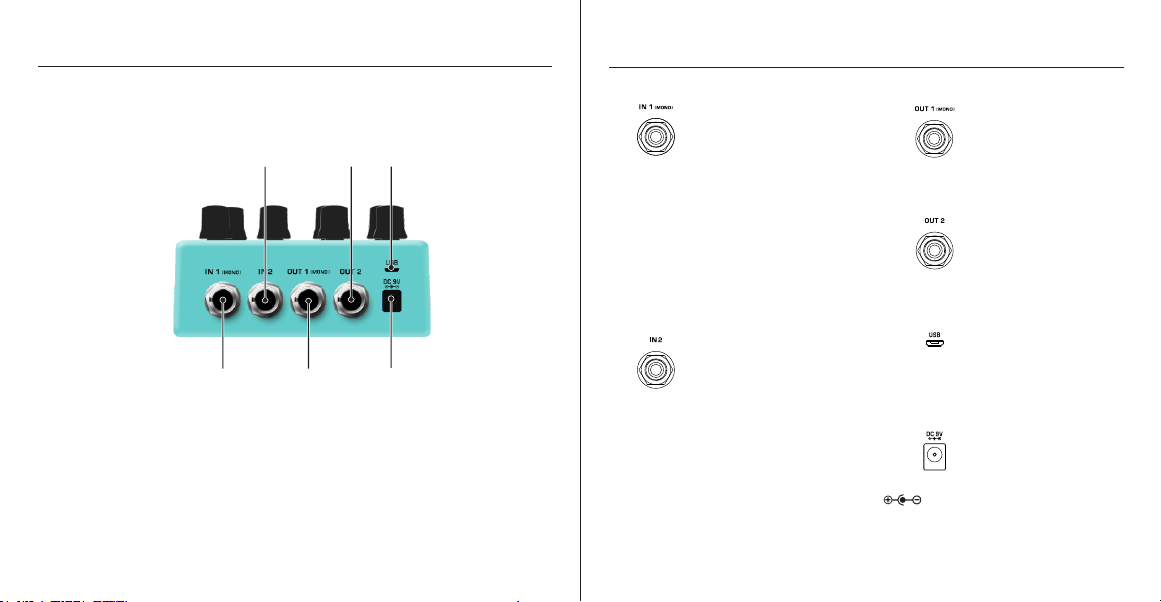

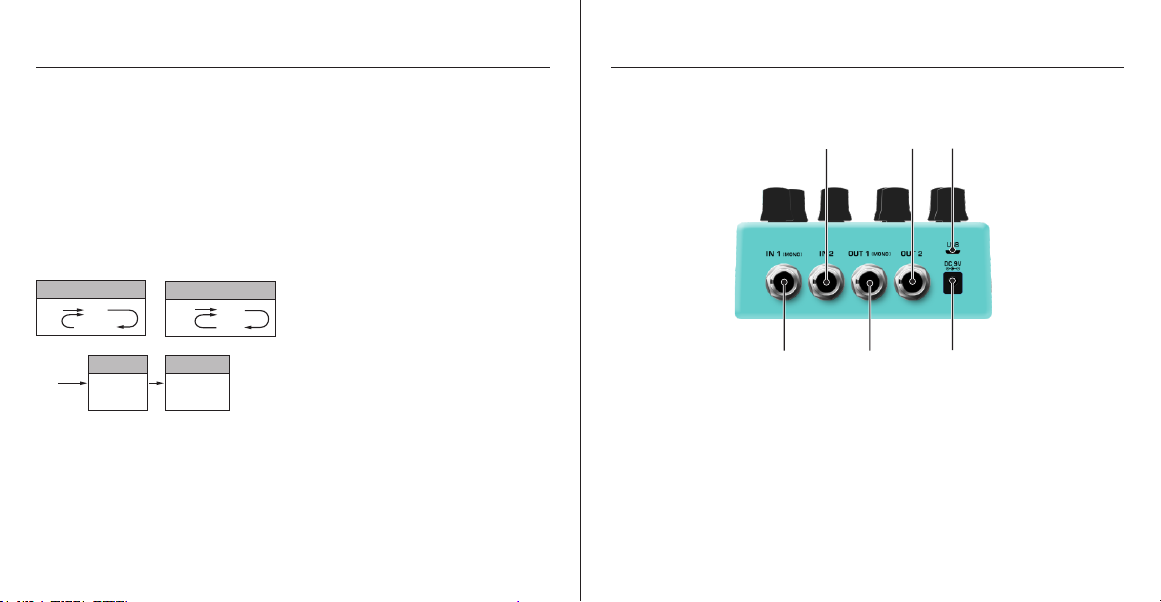

IN 1 (MONO) OUT 1 (MONO) DC jack
IN 2 OUT 2 USB port
I/O JacksI/O Jacks
IN 1 (MONO)
If you only connect with IN 1, then IN 1 signal
will run DELAY 1 related to TIME 1 and
REPEAT 1 knobs for OUT 1. Pedal will copy IN
1 signal to run DELAY 2 related to TIME 2 and
REPEAT 2 knobs for OUT 2.
If you connect with IN 1 and IN 2, then IN 1
and IN 2 will run DELAY 1 for OUT 1 and
DELAY 2 for OUT 2 separately.
IN 2
If you only connect with IN 2, then IN 2 signal
will run DELAY 2 related to TIME 2 and
REPEAT 2 knobs for OUT 2. Pedal will copy IN
2 signal to run DELAY 1 related to TIME 1 and
REPEAT 1 knobs for OUT 1.
If you connect with IN 1 and IN 2, then IN 1
and IN 2 will run DELAY 1 for OUT 1 and
DELAY 2 for OUT 2 separately.
OUT 1 (MONO)
OUT 1 signal is related to DELAY 1.
OUT 2
OUT 2 signal is related to DELAY 2.
USB port
You can update firmware through the USB
port.
DC jack
Use ONLY: 9V Negative Tip power with 300mA
.

Connection Options
1. Stereo Out, either Mono In or Stereo In
Connection Options
2. Mono Out: Dly 1 or Dly 2

Connection Options
3. Dly 1 to Dly 2 by a cable
Specifications
Sampling Rate: 48kHz
A/D Converter: 32bit
Signal Processing: 32bit
Frequency Response: 20Hz~20kHz
Input Impedance: 5MΩ
System Latency: 1ms
Output Impedance: 1kΩ
Dynamic Range: 102dBu
Power: 9V DC(Negative tip, Optional ACD-006A adapter)
Current Draw: <150mA
Dimensions: 105mm(L)X115mm(W)X58mm(H)
Weight: 440g
*Specifications and features are subject to change without notice.
Accessories: User manual
Made in China
RoHwww.nuxefx.com

Duotime是一款带独立Time/Sub-division及Repeat调节的真立体声延迟效果器。80年代所
有专业乐手都使用机架效果器来获得立体声延迟效果，那是一个属于Le x i c o n
Delta、TC2290、Eventide H3000等传奇产品的黄金年代。在与当代职业乐手们的交流过
程中，我们发现他们一直在寻找一款音色出众、操作简单、小巧便携的立体声延迟
效果器，NUX Duotime Dual Delay Engine便应运而生了。
Duotime内置了五种延迟模式：模拟延迟（ANALOG），磁带延迟（TAPE）、数字延迟
（DIGI）、调制延迟（MOD）以及混响延迟（VERB）。
模拟延迟（40毫秒～402毫秒）
基于BBD芯片的模拟延迟效果。PARAMETER旋钮控制调制深度。当LEVEL及REPEAT旋钮
置于最大位置同时将TIME旋钮归零时，您便可以体验到经典BBD自然延迟的无限反
馈。
磁带延迟（55毫秒～552毫秒）
基于NUX Core Image技术建模的Roland RE-201 Tape Echo延迟效果。使用PARAMETER旋钮
来调整饱和度，感受失真音色的衰减。当LEVEL及REPEAT旋钮置于最大位置同时将
TIME旋钮归零时，您便可以获得如同原型机一般的无限反馈及由音高变化的镶边音
色。
数字延迟（80毫秒～1000毫秒）
巧妙融合了压缩及滤波算法的现代数字延迟效果。在回顾了数十年的延迟效果算法
发展历程后，我们发现乐手们对于过于公式化的数字延迟并不满意，所以受
Strymon®和Neunaber®的启发，我们给Duotime的延迟注入了非“数字”化元素，使得
其延迟效果更具音乐性。
PARAMETER旋钮控制重复（延迟）信号的强度，转动此旋钮来感受其独特的压缩和
滤波。
请注意！ 重要安全说明。
在连接使用前，阅读以下说明。
警告: 为减少火灾或触电的危险，请勿将本产
品置于雨中或潮湿的地方。
注意: 为避免火灾或触电等危险，请勿擅自拆
卸本产品。维修本产品内部部件对于非专业
人员来说较为困难，若有损坏请交给专业维
修人员处理。
注意: 本产品已经过测试，证明符合FCC规则第15部分的B级数字设备的限制规定。操作应符合以
下两个条件：（1）本产品不会产生有害干扰。（2）本产品必须接受任何干扰，包括可能会导致
非正常操作的干扰。
1. 建议使用NUX ACD-006A电源适配器（需另购），如需搭配其它品牌电源，请务必按照产品标识的
规格搭配电源适配器。如果您不确定可用的电源类型，请咨询您的经销商。
2. 请勿放置在热源附近，如散热器、电热器，或其它产生高热量的设备。
3. 请勿让液体、灰尘及其它物体进入本产品。
4. 请勿尝试自行维修本产品。如需维修，请联系我司售后热线或交给专业的维修人员。
5. 当本产品遭遇电源线或插头损坏、不明物体进入、进水等情况时，请谨慎使用并主动联系售后维
修。
6. 如果长时间不使用本产品，应拔掉电源线。
7. 避免踩踏电源线，避免过度绷紧电源线。
8. 人耳长时间接收高音量声音可能会导致无法挽回的听力损害，请始终保持“安全聆听”。
请遵守所有的指示和注意所有警告并保留这些说明！
产品简介

调制延迟（20毫秒～1499毫秒）
基于发布于80年代的Ibanez DML——一款怪异而奇妙的调制延迟效果器开发。我们取
其精华并凸显了调制速率与延迟时间同步，从而提供一种简单无缝且浪漫的音色。
混响延迟（80毫秒～1000毫秒）
让音色三维化的一种混响延迟。类似于NUX Atlantic Delay & Reverb (亚特兰提克)，我们
在平板混响算法中加入了Shimmer效果，这也成为NUX混响的标志性特征。受香港著
名录音室吉他演奏家Kit Tang（Jamtrackcentral®艺术家）的启发，他熟练使用具有不同
频段的不同混响并行技术，以产生真实的3D声音。所以我们结合了并行数字延迟、
平板混响以及带有多种滤波的Shimmer，这将使您体验到无与伦比的声效氛围。
控制面板
LEVEL旋钮
REPEAT 2
旋钮
PARAMETER
旋钮
TIME 2旋钮
TAP LED
指示灯
TAP踩钉
TIME 1旋钮
ON LED
指示灯
ON踩钉
延迟模式
选择旋钮
REPEAT 1
旋钮
OLED显示屏
产品简介
产品特点
1800ms立体声延时(通过Tap Tempo可达最大时长)
五种延迟模式：ANALOG, TAPE, DIGI, MOD, VERB
独立Time/Sub-division及Repeat调节的真立体声延迟效果
40秒立体声录音循环功能

控制面板
控制面板
ANALOG
调制深度
TAPE DIGI MOD D VERB D
LEVEL旋钮
调节延迟效果干湿比。
LOOP模式下，调节循环乐句音量。
延迟模式选择旋钮
转动此旋钮来选择一种延迟模式，包
括：模拟延迟(A N A L O G ) ， 磁 带 延 迟
(TAP E )、数字延迟 (D I G I) 、调制 延 迟
(MOD)以及混响延迟(VERB)。
PARAMETER旋钮
不同模式下该旋钮的功能不同。
模拟延迟模式下，PARAMETER旋钮控制
调制深度。
磁带延迟模式下，PARAMETER旋钮控制
信号饱和度。调大可以获得更饱和和失
真的音色。
数字延迟模式下，PARAMETER旋钮控制
信号硬度，调大可以获得更为明亮的音
色。
调制延迟模式下，PARAMETER旋钮控制
调制的深度，调大可以获得更宽的调制
音色。
混响延迟模式下，PARAMETER旋钮控制
混响和Shimmer效果的混合比，调大可
以使音色更深邃和更具立体感。
TIME 1旋钮
ON
RE C/P LA Y /D UB
TA P
Ho l d for B PM/M S
TIME 2旋钮
控制DELAY2的延迟时间。当打点设速激
活时，此旋钮可以根据当前参数选择细
分音符拍长。
REPEAT 2旋钮
控制DELAY2的重复次数。
OLED显示屏
显示当前延迟类型和延迟时间(MS/BPM)。
ON踩钉
开启/关闭延迟效果，当LOOP模式激活
时，此踩钉可以控制录音/播放/叠加录
音。
TAP踩钉
拍点该踩钉来决定延迟速度及延迟的
对应拍点音符。您可以通过TIM E1和
TIME2旋钮设置预期的音符，然后拍点
该踩钉来定速，此时延迟1跟延迟2会
根据当前设置的音符来改变对应速
度。长按住该踩钉两秒钟可将显示屏
的 延 迟 时 长 单 位 显 示 切 换 为 M S 或
BPM。
控制DELAY1的延迟时间。当打点设速激
活时，此旋钮可以根据当前参数选择细
分音符拍长。
REPEAT 1旋钮
控制DELAY1的重复次数。
信号饱和度 信号硬度 调制深度 混合比

控制面板
LOOP模式
同时踩下ON踩钉和TAP踩钉以激活或关
闭LOOP模式。LOOP模式下可使用ON踩
钉来进行录音/播放/叠加录音操作，踩
住ON踩钉可以进行撤销/恢复最近一次
录 音 。O L E D 显示屏会显示L O O P 状
态，LEVEL旋钮可以用于调整循环乐句
回放的音量大小（机器会自动保存进入
LOOP模式前的延迟混合比）。其余旋钮
的功能与普通模式下保持一致。
在循环乐句播放的时候，如果您选择退
出LOOP模式，循环乐句会继续播放，所
有旋钮恢复正常工作模式的功能，
OLED显示屏会显示延迟类型与延迟时
间。LEVEL旋钮恢复控制延迟混合比功
能（机器会自动保存当前LOOP回放的音
量大小设置）。
*Duotime的loop最长可提供40s的录音时
间。
电源接口
IN 2
输入接口 USB接口
IN 1 输入接口
（单声道）
OUT 1 输出接口
（单声道）
OUT 2
输出接口
录音 播放
叠录
短踩一下ON踩钉
I/O接口
踩住ON踩钉
播放 撤销
恢复
播放
短踩两下
停止
（全部）
踩住踩钉
清除乐句

I/O接口
IN 1输入接口（单声道）
如果输入（单声道）信号仅接入IN1，
从IN1接口的输入信号（DELAY1）会经由
TIME1旋钮及R E P E AT 1 旋钮的控制由
OUT1接口输出，同时机器会复制从
I N 1 输入的信号（D E L AY 2 ），经由
TIME2旋钮及R E P E AT 2 旋钮的控制由
OUT2输出信号。
如果输入（立体声）信号同时接入
IN1与IN2，那么IN1与IN2会分别受控然后
分别经由OUT1及OUT2 输出。
IN 2 输入接口
如果输入信号仅接入IN2，从IN2接口的
输入信号（DELAY2）会经由TIME2旋钮
及REPE AT2 旋钮的控制由OUT 2接口输
出，同时机器会复制从IN2输入的信号
（D E L A Y 1 ） ， 经 由 T I M E 1 旋 钮 及
REPEAT1旋钮的控制由OUT1输出信号。
如果输入（立体声）信号同时接入
IN1与IN2，IN1与IN2会分别受控，然后分
别经由OUT1及OUT2 输出。
OUT 1输出接口（单声道）
OUT1输出DELAY1的信号。
OUT 2输出接口
OUT2输出DELAY2的信号。
USB接口
Micro-USB接口，可连接电脑升级机器的
固件。请至NUX官方网站获取最新固
件及更新方法。
电源接口
请使用品质可靠的内负外正9V效果器专
用电源。推荐使用NUX ACD-006A。
连接方法
1.立体声输出（单声道或立体声输入）

连接方法 连接方法
2.DELAY1或DELAY2单声道输出 3.DELAY1至DELAY2串联输出

技术规格
随机附件: 使用说明书,产品合格证。
*技术规格如有变更，恕不另行通知。
采样率：48kHz
模数转换：32bit
信号处理精度：32bit
频率响应范围：20Hz~20kHz
输入阻抗：5MΩ
系统延迟：1ms
输出阻抗：1kΩ
动态范围：102dBU
电源：9V直流（内负外正，推荐选用ACD-006A）
消耗电流：<150mA
产品尺寸：105mm(长) x 115mm(宽) x 58mm(高)
产品重量：440g
有关产品中所含有害物质的说明
本资料就本公司产品中所含的特定有害物质及其安全性予以说明。
本资料适用于2007年3月1日以后本公司所制造的产品。
10
产品中有毒有害物质或元素的名称及含量
有害有毒物质或元素
部件名称 多溴二苯醚(PBDE)
铅(Pb)汞(Hg) 镉(Cd)六价铬(Cr(VI))多溴联苯(PBB)
外壳(壳体)
电子部件(印刷电路板等)
：表示该有害有毒物质在该部件所有均质材料中的含量均在SJ/T11363-2006 标准规范的限量要求以下。
：表示该有害有毒物质至少在该部件的某一均质材料中的含量超出SJ/T11363-2006 标准规定的限量要求。
因根据现有的技术水平，还没有什么物质能够代替它。
附件(电源线、交流适配器等)
环保使用期限
此标志适用于在中国国内销售的电子信息产品，表示环保使用期限的年数。所谓环保使用期限是
指在制造日起的规定期限内，产品中所含的有害物质不致引起环境污染,不会对人身、财产造成严
重的不良影响。环保使用期限仅在遵照产品使用说明，正确使用产品的条件下才有效。不当的使
用，将会导致有害物质泄漏的危险。

亲爱的 用户，在您使用本产品时，请仔细参阅产品说明书，当您有疑问和困难时，请
拨打售后服务热线：
一、 包换政策：
1. 消费者自购机之日起1个月之内，在正常使用情况下，出现非人为的产品性能故障，且产
品外观及包装保持完好的可向所购机的经销商换机。
2. 消费者在换机时应出示由经销商开出的购机收据及保修卡，否则经销商可以不予更换。
二、 保修政策：
产品在购买之日起1年内，可免费享有维修服务；对于超过1年的产品及人为或不可抗力因
素造成损坏的产品，我司可提供有偿维修服务。
一周内出现质量问题可退货退款
一月内出现质量问题可调换
一 年 内 出 现 质 量 问 题 可 免 费 维 修
终身享有咨询和维修服务
请向销售商索取有效购买凭证并予以保存。
质量承诺
换修政策
400-990-9866
广东省珠海市高新区唐家湾镇科技九路10号
珠海市蔚科科技开发有限公司 售后服务部
邮编：519085
售后服务地址
检验员
Inspector
生产日期
Date
合 格 证
Certificate
名 称
Name
型 号
Type
本产品经检验合格
This product is inspected and approved.
执行标准: Q/WKDZ 001-2020
Product is certificated with Q/WKDZ 001-2020
NDD-6
双延迟运算引擎
