NVision Junior Racer RT Instruction manual

Junior Racer RTF
Quick start manual

catalog
Product Include........................................................................................... 1
Operate Junior Racer Whoop Drone..........................................................2
Power On/Off..................................................................................2.1
Battery...............................................................................................2.2
Charge...............................................................................................2.3
F411 12A AIO FC.......................................................................................... 3
Description..........................................................................................3.1
Wiring..................................................................................................3.2
Operate the radio........................................................................................4
Install Battery..............................................................................4.1
Power On............................................................................................ 4.2
Binding.............................................................................................. 4.3
Power Off.......................................................................................... 4.4
Charge................................................................................................ 4.5
red when charging..........................................................................4.6
NVISION VTX................................................................................................5
Description..........................................................................................5.1
Wiring..................................................................................................5.2
Junior Racer Whoop Drone include
1x Junior Racer(with Frsky XM+ Receiver)
1x Radio(support Frsky XM+)
1x fpv goggles
1x B3 Chager
1x 300mAh 3S 45C Battery
2x Lipo Battery Strap
1x Props Removal Tool
2x fpv goggles Dipole 5.8G Antennas
1x GEMFAN 1636 4-blade Propeller(4pcs)
1x Nylon Cable Tie(5pcs)
1x M1.4*6mm Screw(6pcs)

Operate Junior Racer Whoop Drone
*Power On/Off: connect the power cable of to Junior Racer 75 the battery, the power LED,
receiver LED and FC LED are on, then the FC LED flashes and the receiver LED turns off. After
using, unplug the connection, and all LED will turn off.
*Battery: connect the battery to the voltage tester to display the current voltage value of the
battery.
*Charge: connect the battery to the charger supplied with the adapter or other 5V power.
The LED will show red light when charging; the LED will show green light when finishing
charging.

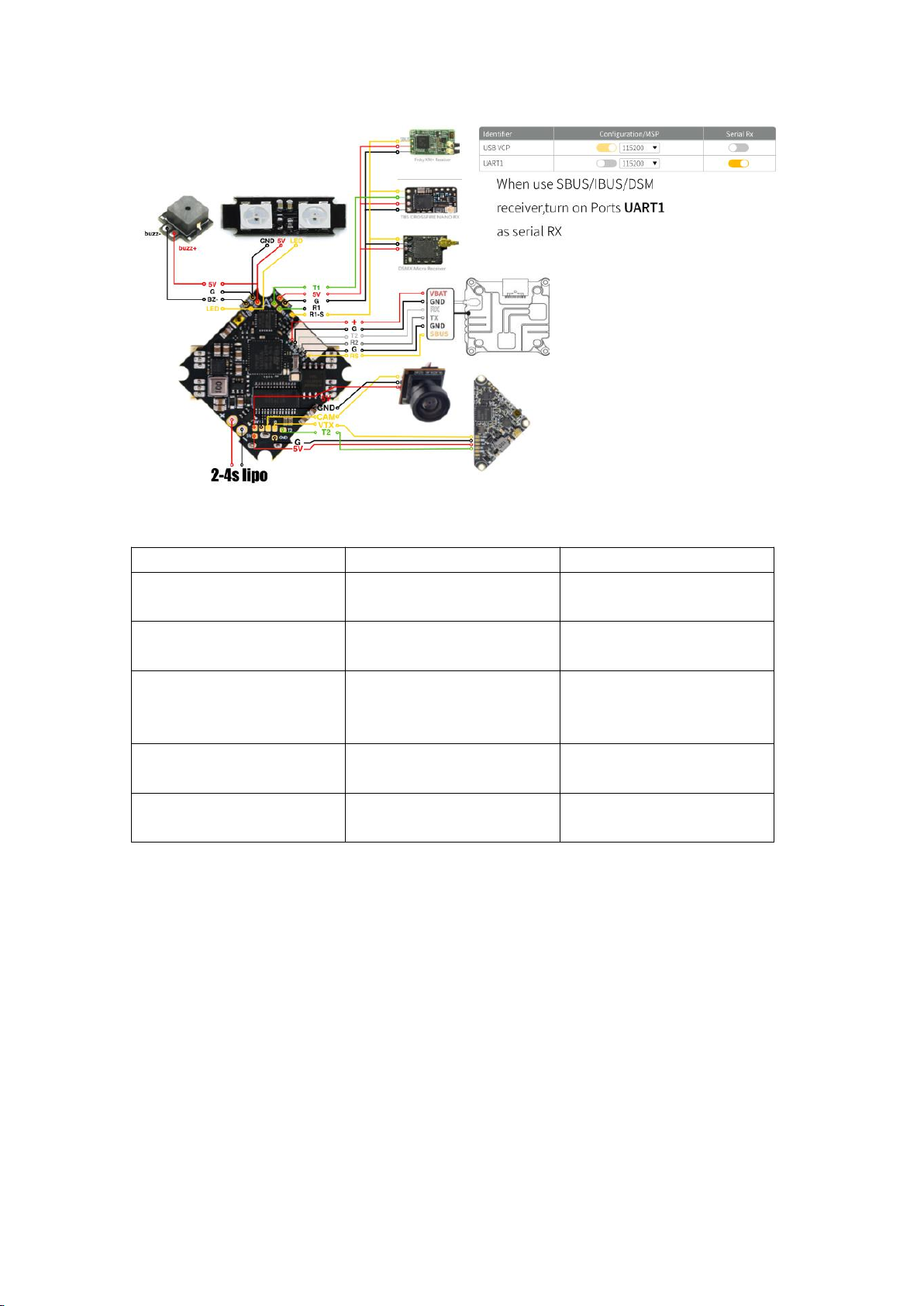

F411 12A AIO FC
FC Parameters:
CPU: STM32F411CEU6
Six axis: MPU6000 (SPI connection)
Size: 29mmx29mm
Firmware version: Betaflight TCMM-F411
RC sharing: UART1-RX
OSD: Built-in Betaflight OSD (STM32 controls the OSD chip through SPI in DMA mode)
Receiver: Support FrskyXM/XM+ receiver/Futaba receiver/Flysky receiver/TBS Crossfire
receiver
Support programmable LED such as WS2812
Built-in current sensor
Reserved buzzer interface
Reserve DJI port
Weight: 5.07g
ESC Parameters:
Support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Input voltage: 2S-4SLipo
Continuous current: 12A
Peak current: 20A
Firmware: BLHELI_S
Processor: SILABSEFM8BB21F16G
Motor connector: 1.25mm pin header connector

LED Status
Reason
solution
Power LED off
1.Insufficient battery 2.FC is
broken
1. Charge the battery 2.
Replace the FC
FC LED off and Receiver LED
solid
FC is broken
Replace the FC
FC LED flashes Bule at high
frequency
Out of control or BB ringing
mode enabled
There are many reasons,
and the reasons need to be
investigated step by step
FC LED flashes Red at high
frequency
Low battery voltage
Replacement battery
FC LED flashes Bule at Slow
flashing
normal

Operate the radio
·Install Battery: remove the back cover of the transmitter, connect the battery inside to the
power interface correctly, and install the back cover.
·Power On: Long press the power button for about 3 seconds, then pull the throttle to the
lowest position, release the button after the radio vibrates twice, and the power indicator
turns from green to blue, indicating that the radio is turned on.
·Binding: 1. First press and hold the bind of the receiver, and then power on the aircraft (the
receiver's traffic light is always on at this time)
2. After the remote control is turned on, short press the Bind button on the back of the
remote control, the power indicator will be red
The color and blue flash alternately and enter the linking state for about 10 seconds.
3. If the receiver flashes red, it means the linking is successful
4. After successful linking, the aircraft can be used again after power on
If it is unsuccessful, repeat the above actions and link again. When the throttle is hit to the
lowest level, toggle switch A to unlock, and the motor starts to rotate.
·Power Off: press and hold the power button for about 5 seconds, release the button after
the transmitter vibrates, and the power indicator light turns off, transmitter is turned off.
· Charge: the power indicator light flashes blue slowly and vibrates when the battery
approaches the low voltage limit. it need to be stopped immediately. Connect the USB cable
to the power supply, and the power LED will show
·red when charging; the power LED turns off after the charging process is done.
LED Status
Reason
Solution
Red Solid
The throttle stick or switches
are not in the lowest
Lower throttle and switches
to the lowest position. Turn to
blue then.
Green Solid
The system is loading.
Wait for the system load
completes
Blue Flash Slow
The battery reaches the low
voltage limit
Charging the batteries

NVISION A01 VTX
Description:
*Switchable power includes 0mW, 25mW and 200mW.
*This VTX includes SmartAudio function. The flight controller can use the audio cable to
communicate with the video transmitter. It allows the flight controller to know the frequency
used by the VTX and make changes.
*This VTX supports PitMode.
*Dipole whip high sensitivity antenna. It is mounted to the VTX board durable.
*Output power: 0mW, 25mW and 200mW (adjustable)
*Power supply voltage: 5V. Does not support direct connection to 1S battery
*Weight: 2.0g
*Frequency: 5.8GHz 6 frequency band 48 channels, competition frequency band:
5362~5945MHz

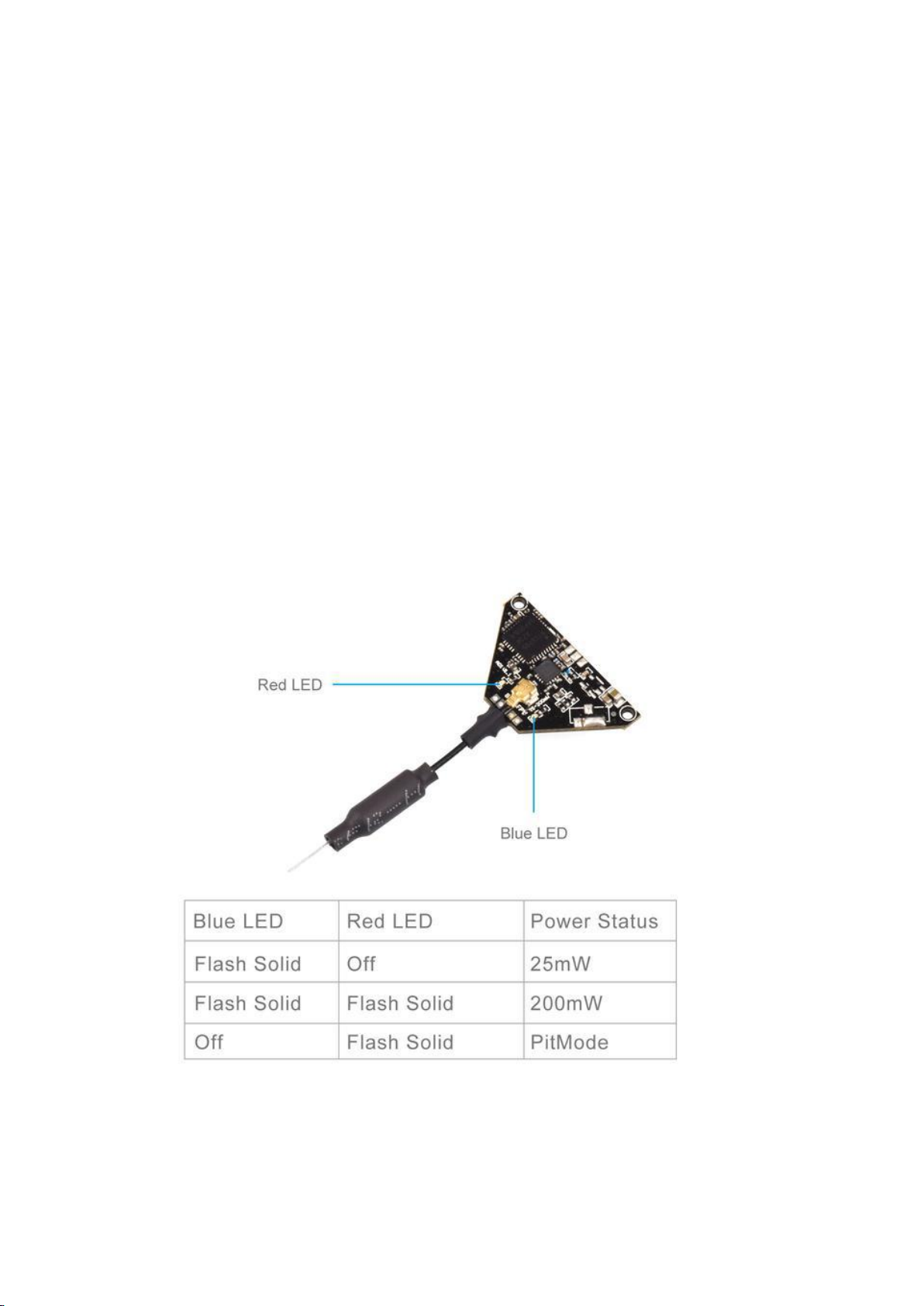

Component Layout Diagram for NVISION A01 VTX:

How to Change Frequency & Channel & Power
Only support frequency and power change through the SmartAudio interface.
Method 1: Use the OSD menu.
Enter the OSD menu by radio transmitter sticks ( Pitch Stick UP and Yaw Stick Left). Then
FEATURES -> VTX SA to change the frequency and power.

Me tho d 2: Use the Betaflight GUI comman d.
We could also use the Be taflight CLI commands to ch ange the frequency
and power of the VTX.
For example , set the frequency to 5865 and power to 200mW ( 1 for 25mW /
2 for 200mW);
set vtx _band=1
set vtx _channel=1
set vtx _freq=5865
set vtx_pow er = 2
save
How to Use the PitMod e
PitMode allows racers to power up their video transmitters during race events without
interfering with other racers and still having the ability to change VTX settings or do some
testing. Range is limited to 2-3m and transmission happens on the selected frequency.
The PitMode is active when only red LED flash solid.
How to active the PitMode: Ent er the OS D me nu by radio tra nsmit t er stic k s.
FEA TURE S -> VTX SA -> CO NFIG -> PI T FM ODE. Then sel ect the PIR sta t us.
How to exit the PitM ode : As the same abov e, se lect the OP MO DEL to FRE E
to clos e the PitM o de. Th en th e VTX wi ll re cove r to the 25mW powe r sta t us.

TRANSMISSION FREQUENCY TABLE
This A0 1 VTX could support 3 frequency table according to your local
law. The tables below is for all the frequency is valid.
USA freque ncy table bleow. The frequency in red item is invalid.
Europe frequncy table below. The frequency in red item is invalid.
