Ares Ethos qx 130 User manual



Length:8.1in(205mm)

LengthIncludingRotorBlades:12.2in(310mm)

Height:2.8in(70mm)

Propeller/MainRotorDiameter:5.7in(145mm)

WeightwithBattery:  3.1oz(90g)

MainMotor:Gearedmicrocoreless(4installed)

Battery:500mAh1S3.7VLiPo(included)

Charger:1S3.7VLiPoAC(included)

Transmitter:4‐channel2.4GHz(included)

On‐BoardElectronics:5‐in‐1receiver/4ESCs/mixer/3‐axisgyro/3‐axisaccelerometer

(installed)

ecifications

Instruction

Manual

2



Specifications............................................................................................................................................1



Notes.........................................................................................................................................................3



Introduction..............................................................................................................................................4



SafetyPrecautionsandWarnings.............................................................................................................5



FCCInformation........................................................................................................................................5



EthosQX130RTFContents......................................................................................................................6



RequiredtoComplete...............................................................................................................................6



BeforetheFirstFlightChecklist................................................................................................................7



FlightChecklist..........................................................................................................................................7



LiPoBatteryWarningsandUsageGuidelines..........................................................................................8



ChargingtheLiPoFlightBattery.............................................................................................................10



InstallingtheTransmitterBatteries........................................................................................................11



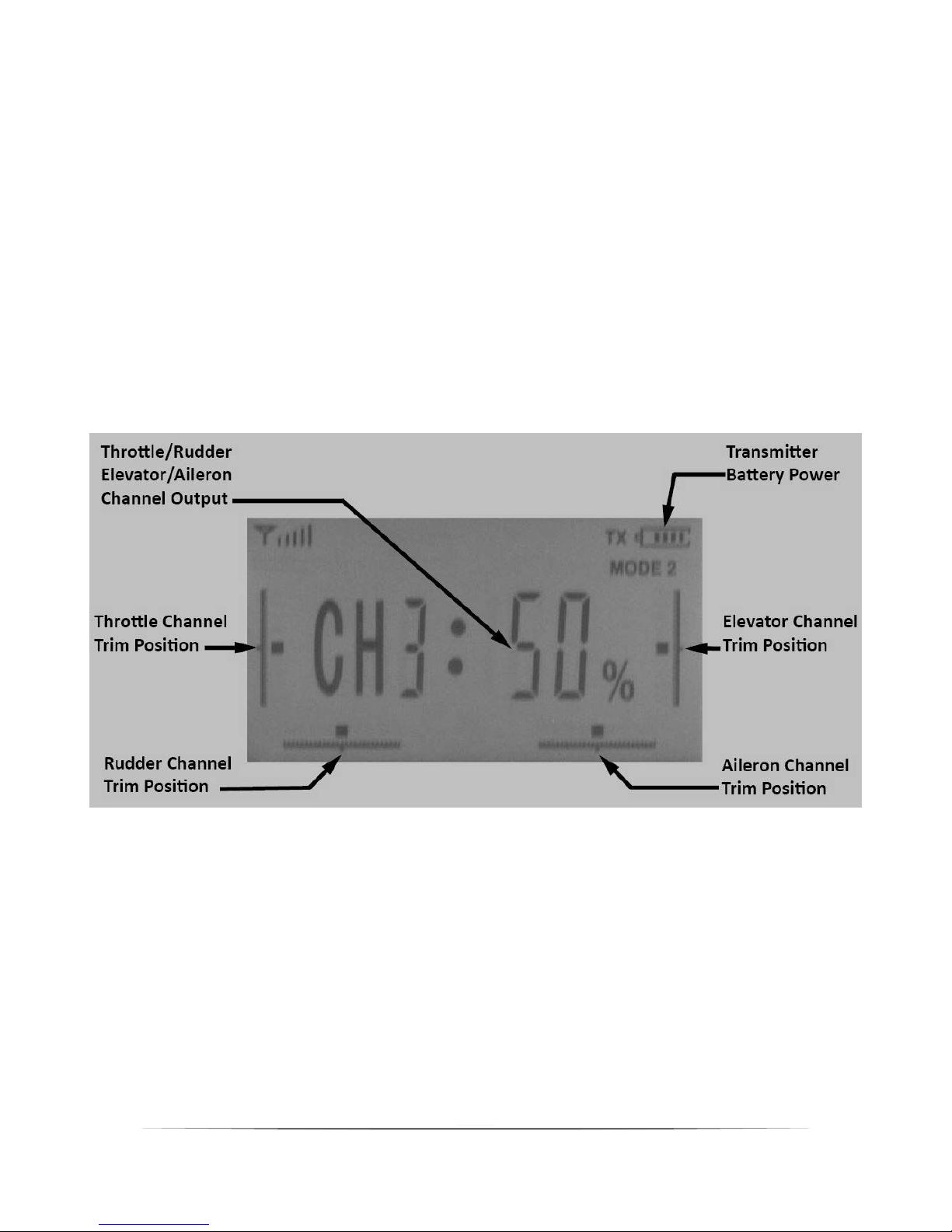

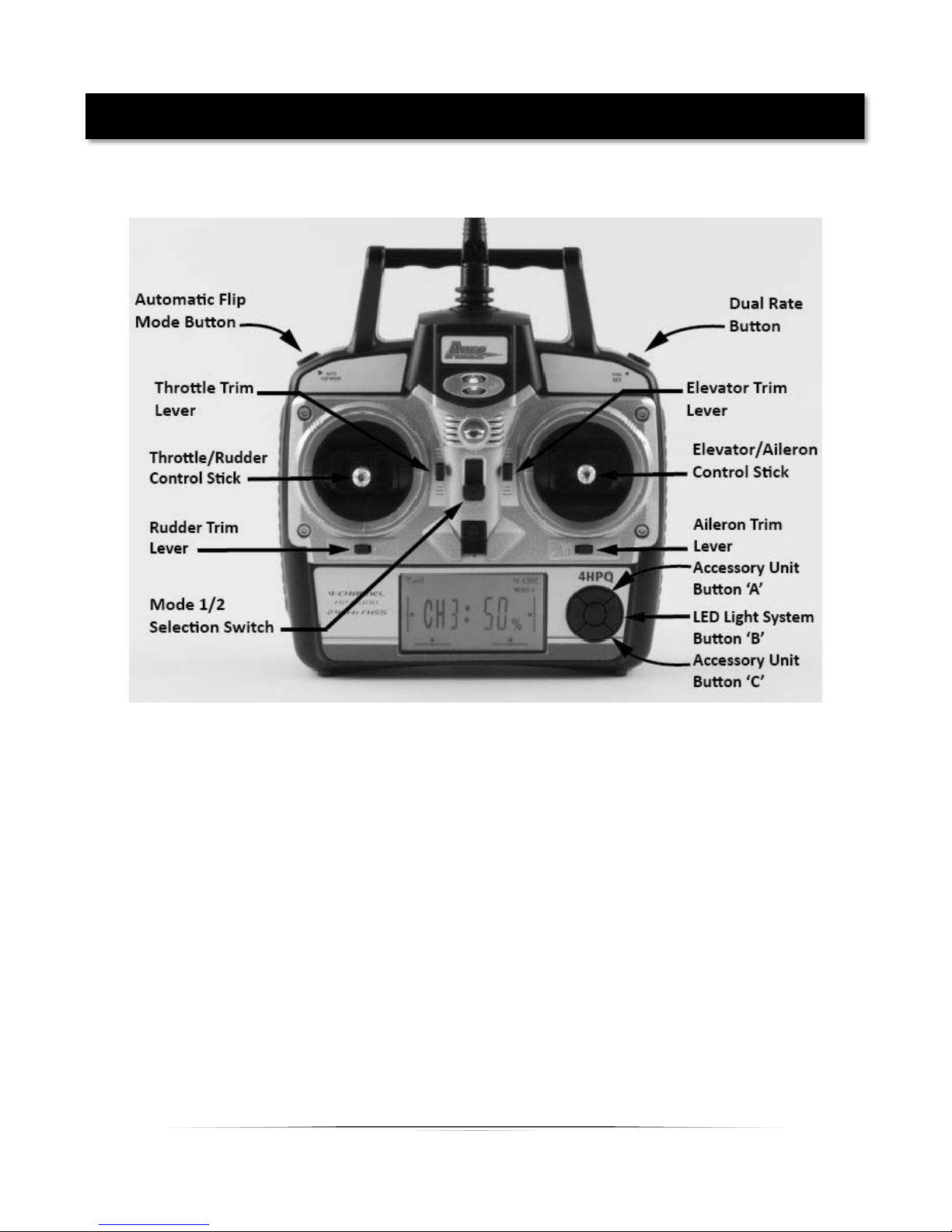

TransmitterDetails.................................................................................................................................12



TransmitterDualRates...........................................................................................................................14



FlightControlsandTrimming.................................................................................................................16



InstallingtheLiPoFlightBattery.............................................................................................................20



ControlUnitInitializationandArming....................................................................................................21



SelectingaFlyingArea............................................................................................................................24



Flying.......................................................................................................................................................25



LEDLightSystem.....................................................................................................................................26



AutomaticFlipMode..............................................................................................................................27



TransmitterandReceiverBinding/Linking.............................................................................................30



OptionalDigitalVideo/StillCamera........................................................................................................30



OptionalRocketLauncherUnit...............................................................................................................32



OptionalWaterBlasterUnit...................................................................................................................33



OptionalBubbleMachineUnit...............................................................................................................34



OptionalWinchUnit...............................................................................................................................35



Warranty,SupportandService..............................................................................................................36



ReplacementPartsList...........................................................................................................................37



ExplodedViewPartsListing....................................................................................................................38



ExplodedView........................................................................................................................................39

Table of Contents

3



____________________________________________________________________________

____________________________________________________________________________

____________________________________________________________________________



Notes

4



Ifyou’rereadytomultiplyyourquadcopterfun,theAres™[air‐eez]EthosQX130isthequadforyou.

You’llenjoyflyingtheQX130becauseit’sequippedwithanadvanced3‐axisgyroand3‐axis

accelerometercontrolsystemthatoffersbothagileflightandmaximumstabilityoutofthebox.

WhenyouaddAres’exclusivesoftwarepackagetothemix,bothfirst‐timeandexperiencedpilotswill

feellikethey’re“flyingonrails”.Anotherfunfeatureistheinnovative‘AutomaticFlipMode’that

allowsnearlyanyonetoperform360°flipsinanydirectionwithjustthepushofabutton.TheQX130

isalsolargeandpowerfulenoughtoflyoutdoorsinwindsupto7to10mph,whilestillsmallenough

toflycomfortablyindoors.TheQX130evencomeswithanintegratedLEDlightsystemcontrolled

fromthetransmitterthatmakesitvisiblewhenflyinginthedark!



AndifflyingtheEthosQX130isn’tenoughforyou,addthefunofoptionalaccessoryunitslikeahigh‐

resolutiondigitalcamerawith60framespersecondtocapturestunningin‐flightvideoandstillshots;

arocketlauncherthatshootsplasticmissiles;awaterblastersquirtgun;abubblemachinethatputs

outatrailofbubblesasyoufly;andawinchthattestsyourflightskillsasyoutrytoattach,lift,and

carryapayloadofyourchoice.



TheEthosQX130isaRTF(Ready‐To‐Fly)aircraft,sothelightweightanddurableairframearrives

100%factory‐assembledandeverythingneededtoflyisinthebox,includingAAbatteriesforthe

2.4GHztechnologyequippedfull‐size4‐channeltransmitter,a500mAh1S3.7VLiPobatteryandan

ACchargerforconvenientchargingfromalmostanyoutlet.Withnothingextratobuytogetinthe

air,youcanbeflyingwithinminutesofopeningthebox.



AndalthoughtheEthosQX130isreadytoflyrightoutthebox,pleasetakethetimetoreadthrough

thismanualformoreinformationonbatterysafetyandcharging,flightcontrolsandmorebefore

makingyourfirstflight.Pleasealsovisitourwebsiteatwww.Ares‐RC.comforadditionalinformation

includingproductupdates,bulletins,videosandmore.

Introduction

5



Failuretousethisproductintheintendedmannerasdescribedinthefollowinginstructionscan

resultindamageand/orpersonalinjury.ARadioControlled(RC)airplane/helicopter/quadcopteris

notatoy!Ifmisuseditcancauseseriousbodilyharmanddamagetoproperty.



Keepitemsthatcouldbecomeentangledinthepropeller/rotorbladesawayfromthepropeller/rotor

blades,includinglooseclothing,tools,etc.Beespeciallysuretokeepyourhands,faceandotherparts

ofyourbodyawayfromthepropeller/rotorblades.



Astheuserofthisproductyouaresolelyandwhollyresponsibleforoperatingitinamannerthat

doesnotendangeryourselfandothersorresultindamagetotheproductorthepropertyofothers.



Thismodeliscontrolledbyaradiosignalthatissubjecttopossibleinterferencefromavarietyof

sourcesoutsideyourcontrol.Thisinterferencecancausemomentarylossofcontrolsoitisadvisable

toalwayskeepasafedistancefromobjectsandpeopleinalldirectionsaroundyourmodelasthiswill

helptoavoidcollisionsand/orinjury.



•Neveroperateyourmodelifthevoltageofthebatteriesinthetransmitteristoolow.

•Alwaysoperateyourmodelinanopenareaawayfromobstacles,people,vehicles,buildings,

etc.

•Carefullyfollowthedirectionsandwarningsforthisandanyoptionalsupportequipment

(chargers,rechargeablebatteries,etc.).

•Keepallchemicals,smallpartsandallelectroniccomponentsoutofthereachofchildren.

•Moisturecausesdamagetoelectroniccomponents.Avoidwaterexposuretoallelectronic

components,parts,etc.notspecificallydesignedandprotectedforuseinwater.

•Neverlickorplaceanyportionofthemodelinyourmouthasitcouldcauseseriousinjuryor

evendeath.



Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwo

conditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptany

interferencereceived,includinginterferencethatmaycauseundesiredoperation.



Caution:Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliance

couldvoidtheuser’sauthoritytooperatetheequipment.



Thisproductcontainsaradiotransmitterwithwirelesstechnologywhichhasbeentestedandfound

tobecompliantwiththeapplicableregulationsgoverningaradiotransmitterinthe2.400GHzto

2.4835GHzfrequencyrange.



Theassociatedregulatoryagenciesofthefollowingcountriesrecognizethenotedcertificationsfor

thisproductasauthorizedforsaleanduse:USA

Safet

Precautions and Warnin

FCC Information

6



ItemDescription



NotAvailableSeparately....EthosQX130Ultra‐MicroRTFAirframe

AZSH1308M2.....................4HPQ4‐ChannelHPQuadcopterTransmitter,Mode2

NotAvailableSeparately....AABatteries(4pcs)

AZSB5001S25J....................500mAh1‐Cell/1S3.7V25CLiPoBattery,JSTConnector

AZSH1254...........................1‐Cell/1S3.7VLiPo,0.5A110‐240VACCharger



heEthosQX130RTFincludeseverythingneededtoflyrightoutofthebox.There’snothingextrato

buyorprovide!



Ethos QX 130 RTF Contents

uired to Com

lete

7



PLEASENOTE:ThischecklistisNOTintendedtoreplacethecontentincludedinthisinstruction

manual.Althoughitcanbeusedasaquickstartguide,westronglysuggestreadingthroughthis

manualcompletelybeforeproceeding.





Removeandinspectallcontents



PlugtheACchargerintoasuitableoutlet/powersource



Beginchargingtheflightbattery(connectittothecharger)



Installthefour(4)AAbatteriesinthetransmitter



InstalltheLiPoflightbatteryinthequadcopter(afterit’sbeenfullycharged)andconnectitto

thecontrolunit



Familiarizeyourselfwiththecontrols



Testthecontrolstoconfirmproperoperation



Findasuitableareaforflying



PLEASENOTE:ThischecklistisNOTintendedtoreplacethecontentincludedinthisinstruction

manual.Althoughitcanbeusedasaquickstartguide,westronglysuggestreadingthroughthis

manualcompletelybeforeproceeding.





Alwaysturnthetransmitteronfirst



ConnecttheLiPoflightbatterytothecontrolunit(within5secondsofturningontransmitter)



Allowthecontrolunittoinitializeandarmproperly(onaflat/levelsurface)



Flythemodel(take‐offfromaflat/levelsurface)



Landthemodel(landonaflat/levelsurface)

Unplugtheflightbatteryfromthemodel

Alwaysturnthetransmitterofflast

Before the First Fli

ht Checklist

Fli

ht Checklist

8



IMPORTANTNOTE:LithiumPolymerbatteriesaresignificantlymorevolatilethanthe

alkaline,NiCdorNiMHbatteriesalsousedinRCapplications.Allinstructionsandwarnings

mustbefollowedexactlytopreventpropertydamageand/orpersonalinjuryas

mishandlingofLiPobatteriescanresultinfire.



Byhandling,chargingorusingtheincludedLiPobatteryyouassumeallrisksassociated

withLiPobatteries.Ifyoudonotagreewiththeseconditionspleasereturnthecomplete

productinnew,unusedconditiontotheplaceofpurchaseimmediately.



Andalthoughthe500mAh1‐Cell/1S3.7V25CLiPoBattery(AZSB5001S25J)includedwith

theEthosQX130isintendedtobechargedsafelyusingtheincluded1‐Cell/1S3.7VLiPo,

0.5A110‐240VACCharger(AZSH1254)youmustreadthefollowingsafetyinstructionsand

warningsbeforehandling,chargingorusingtheLiPobattery.



•YoumustchargetheLiPobatteryinasafeareaawayfromflammablematerials.



•NeverchargetheLiPobatteryunattendedatanytime.Whenchargingthebattery

youshouldalwaysremaininconstantobservationtomonitorthechargingprocess

andreactimmediatelytoanypotentialproblemsthatmayoccur.



•Afterflying/dischargingthebatteryyoumustallowittocooltoambient/room

temperaturebeforerecharging.



•Tochargethebatteryyoumustuseonlytheincluded1‐Cell/1S3.7VLiPo,0.5A

110‐240VACCharger(AZSH1254)orasuitablycompatibleLiPobatterycharger.

Failuretodosomayresultinafirecausingpropertydamageand/orpersonalinjury.

DONOTuseaNiCdorNiMHcharger.



•Ifatanytimeduringthechargeordischargeprocessthebatterybeginstoballoonor

swell,discontinuechargingordischargingimmediately.Quicklyandsafely

disconnectthebattery,thenplaceitinasafe,openareaawayfromflammable

materialstoobserveitforatleast15minutes.Continuingtochargeordischargea

batterythathasbeguntoballoonorswellcanresultinafire.Abatterythathas

balloonedorswollenevenasmallamountmustberemovedfromservice

completely.



•Storethebatteryatroomtemperature,approximately68–77°Fahrenheit(F),andin

adryareaforbestresults.

LiPo Batter

Warnin

s and Usa

e Guidelines

9

Whentransportingortemporarilystoringthebattery,thetemperaturerange

shouldbefromapproximately40–100°F.Donotstorethebatteryormodelina

hotgarage,carordirectsunlightwheneverpossible.Ifstoredinahotgarageor

carthebatterycanbedamagedorevencatchfire.



Donotover‐dischargetheLiPoflightbattery.DischargingtheLiPoflightbattery

toolowcancausedamagetothebatteryresultinginreducedpower,flight

durationorfailureofthebatteryentirely.



LiPocellsshouldnotbedischargedtobelow3.0Veachunderload.Inthecaseof

the1‐Cell/1S3.7VLiPobatteryusedtopowertheEthosQX130youwillnotwant

toallowthebatterytofallbelow3.0Vduringflight.



The5‐in‐1controlunitfeaturesalowvoltagecutoff(LVC)thatcutspowertothe

motorscompletely(regardlessofthepowerlevelyouhavesetwiththeleft‐

hand/throttlestick)ifthevoltageofthebatteryfallsbelowthe3.0Vminimum.If

theLVCeveroccursitwillbeindicatedbyablinkingredLEDonthecontrolunit

(theLEDsoftheintegratedlightsystemwillalsoblink).However,topreventan

unexpectedlossofpowerduetotriggeringtheLVC,ifyoueverfindthatmore

thanthetypicalamountofthrottle/powerisrequiredtohoverand/orthe

quadcopterwillnotascend/climbevenatfullpoweryoushouldlandthemodel

anddisconnectthebatteryimmediatelytopreventover‐discharge.



AndwhileitispossibletopowerthemodelupandflyagainaftertheLVCoccurs

thisisNOTrecommended.Continueddischargingcancausepermanentdamage

totheLiPobatteryresultinginreducedpoweroutputand/orshortenedflight

durationsduringsubsequentflights(orfailureofthebatteryentirely).



Also,itisnotrecommendedthatyouflytotheLVCeverytimeyoufly.Instead

youshouldbeawareofthepowerlevelofthebattery/quadcopterthroughout

theflight,andifatanytimethequadcopterbeginstorequiremore

throttle/powerthantypicaltomaintainhover,and/orwillnotascend/climbeven

atfullpower,youshouldlandthequadcopteranddisconnecttheLiPobattery

immediately.ConstantlydischargingthebatterytotheLVCcanstillcause

permanentdamagetothebatterysoit’sbesttouseatimerorstop‐watchto

timethedurationofyourflightsandtostopflyingatareasonabletimebefore

theLVCisreached.

10



Youmustchargetheincluded500mAh1‐Cell/1S3.7V25CLiPoBattery(AZSB5001S25J)

usingonlytheincluded1‐Cell/1S3.7VLiPo,0.5A110‐240VACCharger(AZSH1254)ora

suitablycompatibleLiPobatterycharger.ChargingtheLiPobatteryusinganon‐LiPobattery

compatiblecharger(suchasaNiCdorNiMHbatterycharger),orevenadifferentLiPo

batterychargerwiththeincorrectsettings,mayresultindamagetothebatteryorevenfire

resultinginpropertydamageand/orpersonalinjury.



PleasefollowthesestepstochargetheLiPoflightbatterywiththeincludedcharger:





PlugtheACchargerintoacompatible110‐240VACoutlet.TheLEDindicatorwillglowsolid

greenindicatingthatthechargerispoweredonandreadytocharge.





ConnecttheredJSTconnectoronthebatterytothematingconnectoronthecharger.YOU

MUSTBECAREFULTOENSUREPROPERPOLARITYBEFOREMAKINGTHECONNECTION.By

orienting/aligningthewireleadsofthebatteryandchargersothey’re‘redtored’and

‘blacktoblack’you’llbeabletomaketheconnectionwithcorrectpolarity.Andalthough

theredJSTconnectorsare‘keyed’tominimizetheriskofareversepolarityconnection,ifyou

forcethemitispossibletomakeconnectionwiththeincorrectpolaritypotentiallycausing

damagetothebatteryand/orcharger.Whentheconnectorsareproperlyalignedforcorrect

polarity,connectingthemshouldrequireonlyamoderateamountofpressuretoachievethe

‘click’thatindicatesasecureconnection.



Char

the LiPo Fli

ht Batter

11



WhenthebatteryisconnectedtothechargersecurelyandwiththeproperpolaritytheLED

indicatorwillglowsolidred.ThebatterywillbecharginganytimetheLEDindicatorisglowing

solidred.





Itwilltakeapproximately1.0–1.5hourstofullychargeamostlyorfullydischarged(notover‐

discharged)battery.AndwhenthebatteryisfullychargedtheLEDindicatorwillchangeto

glowsolidgreen.WhentheLEDisglowingsolidgreenyoucandisconnectthebatteryfrom

thechargerasitisnowfullychargedandreadyforuse.



NOTE:TheLiPobatteryincludedwithyournewmodelwillarrivepartiallycharged.Forthis

reasontheinitialchargemayonlytakeapproximately30–45minutes.



NOTE:It’ssaferandbetterforthelongevityofthebatterytostoreitonlypartiallychargedfor

anylengthoftime.Storingthebatteryatapproximately50%charge(whichisapproximately

3.85Vpercell)istypicallybest,however,itwilltakesomecarefulmanagementofthecharge

timeandtheuseofavoltmetertoachievethisvoltage.Ifyouhavetheequipmentandskillsto

achievethe50%chargelevelforstorageitisrecommended.Ifnot,simplybesuretonotstore

thebatteryfullychargedwheneverpossible.Infact,aslongasthebatterywillbestoredat

approximatelyroomtemperatureandfornomorethanafewweeksbeforethenextuse,itmay

bebesttostorethebatteryinthedischargedstateafterthelastflight(aslongasthebatterywas

notover‐dischargedonthelastflight).



InstallthefourincludedAAbatteriesinthebackofthetransmitterbyopeningthehingedbattery

compartmentcover/door.Ensureproperpolarityofthebatteriesbeforeinstallingthemasindicated

bythemarkingsmoldedintothebatterycompartmentthenclosethecompartmentcover/door.



CheckforproperoperationofthetransmitterbyslidingthepowerswitchtotheONposition(slideit

upward).TheredLEDindicatoratthetopofthetransmitterwillbegintoglowsolidandtheLCD

screenwillpoweron.ThisindicatesthetransmitterispoweredonandtheAAbatteriesareinstalled

correctly.



NOTE:Thetransmitterisequippedwithalowvoltagebatteryalarm.Ifatanytimetheaudiblealarm

isonitwillbenecessarytoreplacetheAAbatterieswithnewones.



Installin

the Transmitter Batteries

12





TheEthosQX130includesa4HPQ4‐ChannelHPQuadcopterTransmitterequippedwith

2.4GHztechnology,dualrates,digitaltrimsandabacklitLCDscreen.



AutomaticFlipModeButton

Thebuttonlocatednearthetopleft‐handcornerofthetransmitterisusedtoactivatethe

‘AUTOMATICFLIPMODE’.Pleaseseethe‘AutomaticFlipMode’sectionofthismanualformore

information.



DualRateButton

Thebuttonlocatednearthetopright‐handcornerofthetransmitterisusedtotogglebetweenthe

‘DualRates’availablefortheaileronandelevatorcontrols/channels.Pleaseseethe‘TransmitterDual

Rates’sectionofthismanualformoreinformation.



A,B,CandDButtons

Thegroupoffourbuttonslocatednearthebottomright‐handcornerofthetransmitterare

usedtocontrolfunctionsoftheoptionalaccessoryunits(buttons‘A’and‘C’)andtheintegrated

LEDlightsystem(button‘B’).Pleaseseethe‘AccessoryUnit’and‘LEDLightSystem’sectionsof

thismanualformoreinformationregardingthespecificfunctionsofthesebuttons(NOTE:

Button‘D’isnotusedtocontrolanyfunctionsoftheEthosQX130oranyaccessories).

Transmitter Details

13

Mode1/Mode2SelectionSwitch

The4HPQtransmitterisequippedwithauniqueMode1/Mode2selectionswitchthatmakesit

quickandeasytosetthepreferredcontrolmode.InmostareasMode2(withthethrottle

channel/controlontheleft‐handstick)isthestandardandpreferredcontrolmode.Asaresult

wedonottypicallyrecommendusingthemodeselectionswitch(andalloftheinformation

includedinthisinstructionmanualpertainstoMode2).



However,ifyouchoosetousetheswitchtochangethecontrolmodeitisveryimportantthat

youonlychangethepositionoftheswitchwhenboththequadcopterandtransmitterare

NOTpoweredon.Whenthepositionoftheswitchischangeditchangesboththecontrolmode

inthesoftwareandthemechanicalfunctionoftheleftandright‐handsticks.



LCDScreen

TheuniquebacklitLCDscreendisplaysavarietyofdatawhenthetransmitterispoweredon:





BatteryPowerIndicator

ThisindicatorshowstheapproximateamountofAAbatterypowerremainingforthetransmitter.

NOTE:Thetransmitterisalsoequippedwithalowvoltagebatteryalarm.Ifatanytimetheaudible

alarmisonitwillbenecessarytoreplacetheAAbatterieswithnewones.



Throttle,Rudder,ElevatorandAileronChannelOutput/StickPositionValue

Thisvalueindicatestheapproximatepercentage(%)ofchanneloutput/stickpositionortrim

positionforagivenchannel/function.Thevalueshownisfromthemostrecentcontrolstick

movement;forexample,aftermovingtheleft‐hand/throttlestickdowntothelowestpossible

positionthevalueshownwillbe‘00%’.

14

DualRateOutput/Value

Thisindicator,whichshowsinplaceofthethrottle/rudder/elevator/aileronchannel

output/stickpositionvaluewhentheDualRatebuttonistoggled,showsthecontrolratemode

currentlyselected;‘100%’forhighrateand‘60%’forlowrate(pleaseseethe‘TransmitterDual

Rates’sectionofthismanualformoreinformation).



ThrottleChannelTrimPositionIndicator

Thisindicatorshowstheapproximatethrottlechanneltrimposition.Thetrimshouldbesetto

themiddlepositionforallflights.



RudderChannelTrimPositionIndicator

Thisindicatorshowstheapproximaterudderchanneltrimposition.Thetrimpositionshouldbe

adjustedasneededduringflighttoensurethenoseofthequadcopterdoesnotconstantlyturn

(yaw)leftorrightwhen‘hovering’andwithoutanyrudderchannel/controlinput.



ElevatorandAileronChannelTrimPositionIndicators

Theseindicatorsshowtheapproximateelevatorandaileronchanneltrimpositions.Thetrim

positionsshouldbeadjustedasneededduringflighttoensurethequadcopterdoesnot

constantly‘drift’forward/backward(elevator)orleft/right(aileron)whenhoveringandwithout

anycorrespondingchannel/controlinput.Thesetrimpositionswillnotoftenchangeafter

they’vebeensetcorrectly.



The‘DUALRATE’button(locatednearthetopright‐handcornerofthetransmitter)isusedtothe

togglebetweenthe‘High’(100%)and‘Low’(60%)controlrates,alsoknownas‘DualRates’,available

fortheaileronandelevatorcontrols/channels.Youcantogglebetweenthehighandlowratesby

pressingthebutton,afterwhichyoushouldfeela‘click’andalsohearanaudiblebeep/tone.The

selectedcontrolratewillbedisplayedas‘100%’forhighrateand‘60%’forlowrateontheLCD

screen.



IMPORTANTNOTE:Thetransmitterwillautomaticallydefaulttothe‘Low’(60%)ratemode

eachtimethetransmitterispoweredon.



Transmitter Dual Rates

15



Inthe100%/highratemodethecontrolsareallowedtoreachtheirmaximumvalues.This

modeistypicallypreferredbyexperiencedpilotsinterestedmostinmaximumcontrol

authority.



Bypressingthedualratebuttonwhileinthe100%/highratemodeyou’llswitchtothe60%/low

ratemode.You’llknowyou’veswitchedtothe60%/lowratemodeafterfeelinga‘click’and

hearingasinglebeep/tone.



The60%/lowratemodeistypicallypreferredby(andrecommendedbestfor)first‐time,low‐

timeandotherpilotsinterestedmostinareducedamountofcontrolauthoritythatallowsfor

evensmootherandmoreeasilycontrolledhoveringandflying.



Ifyoueverswitchtothe60%/lowratemodeyou’llknowyou’veswitchedbacktothe

100%/highratemodebypressingthedualratebutton,feelingtheclickandalsohearinga

singlebeep/tone.



16



IntheeventyouarenotfamiliarwiththecontrolsoftheEthosQX130pleasetakethetimeto

familiarizeyourselfwiththemasfollowsandbeforeproceedingwithyourfirstflight:



Theleft‐handstickonthetransmittercontrolsboththrottle(climb/descend)andrudder(yaw

left/right)channels.Whentheleft‐handstick(alsoknownasthe‘throttle’stick)isinthelowest

possiblepositionthepropellers/rotorbladeswillnotspin.Movingthestickupwardwillincreasethe

speedofthepropellers/rotorblades.Increasingthespeedofthepropellers/rotorbladeswillcause

themodeltoclimb.



Decreasingthespeedofthepropellers/rotorbladesbyloweringtheleft‐handstickwillcausethe

modeltodescend.



Afterliftingthemodeloffthegroundyoucan‘hover’bycarefullymovingtheleft‐handstickupand

downslightlyasneededsothemodelwillmaintainaltitudewithoutclimbingordescending.



Fli

ht Controls and Trimmin

17

Movingtheleft‐handsticktotheleftwillturn(yaw)thenoseofthequadcoptertotheleftaboutthe

verticalaxis.Thisisaccomplishedbyincreasingthespeedoftheleft‐frontandright‐rear

propellers/rotorbladeswhiledecreasingthespeedoftheright‐frontandleft‐rearpropellers/rotor

blades.



Movingthesticktotherightwillturn(yaw)thenoseofthequadcoptertotherightaboutthevertical

axis.Thisisaccomplishedbyincreasingthespeedoftheright‐frontandleft‐rearpropellers/rotor

bladeswhiledecreasingthespeedoftheleft‐frontandright‐rearpropellers/rotorblades.



Theruddertrimlever(locatedimmediatelybelowtheleft‐handstick)canbeusedtohelpkeepthe

noseofthequadcopterfromturning(yawing)totheleftorrightwhen‘hovering’andwithoutany

left‐handstick/ruddercontrolinput.Forexample,ifthenoseofthequadcopterturnstotheright

whenhoveringaddleftruddertrimbypressingthelevertotheleftuntilthenoseofthequadcopter

staysascloseto‘straight’aspossiblewithnofurtherinput.

18

Theright‐handstickcontrolsboththeelevator(pitchfore/aft)andaileron(roll)channels.Pushingthe

stickforwardwillpitchthenoseofthequadcopterdownward,allowingittobeflownforward.



Pullingthestickbackwardwillpitchthetailthequadcopterdownward,allowingittobeflown

backward.



Theelevatortrimlever(locatedimmediatelytotheleftoftheright‐handstick)canbeusedtohelp

keepthequadcopterfromdriftingforwardorbackwardwhenhoveringandwithnoright‐hand

stick/elevatorcontrolinput.Forexample,ifthequadcopterdriftsforwardwhenhoveringadd

back/upelevatortrimbypressingtheleverdownwarduntilthequadcopterhoversaslevelas

possiblewithoutdriftingforward.





19

Movingthesticktotheleftwillrollthequadcoptertotheleft,allowingittobeflowntotheleft.



Movingthesticktotherightwillrollthequadcoptertotheright,allowingittobeflowntotheright.



Theailerontrimlever(locatedimmediatelybelowtheright‐handstick)canbeusedtohelpkeepthe

quadcopterfromdriftingleftorrightwhenhoveringandwithnoright‐handstick/aileroncontrol

input.Forexample,ifthequadcopterdriftstotherightwhenhoveringaddleftailerontrimby

pressingthelevertotheleftuntilthequadcopterhoversaslevelaspossiblewithoutdriftingtothe

right.



Andonceyou’refamiliarwiththeprimarycontrolsofthequadcopteryou’realmostreadytofly!



20



IMPORTANTNOTE:YoumustALWAYSturnthetransmitteronBEFOREconnectingtheLiPoflight

batterytothecontrolunit.Andbeforeproceedingwiththefollowingstepspleasebesurethatthe

left‐hand/throttlestickisinthelowestpossibleposition.



AftertheLiPoflightbatteryhasbeenfullychargedit’sreadytobeinstalledinthequadcopter.With

thesideofthebatterythathasthelabelorienteddownward(towardthegroundandawayfromthe

quadcopter),andwiththewireleadsandconnectororientedtowardsthebackofthequadcopter,

slidethebatteryintothebatterymountuntiltheplastic‘cap’onthebatterycomesintocontactwith

themount.



IMPORTANTNOTE:It’simportantthatyouconnecttheLiPoflightbatterytothe5‐in‐1controlunit

within5secondsofpoweringonthetransmitter.Failuretoconnectthebatterytothecontrolunit

within5secondsofpoweringonthetransmitterwillpreventthetransmitterfrombinding/linking

tothereceiver/controlunit.



NOTE:Whilethe‘JST’connectorsinstalledonthewireleadsofthebatteryandthe5‐in‐1controlunit

are‘keyed’tominimizetheriskofareversepolarityconnection,ifyouforcethemitispossibleto

makeconnectionwithincorrectpolaritypotentiallycausingdamagetothecontrolunitand/or

battery.Whentheconnectorsareproperlyalignedforcorrectpolarity,connectingtheJSTconnectors

shouldrequireonlyaminimalamountofpressuretoachievethelight‘click’thatindicatessecure

connection.



YOUMUSTBECAREFULTOENSUREPROPERPOLARITYBEFORECONNECTINGTHEBATTERYTOTHE

5‐IN‐1CONTROLUNIT.Byorienting/aligningthewireleadsofthebatteryandcontrolunitso

they’re‘redtored’and‘blacktoblack’you’llbeabletomaketheconnectionwithcorrectpolarity.



Installin

the LiPo Fli

ht Batter

Table of contents

Other Ares Drone manuals

Ares

Ares MD 500D CX 100 User manual

Ares

Ares AZSQ3300 User manual

Popular Drone manuals by other brands

Hubsan

Hubsan H501S Advanced CHEAT SHEET

Odyssey

Odyssey XV-7 Microlite II instruction manual

RCmart

RCmart Hurricane 550 Assembly instructions

dji

dji MATRICE 200 user manual

Helipal

Helipal storm racing drone 370 user manual

sky viper

sky viper v2400hd flying guide

MayTech

MayTech MTF 160 user manual

Emax

Emax Babyhawk O3 manual

Potensic

Potensic P7 user manual

RC-PRO

RC-PRO SONIC 14 operating instructions

dji

dji Mavic 3 Cine L2P quick start guide

Draganfly

Draganfly SAVS Manual guide

dji

dji MATRICE 300 RTK user manual

XAG

XAG P100 Maintenance Instruction

MJX

MJX 5W user manual

Think 3D

Think 3D STORMBEE S20 user manual

Aquarobotman

Aquarobotman NEMO user manual

MikroKopter

MikroKopter ARF OktoXL instruction manual

Ares ETHOS QX 130 User manual

Popular Drone manuals by other brands
