Nx Pmsmrt1170b User manual

PMSMRT1170B

MCUXpresso SDK Field-Oriented Control (FOC) of 3-Phase PMSM and BLDC

Motors

Rev. 1 — 20 April 2023 User guide

Document information

Information Content

Keywords PMSMRT1170B , PMSM, FOC, MCAT, MID, Motor control, Sensorless control, Speed control,

Servo control, Position control

Abstract This user guide describes the implementation of the motor-control software for 3-phase

Permanent Magnet Synchronous Motors.

NXP Semiconductors PMSMRT1170B

MCUXpresso SDK Field-Oriented Control (FOC) of 3-Phase PMSM and BLDC Motors

1 Introduction

SDK motor control example user guide describes the implementation of the motor-control software for 3-phase

Permanent Magnet Synchronous Motors (PMSM) using following NXP platforms:

•i.MX RT1170-EVKB (MIMXRT1170-EVK)

•Freedom Development Platform for Low-Voltage, 3-Phase PMSM Motor Control (FRDM-MC-LVPMSM)

The document is divided into several parts. Hardware setup, processor features, and peripheral settings are

described at the beginning of the document. The next part contains the PMSM project description and motor

control peripheral initialization. The last part describes user interface and additional example features.

Available motor control examples types with supported motors, and possible control methods are listed in

Table 1.

Possible control methods in SDK example

Example type Supported motor Scalar and

Voltage

Current FOC

(Torque)

Sensorless

Speed FOC

Sensored

Speed FOC

Sensored

Position FOC

Linix 45ZWN24-

40 (default motor) ✓ ✓ ✓ N/A N/A

pmsm_enc Teknic M-2310P

(with ENC) ✓ ✓ ✓ ✓ ✓

Table 1. Available example type, supported motors and control methods

SDK motor control example description:

• pmsm_enc - pmsm example uses float arithmetic, the example contains sensored and also sensorless field

oriented vector control (FOC). This example can be used for sensor and sensorless motor control application

both. Default motor configuration is tuned for the Linix 45ZWN24-40 motor.

The SDK motor control example contains several additional features:

• FreeMASTER pmsm_float_enc.pmpx project provides a simple and user-friendly way for algorithm tuning,

software control, debugging, and diagnostics.

• MCAT - Motor Control Application Tuning page based on the FreeMASTER runtime debugging tool.

• MID - Motor parameter identification.

The control software and the PMSM control theory, in general, are described in Sensorless PMSM Field-

Oriented Control (FOC) (document DRM148).

User guide Rev. 1 — 20 April 2023

2 / 63

NXP Semiconductors PMSMRT1170B

MCUXpresso SDK Field-Oriented Control (FOC) of 3-Phase PMSM and BLDC Motors

2 Hardware setup

The following chapter describes the used hardware and the setup needed for proper example working

2.1 Linix 45ZWN24-40 motor

The Linix 45ZWN24-40 motor is a low-voltage 3-phase permanent-magnet motor with hall sensor used in

PMSM applications. The motor parameters are listed in Table 2.

Characteristic Symbol Value Units

Rated voltage Vt 24 V

Rated speed - 4000 RPM

Rated torque T 0.0924 Nm

Rated power P 40 W

Continuous current Ics 2.34 A

Number of pole-pairs pp 2 -

Table 2. Linix 45ZWN24-40 motor parameters

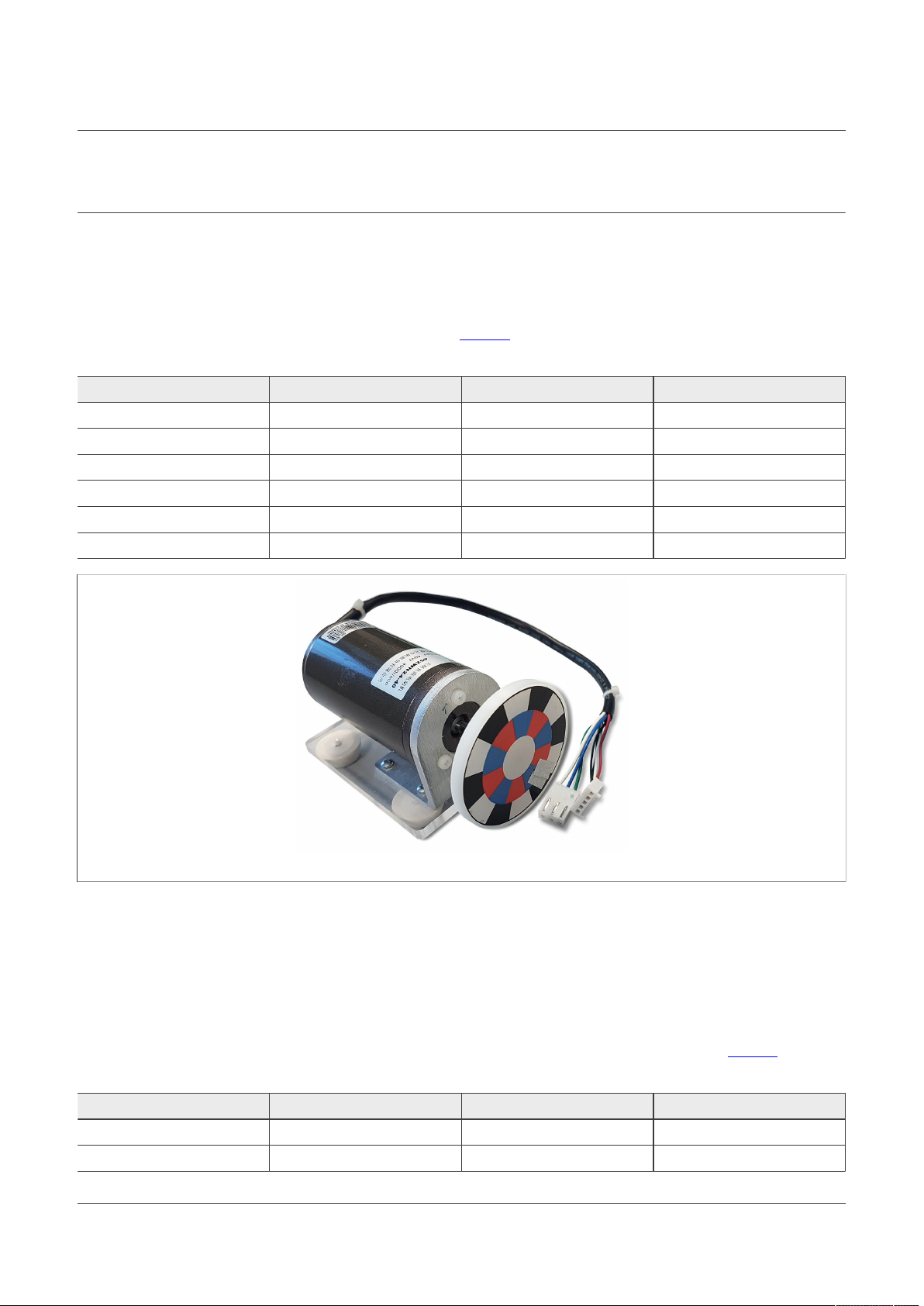

Figure 1. Linix 45ZWN24-40 permanent magnet synchronous motor

The motor has two types of connectors (cables). The first cable has three wires and is designated to power the

motor. The second cable has five wires and is designated for the hall sensors’ signal sensing. For the PMSM

sensorless application, only the power input wires are needed.

2.2 Teknic M-2310P motor

The Teknic M-2310P-LN-04K motor is a low-voltage 3-phase permanent-magnet motor used in PMSM

applications. The motor has two feedback sensors (hall and encoder). For information on the wiring of feedback

sensors, see the data sheet on the manufacturer webpage. The motor parameters are listed in Table 3.

Characteristic Symbol Value Units

Rated voltage Vt 40 V

Rated speed - 6000 RPM

Table 3. Teknic M-2310P motor parameters

User guide Rev. 1 — 20 April 2023

3 / 63

NXP Semiconductors PMSMRT1170B

MCUXpresso SDK Field-Oriented Control (FOC) of 3-Phase PMSM and BLDC Motors

Characteristic Symbol Value Units

Rated torque T 0.247 Nm

Rated power P 170 W

Continuous current Ics 7.1 A

Number of pole-pairs pp 4 -

Table 3. Teknic M-2310P motor parameters...continued

Figure 2. Teknic M-2310P permanent magnet synchronous motor

For the sensorless control mode, you only need the power input wires. If used with the hall or encoder sensors,

connect the sensor wires to the NXP Freedom power stage.

1 DRAIN x3 P DRAIN 9 16AWG BLK PHASE R

Pin Color

Encoder wires

Motor phases(Wire entry view)

Signal ColorPin Signal

2 N/A N/A 10 16AWG RED PHASE S

3 GRN 11 16AWG WHT PHASE T

4 GRN/WHT 12 RED +5VDC IN

5 GRY/WHT 13 BRN ENC 1

6 DRAIN x1 14 ORN ENC B

7 BLK 15 BLU ENC A

16* ORN/WHT ENC B˜

8* BLU/WHT

COMM S-T

COMM R-S

COMM T-R

E DRAIN

GND

ENC A˜

9 10 11 12 13 14 15 16

1 2 3 4 5 6 7 8

Figure 3. Teknic motor connector type 1

User guide Rev. 1 — 20 April 2023

4 / 63

NXP Semiconductors PMSMRT1170B

MCUXpresso SDK Field-Oriented Control (FOC) of 3-Phase PMSM and BLDC Motors

R DRAIN x3 P DRAIN L GRY/WHT COMM T-R

Pin Color

Motor phases Encoder wires(Mating face shown)

Signal ColorPin

Signal

C 16AWG RED PHASE S U BRN ENC I

D 16AWG WHT G GRN COMM S-T

B 16AWG BLK T RED +5VDC IN

J BLU F* ORN/WHT ENC B˜

K* BLU/WHT V ORN ENC B

H GRN/WHT M DRAIN x1 E DRAIN

S BLK

PHASE T

PHASE R

ENC A

ENC A˜

COMM R-S

GND

A M

D R

Figure 4. Teknic motor connector type 2

2.3 FRDM-MC-LVPMSM

In a shield form factor, this evaluation board effectively turns an NXP Freedom development board or an

evaluation board into a complete motor-control reference design. It is compatible with existing NXP Freedom

development boards and evaluation boards. The Freedom motor-control headers are compatible with the

Arduino R3 pin layout.

The FRDM-MC-LVPMSM low-voltage, 3-phase Permanent Magnet Synchronous Motor (PMSM) Freedom

development platform board has a power supply input voltage of 24 VDC to 48 VDC with reverse polarity

protection circuitry. The auxiliary power supply of 5.5 VDC is created to supply the FRDM MCU boards. The

output current is up to 5 A RMS. The inverter itself is realized by a 3-phase bridge inverter (six MOSFETs) and a

3-phase MOSFET gate driver. The analog quantities (such as the 3-phase motor currents, DC-bus voltage, and

DC-bus current) are sensed on this board. There is also an interface for speed and position sensors (encoder,

hall). The block diagram of this complete NXP motor-control development kit is shown in Figure 5.

Figure 5. Motor-control development platform block diagram

User guide Rev. 1 — 20 April 2023

5 / 63

NXP Semiconductors PMSMRT1170B

MCUXpresso SDK Field-Oriented Control (FOC) of 3-Phase PMSM and BLDC Motors

FRDM-MC-LVPMSM Parts

Controller Card Parts

Power Supply

Polarity

24-48V

Motor

15V

6xPWM

Ia, Ib, Ic

Udc, Idc

Enc, Hall

5.5V

3.3V

USB

JTAG

Protection

MOSFET

Analog

Sensing

Encoder /

Hall

Encoder

Hall

Power

Supply

MOSFET

Predriver

FRDM-MC-LVPMSM Controler card

Target

MCU

Open

SDA

Buttons

LEDs

Accel

Therm

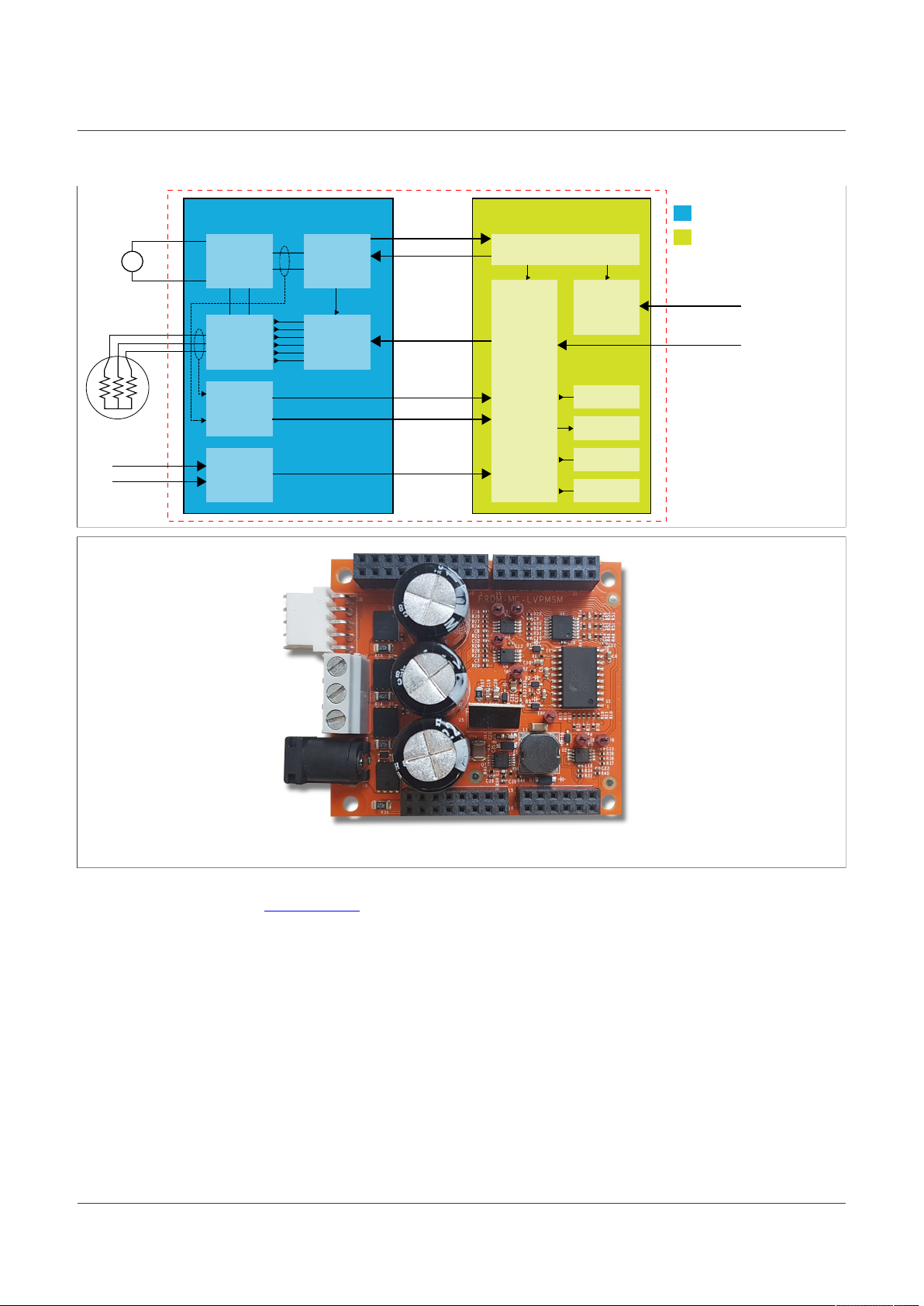

Figure 6. FRDM-MC-LVPMSM

The FRDM-MC-LVPMSM board does not require a complicated setup. For more information about the Freedom

development platform, see www.nxp.com.

Note:

There might be a wrong FRDM-MC-LVPMSM series in the market (series VV19520XXX). This series

is populated with 10 mOhm shunt resistors and noisy operational amplifiers which affect phase current

measurement. The mc_pmsm example is tuned for original FRDM-MC-LVPMSM board with 20 mOhm shunt

resistors.

2.4 i.MX RT1170-EVKB

The i.MX RT1170-EVKB provides a high-performance solution in a highly integrated board. It consists of a 6-

layer PCB with through hole design for better EMC performance at a low cost, and it includes key components

and interfaces. The dual-core i.MX RT1170 runs on the Cortex-M7 at 1 GHz and Arm Cortex-M4 at 400 MHz,

while providing best-in-class security.

User guide Rev. 1 — 20 April 2023

6 / 63

NXP Semiconductors PMSMRT1170B

MCUXpresso SDK Field-Oriented Control (FOC) of 3-Phase PMSM and BLDC Motors

Jumper Setting Jumper Setting Jumper Setting

JP6 1-2 J53 1-2 J90 1-2

JP7 1-2 J56 2-3 J91 1-2

J14 1-2 J67 1-2 J93 1-2

J19 1-2 J68 1-2 J97 1-2

J23 1-2 J69 1-2 J98 1-2

J28 1-2 J71 1-2 J99 1-2

J38 7-8 J73 1-2 J100 1-2

J41 1-2 J79 1-2

J49 1-2 J80 1-2

Table 4. MIMXRT1170-EVKB jumper settings

All others jumpers are open.

Figure 7. MIMXRT1170-EVKB board with highlighted jumper settings

User guide Rev. 1 — 20 April 2023

7 / 63

NXP Semiconductors PMSMRT1170B

MCUXpresso SDK Field-Oriented Control (FOC) of 3-Phase PMSM and BLDC Motors

The motor-control application requires removing and soldering some zero resistors for a correct connection.

Remove and solder zero resistors according to Table 5.

Add resistors Remove resistors

R1841 R1845 R188 R412

R1842 R1846 R193 R1814

R1843 R1847

R1844

Table 5. Add and remove resistors

For locate resistors on the board see schematic and layout on board web page.

User guide Rev. 1 — 20 April 2023

8 / 63

NXP Semiconductors PMSMRT1170B

MCUXpresso SDK Field-Oriented Control (FOC) of 3-Phase PMSM and BLDC Motors

3 Processors features and peripheral settings

This chapter describes the peripheral settings and application timing.

3.1 i.MX RT1170

The i.MX RT1170 crossover MCUs are setting speed records at 1 GHz. This ground-breaking family combines

superior computing power and multiple media capabilities with ease of use and real-time functionality. The

i.MX RT1170 MCU offers support over a wide temperature range and is qualified for consumer, industrial, and

automotive markets.

For more information, see i.MX RT1170 Crossover MCU Family web pages.

3.1.1 RT1170 - Hardware timing and synchronization

Correct and precise timing is crucial for motor-control applications. Therefore, the motor-control-dedicated

peripherals take care of the timing and synchronization on the hardware layer. In addition, you can set the PWM

frequencies as a multiple of the ADC interrupt (ADC ISR) frequency where the FOC algorithm is calculated. In

this case, the PWM frequency is equal to the FOC frequency.

master

reload

master

reload

SM0 counter

PWM top

PWN bottom

ADC ETC

and ADC

conversion

ADC ETC

ISR

TRIG0 (val 4) Tdeadtime

Figure 8. Hardware timing and synchronization on i.MX RT1170

•The top signal shows the eFlexPWM counter (SM0 counter). The dead time is emphasized at the PWM top

and PWM bottom signals. The SM0 submodule generates the master reload at every opportunity.

•The SM0 generates trigger 0 (when the counter counts to a value equal to the VAL4) for the ADC_ETC (ADC

External Trigger Control) with a delay of Tdeatime/2. This delay ensures correct current sampling at the duty

cycles close to 100 %.

•ADC_ETC starts the ADC conversion.

•When the ADC conversion is completed, the ADC_ETC ISR (ADC_ETC interrupt) is entered. The FOC

calculation is done in this interrupt.

User guide Rev. 1 — 20 April 2023

9 / 63

NXP Semiconductors PMSMRT1170B

MCUXpresso SDK Field-Oriented Control (FOC) of 3-Phase PMSM and BLDC Motors

3.1.2 RT1170 - Peripheral settings

This section describes the peripherals used for the motor control. On i.MX RT1170, three submodules from the

enhanced FlexPWM (eFlexPWM) are used for 6-channel PWM generation and two 12-bit ADCs for the phase

currents and DC-bus voltage measurement. The eFlexPWM and ADC are synchronized via submodule 0 from

the eFlexPWM. The following settings are located in the mc_periph_init.c and peripherals.c files and

their header files.

3.1.2.1 PWM generation - PWM1

•Six channels from three submodules are used for the 3-phase PWM generation. Submodule 0

generates the master reload at event every nth opportunity, depending on the user-defined macro

M1_FOC_FREQ_VS_PWM_FREQ.

•Submodules 1 and 2 get their clocks from submodule 0.

•The counters at submodules 1 and 2 are synchronized with the master reload signal from submodule 0.

•Submodule 0 is used for synchronization with ADC_ETC. The submodule generates the output trigger after the

PWM reload, when the counter counts to VAL4.

•Fault mode is enabled for channels A and B at submodules 0, 1, and 2 with automatic fault clearing.

Note: The PWM outputs are re-enabled at the first PWM reload after the fault input returns to zero.

•The PWM period (frequency) is determined by how long the counter takes to count from INIT to VAL1. By

default, INIT = -MODULO/2 = -15000 and VAL1 = MODULO/2 -1 = 14999. The eFlexPWM clock is 240 MHz,

so it takes 0.0000625 s (16 kHz).

•Dead time insertion is enabled. Define the dead time length in the M1_PWM_DEADTIME macro.

3.1.2.2 ADC external trigger control - ADC_ETC

The ADC_ETC module enables multiple users to share the ADC modules in the Time Division Multiplexing

(TDM) way. The external triggers can be brought from the Cross BAR (XBAR) or other sources. The ADC scan

is started via ADC_ETC.

•Both ADCs have set their own trigger chains.

•The trigger chain length is set to 2. The back-to-back ADC trigger mode is enabled.

•The SyncMode is on. In the SyncMode, ADC1 and ADC2 are controlled by the same trigger source. The

trigger source is the PWM submodule 0.

•After both ADCs conversion is completed, ADC_ETC interrupt is enabled and serves the FOC fast-loop

algorithm.

3.1.2.3 Analog sensing - ADC1 and ADC2

ADC1 and ADC2 are used for the MC analog sensing of currents and DC-bus voltage.

•The ADCs operate as 12-bit with the single-ended conversion and hardware trigger selected. The ADCs are

triggered from ADC_ETC by the trigger generated by the eFlexPWM.

3.1.2.4 Quadrature Decoder (QD) module

The QD module is used to sense the position and speed from the encoder sensor.

•The direction of counting is set in the M1_POSPE_ENC_DIRECTION macro.

•The modulo counting and the modulus counting roll-over/under to increment/decrement revolution counter are

enabled.

User guide Rev. 1 — 20 April 2023

10 / 63

NXP Semiconductors PMSMRT1170B

MCUXpresso SDK Field-Oriented Control (FOC) of 3-Phase PMSM and BLDC Motors

3.1.2.5 Peripheral interconnection for - XBARA1

The crossbar is used to interconnect the trigger from the PWM to the ADC_ETC and to connect the encoder

(connected to GPIO) to the QD.

•The FLEXPWM2_PWM1_OUT_TRIG0_1 output trigger (generated by submodule 0) is connected to

ADC_ETC_XBAR0_TRIG0.

•The encoder signal Phase A and Phase B are configured in pinmux.c.

3.1.2.6 Slow-loop interrupt generation - TMR1

The QuadTimer module TMR1 is used to generate the slow-loop interrupt.

•The slow loop is usually ten times slower than the fast loop. Therefore, the interrupt is generated after the

counter counts from CNTR0 = 0 to COMP1 = IPG CLK ROOT / (16U * Speed Loop Freq). The speed loop

frequency is set in the M1_SPEED_LOOP_FREQ macro and equals 1000 Hz.

•An interrupt (which serves the slow-loop period) is enabled and generated at the reload event.

3.1.2.7 FreeMASTER communication - LPUART1

Low-Power Universal Asynchronous Receiver and Transmitter (LPUART1) is used for the FreeMASTER

communication between the MCU board and the PC.

•The baud rate is set to 115200 bit/s.

•The receiver and transmitter are both enabled.

•The other settings are set to default.

3.2 CPU load and memory usage

The following information applies to the application built using one of the following IDE: MCUXpresso IDE,

IAR, or Keil MDK. The memory usage is calculated from the *.map linker file, including FreeMASTER recorder

buffer allocated in RAM. In the MCUXpresso IDE, the memory usage can be also seen after project build in

the Console window. Table 6 shows the maximum CPU load of the supported examples. The CPU load is

measured using the SYSTICK timer. The CPU load is dependent on the fast-loop (FOC calculation) and slow-

loop (speed loop) frequencies. The total CPU load is calculated using the following equations:

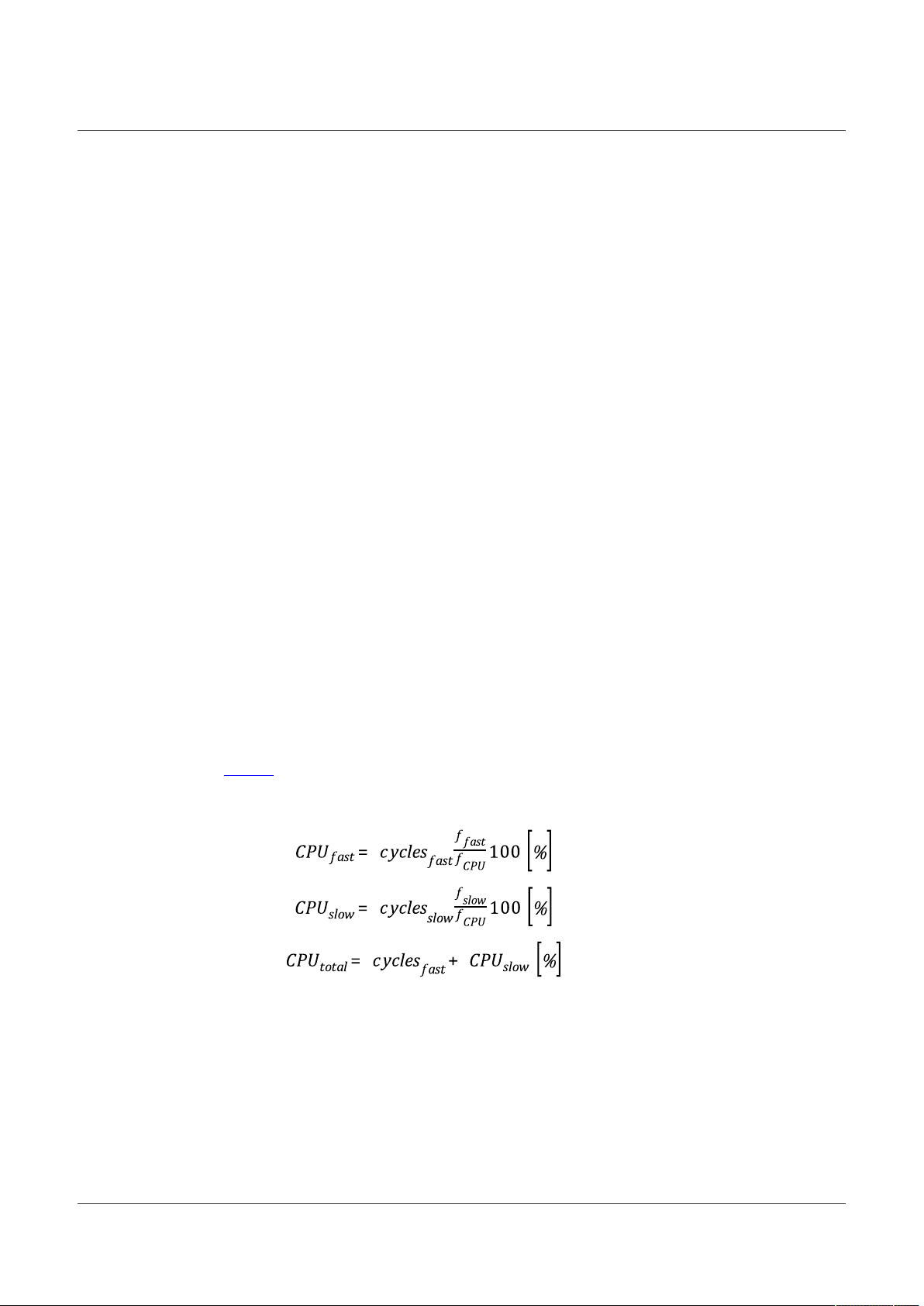

(1)

(2)

(3)

Where:

CPUfast = the CPU load taken by the fast loop

cyclesfast = the number of cycles consumed by the fast loop

ffast = the frequency of the fast-loop calculation

fCPU = CPU frequency

CPUslow = the CPU load taken by the slow loop

cyclesslow = the number of cycles consumed by the slow loop

User guide Rev. 1 — 20 April 2023

11 / 63

NXP Semiconductors PMSMRT1170B

MCUXpresso SDK Field-Oriented Control (FOC) of 3-Phase PMSM and BLDC Motors

fslow = the frequency of the slow-loop calculation

CPUtotal = the total CPU load consumed by the motor control

debug configuration

Device Example Speed Control Position Control

i.MX RT1170-EVKB pmsm_enc 7.3 % 6.8 %

Table 6. Maximum CPU load (fast loop)

CPU load measured without defined RAM_RELOCATION macro. Measured CPU load applies to the application

built using IAR IDE.

Note: The maximum CPU load is depending on executing functions from RAM or flash memory. Executing

functions can be speeding up in RTCESL_cfg.h header file by using macro RAM_RELOCATION.

Note: Memory usage and maximum CPU load can differ depending on the used IDEs and settings.

User guide Rev. 1 — 20 April 2023

12 / 63

NXP Semiconductors PMSMRT1170B

MCUXpresso SDK Field-Oriented Control (FOC) of 3-Phase PMSM and BLDC Motors

4 Project file and IDE workspace structure

All the necessary files are included in one package, which simplifies the distribution and decreases the size of

the final package. The directory structure of this package is simple, easy to use, and organized logically. The

folder structure used in the IDE differs from the structure of the PMSM package installation, but it uses the same

files. The different organization is chosen due to better manipulation of folders and files in workplaces and the

possibility of adding or removing files and directories. The pack_motor_<board_name> project includes all

the available functions and routines. This project serves for development and testing purposes.

4.1 PMSM project structure

The directory tree of the PMSM project is shown in below.

Figure 9. Directory tree

The main project folder pack_motor_imxrt1xxx\boards\evkbimxrt1xxx\demo_apps\mc_pmsm\pmsm_

enc\ contains the following folders and files:

•iar: for the IAR Embedded Workbench IDE.

•armgcc: for the GNU Arm IDE.

•mdk: for the uVision Keil IDE.

User guide Rev. 1 — 20 April 2023

13 / 63

NXP Semiconductors PMSMRT1170B

MCUXpresso SDK Field-Oriented Control (FOC) of 3-Phase PMSM and BLDC Motors

•m1_pmsm_appconfig.h: contains the definitions of constants for the application control processes,

parameters of the motor and regulators, and the constants for other vector-control-related algorithms. When

you tailor the application for a different motor using the Motor Control Application Tuning (MCAT) tool, the tool

generates this file at the end of the tuning process.

•main.c: contains the basic application initialization (enabling interrupts), subroutines for accessing the MCU

peripherals, and interrupt service routines. The FreeMASTER communication is performed in the background

infinite loop.

•board.c: contains the functions for the UART, GPIO, and SysTick initialization.

•board.h: contains the definitions of the board LEDs, buttons, UART instance used for FreeMASTER, and so

on.

•clock_config.c and .h: contains the CPU clock setup functions. These files are going to be generated

by the clock tool in the future.

•mc_periph_init.c: contains the motor-control driver peripherals initialization functions that are specific for

the board and MCU used.

•mc_periph_init.h: header file for mc_periph_init.c. This file contains the macros for changing the

PWM period and the ADC channels assigned to the phase currents and board voltage.

•freemaster_cfg.h: the FreeMASTER configuration file containing the FreeMASTER communication and

features setup.

•pin_mux and .h: port configuration files. Generate these files in the pin tool.

•peripherals.c and .h: MCUXpresso Config Tool configuration files.

The main motor-control folder pack_motor_imxrt1xxx\middleware\motor_control\ contains these

subfolders:

•pmsm: contains main PMSM motor-control functions.

•freemaster: contains the FreeMASTER project file pmsm_float_enc.pmpx. Open this file in the

FreeMASTER tool and use it to control the application. The folder also contains the auxiliary files for the

MCAT tool.

The pack_motor_imxrt1xxx\middleware\motor_control\pmsm\pmsm_float\ folder contains these

subfolders common to the other motor-control projects:

•mc_algorithms: contains the main control algorithms used to control the FOC and speed control loop.

•mc_cfg_template: contains templates for MCUXpresso Config Tool components.

•mc_drivers: contains the source and header files used to initialize and run motor-control applications.

•mc_identification: contains the source code for the automated parameter-identification routines of the

motor.

•mc_state_machine: contains the software routines that are executed when the application is in a particular

state or state transition.

•state_machine: contains the state machine functions for the FAULT, INITIALIZATION, STOP, and RUN

states.

User guide Rev. 1 — 20 April 2023

14 / 63

NXP Semiconductors PMSMRT1170B

MCUXpresso SDK Field-Oriented Control (FOC) of 3-Phase PMSM and BLDC Motors

5 Motor-control peripheral initialization

The motor-control peripherals are initialized by calling the MCDRV_Init_M1() function during MCU startup

and before the peripherals are used. All initialization functions are in the mc_periph_init.c source file and

the mc_periph_init.h header file. The definitions specified by the user are also in these files. The features

provided by the functions are the 3-phase PWM generation and 3-phase current measurement, as well as the

DC-bus voltage and auxiliary quantity measurement. The principles of both the 3-phase current measurement

and the PWM generation using the Space Vector Modulation (SVM) technique are described in Sensorless

PMSM Field-Oriented Control (document DRM148).

The mc_periph_init.h header file provides the following macros defined by the user:

•M1_MCDRV_ADC_PERIPH_INIT: this macro calls ADC peripheral initialization.

•M1_MCDRV_PWM_PERIPH_INIT: this macro calls PWM peripheral initialization.

•M1_MCDRV_QD_ENC: this macro calls QD peripheral initialization.

•M1_PWM_FREQ: the value of this definition sets the PWM frequency.

•M1_FOC_FREQ_VS_PWM_FREQ: enables you to call the fast-loop interrupt at every first, second, third, or

nth PWM reload. This is convenient when the PWM frequency must be higher than the maximal fast-loop

interrupt.

•M1_SPEED_LOOP_FREQ: the value of this definition sets the speed loop frequency (TMR1 interrupt).

•M1_PWM_DEADTIME: the value of the PWM dead time in nanoseconds.

•M1_PWM_PAIR_PH[A..C]: these macros enable a simple assignment of the physical motor phases to the

PWM periphery channels (or submodules). You can change the order of the motor phases this way.

•M1_ADC[1,2]_PH_[A..C]: these macros assign the ADC channels for the phase current measurement.

The general rule is that at least one-phase current must be measurable on both ADC converters, and the two

remaining phase currents must be measurable on different ADC converters. The reason for this is that the

selection of the phase current pair to measure depends on the current SVM sector. If this rule is broken, a

preprocessor error is issued. For more information about the 3-phase current measurement, see Sensorless

PMSM Field-Oriented Control (document DRM148).

•M1_ADC[1,2]_UDCB: this define is used to select the ADC channel for the measurement of the DC-bus

voltage.

In the motor-control software, the following API-serving ADC and PWM peripherals are available:

•The available APIs for the ADC are:

–mcdrv_adc_t: MCDRV ADC structure data type.

–void M1_MCDRV_ADC_PERIPH_INIT(): this function is by default called during the ADC peripheral

initialization procedure invoked by the MCDRV_Init_M1() function and should not be called again after the

peripheral initialization is done.

–void M1_MCDRV_CURR_3PH_CHAN_ASSIGN(mcdrv_adc_t*): calling this function assigns proper ADC

channels for the next 3-phase current measurement based on the SVM sector.

–void M1_MCDRV_CURR_3PH_CALIB_INIT(mcdrv_adc_t*): this function initializes the phase-current

channel-offset measurement.

–void M1_MCDRV_CURR_3PH_CALIB(mcdrv_adc_t*): this function reads the current information from

the unpowered phases of a stand-still motor and filters them using moving average filters. The goal is to

obtain the value of the measurement offset. The length of the window for moving the average filters is set to

eight samples by default.

–void M1_MCDRV_CURR_3PH_CALIB_SET(mcdrv_adc_t*): this function asserts the phase-current

measurement offset values to the internal registers. Call this function after a sufficient number of

M1_MCDRV_CURR_3PH_CALIB() calls.

User guide Rev. 1 — 20 April 2023

15 / 63

NXP Semiconductors PMSMRT1170B

MCUXpresso SDK Field-Oriented Control (FOC) of 3-Phase PMSM and BLDC Motors

–void M1_MCDRV_ADC_GET(mcdrv_adc_t*): this function reads and calculates the actual values of the

3-phase currents, DC-bus voltage, and auxiliary quantity.

•The available APIs for the PWM are:

–mcdrv_pwma_pwm3ph_t: MCDRV PWM structure data type.

–void M1_MCDRV_PWM_PERIPH_INIT: this function is by default called during the PWM periphery

initialization procedure invoked by the MCDRV_Init_M1() function.

–void M1_MCDRV_PWM3PH_SET(mcdrv_pwma_pwm3ph_t*): this function updates the PWM phase duty

cycles.

–void M1_MCDRV_PWM3PH_EN(mcdrv_pwma_pwm3ph_t*): this function enables all PWM channels.

–void M1_MCDRV_PWM3PH_DIS(mcdrv_pwma_pwm3ph_t*): this function disables all PWM channels.

–bool_t M1_MCDRV_PWM3PH_FLT_GET(mcdrv_pwma_pwm3ph_t*): this function returns the state of

the overcurrent fault flags and automatically clears the flags (if set). This function returns true when an

overcurrent event occurs. Otherwise, it returns false.

•The available APIs for the quadrature encoder are:

–mcdrv_qd_enc_t: MCDRV QD structure data type.

–void M1_MCDRV_QD_PERIPH_INIT(): this function is by default called during the QD periphery

initialization procedure invoked by the MCDRV_Init_M1() function.

–void M1_MCDRV_QD_GET(mcdrv_qd_enc_t*): this function returns the actual position and speed.

–void M1_MCDRV_QD_SET_DIRECTION(mcdrv_qd_enc_t*): this function sets the direction of the

quadrature encoder.

–void M1_MCDRV_QD_CLEAR(mcdrv_qd_enc_t*): this function clears the internal variables and decoder

counter.

User guide Rev. 1 — 20 April 2023

16 / 63

NXP Semiconductors PMSMRT1170B

MCUXpresso SDK Field-Oriented Control (FOC) of 3-Phase PMSM and BLDC Motors

6 User interface

The application contains the demo mode to demonstrate motor rotation. You can operate it either using the

user button, or using FreeMASTER. The NXP development boards include a user button associated with a

port interrupt (generated whenever one of the buttons is pressed). At the beginning of the ISR, a simple logic

executes and the interrupt flag clears. When you press the button, the demo mode starts. When you press the

same button again, the application stops and transitions back to the STOP state.

The other way to interact with the demo mode is to use the FreeMASTER tool. The FreeMASTER application

consists of two parts: the PC application used for variable visualization and the set of software drivers running

in the embedded application. The serial interface transfers data between the PC and the embedded application.

This interface is provided by the debugger included in the boards.

The application can be controlled using the following two interfaces:

•The user button on the development board (controlling the demo mode):

–MIMXRT1170-EVKB - SW7

•Remote control using FreeMASTER (Following chapter):

–Setting a variable in the FreeMASTER Variable Watch. See chapture Section 7.4

Identify all motor parameters if you are using your own motor (different from the default motors). The automated

parameter identification is described in the following sections.

User guide Rev. 1 — 20 April 2023

17 / 63

NXP Semiconductors PMSMRT1170B

MCUXpresso SDK Field-Oriented Control (FOC) of 3-Phase PMSM and BLDC Motors

7 Remote control using FreeMASTER

This section provides information about the tools and recommended procedures to control the sensor/

sensorless PMSM Field-Oriented Control (FOC) application using FreeMASTER. The application contains

the embedded-side driver of the FreeMASTER real-time debug monitor and data visualization tool for

communication with the PC. It supports non-intrusive monitoring, as well as the modification of target

variables in real time, which is very useful for the algorithm tuning. Besides the target-side driver, the

FreeMASTER tool requires the installation of the PC application as well. You can download FreeMASTER

3.0 at www.nxp.com/freemaster. To run the FreeMASTER application including the MCAT tool, double-click

the pmsm_float_enc.pmpx file located in the middleware\motor_control\freemaster folder. The

FreeMASTER application starts and the environment is created automatically, as defined in the *.pmpx file.

Note: In MCUXpresso, the FreeMASTER application can run directly from IDE in motor_control/

freemaster folder.

7.1 Establishing FreeMASTER communication

The remote operation is provided by FreeMASTER via the USB interface. To control a PMSM motor using

FreeMASTER, perform the steps below:

1. Download the project from your chosen IDE to the MCU and run it.

2. Open the FreeMASTER project pmsm_float_enc.pmpx . The PMSM project uses the TSA by default, so

it is not necessary to select a symbol file for FreeMASTER.

3. To establish the communication, click the communication button (the green "GO" button in the top left-hand

corner).

Figure 10. Green “GO” button placed in top left-hand corner

4. If the communication is established successfully, the FreeMASTER communication status in the

bottom right-hand corner changes from "Not connected" to "RS-232 UART Communication; COMxx;

speed=115200". Otherwise, the FreeMASTER warning pop-up window appears.

Figure 11. FreeMASTER—communication is established successfully

5. To reload the MCAT HTML page and check the App ID, press F5.

6. Control the PMSM motor by writing to a control variable in a variable watch.

7. If you rebuild and download the new code to the target, turn the FreeMASTER application off and on.

If the communication is not established successfully, perform the following steps:

1. Go to the Project > Options > Comm tab and make sure that the correct COM port is selected and the

communication speed is set to 115200 bps.

User guide Rev. 1 — 20 April 2023

18 / 63

NXP Semiconductors PMSMRT1170B

MCUXpresso SDK Field-Oriented Control (FOC) of 3-Phase PMSM and BLDC Motors

Figure 12. FreeMASTER communication setup window

2. Ensure, that your computer is communicating with the plugged board. Unplug and then plug in the USB

cable and reopen the FreeMASTER project.

7.2 TSA replacement with ELF file

The FreeMASTER project for motor control example uses Target-Side Addressing (TSA) information about

variable objects and types to be retrieved from the target application by default. With the TSA feature, you

can describe the data types and variables directly in the application source code and make this information

available to the FreeMASTER tool. The tool can then use this information instead of reading symbol data from

the application’s ELF/Dwarf executable file.

FreeMASTER reads the TSA tables and uses the information automatically when an MCU board is connected.

A great benefit of using the TSA is no issues with the correct path to ELF/Dwarf file. The variables described

by TSA tables may be read-only, so even if FreeMASTER attempts to write the variable, the target MCU side

denies the value. The variables not described by any TSA tables may also become invisible and protected even

for read-only access.

The use of TSA means more memory requirements for the target. If you do not want to use the TSA feature,

you must modify the example code and FreeMASTER project.

To modify the example code, follow the steps below:

1. Open motor control project and rewrite macro FMSTR_USE_TSA from 1 to 0 in freemaster_cfg.h file.

2. Build, download, and run motor control project.

3. Open FreeMASTER project and click to Project > Options (or use shortcut Ctrl+T).

4. Click to MAP Files tab and find Default symbol file (ELF/Dwarf executable file) located in IDE output folder.

User guide Rev. 1 — 20 April 2023

19 / 63

NXP Semiconductors PMSMRT1170B

MCUXpresso SDK Field-Oriented Control (FOC) of 3-Phase PMSM and BLDC Motors

Figure 13. Default symbol file

5. Click OK and restart the FreeMASTER communication.

For more information, check FreeMASTER User Guide.

7.3 Motor Control Aplication Tuning interface (MCAT)

The PMSM sensor/sensorless FOC application can be easily controlled and tuned using the Motor Control

Application Tuning (MCAT) plug-in for PMSM. The MCAT for PMSM is a user-friendly page, which runs

within the FreeMASTER. The tool consists of the tab menu and workspace as shown in Figure 14. Each tab

from the tab menu (4) represents one submodule which enables tuning or controlling different application

aspects. Besides the MCAT page for PMSM, several scopes, recorders, and variables in the project tree (5) are

predefined in the FreeMASTER project file to further the motor parameter tuning and debugging simplify.

When the FreeMASTER is not connected to the target, the "Board found" line (2) shows "Board ID not found".

When the communication with the target MCU is established, the "Board found" line is read from Board ID

variable watch and displayed. If the connection is established and the board ID is not shown, press F5 to reload

the MCAT HTML page.

There are three action buttons in MCAT (3):

• Load data - MCAT input fields (for example, motor parameters) are loaded from mX_pmsm_appconfig.h

file (JSON formatted comments). Only existing mX_pmsm_appconfig.h files can be selected for loading.

Loaded mX_pmsm_appcofig.h file is displayed in grey field (7).

• Save data - MCAT input fields (JSON formatted comments) and output macros are saved to

mX_pmsm_appconfig.h file. Up to 9 files (m1-9_pmsm_appconfig.h) can be selected. A pop-up window

with the user motor ID and description appears when a different mX_pmsm_appcofig.h file is selected. The

motor ID and description are also saved in mX_pmsm_appcofig.h as a JSON comment. The embedded

code includes m1_pmsm_appcofig.h only at single motor control application. Therefore, saving to higher

indexed mX_pmsm_appconfig.h files has no effect at the compilation stage.

• Update target - writes the MCAT calculated tuning parameters to FreeMASTER Variables, which effectively

updates the values on target MCU. These tuning parameters are updated in MCU's RAM. To write these

User guide Rev. 1 — 20 April 2023

20 / 63

Table of contents

Popular Network Hardware manuals by other brands

IBM

IBM 10G Network Active Bypass user guide

WolfVision

WolfVision vSolution Cynap Core Integration guide

Avocent

Avocent MergePoint 5240 brochure

MikroTik

MikroTik Network Controller Guide

Meinberg

Meinberg LANTIME M320/GPS Technical reference

ADTRAN

ADTRAN DSU/CSU Installation and maintenance guide

Williams Sound

Williams Sound DW SY 1 user manual

TP-Link

TP-Link Kasa Smart KP200 user guide

Lanner

Lanner NCA-6530 user manual

Trend Micro

Trend Micro EdgeFire Quick setup guide

IBM

IBM DU3 2104 Hardware technical information

Enterasys

Enterasys SSR-ARE install guide

Matrix Switch Corporation

Matrix Switch Corporation MSC-CP59X59E product manual

Asoni

Asoni SVR440 user manual

Obihai

Obihai OBi100 quick start guide

Riverbed

Riverbed SteelHead 570-SD installation guide

Hypertec

Hypertec CIARA Horizon 8175 Disassembly guide

Flexwatch

Flexwatch FW5071 user manual

NX PMSMRT1170B User manual

Popular Network Hardware manuals by other brands
