1. Introduction
The NVT2001GM (OM13315) and NVT2002DP (OM13318) demo boards are designed to
evaluate the NXP 1-channel or 2-channel bidirectional voltage level translators. The demo
boards interface between device I/Os operating at different voltage levels. Since the
NVT2001GM and NVT2002DP devices are passive devices, pull-up resistors may be
needed depending on the I/O interface type (totem pole or open-drain), difference in
translation voltage, and the translation direction (high to low voltage, low to high voltage,
or bidirectional). The NVT2001GM and NVT2002DP devices allow translations between
any voltages from 1.0 V to 5.5 V.
Please refer to NVT2001/NVT2002 data sheet (Ref. 1) and application note AN11127
(Ref. 2) for more detailed information.
a. NVT2001GM (OM13315) b. NVT2002DP (OM13318)
Fig 1. Bidirectional voltage level translators demo boards
019aac711
019aac712

UM10540 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2012. All rights reserved.
User manual Rev. 1 — 7 March 2012 4 of 7
NXP Semiconductors UM10540
NVT2001GM and NVT2002DP demo boards
2. Hardware description
2.1 Schematic
The demo boards contain footprints for the NVT2001GM and NVT2002DP devices, where
the jumpers, headers, and passive components are shared. The NVT2001GM and
NVT2002DP demo board schematic is shown in Figure 2. Pins 2 and 3 on J1 must be
shorted to enable the part. Pins 4 and 1 on J3 are power and GND for the low voltage
side. Pins 4 and 1 on J4 are power and GND for the high voltage side. All Bn I/O pins on
the right side have 10 kΩpull-up resistors to VREFB and all An I/O pins on the left side
have 10 kΩpull-up resistors to VREFA through jumper J2. A shunt needs to be installed
at J2 if VREFB −VREFA < 1 V. If VREFB −VREFA ≥1 V, then J2 should be open and
resistors R2 and R3 must be removed. If they are not removed, then a resistive path
exists between the A-side I/Os that can impact the efficiency and signal integrity of the
solution.

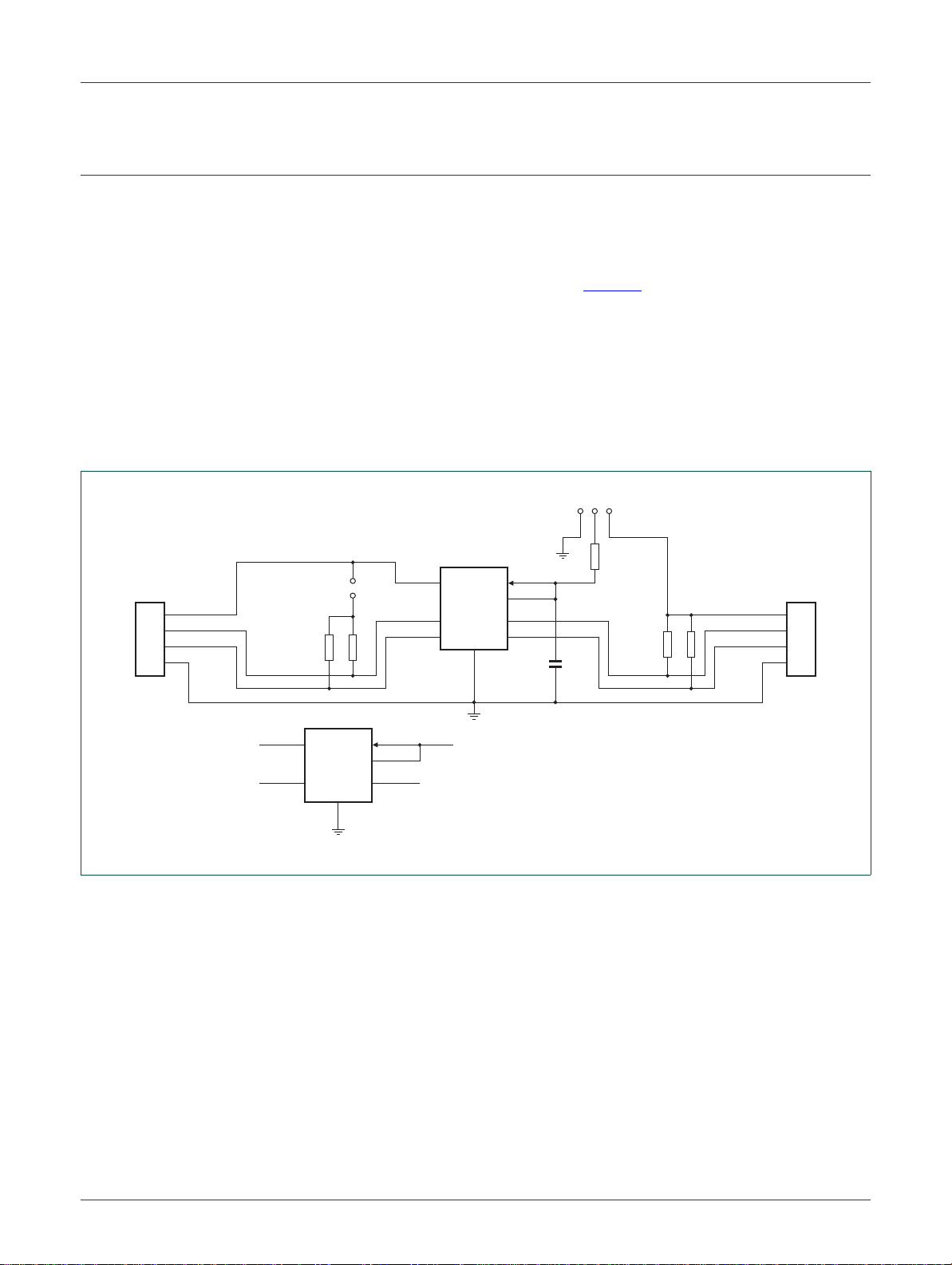

Fig 2. NVT2001GM and NVT2002DP demo board schematic
002aag940
EN
VREFB
B1
B2
8
7
6
5
VREFA
A1
A2
2
3
4
GND
1
NVT2002DP
R3 10 kΩ R2 10 kΩ
U1
A2
GND
2
1
A1
3
VREFA
4
low voltage
A-side
header 1 × 4
J3
21
J2
JP
Jumper:
ON: if VREFB − VREFA < 1 V
(populated 10 kΩ pull-up resistors)
OFF: if VREFB − VREFA ≥ 1 V
(do not populate 10 kΩ pull-up resistors)
EN_Vb
R1
200 kΩ
C1
0.1 μF
R5 10 kΩ R4 10 kΩ
B2
GND 2
1
B1 3
VREFB 4
J4
high voltage
B-side
2 3 1
J1
2-3: switch enable
1-2: switch disable
EN
VREFB
B1
6
5
4
VREFA
A1
2
3
GND
1
NVT2001GL
U2
EN_Vb
header 1
× 4

UM10540 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2012. All rights reserved.
User manual Rev. 1 — 7 March 2012 5 of 7
NXP Semiconductors UM10540
NVT2001GM and NVT2002DP demo boards
2.2 Jumper and header functions
The functions of the jumpers and headers on these demo boards are shown in Table 1.
3. Abbreviations
4. References
[1] NVT2001; NVT2002, “Bidirectional voltage level translator for open-drain and
push-pull applications” — Product data sheet; NXP Semiconductors;
www.nxp.com/documents/data_sheet/NVT2001_NVT2002.pdf
[2] AN11127, “Bidirectional voltage level translators NVT20xx, PCA9306,
GTL2000, GTL2002, GTL2003, GTL2010” — application note;
NXP Semiconductors; www.nxp.com/documents/application_note/AN11127.pdf
Table 1. Header descriptions for NVT2001GM (OM13315) and NVT2002DP (OM13318) demo boards
Jumper/header Function Notes
J1 (3-pin) Device switch enable or disable
control Short pins 2 and 3 to enable the NVT2001GM or NVT2002DP device (default). When pins 1 and 2 are shorted, the device is
disabled.
J2 (2-pin) Connects 10 kΩpull-up resistors to
VREFA on low voltage side for
VREFB −VREFA < 1 V
Short pins 1 and 2 to connect 10 kΩpull-up resistors to VREFA
on low voltage side (default).
Remark: Pins 1 and 2 must be open and 10 kΩpull-up resistors
must be removed when VREFB −VREFA ≥1V.
J3 (4-pin) Low voltage VREFA, GND and
An I/O signal connect pins Pin 1 = VREFA: low voltage power.
Pin 4 = GND: low voltage ground.
A1 is low voltage signal for NVT2001GM.
A[1:2] are low voltage signals for NVT2002DP.
J4 (4-pin) High voltage VREFB, GND and
Bn I/O signal connect pins Pin 1 = VREFB: high voltage power.
Pin 4 = GND: high voltage ground.
B1 is high voltage signal for NVT2001GM.
B[1:2] are high voltage signals for NVT2002DP.
